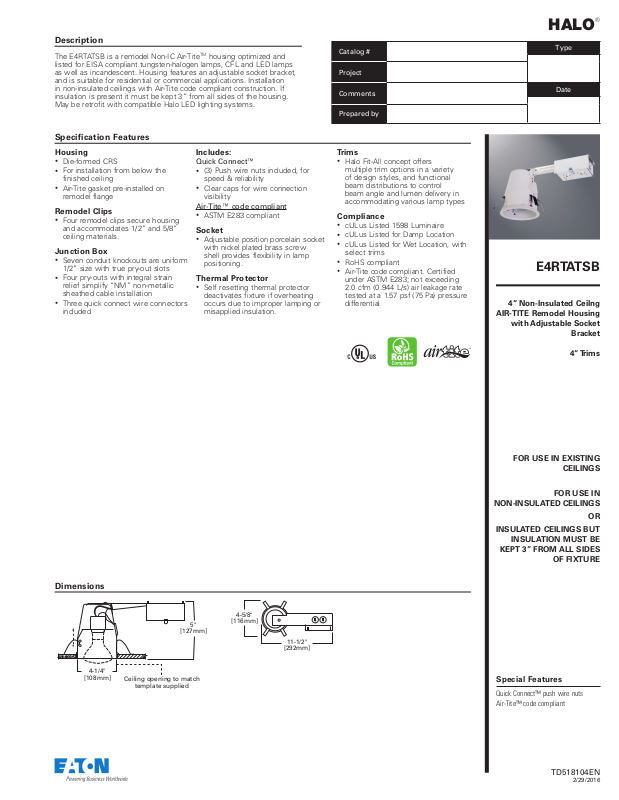

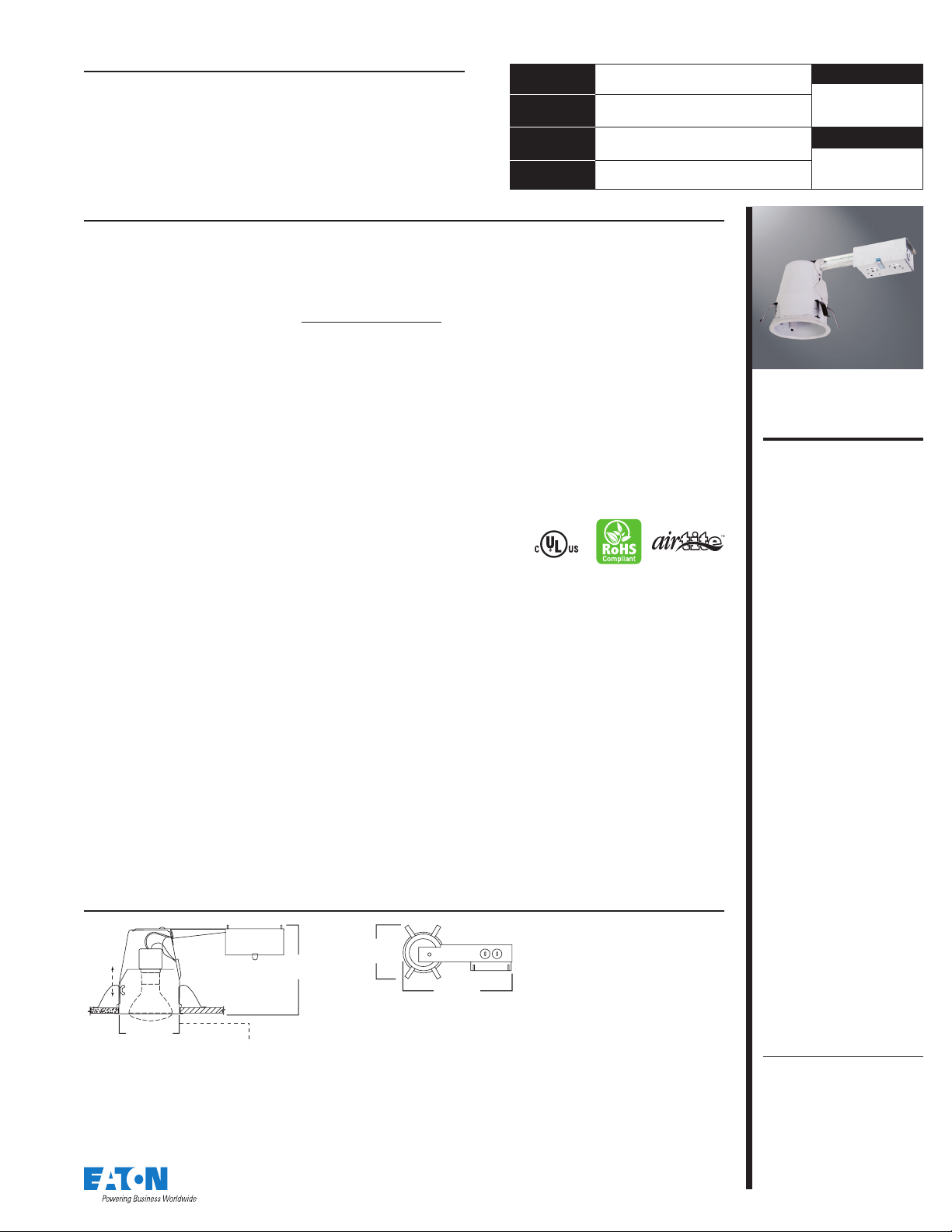

Page 1
Description
[127mm]
4-1/4"
[108mm]
5"
[127mm]
[292mm]
Ceiling opening to match
template supplied
The E4RTATSB is a remodel Non-IC Air-TiteTM housing optimized and
listed for EISA compliant tungsten-halogen lamps, CFL and LED lamps
as well as incandescent. Housing features an adjustable socket bracket,
and is suitable for residential or commercial applications. Installation
in non-insulated ceilings with Air-Tite code compliant construction. If
insulation is present it must be kept 3” from all sides of the housing.
May be retrofit with compatible Halo LED lighting systems.
Specification Features
Housing
•
Die-formed CRS
•
For installation from below the
finished ceiling
•
Air-Tite gasket pre-installed on
remodel flange
Remodel Clips
•
Four remodel clips secure housing
and accommodates 1/2” and 5/8”
ceiling materials.
Junction Box
•
Seven conduit knockouts are uniform
1/2” size with true pry-out slots
•
Four pry-outs with integral strain
relief simplify “NM” non-metallic
sheathed cable installation
•
Three quick connect wire connectors
included
Includes:
Quick Connect™
•
(3) Push wire nuts included, for
speed & reliability
•
Clear caps for wire connection
visibility
Air-Tite™ code compliant
•
ASTM E283 compliant
Socket
•
Adjustable position porcelain socket
with nickel plated brass screw
shell provides flexibility in lamp
positioning.
Thermal Protector
•
Self resetting thermal protector
deactivates fixture if overheating
occurs due to improper lamping or
misapplied insulation.
Catalog #
Project
Comments
Prepared by
Trims
•
Halo Fit-All concept offers
multiple trim options in a variety
of design styles, and functional
beam distributions to control
beam angle and lumen delivery in
accommodating various lamp types
Compliance
•
cULus Listed 1598 Luminaire
•
cULus Listed for Damp Location
•
cULus Listed for Wet Location, with
select trims
•
RoHS compliant
•
Air-Tite code compliant. Certified
under ASTM E283; not exceeding
2.0 cfm (0.944 L/s) air leakage rate
tested at a 1.57 psf (75 Pa) pressure
differential
HALO
Type
Date
E4RTATSB
4” Non-Insulated Ceilng
AIR-TITE Remodel Housing
with Adjustable Socket
Bracket
®
Dimensions
4-1/4"
[108mm]
5"
Ceiling opening to match
template supplied
4-5/8"
[116mm]
4” Trims
FOR USE IN EXISTING
CEILINGS
FOR USE IN
NON-INSULATED CEILINGS
OR
INSULATED CEILINGS BUT
INSULATION MUST BE
KEPT 3” FROM ALL SIDES
OF FIXTURE
11-1/2"
Special Features
Quick Connect™ push wire nuts
Air-Tite™ code compliant
TD518104EN
2/29/2016
Page 2

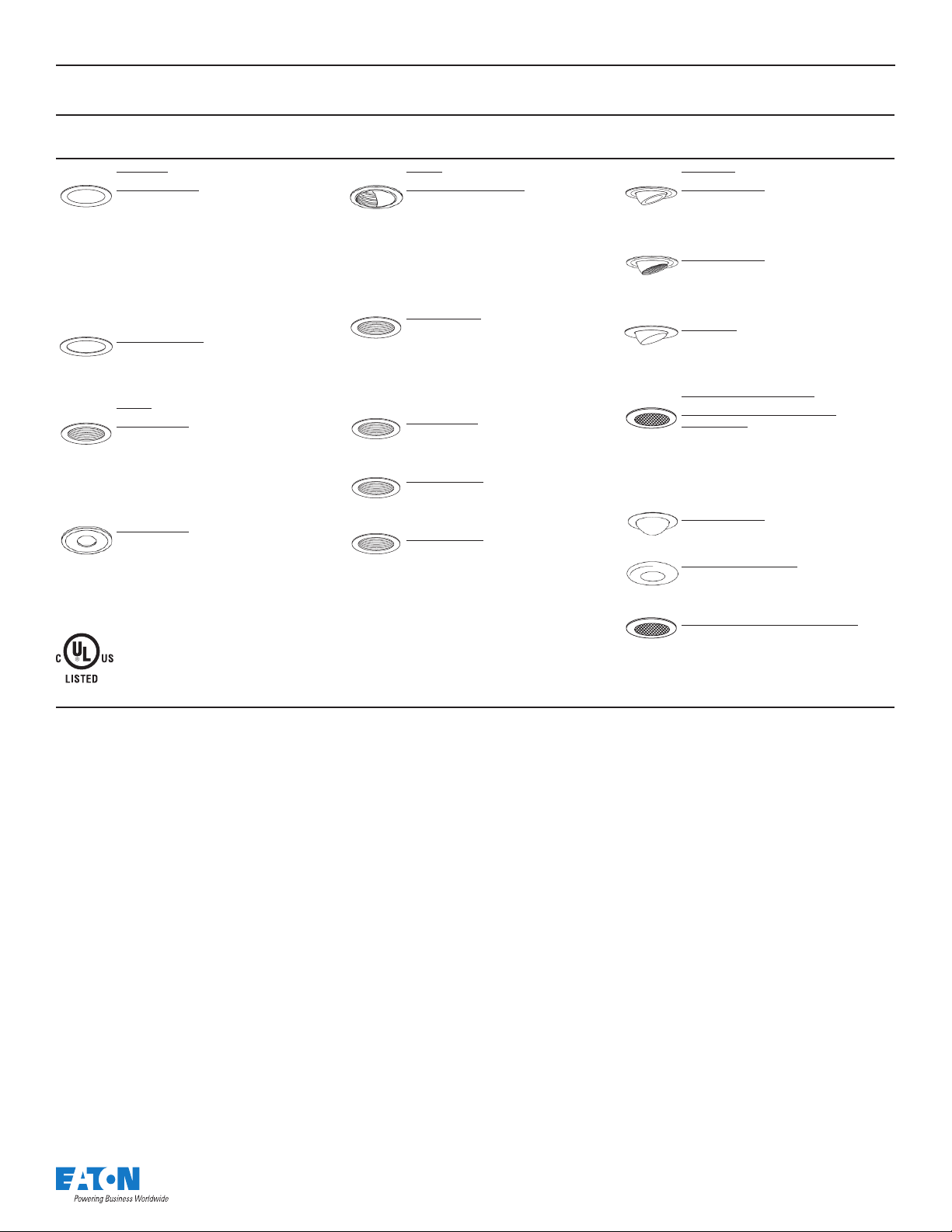

Ordering Information
Sample Number: E4RTATSB 4003SC
Order housing, trim and lamp (by others) separately for a complete luminaire.
Housing
E4RTATSB = 4” non-insulated ceiling AIR-TITE small aperture remodel housing with adjustable socket bracket
Trims
Reflectors
999 Reflector Cone
OD: 5-1/16” [129mm]
999P=Specular Clear, White Trim Ring
999RG=Residential Gold, White Trim Ring
999W=White Reflector, White Trim Ring
999H=Haze Reflector, White Trim Ring
999MB=Specular Black Reflector,
White Trim Ring
999SN=Satin Nickel Reflector with Satin
Nickel Trim Ring
999TBZ=Tuscan Bronze Reflector with
Tuscan Bronze Trim Ring
4003 Reflector Cone
OD: 4-3/4” [120mm]
4003SC=Specular Clear Reflector, White Trim Ring
Baffles
953 Metal Baffle
OD: 5-1/16” [129mm]
953P=Black Baffle with White Trim Ring
953W=White Baffle with White Trim Ring
953SN=Satin Nickel Baffle with Satin Nickel
Trim Ring
953TBZ=Tuscan Bronze Baffle with Tuscan
Bronze Trim Ring
990 Pinhole Trim
OD: 5-1/16” [129mm]
990P=White Die Cast Trim
990AC=Antique Copper Die Cast Trim
990SN=Satin Nickel Die Cast Trim
990TBZ=Tuscan Bronze Die Cast Trim
Baffles
992 Wall Wash with Baffle
OD: 5-1/16” [129mm]
992P= White Scoop and Trim Ring, Black Baffle
992AC=Antique Copper, Scoop and Trim Ring,
Black Baffle
992W=White Scoop and Trim Ring, White Baffle
953SN=Satin Nickel Scoop and Trim Ring,
Black Baffle
953TBZ=Tuscan Bronze Scoop and Trim Ring,
Black Baffle
993 Coilex Baffle
OD: 5-1/16” [129mm]
993P=Black Baffle with White Trim Ring
993W=White Baffle with White Trim Ring
993SN=Black Baffle with Satin Nickel
Trim Ring
993TBZ=Black baffle with Tuscan
Bronze Trim Ring
4001 Step Baffle
OD: 4-3/4” [120mm]
4001BB=Black Plastic Baffle, White Trim Ring
4001WB=White Plastic Baffle, White Trim Ring
4010 Metal Baffle
OD: 5” [127mm]
4010BB=Black Metal Baffle, White Trim Ring
4010WB=White Metal Baffle, White Trim Ring
4013 Metal Baffle
OD: 5” [127mm]
4013BB=Black Metal Baffle, White Trim Ring
4013WB=White Metal Baffle, White Trim Ring
E4RTATSB
Adjustable
996 Eyeball 15° Tilt
OD: 5-1/16” [129mm]
996P=White Eyeball
996SN=Satin Nickel Eyeball
996TBZ=Tuscan Bronze Eyeball
998 Eyeball 30° Tilt
OD: 5-1/16” [129mm]
998P=White Eyeball
998SN=Satin Nickel Eyeball
998TBZ=Tuscan Bronze Eyeball
4002 Eyeball
OD: 4-3/4” [120mm]
4002WH=White Eyeball
Lens / Wet Location Listed
951 Prismatic Glass Lens with Full
Cone Reflector
951PS=Full Reflector and Glass Lens,
White Trim
951SNS=Full Reflector and Glass Lens,
Satin Nickel Trim
951TBZS=Full Reflector and Glass Lens,
Tuscan Bronze Trim
952 Cone Reflector
952PS=White Trim Ring, Dome Lens
Shower Light
945 Metropolitan Ice Light
OD: 5-5/16” [135mm]
945=Clear Frosted
945Blue=Blue Frosted
4055 Prismatic Glass Lens Shower Light
OD: 4-3/4” [120mm]
4055WH=Shower Light, White Trim Ring,
Prismatic Flat Glass Lens
For use in Halo listed housings.
Eaton
1121 Highway 74 South
Peachtree City, GA 30269
P: 770-486-4800
www.eaton.com/lighting
Specifications and
dimensions subject to
change without notice.
