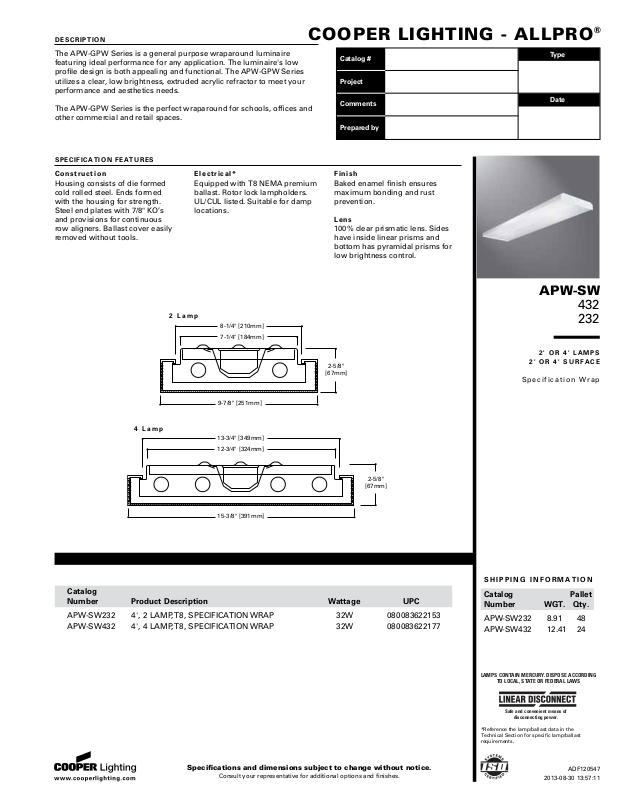

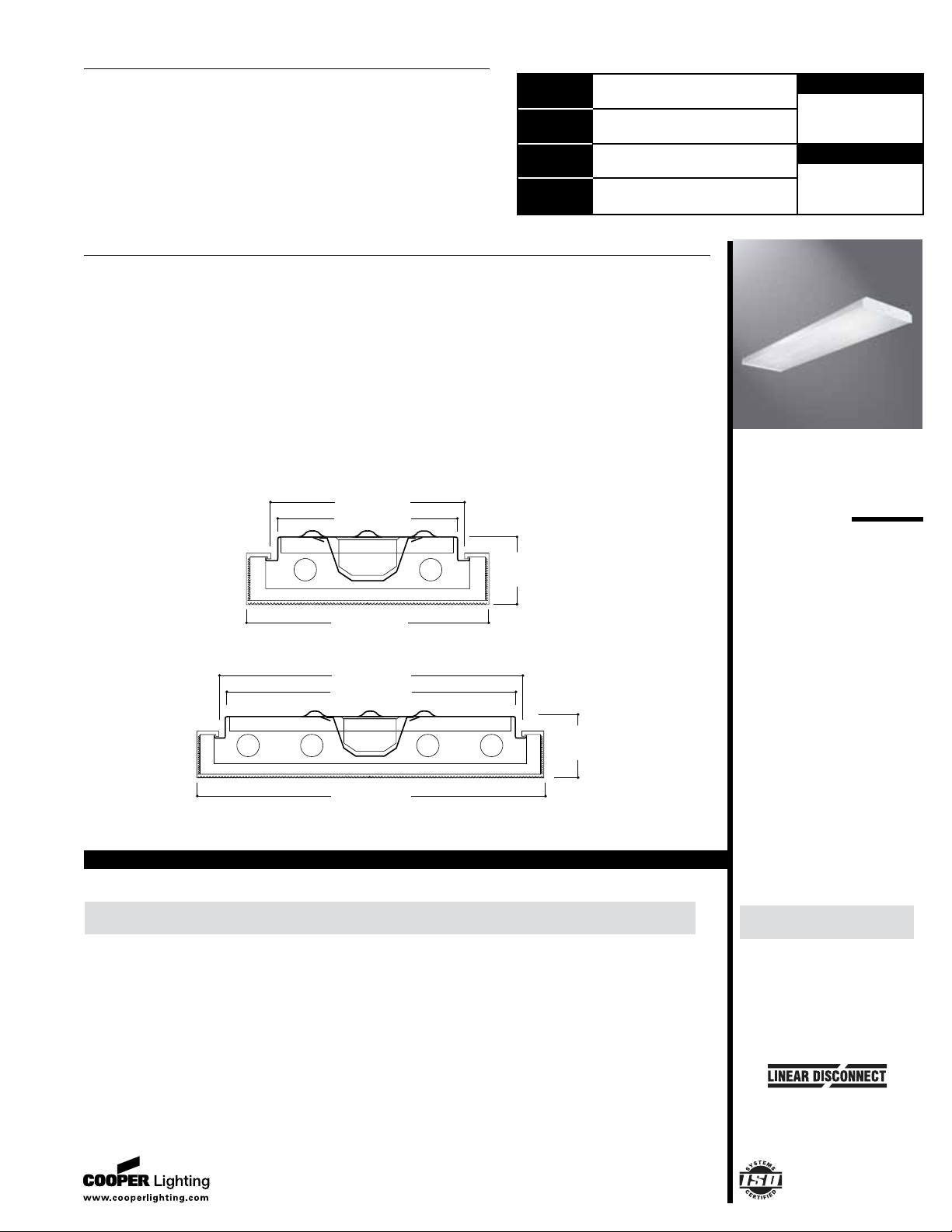

Page 1
DESCRIPTION
2 Lamp
LAMPS CONTAIN MERCURY. DISPOSE ACCORDING
SHIPPING INFORMATION
4 Lamp
The APW-GPW Series is a general purpose wraparound luminaire
featuring ideal performance for any application. The luminaire's low
profile design is both appealing and functional. The APW-GPW Series
utilizes a clear, low brightness, extruded acrylic refractor to meet your
performance and aesthetics needs.
The APW-GPW Series is the perfect wraparound for schools, offices and
other commercial and retail spaces.
SPECIFICATION FEATURES
Construction
Housing consists of die formed
cold rolled steel. Ends formed
with the housing for strength.
Steel end plates with 7/8" KO’s
Electrical*
Equipped with T8 NEMA premium
ballast. Rotor lock lampholders.
UL/CUL listed. Suitable for damp
locations.
and provisions for continuous
row aligners. Ballast cover easily
removed without tools.
8-1/4" [210mm]
7-1/4" [184mm]
COOPER LIGHTING - ALLPRO
Catalog #
Project
Comments
Prepared by
Finish
Baked enamel finish ensures
maximum bonding and rust
prevention.
Lens
100% clear prismatic lens. Sides
have inside linear prisms and
bottom has pyramidal prisms for
low brightness control.
2-5/8"
[67mm]
Type
Date
APW-SW
432
232
2' OR 4' LAMPS
2' OR 4' SURFACE
Specification Wrap
®
9-7/8" [251mm]
13-3/4" [349mm]
12-3/4" [324mm]
2-5/8"
[67mm]
15-3/8" [391mm]
Catalog
CPUegattaWnoitpircseD tcudorPrebmuN
APW-SW232 4', 2 LAMP, T8, SPECIFICATION WRAP 32W 080083622153
APW-SW432 4', 4 LAMP, T8, SPECIFICATION WRAP32W 080083622177
Catalog Pallet
Number WGT. Qty.
APW-SW232 8.91 48
APW-SW432 12.41 24
TO LOCAL, STATE OR FEDERAL LAWS
Specifications and dimensions subject to change without notice.
Consult your representative for additional options and finishes.
Safe and convenient means of
disconnecting power.
*Reference the lamp/ballast data in the
Technical Section for specific lamp/ballast
requirements.
ADF120547
2013-08-30 13:57:11

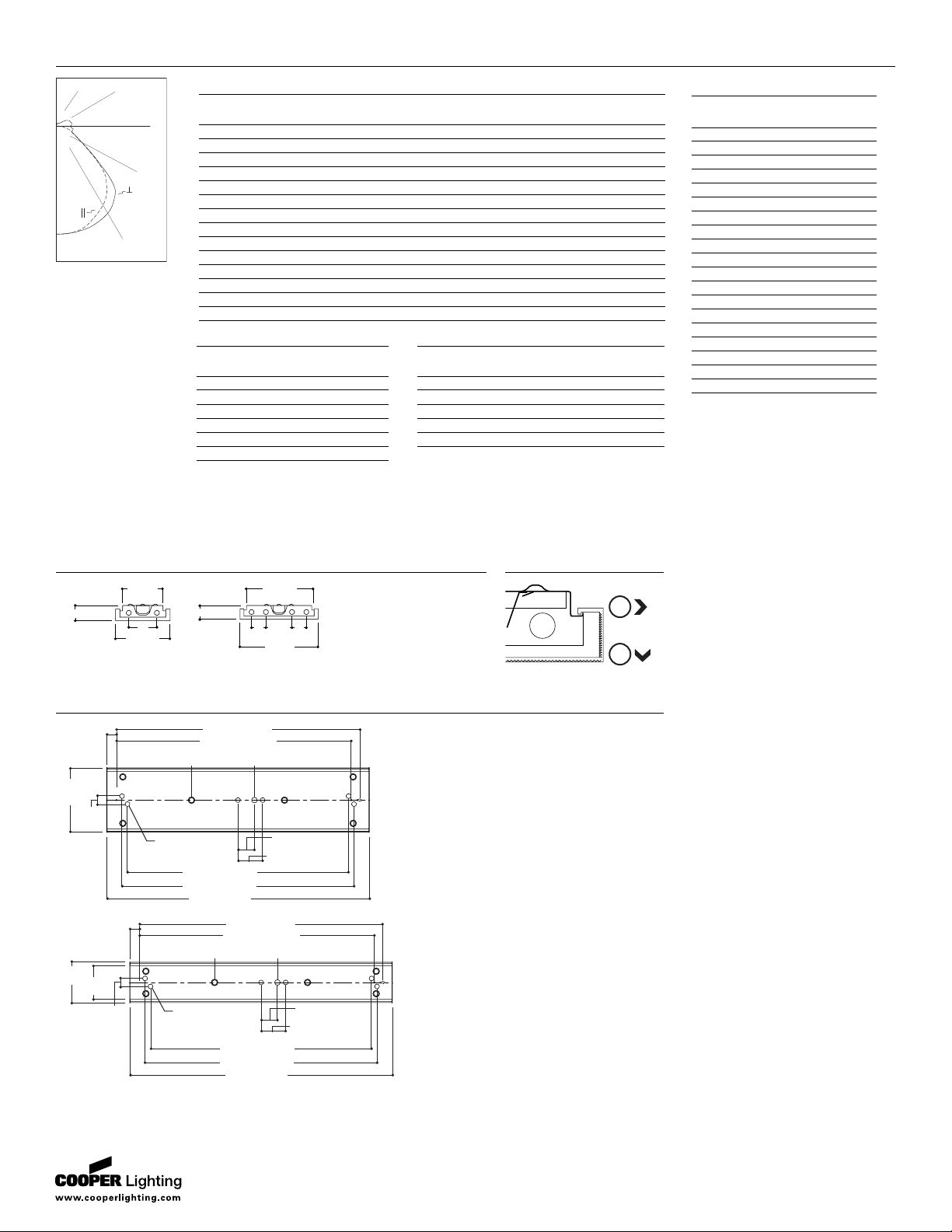

Page 2
43
51
71
PHOTOMETRICS
44-1/2" [1131mm]
APW-SW
APW-SW432
Energy Saving
Ballast
F32T8/35K Lamps
2850 Lumens
Spacing criterion:
(II) 1.3 x mounting
height, (
⊥) 1.4 x
mounting height
Efficiency 76.3%
Test Report:
WS432A.IES
LER = FW-70
Yearly Cost of 1000
lumens, 3000 hrs at
.08 KWH = $3.43
Coefficients of Utilization
Effective floor cavity reflectance 20%
rc 80% 70% 50% 30% 10% 0%
rw 70 50 30 10 70 50 30 10 50 30 10 50 30 10 50 30 10 0
RCR
89 89 89 89 86 86 86 86 80 80 80 74 74 74 69 69 69 67
0
81 78 75 72 79 76 73 70 71 68 67 66 64 63 62 61 59 57
1
75 69 65 61 72 67 63 59 63 60 57 59 56 54 56 53 51 49
2
69 62 56 52 67 60 55 51 57 52 49 53 50 47 50 47 45 43
3
64 55 49 45 61 54 48 44 51 46 42 48 44 41 45 42 39 38
4
59 50 43 39 56 48 42 38 46 41 37 43 39 36 41 37 34 33
5
54 45 38 34 52 43 38 33 41 36 32 39 35 31 37 33 30 29
6
50 40 34 29 48 39 33 29 37 32 28 35 31 27 34 30 27 25
7
46 36 30 26 44 35 29 25 33 28 25 32 27 24 30 26 23 22
8
42 32 26 22 41 32 26 22 30 25 21 29 24 21 27 23 20 19
9
39 29 24 20 38 29 23 19 27 22 19 26 22 18 25 21 18 17
10
Zonal Lumen Summary
Zone Lumens %Lamp%Fixture
0-30
0-40
0-60
0-90
90-180
0-180
2328 20.4 26.8
3875 34.0 44.6
6359 55.8 73.1
7651 67.1 88.0
1046 9.2 12.0
869776.3 100.0
Typical V CP Percentages
Room Size (Ft.) 8.5’ 10.0’ 8.5’10.0’
20 x 20
30 x 30
30 x 60
60 x 30
60 x 60
Height Along Height Across
60 65 61 66
53 58 52 57
44 47 38 43
55 59 54 59
45 48 39 44
Candela
Angle Along II 45° Across⊥
2909 2909 2909
0
2864 2879 2896
10
2718 2788 2851
20
2474 2612 2713
30
2111 2318 2455
40
1368 1565 1403
50
714800 758
60
413488 443
70
230 296 481
80
90
100
110
120
130
140
150
160
170
180
24 152 369
27 249 438
34 279 397
40 21
43 13
44 10
46 83 10 7
43 59 83
37 41 46
33 33 33
11
57
18
LAMP CONFIGURATIONS
7-1/4"
2-5/8" [67mm]
X=5-1/4"
[133mm]
[184mm]
9-7/8"
[251mm]
2-5/8" [67mm]
X
MOUNTING DATA
1-13/16"
[46mm]
4'
12"
[305mm]
[29mm]
4'
7-5/8"
[194mm]
1-1/8"
1-13/16"
[46mm]
6"
[152mm]
[29mm]
1-1/8"
Ceiling Stand-Off
Embossments
7/8" [22mm] K.O. (5)
40-7/16" [1027mm]
42-7/16" [1078mm]
7/8" [22mm] K.O. (5)
X=2-3/4"
[70mm]
42-15/16" [1090mm]
48" [1219mm]
44-1/2" [1131mm]
42-15/16" [1090mm]
Ceiling Stand-Off
Embossments
40-7/16" [1027mm]
42-7/16" [1078mm]
48" [1219mm]
12-3/4"
[324mm]
5-1/4"
X
X
[133mm]
15-3/8"
[391mm]
Ground Screw Bump
3"
[76mm]
4-1/2"
[114mm]
Ground Screw Bump
3"
[76mm]
4-1/2"
[114mm]
LENS REMOVAL
1
2
For complete product data, reference the Fluorescent Specification binder. Specifications & dimensions subject to change without notice. Consult your Cooper Lighting Representati ve for availability and ordering information.
Specifications and dimensions subject to change without notice.
Customer First Center 1121 Highway 74 South Peachtree City, GA 30269 770.486.4800 FAX 770 468.4801
ADF120547
2013-08-30 13:57:11
