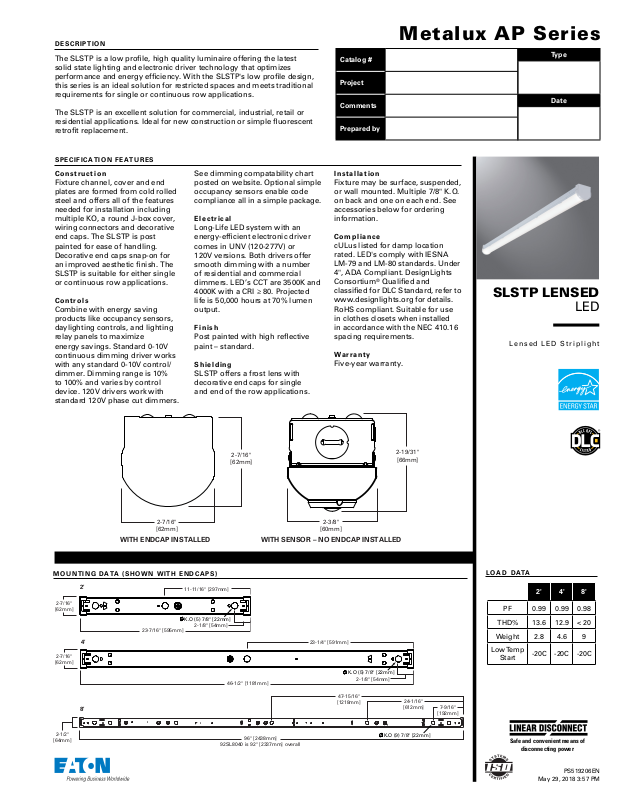

Cooper Lighting LLC CPK10018 Specifications

DESCRIPTION

WITH SENSOR – NO ENDCAP INSTALLED

2-19/31"

mm]

WITH ENDCAP INSTALLED

Safe and convenient means of

[64mm]

92SL8040 is 92" [2337mm] overall

4'

[62mm]

46-1/2" [1181mm]

2'

[62mm]

23-7/16" [595mm]

The SLSTP is a low profile, high quality luminaire offering the latest
solid state lighting and electronic driver technology that optimizes
performance and energy efficiency. With the SLSTP's low profile design,
this series is an ideal solution for restricted spaces and meets traditional
requirements for single or continuous row applications.

The SLSTP is an excellent solution for commercial, industrial, retail or
residential applications. Ideal for new construction or simple fluorescent
retrofit replacement.

SPECIFICATION FEATURES

Construction

Fixture channel, cover and end
plates are formed from cold rolled
steel and offers all of the features

See dimming compatability chart
posted on website. Optional simple
occupancy sensors enable code

compliance all in a simple package.
needed for installation including
multiple KO, a round J-box cover,
wiring connectors and decorative
end caps. The SLSTP is post
painted for ease of handling.
Decorative end caps snap-on for
an improved aesthetic finish. The
SLSTP is suitable for either single
or continuous row applications.

Electrical

Long-Life LED system with an

energy-efficient electronic driver

comes in UNV (120-277V) or

120V versions. Both drivers offer

smooth dimming with a number

of residential and commercial

dimmers. LED’s CCT are 3500K and

4000K with a CRI ≥ 80. Projected

Controls

Combine with energy saving

life is 50,000 hours at 70% lumen

output.
products like occupancy sensors,
daylighting controls, and lighting
relay panels to maximize
energy savings. Standard 0-10V

Finish

Post painted with high reflective

paint – standard.
continuous dimming driver works
with any standard 0-10V control/
dimmer. Dimming range is 10%
to 100% and varies by control
device. 120V drivers work with

Shielding

SLSTP offers a frost lens with

decorative end caps for single

and end of the row applications.
standard 120V phase cut dimmers.

Metalux AP Series

Catalog #

Project

Comments

Prepared by

Installation

Fixture may be surface, suspended,
or wall mounted. Multiple 7/8" K.O.
on back and one on each end. See
accessories below for ordering
information.

Compliance

cULus listed for damp location
rated. LED's comply with IESNA
LM-79 and LM-80 standards. Under
4", ADA Compliant. DesignLights
Consortium
classified for DLC Standard, refer to
www.designlights.org for details.
RoHS compliant. Suitable for use
in clothes closets when installed
in accordance with the NEC 410.16
spacing requirements.

Warranty

Five-year warranty.

®

Qualified and

Type

Date

SLSTP LENSED

LED

Lensed LED Striplight

MOUNTING DATA (SHOWN WITH ENDCAPS)

2-7/16"

2-7/16"

8'

2-1/2"

2-7/16"

[62mm]

2-7/16"

[62mm]

11-11/16" [297mm]

K.O (5) 7/8" [22mm]

2-1/8" [54mm]

96" [2438mm]

2-3/8"

[60mm]

23-1/4" [591mm]

47-15/16"

[1218mm]

K.O (5) 7/8" [22mm]

2-1/8" [54mm]

K.O (9) 7/8" [22mm]

[66

[612mm]

24-1/16"

7-9/16"

[192mm]

LOAD DATA

2' 4' 8'

PF 0.99 0.99 0.98

THD% 13.6 12.9 < 20

Weight 2.8 4.6 9

Low Temp

Start

-20C -20C -20C

disconnecting power

May 29, 2018 3:57 PM

PS519206EN

PHOTOMETRICS

0˚ 30˚

˚

˚

˚

˚

20˚

˚

˚

10˚

0˚ 30˚

˚

˚

˚

˚

20˚

˚

˚

10˚

0˚ 30˚

˚

˚

˚

˚

20˚

˚

˚

10˚

0˚ 30˚

˚

˚

˚

˚

20˚

˚

˚

10˚

4SLSTP2040DD-

90

UNV

80

167

333

500

666

Electronic Driver

70

Linear LED 4000K

Spacing criterion:

60

(II) 1.26 x mounting

50

height, (⊥) 1.29 x
mounting height

40

Lumens: 2410

Input Watts: 21.3W

Efficacy:113.1 lm/W

Test Report:
4SLSTP2040DD­UNV.IES

Coefficients of Utilization

Effective floor cavity reflectance 20%

rc 80% 70% 50% 30% 10% 0%

rw 70 50 30 10 70 50 30 10 50 30 10 50 30 10 50 30 10 0

RCR

117 117 117 117 113 113 113 113 106 106 106 100 100 100 94 94 94 91

0

105 99 94 89 101 96 91 87 90 86 83 84 81 78 79 77 75 72

1

94 85 78 71 91 82 76 70 77 72 67 73 68 64 68 64 61 58

2

86 74 65 58 82 72 64 57 68 61 55 64 58 53 60 55 51 48

3

78 65 56 49 75 63 55 48 60 52 46 56 50 45 53 48 43 41

4

72 58 49 42 69 56 48 41 53 46 40 50 44 39 48 42 37 35

5

66 52 43 36 63 51 42 36 48 40 35 45 39 34 43 37 33 30

6

61 47 38 32 59 46 37 31 44 36 31 41 35 30 39 33 29 27

7

57 43 34 28 55 42 34 28 40 32 27 38 31 26 36 30 26 24

8

53 39 31 25 51 38 30 25 37 29 24 35 28 24 33 27 23 21

9

50 36 28 23 48 35 28 23 34 27 22 32 26 22 31 25 21 19

10

Zonal Lumen Summary

Zone Lumens % Fixture
0-30

518 21.5

0-40

854 35.4

0-60

1551 64.3

2193 91.0

0-90

2410 100.0

0-180

Luminance Data

Angle
in Deg

45
55
65
75
85

Candlepower

Angle Along II 45° Across ⊥

0

661 661 661

5

663 664 655

10

655 657 648
639 644 637

15

618 627 620

20

592 603 598

25

563 576 572

30

528 544 544

35

488 506 513

40

445 467 481

45

399 426 446

50

349 383 411

55

297 340 374

60

241 296 338

65

180 253 302

70

121 209 266

75

65 172 233

80

21 140 199

85

0 111 169

90

Average

0-Deg

cd/sm

Average

45-Deg

cd/sm

9755 6140 5491
9272 5254 4765
8452 4384 4107
6532 3478 3507
2635 2754 2966

Average

90-Deg

cd/sm

SLSTP LENSED

4SLSTP4040DD-

90

UNV

80

329

657

986

1314

Electronic Driver

70

Linear LED 4000K

Spacing criterion:

60

(II) 1.27 x mounting

50

height, (⊥) 1.29 x
mounting height

40

Lumens: 4760

Input Watts: 43.5W

Efficacy: 109.4 lm/W

Test Report:
4SLSTP4040DD­UNV.IES

Coefficients of Utilization

Effective floor cavity reflectance 20%

rc 80% 70% 50% 30% 10% 0%

rw 70 50 30 10 70 50 30 10 50 30 10 50 30 10 50 30 10 0

RCR

117 117 117 117 113 113 113 113 106 106 106 100 100 100 94 94 94 91

0

105 99 94 89 101 96 91 87 90 86 83 84 81 78 79 77 74 72

1

94 85 78 71 91 82 75 70 77 72 67 73 68 64 68 64 61 58

2

86 74 65 58 82 72 64 57 67 61 55 63 58 53 60 55 51 48

3

78 65 56 49 75 63 55 48 60 52 46 56 50 45 53 48 43 41

4

72 58 49 42 69 56 48 41 53 46 40 50 44 39 47 42 37 35

5

66 52 43 36 63 51 42 36 48 40 35 45 39 34 43 37 33 30

6

61 47 38 32 59 46 37 31 43 36 30 41 35 30 39 33 29 27

7

57 43 34 28 55 42 34 28 40 32 27 38 31 26 36 30 26 24

8

53 39 31 25 51 38 30 25 37 29 24 35 28 24 33 27 23 21

9

50 36 28 23 48 35 28 23 34 27 22 32 26 22 31 25 21 19

10

Zonal Lumen Summary

Zone Lumens % Fixture
0-30

1021 21.5

0-40

1682 35.3

0-60

3053 64.1

4328 90.9

0-90

4760 100.0

0-180

Luminance Data

Angle
in Deg

45
55
65
75
85

Candlepower

Angle Along II 45° Across ⊥

0

1307 1307 1307

5

1316 1304 1297

10

1300 1289 1282
1271 1264 1258

15

1229 1229 1224

20

1178 1183 1179

25

1117 112 8 112 8

30

1048 1062 1072

35

969 991 1011

40

880 913 947

45

789 833 882

50

689 748 812

55

586 666 741

60

475 581 670

65

358 497 60 0

70

240 417 530

75

128 344 464

80

41 280 401

85

1 222 343

90

Average

0-Deg

cd/sm

Average

45-Deg

cd/sm

20094 12212 10812
19395 10476 9413
18147 8821 8140
14972 7149 6987
7595 5711 5976

Average

90-Deg

cd/sm

8SLSTP8040DD-

90

UNV

80

558

1115

1673

2230

Electronic Driver

70

Linear LED 4000K

Spacing criterion:

60

(II) 1.28 x mounting

50

height, (⊥) 1.30 x
mounting height

40

Lumens: 8176

Input Watts: 71W

Efficacy:115 lm/W

Test Report:
8SLSTP8040DD­UNV.IES

Coefficients of Utilization

Effective floor cavity reflectance 20%

rc 80% 70% 50% 30% 10% 0%

rw 70 50 30 10 70 50 30 10 50 30 10 50 30 10 50 30 10 0

RCR

117 117 117 117 113 113 113 113 106 106 106 99 99 99 93 93 93 90

0

104 99 94 89 100 95 91 87 89 85 82 83 80 78 78 76 74 71

1

94 85 77 71 90 82 75 69 77 71 66 72 67 63 67 64 60 57

2

85 74 65 58 82 71 63 57 67 60 55 63 57 52 59 54 50 47

3

78 65 56 49 75 63 54 48 59 52 46 56 49 44 52 47 43 40

4

71 58 48 42 68 56 47 41 53 45 39 50 43 38 47 41 37 34

5

66 52 43 36 63 50 42 35 48 40 34 45 38 33 42 37 32 30

6

61 47 38 32 58 46 37 31 43 36 30 41 34 29 39 33 28 26

7

57 43 34 28 54 42 33 28 39 32 27 37 31 26 35 30 25 23

8

53 39 31 25 51 38 30 25 36 29 24 34 28 23 33 27 23 21

9

49 36 28 23 48 35 28 22 33 27 22 32 26 21 30 25 21 19

10

Zonal Lumen Summary

Zone Lumens % Fixture
0-30

0-40

0-60

0-90

0-180

1724 21.1

2842 34.8

5168 63.2

7359 90.0

8176 100.0

Luminance Data

Angle
in Deg

45
55
65
75
85

Eaton

1121 Highway 74 South
Peachtree City, GA 30269
P: 770-486-4800
www.eaton.com/lighting

Candlepower

Angle Along II 45° Across ⊥

0
5
10
15
20
25
30
35
40
45
50
55
60
65
70
75
80
85
90

Average

0-Deg

cd/sm

16652 10222 9228
15921 8802 8055
14631 7411 7002
11606 6055 6076
5307 4909 5268

2200 2200 2200
2226 2188 2174
2200 2164 2151
2151 2123 2115
2082 2064 2060
1995 1989 1991
1892 1898 1912
1770 1789 1819
1638 1673 1722
1490 1543 1618
1330 1407 1507
1166 1271 1391
987 1129 1271
801 990 1154
604 850 1038
401 718 923
219 598 813
71 491 708
4 389 606

Average

45-Deg

cd/sm

Specifications and
dimensions subject to
change without notice.

Average

90-Deg

cd/sm

8SLSTP11040DD-

90

UNV

80

742

1485

2227

2970

Electronic Driver

70

Linear LED 4000K

Spacing criterion:

60

(II) 1.26 x mounting

50

height, (⊥) 1.28 x
mounting height

40

Lumens: 10476

Input Watts: 83.4W

Efficacy: 126 lm/W

Test Report:
8SLSTP11040DD­UNV.IES

Coefficients of Utilization

Effective floor cavity reflectance 20%

rc 80% 70% 50% 30% 10% 0%

rw 70 50 30 10 70 50 30 10 50 30 10 50 30 10 50 30 10 0

RCR

117 117 117 117 113 113 113 113 106 106 106 100 100 100 94 94 94 91

0

105 99 94 89 101 96 91 87 90 86 83 84 81 79 79 77 75 72

1

94 85 78 71 91 83 76 70 77 72 67 73 68 64 68 65 61 58

2

86 74 66 59 82 72 64 57 68 61 55 64 58 53 60 55 51 48

3

78 66 56 49 75 64 55 48 60 52 47 56 50 45 53 48 43 41

4

72 58 49 42 69 57 48 41 53 46 40 51 44 39 48 42 38 35

5

66 52 43 36 64 51 42 36 48 41 35 46 39 34 43 37 33 31

6

61 47 38 32 59 46 38 32 44 36 31 41 35 30 39 34 29 27

7

57 43 34 28 55 42 34 28 40 33 27 38 31 27 36 30 26 24

8

53 40 31 26 51 39 31 25 37 30 25 35 29 24 33 28 23 21

9

50 36 28 23 48 36 28 23 34 27 22 32 26 22 31 25 21 19

10

Zonal Lumen Summary

Zone Lumens % Fixture
0-30

2284 21.8

0-40

3749 35.8

0-60

6761 64.5

9534 91.0

0-90

10476 100.0

0-180

Luminance Data

Angle
in Deg

45
55
65
75
85

Candlepower

Angle Along II 45° Across ⊥

0

2941 2941 2941

5

2957 2913 2925

10

2913 2876 2888
2838 2819 2934

15

2740 2736 2750

20

2612 2626 2643

25

2470 2499 2523

30

2302 2349 2391

35

2123 2186 2255

40

1922 2008 2101

45

1713 1825 1949

50

1494 1636 1792

55

1265 1451 1628

60

1021 1263 1464

65

769 1076 1309

70

514 905 1155

75

272 747 1011

80

83 609 875

85

2 485 747

90

Average

0-Deg

cd/sm

Average

45-Deg

cd/sm

21477 13298 11981
20401 11328 10379
18652 9456 8882
14847 7637 7605
6211 6092 6513

May 29, 2018 3:57 PM

Average

PS519206EN

90-Deg

cd/sm

SLSTP LENSED

ACCESSORIES

(Order Separately)

AYC-CHAIN/SET=36" Hanging Chain Set w/V Hooks
TOGGLE-10=10' Suspension Aircraft Cable Kit (specify if another length needed)
SCF-12-B
2SLSTPLNS
4SLSTPLNS
8SLSTPLNS

4.5 m

SENSOR COVERAGE PATTERN TOP VIEW

3 m

4.5 m

(%) Light Output

Output

SENSOR COVERAGE PATTERN SIDE VIEW LIGHT OUTPUT VERSUS TIME

ORDERING INFORMATION

Input Current (A)

Catalog # UPC

Master Carton

(2 units) UPC

Length CCT (K)

Delivered

Lumens

Watts

Efficacy

(lm/W)

Controls 120V 277V

2SLSTP1040DD-120V 80083705771 80083713363 2 4000 1250 11 11 3 Phase Cut Dim to 10% 0.09 –

2SLSTP2040DD-120V 80083705788 80083713370 2 4000 2510 23 111 Phase Cut Dim to 10% 0.19 –

4SLSTP2040DD-120V 80083705795 80083713387 4 4000 2579 23 114 Phase Cut Dim to 10% 0.19 –

4SLSTP4040DD-120V 80 083705801 80083713394 4 4000 4474 40 112 Phase Cut Dim to 10% 0.33 –

2SLSTP2035DD-UNV 80083814763 80 083814770 2 3500 2498 23 110 0-10V Dim to 10% 0.19 0.08

2SLSTP2040DD-UNV 80083807826 80083807833 2 4000 2510 23 111 0-10V Dim to 10% 0.19 0.08

4SLSTP2040DD-UNV 80083705818 80083713400 4 4000 2410 21 113 0-10V Dim to 10% 0.18 0.08

4SLSTP4035DD-UNV 80083807765 80083807772 4 3500 4695 41 115 0-10V Dim to 10% 0.34 0.15

4SLSTP4040DD-UNV 80083705825 80083713417 4 4000 4760 44 109 0-10V Dim to 10% 0.36 0.16

4SLSTP5535DD-UNV 80083807802 80 083807819 4 3500 5620 49 114 0-10V Dim to 10% 0.41 0.18

4SLSTP5540DD-UNV 80083807789 80083807796 4 4000 5845 49 119 0-10V Dim to 10% 0.41 0.18

8SLSTP11035DD-UNV 80083807703 80083807710 8 3500 10322 83 124 0-10V Dim to 10% 0.7 0.3

8SLSTP11040DD-UNV 80083807680 80083807697 8 4000 10464 83 125 0-10V Dim to 10% 0.7 0.3

8SLSTP8035DD-UNV 80083804368 80083804375 8 3500 8064 71 114 0-10V Dim to 10% 0.59 0.26

8SLSTP8040DD-UNV 80083814787 80 083814794 8 4000 8176 71 115 0-10V Dim to 10% 0.59 0.26

4SLSTP4040CS 80083807741 80083807758 4 4000 4835 41 118

8SLSTP8040CS 80083807727 80083807734 8 4000 8304 72 115

0-10V Dim to 10% and

simple occupancy sensor

0-10V Dim to 10% and

simple occupancy sensor

0.34 0.15

0.6 0.26

8SL8040 80083807925 80083807932 8 4000 8 176 71 115 0-10V Dim to 10% 0.62 0.27

92SL8040 80083807956 80083802876 92" 4000 7866 74 106 0-10V Dim to 10% 0.62 0.27

ACCESSORIES (ORDER SEPARATELY) NOT FOR USE WITH 92SL8040

ROW ALIGNER 8' - 8' ROW ALIGNER 8' - 4'

=12" Fixed Stem Set (specify if another length needed)

=2 ft. Replacement Lens
=4 ft. Replacement Lens
=8 ft. Replacement Lens

SLSTPROW88
Unit UPC# 080083815647
Master Carton UPC# 080083815654
(50 per Master)

SLSTPROW842
Unit UPC# 080083815661
Master Carton UPC# 080083815678
(100 per Master)

SENSOR COVERAGE ("CS" SKU DESIGNATION)

R

3 m R

Large motion

Small motion

Sensor

12 ft

3.658 m

Eaton

1121 Highway 74 South
Peachtree City, GA 30269
P: 770-486-4800
www.eaton.com/lighting

Specifications and
dimensions subject to
change without notice.

9.843 ft

14.76 ft

Large motion

Small motion

Sensor

100

50

0

Time(min)

0 min

SHIPPING DATA

Units per
Catalog Base Wt. Pallet

2SLSTP 2.8 lbs. 144
4SLSTP 4.6 lbs. 72
8SLSTP 9 lbs. 45

7.5 min

Light

15 min

PS519206EN

May 29, 2018 3:57 PM
