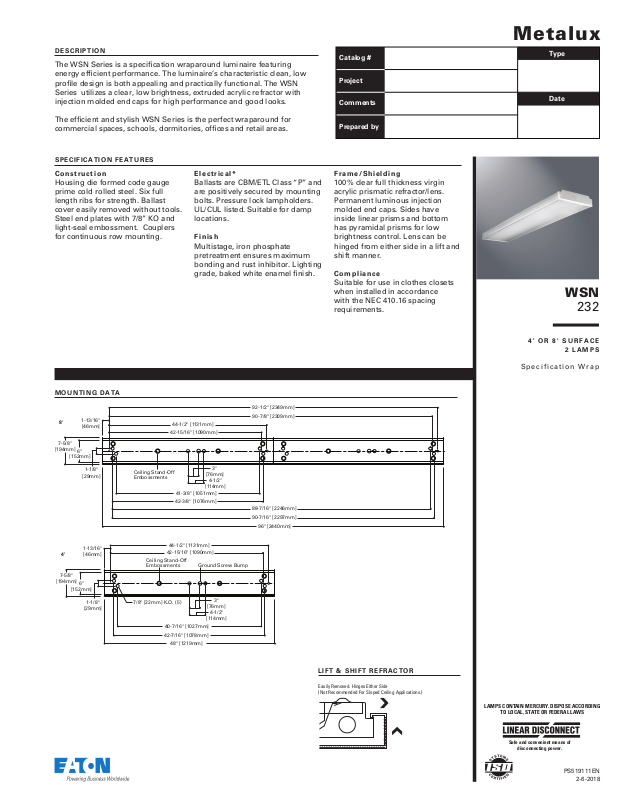

DESCRIPTION
LAMPS CONTAIN MERCURY. DISPOSE ACCORDING
disconnecting power.
92-1/2" [2349mm]
96" [2440mm]
[1
44-1/2" [1131mm]
48" [1219mm]
[1
Easily Removed. Hinges Either Side
Applications.)
The WSN Series is a specification wraparound luminaire featuring
energy efficient performance. The luminaire’s characteristic clean, low
profile design is both appealing and practically functional. The WSN
Series utilizes a clear, low brightness, extruded acrylic refractor with
injection molded end caps for high performance and good looks.
The efficient and stylish WSN Series is the perfect wraparound for
commercial spaces, schools, dormitories, offices and retail areas.
SPECIFICATION FEATURES
Construction
Housing die formed code gauge
prime cold rolled steel. Six full
length ribs for strength. Ballast
cover easily removed without tools.
Steel end plates with 7/8” KO and
Electrical*
Ballasts are CBM/ETL Class “P” and
are positively secured by mounting
bolts. Pressure lock lampholders.
UL/CUL listed. Suitable for damp
locations.
light-seal embossment. Couplers
for continuous row mounting.
Finish
Multistage, iron phosphate
pretreatment ensures maximum
bonding and rust inhibitor. Lighting
grade, baked white enamel finish.
Catalog #
Project
Comments
Prepared by
Frame/Shielding
100% clear full thickness virgin
acrylic prismatic refractor/lens.
Permanent luminous injection
molded end caps. Sides have
inside linear prisms and bottom
has pyramidal prisms for low
brightness control. Lens can be
hinged from either side in a lift and
shift manner.
Compliance
Suitable for use in clothes closets
when installed in accordance
with the NEC 410.16 spacing
requirements.
Metalux
Type
Date
WSN
232

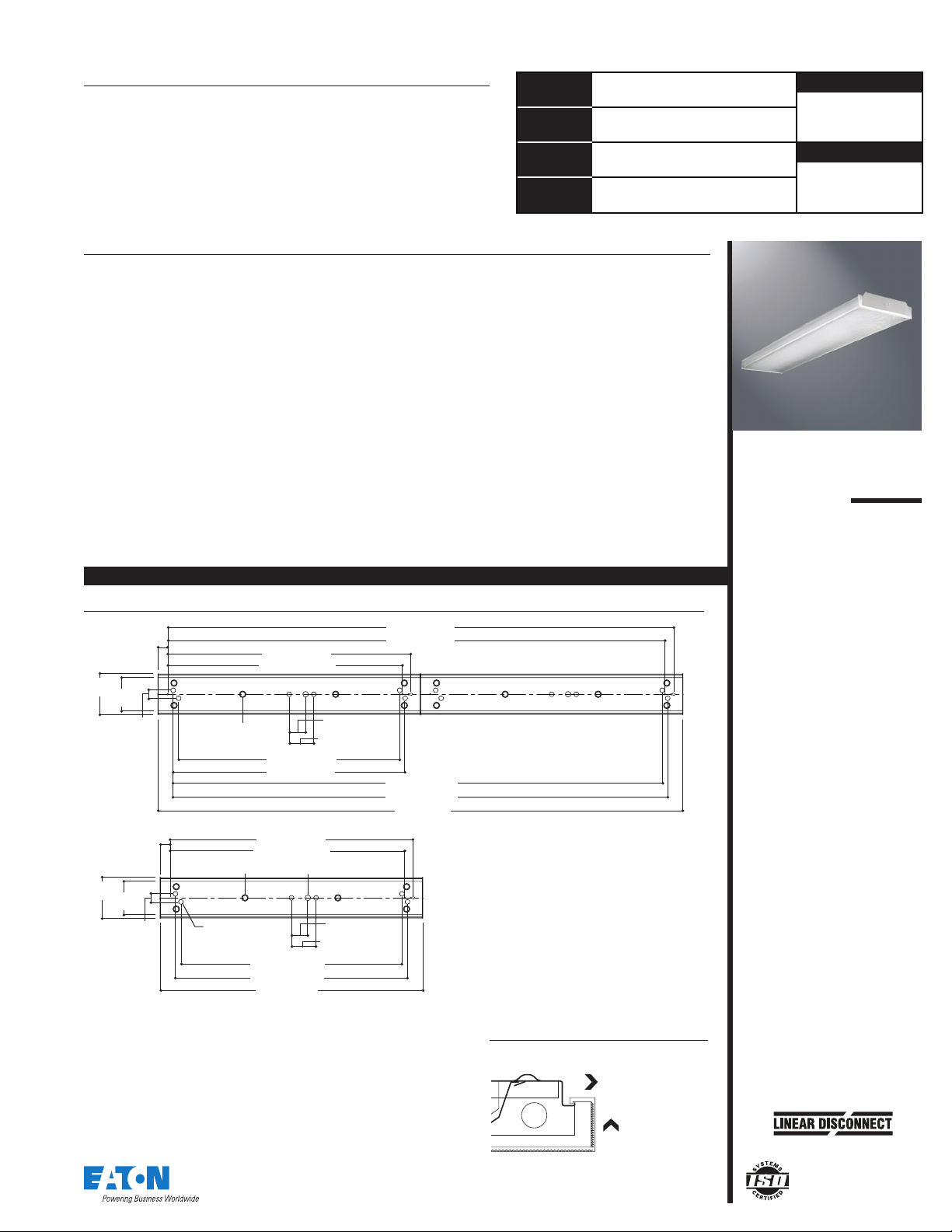

MOUNTING DATA
1-13/16"
8'
[46mm]
7-5/8"
94mm]
6"
[152mm]
1-1/8"
[29mm]
1-13/16"
[46mm]
4'
7-5/8"
94mm]
6"
[152mm]
1-1/8"
[29mm]
44-1/2" [1131mm]
42-15/16" [1090mm]
Ceiling Stand-Off
Embossments
42-15/16" [1090mm]
Ceiling Stand-Off
Embossments
7/8" [22mm] K.O. (5)
40-7/16" [1027mm]
42-7/16" [1078mm]
[76mm]
41-3/8" [1051mm]
42-3/8" [1076mm]
[114mm]
Ground Screw Bump
[76mm]
[114mm]
4' OR 8' SURFACE
2 LAMPS
Specification Wrap
90-7/8" [2309mm]
3"
4-1/2"
88-7/16" [2246mm]
90-7/16" [2297mm]
3"
4-1/2"
LIFT & SHIFT REFRACTOR
(Not Recommended For Sloped Ceiling
TO LOCAL, STATE OR FEDERAL LAWS
Safe and convenient means of
PS519111EN
2-6-2018
Page 2
(Order Separately)
SCF
SCS
SCA
A1B/Spacer-
from ceiling (Use 2 per fixture)
Lengths Available: 6, 8, 12, 18, 24, 36, 48
(Additional
and Accessories Section.)
SAMPLE NUMBER: WSN-232A-UNV-EB81-U
NO
mended
emergencies,
F
Representative for availability and ordering information.
ORDERING INFORMATION
WSN
Tandem
Blank=4' Length
8T=8' Length
(1)
Series
WSN=Specification
Surface Wrap
Width
Blank=Standard
Number of Lamps
2=2 Lamps
(Not Included)
Wattage
(2), (3)
(4)
Voltage
120V=120 Volt
277V=277 Volt
347V=347 Volt
UNV=Universal Voltage
(5)
120-277
Options
GL=Single Element Fuse
GM=Double Element Fuse
EL=Emergency Installed
Ballast Type
EB8 =T8 Electronic Instant Start.
EB8
ER8
EB2
(4)
Total Harmonic Distortion < 20%
No. of Ballast
1 or 2
/PLUS=T8 Electronic Instant Start.
No. of
Ballast
1 or 2
No. of Ballast
1 or 2
No. of Ballast
1 or 2
High Ballast Factor >1.13. Total
Harmonic Distortion < 20%
=T8 Electronic Program Rapid Start.
Total Harmonic Distortion < 10%
=T12 Electronic Rapid Start.
32=32W T8 (48")
Lens
A=Acrylic Refractor Lens
(1)
TES:
Steel endplates with 7/8" KO standard for continuous row mounting.
for 2 and 4-lamp fixtures.
voltage must be specific.
or complete product data, reference the Fluorescent Specification binder. Specifications & dimensions subject to change without notice. Consult your Eaton
(4)
Products also available in non-US voltages and frequencies for international markets.
(2)
Stem mounting not available on 3-lamp fixtures.
(3)
2 point suspension recom-
(5)
Not available when specifying
Options
(See options & accessories)
ACCESSORIES
=Fixed Stem Set (Specify Length)
=Swivel Stem Set (Specify Length)
=Adjustable 48" Stem Set
U=Spacer 1-1/2" to 2-1/2"
Accessories Available. See Options
Packaging
U=Unit Pack
Eaton
1121 Highway 74 South
Peachtree City, GA 30269
P: 770-486-4800
www.eaton.com/lighting
Specifications and
dimensions subject to
change without notice.
SHIPPING DATA
Catalog No. Wt.
WSN-232A 17 lbs.
8TWSN-232A 33 lbs.
PS519111EN
2-6-2018
