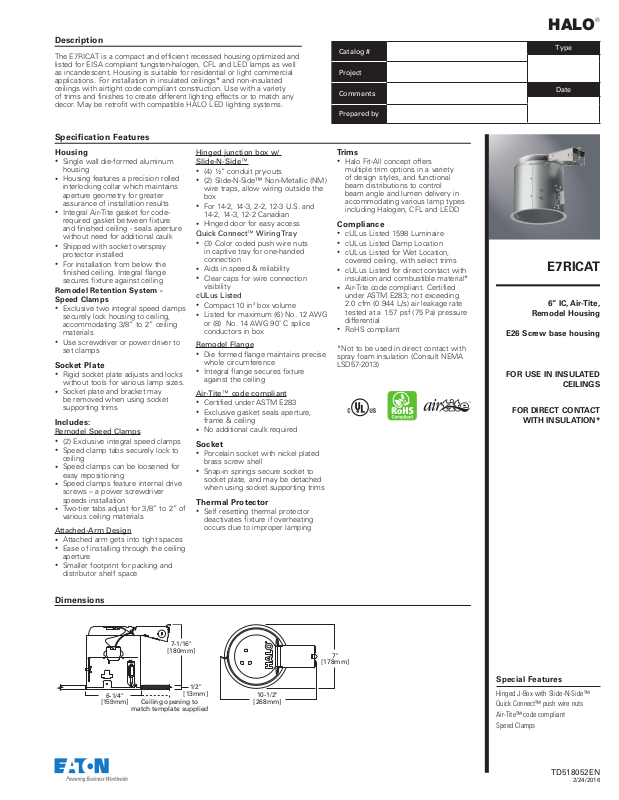

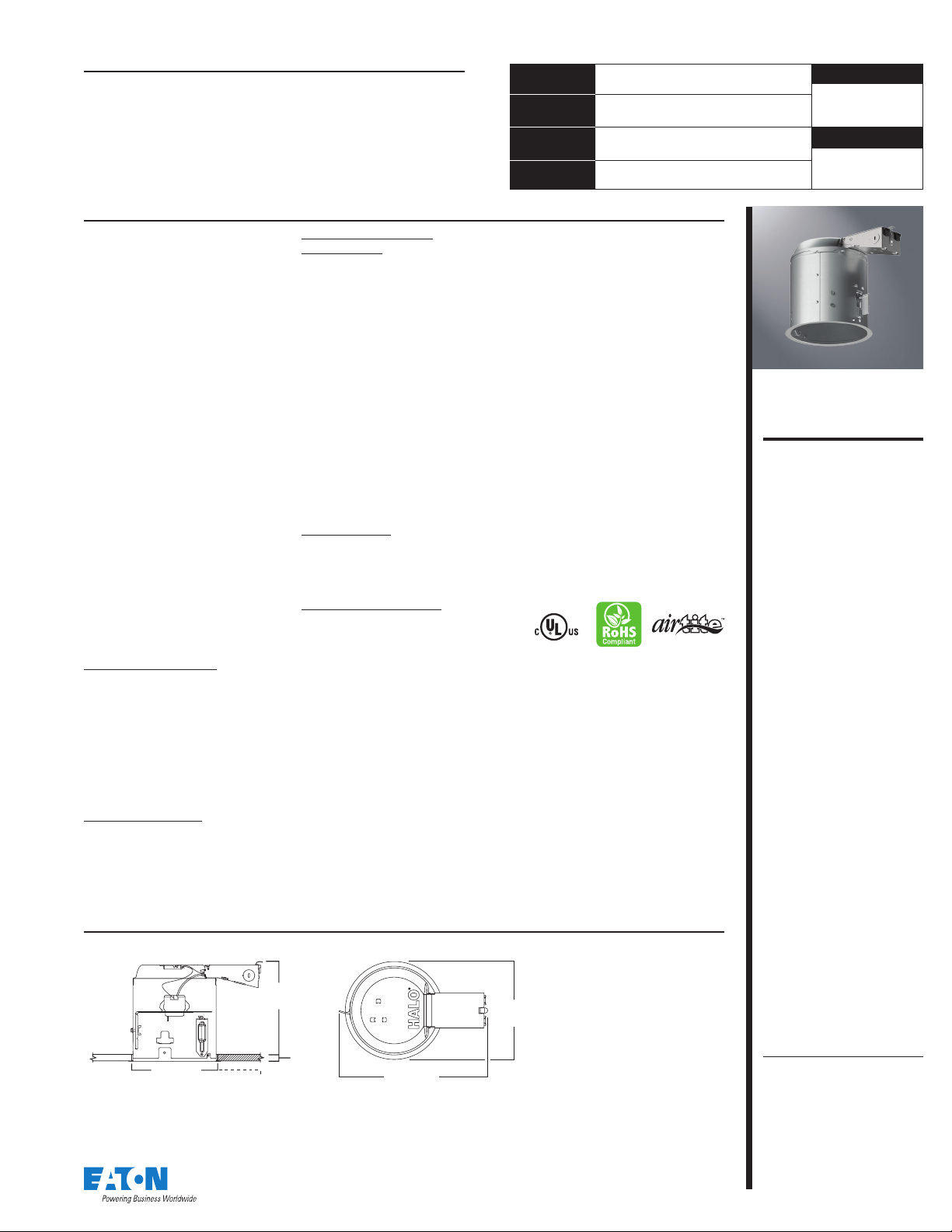

Page 1
Description
1/2"
[13mm]
7-1/16"
[180mm]
6-1/4"
[159mm]
Ceiling opening to
match template supplied
The E7RICAT is a compact and efficient recessed housing optimized and
listed for EISA compliant tungsten-halogen, CFL and LED lamps as well
as incandescent. Housing is suitable for residential or light commercial
applications. For installation in insulated ceilings* and non-insulated
ceilings with airtight code compliant construction. Use with a variety
of trims and finishes to create different lighting effects or to match any
decor. May be retrofit with compatible HALO LED lighting systems.
Specification Features
Housing
•
Single wall die-formed aluminum
housing
•
Housing features a precision rolled
interlocking collar which maintains
aperture geometry for greater
assurance of installation results
•
Integral Air-Tite gasket for coderequired gasket between fixture
and finished ceiling - seals aperture
without need for additional caulk
•
Shipped with socket overspray
protector installed
•
For installation from below the
finished ceiling. Integral flange
secures fixture against ceiling
Remodel Retention System -
Speed Clamps
•
Exclusive two integral speed clamps
securely lock housing to ceiling,
accommodating 3/8” to 2” ceiling
materials
•
Use screwdriver or power driver to
set clamps
Socket Plate
•
Rigid socket plate adjusts and locks
without tools for various lamp sizes.
•
Socket plate and bracket may
be removed when using socket
supporting trims
Includes:
Remodel Speed Clamps
•
(2) Exclusive integral speed clamps
•
Speed clamp tabs securely lock to
ceiling
•
Speed clamps can be loosened for
easy repositioning
•
Speed clamps feature internal drive
screws – a power screwdriver
speeds installation
•
Two-tier tabs adjust for 3/8” to 2” of
various ceiling materials
Attached-Arm Design
•
Attached arm gets into tight spaces
•
Ease of installing through the ceiling
aperture
•
Smaller footprint for packing and
distributor shelf space
Hinged junction box w/
Slide-N-Side™
•
(4) ½” conduit pry-outs
•
(2) Slide-N-Side™ Non-Metallic (NM)
wire traps, allow wiring outside the
box
•
For 14-2, 14-3, 2-2, 12-3 U.S. and
14-2, 14-3, 12-2 Canadian
•
Hinged door for easy access
Quick Connect™ Wiring Tray
•
(3) Color coded push wire nuts
in captive tray for one-handed
connection
•
Aids in speed & reliability
•
Clear caps for wire connection
visibility
cULus Listed
•
Compact 10 in3 box volume
•
Listed for maximum (6) No. 12 AWG
or (8) No. 14 AWG 90˚ C splice
conductors in box
Remodel Flange
•
Die formed flange maintains precise
whole circumference
•
Integral flange secures fixture
against the ceiling
Air-Tite™ code compliant
•
Certified under ASTM E283
•
Exclusive gasket seals aperture,
frame & ceiling
•
No additional caulk required
Socket
•
Porcelain socket with nickel plated
brass screw shell
•
Snap-in springs secure socket to
socket plate, and may be detached
when using socket supporting trims
Thermal Protector
•
Self resetting thermal protector
deactivates fixture if overheating
occurs due to improper lamping
Catalog #
Project
Comments
Prepared by
Trims
•
Halo Fit-All concept offers
multiple trim options in a variety
of design styles, and functional
beam distributions to control
beam angle and lumen delivery in
accommodating various lamp types
including Halogen, CFL and LEDD
Compliance
•
cULus Listed 1598 Luminaire
•
cULus Listed Damp Location
•
cULus Listed for Wet Location,
covered ceiling, with select trims
•
cULus Listed for direct contact with
insulation and combustible material*
•
Air-Tite code compliant. Certified
under ASTM E283; not exceeding
2.0 cfm (0.944 L/s) air leakage rate
tested at a 1.57 psf (75 Pa) pressure
differential
•
RoHS compliant
*Not to be used in direct contact with
spray foam insulation (Consult NEMA
LSD57-2013)
HALO
Type
Date
E7RICAT
6” IC, Air-Tite,
Remodel Housing
E26 Screw base housing
FOR USE IN INSULATED
CEILINGS
FOR DIRECT CONTACT
WITH INSULATION*
®
Dimensions
6-1/4"
[159mm]
7-1/16"
[180mm]
1/2"
Ceiling opening to
match template supplied
[13mm]
10-1/2"
[268mm]
7"
[178mm]
Special Features
Hinged J-Box with Slide-N-Side™
Quick Connect™ push wire nuts
Air-Tite™ code compliant
Speed Clamps
TD518052EN
2/24/2016

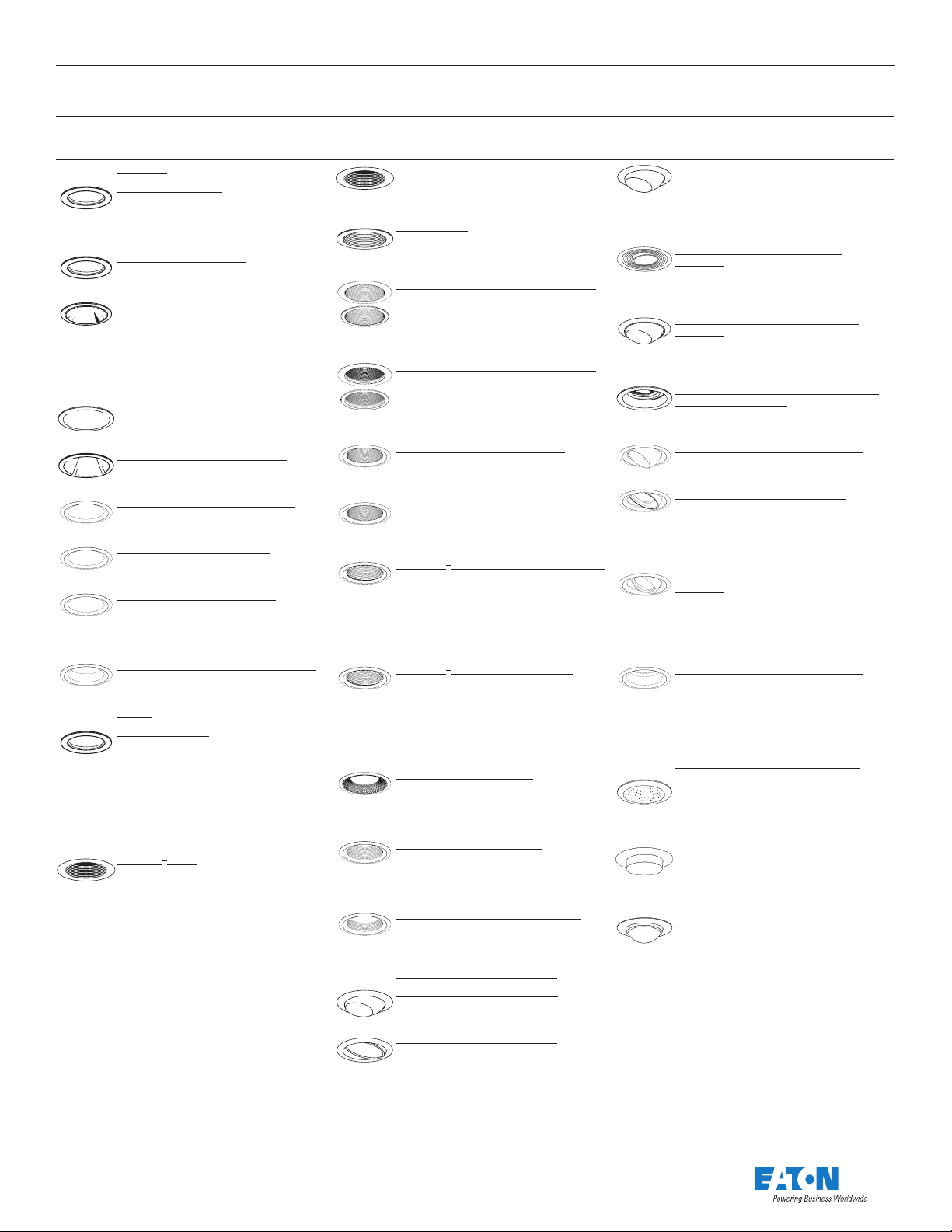

Page 2
E7RICAT
Ordering Information
Sample Number: E7RICAT 6110WB
Order housing, trim and lamp (by others) separately for a complete luminaire.
Housing
E7RICAT = 6” insulated ceiling, airtight recessed housing, remodel, 120V
Trims
Reflectors
30 Reflector, Self-flange
OD: 7-1/4” [184mm]
30HAT= Haze Reflector, White Trim
30RGAT= Residential Gold Reflector, White Trim
30CAT= Clear Specular Reflector, White Trim
30SBAT Reflector, Self-flange
OD: 7-1/4” [184mm]
30SBAT=Black Specular Reflector, Self-flange
426 Reflector Cone
OD: 7-1/4” [184mm]
426= Clear Specular Reflector Cone, White Trim
426MB= Black Specular Reflector Cone, White
Trim
426H= Haze Reflector Cone, White Trim
426SN= Satin Nickel Reflector Cone and Trim
426TBZ= Tuscan Bronze Reflector Cone and Trim
429 Dayform White Cone
OD: 7-1/4” [184mm]
429P=White Reflector and Trim
4261 White Reflector Cone, Self-flange
OD: 7-1/4” [184mm]
4261P=White Reflector and Trim
6106 Straight Reflector Cone, Self-flange
OD: 7-3/4” [197mm]
6106SC=Specular Reflector, White Trim
6107 Tapered Reflector, Self-flange
OD: 7-3/4” [197mm]
6107SC=Specular Reflector, White Trim
6120 Full Cone Reflector, Self-flange
OD: 7-3/4” [197mm]
6120WH=White Reflector and Trim
6120SN=Satin Nickel Reflector and Trim
6120TBZ= Tuscan Bronze Reflector and Trim
6121 Shallow Full Cone Reflector, Self-flange
OD: 7-3/4” [197mm]
6121WH= White Reflector and Trim
Baffles
30 Baffle, Self-flange
OD: 7-1/4” [184mm]
30WAT= White Baffle, Reflector and Trim
30WATH= White Baffle, Clear Reflector and
30PAT= Black Baffle, Clear Reflector and
30SNAT= Satin Nickel Baffle, Reflector and Trim
30TBZAT= Tuscan Bronze Baffle, Reflector and
310 Coilex
OD: 7-1/4” [184mm]
310W= White Coilex Baffle and Trim
310P= Black Coilex Baffle, White Trim
310SN= Black Coilex Baffle, Satin Nickel Trim
310TBZ= Black Coilex Baffle, Tuscan Bronze Trim
White Trim
White Trim
Trim
®
Baffle
312 Coilex® Baffle
OD: 7-1/4” [184mm]
312W= White Coilex Baffle and Trim
312P= Black Coilex Baffle, White Trim
353 Metal Baffle
OD: 7-1/4” [184mm]
353SN= Satin Nickel Baffle and Trim
353TBZ= Tuscan Bronze Baffle and Trim
6100 Tapered Metal Baffle with (2) Trim Rings
OD: 7-1/8” [181mm]
6100WB= White Baffle, Narrow and Wide White
Trims (included)
6100BB= Black Baffle, Narrow and Wide White
Trims (included)
6101 Straight Metal Baffle with (2) Trim Rings
OD: 7-1/8” [181mm]
6101WB= White Baffle, Narrow and Wide White
Trims (included)
6101BB= Black Baffle, Narrow and Wide White
Trims (included)
6102 Tapered Metal Baffle, Self-flange
OD: 7-3/4” [197mm]
6102WB= White Baffle and Trim
6102BB= Black Baffle, White Trim
6103 Straight Metal Baffle, Self-flange
OD: 7-3/4” [197mm]
6103WB= White Baffle and Trim
6103BB= Black Baffle, White Trim
6108 Coilex
OD: 7-3/4” [197mm]
6108WB= White Plastic Straight Coilex Baffle,
6108BB= Black Plastic Straight Coilex Baffle,
6108BKBB= Black Plastic Straight Coilex Baffle,
6109 Coilex
OD: 7-3/4” [197mm]
6109WB= White Tapered Coilex Baffle,
6109BB= Black Tapered Coilex Baffle,
6109BKBB= Black Tapered Coilex Baffle,
6110 Perftex Baffle, Self-flange
OD: 7-3/4” [197mm]
6110WB= White Perftex Baffle and Trim
6110BB= Black Perftex Baffle, White Trim
6110BKBB= Black Perftex Baffle and Trim
6125 Full Cone Baffle, Self-flange
OD: 7-3/4” [197mm]
6125WB= White Baffle and Trim
6125BB= Black Baffle, White Trim
6125BKBB= Black Baffle and Trim
6126 Shallow Full Cone Baffle, Self-flange
OD: 7-3/4” [197mm]
6126WB= White Baffle and Trim
6126BB= Black Baffle, White Trim
®
Straight Plastic Baffle, Self-flange
White Trim
White Trim
Black Trim
®
Tapered Baffle, Self-flange
White Trim
White Trim
Black Trim
Adjustable - Eyeballs & Gimbals
74 PAR30 Eyeball 30° Tilt, Self-flange
OD: 8” [203mm]
74P= White Eyeball and Trim
76 PAR38 Gimbal 30° Tilt, Self-flange
OD: 8” [203mm]
76P= White Gimbal and Trim
78 BR/PAR30 Eyeball 30° Tilt, Self-flange
OD: 8” [203mm]
78P= White Eyeball and Trim
78PAT= White Eyeball and Trim, Air-Tite
78SN= Satin Nickel Eyeball and Trim
78TBZ= Tuscan Bronze Eyeball and Trim
376 PAR30 Regressed Gimbal 30° Tilt,
Self-flange
OD: 7-1/4” [184mm]
376W= White Baffle and Trim
376P= Black Baffle and White Trim
420 BR/PAR30 Regressed Eyeball 30° Tilt,
Self-flange
OD: 7-1/4” [184mm]
420W= White Eyeball, Baffle and Trim
420P= White Eyeball, Black Baffle, White Trim
478 PAR38 Adjustable Regressed Gimbal with
Splay 25° Tilt, Self-flange
OD: 7-1/4” [184mm]
478P= White Splay and Trim
6130 BR/PAR30 Eyeball 35° Tilt, Self-flange
OD: 7-3/4” [197mm]
6130WH= White Eyeball and Trim
6170 PAR38 Gimbal 25° Tilt, Self-flange
OD: 7-3/4” [197mm]
6170WH= White Gimbal and Trim
6170BK=Black Gimbal and Trim
6170SN=Satin Nickel Gimbal and Trim
6170TBZ=Tuscan Bronze Gimbal and Trim
6215 PAR30 Double Gimbal 35°-50° Tilt,
Self-flange
OD: 7-3/4” [197mm]
6215WH= White Gimbal and Trim
6215BK=Black Gimbal and Trim
6215SN=Satin Nickel Gimbal and Trim
6215TBZ=Tuscan Bronze Gimbal and Trim
6222 Regressed PAR30 Adjustable 45° Tilt,
Self-flange
OD: 7-3/4” [197mm]
6222WB= White Baffle and Trim
6222BB=Black Baffle and Trim
6222SC= Specular Clear Reflector, White Trim
6222H= Haze Reflector, White Trim
Lenses & Wet Location Showerlights
170 Albalite Lens with Reflector
OD: 8” [203mm]
170P= Frosted Albalite Glass Lens, White Trim
170PS= Frosted Albalite Glass Lens, White
Plastic Trim, Showerlight, Air-Tite
171 Drop Opal Lens with Reflector
OD: 8” [203mm]
171P= Drop Opal Glass Lens, White Trim
171PS= Drop Opal Glass Lens, White Plastic
Trim, Showerlight, Air-Tite
172 Dome Lens with Reflector
OD: 7-3/4” [197mm]
172PS= Frosted Glass Dome, White Plastic Trim
172SNS= Frosted Glass Dome, Satin Nickel
Plastic Trim
172TBZS= Frosted Glass Dome, Tuscan Bronze
Plastic Trim
continued
*Outdoor rated lamp only (purchase separately)
2
TD518052EN – Specifications and compliances subject to change without notice

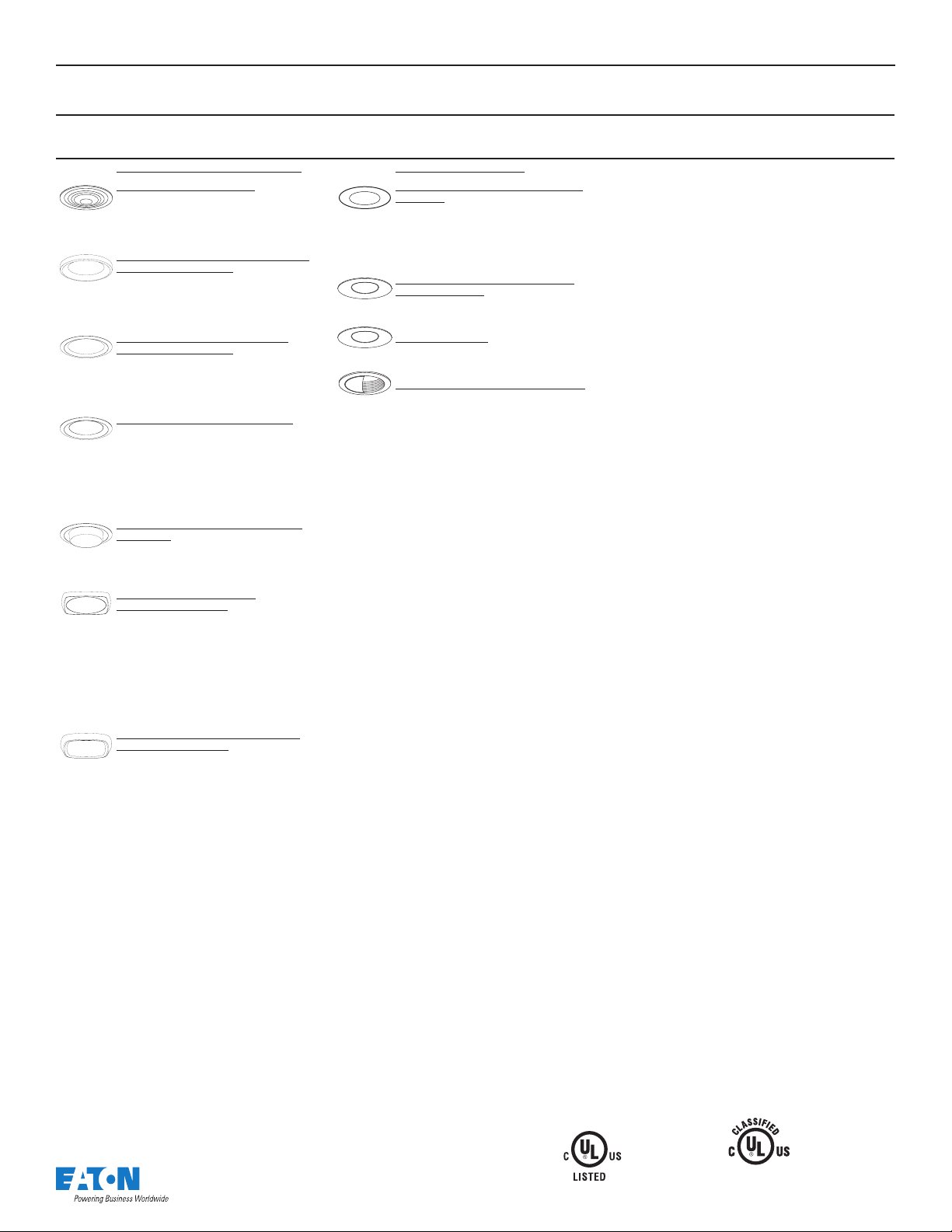

Page 3
Ordering Information
Sample Number: E7RICAT 6110
Order housing, trim and lamp (by others) separately for a complete luminaire.
Housing
E7RICAT = 6” insulated ceiling, airtight recessed housing, remodel, 120V
Trims
Lenses & Wet Location Showerlights
173 Fresnel Lens with Reflector
OD: 8” [203mm]
173P= Fresnel Glass Lens, White Trim
173PS= Fresnel Glass Lens, White Plastic Trim,
Showerlight, Air-Tite
6145 Open Wet Location, Shallow Reflector,
Self-flange - Showerlight*
OD: 7-3/4” [197mm]
6145WH= White Reflector and Trim
6145SN= Satin Nickel Reflector and Trim
6145TBZ= Tuscan Bronze Reflector and Trim
6146 Open Wet Location, Full Reflector,
Self-flange - Showerlight*
OD: 7-3/4” [197mm]
6146WH= White Reflector and Trim
6146SN= Satin Nickel Reflector and Trim
6146TBZ= Tuscan Bronze Reflector and Trim
6150 Frost Dome Glass Lens, Self-flange
OD: 7-3/4” [197mm]
6150WH= Frost Dome Glass Lens with Reflector,
White Plastic Trim
6150SN= Frost Dome Glass Lens with Reflector,
Satin Nickel Plastic Trim
6150TBZ= Frost Dome Glass Lens with Reflector,
6162 Drop Opal Plastic Lens, Self-flange Showerlight
OD: 7-3/4” [197mm]
6162WH= Drop Opal Plastic Lens with Reflector,
6230 Squircle Frost Glass Lens,
Metal Trim - Showerlight
OD: 7-1/4” [183mm]
6230AH= Frost Glass Lens, Aluminum Haze
6230PN= Frost Glass Lens, Polished Nickel
6230SN= Frost Glass Lens, Satin Nickel
6230TBZ= Frost Glass Lens, Tuscan Bronze
6255 Soft Square, Frost Curve Glass Lens,
Self-flange - Showerlight
OD: 7-1/4” [183mm]
6255WH= Frost Curve Glass Lens with Reflector,
6255SN= Frost Curve Glass Lens with Reflector,
6255TBZ= Frost Curve Glass Lens with Reflector,
Tuscan Bronze Plastic Trim
White Plastic Trim
Squircle Trim
Squircle Trim
Squircle Trim
Squircle Trim
White Plastic Trim
Satin Nickel Plastic Trim
Tuscan Bronze Plastic Trim
Open, Splay & Wall Wash
300 Open Trim with Fixed Socket Bracket,
Self-flange
OD: 7-1/4” [183mm]
300P= Self-flange with White Open Trim
300SN= Self-flange with Satin Nickel Open Trim
300TBZ= Self-flange with Tuscan Bronze Open
Trim
327 White Splay Trim with Fixed Socket
Bracket, Self-flange
OD: 7-3/4” [197mm]
327P= White Splay Trim with Socket Bracket
328 White Splay Trim
OD: 7-3/4” [197mm]
328P= White Splay Trim
430 Wall Wash with Baffle & Full Reflector
OD: 7-1/4” [183mm]
430W= White Baffle, with Upper Reflector,
White Trim
430P= Black Baffle, with Upper Reflector,
White Trim
E7RICAT
Eaton
1121 Highway 74 South
Peachtree City, GA 30269
P: 770-486-4800
www.eaton.com/lighting
Specifications and
dimensions subject to
change without notice.
*Outdoor rated lamp only (purchase separately)
For use in Halo listed housings.
Select trims are classified for use in
others housings.
See www.eaton.com/lighting/legal.
Loading...
