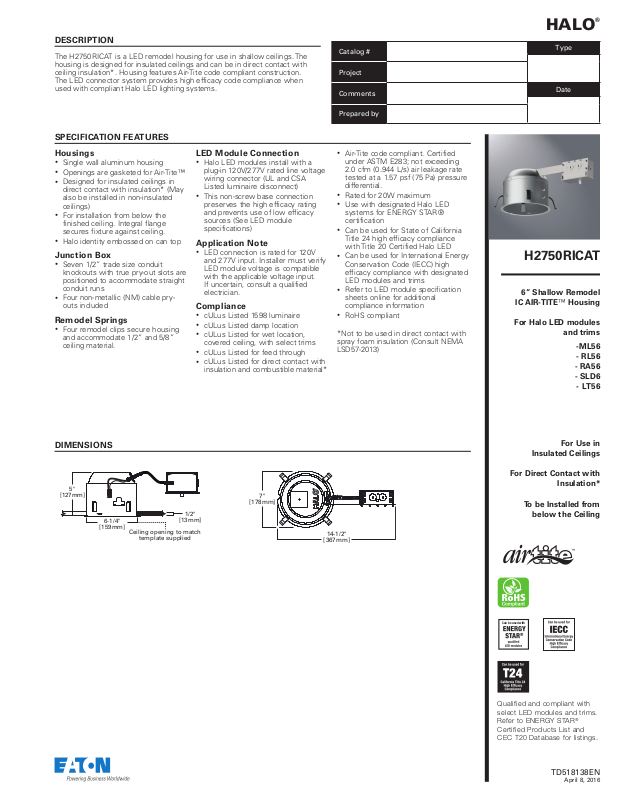

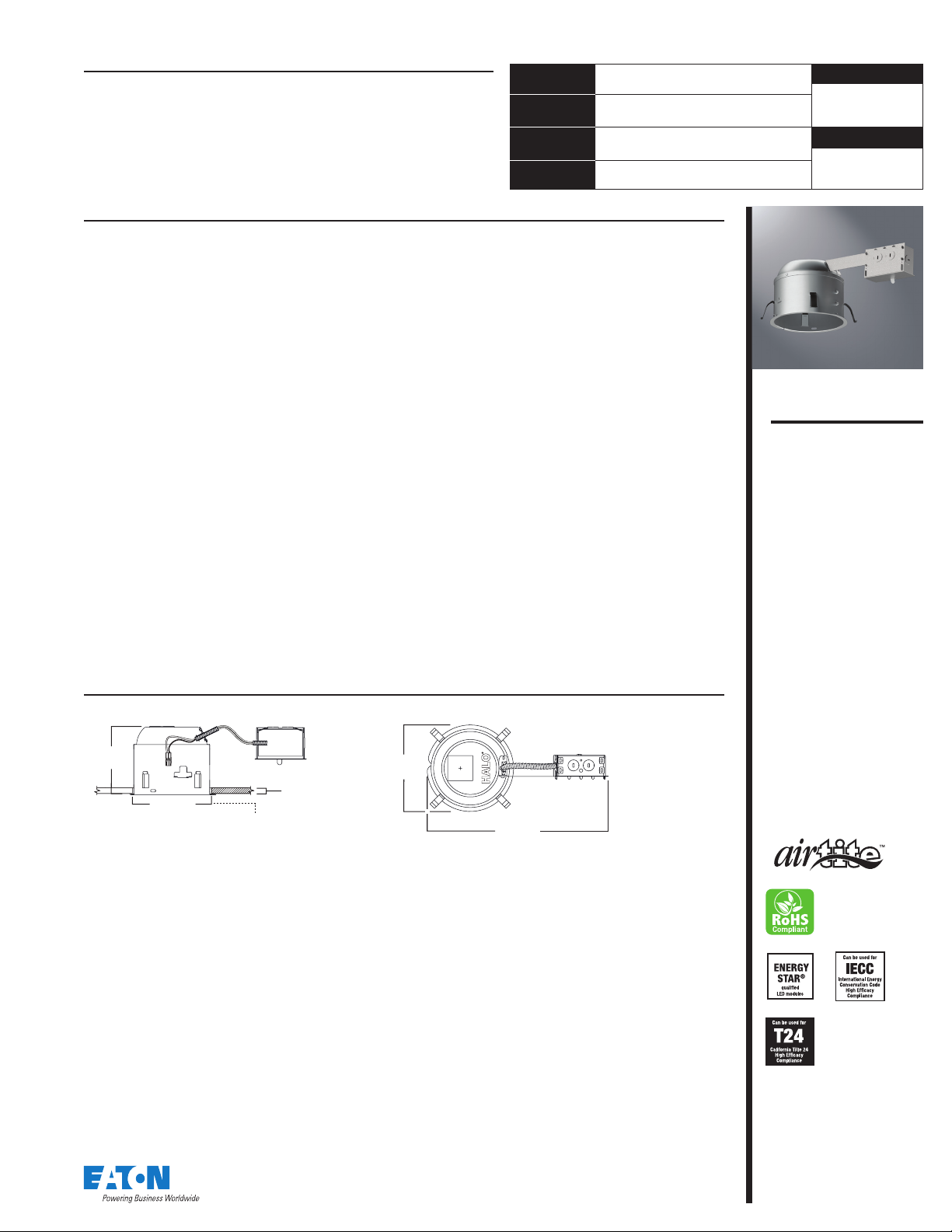

Page 1
DESCRIPTION
1/2"
[13mm]
5"
[127mm]
6-1/4"
[159mm]
Ceiling opening to match
template supplied
The H2750RICAT is a LED remodel housing for use in shallow ceilings. The
housing is designed for insulated ceilings and can be in direct contact with
ceiling insulation*. Housing features Air-Tite code compliant construction.
The LED connector system provides high efficacy code compliance when
used with compliant Halo LED lighting systems.
SPECIFICATION FEATURES
Housings
•
Single wall aluminum housing
•
Openings are gasketed for Air-Tite™
•
Designed for insulated ceilings in
direct contact with insulation* (May
also be installed in non-insulated
ceilings)
•
For installation from below the
finished ceiling. Integral flange
secures fixture against ceiling.
•
Halo identity embossed on can top
Junction Box
•
Seven 1/2” trade size conduit
knockouts with true pry-out slots are
positioned to accommodate straight
conduit runs
• Four non-metallic (NM) cable pry-
outs included
Remodel Springs
•
Four remodel clips secure housing
and accommodate 1/2” and 5/8”
ceiling material.
LED Module Connection
•
Halo LED modules install with a
plug-in 120V/277V rated line voltage
wiring connector (UL and CSA
Listed luminaire disconnect)
•
This non-screw base connection
preserves the high efficacy rating
and prevents use of low efficacy
sources (See LED module
specifications)
Application Note
•
LED connection is rated for 120V
and 277V input. Installer must verify
LED module voltage is compatible
with the applicable voltage input.
If uncertain, consult a qualified
electrician.
Compliance
•
cULus Listed 1598 luminaire
•
cULus Listed damp location
•
cULus Listed for wet location,
covered ceiling, with select trims
•
cULus Listed for feed through
•
cULus Listed for direct contact with
insulation and combustible material*
Catalog #
Project
Comments
Prepared by
•
Air-Tite code compliant. Certified
under ASTM E283; not exceeding
2.0 cfm (0.944 L/s) air leakage rate
tested at a 1.57 psf (75 Pa) pressure
differential.
•
Rated for 20W maximum
•
Use with designated Halo LED
systems for ENERGY STAR®
certification
•
Can be used for State of California
Title 24 high efficacy compliance
with Title 20 Certified Halo LED
•
Can be used for International Energy
Conservation Code (IECC) high
efficacy compliance with designated
LED modules and trims
•
Refer to LED module specification
sheets online for additional
compliance information
•
RoHS compliant
*Not to be used in direct contact with
spray foam insulation (Consult NEMA
LSD57-2013)
HALO
Type
Date
H2750RICAT
6” Shallow Remodel
IC AIR-TITE™ Housing
For Halo LED modules
and trims
-ML56
- RL56
- RA56
- SLD6
- LT56
®
DIMENSIONS
5"
[127mm]
6-1/4"
[159mm]
Ceiling opening to match
template supplied
1/2"
[13mm]
7"
[178mm]
14-1/2"
[367mm]
For Use in
Insulated Ceilings
For Direct Contact with
Insulation*
To be Installed from
below the Ceiling
Can be used with
Qualified and compliant with
select LED modules and trims.
Refer to ENERGY STAR®
Certified Products List and
CEC T20 Database for listings.
TD518138EN
April 8, 2016
Page 2
ORDERING INFORMATION
SAMPLE NUMBER: H2750RICAT - RL560WH6930
Order housing, and LED module separately.
Housing
H2750RICAT= 6” Aperture, Shallow Remodel, IC AIR-TITE™, High Efficacy LED Housing
ORDERING INFORMATION - Halo LED Lighting Systems
The H2750RICAT housing is designed for use and CULus Listed with Halo LED downlighting systems and retrofit LED modules.
LED Modules
For retrofit, remodel and new construction
RA56= 5” / 6” adjustable gimbal LED retrofit module
RL56= 5” / 6” LED baffle-trim module
LT56= 5” / 6” LED baffle-trim module
SLD6= 5” / 6” surface LED downlight
For details and ordering information, refer to the product specifications at www.eaton.com/lighting.
ML56 LED Downlighting System
For retrofit, remodel and new construction
ML56 LED Light Modules ML56 LED Trims - Shallow Housing Compatible ML56 System Accessories
600 Series / 80 CRI
ML5606827= 5"/6" LED Retrofit Downlight Light Module,
ML5606830= 5"/6" LED Retrofit Downlight Light Module,
ML5606835= 5"/6" LED Retrofit Downlight Light Module,
ML5606840= 5"/6" LED Retrofit Downlight Light Module,
600 Series / 90 CRI
ML5606927= 5”/6” LED Retrofit Downlight Light Module,
ML5606930= 5”/6” LED Retrofit Downlight Light Module,
ML5606935= 5”/6” LED Retrofit Downlight Light Module,
ML5606940= 5”/6” LED Retrofit Downlight Light Module,
900 Series / 80 CRI
ML5609827= 5”/6” LED Retrofit Downlight Light Module,
ML5609830= 5”/6” LED Retrofit Downlight Light Module,
ML5609835= 5”/6” LED Retrofit Downlight Light Module,
ML5609840= 5”/6” LED Retrofit Downlight Light Module,
900 Series / 90 CRI
ML5609927= 5”/6” LED Retrofit Downlight Light Module,
ML5609930= 5”/6” LED Retrofit Downlight Light Module,
ML5609935= 5”/6” LED Retrofit Downlight Light Module,
ML5609940= 5”/6” LED Retrofit Downlight Light Module,
1200 Series / 80 CRI
ML5612827= 5”/6” LED Retrofit Downlight Light Module,
ML5612830= 5”/6” LED Retrofit Downlight Light Module,
ML5612835= 5”/6” LED Retrofit Downlight Light Module,
ML5612840= 5”/6” LED Retrofit Downlight Light Module,
1200 Series / 90 CRI
ML5612927= 5”/6” LED Retrofit Downlight Light Module,
ML5612930= 5”/6” LED Retrofit Downlight Light Module,
ML5612935= 5”/6” LED Retrofit Downlight Light Module,
ML5612940= 5”/6” LED Retrofit Downlight Light Module,
600 lumen, 80CRI, 2700K
600 lumen, 80CRI, 300 0K
600 lumen, 80CRI, 3500K
600 lumen, 80CRI, 400 0K
600 lumen, 90CRI, 2700K
600 lumen, 90CRI, 300 0K
600 lumen, 90CRI, 3500K
600 lumen, 90CRI, 400 0K
900 lumen, 80CRI, 2700K
900 lumen, 80CRI, 300 0K
900 lumen, 80CRI, 3500K
900 lumen, 80CRI, 400 0K
900 lumen, 90CRI, 2700K
900 lumen, 90CRI, 300 0K
900 lumen, 90CRI, 3500K
900 lumen, 90CRI, 400 0K
1200 lumen, 80CRI, 2700K
¹200 lumen, 80CRI, 300 0K
1200 lumen, 80CRI, 3500K
1200 lumen, 80CRI, 4000K
1200 lumen, 90CRI, 2700K
1200 lumen, 90CRI, 3000K
1200 lumen, 90CRI, 3500K
1200 lumen, 90CRI, 4000K
690 Series - 6" LED Trims
Non-Conductive “Dead Front” Baffles
691WB=6" LED Trim, Polymer “Dead-Front”, Shallow White
Baffle & Flange (For use with 600 Series LED Light
Modules only)
Semi-Regressed Eyeballs
694WB=6" LED Directional Trim, White Eyeball, Baffle &
Flange
694SNB=6" LED Directional Trim, Satin Nickel Eyeball, Baffle
& Flange
694TBZB=6" LED Directional Trim, Tuscan Bronze Eyeball,
Baffle & Flange
Shallow Baffle
696WB=6" LED Trim, White Shallow Baffle & Flange
ML56CLIP= Friction Clip Kit - For use with non-torsion
WW6955C= Wall Wash Insert - Specular Kick Reflector for
TRM690WH= 6" LED Over size Trim Ring for use with 59*
Ring slips over LED trim. Inset design
EBA560PK= Replacement screwbase adapter
spring housings. 5” and 6” clips included.
(For use with ML56 reflector and baffle
trims. Not for 694x eyeballs.)
695WW (1 included with trim). For double
wall washing or replacement.
series trims, White 6.9" I.D., 9.5" O.D.
allows 6" trim to fit into oversize ring for an
even trim surface
H2750RICAT
Eaton
1121 Highway 74 South
Peachtree City, GA 30269
P: 770-486-4800
www.eaton.com/lighting
Specifications and
dimensions subject to
change without notice.
