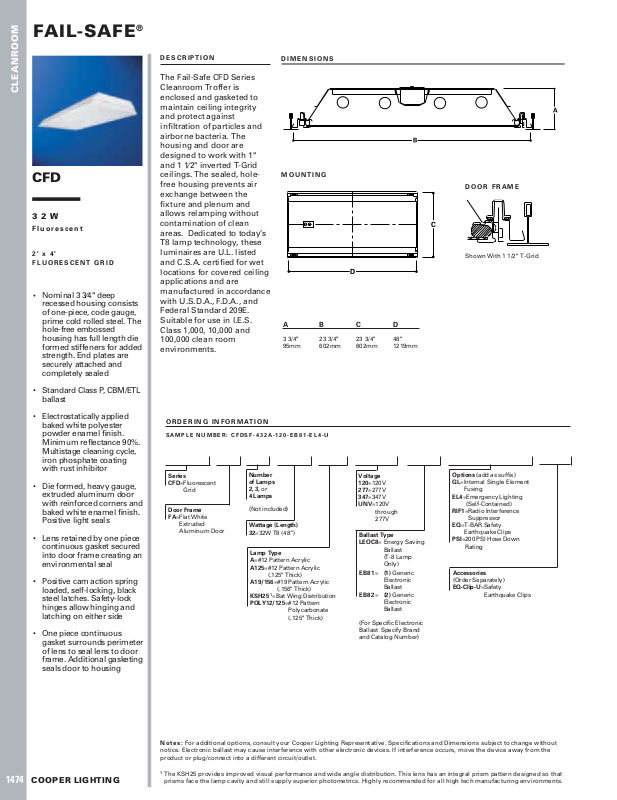

Cooper Lighting CFD User Manual
D
C
FAIL-SAFE
®
CLEANROOM
CFD
32W
Fluorescent
2' x 4'
FLUORESCENT GRID
• Nominal 3 3⁄4" deep
recessed housing consists
of one-piece, code gauge,
prime cold rolled steel. The
hole-free embossed
housing has full length die
formed stiffeners for added
strength. End plates are
securely attached and
completely sealed
• Standard Class P, CBM/ETL
ballast
• Electrostatically applied
baked white polyester
powder enamel finish.
Minimum reflectance 90%.
Multistage cleaning cycle,
iron phosphate coating
with rust inhibitor
• Die formed, heavy gauge,
extruded aluminum door
with reinforced corners and
baked white enamel finish.
Positive light seals
• Lens retained by one piece
continuous gasket secured
into door frame creating an
environmental seal
• Positive cam action spring
loaded, self-locking, black
steel latches. Safety-lock
hinges allow hinging and
latching on either side
• One piece continuous
gasket surrounds perimeter
of lens to seal lens to door
frame. Additional gasketing
seals door to housing
DESCRIPTION
DIMENSIONS
The Fail-Safe CFD Series
Cleanroom Troffer is
enclosed and gasketed to
maintain ceiling integrity
and protect against
infiltration of particles and
airborne bacteria. The
housing and door are
designed to work with 1"
and 1 1⁄2" inverted T-Grid
ceilings. The sealed, hole-
MOUNTING
free housing prevents air
exchange between the
fixture and plenum and
allows relamping without
contamination of clean
areas. Dedicated to today’s
T8 lamp technology, these
luminaires are U.L. listed
and C.S.A. certified for wet
locations for covered ceiling
applications and are
manufactured in accordance
with U.S.D.A., F.D.A., and
Federal Standard 209E.
Suitable for use in I.E.S.
Class 1,000, 10,000 and
100,000 clean room
environments.
ORDERING INFORMATION
SAMPLE NUMBER: CFDSF-432A-120-EB81-EL4-U
Series
CFD=Fluorescent
Grid
Door Frame
FA=Flat White
Extruded
Aluminum Door
Number
of Lamps
2, 3, or
4 Lamps
(Not included)
Wattage (Length)
32=32W T8 (48”)
Lamp Type
A=#12 Pattern Acrylic
A125=#12 Pattern Acrylic
A19/156=#19 Pattern Acrylic
KSH25
POLY12/125=#12 Pattern
ABCD
3 3/4" 23 3/4" 23 3/4" 48"
95mm 602mm 602mm 1219mm
(.125" Thick)
(.156" Thick)
1
=Bat Wing Distribution
Polycarbonate
(.125" Thick)
Voltage
120=120V
277=277V
347=347V
UNV=120V
through
277V
Ballast Type
LEOC8= Energy Saving
Ballast
(T-8 Lamp
Only)
EB8 1= (1) Generic
Electronic
Ballast
EB8 2= (2) Generic
Electronic
Ballast
(For Specific Electronic
Ballast Specify Brand
and Catalog Number)
DOOR FRAME
Shown With 1 1/2" T-Grid
Options (add as suffix)
GL=Internal Single Element
Fusing
EL4=Emergency Lighting
(Self-Contained)
RIF1=Radio Interference
Suppressor
EQ=T-BAR Safety
Earthquake Clips
PSI=200 PSI Hose Down
Rating
Accessories
(Order Separately)
EQ-Clip-U=Safety
Earthquake Clips
1474
COOPER LIGHTING
Notes: For additional options, consult your Cooper Lighting Representative. Specifications and Dimensions subject to change without
notice. Electronic ballast may cause interference with other electronic devices. If interference occurs, move the device away from the
product or plug/connect into a different circuit/outlet.
1
The KSH25 provides improved visual performance and wide angle distribution. This lens has an integral prism pattern designed so that
prisms face the lamp cavity and still supply superior photometrics. Highly recommended for all high tech manufacturing environments.
