COOPER LIGHTING - SURE-LITES
®
EXIT LIGHTING Architectural
CAX SERIES
AC Only
LED Lamping
EXIT LIGHTING
• 120 VAC or 277 VAC Input
wattage
• Die cast aluminum
housing with hinged face
plate and die cast canopy
for ceiling or end
mounting
• Screw-In LED Lamps: two
1W long life T6 1/2
intermediate base lamps
• Universal pattern
knockouts on rear of single
face housing for direct
mounting to junction box
DESCRIPTION

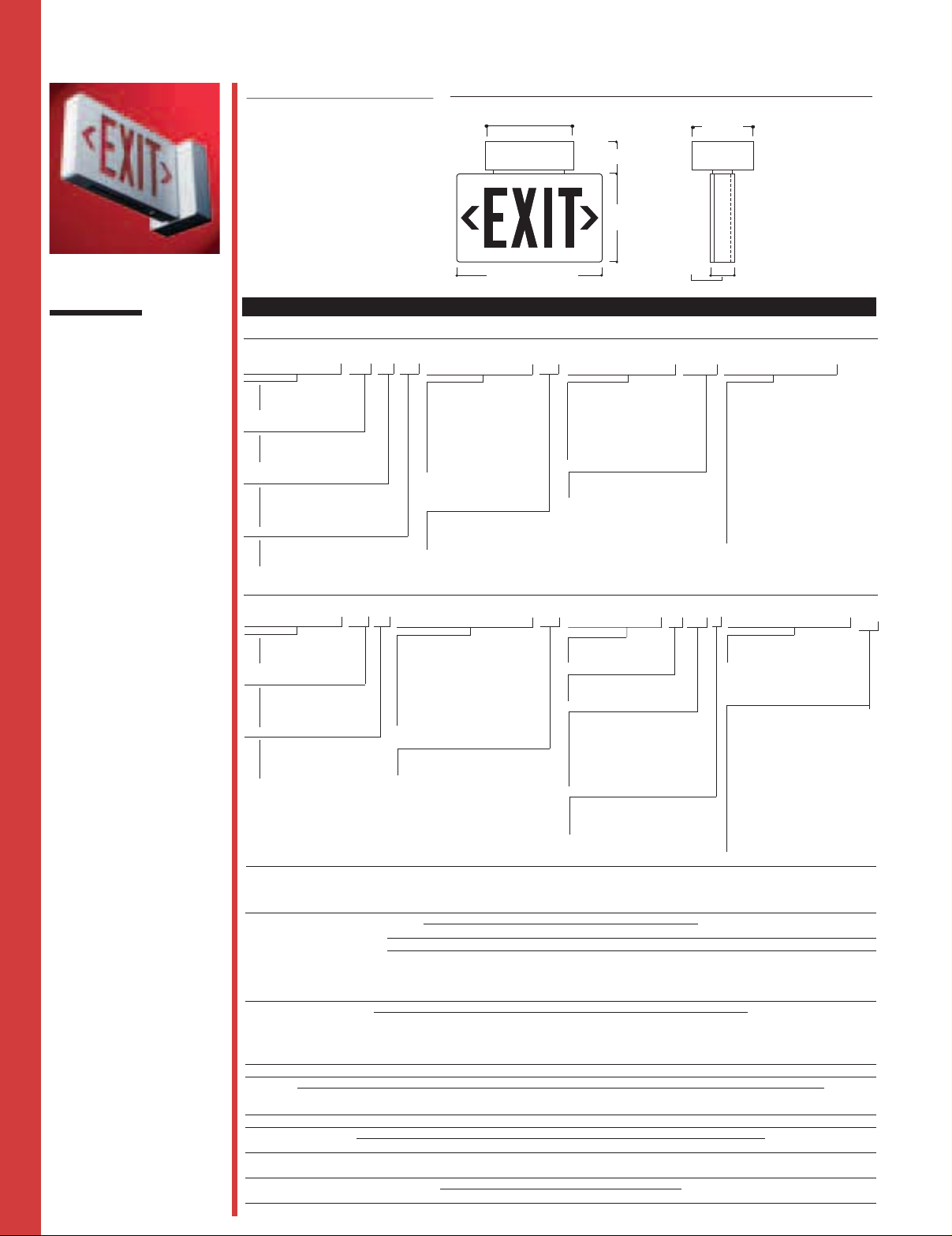

DIMENSIONS
The Sure-Lites Pinnacle Family
of Surface Mounted Die Cast
Aluminum Exits combine
strength, durability and
aesthetics. The pleasing lines
and the range of
architecturally compatible
finishes will add a new
dimension to any design.
Unlike competitive units that
have a pronounced dot effect
from protruding diodes, the
Pinnacle LED offers unequalled
uniform illumination and
brightness.
ORDERING INFORMATION- LED LAMP EXITS
SAMPLE NUMBER: CAX610065RB
CAX
Family
CAX=Die Cast
Aluminum Exit
Surface Mount
Series
6=AC Only,LED
Face Options
1=Single
2=Double
Battery
00=No Battery
Factory
Options
00=No Options
65=Tamperproof Screws
85=Vandal Shield
Letter Colors
R=Red
G=Green
6 1/4" (159mm)
8 1/4" (210mm) (277V)(conversion kit)
1 1/4" (32mm)
2 5/8" (67mm) (277V)
(conversion kit)
8 1/4"
(210mm)
13 5/8" (346mm)
Housing
Finishes
Blank=Brushed
Aluminum
Face with
Black
Housing
W=White
B=Black
BZ=Bronze
Voltage
Blank=120/277V
47=120/347V
4 1/4" (108mm)
5 3/4" (146mm) (277V)(conversion kit)
2 1/4"
(57mm)
Factory Options
2C= Two Circuit Operation
Accessories (Order Separately)
Screwdrivers
059012SP=Tamperproof Screwdriver Bit
VRSD=Vandal Resistant Screwdriver
WG10=Surface, Mount Wire Guard
WGS11=Ceiling, End Mount Wire Guard
VS1=polycarbonate vandal shield
Pendant Kits
CAX18PK=Pendant Kit, white
CAX18PKHT=”Hang-true” Pendant Kit,
white
• NFPA 101 compliant
knockout chevrons allow
quick conversion to
directional signs
• Damp Location Listed
(except exits with “2C”
Option), UL 924 Listed, Life
Safety NFPA 101, CSA
certified, NEC/OSHA, UL
FTBR Listed (consult your
Cooper Lighting
Representative for
applicable fixture types),
most state and local codes
ORDERING INFORMATION-SCREW-IN LED EXITS
SAMPLE NUMBER: CAX1LEDACR
CAX
Family
CAX=Die Cast
Aluminum Exit
Surface Mount
Face Options
1=Single
2=Double
Energy Data
Factory
Options
65=Tamperproof
Screws
85=Vandal Shield
95=AC Only Fire
Alarm Interface
Lamp Type
LED=LED Lite Stix™
Screw-in LED Lamps
Red Letters Single Face 5.6W 5.7W 6.0W .07A .03A .02A >.71 >.71 <36% <36%
Red Letters Double Face 7.3W 7.5W 8.3W .07A .03A .03A >.83 >.83 <33% <34%
Green Letters Single Face 6.7W 6.8W 6.8W .07A .03A .02A >.79 >.79 <30% <31%
Green Letters Double Face 9.5W 9.7W 9.9W .09A .04A .03A >.90 >.90 <26% <27%
Red Letters 2.0W 4.3W .09A .03A >.19 >.58 <19% <22%
Emergency Operation
AC=AC Only
Letter Color
R=Red
Housing Finishes
Blank=Brushed Aluminum
Face with Black Housing
W=White
B=Black
BZ=Bronze
Voltage
Blank=120V
77=277V
Accessories (Order Separately)
DC Socket Kit
PDC6=Two 6V, 3.6W DC lamps
PDC12=Two 12V, 3.6W DC lamps
Emergency Power Pack
CAX3PP=Black
CAX3PPW=White
CAX3PPBZ=Bronze
277V Conversion Kit
AD277CAX=Black
AD277CAXW=White
AD277CAXBZ=Bronze
Vandal Resistant Screwdrivers
059012SP=Tamperproof
Screwdriver Bit
VRSD=Vandal Resistant Screwdriver
WG10=Surface, Mount Wire Guard
WGS11=Ceiling, End Mount Wire Guard
VS1=Polycarbonate Vandal Shield
Input Power: Input Current(Max.): Power Factor: T.H.D.:
120V 277V 347V 120V 277V 347V 120V 277V 120V 277V
Standar
d Power - LED Exits
LED Lite-Stix™ Scr
ew-In Lamps
COOPER LIGHTING
634
COOPER LIGHTING - SURE-LITES
EXIT LIGHTING Architectural
®

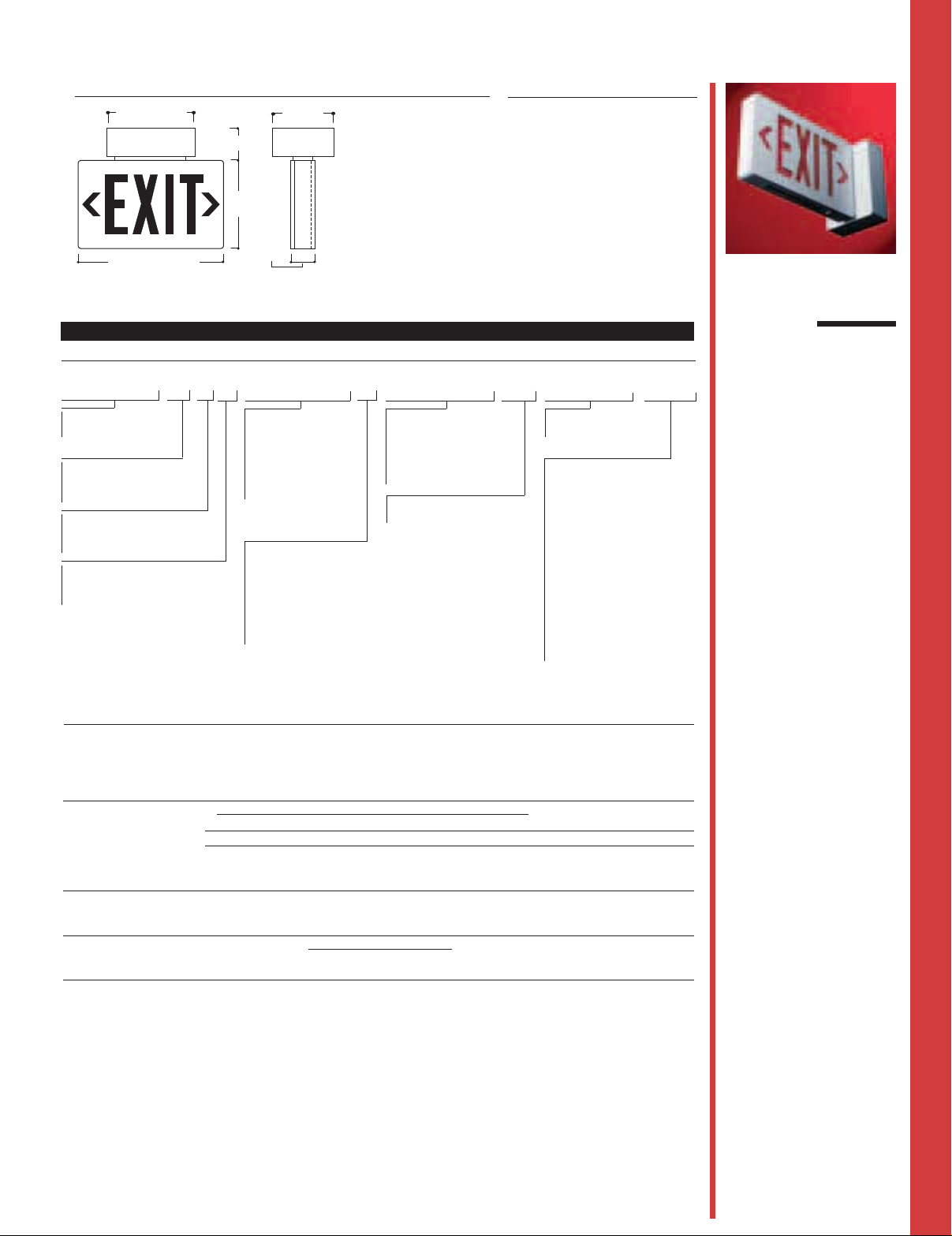

DIMENSIONS
6 1/4" (159mm)
8 1/4" (210mm) (277V)(conversion kit)
4 1/4" (108mm)
5 3/4" (146mm) (277V)(conversion kit)
1 1/4" (32mm)
2 5/8" (67mm) (277V)
(conversion kit)
DESCRIPTION
The Sure-Lites Pinnacle
Family of Surface Mounted
Die cast Aluminum Exits
combine a strength, durability
and aesthetics. The pleasing
lines and the range of
architecturally compatible
8 1/4"
(210mm)
13 5/8" (346mm)
ORDERING INFORMATION-INCANDESCENT, FLUORESCENT LAMP EXITS
SAMPLE NUMBER: CAX410065RB
2 1/4"
(57mm)
finishes will add a new
dimension to any design.
CAX
Family
CAX=Die Cast
Aluminum Exit
Series
2=AC Only, Incandescent
4=AC Only, Fluorescent
Face Options
1=Single
2=Double
Battery
00=No Battery
Energy Data
Incandescent Exits 4.0W 4.2W .33A .16A - - - -
Fluorescent Exits - 5W Lamps14W 21W .29A .32A >.40 >.24 <14% <11%
Fluorescent Exits - 7W Lamps15W 23W .25A .30A >.50 >.27 <16% <12%
Factory
Options
00=No Options
65=Tamperproof Screws
85=Vandal Shield
95=AC Only Fire Alarm
Interface
Letter Colors
R=Red
G=Green
RWO=Red on White
GWO=Green on White
WRO=White on Red
WGO=White on Green
O=Open Face
(1)
(1)
(1)
(1)
(1)
(2)
Housing
Finishes
Blank=Brushed
Aluminum
Face with
Black
Housing
W=White
B=Black
BZ=Bronze
Voltage
Blank=120V
77=277V
Factory Options
2C= Two Circuit Operation
Accessories (Order Separately)
DC Socket Kit (Incandescent only)
PDC6=Two 6V, 3.6W DC lamps
PDC12=Two 12V, 3.6W DC lamps
Emergency Power Pack
(Incandescent Only)
CAX3PP=Black
CAX3PPW=White
CAX3PPBZ=Bronze
277V Conversion Kit
AD277CAX=Black
AD277CAXW=White
AD277CAXBZ=Bronze
Screwdrivers
0590-12SP=Tamperproof Screwdriver Bit
VRSD=Vandal Resistant Screwdriver
Wire Guard
WG1=Surface, Wire Guard
WGS11=Ceiling, End Wire Guard
VS1=Polycarbonate Vandal Shield
Pendant Kits
CAX18PK=Pendant Kit, white
CAX18PKHT=”Hang-true” Pendant Kit, white
Input Power: Input Current (Max.): Power Factor: T.H.D.:
120V 277V 120V 277V 120V 277V 120V 277V
Incandescent Exits
Fluor
escent Exits
CAX SERIES
Die Cast
AC Only
Incandescent, Compact
Fluorescent Lamping
EXIT LIGHTING
• 120 VAC or 277 VAC
input voltage
• Die cast aluminum housing
with hinged face plate and
die-cast canopy for ceiling
or end mounting
• AC incandescent: two 20W
T6 1/2 intermediate base
lamps
• AC fluorescent: two 5W
F5TT compact fluorescent
lamps
• Universal pattern
knockouts on rear of single
face housing for direct
mounting to junction box
• NFPA 101 compliant
knockout chevrons allow
quick conversion to
directional signs
• Stencil and open face
signs available
• Downlight diffuser
• Damp Location Listed, UL
924 Listed, Life Safety
NFPA 101, CSA certified,
NEC/OSHA, UL FTBR Listed
(consult your Cooper
Lighting Representative for
applicable fixture types),
most state and local codes
Notes: AC compact fluorescent CAX Series Exits cannot be converted to self-powered emergency.
(1)
RWO, GWO, WRO, and WGO are open face styles with “EXIT” legend. Use “O” option for ordering special wording-lenses ordered
separately (consult Cooper Lighting Representative).
(2)
AC Only Fire Alarm Interface Option available on incandescent lamp exits only.
COOPER LIGHTING
635
COOPER LIGHTING - SURE-LITES
®
EXIT SIGNS Architectural
CAX SERIES
Die Cast
Self-Powered
LED Lamping
EXIT LIGHTING
• Dual-voltage input
120/277VAC, 60Hz
• Die cast Aluminum
housing with hinged
faceplate and die cast
canopy for ceiling or end
mounting
• Screw-in LED lamps: two
1W long life T 6 1/2
intermediate base lamps
DESCRIPTION
The Sure-Lites Pinnacle Family
DIMENSIONS
6" (152mm)
8 1/4" (210mm) (277V)(conversion kit)
of Surface Mounted Die cast
Aluminum Exits combine
strength, durability and
aesthetics. The pleasing lines
and the range of architecturally
compatible finishes will add a
new dimension to any design.
13 5/8" (346mm)
ORDERING INFORMATION-LED LAMP EXITS
SAMPLE NUMBER: CAX717020R
CAX
Family
CAX=Die Cast Aluminum
Exit Surface Mount
Series
7=Self-Powered LED
Face Options
1=Single
2=Double
Battery
70=Nickel Cadmium
ORDERING INFORMATION-SCREW-IN LED LAMPS
SAMPLE NUMBER: CAX1LEDSPR
Factory Options
00=No Options
20=DC Flasher
30=DC Flasher/ Buzzer
65=Tamperproof Screws
85=Vandal Shield
90=DC Only Fire Alarm
Interface
Letter Colors
R=Red
G=Green
1 1/4" (32mm)
2 5/8" (67mm) (277V)
(conversion kit)
8 1/4"
(210mm)
2 1/4"
(57mm)
Housing Finishes
Blank=Brushed Aluminum
Face with Black Housing
W=White
B=Black
BZ=Bronze
Factory Options
SD=Self Diagnostics
4 1/4" (108mm)
5 3/4" (146mm) (277V)
(conversion kit)
Accessories (Order Separately)
Screwdrivers
0590-12SP=Tamperproof
Screwdriver Bit
VRSD=Vandal Resistant
Screwdriver
VS1=polycarbonate vandal shield
Pendant Kits
CAX18PK=Pendant Kit, white
CAX18PKHT=”Hang-true”
Pendant Kit, white
WG10=Surface
WGS11=Ceiling, end
• Lead Calcium or Premium
Nickel Cadmium battery
• Universal pattern
knockouts on rear of single
face housing for direct
mounting to junction box
• NFPA 101 compliant
knockout chevrons allow
quick conversion to
directional signs
• Line-latching, Solid-State
voltage limited charger,
Solid-State switching, lowvoltage disconnect,
brownout circuit,
overload/short-circuit
protection, test
switch/power indicator
light
• UL 924 Listed, Life Safety
NFPA 101, CSA certified,
NEC/OSHA, most state
and local codes
636
COOPER LIGHTING
Family
CAX=Die Cast Aluminum
Exit Surface Mount
Face Options
1=Single
2=Double
Battery
Blank=Lead Calcium
70=Nickel Cadmium
Wattage Ratings
Lead Calcium Battery=10.8W for 1 1/2 hrs., 7.2W for 2 hrs. Nickel Cadmium Battery=15.0W for 1 1/2 hrs.
Energy Data
Red Letters Single Face 7.4W 7.5W 7.6W .08A .04A .03A >.72 >.72 <34% <34%
Red Letters Double Face 9.3W 9.5W 9.6W .09A .04A .03A >.84 >.84 <31% <32%
Green Letters Single Face 8.5W 8.7W 8.4W .09A .04A .03A >.79 >.79 <30% <31%
Green Letters Double Face 11.4W 11.7W 11.2W .11A .05A .04A >.90 >.90 <26% <26%
Red Letters Single Face 8.4W 8.5W 8.6W .08A .04A .03A >.82 >.82 <31% <31%
Red Letters Double Face 9.8W 9.5W 9.7W .09A .04A .03A >.86 >.84 <30% <30%
Green Letters Single Face 9.1W 9.0W 9.2W .09A .04A .03A >.86 >.85 <27% <27%
Green Letters Double Face 11.2W 10.5W 10.5W .10A .05A .03A >.90 >.88 <25% <26%
Standby Mode (Fully Charged Battery) Sealed Nickel Cadmium Battery Input Power consumption is reduced by approximately 1.5 Watts
Red Letters Single Face 6.5W 6.7W .07A .03A >.75 >.72 <37% <37%
Red Letters Double Face 7.8W 8.1W .08A .04A >.80 >.80 <33% <33%
Standby Mode (Fully Charged Battery) Sealed Nickel Cadmium Battery Input Power consumption is reduced by approximately 4 Watts
Red Letters 16.6W 17.5W .15A .07A >.90 >.91 <28% <28%
Standby Mode (Fully Charged Battery) Sealed Nickel Cadmium Battery Input Power consumption is reduced by approximately 10 Watts in
the standby operating mode
Red Letters 8.4W 8.3W .08A .03A >.92 >.92 <35% <34%
Self Diagnostic Option with Low Power Option (Operating in Low Power Mode) (Fully Discharged Battery) - LED Exits
Factory Options
Blank=None
20=DC Flasher
30=DC Flasher/ Buzzer
65=Tamperproof Screws
85=Vandal Shield
90=DC Fire Alarm Interface
Lamp Type
LED=LED Lite Stix™
Screw-in LED Lamps
Standard Power - Sealed Nickel Cadmium Battery - LED Exits
Input Power: Input Current (Max.): Power Factor: T.H.D.:
120V 277V 347V 120V 277V 347V 120V 277V 120V 277V
Standard Power with Self Diagnostics Option (Fully Discharged Battery) - LED Exits
Charge Mode, Fully Discharged Battery): Sealed Lead Calcium Battery Screw-in LED Lamps
Sealed Nickel Cadmium Battery: Screw-in LED
Emergency Operation
SP=Self-Powered
Letter Color
R=Red
Housing Finishes
Blank=Brushed Aluminum
Face with Black Housing
W=White
B=Black
BZ=Bronze
Voltage
Blank=120V/277V
47=120/347V
Lamps
Factory Options
SD= Self-Diagnostics
Accessories (Order Separately)
059012SP=Tamperproof
Screwdriver Bit
VRSD=Vandal Resistant
Screwdriver
VS1=polycarbonate vandal shield
Pendant Kits
CAX18PK=Pendant Kit, white
CAX18PKHT=”Hang-true”
Pendant Kit, white
WG10=Surface
WGS11=Ceiling, end
COOPER LIGHTING - SURE-LITES
EXIT SIGNS Architectural
®
DIMENSIONS
2 1/4"
(57mm)
5 3/4"
(146mm)
8 1/4" (210mm)
2 5/8" (67mm)
8 1/4"
(210mm)
13 5/8" (346mm)
ORDERING INFORMATION-INCANDESCENT, FLUORESCENT EXITS
SAMPLE NUMBER: CAX310085R
CAX
Family
CAX=Die Cast Aluminum
Exit Surface Mount
Series
3=Self-Powered, Incandescent
5=Self-Powered, Fluorescent
Face Options
1=Single
2=Double
Battery
00=Lead Calcium
70=Nickel Cadmium
Factory Options
00=No Options
20=DC Flasher
30=DC Flasher/ Buzzer
65=Tamperproof Screws
85=Vandal Shield
90=DC Only Fire Alarm
Interface
Letter Colors
R=Red
G=Green
RWO=Red on White
GWO=Green on White
WRO=White on Red
WGO=White on Green
O=Open Face
(1)
(2)
(2)
(2)
Housing Finishes
Blank=Brushed Aluminum
(1)
(1)
(2)
(2)
Face with Black Housing
W=White
B=Black
BZ=Bronze
Voltage
Blank=120V/277V
DESCRIPTION
The Sure-Lites Pinnacle Family
of Surface Mounted Die Cast
Aluminum Exits combine
strength, durability and
aesthetics. The pleasing lines
and the range of architecturally
compatible finishes will add a
new dimension to any design.
Factory Options
SD=Self-Diagnostic
(Incandescent Only)
Accessories (Order Separately)
Screwdrivers
059012SP=Tamperproof
Screwdriver Bit
VRSD=Vandal Resistant
Screwdriver
Wire Guard
WG1=Surface, Wire Guard
WGS11=Ceiling, End Wire
Guard
VS1=Polycarbonate Vandal
Shield
Pendant Kits
CAX18PK=Pendant Kit, white
CAX18PKHT=”Hang-true”
Pendant Kit, white
CAX SERIES
Die Cast
Self-Powered
Incandescent, Compact
Fluorescent Lamping
EXIT LIGHTING
• Dual-voltage input
120/277VAC, 60Hz
• Die cast aluminum housing
with hinged faceplate and
die-cast canopy for ceiling
or end mounting
• AC incandescent: two 20W
T6 1/2 intermediate base
lamps
• AC fluorescent: two 5W
F5TT compact fluorescent
lamps
Wattage Ratings
Lead Calcium Battery=10.8W for 1 1/2 hrs., 7.2W for 2 hrs. Nickel Cadmium Battery=15.0W for 1 1/2 hrs.
Energy Data
Charge Mode (Fully Discharged Battery): Sealed Lead Calcium Battery
Input Power: Input Current (Max.): Power Factor: T.H.D.:
120V 277V 120V 277V 120V 277V 120V 277V
Incandescent Exits-20W Lamps 53W 51W .45A .19A >.99 >.98 <9% <10%
Fluorescent Exits-5W Lamps 29W 30W .40A .16A >.61 >.66 <12% <11%
Standby Mode (Fully Charged Battery) Sealed Lead Calcium Battery Input Power consumption is reduced by approximately 12 Watts in the
standby operating mode
Sealed Nickel Cadmium Battery
Incandescent Exits-20W Lamps 45W 43W .38A .16A >.99 >.99 <7% <7%
Fluorescent Exits - 5W Lamps 20W 21W .36A .15A >.48 >.52 <15% <14%
(1)
DC Flasher, DC Flasher/Buzzer and DC Fire Alarm Interface options available with Incandescent exits only.
are open face styles with “Exit” legend. Use “O” option for ordering special wording-lenses ordered separately (consult Cooper Lighting
Representative).
(2)
RWO, GWO, WRO, and WGO
• Lead Calcium or Premium
Nickel Cadmium battery
• Universal pattern
knockouts on rear of single
face housing for direct
mounting to junction box
• NFPA 101 compliant
knockout chevrons allow
quick conversion to
directional signs
• Stencil and open face
signs available
• Downlight diffuser
• Line-latching, Solid-State
voltage limited charger,
Solid-State switching,
low-voltage disconnect,
brownout circuit,
overload/short-circuit
protection, test
switch/power indicator
light
• UL 924 Listed, Life Safety
NFPA 101, CSA Certified,
NEC/OSHA, UL FTBR
Listed, most state and
local codes
COOPER LIGHTING
637
Loading...
