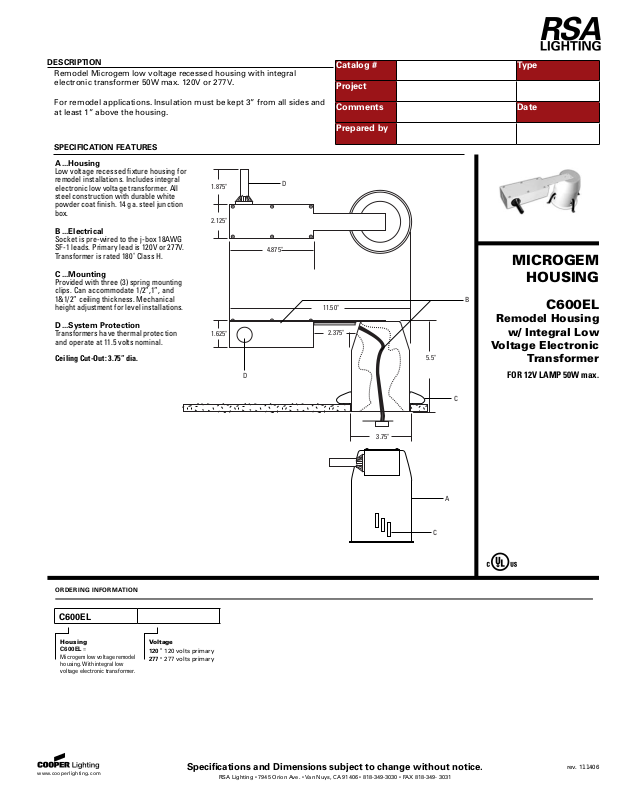

Cooper Lighting C600EL User Manual
DESCRIPTION
Remodel Microgem low voltage recessed housing with integral
electronic transformer 50W max. 120V or 277V.
For remodel applications. Insulation must be kept 3” from all sides and
at least 1” above the housing.
SPECIFICATION FEATURES
A ...Housing
Low voltage recessed fixture housing for
remodel installations. Includes integral
electronic low voltage transformer. All
1.875"
D
steel construction with durable white
powder coat finish. 14 ga. steel junction
box.
2.125"
B ...Electrical
Socket is pre-wired to the j-box 18AWG
SF-1 leads. Primary lead is 120V or 277V.
Transformer is rated 180˚ Class H.
4.875"
C ...Mounting
Provided with three (3) spring mounting
clips. Can accommodate 1/2”,1”, and
1&1/2” ceiling thickness. Mechanical
height adjustment for level installations.
D ...System Protection
Transformers have thermal protection
1.625"
and operate at 11.5 volts nominal.
Ceiling Cut-Out: 3.75” dia.
D
Catalog # Type
Project
Comments Date
Prepared by
11.50"
B
Remodel Housing
2.375"
Voltage Electronic
5.5"
MICROGEM
HOUSING
C600EL
w/ Integral Low
Transformer
FOR 12V LAMP 50W max.
ORD ERI NG INF ORM ATIO N
C600EL
Housing
C600EL =
Microgem low voltage remodel
housing. With integral low
voltage electronic transformer.
Voltage
=
120
120 volts primary
=
277
277 volts primary
C
3.75"
A
C
www.coo perlighti ng.com
Specifications and Dimensions subject to change without notice.
RSA Lighting • 7945 Orion Ave. • Van Nuys, CA 91406 • 818-349-3030 • FAX 818-349- 3031
rev. 111406
