Page 1
BOLLARD SERIES
PATHWAY LUMINAIRES

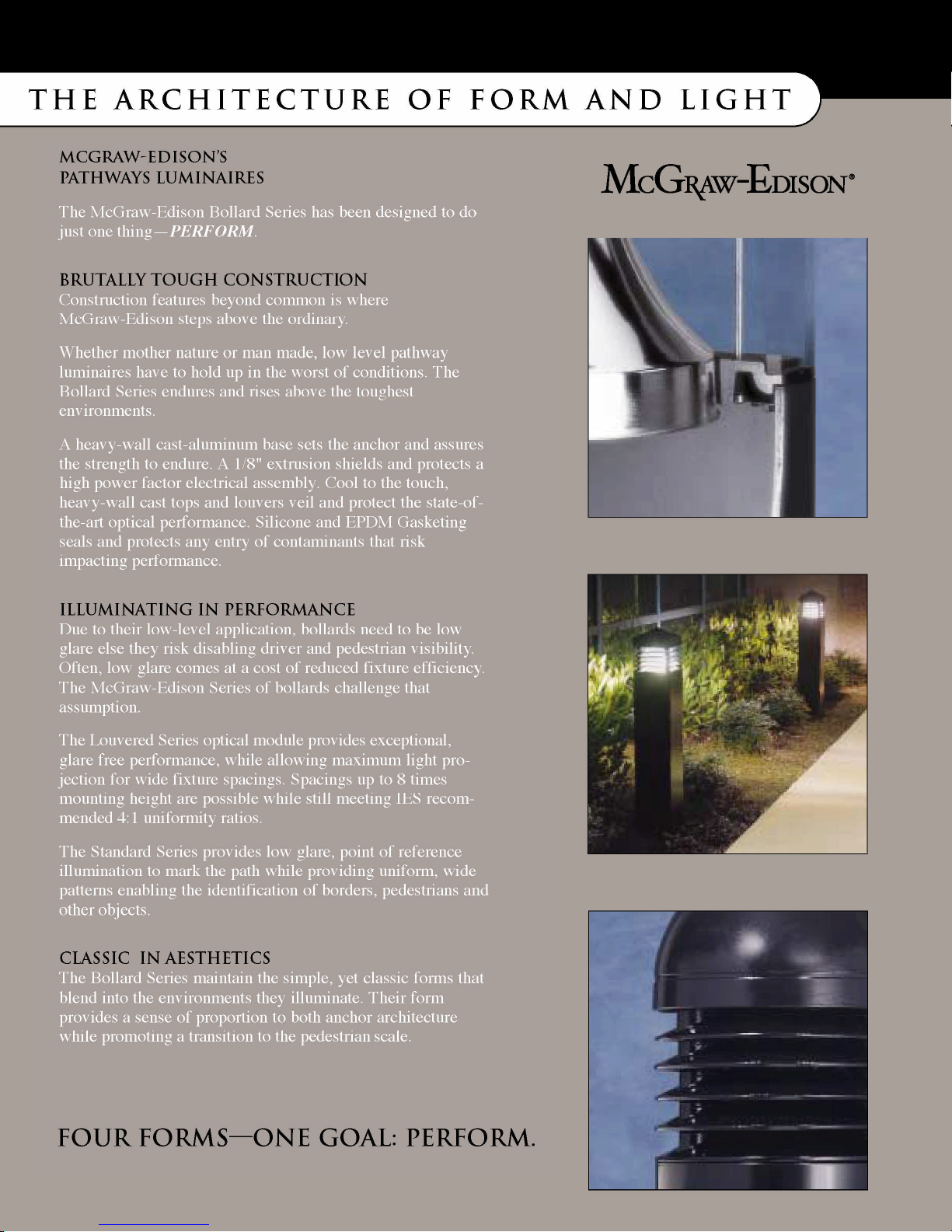

Page 2

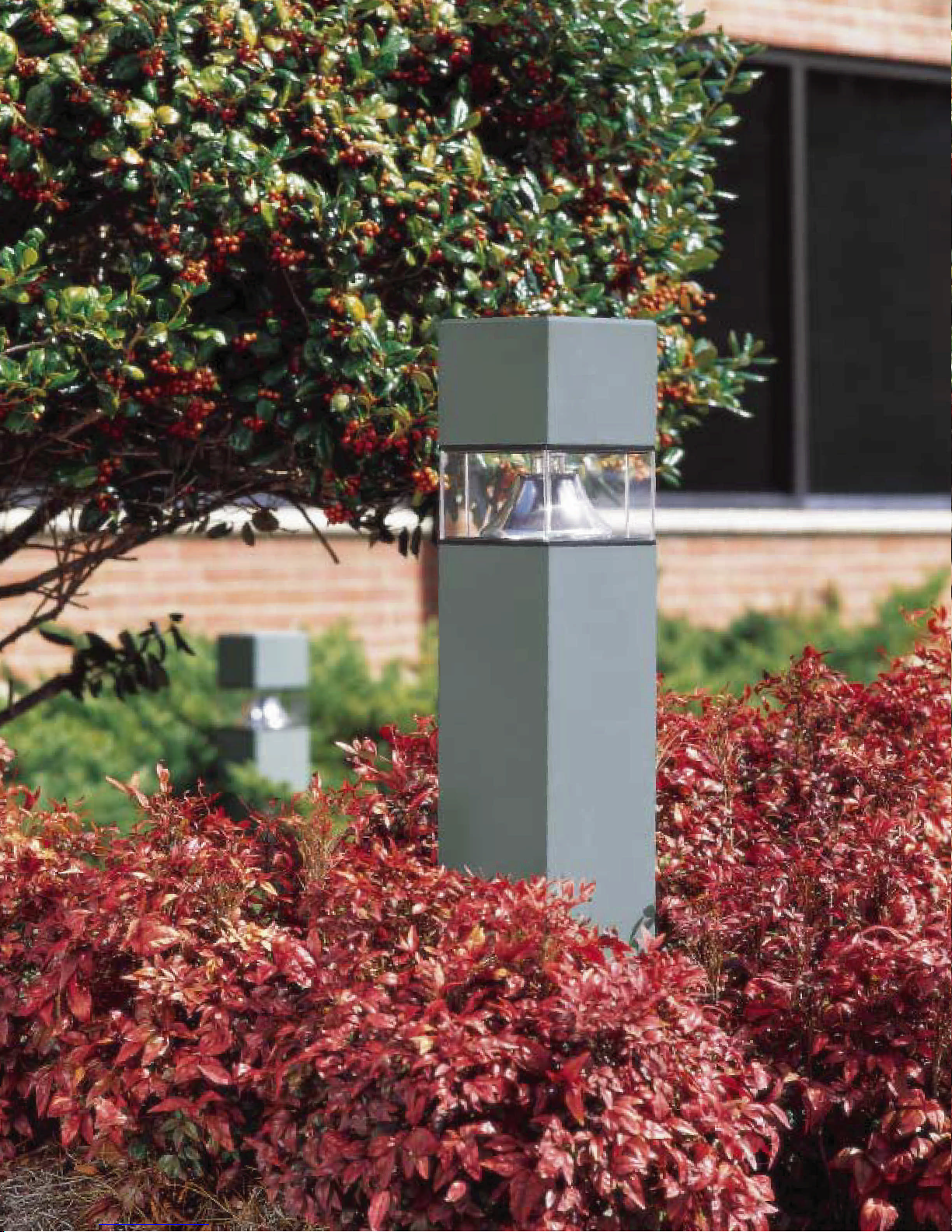

Page 3
Page 4
Page 5

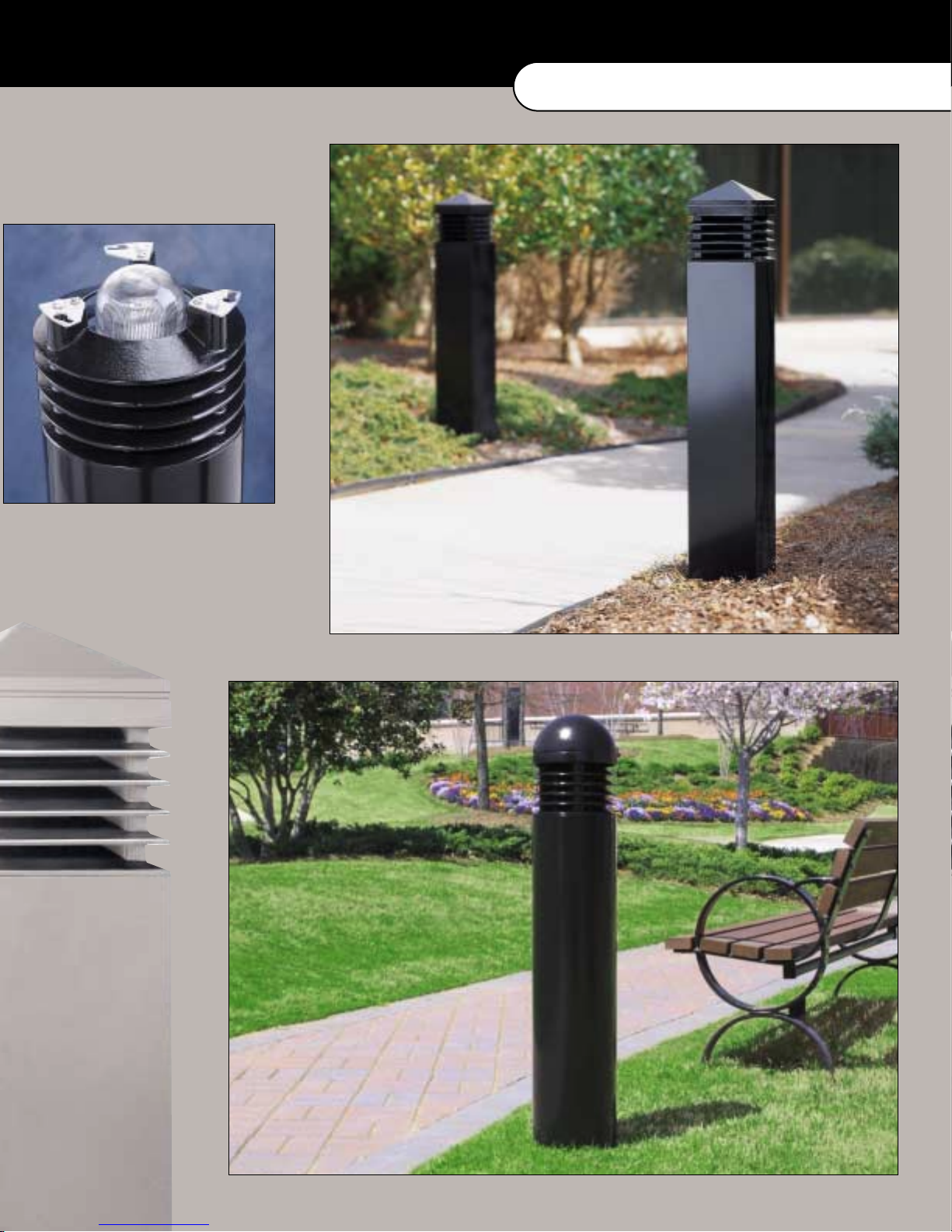

louvered series—design features
BSL
square louvered series
BRL
ROund dome top
louvered series
Page 6
Page 7

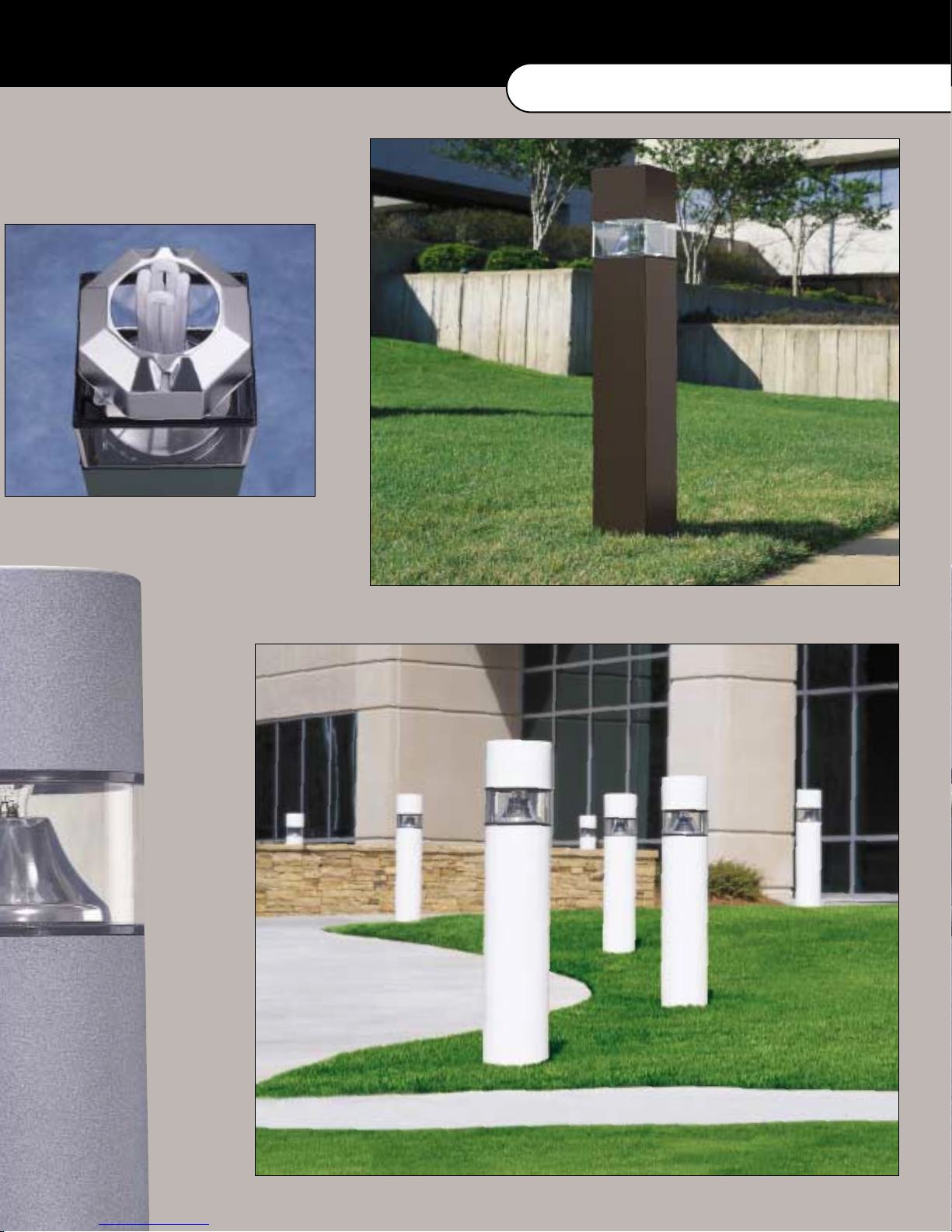

Standard series—design features
bRc
round standard series
bsc
square standard series
Page 8
Page 9

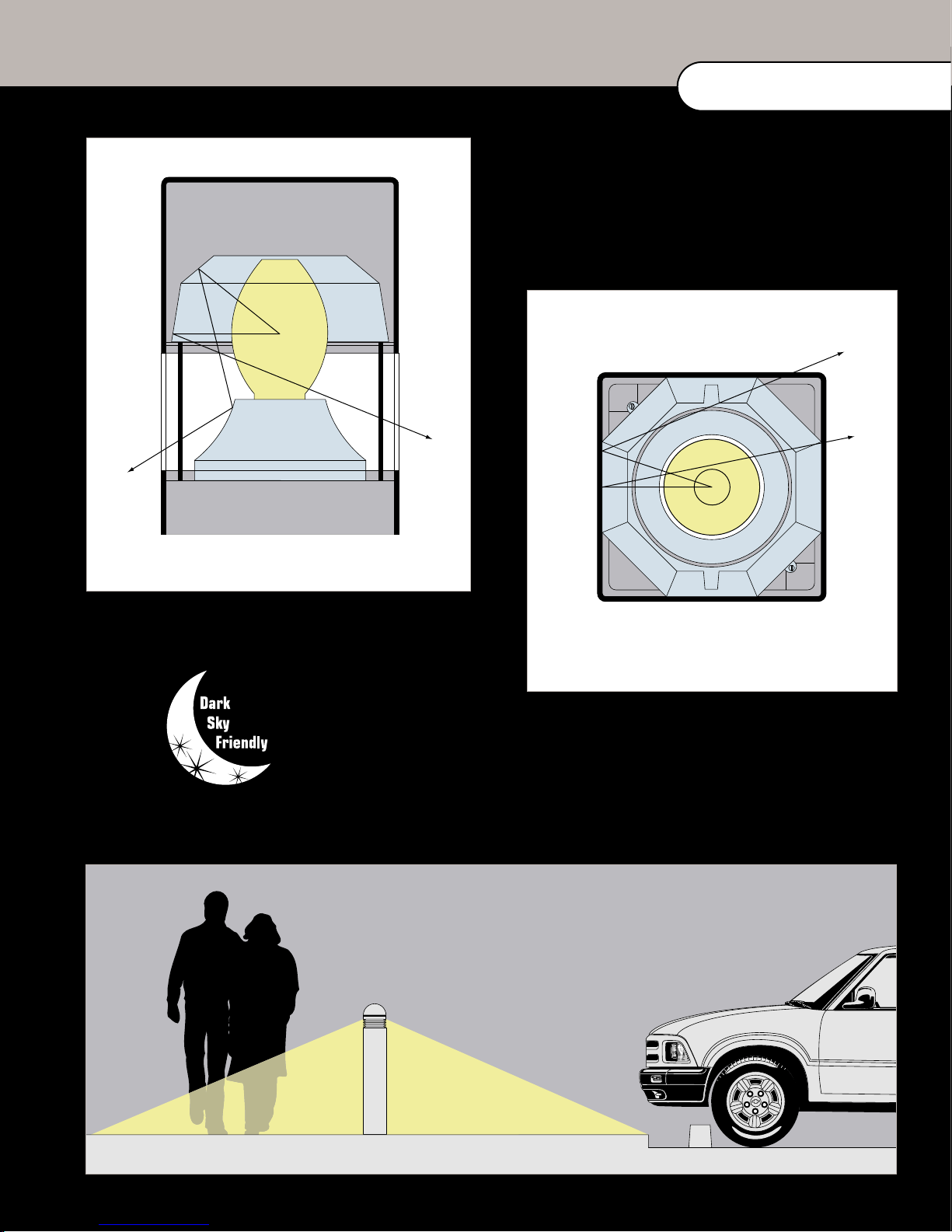

optical excellence
efficient illumination
The McGraw-Edison Standard Series bollard locates the lamp
in the housing top cap preventing direct viewing of the lamp at
pedestrian and motorist level. The multi-piece reflector system
works in unison to maximize efficiency by redirecting otherwise
unuseable light onto the lower reflector which focuses light onto
the pathway.
Optical Control
McGraw-Edison bollards are designed to efficiently direct light downward onto
the walkway while concealing the lamp from direct view, eliminating discomfort
glare and ensuring safety and visibility for pedestrians and motorists.
The McGraw-Edison Bollard Series present a responsible pathway lighting solution
for the environmentally conscience.
top view
side view
Page 10
Page 11

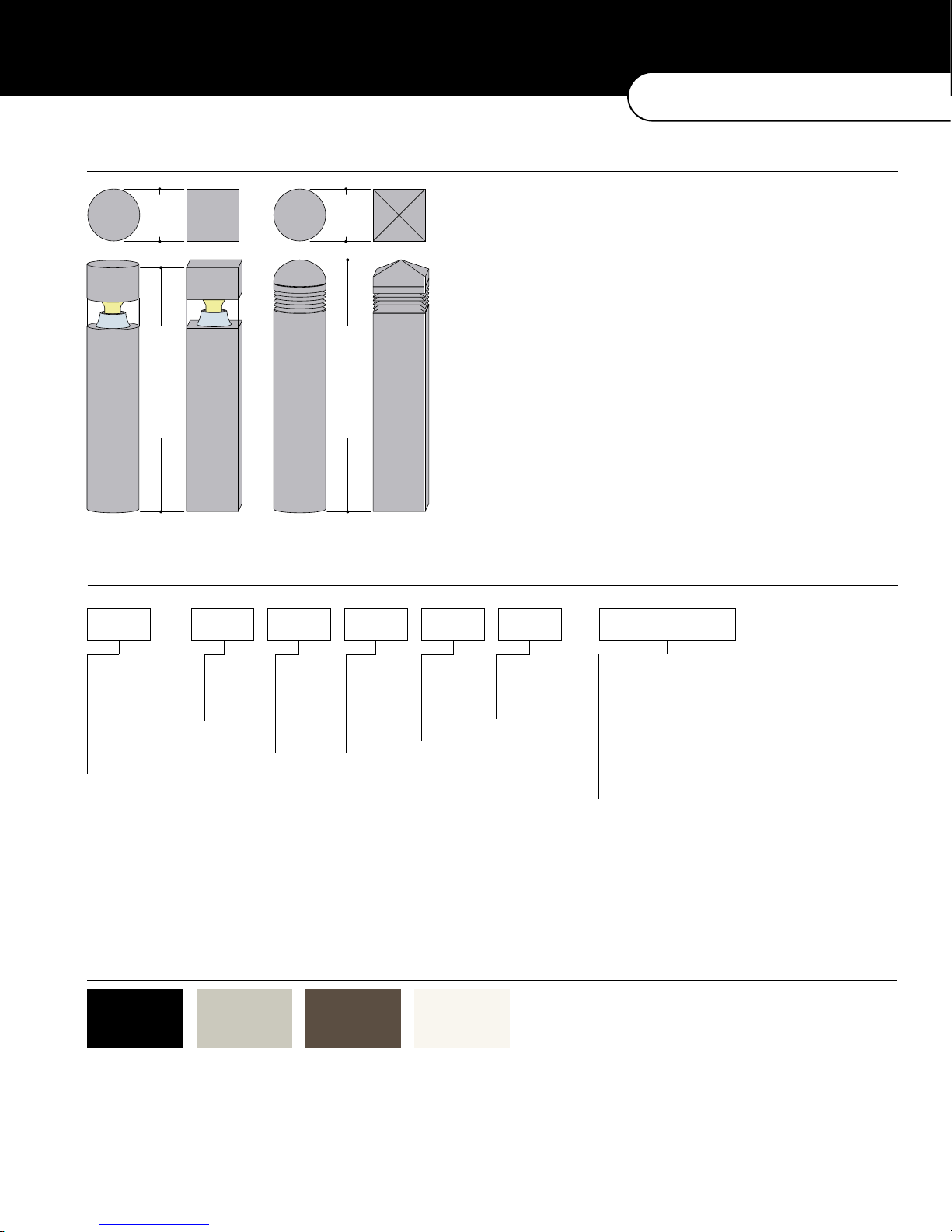

DIMENSIONS
ORDERING INFORMATION
SAMPLE NUMBER: BSL-36-100-MH-MT-BK
Product Family
BSC=Square Bollard
with Clear Lens,
& Square Top
BSL=Square Bollard
with Stacked Louvers,
& Pyramidal Top
BRC=Round Bollard
with Clear Lens,
& Cylindrical Top
BRL=Round Bollard
with Stacked Louvers,
& Dome Top
Fixture Height
24=24"
28=28"
32=32"
36=36"
42=42"
Lamp Wattage
1
26=26W
2
32=32W
2
35=35W
3
42=42W
2
50=50W
57=57W
2
70=70W
100=100W
Lamp Type
MH=Metal
Halide
HPS=High
Pressure
Sodium
CF=Compact
Fluorescent
4
IC=Incandescent
Voltage
5
120=120V
208=208V
240=240V
277=277V
MT=Multi-Tap
wired 277V
6
TT=Triple-Tap
wired 347V
6
Color (add as
suffix/must specify)
7
BK=Black
AP=Grey
BZ=Bronze
WH=Architectural
White
NOTES:
(1)
All HID lamps are medium-base.
(2)
Compact fluorescent only.
(3)
35W HPS available in 120V only.
(4)
BSC/BRC only. MOL length of lamp cannot exceed 7".
(5)
Product also available in non-US voltages and 50Hz for international markets. Consult factory for availability and ordering information.
(6)
Multi-Tap ballast is 120/208/240/277V wired 277V. Triple-Tap ballast is 120/277/347V wired 347V.
(7)
Other finish colors available. Consult Architectural Colors brochure.
(8)
Polycarbonate lens available on BSC and BRC only.
(9)
Coated lamp standard. Must specify clear lamp if desired.
(10)
Available on BSL and BRL only.
(11)
Location of R1 and R2 option on housing subject to height of luminaire.
Options (add as suffix)
F=Single Fuse (120, 277, or 347V)
FF=Double Fused (208 or 240V)
PC=Button Photocontrol
PL=Polycarbonate Lens
8
L=Lamp Included
9
RB=Royal Blue Glass Jar
10
AB=Aqua Marine Blue Glass Jar
10
HG=Hunter Green Glass Jar
10
RE=Red Glass Jar
10
OR=Orange Glass Jar
10
R1=Provisional cut for GFI Receptacle
11
R2=Installed GFI Receptacle
11
42"
(1067mm)
36"
(914mm)
32"
(813mm)
28"
(711mm)
24"
(610mm)
42"
(1067mm)
36"
(914mm)
32"
(813mm)
28"
(711mm)
24"
(610mm)
8" (Rd.)
(203mm)
7" (Sq.)
(178mm)
8" (Rd.)
(203mm)
7" (Sq.)
(178mm)
STANDARD COLORS
BZ
Bronze
WH
Architectural White
BK
Black
AP
Grey
ordering information
