Cooper Lighting ADY071481 User Manual

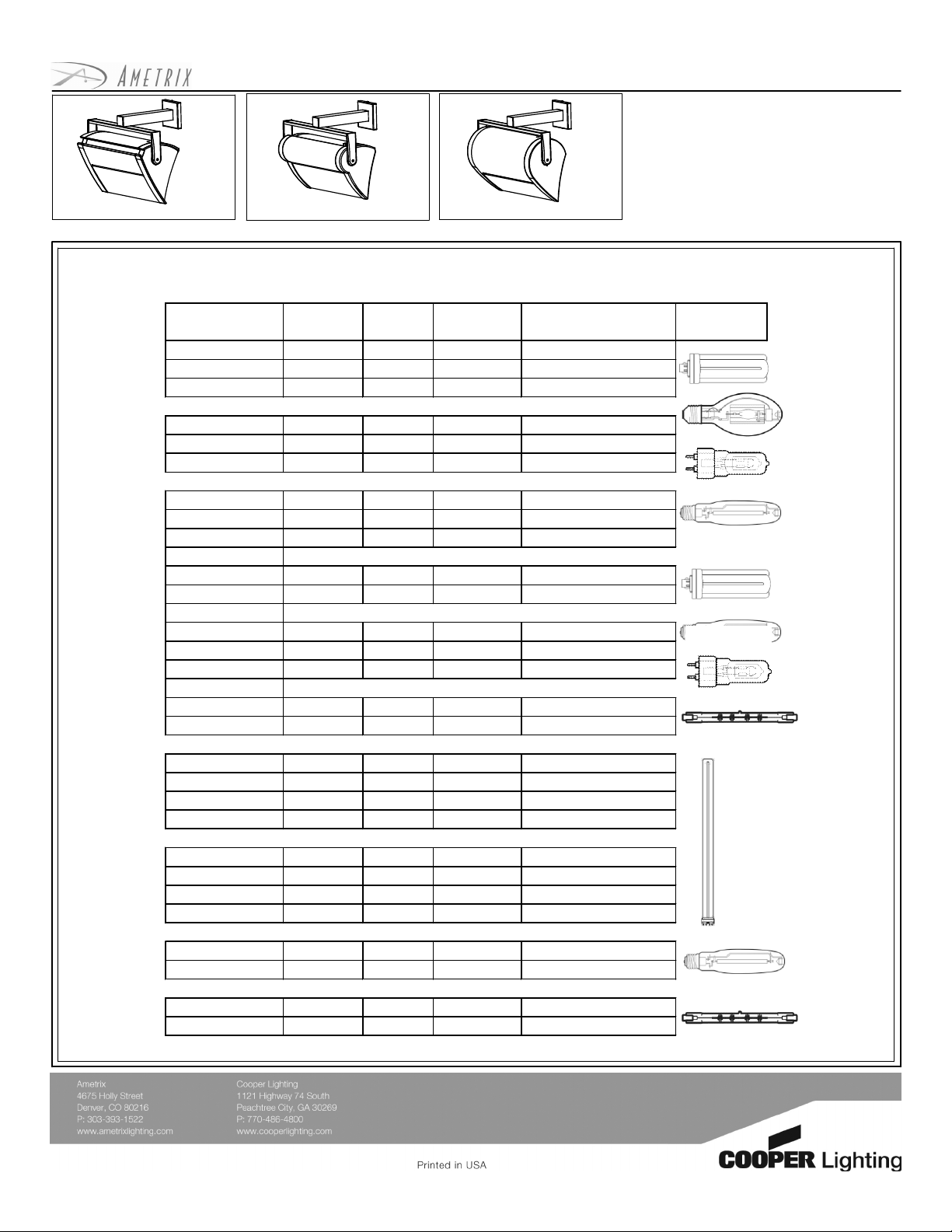

Vault
These installation instructions are valid with the above Ametrix styles.
C-Scroll
Roundel
Installation Instructions
Sheet 1 of 3
Large, OUTDOOR
CR
(Cantilever, Remote ballast)
Visor and Non-Visor
Warning
that all sources of power are turned off. All
work must meet local/national codes and be
performed by a certified electrician.
mount fixtures vertically.
: Before starting any work ensure
Do not
Exploded view and part call-out
#8-32 x3/8"
Set screw
Canopy
1/4-20 x3/4"
Hex bolts
(2x)
Fixture head
(2x)
Yoke assembly
Yoke end cap
#10-32 x1
End screw
(2x)
Attention:
All large fixtures require additional bracing/structure
around J-box to support fixture.
2
1/4-20 x3/4"
Hex bolts
(2x)
Securing fixture to cantilever
#6-32 x1/4"
Flat head screw
Yoke arm
end cap
1
Use additional bracing around
J-box to support J-box.
Canopy
1. Prior to attaching fixture head to cantilever, remove both
#8-32 x3/8" set screws and allow canopy to slide down
pendant.
2. Feed power wire through wiring holes and using appropriate
fasteners, secure mounting plate to structure.
3
Mounting cantilever to structure
#8-32 x3/8"
Set screw
J-box
(by others)
Mounting plate
1/4" fastener
(by others)
(4x)
Wiring the fixture
#8-32 x 3/8"
Set screws
(2x)
Canopy
Wiring holes
#10-32 x1"
End screw
Fixture head
1. To remove fixture head from yoke assembly, remove #10-32
x1" end screw from one side.
2. Remove the #6-32 x1/4" Flat head screw from the inside of the
yoke arm and remove the yoke end cap.
With fixture head removed, secure yoke to cantilever using
3.
1/4-20 x3/4" hex bolts.
Run wiring from fixture head, into pendant and out holes in
4.
mounting plate.
ADY071481 REV A(ECN080352)
1. After pulling wires through wiring holes in mounting plate,
attach appropriate wires and ensure all connections are
properly matched.
Push connections into J-box and secure canopy using both
2.
#8-32 x3/8" set screws.
Refer to supplementary sheet for instructions on aiming and
3.
sealing the fixture.
Vault w/ visor
These installation instructions are valid with the above Ametrix styles
C-Scroll w/ visor
Mounting plate dimensions In[mm]
Roundel w/ visor
Installation Instructions
Sheet 2 of 3
Large, OUTDOOR
CR
(Cantilever, Remote ballast)
Visor and Non-Visor
Warning
that all sources of power are turned off. All
work must meet local/national codes and be
performed by a certified electrician.
mount fixtures vertically.
: Before starting any work ensure
Do not
Top View
127
5"
88.90
1
3
2
38.10
1
1
"
2
19.05
3
"
4
19.05
3
"
4
"
7.11
9
32
"
127
88.90
1
3
2
"
5"
Side View
ADY071481 REV A(ECN080352)
Length dependant
on order
12.70
1
"
2
