Cooper Lighting ADY071461 User Manual

Semi-recessed fixtures shown without thermal protectors
Vault
These installation instructions are valid with the above Ametrix styles.
C-Scroll
Roundel
Installation Instructions
Sheet 1 of 5
Large, INDOOR
SRR
(Semi-Recessed, Remote ballast)
Visor and Non-Visor
Warning
that all sources of power are turned off. All work must meet local/national codes and be performed by a certified electrician. mount fixtures vertically.
: Before starting any work ensure
Do not
1.
Pem-stud

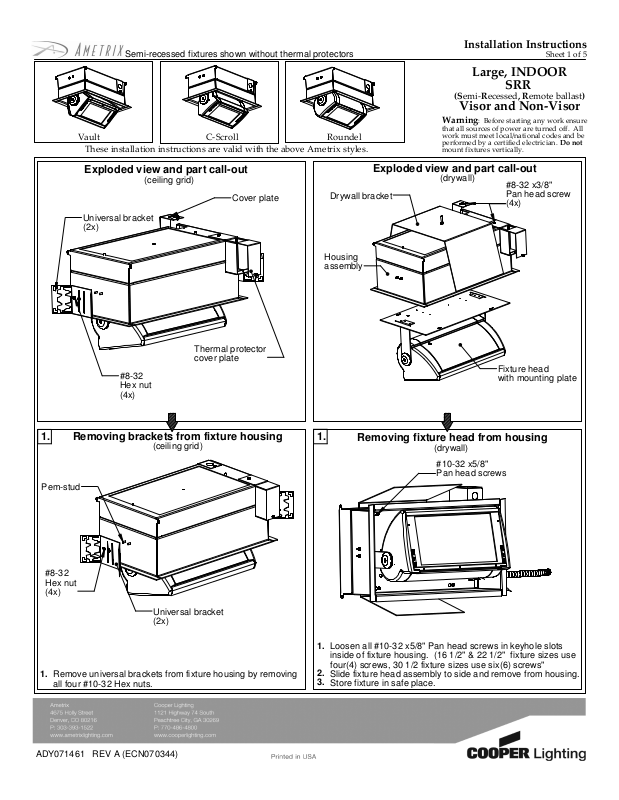

Exploded view and part call-out
(ceiling grid)
Universal bracket (2x)
Thermal protector cover plate
#8-32 Hex nut (4x)
Cover plate
Removing brackets from fixture housing
(ceiling grid)
Drywall bracket
Housing assembly
1.
Removing fixture head from housing
Exploded view and part call-out
(drywall)
(drywall)
#10-32 x5/8" Pan head screws
#8-32 x3/8" Pan head screw (4x)
#8-32 Hex nut (4x)
Universal bracket (2x)
1.
Remove universal brackets from fixture housing by removing
all four #10-32 Hex nuts.
ADY071461 REV A (ECN070344)
1.
Loosen all #10-32 x5/8" Pan head screws in keyhole slots inside of fixture housing. (16 1/2" & 22 1/2" fixture sizes use four(4) screws, 30 1/2 fixture sizes use six(6) screws"
2.
Slide fixture head assembly to side and remove from housing.
3.
Store fixture in safe place.
Semi-recessed fixtures shown without thermal protectors
Vault w/ visor C-Scroll w/ visor Roundel w/ visor
These installation instructions are valid with the above Ametrix styles.
Installation Instructions
Sheet 2 of 5
Large, INDOOR
SRR
(Semi-Recessed, Remote ballast)
Visor and Non-Visor
Warning
that all sources of power are turned off. All work must meet local/national codes and be performed by a certified electrician. mount fixtures vertically.
: Before starting any work ensure
Do not
2.
1.
If possible, remove ceiling tile from grid to facilitate fixture
installation.
2.
Using cut out dimensions provided on page four(4), cut
appropriate size opening in ceiling tile.
3.
Carefully insert fixture assembly into cut out in ceiling tile.
3.
Securing fixture to ceiling tile
#8-32 Hex nut (4x)
Ceiling grid bracket
Fixture assembly
Replacing brackets on fixture housing
#8-32 hex nut (x4)
2.
Electrical cover plate
1.
Using cut out dimensions provided on page four(4), cut
hole into dry wall and feed power wire to hole.
2.
After removing fixture head, loosen #10-32 x3/8" Pan head
screws and remove electrical cover plate.
3.
Knock out appropriate hole for conduit and attach as shown
on page three(3).
4.
Replace cover plate and secure with #10-32 x3/8" Pan head
screws and press fixture housing into hole in drywall.
3.
1/4-20 x1 1/2" Pan head screw
Wiring the fixture
(drywall)
Replacing fixture head
(drywall)
Conduit from power source. (by others)
Fixture housing
Ceiling grid bracket
1.
Loosely reattach brackets to both sides of fixture housing.
2.
Press brackets flush to ceiling tile and secure using #10-32
Hex nuts.
ADY071461 REV A(ECN070344)
1.
Prior to pushing fixture into hole in drywall, tie off fixture housing to structure using safety wire(by others) as show on page three(3).
2.
Gently push fixture housing into hole and tighten 1/4-20 x 1 1/2" Pan head screw from inside fixture housing to tighten drywall bracket around drywall.
3.
Connect appropriate wires from fixture head and ensure all
wires are properly matched.
4.
Replace fixture head assembly on keyhole screws and tighten.
Semi-recessed fixtures shown without thermal protectors
Vault w/ visor C-Scroll w/ visor Roundel w/ visor
These installation instructions are valid with the above Ametrix styles.
Installation Instructions
Sheet 3 of 5
Large, INDOOR
SRR
(Semi-Recessed, Remote ballast)
Visor and Non-Visor
Warning
that all sources of power are turned off. All work must meet local/national codes and be performed by a certified electrician. mount fixtures vertically.
: Before starting any work ensure
Do not
4.
1.
After securing fixture housing to ceiling structure using provided brackets, reinforce fixture using safety wire(by others).
2.
Using all four tabs located on corners of fixture housing, tie off fixture to structure using safety wire(by others).
5.
Conduit (by others)
Electrical cover plate
Securing the fixtures with safety wire
(both ceiling grid and drywall)
Fixture housing
Wiring the fixture
(both ceiling grid and drywall)
Safety wire (by others)
Conduit nut Conduit fitting (by others)
1.
If applicable, replace ceiling tile with fixture secured back into ceiling. Remove adjacent tile from ceiling to facilitate wiring.
2.
Loosen #10-32 x3/8" Pan head screws and remove electrical cover plate and knock out appropriate hole.
3.
Using conduit fitting and nut, secure conduit to cover plate.
4.
Attach appropriate wires and ensure all connections are properly matched. If ordered, remove thermal cover plate and wire
thermal protector.
5.
Replace cover plates and secure with #10-32 x3/8" Pan head screws.
ADY071461 REV A(ECN070344)
(by others)
Thermal cover plate
Semi-recessed fixtures shown without thermal protectors
Vault w/ visor
These installation instructions are valid with the above Ametrix styles
C-Scroll w/ visor
Cutout Dimensions In[mm]
7
10
16
265.11
"
16 1/2" Fixture head size
Roundel w/ visor
5
18 "
8
473.08
Installation Instructions
Sheet 4 of 5
Large, INDOOR
SRR
(Semi-Recessed, Remote ballast)
Visor and Non-Visor
Warning
that all sources of power are turned off. All work must meet local/national codes and be performed by a certified electrician. mount fixtures vertically.
: Before starting any work ensure
Do not
7
10
16
265.11
"
7
10
16
265.11
5
24 "
8
625.48
"
22 1/2" Fixture head size
5
32 "
8
828.68
30 1/2" Fixture head size
ADY071461 REV A(ECN070344)
Semi-recessed fixtures shown without thermal protectors
Lamp
Vault w/ visor
C-Scroll w/ visor
These installation instructions are valid with the above Ametrix styles
Lamping Size Chart
(lamps provided by others)
Roundel w/ visor
Installation Instructions
Sheet 5 of 5
Large, INDOOR
SRR
(Semi-Recessed, Remote ballast)
Visor and Non-Visor
Warning
that all sources of power are turned off. All work must meet local/national codes and be performed by a certified electrician. mount fixtures vertically.
: Before starting any work ensure
Do not
FIXTURE SIZE
(inches/ mm) WATTAGE
16
1/2
/ 419.1 32 W 1 T4 Compact Flourescent
16
/ 419.1 42 W 1 T4 Compact Flourescent
1/2
16
/ 419.1 57 W 1 T4 Compact Flourescent
1/2
16
/ 419.1 100 W 1 ED17 Ceramic Metal Halide
1/2
16
/ 419.1 150 W 1 T6 Ceramic Metal Halide
1/2
16
1/2
/ 419.1 175 W 1 ED17 Ceramic Metal Halide
22
/571.5 mm 250 W 1 ET18 Metal Halide
1/2
22
/571.5 mm 400 W 1 ET18 Metal Halide
1/2
22
/571.5 mm 150 W 2 T6 Ceramic Metal Halide
1/2
22
/571.5 mm 32 W 2 T4 Compact Flourescent
1/2
22
/571.5 mm 42 W 2 T4 Compact Flourescent
1/2
22
/571.5 mm 250 W 1 ET18 Metal Halide
1/2
22
/571.5 mm 400 W 1 ET18 Metal Halide
1/2
22
1/2
/571.5 mm 150 W 2 T6 Ceramic Metal Halide
22
/571.5 mm 350 W 1 T3 Halogen(Double Ended)
1/2
22
/571.5 mm 500 W 1 T3 Halogen(Double Ended)
1/2
# OF
LAMPS LAMP TYPE LAMP DESCRIPTION
(not to s cale)
30
/ 774.7 36 W 1 T5 Twin Tube
1/2
30
1/2
/ 774.7 40 W 1 T5 Twin Tube
30
/ 774.7 50 W 1 T5 Twin Tube
1/2
30
/ 774.7 55 W 1 T5 Twin Tube
1/2
30
/ 774.7 36 W 2 T5 Twin Tube
1/2
30
1/2
/ 774.7 40 W 2 T5 Twin Tube
30
/ 774.7 50 W 2 T5 Twin Tube
1/2
30
/ 774.7 55 W 2 T5 Twin Tube
1/2
30
/ 774.7 250 W 2 ET18 Metal Halide
1/2
30
/ 774.7 400 W 2 ET18 Metal Halide
1/2
30
/ 774.7 900 W 1 T3 Halogen(Double Ended)
1/2
30
/ 774.7 1000 W 1 T3 Halogen(Double Ended)
1/2
ADY071461 REV A(ECN070344)
