Semi-recessed fixtures shown without thermal protectors
Vault w/ visor C-Scroll w/ visor Roundel w/ visor
These installation instructions are valid with the above Ametrix styles.
Installation Instructions
Sheet 2 of 4
Small, INDOOR
SRI
(Semi-Recessed, Integral ballast)
Visor and Non-Visor
Warning
that all sources of power are turned off. All
work must meet local/national codes and be
performed by a certified electrician.
mount fixtures vertically.
: Before starting any work ensure
Do not
2.
#10-32 x3/8"
Pan head screw
(4x)
1.
If possible, remove ceiling tile from grid to facilitate fixture
installation.
2.
Using cut out dimensions provided on page four(4), cut
appropriate size opening in ceiling tile.
3.
Insert fixture assembly into cut out in ceiling tile.
3.
Securing fixture to ceiling tile
Universal
bracket
Ceiling tile
Fixture
assembly
Replacing brackets on fixture housing
(ceiling grid)
2.
1.
Using cut out dimensions provided on page four(4), cut
hole into dry wall and feed power wire to hole.
2.
After removing fixture head, loosen #10-32 x3/8" Pan head
screws and remove cover plate closest to power feed.
3.
Knock out appropriate hole for conduit and attach as shown
on page three(3).
4.
Replace cover plate and secure with #10-32 x3/8" Pan head
screws and press fixture housing into hole in drywall.
3.
1/4-20 x1 1/2"
Pan head screw
Wiring the fixture
(drywall)
Conduit from
power source.
(by others)
Cover plate
#10-32 x3/8"
Pan head screws
(2x)
Fixture housing
Securing the fixture in drywall
#10-32 x 3/8"
Pan head screws
(4x)
Universal brackets
(2x)
1.
Loosely reattach brackets to both sides of fixture housing.
2.
Press brackets flush to ceiling tile and secure using #10-32 x
3/8".
ADY071458 REV A (ECN070344)
Safety wires
(by others)
(4x)
1.
Prior to pushing fixture into hole in drywall, tie off fixture
housing to structure using saftey wire(by others) as show on
page three(3).
2.
Gently push fixture housing into hole and tighten 1/4-20 x 1
1/2" Pan head screw from inside fixture housing to tighten
drywall bracket around drywall.
3.
Connect appropriate wires from fixture head and ensure all
wires are properly matched.
4.
Replace fixture head assembly on keyhole screws and
tighten.
Page 3
Semi-recessed fixtures shown without thermal protectors
Vault w/ visor C-Scroll w/ visor Roundel w/ visor
These installation instructions are valid with the above Ametrix styles.
Installation Instructions
Sheet 3 of 4
Small, INDOOR
SRI
(Semi-Recessed, Integral ballast)
Visor and Non-Visor
Warning
that all sources of power are turned off. All
work must meet local/national codes and be
performed by a certified electrician.
mount fixtures vertically.
: Before starting any work ensure
Do not
4.
1.
After securing fixture housing to ceiling structure using provided brackets, reinforce fixture using safety wire(by others).
2.
Using all four tabs located on corners of fixture housing, tie off fixture to structure using safety wire(by others).
5.
#10-32 x3/8"
Pan head screw
(2x)

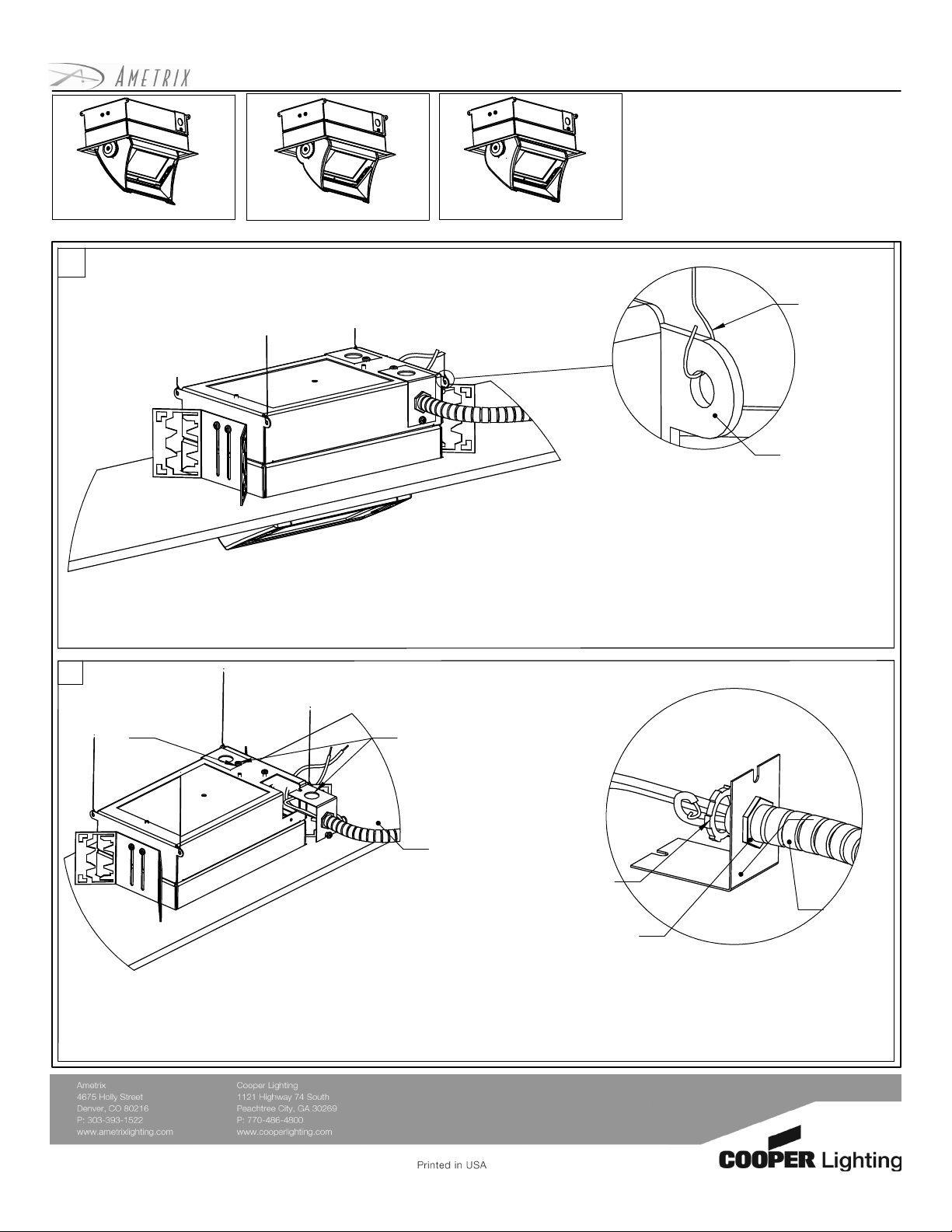

Securing the fixtures with safety wire
(both ceiling grid and drywall)
Fixture housing
Wiring the fixture
(both ceiling grid and drywall)
Choose appropriate cover plate
depending on location of power
source.
Safety wire
(by others)
Ceiling surface
Conduit Nut
(by others)
Conduit fitting
(by others)
1.
If applicable, replace ceiling tile with fixture secured back into ceiling. Remove adjacent tile from ceiling to facilitate wiring.
2.
Depending on location of power source, loosen #10-32 x3/8" Pan head screws and remove appropriate cover plate and
knock out appropriate hole.
3.
Using conduit fitting and washer, secure conduit to cover plate.
4.
Attach appropriate wires and ensure all connections are properly matched.
5.
Replace cover plate and secure with #10-32 x3/8" Pan head screws.
ADY071458 REV A (ECN070344)
Cover plate
Conduit
(by others)
Page 4
Semi-recessed fixtures shown without thermal protectors
LAMP
Vault w/ visor
These installation instructions are valid with the above Ametrix styles
C-Scroll w/ visor
Cutout Dimensions In[mm]
11 "
292.10
Roundel w/ visor
1
2
Installation Instructions
Sheet 4 of 4
Small, INDOOR
SRI
(Semi-Recessed, Integral ballast)
Visor and Non-Visor
Warning
that all sources of power are turned off. All
work must meet local/national codes and be
performed by a certified electrician.
mount fixtures vertically.
: Before starting any work ensure
Do not
165.10
1
6
"
2
165.10
1
6
"
2
10 3/4" Fixture head size
1
14 "
16
357.19
12 3/4" Fixture head size
Lamping Size Chart
(lamps provided by others)
FIXTURE SIZE
(inches/ mm)
10
/ 273.05 39 W 1 T6 Ceramic Metal Halide
3/4
12
/ 323.85 70 W 1 T6 Ceramic Metal Halide
3/4
12
/ 323.85 150 W 1 T6 Ceramic Metal Halide
3/4
WATTAGE
# OF
LAMPS
LAMP TYPE LAMP DESCRIPTION
(not to scale)
ADY071458 REV A (ECN070344)
12
/ 323.85 26 W 1 T4 Compact Flourescent
3/4
10
/ 273.05 100 W 1 T4 Halogen(Single Ended)
3/4
12
/ 323.85 150 W 1 T4 Halogen(Single Ended)
3/4
12
/ 323.85 250 W 1 T4 Halogen(Single Ended)
3/4
