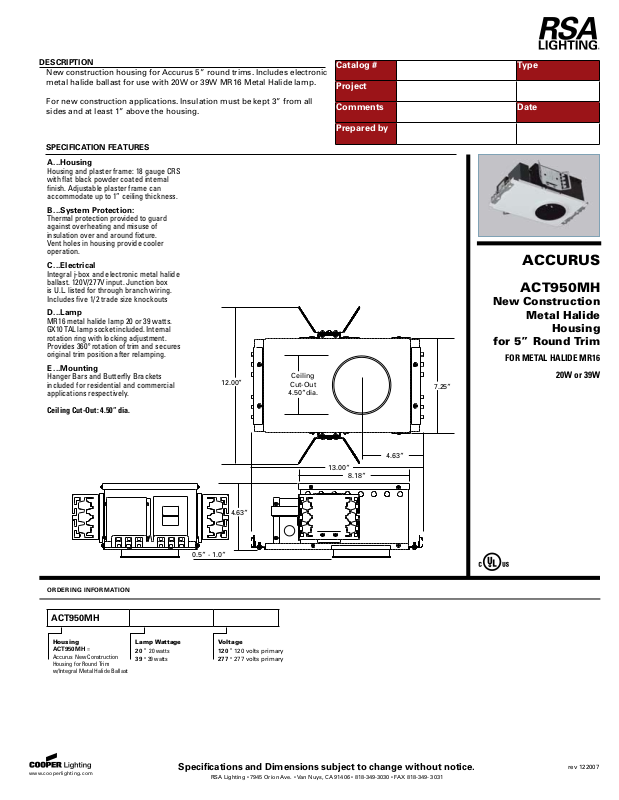

DESCRIPTION

7.25”

12.00”

13.00”

8.18”

4.63”

4.63”

0.5” - 1.0”

Ceiling

Cut-Out

4.50”dia.

__

__

New construction housing for Accurus 5” round trims. Includes electronic
metal halide ballast for use with 20W or 39W MR16 Metal Halide lamp.

For new construction applications. Insulation must be kept 3” from all
sides and at least 1” above the housing.

SPECIFICATION FEATURES

A ...Housing

Housing and plaster frame: 18 gauge CRS
with flat black powder coated internal
finish. Adjustable plaster frame can
accommodate up to 1” ceiling thickness.

B ...System Protection:

Thermal protection provided to guard
against overheating and misuse of
insulation over and around fixture.
Vent holes in housing provide cooler
operation.

C ...Electrical

Integral j-box and electronic metal halide
ballast. 120V/277V input. Junction box
is U.L. listed for through branch wiring.
Includes five 1/2 trade size knockouts

D ...Lamp

MR16 metal halide lamp 20 or 39 watts.
GX10 TAL lamp socket included. Internal
rotation ring with locking adjustment.
Provides 360º rotation of trim and secures
original trim position after relamping.

E ...Mounting

Hanger Bars and Butterfly Brackets
included for residential and commercial
applications respectively.

Ceiling Cut-Out: 4.50” dia.

Catalog # Type

Project

Comments Date

Prepared by

ACCURUS

ACT950MH

New Construction

Metal Halide

Housing

for 5” Round Trim

FOR METAL HALIDE MR16

20W or 39W

ORDERING INFORMATION

ACT950MH

Housing

ACT950MH =
Accurus New Construction
Housing for Round Trim
w/Integral Metal Halide Ballast

www.cooperlighting.com

Lamp Wattage

=

20

20 watts

=

39

39 watts

Voltage

=

120

120 volts primary

=

277

277 volts primary

Specifications and Dimensions subject to change without notice.

RSA Lighting • 7945 Orion Ave. • Van Nuys, CA 91406 • 818-349-3030 • FAX [phone]

rev 122007
