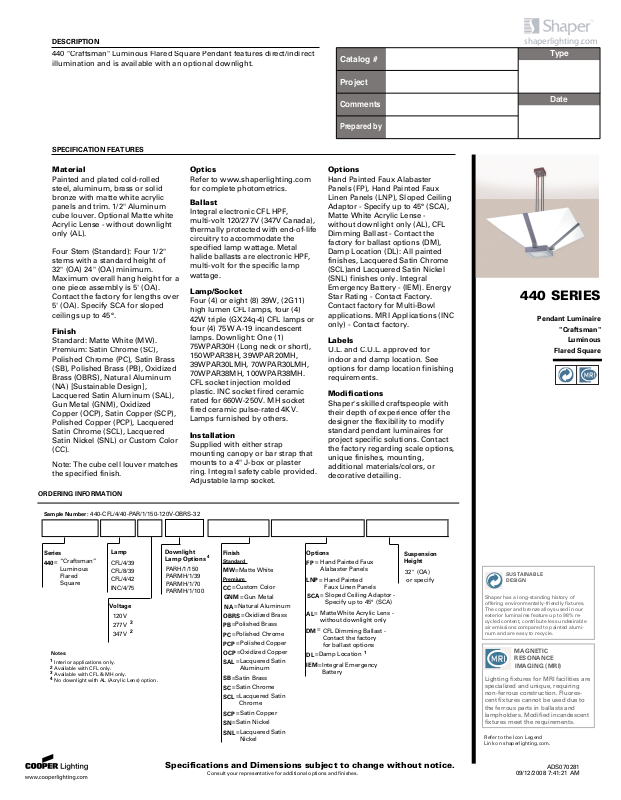

Cooper Lighting 440 User Manual

Catalog #

Project

Comments

Prepared by

Type

Date

SPECIFICATION FEATURES

09/12/2008 7:41:21 AM

Consult your representative for additional options and finishes.

Specifications and Dimensions subject to change without notice.

ADS070281

ORDERING INFORMATION

DESCRIPTION

440 "Craftsman" Luminous Flared Square Pendant features direct/indirect

illumination and is available with an optional downlight.

Material

Painted and plated cold-rolled

steel, aluminum, brass or solid

bronze with matte white acrylic

panels and trim. 1/2" Aluminum

cube louver. Optional Matte white

Acrylic Lense - without downlight

only (AL).

Four Stem (Standard): Four 1/2"

stems with a standard height of

32" (OA) 24" (OA) minimum.

Maximum overall hang height for a

one piece assembly is 5' (OA).

Contact the factory for lengths over

5' (OA). Specify SCA for sloped

ceilings up to 45°.

Finish

Standard: Matte White (MW).

Premium: Satin Chrome (SC),

Polished Chrome (PC), Satin Brass

(SB), Polished Brass (PB), Oxidized

Brass (OBRS), Natural Aluminum

(NA) [Sustainable Design],

Lacquered Satin Aluminum (SAL),

Gun Metal (GNM), Oxidized

Copper (OCP), Satin Copper (SCP),

Polished Copper (PCP), Lacquered

Satin Chrome (SCL), Lacquered

Satin Nickel (SNL) or Custom Color

(CC).
Note: The cube cell louver matches

the specified finish.

Optics

Refer to www.shaperlighting.com

for complete photometrics.

Ballast

Integral electronic CFL HPF,

multi-volt 120/277V (347V Canada),

thermally protected with end-of-life

circuitry to accommodate the

specified lamp wattage. Metal

halide ballasts are electronic HPF,

multi-volt for the specific lamp

wattage.

Lamp/Socket

Four (4) or eight (8) 39W, (2G11)

high lumen CFL lamps, four (4)

42W triple (GX24q-4) CFL lamps or

four (4) 75W A-19 incandescent

lamps. Downlight: One (1)

75WPAR30H (Long neck or short),

150WPAR38H, 39WPAR20MH,

39WPAR30LMH, 70WPAR30LMH,

70WPAR38MH, 100WPAR38MH.

CFL socket injection molded

plastic. INC socket fired ceramic

rated for 660W-250V. MH socket

fired ceramic pulse-rated 4KV.

Lamps furnished by others.

Installation

Supplied with either strap

mounting canopy or bar strap that

mounts to a 4" J-box or plaster

ring. Integral safety cable provided.

Adjustable lamp socket.

Options

Hand Painted Faux Alabaster

Panels (FP), Hand Painted Faux

Linen Panels (LNP), Sloped Ceiling

Adaptor - Specify up to 45° (SCA),

Matte White Acrylic Lense -

without downlight only (AL), CFL

Dimming Ballast - Contact the

factory for ballast options (DM),

Damp Location (DL): All painted

finishes, Lacquered Satin Chrome

(SCL)and Lacquered Satin Nickel

(SNL) finishes only. Integral

Emergency Battery - (IEM). Energy

Star Rating - Contact Factory.

Contact factory for Multi-Bowl

applications. MRI Applications (INC

only) - Contact factory.

Labels

U.L. and C.U.L. approved for

indoor and damp location. See

options for damp location finishing

requirements.

Modifications

Shaper's skilled craftspeople with

their depth of experience offer the

designer the flexibility to modify

standard pendant luminaires for

project specific solutions. Contact

the factory regarding scale options,

unique finishes, mounting,

additional materials/colors, or

decorative detailing.

440 SERIES

Pendant Luminaire

"Craftsman"

Luminous

Flared Square

SUSTAI NABLE
DESIGN

Refer to the Icon Legend
Link on shaperlighting.com.

Shaper has a long-standing history of
offering environmentally-friendly fixtures.
The copper and bronze alloys used in our
exterior luminaires feature up to 98% re­cycled content, contribute less undesirable
air emissions compared to painted alumi­num and are easy to recycle.

MAGNE TIC
RESON ANCE
IMAGI NG ( MRI)

Lighting fixtures for MRI facilities are
specialized and unique, requiring
non-ferrous construction. Fluores­cent fixtures cannot be used due to
the ferrous parts in ballasts and
lampholders. Modified incandescent
fixtures meet the requirements.

Sample Number:

Suspension
Height

32'' (OA)

or specify

Finish

Standard

MW

Matte White=

Premium

CC

Custom Color=

OBRS

Oxidized Brass=

PB

Polished Brass=

PC

Polished Chrome=

PCP

Polished Copper=

SAL

Lacquered Satin
Aluminum

=

SB

Satin Brass=

SC

Satin Chrome=

SCL

Lacquered Satin
Chrome

=

SCP

Satin Copper=

SN

Satin Nickel=

SNL

Lacquered Satin
Nickel

=

Options

FP

Hand Painted Faux
Alabaster Panels

=

Hand Painted
Faux Linen Panels

=

Sloped Ceiling Adaptor ­Specify up to 45° (SCA)

AL

Matte White Acrylic Lens ­without downlight only

=

DL

Damp Location=

IEM

Integral Emergency
Battery

=

Series

440

“Craftsman”
Luminous
Flared
Square

=

Lamp

CFL/4/39

CFL/4/42

CFL/8/39

INC/4/75

Voltage

120V
277V
347V

1

Notes:

Interior applications only.
Available with CFL only.
Available with CFL & MH only.
No downlight with AL (Acrylic Lens) option.

LNP

CFL Dimming Ballast ­Contact the factory
for ballast options

DM

=

SCA

=

1

Gun Metal

GNM

=

OCP

Oxidized Copper=

440-CFL/4/40-PAR/1/150-120V-OBRS-32

NA

Natural Aluminum=

Downlight
Lamp Options

4

PARH/1/150
PARMH/1/39
PARMH/1/70
PARMH/1/100

3

2

4

3

2

shaperlighting.com

Specifications and Dimensions subject to change without notice.

440 STANDARD

440 SERIES PENDANT LUMINAIRE

36"

32"

10 1/2"

11"

440 STANDARD

240 640

COMPANION PRODUCTS

Shaper Lighting • 1141 Marina Way South • Richmond, CA 94804 • ph 510.234.2370 • fax [phone]
