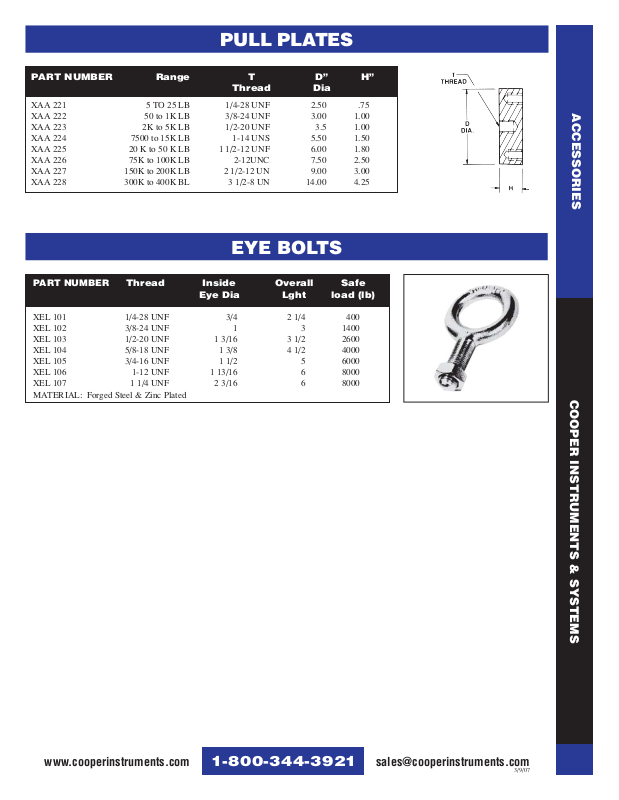

Cooper Instruments XAA 221 Specifications
PULL PLATES
PART NUMBER Range T D” H”
Thread Dia
XAA 221 5 TO 25 LB 1/4-28 UNF 2.50 .75
XAA 222 50 to 1K LB 3/8-24 UNF 3.00 1.00
XAA 223 2K to 5K LB 1/2-20 UNF 3.5 1.00
XAA 224 7500 to 15K LB 1-14 UNS 5.50 1.50
XAA 225 20 K to 50 K LB 1 1/2-12 UNF 6.00 1.80
XAA 226 75K to 100K LB 2-12UNC 7.50 2.50
XAA 227 150K to 200K LB 2 1/2-12 UN 9.00 3.00
XAA 228 300K to 400K BL 3 1/2-8 UN 14.00 4.25
EYE BOLTS
ACCESSORIES
PART NUMBER
XEL 101 1/4-28 UNF 3/4 2 1/4 400
XEL 102 3/8-24 UNF 1 3 1400
XEL 103 1/2-20 UNF 1 3/16 3 1/2 2600
XEL 104 5/8-18 UNF 1 3/8 4 1/2 4000
XEL 105 3/4-16 UNF 1 1/2 5 6000
XEL 106 1-12 UNF 1 13/16 6 8000
XEL 107 1 1/4 UNF 2 3/16 6 8000
MATERIAL: Forged Steel & Zinc Plated
Thread Inside Overall Safe
Eye Dia Lght load (lb)
COOPER INSTRUMENTS & SYSTEMS
www.cooperinstruments.com sales@cooperinstruments.com
1-800-344-3921
3/9/07
