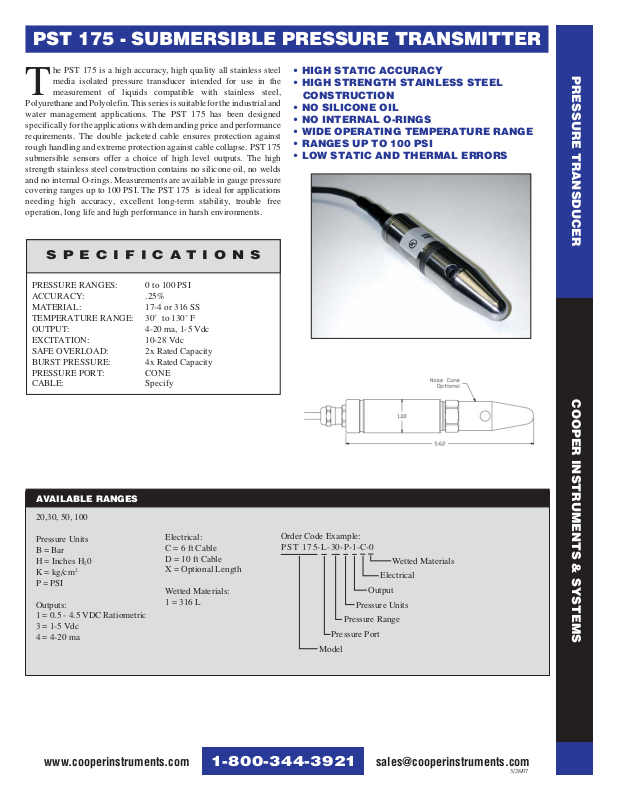

Cooper Instruments PST175 Specifications
PST 175 - SUBMERSIBLE PRESSURE TRANSMITTER
he PST 175 is a high accuracy, high quality all stainless steel
media isolated pressure transducer intended for use in the
T
measurement of liquids compatible with stainless steel,
Polyurethane and Polyolefin. This series is suitable for the industrial and
water management applications. The PST 175 has been designed
specifically for the applications with demanding price and performance
requirements. The double jacketed cable ensures protection against
rough handling and extreme protection against cable collapse. PST 175
submersible sensors offer a choice of high level outputs. The high
strength stainless steel construction contains no silicone oil, no welds
and no internal O-rings. Measurements are available in gauge pressure
covering ranges up to 100 PSI. The PST 175 is ideal for applications
needing high accuracy, excellent long-term stability, trouble free
operation, long life and high performance in harsh environments.
SPECIFICATIONS
PRESSURE RANGES: 0 to 100 PSI
ACCURACY: .25%
MATERIAL: 17-4 or 316 SS
TEMPERATURE RANGE: 30˚ to 130˚ F
OUTPUT: 4-20 ma, 1-5 Vdc
EXCITATION: 10-28 Vdc
SAFE OVERLOAD: 2x Rated Capacity
BURST PRESSURE: 4x Rated Capacity
PRESSURE PORT: CONE
CABLE: Specify
• HIGH STATIC ACCURACY
• HIGH STRENGTH STAINLESS STEEL
CONSTRUCTION
• NO SILICONE OIL
• NO INTERNAL O-RINGS
• WIDE OPERATING TEMPERATURE RANGE
• RANGES UP TO 100 PSI
• LOW STATIC AND THERMAL ERRORS
PRESSURE TRANSDUCER
COOPER INSTRUMENTS & SYSTEMS
AVAILABLE RANGES
20,30, 50, 100
Pressure Units
B = Bar
H = Inches H20
K = kg/cm
P = PSI
Outputs:
1 = 0.5 - 4.5 VDC Ratiometric
3 = 1-5 Vdc
4 = 4-20 ma
2
www.cooperinstruments.com sales@cooperinstruments.com
Electrical:
C = 6 ft Cable
D = 10 ft Cable
X = Optional Length
Wetted Materials:
1 = 316 L
1-800-344-3921
Order Code Example:
PST 175-L-30-P-1-C-0
Wetted Materials
Electrical
Output
Pressure Units
Pressure Range
Pressure Port
Model
3/28/07
