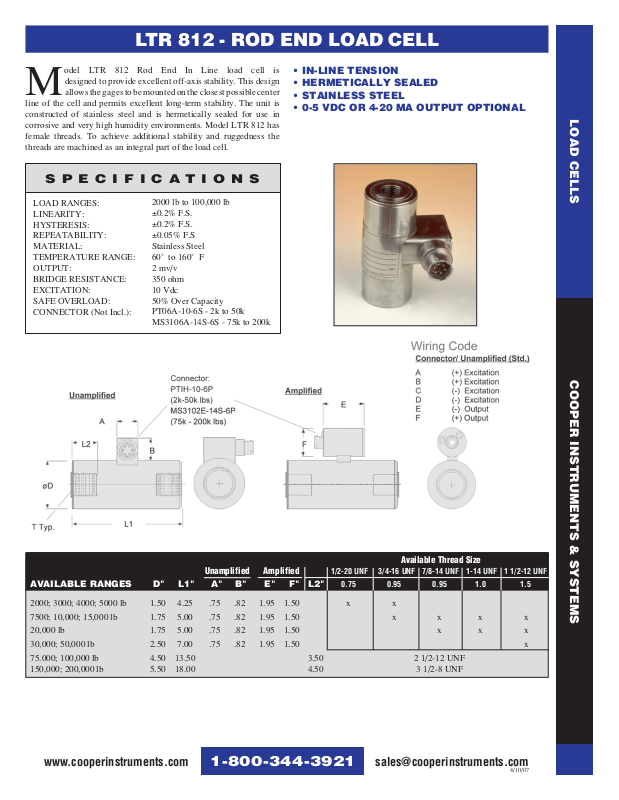

LTR 812 - ROD END LOAD CELL
odel LTR 812 Rod End In Line load cell is
designed to provide excellent off-axis stability. This design
M
line of the cell and permits excellent long-term stability. The unit is
constructed of stainless steel and is hermetically sealed for use in
corrosive and very high humidity environments. Model LTR 812 has
female threads. To achieve additional stability and ruggedness the
threads are machined as an integral part of the load cell.
allows the gages to be mounted on the closest possible center
SPECIFICATIONS
LOAD RANGES:
LINEARITY:
HYSTERESIS:
REPEATABILITY:
MATERIAL:
TEMPERATURE RANGE:
OUTPUT:
BRIDGE RESISTANCE:
EXCITATION:
SAFE OVERLOAD:
CONNECTOR (Not Incl.):
2000 lb to 100,000 lb
±0.2% F.S.
±0.2% F.S.
±0.05% F.S
Stainless Steel
60˚ to 160˚ F
2 mv/v
350 ohm
10 Vdc
50% Over Capacity
PT06A-10-6S - 2k to 50k
MS3106A-14S-6S - 75k to 200k
• IN-LINE TENSION
• HERMETICALLY SEALED
• STAINLESS STEEL
• 0-5 VDC OR 4-20 MA OUTPUT OPTIONAL
LOAD CELLS
LTR 812 - ROD END LOAD CELL
Available Thread Size
Unamplified Amplified 1/2-20 UNF 3/4-16 UNF 7/8-14 UNF 1-14 UNF 1 1/2-12 UNF
AVAILABLE RANGES D" L1" A" B" E" F" L2" 0.75 0.95 0.95 1.0 1.5
2000; 3000; 4000; 5000 lb 1.50 4.25 .75 .82 1.95 1.50 x x
7500; 10,000; 15,000 lb 1.75 5.00 .75 .82 1.95 1.50 x x x x
20,000 lb 1.75 5.00 .75 .82 1.95 1.50 x x x
30,000; 50,000 lb 2.50 7.00 .75 .82 1.95 1.50 x
75.000; 100,000 lb 4.50 13.50 3.50 2 1/2-12 UNF
150,000; 200,000 lb 5.50 18.00 4.50 3 1/2-8 UNF
