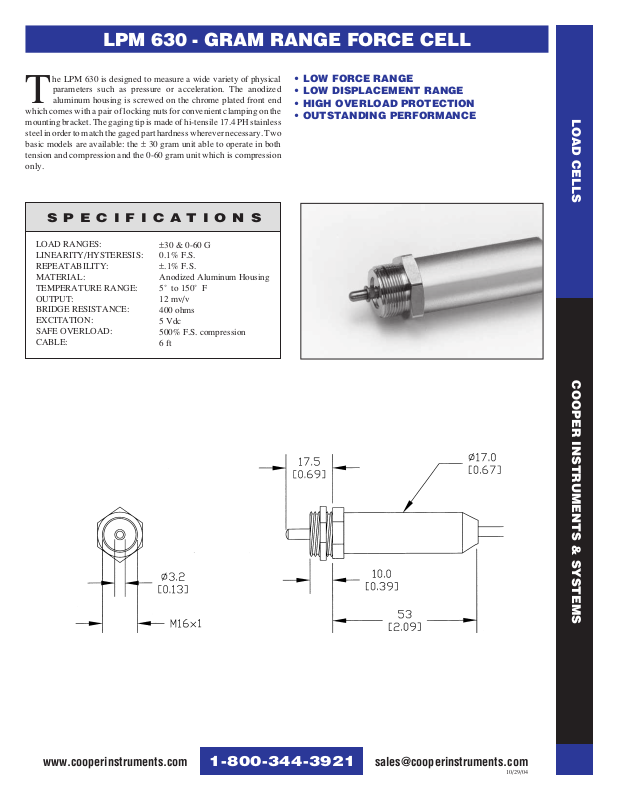

LPM 630 - GRAM RANGE FORCE CELL
he LPM 630 is designed to measure a wide variety of physical
parameters such as pressure or acceleration. The anodized
T
aluminum housing is screwed on the chrome plated front end
which comes with a pair of locking nuts for convenient clamping on the
mounting bracket. The gaging tip is made of hi-tensile 17.4 PH stainless
steel in order to match the gaged part hardness wherever necessary. Two
basic models are available: the ± 30 gram unit able to operate in both
tension and compression and the 0-60 gram unit which is compression
only.
SPECIFICATIONS
LOAD RANGES:
LINEARITY/HYSTERESIS:
REPEATABILITY:
MATERIAL:
TEMPERATURE RANGE:
OUTPUT:
BRIDGE RESISTANCE:
EXCITATION:
SAFE OVERLOAD:
CABLE:
±30 & 0-60 G
0.1% F.S.
±.1% F.S.
Anodized Aluminum Housing
5˚ to 150˚ F
12 mv/v
400 ohms
5 Vdc
500% F.S. compression
6 ft
• LOW FORCE RANGE
• LOW DISPLACEMENT RANGE
• HIGH OVERLOAD PROTECTION
• OUTSTANDING PERFORMANCE
LOAD CELLS
COOPER INSTRUMENTS & SYSTEMS
www.cooperinstruments.com sales@cooperinstruments.com
1-800-344-3921
10/29/04
