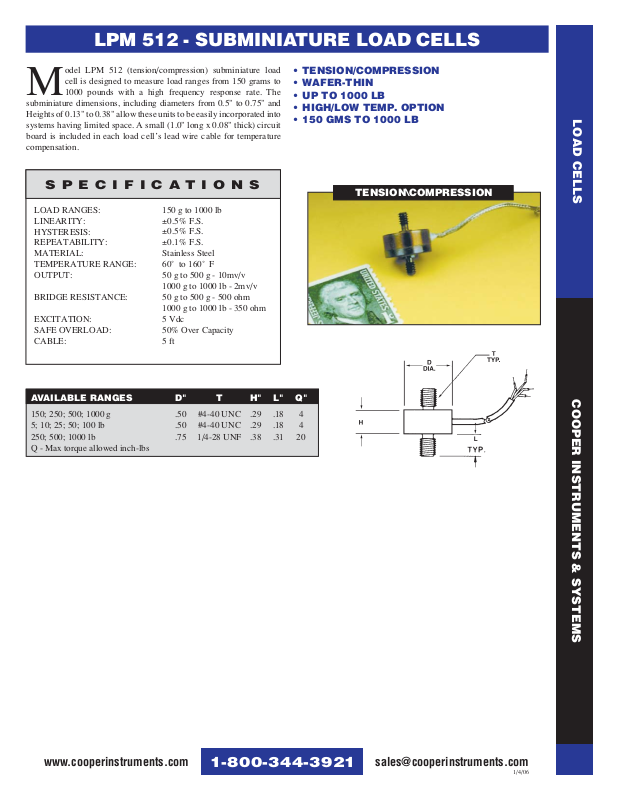

LPM 512 - SUBMINIATURE LOAD CELLS
odel LPM 512 (tension/compression) subminiature load
cell is designed to measure load ranges from 150 grams to
M
subminiature dimensions, including diameters from 0.5" to 0.75" and
Heights of 0.13" to 0.38" allow these units to be easily incorporated into
systems having limited space. A small (1.0" long x 0.08" thick) circuit
board is included in each load cell’s lead wire cable for temperature
compensation.
1000 pounds with a high frequency response rate. The
SPECIFICATIONS
LOAD RANGES:
LINEARITY:
HYSTERESIS:
REPEATABILITY:
MATERIAL:
TEMPERATURE RANGE:
OUTPUT:
BRIDGE RESISTANCE:
EXCITATION:
SAFE OVERLOAD:
CABLE:
150 g to 1000 lb
±0.5% F.S.
±0.5% F.S.
±0.1% F.S.
Stainless Steel
60˚ to 160˚ F
50 g to 500 g - 10mv/v
1000 g to 1000 lb - 2mv/v
50 g to 500 g - 500 ohm
1000 g to 1000 lb - 350 ohm
5 Vdc
50% Over Capacity
5 ft
• TENSION/COMPRESSION
• WAFER-THIN
• UP TO 1000 LB
• HIGH/LOW TEMP. OPTION
• 150 GMS TO 1000 LB
TENSION\COMPRESSION
LOAD CELLS
AVAILABLE RANGES D" T H" L" Q"
150; 250; 500; 1000 g .50 #4-40 UNC .29 .18 4
5; 10; 25; 50; 100 lb .50 #4-40 UNC .29 .18 4
250; 500; 1000 lb .75 1/4-28 UNF .38 .31 20
Q - Max torque allowed inch-lbs
