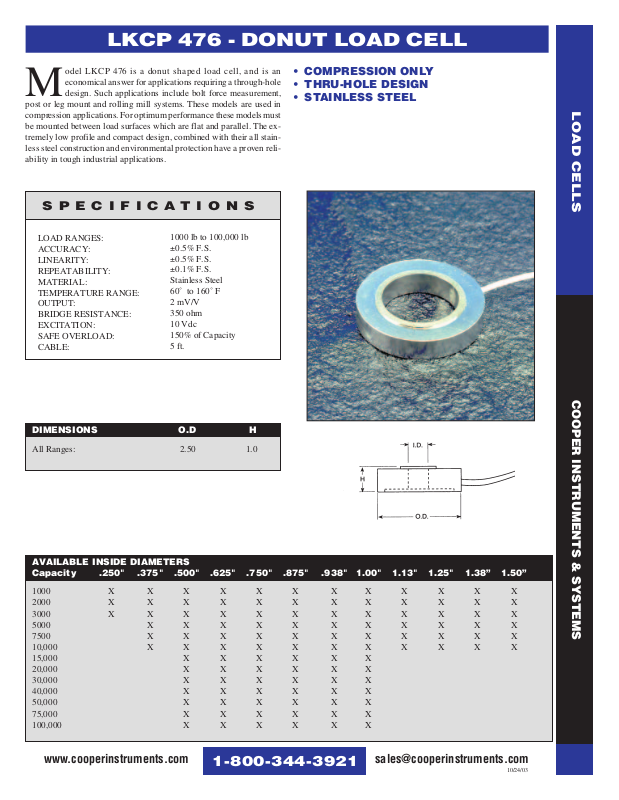

LKCP 476 - DONUT LOAD CELL
odel LKCP 476 is a donut shaped load cell, and is an
economical answer for applications requiring a through-hole
M
post or leg mount and rolling mill systems. These models are used in
compression applications. For optimum performance these models must
be mounted between load surfaces which are flat and parallel. The extremely low profile and compact design, combined with their all stainless steel construction and environmental protection have a proven reliability in tough industrial applications.
design. Such applications include bolt force measurement,
SPECIFICATIONS
LOAD RANGES:
ACCURACY:
LINEARITY:
REPEATABILITY:
MATERIAL:
TEMPERATURE RANGE:
OUTPUT:
BRIDGE RESISTANCE:
EXCITATION:
SAFE OVERLOAD:
CABLE:
1000 lb to 100,000 lb
±0.5% F.S.
±0.5% F.S.
±0.1% F.S.
Stainless Steel
60˚ to 160˚ F
2 mV/V
350 ohm
10 Vdc
150% of Capacity
5 ft.
• COMPRESSION ONLY
• THRU-HOLE DESIGN
•STAINLESS STEEL
LOAD CELLS
DIMENSIONS O.D H
All Ranges: 2.50 1.0
AVAILABLE INSIDE DIAMETERS
Capacity .250" .375" .500" .625" .750" .875" .938" 1.00" 1.13" 1.25" 1.38” 1.50”
1000 X XXXXX XXXXXX
2000 X XXXXX XXXXXX
3000 X XXXXX XXXXXX
5000 XXXXX XXXXXX
7500 XXXXX XXXXXX
10,000 XXXXX XXXXXX
15,000 XXXX XX
20,000 XXXX XX
30,000 XXXX XX
40,000 XXXX XX
50,000 XXXX XX
75,000 XXXX XX
100,000 XXXX XX
