Cooper Instruments FB 100LB Specifications

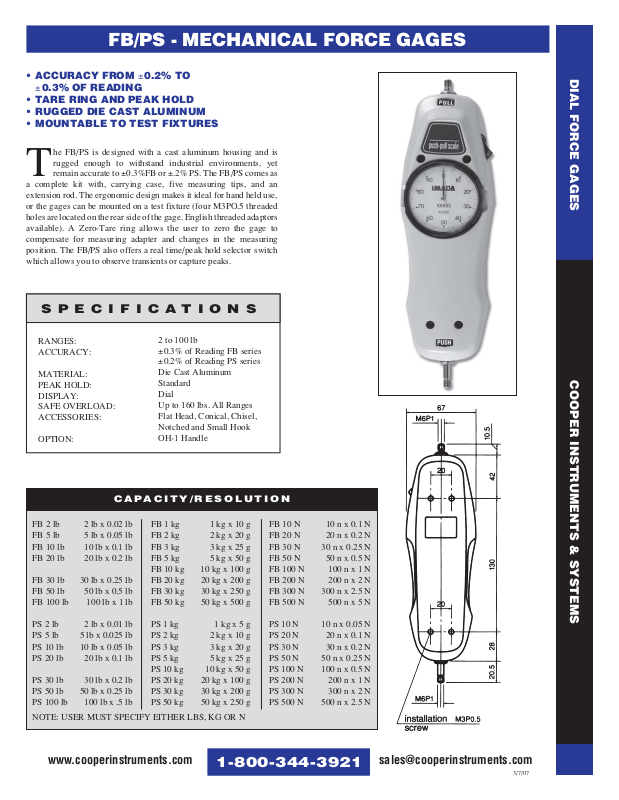

FB/PS - MECHANICAL FORCE GAGES
• ACCURACY FROM ± 0.2% TO
± 0.3% OF READING
• TARE RING AND PEAK HOLD
• RUGGED DIE CAST ALUMINUM
• MOUNTABLE TO TEST FIXTURES
he FB/PS is designed with a cast aluminum housing and is
rugged enough to withstand industrial environments, yet
T
remain accurate to ±0.3%FB or ±.2% PS. The FB/PS comes as
a complete kit with, carrying case, five measuring tips, and an
extension rod. The ergonomic design makes it ideal for hand held use,
or the gages can be mounted on a test fixture (four M3PO.5 threaded
holes are located on the rear side of the gage. English threaded adaptors
available). A Zero-Tare ring allows the user to zero the gage to
compensate for measuring adapter and changes in the measuring
position. The FB/PS also offers a real time/peak hold selector switch
which allows you to observe transients or capture peaks.
SPECIFICATIONS
RANGES:
ACCURACY:
MATERIAL:
PEAK HOLD:
DISPLAY:
SAFE OVERLOAD:
ACCESSORIES:
OPTION:
2 to 100 lb
±0.3% of Reading FB series
±0.2% of Reading PS series
Die Cast Aluminum
Standard
Dial
Up to 160 lbs. All Ranges
Flat Head, Conical, Chisel,
Notched and Small Hook
OH-1 Handle
DIAL FORCE GAGES
COOPER INSTRUMENTS & SYSTEMS
CAPACITY/RESOLUTION
FB 2 lb 2 lb x 0.02 lb FB 1 kg 1 kg x 10 g FB 10 N 10 n x 0.1 N
FB 5 lb 5 lb x 0.05 lb FB 2 kg 2 kg x 20 g FB 20 N 20 n x 0.2 N
FB 10 lb 10 lb x 0.1 lb FB 3 kg 3 kg x 25 g FB 30 N 30 n x 0.25 N
FB 20 lb 20 lb x 0.2 lb FB 5 kg 5 kg x 50 g FB 50 N 50 n x 0.5 N
FB 10 kg 10 kg x 100 g FB 100 N 100 n x 1 N
FB 30 lb 30 lb x 0.25 lb FB 20 kg 20 kg x 200 g FB 200 N 200 n x 2 N
FB 50 lb 50 lb x 0.5 lb FB 30 kg 30 kg x 250 g FB 300 N 300 n x 2.5 N
FB 100 lb 100 lb x 1 lb FB 50 kg 50 kg x 500 g FB 500 N 500 n x 5 N
PS 2 lb 2 lb x 0.01 lb PS 1 kg 1 kg x 5 g PS 10 N 10 n x 0.05 N
PS 5 lb 5 lb x 0.025 lb PS 2 kg 2 kg x 10 g PS 20 N 20 n x 0.1 N
PS 10 lb 10 lb x 0.05 lb PS 3 kg 3 kg x 20 g PS 30 N 30 n x 0.2 N
PS 20 lb 20 lb x 0.1 lb PS 5 kg 5 kg x 25 g PS 50 N 50 n x 0.25 N
PS 10 kg 10 kg x 50 g PS 100 N 100 n x 0.5 N
PS 30 lb 30 lb x 0.2 lb PS 20 kg 20 kg x 100 g PS 200 N 200 n x 1 N
PS 50 lb 50 lb x 0.25 lb PS 30 kg 30 kg x 200 g PS 300 N 300 n x 2 N
PS 100 lb 100 lb x .5 lb PS 50 kg 50 kg x 250 g PS 500 N 500 n x 2.5 N
NOTE: USER MUST SPECIFY EITHER LBS, KG OR N
www.cooperinstruments.com sales@cooperinstruments.com
1-800-344-3921
3/7/07
