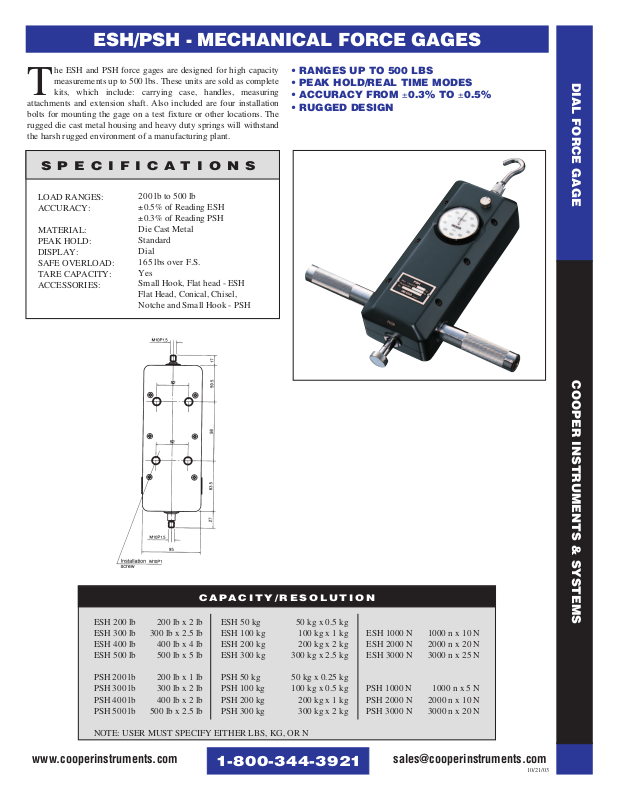

ESH/PSH - MECHANICAL FORCE GAGES
he ESH and PSH force gages are designed for high capacity
measurements up to 500 lbs. These units are sold as complete
T
kits, which include: carrying case, handles, measuring
attachments and extension shaft. Also included are four installation
bolts for mounting the gage on a test fixture or other locations. The
rugged die cast metal housing and heavy duty springs will withstand
the harsh rugged environment of a manufacturing plant.
SPECIFICATIONS
LOAD RANGES:
ACCURACY:
MATERIAL:
PEAK HOLD:
DISPLAY:
SAFE OVERLOAD:
TARE CAPACITY:
ACCESSORIES:
200 lb to 500 lb
±0.5% of Reading ESH
±0.3% of Reading PSH
Die Cast Metal
Standard
Dial
165 lbs over F.S.
Yes
Small Hook, Flat head - ESH
Flat Head, Conical, Chisel,
Notche and Small Hook - PSH
• RANGES UP TO 500 LBS
• PEAK HOLD/REAL TIME MODES
• ACCURACY FROM ±0.3% TO ± 0.5%
• RUGGED DESIGN
DIAL FORCE GAGE
CAPACITY/RESOLUTION
ESH 200 lb 200 lb x 2 lb ESH 50 kg 50 kg x 0.5 kg
ESH 300 lb 300 lb x 2.5 lb ESH 100 kg 100 kg x 1 kg ESH 1000 N 1000 n x 10 N
ESH 400 lb 400 lb x 4 lb ESH 200 kg 200 kg x 2 kg ESH 2000 N 2000 n x 20 N
ESH 500 lb 500 lb x 5 lb ESH 300 kg 300 kg x 2.5 kg ESH 3000 N 3000 n x 25 N
COOPER INSTRUMENTS & SYSTEMS
PSH 200 lb 200 lb x 1 lb PSH 50 kg 50 kg x 0.25 kg
PSH 300 lb 300 lb x 2 lb PSH 100 kg 100 kg x 0.5 kg PSH 1000 N 1000 n x 5 N
PSH 400 lb 400 lb x 2 lb PSH 200 kg 200 kg x 1 kg PSH 2000 N 2000 n x 10 N
PSH 500 lb 500 lb x 2.5 lb PSH 300 kg 300 kg x 2 kg PSH 3000 N 3000 n x 20 N
NOTE: USER MUST SPECIFY EITHER LBS, KG, OR N
www.cooperinstruments.com sales@cooperinstruments.com
1-800-344-3921
10/21/03
