Cooper Instruments DPG1600 Specifications

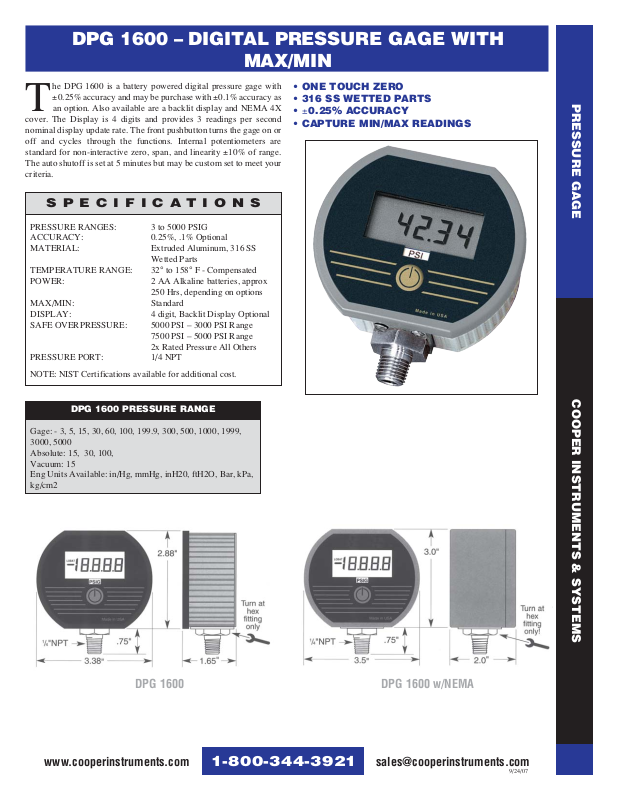

DPG 1600 – DIGITAL PRESSURE GAGE WITH

MAX/MIN

he DPG 1600 is a battery powered digital pressure gage with
±0.25% accuracy and may be purchase with ±0.1% accuracy as

T

an option. Also available are a backlit display and NEMA 4X
cover. The Display is 4 digits and provides 3 readings per second
nominal display update rate. The front pushbutton turns the gage on or
off and cycles through the functions. Internal potentiometers are
standard for non-interactive zero, span, and linearity ±10% of range.
The auto shutoff is set at 5 minutes but may be custom set to meet your
criteria.

SPECIFICATIONS

PRESSURE RANGES:
ACCURACY:
MATERIAL:

TEMPERATURE RANGE:
POWER:

MAX/MIN:
DISPLAY:
SAFE OVERPRESSURE:

PRESSURE PORT:

NOTE: NIST Certifications available for additional cost.

3 to 5000 PSIG

0.25%, .1% Optional
Extruded Aluminum, 316 SS
Wetted Parts
32° to 158° F - Compensated
2 AA Alkaline batteries, approx
250 Hrs, depending on options
Standard
4 digit, Backlit Display Optional
5000 PSI – 3000 PSI Range
7500 PSI – 5000 PSI Range
2x Rated Pressure All Others
1/4 NPT

• ONE TOUCH ZERO

• 316 SS WETTED PARTS

• ± 0.25% ACCURACY

• CAPTURE MIN/MAX READINGS

PRESSURE GAGE

DPG 1600 PRESSURE RANGE

Gage: - 3, 5, 15, 30, 60, 100, 199.9, 300, 500, 1000, 1999,
3000, 5000
Absolute: 15, 30, 100,
Vacuum: 15
Eng Units Available: in/Hg, mmHg, inH20, ftH2O, Bar, kPa,
kg/cm2

COOPER INSTRUMENTS & SYSTEMS

DPG 1600 w/NEMADPG 1600

www.cooperinstruments.com [e-mail]

1-800-344-3921

9/24/07
