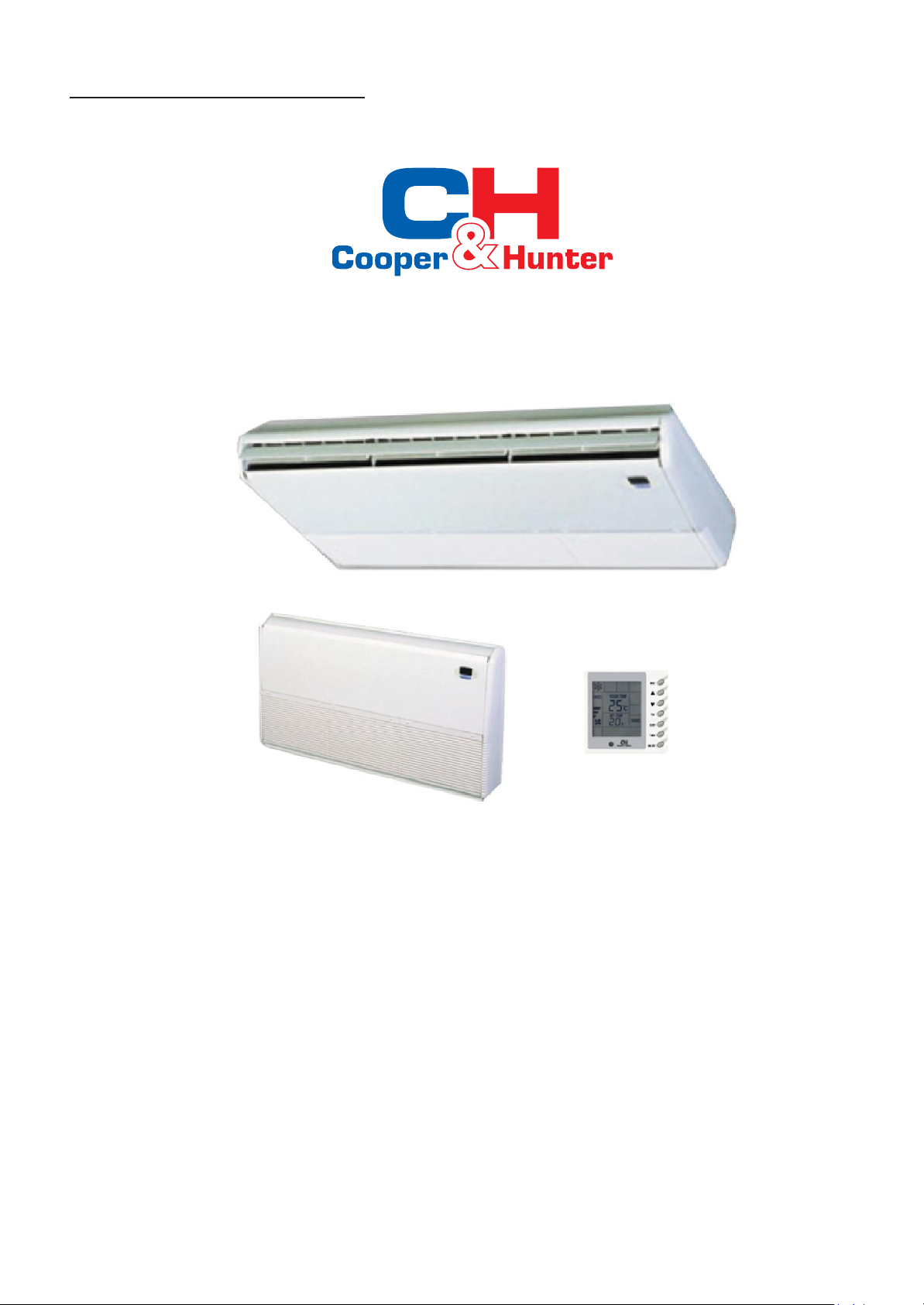

Air Conditioner
FLOOR-TO-CEILING SERIES
MODELS:
indoor unit / outdoor unit
GTH18K3BI / GUHN24NK3AO
GTH24K3BI / GUHN24NK3AO
GTH36K3BI / GUHN36NM3AO
GTH48K3BI /
Thanks for your selection of our Air-Conditioning Unit. Before use, please read this instruction
manual carefully and keep it properly to ensure correct use of this machine.
GUHN48NM3AO
Safety Considerations
Please read this manual carefully before use and operate correctly as instructed in the manual.
1
You are specially warned to note the two symbols below.:
WARNING! A
symbol indicating that improper operation might cause human death or severe
injuries.
A symbol indicating that improper operation might cause human injury or property
damage.
WARNING!
●
This unit shall be used in the houses, offices, restaurants, residences or similar places.
●
Please seek an authorized repair station for installation work. Improper installation might cause water leakage,
electric shock or fire.
●
Please install at a place strong enough to support the weight of air conditioner unit. If not, the air conditioner
unit might fall down and cause human injury or death.
●
To ensure proper drainage, the drainage pipe shall be correctly installed according to installation instructions.
Take proper measures for heat preservation to prevent condensing. Improper installation of pipes might cause
leakage and wet the articles in the room.
●
Do not use or store flammable, explosive, poisonous or other dangerous substances beside the air conditioner.
●
In case of trouble (e.g. burnt smell), please immediately cut off the main power of air conditioner unit.
●
Keep air flow to avoid shortage of oxygen in the room.
●
Never insert your finger or any objects into air outlet and inlet grill.
●
Never plug or unplug the power cable directly to start or stop the air-conditioning unit.
●
Please take constant care to check if the mounting rack is damaged after long use.
●
Never modify the air conditioner. Please contact the dealer or professional installation workers for repair or
relocation of the air conditioner.
●
The appliance shall not be installed in the laundry.
WARNING!:
●
The installation, cleaning and maintenance work must be done by a qualified person. Do not do such work by
yourself.
●
Before installation, please check the power supply for compliance with the ratings on nameplate. Check the
power safety as well.
●
Before use, please check and confirm if the cables, drainage pipes and pipelines are correctly connected,
hence to eliminate the risk of water leakage, refrigerant leakage, electric shock or fire.
●
Main power must be securely earthed to ensure effective grounding of air conditioner unit and avoid the risk
of electric shock. Please do not connect the earthling cable to coal gas pipe, water pipe, lightning rod or
telephone line.
●
Once started, the air conditioner shall not be stopped at least after 5 minutes or longer; otherwise the oil
return to compressor may be affected.
●
Do not let the child to operate the air conditioner unit.
●
Do not operate the air conditioner unit with wet hands.
●
Please disconnect the main power before cleaning the air conditioner or replacing the air filter.(Operating by
professional)
●
Please disconnect the main power if to put the air conditioner unit out of use for a long period.
●
Please do not expose the air conditioner unit directly under corrosive environment with water or moisture.
●
Please do not foot on or place any goods on air conditioner unit.
●
After electrical installation, the air conditioner unit shall be energized for electrical leakage test.
●
If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly
qualified person in order to avoid a hazard .
●
An all-pole disconnection switch having a contact separation of at least 3mm in all poles should be connected
in fixed wiring.
●
The appliance shall be installed in accordance with national wiring regulations.
●
The temperature of refrigerant circuit will be high, please keep the interconnection cable away from the per
tube.
9
Failure st atus display
10
Sleep st atus display
11
Mode key
12
Se t temperatur e incr ease key
13
Se t temperatur e decr ease key
14
Fan speed key (fresh air setting)
15
Sleep key (outdoor environment temperatur
e check)
16
Timing key
17 ON/OFF key
Wire
1
Timing display
2
Fan speed display (Auto, High speed, Medium
speed, Low speed)
3
Defros ting st atus display
4
Ener gy saving st atus display
5
Se t temperatur e display
6
Ambient temperatur e display
7
Fr esh air st atus display (not supplied)
8
Mode (cooling, dehumidifying,fan, heating, auto)
controller (standard fitting)
SWING
SWING
TIMER
Composition of wire controller
•
Never install the wire controller in a place where is water
•
Avoid bumping, throwing, tossing or frequently
leakage.
opening
the wire controller.
Oper
ating
Turning ON/OFF
unit
SWING
TIMER
Pr
ess the
ON/OFF key, then the unit shall start up. Press the ON/OFF key
again, then the unit shall shut off.
Fan control (the figures show the relevant display ar
If
the fan control key is pressed consecutively, the fan speed shall
the following sequence:
Low
speed Medium speed High speed Auto
SWING
TIMER
In the dehumidifying mode: The fan speed shall be automatically set
Temperature setting
SWING
TIMER
Pr
ess the temper
tem
per
ature se
keys once, the temper
function: when the ( ) and( ) key are pr
se
t temper
shut
function shall be re
centralized controller, the keys of the wire controller and the signal of the remote
controller ar
indicating ar
modes:
Heating: 16 °C~ 30 °C Cooling: 16 °C
Dehumidifying1: 6 °C~ 30 °C
Fan: No temper
atur
off;
press the two keys simultaneously for 5 second again, the key lock
e a shall display
instructions
eas)
ature se
tting key ( ) to decrease the set temper
e indicating are a shall display
e all locked and invalidated,
atur
tting key( ) to incr
atur
e shall increase or decrease by 1
leased. When the wire controller is locked by remote monitor or
“CC”. Range of temperature setting under various
e setting function.
of
wire
ease the set temper
essed
simultaneously for 5 second, the
“EE”
and then the se t temperature
~ 30 °C
controller
changes
ature (when pressing the
°C). NOTE:
and all keys response shall be
atur
as per
as low.
e; press the
key lock
Swing function setting
Sleep function
SWING
setting
SWING
TIMER
SWING
TIMER
Press Swing button then the swing mode will be operated by the air conditioner.
Repress Swing button once to stop swing mode.
Note: There is no swing mode for duct type indoor unit
When under the cooling or dehumidifying mode, after receiving the SLEEP order
for 1 hour, the previous set temp. Set will be risen for 1°C, and another 1°C will
be risen after 2 hours that means that the temperature been risen 2°C within 2
hours. Then the unit will run according to this set temp.
When under the heating mode, after receiving the SLEEP order for 1 hour, the
previous set temp. Set will be lower for 1°C, and another 1°C will be lower after 2
hours that means that the temperature been lowered 2°C within 2 hours. Then the
unit will run according to this set temp.
There is no SLEEP mode under fan mode.
Note: The wired remote controller has no SLEEP mode button; if SLEEP mode is
needed to be set, complete the procedure by wireless remote controller.
Operating
Mode Setting
SWING
TIMER
This key is pressed
following
sequence:
Cooling Dehumidifying
When the unit operates under “Cooling” mode, “COOL” shall be displayed. Now
the set temperature must be lower than the ambient temperature. Now if the set
temperature is higher than the ambient temperature, the unit shall not produce
cooling effect but shall only operate under. Fan mode. When the unit operates
under “Dehumidifying” mode, “DRY” shall be displayed. Now the interior fan
shall operate in the manner of low speed air supply within a certain range of
temperatures. The dehumidifying effect of this mode is better than that of the
Cooling mode and saves more energy.
When the unit operates under “Heating” mode, “HEAT” shall be displayed. Now
the set temperature must be higher than the ambient temperature; Now if the set
temperature is lower than the ambient temperature, the heating function shall not
be started.
When the unit operates under “Fan” mode, “FAN” shall be displayed. When the
unit operates under “Auto” mode, “AUTO” shall be displayed and the unit shall
adjust its operating mode automatically according to the ambient temperature.
When the unit operates under Heating mode and the outdoor temperature is low
and the humidity is high, frost shall produce at the outdoor unit. Now the heating
efficiency shall be decreased. When frosting hap- pens, the controller shall
automatically start to defrost, and “DEFROST” shall be displayed.
consecutively,
the
operating
Fan
mode shall change
Heating Auto
as
per the
Note: Cooling only type unit does not have heating mode and when energy saving
is set the Auto mode shall be invalidated.
Timer Setting
SWING
TIMER
Energy Saving Setting
SWING
TIMER
When the unit is shut off, timing start can be set; After the unit is started up, timing
shutoff can be set. After the "TIMER" key is pressed, the unit enters the timing set
status and the word "TIMER" flashes on the display. Now user can press ( ) or( )
key to increase or decrease the set time. Press the "TIMER" key again and then the
timing shall go into effect. Now the unit starts to count the time passed. When the unit
is under timing status, you can cannel timing set by pressing the “TIMER” key. The
range of set time is between 0.5 to 24 hours.
When the unit is shut off, press the
consecutive seconds to activate the energy saving setting menu.
“COOL”
are displayed (In case it is the first time to set energy saving, the initial
value shall be displayed: 26. The lower limit of
the set
temperature
lower limit of cooling
temperature
key to confirm the setting;
of
temperature
area
(OUT ENV
between 16-30). Press the
that the upper limit
temperature;
upper limit
the
temperature
“MODE”
and the
temperature
can be selected from the range between 16-30). Press the
Also
and the
temperature
area) (the upper limit
“ON/OFF”
temperature
Otherwise the system shall regard the higher tem
and the lower one as the lower limit
key to complete the energy saving setting for the modes of cooling
and dehumidifying and turn to the energy saving setting for the heating mode
(Cooling only unit does not have this function). Now the LCD
“HEA
T”. After setting is complet
simultaneously for 5 consecutive seconds to exit the setting of energy saving. After
the energy saving setting interface is activated, the system
if there is no any operation within 20 seconds after the
normal shutoff status interface shall be displayed. After the above settings are
completed, the system shall display
exceed the
temperature
range of the energy saving set
the lower cooling limit is set as 23°C and the
the energy saving
be select
ed fr
wire controller
temperature,
modes. Remove
temperature
om t
he r
ange of 23 °C t
later. If
the upper limit tem
the system can only
of energy saving setting:
after it takes into effect, you can press the
for 5 consecutive seconds when the unit is shut off. But the value set before
not be cleared but as the initial set temper
After the
unit
is
disconnect
ed to
stored. The setting still functions
again.
If
the energy saving mode is set, the sleep mode and the aut
invalidat
ed
...
“FAN”
key and the ( ) simultaneously for 5
Now
temperature
temperature
value under setting shall flash. Set the
shall be
displayed
using the ( ) key or the ( ) key (the lower limit
use the ( ) key or the ( ) key to set the
value shall flash on the
temperature
can be
key to confirm the setting.
must be higher than the set
ambient temperature
selected from
Please pay attention
lower limit
perature as the
temperature.
displays
ed, pr
ess the
“F
AN”
key
and the ( ) key
shall exit the interface
last key input, and the
“SAVE”.
Now the set
temperature
ting before. For example,
upper
cooling limit is set as
setting in left
o 2
so the cooling t
7°C
by using the remote controller or the
emper
atur
perature is the same as the lower limit
operate at such
To
power supply,
when
the unit is
temperature
under relevant
remove the energy saving setting
“FAN”
and the ( ) key simultaneously
ature f
or the
next
ener
gy
the energy saving setting shall be
connected
to power supply
o mode shall be
“SAVE”
and
on
“ON/OFF”
upper limit
the range
Press
“SAVE” and
shall not
27°C
for
e can only
will
saving setting.
Display
outdoor
SWING
TIMER
temperature
Power-fail Memory Function Se
Debug Function Setting
TIMER
SWING
tting
Under normal conditions, the
temperature.
shut off or start up, the
temperature
interface of indoor
ambient sensor, t
Press
the “SLEEP” key
is displayed for 10 seconds, the system
temperature.
he unit shall no
“OUT ENV” column shall
for 5 consecutive
LCD shall display “OUT
Note: If not
t hav
e t
his
function.
only display t
seconds
ENV”. After the outdoor
shall return to the display
equipped wit
when the unit is
h an outdoor
he
Press and hold the
set values so as to decide if the unit operating status or shutoff status shall be
memorized after a power
unit operating status or shutoff status shall be memorized after a power fail; 02
means the operating status or shutoff status shall not be memorized. Press the
“ON/OFF”
When the unit is shut off, press the “FAN” key and the “SWING” key
Simultaneously to activate the debug menu. Now the LCD displays “DEBUG”.
Press the “MODE” key to select setting item and use the ( ) key or the ( )
key to set actual value.
Setting of Ambient Temp. Sensor Under the debug mode , press the “MODE” key
so as to display “01” On the set temperature area (at the left of “DEBUG”). The
OUT ENV area (at the right of “DEBUG”) displays setting status. Now use the
( ) key or the ( ) key to select from the following two settings:
The indoor room temperature is measured at the air intake(Now the OUT ENV
area displays 01).
The indoor room temperature is measured at the wire controller (Now the OUT
ENV area displays 02).
The indoor room temperature is measured at the wire controller when the mode is
'heating' or 'auto'. At other modes, it is measured at the air intake (Now the OUT
ENV area displays 03). The default is 03.
“MODE” key
fail.
key to store the se
for 10 seconds when the unit is shut off to
If the set
t value and exit t
temperature ar
he se
tting.
ea
displays 01, it means the
indoor
switch
Failure Display
SWING
When there is failure in the unit operation, “ERROR” will flash on
the LCD of the wire controller and the code of failure will also be
displayed. When there are multiple failures at the same time, the codes
of failures will be displayed one after one on the wire controller. The
first digit of the code denotes the system number. When there is only
one system, it will display the system number 1. The last two digits
denote the detailed failure code. For example, the code in left means
low pressure protection of compressor.
The Codes of Failure Definitions are as Follows:
Fault code
Fault
Fault code
Fault
E0
Pump Failure
F0
Failure of Indoor Room Sensor at Air
Intake
E1
Compressor High Pressure
Protection
F1
Failure of Evaporator Temp. Sensor
E2
Indoor Frost-Proof Protection
F2
Failure of Condenser Temp. Sensor
E3
Compressor Low Pressure
Protection
F3
Failure of Outdoor Ambient Sensor
E4
Compressor Exhaust High
Temperature Protection
F4
Failure of Exhaust Temp. Sensor
E5
Compressor Overheat
F5
Failure of Indoor Room Sensor at Wire
Controller
E6
Communications Failure
E8
Indoor Fan Protection
E9
Full Water Protection
E5 Material Malfunction Will Be Showed By The Indicator Light On The Mother Board Of Outside Unit
9
Unit off
display
10
Clock
display
11
Confirm
butt
on
12
Increase
butt
on
13
Decrease
butt
on
14
Cacel/delete
butt
on
15
Single/group
button
16
Timer/time
butt
on
17
ON/OFF
butt
on
1
Unit
dispal
y
2
Single/group
display
3
Timer
week
display
4
Timer
display
5
Timer
state
display
6
Timer
time period
display
7
Timer ON/OFF
time
display
8
Unit on
display
• 7DP
- Seven days
programmer
(Accessory
not
supplied)
Unit Function
Centralized Control and Week Timer
Functions: The centralized control- ler
and the weekly timer are integra- ted in
the same wire controller. The system
has both the centralized control
and the week timing functions. Up to
16 sets of units can be control- led
simultaneously by the centralized
controller (weekly timer). The weekly
timer has the function of invalidating
lower unit. The weekly timing function
is able to realized four timing ON/OFF
periods for any unit every day, so as to
achieve fully automatic operation.
This WEEKLY TIMER adopts 485
mode to communicate with manual
control of every duct type unit, and it can
control up to 16 units. Adopting 2-core
twisted-pair wire, the longest
communication distance of this TIMER
is 1200m. After connected to power, the
WEEKLY TIMER can display all
connected units (sequence of unit is
determined by code switch of manual
control of every duct type unit). On and
off of every duct type unit can be done
through the Timer On / Off of this
WEEKLY TIMER, and the button shield
operation of manual control can be done
through shield setting on WEEKLY
TIMER. Mode selection and temperature
adjustment and other operations are done
through the manual control at every unit.
Arrangement
Note:
1. For upper unit checks 16 lower units consecutively, there will be no more than 16 seconds delay
when setting works till unit responds.
2. Please let us know your requirement before your placing the order, for this WEEKLY TIMER will
only be prepared when customer orders (communication joint with WEEKLY TIMER on manual
control had been prepared).
1. Press or
Group Control (1~16), or control single unit by Single Control.
2. When selected a certain or several units by Single Control or Group Control, Timer setting and On/off
setting can be set. Timer setting can set 4 on/off times in a day in one week; and on/off setting can be
done by pressing on/off button.
3. Connection between WEEKLY TIMER and manual control is shown as following:
Power
supply
On Off
Power
to select the unit that needed to be control. It is available to control several units by
Week timer Manual control Manual
LCD
T
elephone
wire box
Longest distance 1200 m
LCD
T
elephone
T
wisted
16 units in
wire
box
wire with crystal
Corresponding relation
switch and
ting code switch to
max
joint
sequence
of unit
ON
contr
ol
LCD
T
elephone
wire box
between code
(NOTE:
means 0)
put-
Wire controller (with week timer functions)
Each part of wired controller
1
Timing Display
11
Swing Status Display
2
Ambient Temperature Display
12
Timer interval Display
3
Energy Saving Status Display
13
Mode Button
4
Set Temperature Display
14
Set Temperature Increase Button
5
Week Display
15
Set Temperature Decrease Button
6
Fan Speed Display (Auto, High
Speed, Medium Speed, Low Speed)
16
Fan Speed Button
7
Defrosting Status Display
17
Swing Button
8
Fresh Air Status Display
18
Timing Button
9
Mode (Cooling, Dehumidifying, Fan,
Heating, Auto)
19
ON/OFF Button
10
Malfunction Display
●Never install the wired controller where there is water leakage.
●Never knock, throw or frequently open the wired controller.
WARNING!
Fig.1
Loading...
