EN

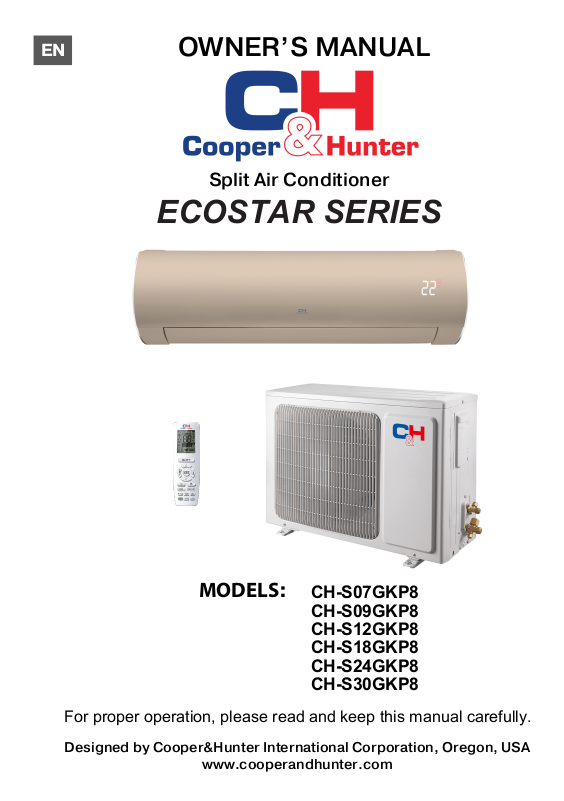

OWNER’S MANUAL

Split Air Conditioner

ECOSTAR SERIES

M

ODELS

:

CH-S07GKP8
CH-S09GKP8
CH-S12GKP8
CH-S18GKP8
CH-S24GKP8
CH-S30GKP8

For proper operation, please read and keep this manual carefully.

Designed by Cooper&Hunter International Corporation, Oregon, USA

www.cooperandhunter.com

Explanation of Symbols

DANGER

WARNING

CAUTION

N OTI C E

Indicates a hazardous situation that, if not avoided, will
result in death or serious injury.

Indicates a hazardous situation that, if not avoided, could
result in death or serious injury.

Indicates a hazardous situation that, if not avoided, may
result in minor or moderate injury.

Indicates important but not hazard-related information,
used to indicate risk of property damage.

Indicates a hazard that would be assigned a signal word
WARNING or CAUTION.

Precautions

WARNING

Operation and Maintenance

This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe
way and understand the hazards involved.
Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by

children without supervision.
Do not connect air conditioner to multi-purpose socket.

Otherwise, it may cause fire hazard.
Do disconnect power supply when cleaning air

conditioner. Otherwise, it may cause electric shock.
If the supply cord is damaged, it must be replaced by

the manufacturer, its service agent or similarly qualified
persons in order to avoid a hazard.

Do not wash the air conditioner with water to avoid
electric shock.
Do not spray water on indoor unit. It may cause electric
shock or malfunction.

After removing the filter, do not touch fins to avoid injury.
Do not use fire or hair dryer to dry the filter to avoid

deformation or fire hazard.

1

.

Precautions

WARNING

Maintenance must be performed by qualified
professionals. Otherwise, it may cause personal injury

or damage.
Do not repair air conditioner by yourself. It may cause

electric shock or damage. Please contact dealer when
you need to repair air conditioner.

Do not extend fingers or objects into air inlet or air
outlet. It may cause personal injury or damage.

Do not block air outlet or air inlet. It may cause
malfunction.

Do not spill water on the remote controller, otherwise the
remote controller may be broken.
When below phenomenon occurs, please turn off air
conditioner and disconnect power immediately, and then
contact the dealer or qualified professionals for service.

● Power cord is overheating or damaged.

● There’s abnormal sound during operation.

● Circuit break trips off frequently.

● Air conditioner gives off burning smell.

● Indoor unit is leaking.

If the air conditioner operates under abnormal conditions,
it may cause malfunction, electric shock or fire hazard.

When turning on or turning off the unit by emergency
operation switch, please press this switch with an insulating
object other than metal.

Do not step on top panel of outdoor unit, or put heavy
objects. It may cause damage or personal injury.

2

Precautions

WARNING

Attachment

Installation must be performed by qualified professionals.
Otherwise, it may cause personal injury or damage.

Must follow the electric safety regulations when installing
the unit.

According to the local safety regulations, use qualified
power supply circuit and circuit break.

Do install the circuit break. If not, it may cause malfunction.
An all-pole disconnection switch having a contact separation

of at least 3mm in all poles should be connected in fixed
wiring.

Including an circuit break with suitable capacity, please
note
magnet buckle

the circuit-short and

the following table.Air switch should be included

and heating buckle function, it can protect

overload.

Air Conditioner should be properly grounded. Incorrect
grounding may cause electric shock.

Don't use unqualified power cord.
Make sure the power supply matches with the

requirement of air conditioner. Unstable power supply or
incorrect wiring or malfunction. Please install proper power
supply cables before using the air conditioner.

Properly connect the live wire, neutral wire and
grounding wire of power socket.

Be sure to cut off the power supply before proceeding
any work related to electricity and safety.

3

Precautions

WARNING

Do not put through the power before finishing installation.
If the supply cord is damaged, it must be replaced by

the manufacturer, its service agent or similarly qualified
persons in order to avoid a hazard.

The temperature of refrigerant circuit will be high, please
keep the interconnection cable away from the copper
tube.

The appliance shall be installed in accordance with
national wiring regulations.

Installation must be performed in accordance with the
requirement of NEC and CEC by authorized personnel
only.

The air conditioner is the first class electric appliance. It
must be properly grounding with specialized grounding
device by a professional. Please make sure it is always
grounded effectively, otherwise it may cause electric shock.

The yellow-green wire in air conditioner is grounding
wire, which can't be used for other purposes.

The grounding resistance should comply with national
electric safety regulations.

The appliance must be positioned so that the plug is
accessible.

All wires of indoor unit and outdoor unit should be
connected by a professional.

If the length of power connection wire is insufficient, please
contact the supplier for a new one. Avoid extending the
wire by yourself.

4

Precautions

WARNING

For the air conditioner with plug, the plug should be
reachable after finishing installation.

For the air conditioner without plug, an circuit break
must be installed in the line.

If you need to relocate the air conditioner to another
place, only the qualified person can perform the work.
Otherwise, it may cause personal injury or damage.

Select a location which is out of reach for children and
far away from animals or plants.If it is unavoidable,
please add the fence for safety purpose.

The indoor unit should be installed close to the wall.
Instructions for installation and use of this product are

provided by the manufacturer.

Working temperature range

Indoor side DB/WB(℃) Outdoor side DB/WB(℃)

Maximum cooling 32/23 43/26

Maximum heating 27/- 24/18

NOTICE:

● The operating temperature range (outdoor temperature) is -7℃~ 43℃.

5

Parts Name

Indoor Unit

air inlet

panel

aux.button

horizontal louver

air outlet

temp. indicator

receiver window

(Display content or position may be different from above
graphics, please refer to actual products)

power indicator

remote controller

Outdoor Unit

air inlet

Connection wire

air outlet

NOTICE:

Actual product may be different from above graphics, please refer to actual
products.

6

Buttons on remote controller

7

Introduction for buttons on remote controller

Note:

● This is a general use remote controller, it could be used for the air conditioners
with multifunction; For some function, which the model doesn't have, if press
the corresponding button on the remote controller that the unit will keep the
original running status.

● After putting through the power, the air conditioner will give out a sound.

Operation indictor " " is ON (red indicator,the colour is different for different
models). After that, you can operate the air conditioner by using remote controller.

●

Under on status, pressing the button on the remote controller, the signal icon " "

on the display of remote controller will blink once and the air conditioner will give
out a “de” sound, which means the signal has been sent to the air conditioner.

● Under off status, set temperature and clock icon will be displayed on the display

of remote controller (If timer on, timer off and light functions are set, the corre­ sponding icons will be displayed on the display of remote controller at the same

time); Under on status, the display will show the corresponding set function icons.

On/Off button

1

Press this button to turn on the unit. Press this button again to turn off the unit.

Turbo button

2

Under COOL or HEAT mode, press this button to activate / deactivate the Turbo
function.

Mode button

3

Each time you press this button,a mode is selected in a sequence that goes from
AUTO, COOL, DRY, FAN, and HEAT *, as the following:

AUTO COOL DRY FAN

HEAT*

* Note: Only for models with heating function.

Swing button

4

Press this button to set up & down swing angle.

I Feel button

5

Press this button to start I FEEL function and " " will be displayed on the remote
controller. After this function is set, the remote controller will send the detected
ambient temperature to the controller and the unit will automatically adjust the
indoor temperature according to the detected temperature. Press this button again
to close I FEEL function and " " will disappear. When I FEEL function is turned on,
the remote controller should be put within the area where indoor unit can receive the
signal sent by the remote controller.

8

Introduction for buttons on remote controller

Temp button

6

Press this button, you can see indoor set temperature, indoor ambient temperature
on indoor unit’s display. The setting on remote controller is selected circularly as below:

no display

Note:

●

Outdoor temperature display is not available for some models. At that time, indoor

unit receives " " signal, while it displays indoor set temperature.

Health/Air button

7

Health function

In unit on status, press button to set health function.
When is displayed, health function is on.

When is not displayed, health function is off.

Health function is available when the unit is equipped with anion generator.
When health function is on, the anion generator will start operation, adsorbing
the dusts and killing the bacteria in the room.

Air function (option)

Press button until is displayed, then air function is turned on.

Press button until is disappeared, then air function is turned off.

Light button

8

Press this button to

off the display's

X-Fan button

9

Press this button in COOL or DRY mode to turn on X-fan function.

When this function is started up, indoor fan will still operate at low fan speed for a
while after turning off the unit by remote controller.

turn on the display's light and press this button again to turn

light.

Sleep button

10

Under Cool, Heat or Dry mode, press this button to turn on Sleep function.
Press this button again to cancel Sleep function. Under Fan and Auto modes, this
function is unavailable.

9

Introduction for buttons on remote controller

Clock button

11

Set clock of the system.

12/13

● Under ON status, press this button to set timer OFF; Under OFF status, press
this button to set timer ON.

● Press this button once and the characters of HOUR ON (OFF) will flash to be

displayed. Meanwhile, press " " button or " " button to adjust timer setting (time
will change quickly if holding " " or " " button). Time setting range is 0.5~24hours.
Press this button again to confirm timer setting and the characters of HOUR ON
(OFF)will stop flashing.

If the characters are flashing but you haven’t press timer button,timer setting
status will be quit after 5s.If timer is confirmer, press this button again to cancel
timer.

14

Press this button to set left & right swing angle.

15

This button is used for setting Fan Speed in the sequence that goes from AUTO,

, to , then back to Auto.

* Note: Fan speed under dry mode is low speed.

16

Press / button to increase/decreaseset temperature. In AUTO mode,
set temperature is not adjustable.

When setting Timer On or Timer Off, press "▲" or " " button to adjust the time.

Timer button

Swing button (OPTION)

Fan button

▲

▲ / button

▲

▲

▲
▲

▲

▲

▲

10

Function introduction for combination buttons

Combination of " " and " " buttons: About lock

Press " " and " "

▲

controller is locked, is displayed. In this case, pressing any button, blinks

three times.

▲

▲

buttons simultaneously 3s to lock or unlock the keypad. If the remote

Combination of "MODE" and " " buttons:

▲

▲

About switch between Fahrenheit and centigrade

At unit OFF, press "MODE" and " " buttons simultaneously to

▲

switch between ℃ and ℉.

Combination of "TEMP" and "TIMER" buttons:
About Energy-saving Function (OPTION)

Press "TEMP" and "TIMER" simultaneously in COOL mode to start e nergy-saving function.

Nixie tube on the remote controller displays "SE". Repeat the operation to quit the function.

Combination of "TEMP" and "TIMER" buttons:
About 8

Press "TEMP" and "

Nixie tube on the remote controller displays " " and a selected temperature of "8℃".
(46℉ if Fahrenheit is adopted). Repeat the operation to quit the function.

℃

Heating Function (OPTION)

TIMER

" simultaneously in HEAT mode to start 8℃ Heating Function

11

Operation guide

After putting through the power, press "ON/OFF" button on remote controller to

1.

turn on the air conditioner.

Press "MODE" button to select your required mode: AUTO, COOL, DRY, FAN,

2.

HEAT.

Press "▲" or " " button to set your required temperature. (Temperature can’t

3.

be adjusted under auto mode).

Press "FAN" button to set your required fan speed: auto, low, medium and high

4.

speed.

Press "SWING" button to select fan blowing angle.

5.

▲

Replacement of batteries in remote controller

1. Press the back side of remote controller marked

the cover of battery box along the arrow direction.

2. Replace two 7# (AAA 1.5V) dry batteries, and
make sure the position of "+" polar and "-" polar
are correct.

3. Reinstall the cover of battery box.

signal sender battery

reinstall

remove

Cover of battery box

NOTICE

● During operation, point the remote control signal sender at the receiving
window on indoor unit.

● The distance between signal sender and receiving window should be no
more than 8m, and there should be no obstacles between them.

or wireless telephone; remote controller should be close to indoor unit during
operation.

● Replace new batteries of the same model when replacement is required.

● When you don’t use remote controller for a long time, please take out the

batteries.

● If the display on remote controller is fuzzy or there’s no display, please
replace batteries.

12

Emergency operation

If remote controller is lost or damaged, please use auxiliary button to turn
on or turn off the air conditioner. The operation in details are as below:

air conditioner. When the air conditioner is turned on, it will operate under
auto mode.

panel

aux. button

WARNING:

Use insulated object to press the auto button

Clean and maintenance

WARNING

■ Turn off the air conditioner and disconnect the power before cleaning the air
conditioner to avoid electric shock.

■ Do not wash the air conditioner with water to avoid electric shock.

■ Do not use volatile liquid to clean the air conditioner.

Clean surface of indoor unit

When the surface of indoor unit is dirty, it is recommended to use a soft dry cloth
or wet cloth to wipe it.

NOTICE:

● Do not remove the panel when cleaning it.

13

Clean and Maintenance

Open panel

1

Pull out the panel to a certain ● Use dust catcher or water to

2

3

the water (below 45℃) to clean
it, and then put it in a shady
and cool place to dry.

4

panel cover tightly.

WARNING

operation environment, clean frequency can be increased.

14

Clean and Maintenance

NOTICE: Checking before use-season

1. Check whether air inlets and air outlets are blocked.

2. Check whether air switch, plug and socket are in good condition.

4. Check whether mounting bracket for outdoor unit is damaged or corroded.
If yes, please contact dealer.

5. Check whether drainage pipe is damaged.

NOTICE: Checking after use-season

1. Disconnect power supply.

3. Check whether mounting bracket for outdoor unit is damaged or corroded.
If yes, please contact dealer.

Notice for recovery

1. Many packing materials are recyclable materials.
Please dispose them in appropriate recycling unit.

2. If you want to dispose the air conditioner, please contact local dealer or
consultant service center for the correct disposal method.

15

Malfunction analysis

General phenomenon analysis

Please check below items before asking for maintenance. If the malfunction still

Phenomenon Check items Solution

Indoor unit
can’t receive
remote
controller’s
signal or
remote
controller
has no
action.

No air

emitted
from
indoor
unit

● Whether it's interfered severely

(such as static electricity, stable
voltage)?

● Whether remote controller is

within the signal receiving
range?

● Whether there are obstacles?

● Whether remote controller is

pointing at the receiving
window?

● Is sensitivity of remote contro­ ller low; fuzzy display and no
display?

● No display when operating

remote controller?

● Fluorescent lamp in room?

● Air inlet or air outlet of indoor

unit is blocked?

● Under heating mode, indoor

temperature is reached to set
temperature?

● Heating mode is turned on just

now?

● Pull out the plug. Reinsert

the plug after about 3min, and
then turn on the unit again.

● Signal receiving range is 8m.

● Remove obstacles.

●

Select proper angle and point

the remote controller at the re-

ceiving window on indoor unit.

● Check the batteries. If the

power of batteries is too low,
please replace them.

● Check whether remote cont-

roller appears to be damaged.

If yes, replace it.

● Take the remote controller

close to indoor unit.

and then try it again.

● Eliminate obstacles.

● After reaching to set temper­ ature, indoor unit will stop bl-

owing out air.

● In order to prevent blowing

out cold air, indoor unit will be

started after delaying for sev­ eral minutes, which is a nor-

mal phenomenon.

16

Malfunction analysis

Phenomenon Check items Solution

Air condit­ioner can’t
operate

Mist is em­itted from
indoor unit’s
air outlet

Set temper­ature can’t
be adjusted

● Power failure?

● Is plug loose?

● Air switch trips off or fuse is
burnt out?

● Wiring has malfunction?

● Unit has restarted immediately
after stopping operation?

● Whether the function setting
for remote controller is
correct?

● Indoor temperature and hum­ idity is high?

● Unit is operating under auto
mode?

● Your required temperature
exceeds the set temperature
range?

● Wait until power recovery.

● Reinsert the plug.

● Ask professional to replace
air switch or fuse.

● Ask professional to replace it.

● Wait for 3min, and then turn
on the unit again.

● Reset the function.

● Because indoor air is cooled
rapidly. After a while, indoor
temperature and humidity will
be decrease and mist will
disappear.

● Temperature can’t be adju­ sted under auto mode.
Please switch the operation
mode if you need to adjust
temperature.

● Set temperature range:
16℃~30℃.

Cooling
(heating)
effect is
not good.

● Voltage is too low?

● Filter is dirty?

● Set temperature is in proper
range?

● Door and window are open? ● Close door and window.

● Wait until the voltage
resumes normal.

● Adjust temperature to proper
range.

17

Malfunction analysis

Phenomenon Check items Solution

Odours are
emitted

Air conditio­ner operates
abnormally

Outdoor
unit has

vapor

“Water

noise

Cracking
noise

● Whether there’s odour source,
such as furniture and cigarette,
etc.

● Whether there’s interference,
such as thunder, wireless
devices, etc.

● Heating mode is turned on?

● Air conditioner is turned on or
turned off just now?

● Air conditioner is turned on or
turned off just now?

● Eliminate the odour source.

● Disconnect power, put back
power, and then turn on the

unit again.

● During defrosting under he-

ating mode, it may generate

vapor, which is a normal
phenomenon.

● The noise is the sound of

the unit, which is a normal

phenomenon.

● This is the sound of friction
caused by expansion and/or
contraction of panel or other
parts due to the change of
temperature.

18

Malfunction analysis

Error Code

● When air conditioner status is abnormal, temperature indicator on indoor unit will

ation of error code.

Error code

U8

H6

H3

E1

E5

E6

E8

C5
F0
F1
F2

Note: If there're other error codes, please contact qualified professionals for service.

It can be eliminated after restarting the unit. If not, please

It can be eliminated after restarting the unit. If not, please

It can be eliminated after restarting the unit. If not, please
contact qualified professionals for service.

It can be eliminated after restarting the unit. If not, please
contact qualified professionals for service.

It can be eliminated after restarting the unit. If not, please

It can be eliminated after restarting the unit. If not, please
contact qualified professionals for service.

It can be eliminated after restarting the unit. If not, please
contact qualified professionals for service.

Troubleshooting

WARNING

■ When below phenomenon occurs, please turn off air conditioner and discon-

for service.

● Power cord is overheating or damaged.

● There’s abnormal sound during operation.

● Air switch trips off frequently.

● Air conditioner gives off burning smell.

● Indoor unit is leaking.

■ If the air conditioner operates under abnormal conditions, it may cause

19

Installation dimension diagram

At least 15cm

Space to the ceiling

At least 15cm

Space to the wall

At least 300cm

Space to the wall

At least 15cm

Space to the obstruction

At least 30cm

Space to the wall

At least 200cm

Space to the obstruction

At least 250cm

Space to the

obstruction

Space to the obstruction

At least 50cm

At least

30cm

At least 50cm

Space to the

obstruction

Drainage pipe

20

Safety precautions for installing and relocating the unit

To ensure safety, please be mindful of the following precautions.

Warning

When installing or relocating the unit, be sure to keep the refrigerant
circuit free from air or substances other than the specified refrigerant.

Any presence of air or other foreign substance in the refrigerant circuit will cause
system pressure rise or compressor rupture, resulting in injury.

When installing or moving this unit, do not charge the refrigerant which
is not comply with that on the nameplate or unqualified refrigerant.

Otherwise, it may cause abnormal operation, wrong action, mechanical
malfunction or even series safety accident.

When refrigerant needs to be recovered during relocating or repairing the
unit, be sure that the unit is running in cooling mode.Then, fully close the
valve at high pressure side (liquid valve).About 30-40 seconds later, fully
close the valve at low pressure side (gas valve), immediately stop the unit
and disconnect power. Please note that the time for refrigerant recovery
should not exceed 1 minute.

If refrigerant recovery takes too much time, air may be sucked in and cause
pressure rise or compressor rupture, resulting in injury.

During refrigerant recovery, make sure that liquid valve and gas valve are
fully closed and power is disconnected before detaching the connection pipe.

If compressor starts running when stop valve is open and connection pipe is not
yet connected, air will be sucked in and cause pressure rise or compressor
rupture, resulting in injury.

When installing the unit, make sure that connection pipe is securely
connected before the compressor starts running.

If compressor starts running when stop valve is open and connection pipe is not
yet connected, air will be sucked in and cause pressure rise or compressor
rupture, resulting in injury.

Prohibit installing the unit at the place where there may be leaked corrosive
gas or flammable gas.

If there leaked gas around the unit, it may cause explosion and other accidents.

Do not use extension cords for electrical connections. If the electric wire
is not long enough, please contact a local service center authorized
and ask for a proper electric wire.

Poor connections may lead to electric shock or fire.

Use the specified types of wires for electrical connections between the
indoor and outdoor units. Firmly clamp the wires so that their terminals
receive no external stresses.

Electric wires with insufficient capacity, wrong wire connections and insecure
wire terminals may cause electric shock or fire.

21

Tools for installation

1 Level meter 2 Screw driver 3 Impact drill
4 Drill head 5 Pipe expander 6 Torque wrench

7 Open-end wrench 8 Pipe cutter 9 Leakage detector
10 Vacuum pump 11 Pressure meter 12 Universal meter

13 Inner hexagon spanner 14 Measuring tape

Note:

● Please contact the local agent for installation.

Selection of installation location

Basic requirement

Installing the unit in the following pla­ces maycause malfunction. If it is un­avoidable, please consult the local
dealer:

1.The place with strong heat sources,

or volatile objects spread in the air.

2.The place with high-frequency
devices (such as welding machine,
medical equipment).

3.The place near coast area.

4.

The place with oil or fumes in the air.

5.The place with sulfureted gas.

6.Other places with special circums­ tances.

7.The appliance shall nost be install­ ed in the laundry

Outdoor unit

,

Indoor unit

1. There should be no obstruction near air
inlet and air outlet.

2. Select a location where the condensat­ ion water can be dispersed easily and
won't affect other people.

3. Select a location which is convenient to
connect the outdoor unit and near the
power socket.

4. Select a location which is out of reach
for children.

The location should be able to withstand

5.
the weight of indoor unit and won't incr­ ease noise and vibration.

6.

The appliance must be installed 2.5m

7. Don't install the indoor unit right above
the electric appliance.

8. Please try your best to keep way from
fluorescent lamp.

will not affect neighborhood.

2. The location should be well ventilated and dry, in which the outdoor unit
won't be exposed directly to sunlight or strong wind.

3. The location should be able to withstand the weight of outdoor unit.

4. Make sure that the installation follows the requirement of installation
dimension diagram.

5. Select a location which is out of reach for children and far away from animals
or plants.If it is unavoidable, please add the fence for safety purpose.

22

Requirements for electric connection

Safety precaution

1. Must follow the electric safety regulations when installing the unit.

3. Make sure the power supply matches with the requirement of air conditioner.
Unstable power supply or incorrect wiring or malfunction. Please install proper
power supply cables before using the air conditioner.

4. Properly connect the live wire, neutral wire and grounding wire of power socket.

5. Be sure to cut off the power supply before proceeding any work related to electricity and safety.

7. If the supply cord is damaged, it must be replaced by the manufacturer, its

8. The temperature of refrigerant circuit will be high, please keep the interconnec­ tion cable away from the copper tube.

9. The appliance shall be installed in accordance with national wiring regulations.

10. To be in compliance with EN 61000-3-11, impedance value of power-supply system
connected to product must be less than or equal to the allowable maximum value
of |Zsys| in the following sheet:

models

GWH12ACC-K3NNA1A

GWH12ACC-K3NNA4A

GWH12ACC-K3NNA5A

GWH18ACC-K3NNA1A

GWH24ACD-K3NNA1A

GWH28ACE-K3NNA1A
GWH28ACE-K3NNA5A

max |Zsys| unit:ohms

0.502

0.502

0.502

0.338

0.062

0.046

0.046

Before connecting the product to public power network, please consult your local power
supply authority to ensure that the power network has met the above requirements.
No requirement for the unlisted product’s impedance value of power-supply system.

Grounding requirement

air switch.

grounding with specialized grounding device by a professional. Please make
sure it is always grounded effectively, otherwise it may cause electric shock.

2. The yellow-green wire in air conditioner is grounding wire, which can't be used for other purposes.

3. The grounding resistance should comply with national electric safety regulations.

4. The appliance must be positioned so that the plug is accessible.

5. An all-pole disconnection switch having a contact separation of at least 3mm in

6. Including an air switch with suitable capacity, please note the following table. Air
switch should be included magnet buckle and heating buckle function, it can
protect the circuit-short and overload. (Caution: please do not use the fuse only
for protect the circuit)

Air-conditioner

7K

9K
12K 18K
24K 28K

Air switch capacity

10A
10A
16A

25A

23

Installation of indoor unit

Step one: choosing installation location

rm it with the client.

Step two: install wall-mounting frame

1. Hang the wall-mounting frame on the wall; adjust it in horizontal position with the

plastic expansion particles in the holes.

3. Fix the wall-mounting frame on the wall with tapping screws (ST4.2X25TA) and

.

Step three: open piping hole

1. Choose the position of piping hole according to the direction of outlet pipe. The
position of piping hole should be a little lower than the wall-mounted frame,
shown as below.

ACA、ACB:

Wall

Mark in the middle of it
Space
to the

wall

above

150mm

Left

Φ55mm

Rear piping hole

ACD:

Wall

Mark in the middle of it
Space
to the

wall

above

150mm

Left

Φ55mm

Rear piping hole

Level meter

Level meter

Space
to the

wall

above

150mm

Right

Φ55mm

Rear piping hole

Space

to the

wall

above

150mm

Right

Φ55mm

Rear piping hole

Wall

Wall

ACC:

Wall

Space
to the

wall

above

150mm

Left

Φ55mm

Rear piping hole

ACE:

Wall

Space

to the

wall
above
150mm

Left

Φ70mm

Rear piping hole

Mark in the middle of it

Mark in the middle of it

Level meter

Level meter

Space
to the

wall

above

150mm

Right

Φ55mm

Rear piping hole

Space
to the

wall

above

150mm

Right

Φ70mm

Rear piping hole

Wall

Wall

2. Open a piping hole with the diameter of Φ55 or Φ70 on the selected outlet
pipe position.In order to drain smoothly, slant the piping hole on the wall
slightly downward to the outdoor side with the gradient of 5-10°.

24

Installation of indoor unit

Note:

● Pay attention to dust prevention and
take relevant safety measures when

opening the hole.

● The plastic expansion particles are
not provided and should be bought

locally.

Step four: outlet pipe

1. The pipe can be led out in the
direction of right, rear right, left or
rear left.

left

rear right

right

rear left

Indoor

5-10

2. When select leading out the pipe
from left or right, please cut off the
corresponding hole on the bottom
case.

left right

outdoor

Φ55/Φ70

cut off
the hole

1. Aim the pipe joint at the corresponding
bellmouth.

union nutpipe joint

2. Pretightening the union nut with hand.

3. Adjust the torque force by referring to the following sheet. Place the open-end
wrench on the pipe joint and place the torque wrench on the union nut. Tighten
the union nut with torque wrench.

pipe

25

Installation of indoor unit

torque wrench

indoor pipe

open-end
wrench

union nut

pipe

Hex nut diameter Tightening torque (N.m)

Φ 9.52

4. Wrap the indoor pipe and joint of con­ nection pipe with insulating pipe, and
then wrap it with tape.

Step six: install drain hose

1. Connect the drain hose to the outlet pipe of
indoor unit.

outlet pipe

2. Bind the joint with tape.

tape

Note:

● Add insulating pipe in the indoor
drain hose in order to prevent
condensation.

● The plastic expansion particles are
not provided.

drain hose

Φ 6

Φ 12
Φ 16
Φ 19

15~20
30~40
45~55

60~65

70~75

insulating pipe

outlet

pipe

drain hose

insulating pipe

drain hose

Step seven: connect wire of indoor unit

1. Open the panel, remove the screw
on the wiring cover and then take
down the cover.

26

panel

screw

wiring cover

Installation of indoor unit

2. Make the power connection wire go
through the cable-cross hole at the back

cable-cross
hole

of indoor unit and then pull it out from
the front side.

power connection
wire

3. Remove the wire clip; connect the power connection wire to the wiring terminal
according to the color; tighten the screw and then fix the power connection wire
with wire clip.

07 09 12、18K
Heat pump type:

N(1)

2 4 5

green

28K Heat pump type:

blue violet orangeblackyellow-

Outdoor unit connection

N(1)

2 3

blue black brown

Outdoor unit connection

yellow­green

24K Heat pump type:

N(1)

2

yellow­green

black

blue brown violet orange

Outdoor unit connection

3 4 5

Note: the wiring board is for reference only, please refer to the actual one.

4. Put wiring cover back and then tighten the screw.

5. Close the panel.

Note:

● All wires of indoor unit and outdoor unit should be connected by a professional.

for a new one. Avoid extending the wire by yourself.

installation.

● For the air conditioner without plug, an air switch must be installed in the line.
The air switch should be all-pole parting and the contact parting distance should
be more than 3mm.

27

Installation of indoor unit

drain hose

upper hook

Step eight: bind up pipe

1. Bind up the connection pipe, power
cord and drain hose with the band.

indoor and

indoor unit

outdoor power cord
gas
pipe

band

liquid pipe

drain hose

2. Reserve a certain length of drain
hose and power cord for installation
when binding them. When binding to
a certain degree, separate the indoor
power and then separate the drain
hose.

Step nine: hang the indoor unit

1. Put the bound pipes in the wall pipe and then make them pass through the wall
hole.

2. Hang the indoor unit on the wall-mounting frame.

3. Stuff the gap between pipes and wall hole with sealing gum.

4. Fix the wall pipe.

5. Check if the indoor unit is installed firmly and closed to the wall.

connection pipe

indoor power cord

band

3. Bind them evenly.

4. The liquid pipe and gas pipe should
be bound separately at the end.

Note:

● The power cord and control wire
can't be crossed or winding.

● The drain hose should be bound
at the bottom.

indoor

wall pipe

outdoor

sealing gum

lower hook of
wall-mounting frame

Note:

● Do not bend the drain hose too excessively in order to prevent blocking.

28

Installation of outdoor unit

foot holes

(select it according to the actual installation situation)

1. Select installation location according to the house structure.

2. Fix the support of outdoor unit on the selected location with expansion screws.

Note:

installing the outdoor unit.

●

Make sure the support can withstand at least

four times of the unit weight.

● The outdoor unit should be installed at least

joint.

● For the unit with cooling capacity of 2300W
~5000W, 6 expansion screws are needed;
for the unit with cooling capacity of 6000W
~8000W, 8 expansion screws are needed;
for the unit with cooling capacity of 10000W

~16000W, 10 expansion screws are needed.

Step two: install drain joint

gnitaehdnagniloocrof ylnO(

unit)

1. Connect the outdoor drain joint into
the hole on the chassis, as shown in
the picture below.

2. Connect the drain hose into the drain
vent.

at least 3cm above the floor

1. Place the outdoor unit on the
support.

2. Fix the foot holes of outdoor unit
with bolts.

drain vent

Drain hose

chassis

outdoor drain joint

foot holes

29

Installation of outdoor unit

pipe joint

Step four: connect indoor and outdoor pipes

1. Remove the screw on the right han­ dle of outdoor unit and then remove

3. Pretightening the union nut with
hand.

the handle.

screw

handle

2. Remove the screw cap of valve and
aim the pipe joint at the bellmouth of
pipe.

liquid pipe

liquid
valve

gas pipe

gas valve

4. Tighten the union nut with torque
wrench by referring to the sheet
below.

Hex nut diameter

Φ 6

Φ 9.52

Φ 12
Φ 16
Φ 19

union nut

Tightening torque

(N.m)
15~20
30~40

45~55

60~65

70~75

1. Remove the wire clip; connect the power connection wire and signal control
wire (only for cooling and heating unit) to the wiring terminal according to the

07 09 12、18K Heat pump type:

N(1) 2 4 5

yellow­green

violet

N(1)

orangeblackyellow-

2 3

brown

brown

(black)

green

28K Heat pump type:

blue

Indoor unit connection

Indoor unit connection

Note: The wiring board is for reference only, please refer to the actual one.

30

24K Heat pump type:

N(1) 2 3 4

blue

yellow­green

L N

L N

black

Indoor unit connection

yellow-

blueblue black

green

POWER

brown

violet

5

orange

Installation of outdoor unit

2. Fix the power connection wire and signal control wire with wire clip (only for

cooling and heating unit).

Note:

● Never cut the power connection wire to prolong or shorten the distance.

Step six: neaten the pipes

1. The pipes should be placed along the wall,

bent reasonably and hidden possibly. Min.
semidiameter of bending the pipe is 10cm.

2. If the outdoor unit is higher than the wall

hole, you must set a U-shaped curve in the
pipe before pipe goes into the room, in
order to prevent rain from getting into the
room.

Note:

● The through-wal height of drain hose
shouldn't be higher than the outlet
pipe hole of indoor unit.

the drain hose
can't raise

upwards.

● Slant the drain hose slightly dow-

nwards. The drain hose can't be

U-shaped curve

drain hose

wall

● The water outlet can't be placed
in water in order to drain smoothly.

The water outlet
can't be placed
in water

31

The drain hose can't be fluctuant

The drain hose
can't be fluctuant

The water
outlet can't be
fluctuant

Vacuum pumping

Use vacuum pump

1. Remove the valve caps on

the liquid valve and gas
valve and the nut of refri­ gerant charging vent.

2. Connect the charging ho-

se of piezometer to the
refrigerant charging vent
of gas valve and then co­ nnect the other charging
hose to the vacuum pump.

3. Open the piezometer com-

pletely and operate for
10-15min to check if the
pressure of piezometer re­ mains in -0.1MPa.

4. Close the vacuum pump

and maintain this status for
1-2min to check if the pres­ sure of piezometer remains
in -0.1MPa. If the pressure decreases, there may be leakage.

5. Remove the piezometer, open the valve core of liquid valve and gas valve

completely with inner hexagon spanner.

6. Tighten the screw caps of valves and refrigerant charging vent.

liquid valve

gas valve

refrigerant charging
vent

nut of refrigerant
charging vent

piezometer

valve cap

vacuum pump

inner hexagon

spanner

close

open

Lo Hi

Leakage detection

1. With leakage detector:

Check if there is leakage with leakage detector.

2. With soap water:

If leakage detector is not available, please use soap water for leakage detection.
Apply soap water at the suspected position and keep the soap water for more
than 3min. If there are air bubbles coming out of this position, there's a leakage.

32

Check after installation

Items to be checked Possible malfunction

The unit may drop, shake or emit noise.

Have you done the refrigerant leakage
test?

Is water drained well?

(heating) capacity.

It may cause condensation and water
dripping.

It may cause condensation and water
dripping.

Is the voltage of power supply accord­ing to the voltage marked on the
nameplate?

Is electric wiring and pipeline installed
correctly?

Is the unit grounded securely? It may cause electric leakage.

Does the power cord follow the speci-

Is there any obstruction in the air inlet
and outlet? (heating) capacity.

The dust and sundries caused during
installation are removed?

The gas valve and liquid valve of
connection pipe are open completely?

Is the inlet and outlet of piping hole
been covered?

It may cause malfunction or damaging
the parts.

It may cause malfunction or damaging
the parts.

It may cause malfunction or damaging
the parts.

It may cause malfunction or damaging
the parts.

(heating) capacit

It may cause insufficient cooling
(heating) capacity or waster eletricity.

y.

Test operation

1. Preparation of test operation

● The client approves the air conditioner.

● Specify the important notes for air conditioner to the client.

2. Method of test operation

● Put through the power, press ON/OFF button on the remote controller to start

operation.

● Press MODE button to select AUTO, COOL, DRY, FAN and HEAT to check

whether the operation is normal or not.

● If the ambient temperature is lower than 16℃, the air conditioner can’t

startcooling.

33

Configuration of connection pipe

1. Standard length of connection pipe

● 5m, 7.5m, 8m.

2.Min. length of connection pipe is 3m.

3.Max. length of connection pipe.

Cooling
capacity

5000Btu/h

(1465W)

7000Btu/h

(2051W)

9000Btu/h

(2637W)

12000Btu/h

(3516W)

18000Btu/h

(5274W)

4. The additional refrigerant oil and refrigerant charging required after prolonging

connection pipe

● After the length of connection pipe is prolonged for 10m at the basis of
standard length, you should add 5ml of refrigerant oil for each additional 5m
of connection pipe.

● The calculation method of additional refrigerant charging amount (on the basis
of liquid pipe):

Additional refrigerant charging amount = prolonged length of liquid pipe ×
additional refrigerant charging amount per meter

● Basing on the length of standard pipe, add refrigerant according to the

requirement as shown in the table. The additional refrigerant charging amount
per meter is different according to the diameter of liquid pipe. See the
following sheet.

Max length
of connec­tion pipe

15 25

15 30

15 30

20 30

25 30

Cooling
capacity

24000Btu/h

(7032W)

28000Btu/h

(8204W)

36000Btu/h

(10548W)

42000Btu/h

(12306W)

48000Btu/h

(14064W)

Max length
of connec­tion pipe

34

Configuration of connection pipe

Additional refrigerant charging amount for R22, R407C, R410A and R134a

Diameter of connection pipe

Liquid pipe(mm) Gas pipe(mm)

Φ6

Φ6 or Φ9.52

Φ12

Φ16

Φ19

Φ22.2

Φ9.52 or Φ12

Φ16 or Φ19

Φ19 or Φ22.2

Φ25.4 or Φ31.8

_

_

Outdoor unit throttle

Cooling only(g/m) Cooling and heating(g/m)

15

15

30

60

250 250

20

50

120

120

350350

35

Pipe expanding method

pipe

pipe

smooth surface

Note:

Improper pipe expanding is the main cause of refrigerant leakage. Please expand
the pipe according to the following steps:

A: Cut the pipe

the distance of indoor unit and
outdoor unit.

● Cut the required pipe with pipe cutter.

pipe cutter

E: Expand the port

● Expand the port with expander.

hard

expander

mold

pipe

leaning uneven burr

B: Remove the burrs

● Remove the burrs with shaper and
prevent the burrs from getting into
the pipe.

shaper

downwards

C: Put on suitable insulating pipe
D: Put on the union nut

● Remove the union nut on the indoor
connection pipe and outdoor valve;
install the union nut on the pipe.

union pipe

Note:

● "A" is different according to the
diameter, please refer to the sheet
below:

Outer diameter

(mm)

Φ6 - 6.35(1/4")

Φ9.52(3/8")

Φ12-12.7(1/2")

Φ15.8-16(5/8")

A(mm)

Max Min

1.3 0.7

1.6 1.0

1.8 1.0

2.4 2.2

F: Inspection

● Check the quality of expanding port.
If there is any blemish, expand the
port again according to the steps
above.

improper expanding

pipe

the length is equal

36

leaning

damaged

surface

crack uneven

thickness

Designed by Cooper&Hunter International Corporation, Oregon, USA

www.cooperandhunter.com

E-mail: [e-mail]

* Cooo ooo per && Huunter is coonstantlyy www ooo rkkingg too immmprooo vvv e thheir proooddduuucts, soo thhe
infff ooo rmmmatioon in thhis mmmanuual is suuubbbjjject too chhangge wwithhhooouuut prioor nootice.

& u o y k g o h o h
o h u o h g w o o

600005000657
