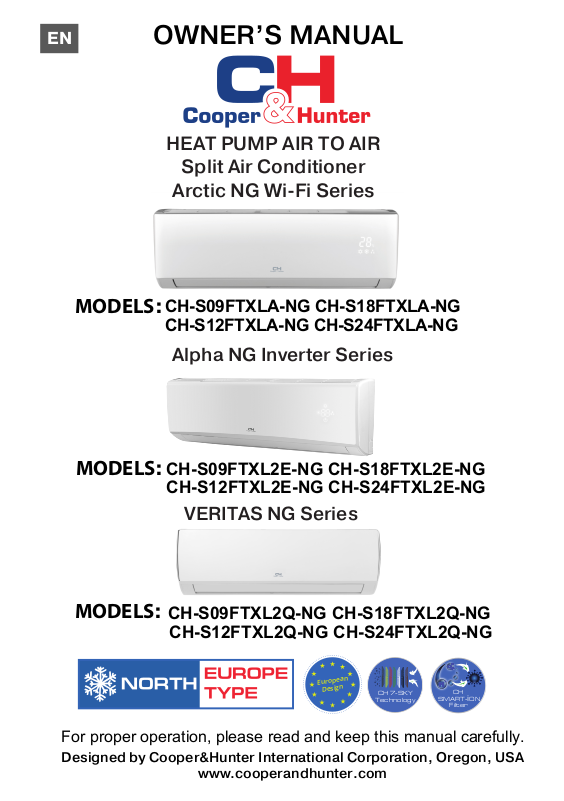

COOPER&HUNTER СH-S09FTXLA-NG, CH-S18FTXLA-NG, CH-S12FTXLA-NG, CH-S24FTXLA-NG, CH-S09FTXL2E-NG User guide [uk]

...
EN
OWNER’S MANUAL
HEAT PUMP AIR TO AIR
Split Air Conditioner
M
ODELS
M
ODEL
Arctic
CH-S09FTX
:
CH-S12FTX
NG
Wi-Fi Series
LA-NG
LA-
NG CH-S24FTX
CH-S18FTX
Alpha NG Inverter Series
CH-S09FTXL2E-NG CH-S18FTX
S
:
CH-S12FTX
L
2E-NG
CH-S24FTX
VERITAS NG Series
LA-
LA-
NG
NG
L
2E-NG
L
2E-NG
M
ODEL
S
:
CH-S09FTX
CH-S12FTX
L
2Q-NG
L
2Q-NG
CH-S18FTX
CH-S24FTX
European
Design
CH 7-SKY
Technology
L
2Q-NG
L
2Q-NG
-
o
2
+
H
CH
SMART-iON
Filter
For proper operation, please read and keep this manual carefully.
Designed by Cooper&Hunter International Corporation, Oregon, USA
www.cooperandhunter.com
Explanation of Symbols
DANGER
WARNING
CAUTION
N OTI C E
Indicates a hazardous situation that, if not avoided, will result in death or serious injury.
Indicates a hazardous situation that, if not avoided, could result in death or serious injury.
Indicates a hazardous situation that, if not avoided, may result in minor or moderate injury.
Indicates important but not hazard-related information, used to indicate risk of property damage.
Indicates a hazard that would be assigned a signal word WARNING or CAUTION.
Appliance filled with flammable gas R32.
Before use the appliance, read the owner’s manual first.
Before install the appliance, read the installation manual first.
Before repair the appliance, read the service manual first.
The Refrigerant
To realize the function of the air conditioner unit, a special refrigerant circulates in the system. The used refrigerant is the fluoride R32, which is specially cleaned. The refrigerant is flammable and inodorous. Furthermore, it can leads to explosion under certain conditions. But the flammability of the refrigerant is very low. It can be ignited only by fire.
Compared to common refrigerants, R32 is a nonpolluting refrigerant with no harm to the ozonosphere. The influence upon the greenhouse effect is also lower. R32 has got very good thermodynamic features which lead to a really high energy efficiency. The units therefore need a less filling.
WARNING
Do not use means to accelerate the defrosting process or to clean, other than those
recommended by the manufacture. Should repair be necessary, contact your nea­rest authorized Service Centre. Any repairs carried out by unqualified personnel may be dangerous. The appliance shall be stored in a room without continuously operating ignition sources. (for example: open flames, an operating gas appliance or an operating electric heater.) Do not pierce or burn.
Appliance shall be installed, operated and stored in a room with a floor area larger than X m .
Refrigerant" for Space X.)
Appliance filled with flammable gas R32. For repairs, strictly follow manufacturer’s instructions only. Be aware that refrigrants not contain odour. Read specialist’s manual.
2
(Please refer to table "a" in section of " Safety Operation of Inflammable
1
Precautions
WARNING
Operation and Maintenance
This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by
children without supervision. Do not connect air conditioner to multi-purpose socket.
Otherwise, it may cause fire hazard. Do disconnect power supply when cleaning air
conditioner. Otherwise, it may cause electric shock. If the supply cord is damaged, it must be replaced by
the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
Do not wash the air conditioner with water to avoid electric shock. Do not spray water on indoor unit. It may cause electric shock or malfunction.
After removing the filter, do not touch fins to avoid injury. Do not use fire or hair dryer to dry the filter to avoid
deformation or fire hazard.
2
.
Precautions
WARNING
Maintenance must be performed by qualified professionals. Otherwise, it may cause personal injury
or damage. Do not repair air conditioner by yourself. It may cause
electric shock or damage. Please contact dealer when you need to repair air conditioner.
Do not extend fingers or objects into air inlet or air outlet. It may cause personal injury or damage.
Do not block air outlet or air inlet. It may cause malfunction.
Do not spill water on the remote controller, otherwise the remote controller may be broken. When below phenomenon occurs, please turn off air conditioner and disconnect power immediately, and then contact the dealer or qualified professionals for service.
Power cord is overheating or damaged.
There’s abnormal sound during operation.
Circuit break trips off frequently.
Air conditioner gives off burning smell.
Indoor unit is leaking.
If the air conditioner operates under abnormal conditions, it may cause malfunction, electric shock or fire hazard.
When turning on or turning off the unit by emergency operation switch, please press this switch with an insulating object other than metal.
Do not step on top panel of outdoor unit, or put heavy objects. It may cause damage or personal injury.
3
Precautions
WARNING
Attachment
Installation must be performed by qualified professionals. Otherwise, it may cause personal injury or damage.
Must follow the electric safety regulations when installing the unit.
According to the local safety regulations, use qualified power supply circuit and circuit break.
Do install the circuit break. If not, it may cause malfunction. An all-pole disconnection switch having a contact separation
of at least 3mm in all poles should be connected in fixed wiring.
Including an circuit break with suitable capacity, please note magnet buckle
the circuit-short and
the following table.Air switch should be included
and heating buckle function, it can protect
overload.
Air Conditioner should be properly grounded. Incorrect grounding may cause electric shock.
Don't use unqualified power cord. Make sure the power supply matches with the
requirement of air conditioner.Unstable power supply or incorrect wiring or malfunction. Please install proper power supply cables before using the air conditioner.
Properly connect the live wire, neutral wire and grounding wire of power socket.
Be sure to cut off the power supply before proceeding any work related to electricity and safety.
4
Precautions
WARNING
Do not put through the power before finishing installation. If the supply cord is damaged, it must be replaced by
the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
The temperature of refrigerant circuit will be high, please keep the interconnection cable away from the copper tube.
The appliance shall be installed in accordance with national wiring regulations.
Installation must be performed in accordance with the requirement of NEC and CEC by authorized personnel only.
The air conditioner is the first class electric appliance. It must be properly grounding with specialized grounding device by a professional. Please make sure it is always grounded effectively, otherwise it may cause electric shock.
The yellow-green wire in air conditioner is grounding wire, which can't be used for other purposes.
The grounding resistance should comply with national electric safety regulations.
The appliance must be positioned so that the plug is accessible.
All wires of indoor unit and outdoor unit should be connected by a professional.
If the length of power connection wire is insufficient, please contact the supplier for a new one. Avoid extending the wire by yourself.
5
Precautions
WARNING
For the air conditioner with plug, the plug should be reachable after finishing installation.
For the air conditioner without plug, an circuit break must be installed in the line.
If you need to relocate the air conditioner to another place, only the qualified person can perform the work. Otherwise, it may cause personal injury or damage.
Select a location which is out of reach for children and far away from animals or plants.If it is unavoidable, please add the fence for safety purpose.
The indoor unit should be installed close to the wall. Instructions for installation and use of this product are
provided by the manufacturer.
Working temperature range
Indoor side DB/WB(
Maximum cooling 32/23 43/26
Maximum heating 27/- 24/18
NOTICE:
The operating temperature range (outdoor temperature) for Low-temperature cooling only unit is -15℃~ 43℃; for low-temperature heat pump unit is
-25
~ 48℃.
6
Outdoor side DB/WB(
Parts Name
Indoor Unit
Display
(Display content or position may be different from above graphics, please refer to actual products)
air inlet
panel
filter
aux.button
horizontal louver
air outlet
remote control
NOTICE:
Actual product may be different from above graphics, please refer to actual products.
7
Parts Name
Display
For some model:
cooling indicator
heating indicator
For some model:
heating indicator
cooling indicator
For some model:
power indicator
temp. indicator
For some model:
drying indicator
temp. indicator
receiver window
display
receiver window
display
W R G
drying indicator
temp. indicator
power indicator
receiver window
display
For some model:
heating indicator
cooling indicator
power indicator
temp. indicator
drying indicator
For some model:
Power indicatior
temp. indicator
receiver window
Power LED color indicator: Green-status-ON. Red -status-OFF.
Mode LED color indicator: White-W-Cool Mode-
Red-R-Heat Mode­Green-G-Dry Mode-
W
(only for heating model)
R
G
display
receiver window
display
temp. indicator
receiver window
W R O
Display content or position may be different from above graphics, please refer to actual products.
Power LED color indicator: Green-status-ON. Red -status-OFF.
Mode LED color indicator: White-W-Cool Mode­Red-R-Heat Mode-
Orange-O-Dry Mode-
W
(only for heating model)
R
O
8
Buttons on remote controller
2 5
4
11
8
9
10
13
14
(after opening cover
WiFi
(before opening cover
ON/OFF button
1 2
FAN button
3
MODE button +/- button
4
2
4 3
1
ON/OFF button
1 2
FAN button
3
MODE button
4
+/- button
5
TURBO button
6
7
3
12
1
16
15
6 7 8 9
10
11
12
13
14
15
16
button
button
CLOCK button TIMER ON/
TIMER OFF button TEMP button
/
button
I FEEL button
LIGHT button
WiFi button QUIET button SLEEP button
Introduction for icons on display screen
I feel
Quiet
Operation mode
Auto mode Cool mode
Dry mode
Fan mode
Heat mode
Clock
Sleep mode
Light
Temp. display type
: Set temp.
: Outdoor ambient temp.
: Indoor ambient temp.
9
Set fan speed Turbo mode
Send signal Healthy mode
Scavenging functions
8℃ heating function
Set temperature This is a general remote controller. Some models have this function while some do not. Please refer to the actual models.
X-FAN function Set time
TIMER ON /TIMER OFF Child lock
Up & down swing Left & right swing
Introduction for buttons on remote controller
Note:
This is a general use remote controller, it could be used for the air conditioners with multifunction; For some function, which the model don't have, if press the
corresponding button on the remote controller that the unit will keep the original running status.
After putting through the power, the air conditioner will give out a sound. Operation indictor " " is ON (red indicator). After that, you can operate the air conditioner by using remote controller.
Under on status, pressing the button on the remote controller, the signal icon " " on the display of remote controller will blink once and the air conditioner will give out a “de” sound, which means the signal has been sent to the air conditioner.
● Under off status, set temperature and clock icon will be displayed on the display of remote controller (If timer on, timer off and light functions are set, the corre­ sponding icons will be displayed on the display of remote controller at the same
time); Under on status, the display will show the corresponding set function icons.
ON/OFF button
1
Press this button, the unit will be turned on, press it once more, the unit will be turn­ed off. Sleep function will be canceled, while unit off.
FAN button
2
Press this button, Auto, Low, Medium-low, Medium, Medium-high, High speed can be circularly selected. After powered on, Auto fan speed is default. Under DRY mode, Low fan speed only can be set up.
ATUO
Note: If matching with smart zone controller for operation, under auto fan speed, the fan speed display on smart zone controller will always be maintained at “auto high fan”.
MODE button
3
Press this button, Auto, Cool, Dry, Fan, Heat mode can be selected circularly. Auto mode is default while power on. Under Auto mode, the temperature will not be displayed; Under Heat mode, the initial value is 28 initial value is 25(77℉).
(only for cooling and heating unit. As for cooling only unit, it won’t have any action when it receives the signal of heating operation.)
Medium-low fan
Medium-high fan
High fan
Medium fanLow fan
(82); Under other modes, the
Note: It’s Low fan speed
under Dry mode.
AUTO COOL DRY
FAN
HEAT
+/- button
4
Presetting temperature can be increased. Press this button, the temperature can be set up, continuously press this button and hold for two seconds, the relative contents can quickly change, until unhold this button and send the order that the () signal will be displayed all the time. The temperature adjustment is unavailable under the Auto mode, but the order can be sent if pressing this button. Temperature of Celsius degree setting: 16-30; for Fahrenheit degree setting: 61-86.
10
Introduction for buttons on remote controller
Presetting temperature can be decreased. Press this button, the temperature can be set up, continuously press this button and hold for two seconds, the relative contents can quickly change, until unhold this button and send the order that the () signal will be displayed all the time. The temperature adjustment is unavailable under the Auto mode, but the order can be sent by if pressing this button.
TURBO button
5
Under Cool or Heat mode, press this button can turn on or turn off the Turbo function. After the Turbo function turned on, the signal of Turbo will display. The signal will be automatically cancelled if changing the mode or fan speed.
6
Press this button to set left & right swing angle cycling as below:
7
Press this button to set swing angle, which circularly changes as below:
This remote controller is universal. If it receives threes kinds of following status, the swing angle will remain original.
button
OFF
button
OFF
If guide louver is stopped when it is swinging up and down, it will remian its present position.
indicates guide louver swings back and forth in the five places, as shown in the figure.
CLOCK button
8
Press this button, the clock can be set up, signal
blink and display. Within 5 seconds, the value can be adjusted by pressing + or - button, if continuously press this button for 2 seconds above, in every 0.5 seconds, the value on ten place ofMinutewill be increased 1. During blinking, repress the Clock button or Confirm button, signal displayed and it denotes the setting succeeded. After powered on, 12:00 is defaulted to display and signal
will be displayed. If there is signal
be displayed that denotes
will be constantly
the current time value is Clock value, otherwise is Timer value.
TIMER ON/TIMER OFF button
9
Timer On setting: Sign al “ON” will blink and display, signal
will conceal, the num­erical section will become the timer on setting status. During 5 seconds blink, by pressing + or - button to adjust the time value of numerical section, every press of that button, the value will be increased or decreased 1 minute. Hold pressing + or -
11
Introduction for buttons on remote controller
button, 2 seconds later, it quickly change, the way of change is: During the initial
2.5 seconds, ten numbers change in the one place of minute, then the one place is constant, ten numbers change in the tens place of minu te at 2.5 seconds speed and carry. During 5s blink, press the Timer button, the timer setting succeeds. The Timer On has been set up, repress the timer button, the Timer On will be canceled. Before sett ing the Timer, please adjust the Clock to the current actual time.
One press this key to enter into TIMER OFF setup, in which case the TIMER OFF
icon will blink. The method of setting is the sameas for TIMER ON.
TEMP button
10
Press this button, you can see indoor set temperature, indoor ambient temperature or outdoor ambient temperature on indoor unit’s display. The setting on remote
controller is selected circularly as below:
When selecting " " with remote controller or no display, temperature indicator on indoor unit displays set temperature; When selecting " " with remote controller, temperature indicator on indoor unit displays indoor ambient temperature; When selecting " " with remote controller, temperature indicator on indoor unit displays outdoor ambient temperature. 3s later it will return to the setting temprature or it depends on the other received signal within 3s. Attention: When displaying the outdoor ambient, the displaying range is 0-60 When it goes beyond the range, it keeps the threshold data (the smallest—0 and the largest 60). Warm tips: When operating buttons on the cover please make sure the cover is
closed completely.
no display
/
11
Press this button to achieve the on and off of healthy and scavenging functions in operation status. Press this button for the first time to start scavenging function; LCD displays " ". Press the button for the second time to start healthy and sc­avenging functions simultaneously; LCD displays " " and " ". Press this button for the third time to quit healthy and scavenging functions simultaneously. Press the button for the fourth time to start healthy function; LCD display " ". Press this bu­tton again to repeat the operation above.
NOTE: This function is applicable to partial of models.
12
Press this button once, to turn on the I FEEL function, then the figure of "I FEEL" will be displayed, after every press of other function button, every 200ms to send I FEEL once, after this function started, the remote controller will send temperature to the main un it in every 10 minutes. When repress this button, this function will be turned off.
button
I FEEL button
12
Introduction for buttons on remote controller
LIGHT button
13
Press this button at unit On or Off status, Light On and Light Off can be set up. After powered on, Light On is defaulted.
WiFi button
14
Press " WiFi " button to turn on or turn off WiFi function. When WiFi function is turned on, the " WiFi " icon will be displayed on remote controller; Under status of remote controller off, press "MODE" and " WiFi " buttons simultaneously for 1s, WiFi module will restore to factory default setting.
QUIET button
15
Press this button, the Quiet status is under the Auto Quiet mode (display " " and "Auto" signal) and Quiet mode (display " " singal) and Quiet OFF (there is no signal of " " displayed), after powered on, the Quiet OFF is defaulted. Under the Quiet mode (Display " " signal).
SLEEP button
16
Press this button, can select Sleep 1 ( ), Sleep 2 ( ), Sleep 3 ( ) and cancel the Sleep, circulate between these, after electrified, Sleep Cancel is de­faulted. Sleep 1 is Sleep mode 1, in Cool, Dehumidify modes: sleep status after run for one hour, the main unit setting temperature will increase 1, 2 hours, setting te
mperature increased 2, the unit will run at this setting temperature; In Heat mode: 1℃, 2 hours, setting temperature will decrease 2℃, then the unit will run at this setting temperature. Sleep 2 is sleep mode 2, that is air conditioner will run according to the presetting a group of sleep temperature curve.
In Cool mode: (1) When setting the initial temperature 16-23, after turned on Sleep function,
(2) When setting the initial temperature 24-27, after turned on Sleep function,
(3) When setting the initial temperature 28-29, after turned on Sleep function,
sleep status after run for one hour, the setting temperature will decrease
the temperature will be increased 1 in every hour, after 3 the temperature will be maintained, after 7hours, the temperature will be decreased 1, after that the unit will keep on running under this temperature;
the temperature will be increased 1 in every hour, after 2 the temperature will be maintained, after 7hours, the temperature will be decreased 1, after that the unit will keep on running under this temperature;
the temperature will be increased 1 in every hour, after 1 the temperature will be maintained, after 7hours, the temperature will be decreased 1, after that the unit will keep on running under this temperature;
13
Introduction for buttons on remote controller
(4) When setting the initial temperature 30, under this temperature setting, after
7hours, the temperature will be decreased 1, after that the unit will keep on
running under this temperature; In Heat mode: (1) Under the initial presetting temperature 16, it will run under this setting tem-
perature all along. (2) Under the initial presetting temperature17-20, after Sleep function started
up, the temperature will decrease 1 in every hour, after 1 decreased, this
temperature will be maintained. (3) Under the initial presetting temperature 21-27, after Sleep function started
up, the temperature will decrease 1 in every hour, after 2 decreased, this
temperature will be maintained. (4) Under the initial presetting temperature 28-30, after Sleep function started
up, the temperature will decrease 1 in every hour, after 3 decreased, this
temperature will be maintained. Sleep 3 - the sleep curve setting under Sleep mode by DIY:
(1) Under Sleep 3 mode, press "Turbo" button for a long time, remote controller en-
ters into user individuation sleep setting status, at this time, the time of remote
controller will display "1hour", the setting temperature "88" will display the corr-
esponding temperature of last setting sleep curve and blink (The first entering
will display according to the initial curve setting value of original factory); (2) Adjust "+" and "-" button, could change the corresponding setting temperature,
after adjusted, press "Trubo" button for confirmation;
(3) At this time, 1hour will be automatically increased at the timer postion on the
remote controller, (that are "2hours" or "3hours" or "8hours"), the place of
setting temperature "88" will display the corresponding temperature of last
setting sleep curve and blink; (4) Repeat the above step (2)~(3) operation, until 8hours temperature setting finished,
sleep curve setting finished, at this time, the remote controller will resume the
original timer display; temperature display will resume to original setting tem-
perature. Sleep3 - the sleep curve setting under Sleep mode by DIY could be inquired: The user could accord to sleep curve setting method to inquire the presetting sleep curve, enter into user individuation sleep setting status, but do not change the tem­perature, press "Turbo" button directly for confirmation.
Note: In the above presetting or enquiry procedure, if continuously within10s, there
is no button pressed, the sleep curve setting status will be automatically quit and resume to display the original displaying. In the presetting or enquiry pr­ocedure, press "ON/OFF" button, "Mode" button, "Timer" button or "Sleep" button, the sleep curve setting or enquiry status will quit similarly.
14
Introduction for special function
About AUTO RUN
When AUTO RUN mode is selected, the setting temperature will not be displayed on the LCD, the unit will be in accordance with the room temp. automatically to select the suitable running method and to make ambient comfortable.
About turbo function
If start this function, the unit will run at super-high fan speed to cool or heat quickly so that the ambient temp. approachs the preset temp. as soon as possible.
About lock
Press + and - buttons simultaneously to lock or unlock the keyboard. If the remote co­ntroller is locked, the icon will be displayed on it, in which case, press any button, the mark will flicker for three times. If the keyboard is unlocked, the mark will disappear.
About swing up and down
1. Press swing up and down button continuously more than 2s, the m ain unit will swing backand forth from up to down , and then loosen the button, the unit will stop swing and present position of guide louver will be kept immediately.
2. Under swing up and down mode, when the status is switched from off to this button again 2s later,
status will switch to off status directly; If press this button again within 2s, the change of swing status will also depend on the circulation seque­nce stated above.
, if press
About swing left and right
1. Press swing left and right button continuously more than 2s, the main unit will swing back and forth from left to right, and then loosen the button, the unit will stop swing and present position of guide louver will be kept immediately.
2. Under swing left and right mode, when the status is switched from off to this button again 2s later,
status will switch to off status directly; if press this button
, if press
again within 2s, the change of swing status will also depend on the circulation sequ­ence stated above.
15
Introduction for special function
About switch between Fahrenheit and Centigrade
Under status of unit off, press MODE and - buttons simultaneously to switch and .
Combination of "TEMP" and "CLOCK" buttons: About Energy - saving Function
Press “TEMP” and “CLOCK” simultaneously in COOL mode to start energy-saving fun­ction. Nixie tube on the remote controller displays “SE”. Repeat the operation to quit the function.
Combination of "TEMP" and "CLOCK" buttons: About 8℃ Heating Function
Press “TEMP” and “CLOCK” simultaneously in HEAT mode to start 8℃ Heating Function
Nixie tube on the remote controller displays “ ” and a selected temperature of “8”. (46 if Fahrenheit is adopted). Repeat the operation to quit the function.
Note: If matching with smart zone controller for operation, the display on smart zone controller will be maintained the original status.
About auto Quiet function
When quiet function is selected:
1. Under cooling mode: indoor fan operates at notch 4 speed. 10 minutes later or when
indoor ambient temperature≤28, indoor fan will operate at notch 2 speed or quiet
mode according to the comparison between indoor ambinet temperature and set temperature.
2. Under heating mode: indoor fan operates at notch 3 speed or quiet mode according to the comparison between indoor ambient temperature and set temperature.
3. Under dry, fan mode: indoor fan operates at quiet mode.
4. Under auto mode: the indoor fan operates at the auto quiet mode according to actual
cooling, heating or fan mode.
About Sleep function
Under the Fan and Auto mode, the Sleep function cannot be set up, under Dehumidify mode, only Sleep 1 can be selected. Select and enter into any kind of Sleep mode, the Quiet function will be attached and stared, different Quiet status could be optional and turned off.
16
Operation guide
General operation
1. After powered on, press ON/OFF button, the unit will start to run. (Note: When it is powered on, the guide louver of
main unit will close automatically.)
3
2
4
2. Press MODE button, select desired running mode.
3. Pressing + or - button, to set the desired temperature (It is unnecessary to set the temp. at AUTO mode.)
1
WiFi
4. Pressing FAN button, set fan speed, can select AUTO FAN, LOW, MEDIUM-LOW, MEDIUM, MEDIUM-HIGH and HIGH.
5. Pressing and button, to select the swing.
Optional operation
1. Press SLEEP button, to set sleep.
2. Press TIMER ON and TIMER OFF button, can set the scheduled timer on or timer off.
3. Press LIGHT button, to control the on and off of the displaying part of the unit (This function may be not available for some units).
4. Press TURBO button, can realize the ON and OFF of TURBO function.
4
3
WiFi
Replacement of batteries in remote controller
1. Press the back side of remote controller marked
the cover of battery box along the arrow direction.
2. Replace two 7# (AAA 1.5V) dry batteries, and make sure the position of "+" polar and "-" polar
are correct.
3. Reinstall the cover of battery box.
reinstall
Cover of battery box
battery
remove
5
2
1
NOTICE
● During operation, point the remote control signal sender at the receiving window on indoor unit.
● The distance between signal sender and receiving window should be no more than 8m, and there should be no obstacles between them.
● Signal may be interfered easily in the room where there is fluorescent lamp or wireless telephone; remote controller should be close to indoor unit during operation.
● Replace new batteries of the same model when replacement is required.
● When you don’t use remote controller for a long time, please take out the
batteries.
● If the display on remote controller is fuzzy or there’s no display, please
replace batteries.
17
Emergency operation
If remote controller is lost or damaged, please use auxiliary button to turn on or turn off the air conditioner. The operation in details are as below:
air conditioner. When the air conditioner is turned on, it will operate under auto mode.
panel
aux. button
WARNING:
Use insulated object to press the auto button
Clean and maintenance
WARNING
■ Turn off the air conditioner and disconnect the power before cleaning the air conditioner to avoid electric shock.
■ Do not wash the air conditioner with water to avoid electric shock.
■ Do not use volatile liquid to clean the air conditioner.
Clean surface of indoor unit
When the surface of indoor unit is dirty, it is recommended to use a soft dry cloth or wet cloth to wipe it.
NOTICE:
● Do not remove the panel when cleaning it.
18
Clean and Maintenance
Open panel
1
Pull out the panel to a certain ● Use dust catcher or water to
2
3
the water (below 45℃) to clean it, and then put it in a shady and cool place to dry.
4
panel cover tightly.
WARNING
operation environment, clean frequency can be increased.
19
Clean and Maintenance
NOTICE: Checking before use-season
1. Check whether air inlets and air outlets are blocked.
2. Check whether air switch, plug and socket are in good condition.
4. Check whether mounting bracket for outdoor unit is damaged or corroded. If yes, please contact dealer.
5. Check whether drainage pipe is damaged.
NOTICE: Checking after use-season
1. Disconnect power supply.
3. Check whether mounting bracket for outdoor unit is damaged or corroded. If yes, please contact dealer.
Notice for recovery
1. Many packing materials are recyclable materials. Please dispose them in appropriate recycling unit.
2. If you want to dispose the air conditioner, please contact local dealer or consultant service center for the correct disposal method.
20
Malfunction analysis
General phenomenon analysis
Please check below items before asking for maintenance. If the malfunction still
Phenomenon Check items Solution
Indoor unit can’t receive remote controller’s signal or remote controller has no action.
No air emitted from indoor unit
● Whether it's interfered severely (such as static electricity, stable voltage)?
● Whether remote controller is within the signal receiving range?
● Whether there are obstacles?
● Whether remote controller is pointing at the receiving window?
● Is sensitivity of remote contro-
ller low; fuzzy display and no
display?
● No display when operating remote controller?
● Fluorescent lamp in room?
● Air inlet or air outlet of indoor unit is blocked?
● Under heating mode, indoor temperature is reached to set temperature?
● Heating mode is turned on just now?
● Pull out the plug. Reinsert the plug after about 3min, and then turn on the unit again.
● Signal receiving range is 8m.
● Remove obstacles.
Select proper angle and point the remote controller at the re-
ceiving window on indoor unit.
● Check the batteries. If the
power of batteries is too low, please replace them.
● Check whether remote cont-
roller appears to be damaged.
If yes, replace it.
● Take the remote controller close to indoor unit.
and then try it again.
● Eliminate obstacles.
● After reaching to set temper-
ature, indoor unit will stop bl­ owing out air.
● In order to prevent blowing out cold air, indoor unit will be started after delaying for sev-
eral minutes, which is a nor­ mal phenomenon.
21
Malfunction analysis
Phenomenon Check items Solution
Air condit­ioner can’t operate
Mist is em­itted from indoor unit’s air outlet
Set temper­ature can’t be adjusted
Power failure?
Is plug loose?
Air switch trips off or fuse is
burnt out?
Wiring has malfunction?
Unit has restarted immediately
after stopping operation?
Whether the function setting
for remote controller is correct?
Indoor temperature and hum­ idity is high?
Your required temperature
exceeds the set temperature range?
Wait until power recovery.
Reinsert the plug.
Ask professional to replace
air switch or fuse.
Ask professional to replace it.
Wait for 3min, and then turn
on the unit again.
Reset the function.
Because indoor air is cooled
rapidly. After a while, indoor temperature and humidity will be decrease and mist will disappear.
Set temperature range:
16℃~30℃.
Cooling (heating) effect is not good.
Voltage is too low?
Filter is dirty?
Set temperature is in proper
range?
Door and window are open? Close door and window.
Wait until the voltage
resumes normal.
Adjust temperature to proper
range.
22
Malfunction analysis
Phenomenon Check items Solution
Odours are emitted
Air conditio­ner operates abnormally
“Water
noise
Cracking noise
● Whether there’s odour source, such as furniture and cigarette, etc.
● Whether there’s interference, such as thunder, wireless devices, etc.
● Air conditioner is turned on or turned off just now?
● Air conditioner is turned on or turned off just now?
● Eliminate the odour source.
● Disconnect power, put back power, and then turn on the unit again.
● The noise is the sound of
the unit, which is a normal phenomenon.
● This is the sound of friction caused by expansion and/or contraction of panel or other parts due to the change of temperature.
23
Malfunction analysis
Error Code
● When air conditioner status is abnormal, temperature indicator on indoor unit will
ation of error code.
Error code
E5
E8
U8
H6
C5
F0
F1 F2
H3
E1
E6
Note: If there're other error codes, please contact qualified professionals for
service.
It can be eliminated after restarting the unit. If not, please
It can be eliminated after restarting the unit. If not, please
It can be eliminated after restarting the unit. If not, please
It
can be eliminated after restarting the unit. If not, please
It can be eliminated after restarting the unit. If not, please
It can be eliminated after restarting the unit. If not, please
It can be eliminated after restarting the unit. If not, please
Troubleshooting
WARNING
■ When below phenomenon occurs, please turn off air conditioner and discon-
for service.
● Power cord is overheating or damaged.
● There’s abnormal sound during operation.
● Air switch trips off frequently.
● Air conditioner gives off burning smell.
● Indoor unit is leaking.
■ If the air conditioner operates under abnormal conditions, it may cause
24
Safety operation of flammable refrigerant
Qualification requirement for installation and maintenance man
All the work men who are engaging in the refrigeration system should bear the valid certification awarded by the authoritative organization and the qualification for dealing with the refrigeration system recognized by this industry. If it needs other technician to maintain and repair the appliance, they should be supervised by the person who bears the qualification for using the flammable refrigerant.
It can only be repaired by the method suggested by the equipment’s manufacturer.
Installation notes
The air conditioner is not allowed to use in a room that has running fire (such as fire source, working coal gas ware, operating heater). It is not allowed to drill hole or burn the connection pipe. The air conditioner must be installed in a room that is larger than the minimum room area. The minimum room area is shown on the nameplate or following table a. Leak test is a must after installation.
2
Minimum
room
area( m )
Charge amount (kg)
floor location
window mounted
2
wall mounted
table a - Minimum room area ( m )
≤1.2 1.3 1.4 1.5 1.6 1.7 1.8 1.9 2 2.1 2.2 2.3 2.4 2.5
14.5 16.8 19.3 22 24.8 27.8 31 34.3 37.8 41.5 45.4 49.4 53.6
/
/
5.2 6.1 7 7.9 8.9 10 11.2 12.4 13.6 15 16.3 17.8 19.3
/
1.6 1.9 2.1 2.4 2.8 3.1 3.4 3.8 4.2 4.6 5 5.5 6
ceiling mounted
/
1.1 1.3 1.4 1.6 1.8 2.1 2.3 2.6 2.8 3.1 3.4 3.7 4
Maintenance notes
Check whether the maintenance area or the room area meet the requirement of the
nameplate.
- It’s only allowed to be operated in the rooms that meet the requirement of the nameplate.
Check whether the maintenance area is well-ventilated.
- The continuous ventilation status should be kept during the operation process.
Check whether there is fire source or potential fire source in the maintenance area.
- The naked flame is prohibited in the maintenance area; and the “no smoking”
warning board should be hanged.
Check whether the appliance mark is in good condition.
- Replace the vague or damaged warning mark.
Welding
If you should cut or weld the refrigerant system pipes in the process of maintaining,
please follow the steps as below:
25
Safety operation of flammable refrigerant
a. Shut down the unit and cut power supply b. Eliminate the refrigerant c. Vacuuming d. Clean it with N2 gas e. Cutting or welding f. Carry back to the service spot for welding
The refrigerant should be recycled into the specialized storage tank.
Make sure that there isn’t any naked flame near the outlet of the vacuum pump and it’s well-ventilated.
Filling the refrigerant
Use the refrigerant filling appliances specialized for R32. Make sure that different
kinds of refrigerant won’t contaminate with each other. The refrigerant tank should be kept upright at the time of filling refrigerant. Stick the label on the system after filling is finished (or haven’t finished). Don’t overfilling.
After filling is finished, please do the leakage detection before test running; another
time of leak detection should be done when it’s removed.
Safety instructions for transportation and storage
Please use the flammable gas detector to check before unload and open the container.
No fire source and smoking. According to the local rules and laws.
26
Installation dimension diagram
At least 15cm
Space to the ceiling
At least 15cm
Space to the wall
At least 300cm
Space to the wall
At least 15cm
Space to the obstruction
At least 250cm
27
Safety precautions for installing and relocating the unit
To ensure safety, please be mindful of the following precautions.
Warning
When installing or relocating the unit, be sure to keep the refrigerant circuit free from air or substances other than the specified refrigerant.
Any presence of air or other foreign substance in the refrigerant circuit will cause system pressure rise or compressor rupture, resulting in injury.
When installing or moving this unit, do not charge the refrigerant which is not comply with that on the nameplate or unqualified refrigerant.
Otherwise, it may cause abnormal operation, wrong action, mechanical malfunction or even series safety accident.
When refrigerant needs to be recovered during relocating or repairing the unit, be sure that the unit is running in cooling mode.Then, fully close the valve at high pressure side (liquid valve).About 30-40 seconds later, fully close the valve at low pressure side (gas valve), immediately stop the unit and disconnect power. Please note that the time for refrigerant recovery should not exceed 1 minute.
If refrigerant recovery takes too much time, air may be sucked in and cause pressure rise or compressor rupture, resulting in injury.
During refrigerant recovery, make sure that liquid valve and gas valve are fully closed and power is disconnected before detaching the connection pipe.
If compressor starts running when stop valve is open and connection pipe is not yet connected, air will be sucked in and cause pressure rise or compressor rupture, resulting in injury.
When installing the unit, make sure that connection pipe is securely connected before the compressor starts running.
If compressor starts running when stop valve is open and connection pipe is not yet connected, air will be sucked in and cause pressure rise or compressor rupture, resulting in injury.
Prohibit installing the unit at the place where there may be leaked corrosive gas or flammable gas.
If there leaked gas around the unit, it may cause explosion and other accidents.
Do not use extension cords for electrical connections. If the electric wire is not long enough, please contact a local service center authorized and ask for a proper electric wire.
Poor connections may lead to electric shock or fire.
Use the specified types of wires for electrical connections between the indoor and outdoor units. Firmly clamp the wires so that their terminals receive no external stresses.
Electric wires with insufficient capacity, wrong wire connections and insecure wire terminals may cause electric shock or fire.
28
Tools for installation
1 Level meter 2 Screw driver 3 Impact drill
4 Drill head 5 Pipe expander 6 Torque wrench
7 Open-end wrench 8 Pipe cutter 9 Leakage detector
10 Vacuum pump 11 Pressure meter 12 Universal meter
13 Inner hexagon spanner 14 Measuring tape
Note:
Please contact the local agent for installation.
Selection of installation location
Basic requirement
Installing the unit in the following places maycause malfunction. If it is unavoidable, please consult the local dealer:
1. The place with strong heat sources, volatile objects spread in the air.
2. The place with high-frequency devices (such as welding machine, medical equipment).
3. The place near coast area.
4.
The place with oil or fumes in the air.
5. The place with sulfureted gas.
6. Other places with special circumstances.
7. The appliance shall nost be installed in the laundry.
8. It’s not allowed to be installed on the unstable or motive base structure (such as truck) or in the corrosive environment (such as chemical factory).
Indoor unit
1. There should be no obstruction near air inlet .
2. Select a location where the condensation water can be dispersed easily and won't affect other people.
3. Select a location which is convenient to connect the outdoor unit and near the power socket.
4. Select a location which is out of reach for children.
5. The location should be able to withstand the weight of indoor unit and won't
increase noise and vibration.
6. The appliance must be installed 2.5m above floor.
7. Don't install the indoor unit right above the electric appliance.
8. Please try your best to keep way from fluorescent lamp.
vapors, flammable or explosive gas
, or
29
Requirements for electric connection
Safety precaution
1. Must follow the electric safety regulations when installing the unit.
air switch.
3. Make sure the power supply matches with the requirement of air conditioner. Unstable power supply or incorrect wiring or malfunction. Please install proper power supply cables before using the air conditioner.
4. Properly connect the live wire, neutral wire and grounding wire of power socket.
5. Be sure to cut off the power supply before proceeding any work related to electricity and safety. For models with a power plug, make sure the plug is within reach after installation.
7. If the supply cord is damaged, it must be replaced by the manufacturer, its
8. The temperature of refrigerant circuit will be high, please keep the interconnec-
tion cable away from the copper tube.
9.
The appliance shall be installed in accordance with national wiring regulations.
10. Appliance shall be installed, operated and stored in a room with a floor area
larger than “X”m (see table 1).
Please notice that the unit is filled with flammable gas R32. Inappropriate treatment of the unit involves the risk of severe damages of people and material. Details to this refrigerant are found in chapter “refrigerant”.
2
Grounding requirement
grounding with specialized grounding device by a professional. Please make sure it is always grounded effectively, otherwise it may cause electric shock.
2. The yellow-green wire in air conditioner is grounding wire, which can't be used
for other purposes.
3. The grounding resistance should comply with national electric safety regulations.
4. The appliance must be positioned so that the plug is accessible.
5. An all-pole disconnection switch having a contact separation of at least 3mm in
30
Installation of indoor unit
Step one: choosing installation location
rm it with the client.
Step two: install wall-mounting frame
1. Hang the wall-mounting frame on the wall; adjust it in horizontal position with the
plastic expansion particles in the holes.
3. Fix the wall-mounting frame on the wall with tapping screws (ST4.2X25TA) and
.
Step three: open piping hole
1. Choose the position of piping hole according to the direction of outlet pipe. The position of piping hole should be a little lower than the wall-mounted frame, shown as below.
QB:
Wall
Space
to the
wall
above
150mm
Left
Φ55mm Rear piping hole
QD:
Wall
Space
to the
wall
above
150mm
Left
Φ50mm
Rear piping hole
Mark in the middle of it
Mark in the middle of it
Level meter
Level meter
Wall
Space
to the
wall
above
150mm
Right
Φ55mm
Rear piping hole
Wall
Space
to the
wall
above
150mm
Right
Φ50mm
Rear piping hole
QC:
Wall
Space
to the
wall
above
150mm
Left
Φ55mm Rear piping hole
QE:
Wall
Space
to the
wall
above
150mm
Left
Φ70mm Rear piping hole
Mark in the middle of it
Mark in the middle of it
Level meter
Level meter
Space
to the
wall
above
150mm
Right
Φ55mm
Rear piping hole
Wall
Space
to the
wall
above
150mm
Right
Φ70mm
Rear piping hole
Wall
2. Open a piping hole with the diameter of Φ55 or Φ70 on the selected outlet pipe
position.In order to drain smoothly, slant the piping hole on the wall slightly downward to the outdoor side with the gradient of 5-10°.
31
Installation of indoor unit
Note:
● Pay attention to dust prevention and take relevant safety measures when opening the hole.
● The plastic expansion particles are not provided and should be bought locally.
Step four: outlet pipe
1. The pipe can be led out in the direction of right, rear right, left or rear left.
left
rear right
right
rear left
Indoor
outdoor
Φ55/
5-10
2. When select leading out the pipe from left or right, please cut off the corresponding hole on the bottom case.
left right
cut off the hole
Φ70
1. Aim the pipe joint at the corresponding bellmouth.
union nutpipe joint
2. Pretightening the union nut with hand.
3. Adjust the torque force by referring to the following sheet. Place the open-end wrench on the pipe joint and place the torque wrench on the union nut. Tighten the union nut with torque wrench.
pipe
32
Installation of indoor unit
torque wrench
indoor pipe
open-end wrench
union nut
pipe
Hex nut diameter Tightening torque (N.m)
Φ 9.52
4. Wrap the indoor pipe and joint of con­nection pipe with insulating pipe, and then wrap it with tape.
Step six: install drain hose
1. Connect the drain hose to the outlet pipe of indoor unit.
outlet pipe
2. Bind the joint with tape.
tape
Note:
Add insulating pipe in the indoor
drain hose in order to prevent condensation.
The plastic expansion particles are not provided.
drain hose
Φ 6
Φ 12 Φ 16 Φ 19
15~20 30~40 45~55 60~65 70~75
insulating pipe
outlet
pipe
drain hose
insulating pipe
drain hose
Step seven: connect wire of indoor unit
1. Open the panel, remove the screw on the wiring cover and then take down the cover.
33
panel
screw
wiring cover
Installation of indoor unit
2. Make the power connection wire go through the cable-cross hole at the back
cable-cross hole
of indoor unit and then pull it out from the front side.
power connection wire
3. Remove the wire clip; connect the power connection wire to the wiring terminal
according to the color; tighten the screw and then fix the power connection wire with wire clip.
N(1) 222 3
blue brown
black
Outdoor unit connection
Note: the wiring board is for reference only, please refer to the actual one.
yellow­green
4. Put wiring cover back and then tighten the screw.
5. Close the panel.
Note:
● All wires of indoor unit and outdoor unit should be connected by a professional.
for a new one. Avoid extending the wire by yourself.
installation.
● For the air conditioner without plug, an air switch must be installed in the line.
The air switch should be all-pole parting and the contact parting distance should be more than 3mm.
34
Installation of indoor unit
drain hose
upper hook
Step eight: bind up pipe
1. Bind up the connection pipe, power
cord and drain hose with the band.
indoor and
indoor unit
outdoor power cord gas pipe
band
liquid pipe
drain hose
2. Reserve a certain length of drain hose and power cord for installation when binding them. When binding to a certain degree, separate the indoor power and then separate the drain hose.
Step nine: hang the indoor unit
1. Put the bound pipes in the wall pipe and then make them pass through the wall
hole.
2. Hang the indoor unit on the wall-mounting frame.
3. Stuff the gap between pipes and wall hole with sealing gum.
4. Fix the wall pipe.
5. Check if the indoor unit is installed firmly and closed to the wall.
connection pipe
indoor power cord
band
3. Bind them evenly.
4. The liquid pipe and gas pipe should be bound separately at the end.
Note:
● The power cord and control wire can't be crossed or winding.
● The drain hose should be bound at the bottom.
indoor
wall pipe
outdoor
sealing gum
lower hook of wall-mounting frame
Note:
● Do not bend the drain hose too excessively in order to prevent blocking.
35
Parts Name
Outdoor Unit
air inlet
Connection wire
air outlet
NOTICE:
Actual product may be different from above graphics, please refer to actual products.
36
Safety operation of flammable refrigerant
Qualification requirement for installation and maintenance man
All the work men who are engaging in the refrigeration system should bear the valid certification awarded by the authoritative organization and the qualification for dealing with the refrigeration system recognized by this industry. If it needs other technician to maintain and repair the appliance, they should be supervised by the person who bears the qualification for using the flammable refrigerant.
It can only be repaired by the method suggested by the equipment’s manufacturer.
Installation notes
The air conditioner is not allowed to use in a room that has running fire (such as fire source, working coal gas ware, operating heater). It is not allowed to drill hole or burn the connection pipe. The air conditioner must be installed in a room that is larger than the minimum room area. The minimum room area is shown on the nameplate or following table a. Leak test is a must after installation.
2
Minimum
room
area( m )
Charge amount (kg)
floor location
window mounted
2
wall mounted
table 1- Minimum room area ( m )
≤1.2 1.3 1.4 1.5 1.6 1.7 1.8 1.9 2 2.1 2.2 2.3 2.4 2.5
14.5 16.8 19.3 22 24.8 27.8 31 34.3 37.8 41.5 45.4 49.4 53.6
/
/
5.2 6.1 7 7.9 8.9 10 11.2 12.4 13.6 15 16.3 17.8 19.3
/
1.6 1.9 2.1 2.4 2.8 3.1 3.4 3.8 4.2 4.6 5 5.5 6
ceiling mounted
/
1.1 1.3 1.4 1.6 1.8 2.1 2.3 2.6 2.8 3.1 3.4 3.7 4
Maintenance notes
Check whether the maintenance area or the room area meet the requirement of the
nameplate.
- It’s only allowed to be operated in the rooms that meet the requirement of the nameplate.
Check whether the maintenance area is well-ventilated.
- The continuous ventilation status should be kept during the operation process.
Check whether there is fire source or potential fire source in the maintenance area.
- The naked flame is prohibited in the maintenance area; and the “no smoking”
warning board should be hanged.
Check whether the appliance mark is in good condition.
- Replace the vague or damaged warning mark.
Welding
If you should cut or weld the refrigerant system pipes in the process of maintaining,
please follow the steps as below:
37
Safety operation of flammable refrigerant
a. Shut down the unit and cut power supply b. Eliminate the refrigerant c. Vacuuming d. Clean it with N2 gas e. Cutting or welding f. Carry back to the service spot for welding
The refrigerant should be recycled into the specialized storage tank.
Make sure that there isn’t any naked flame near the outlet of the vacuum pump and it’s well-ventilated.
Filling the refrigerant
Use the refrigerant filling appliances specialized for R32. Make sure that different
kinds of refrigerant won’t contaminate with each other. The refrigerant tank should be kept upright at the time of filling refrigerant. Stick the label on the system after filling is finished (or haven’t finished). Don’t overfilling.
After filling is finished, please do the leakage detection before test running; another
time of leak detection should be done when it’s removed.
Safety instructions for transportation and storage
Please use the flammable gas detector to check before unload and open the container.
No fire source and smoking. According to the local rules and laws.
38
Installation dimension diagram
Space to the
obstruction
At least
30cm
At least 30cm
Space to the wall
Space to the obstruction
At least 50cm
At least 50cm
At least 200cm
Space to the obstruction
Space to the obstruction
Drainage pipe
39
Safety precautions for installing and relocating the unit
To ensure safety, please be mindful of the following precautions.
Warning
When installing or relocating the unit, be sure to keep the refrigerant circuit free from air or substances other than the specified refrigerant.
Any presence of air or other foreign substance in the refrigerant circuit will cause system pressure rise or compressor rupture, resulting in injury.
When installing or moving this unit, do not charge the refrigerant which is not comply with that on the nameplate or unqualified refrigerant.
Otherwise, it may cause abnormal operation, wrong action, mechanical malfunction or even series safety accident.
When refrigerant needs to be recovered during relocating or repairing the unit, be sure that the unit is running in cooling mode.Then, fully close the valve at high pressure side (liquid valve).About 30-40 seconds later, fully close the valve at low pressure side (gas valve), immediately stop the unit and disconnect power. Please note that the time for refrigerant recovery should not exceed 1 minute.
If refrigerant recovery takes too much time, air may be sucked in and cause pressure rise or compressor rupture, resulting in injury.
During refrigerant recovery, make sure that liquid valve and gas valve are fully closed and power is disconnected before detaching the connection pipe.
If compressor starts running when stop valve is open and connection pipe is not yet connected, air will be sucked in and cause pressure rise or compressor rupture, resulting in injury.
When installing the unit, make sure that connection pipe is securely connected before the compressor starts running.
If compressor starts running when stop valve is open and connection pipe is not yet connected, air will be sucked in and cause pressure rise or compressor rupture, resulting in injury.
Prohibit installing the unit at the place where there may be leaked corrosive gas or flammable gas.
If there leaked gas around the unit, it may cause explosion and other accidents.
Do not use extension cords for electrical connections. If the electric wire is not long enough, please contact a local service center authorized and ask for a proper electric wire.
Poor connections may lead to electric shock or fire.
Use the specified types of wires for electrical connections between the indoor and outdoor units. Firmly clamp the wires so that their terminals receive no external stresses.
Electric wires with insufficient capacity, wrong wire connections and insecure wire terminals may cause electric shock or fire.
40
Tools for installation
1 Level meter 2 Screw driver 3 Impact drill 4 Drill head 5 Pipe expander 6 Torque wrench
7 Open-end wrench 8 Pipe cutter 9 Leakage detector 10 Vacuum pump 11 Pressure meter 12 Universal meter
13 Inner hexagon spanner 14 Measuring tape
Note:
● Please contact the local agent for installation.
Selection of installation location
Basic requirement
Installing the unit in the following places maycause malfunction. If it is un­avoidable, please consult the localdealer:
1.The place with strong heat sources, vapors, flammableor explosive gas, or volatile objects spread in the air.
2.The place with high-frequency devices (such as welding machine, medical equipment).
3. The place near coast area.
The place with oil or fumes in the air.
4.
5. The place with sulfureted gas.
6. Other places with special circumstances.
7. The appliance shall not be installed in the laundry.
Outdoor unit
will not affect neighborhood.
2. The location should be well ventilated and dry, in which the outdoor unit won't be exposed directly to sunlight or strong wind.
3. The location should be able to withstand the weight of outdoor unit.
4. Make sure that the installation follows the requirement of installation dimension diagram.
5. Select a location which is out of reach for children and far away from animals or plants.If it is unavoidable, please add the fence for safety purpose.
41
Requirements for electric connection
Safety precaution
Must follow the electric safety regulations when installing the unit.
1. air switch.
3.
Make sure the power supply matches with the requirement of air conditioner. Unstable power supply or incorrect wiring or malfunction. Please install proper power supply cables before using the air conditioner.
4.
Properly connect the live wire, neutral wire and grounding wire of power socket.
5.
Be sure to cut off the power supply before proceeding any work related to electricity and safety. For models with a power plug, make sure the plug is within reach after installation.
7.
If the supply cord is damaged, it must be replaced by the manufacturer, its
8.
The temperature of refrigerant circuit will be high, please keep the interconnec-
tion cable away from the copper tube.
9.
The appliance shall be installed in accordance with national wiring regulations.
10.
Appliance shall be installed, operated and stored in a room with a floor area
larger than “X”m (see table 1).
Please notice that the unit is filled with flammable gas R32. Inappropriate treatment of the unit involves the risk of severe damages of people and material. Details to this refrigerant are found in chapter “refrigerant”.
Grounding requirement
2
grounding with specialized grounding device by a professional. Please make sure it is always grounded effectively, otherwise it may cause electric shock.
The yellow-green wire in air conditioner is grounding wire, which can't be used
2.
for other purposes.
The grounding resistance should comply with national electric safety regulations.
3.
The appliance must be positioned so that the plug is accessible.
4. An all-pole disconnection switch having a contact separation of at least 3mm in
5.
Including an air switch with suitable capacity, please note the following table. Air
6. switch should be included magnet buckle and heating buckle function, it can
protect the circuit-short and overload. (Caution: please do not use the fuse only for protect the circuit)
Air-conditioner Air switch capacity
09-12K
18K
24K
10A
16A
25A
42
Installation of outdoor unit
foot holes
(select it according to the actual installation situation)
1. Select installation location according to the house structure.
2. Fix the support of outdoor unit on the selected location with expansion screws.
Note:
installing the outdoor unit.
Make sure the support can withstand at least
four times of the unit weight.
The outdoor unit should be installed at least
joint.
● For the unit with cooling capacity of 2300W ~5000W, 6 expansion screws are needed; for the unit with cooling capacity of 6000W ~8000W, 8 expansion screws are needed; for the unit with cooling capacity of 10000W ~16000W, 10 expansion screws are needed.
Step two: install drain joint
gnitaehdnagniloocrof ylnO(
unit)
1. Connect the outdoor drain joint into the hole on the chassis, as shown in the picture below.
2. Connect the drain hose into the drain vent.
at least 3cm above the floor
1. Place the outdoor unit on the support.
2. Fix the foot holes of outdoor unit with bolts.
drain vent
Drain hose
chassis
outdoor drain joint
foot holes
43
Installation of outdoor unit
pipe joint
Step four: connect indoor and outdoor pipes
1. Remove the screw on the right han­ dle of outdoor unit and then remove
the handle.
screw
handle
2. Remove the screw cap of valve and aim the pipe joint at the bellmouth of pipe.
liquid pipe
liquid valve
gas pipe
gas valve
3. Pretightening the union nut with hand.
union nut
4. Tighten the union nut with torque wrench by referring to the sheet below.
Hex nut diameter
Φ 6
Φ 9.52
Φ 12 Φ 16 Φ 19
Tightening torque
(N.m)
15~20
30~40
45~55 60~65 70~75
1. Remove the wire clip; connect the power connection wire and signal control wire (only for cooling and heating unit) to the wiring terminal according to the
091812K Heat pump type:
N(1)
2 3
N
L
brown
yellow­green
blue blueblack
Indoor unit connection POWER
N
brown
(black)
L
yellow­green
Note: the wiring board is for reference only, please refer to the actual one
24K Heat pump type:
N(1) 2 3 LLN
blue blueblack brownyellow-
green
Indoor unit connection POWER
brown
(black)
44
yellow­green
N
Installation of outdoor unit
2. Fix the power connection wire and signal control wire with wire clip (only for
cooling and heating unit).
Note:
● Never cut the power connection wire to prolong or shorten the distance.
Step six: neaten the pipes
1. The pipes should be placed along the wall,
bent reasonably and hidden possibly. Min. semidiameter of bending the pipe is 10cm.
2. If the outdoor unit is higher than the wall
hole, you must set a U-shaped curve in the pipe before pipe goes into the room, in order to prevent rain from getting into the room.
Note:
The through-wal height of drain hose shouldn't be higher than the outlet pipe hole of indoor unit.
the drain hose can't raise
upwards.
● Slant the drain hose slightly dow-
nwards. The drain hose can't be
U-shaped curve
drain hose
wall
The water outlet can't be placed in water in order to drain smoothly.
The water outlet can't be placed in water
45
The drain hose can't be fluctuant
The drain hose can't be fluctuant
The water outlet can't be fluctuant
Vacuum pumping
Use vacuum pump
1. Remove the valve caps on the liquid valve and gas valve and the nut of refri-
gerant charging vent.
2. Connect the charging ho-
se of piezometer to the refrigerant charging vent of gas valve and then co­ nnect the other charging hose to the vacuum pump.
3. Open the piezometer com-
pletely and operate for 10-15min to check if the pressure of piezometer re­ mains in -0.1MPa.
4. Close the vacuum pump and maintain this status for 1-2min to check if the pres-
sure of piezometer remains in -0.1MPa. If the pressure decreases, there may be leakage.
5. Remove the piezometer, open the valve core of liquid valve and gas valve completely with inner hexagon spanner.
6. Tighten the screw caps of valves and refrigerant charging vent.
liquid valve
gas valve
refrigerant charging vent
nut of refrigerant charging vent
piezometer
valve cap
vacuum pump
inner hexagon
spanner
close
open
Lo Hi
Leakage detection
1. With leakage detector: Check if there is leakage with leakage detector.
2. With soap water: If leakage detector is not available, please use soap water for leakage detection.
Apply soap water at the suspected position and keep the soap water for more
than 3min. If there are air bubbles coming out of this position, there's a leakage.
46
Check after installation
Items to be checked Possible malfunction
The unit may drop, shake or emit noise.
Have you done the refrigerant leakage test?
Is water drained well?
(heating) capacity.
It may cause condensation and water dripping.
It may cause condensation and water dripping.
Is the voltage of power supply accord­ing to the voltage marked on the nameplate?
Is electric wiring and pipeline installed correctly?
Is the unit grounded securely? It may cause electric leakage.
Does the power cord follow the speci-
Is there any obstruction in the air inlet and outlet?
The dust and sundries caused during installation are removed?
The gas valve and liquid valve of connection pipe are open completely?
Is the inlet and outlet of piping hole
been covered?
It may cause malfunction or damaging the parts.
It may cause malfunction or damaging the parts.
It may cause malfunction or damaging the parts.
(heating) capacity.
It may cause malfunction or damaging the parts.
(heating) capacity.
It may cause insufficient cooling (heating) capacity or waster eletricity.
Test operation
1. Preparation of test operation
The client approves the air conditioner.
● Specify the important notes for air conditioner to the client.
2. Method of test operation
● Put through the power, press ON/OFF button on the remote controller to start
operation.
● Press MODE button to select AUTO, COOL, DRY, FAN and HEAT to check
whether the operation is normal or not.
● If the ambient temperature is lower than 16℃, the air conditioner can’t
start cooling.
47
Configuration of connection pipe
1. Standard length of connection pipe
● 5m7.5m8m
2. Min length of connection pipe For the unit with standard connection pipe of 5m, there is no limitation for the min length of connection pipe. For the unit with standard connection pipe of
7.5m and 8m, the min length of connection pipe is 3m.
3. Max length of connection pipe
Sheet 1 Max length of connection pipe Unit: m
capacity capacity
5000Btu/h
(1465W)
7000Btu/h
(2051W)
9000Btu/h
(2637W)
12000Btu/h
(3516W)
18000Btu/h
(5274W)
4. The calculation method of additional refrigerant oil and refrigerant charging amount
after prolonging connection pipe
After the length of connection pipe is prolonged for 10m at the basis of standard length, you should add 5ml of refrigerant oil for each additional 5m of connection
pipe. The calculation method of additional refrigerant charging amount (on the basis
of liquid pipe):
(1) Additional refrigerant charging amount= prolonged length of liquid pipe × additional
refrigerant charging amount per meter
Basing on the length of standard pipe, add refrigerant according to the
(2)
requirement as shown in the table. The additional refrigerant charging amount
per meter is different according to the diameter of liquid pipe. See Sheet 2.
Max length of
connection pipe
15 25
15 30
15 30
20 30
25 30
24000Btu/h
(7032W)
28000Btu/h
(8204W)
36000Btu/h
(10548W)
42000Btu/h
(12306W)
48000Btu/h
(14064W)
Max length of
connection pipe
48
Configuration of connection pipe
Sheet 2. Additional refrigerant charging amount for R32
Diameter of connection pipe mm
Liquid pipe Gas pipe
Ф6
Ф6 or Ф9.5
Ф12
Ф16
Ф19
Ф22.2
Note: The additional refrigerant charging amount in Sheet 2 is recommended
value, not compulsory.
Ф9.5 or Ф12
Ф16 or Ф19
Ф19 or Ф22.2
Ф25.4 or Ф31.8
_
_
Indoor unit throttle Outdoor unit throttle
Cooling only,
cooling and heating
(g / m) (g / m)
16
40
80
136
200 200
Cooling only
(g / m)
12
12
24
48
280280
cooling and
heating
16
40
96
96
200
280
49
Pipe expanding method
pipe
pipe
smooth surface
Note:
Improper pipe expanding is the main cause of refrigerant leakage. Please expand the pipe according to the following steps:
A: Cut the pipe
the distance of indoor unit and outdoor unit.
● Cut the required pipe with pipe cutter.
pipe cutter
E: Expand the port
● Expand the port with expander.
hard
expander
mold
pipe
leaning uneven burr
B: Remove the burrs
● Remove the burrs with shaper and
prevent the burrs from getting into the pipe.
shaper
downwards
C: Put on suitable insulating pipe D: Put on the union nut
● Remove the union nut on the indoor
connection pipe and outdoor valve; install the union nut on the pipe.
union pipe
Note:
● "A" is different according to the diameter, please refer to the sheet below:
Outer diameter
(mm)
Φ6 - 6.35(1/4")
Φ9.52(3/8") Φ12-12.7(1/2") Φ15.8-16(5/8")
A(mm)
Max Min
1.3 0.7
1.6 1.0
1.8 1.0
2.4 2.2
F: Inspection
● Check the quality of expanding port. If there is any blemish, expand the port again according to the steps above.
improper expanding
pipe
the length is equal
50
leaning
damaged
surface
crack uneven
thickness
Designed by Cooper&Hunter International Corporation, Oregon, USA
www.cooperandhunter.com
E-mail: info@cooperandhunter.com
* Cooo ooo per && Huunter is coonstantlyyy wwwooorkk infff ooo rmmmatiooon in thhhis mmmanuuual is suuubbbjjject tooochh
ingg too
k
immmprooo vvv e thhheir proooddduuucts, soo
anggge wwwithhhooouuut priooor noootice.
g o
h
o h
thhe
600005060457
Loading...
