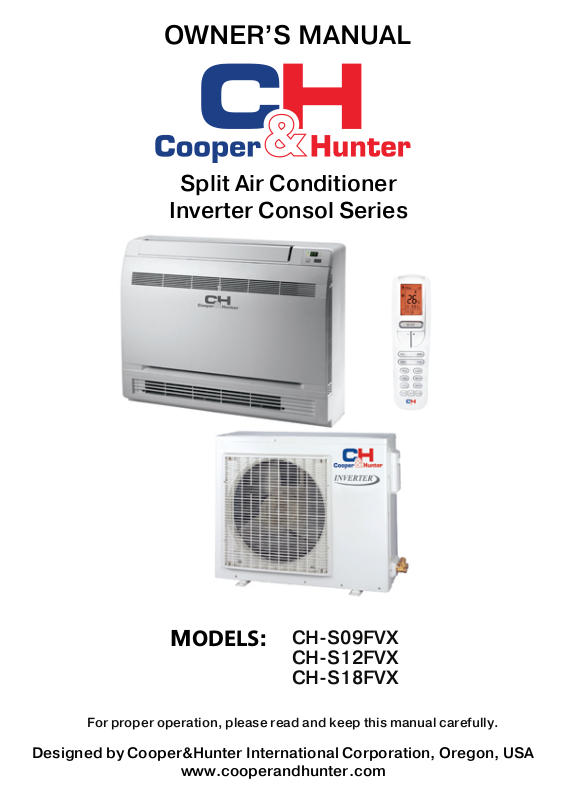

OWNER’S MANUAL

Split Air Conditioner

Inverter Consol Series

ODELS

For proper operation, please read and keep this manual carefully.

www.cooperandhunter.com

CH-S09FVX CH-S12FVX CH-S18FVX

Energy Label

Annual energy efficiency perfomance ratio is calculated by overall capacity and average operaing time (apr 500 hours) multiplication in full-load coling mode operation.

Cooling capacity

is device cooling capaciy (demanded in kWh) in full-load cooling mode operation. ERR energy

label index is ratio of cooling capacity to its electric energy input attainment. Energy label depends on ERR index rate.

Cooling mode energy label class

3.2 ≤ EER

B 3 ≤ EER < 3.2 C 2.8 ≤ EER < 3 D

F G

2.6 ≤ EER < 2.8

2.4 ≤ EER < 2.6

2.2 ≤ EER < 2.4 EER < 2.2

Device Energy Lable

Manufacturer Outdoor unit Indoor unit

Cooling mode Energy Label Class

Maximum efficiency

Minimum efficiency

ir Conditioner

for split and multi-split systems only.

Heating capacity

is device heating capaciy (demanded in kWh) in full-load heating mode operation. COP capacity

index is ratio of heating capacity to its electric energy input attainment. Energy label depends on COP index rate.

Heating mode energy label class

A 3.6 ≤ COP B 3.4 ≤ COP < 3.6 C 3.2 ≤ COP < 3.4 D 2.8 ≤ COP < 3.2

E 2.6 ≤ COP < 2.8

F 2.4 ≤ COP < 2.6 G COP < 2.4

for split and multi-split systems only.

Contents

OPERATION INSTRUCTIONS

1. Part names and their functions ........................................................................................................... 1

2. How to use the remote control to operate the unit .............................................................................. 2

3. Maintenance ...................................................................................................................................... 7

4. Operating guide ................................................................................................................................. 10

5. Precautions ....................................................................................................................................... 12

6. Checking before contact the service man ........................................................................................ 13

INSTALLATION INSTRUCTIONS

7. Installation of indoor unit .................................................................................................................... 14

8. Outdoor unit installation..................................................................................................................... 22

9. Pipe preparation...................................................................................................................................23

10. Refrigerant piping work ..................................................................................................................... 24

11. Air purging and check or pipe leakage .............................................................................................. 25

12. Liquid pipe and drain pipe .................................................................................................................. 26

13. Routine check after installation ......................................................................................................... 27

Thank you for selecting our products

One of the benefits awaiting you with our room air conditioner is not only comfort of life but also good health. This operation instruction brings you the many omfort and technological features your unit has to offer. In addition, it provides you vital information about maintenance, service and economical operating. Take the next few minutes to discover how to get your comfort and economy of the operation from your new room air conditioner.

The figures in this manual may be different with the material objects, please

refer to the material objects for reference.

This appliance is not intended for use by persons (including children) with reduced physical , sensory or mental capabilities or lack of experience and knowledge,unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the appliance.

External static pressures at the appliance was tested is 0 Pa Fuse link: T250 V; 3.15 A

Part names and their functions

INDOOR UNIT

OPERATION INSTRUCTIONS

1 2

7 4

CAUTION

Before opening the front panel, be sure to stop the operation and turn the breaker OFF.

Do not touch the metal parts on the inside

of the indoor unit, as it may result in injury.

1. Titanium Apatite Photocatalytic Air-Purifying Filter:

• These filters are attached to the inside

of the air filters.

2. Air outlet

3. Display

4. Front panel

5. Louvers (vertical blades)

• The louvers are inside of the air outlet.

6. Air inlet

7. Air filter

8. Flap (horizontal blade)

9. Cool mode lamp

10. Heat mode lamp

11. Dry mode lamp

12. Run lamp

13. LED display

14. Indoor Unit ON/OFF switch:

• Push this switch once to start operation.

Push once again to stop it.

• The operation mode refers to the following table.

COOL

AUTO

Temperature

setting

25℃

Model Mode

COOLING

ONLY

HEAT

PUMP

• This switch is useful when the remote controller

is missing.

Air flow rate

AUTO

15.Signal receiver:

• It receives signals from the remote controller.

• When the unit receives a signal, you will hear

a short beep.

•Settings changed.....beep

16.Air outlet selection switch

17.Room temperature sensor:

•It senses the air temperature around the unit.

This setting blows air from

•

upper outlet only.

This setting automatically decides a blow pattern

•

depending on mode and conditions.

• This setting is recommended.

• The unit is shipped from the

factory with this setting.

Indoor unit

wiring terminal

N(1) 2 3

BU BK BN

Outdoor unit wiring terminal

N(1)

2 3

BU BK BN

YELLOW/ GREEN

Opening the Front Panel

OUTDOOR UNIT

18.Air inlet: (Back and side)

19.Refrigerant piping and inter-unit cable

20.Drain hose

21.Earth terminal:

•It is inside of this cover.

22.Air outlet

Appearance of the outdoor unit may differ from some models.

NOTE:

① If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard. ② The appliance shall be installed in accordance with national wiring regulations. ③ An all-pole disconnection switch having a contact separation of at least 3mm in all poles should be connected in fixed wiring.

How to use the remote control to operate the unit

Remote Controller Description

ON/OFF

Press it to start or stop operation.

: Press it to decrease temperature

setting.

: Press it to increase temperature

setting.

MODE

Press it to select operation mode (AUTO/COOL/DRY/FAN/HEAT).

FAN

Press it to set fan speed.

OPERATION NSTRUCTIONS

SWING

Press it set swing angle.

I FEEL

Press it to set HEALTH or AIR function.

SLEEP TEMP QUIET

Press it to set

QUIET function.

CLOCK

Press it set clock.

T-ON T-OFF

Press it to set auto-off/auto-on timer.

TURBO

LIGHT

Press it to turn on/off the light.

X-FAN

How to use the remote control to operate the unit

Remote Controller Description

ON/OFF :

Press this button to turn on the unit .Press this button again to turn off the unit.

Press this button to decrease set temperature. Holding it down above 2 seconds rapidly decreases set temperature. In AUTO mode, set temperature is not adjustable.

+ :

Press this button to increase set temperature.Holding it down above 2 seconds rapidly increases set temperature. In AUTO mode, set temperature is not adjustable.

MODE :

Each time you press this button,a mode is selected in a sequence that goes from AUTO,

COOL,DRY, FAN,and HEAT

AUTO

COOL

DRY

After energization, AUTO mode is defaulted. In AUTO mode, the set temperature will not

be displayed on the LED of the indoor, and the unit will automatically select the suitable

operation mode in accordance with the room temperature to make indoor room comfortable.

, as the following:

FAN HEAT

*Note:Only for models with heating function.

OPERATION INSTRUCTIONS

FAN

This button is used for setting Fan Speed in the sequence that goes from AUTO,

, ,

Auto

then back to Auto.

Medium speedLow-Medium speedLow speed

High speedMedium-High speed

SWING:

Press this button to set up &down swing angle, which circularly changes as below

OFF

This remote controller is universal . If any command , or is sent out,

the unit will carry out the command as

indicates the guide louver swings as:

I FEEL:

Press this button to turn on I FEEL function. The unit automatically adjust temperature according to the sensed temperature. Press this button again to cancel I FEEL function.

How to use the remote control to operate the unit

ress this button to achieve the on and off of healthy and scavenging functions in operation status.

OPERATION INSTRUCTIONS

Press this button for the first time to start scavenging function;

displays“ ”. Press the button for the

LCD simultaneously; LCD displays“ ” and “ ” .

second time to start healthy and scavenging functions

Press this button for the third time to quit healthy

and scavenging functions simultaneously. Press the button for the fourth time to start healthy

function; LCD display “ ”

SLEEP:

●

Press this button, can select Sleep 1 ( ), Sleep 2 ( ),Sleep 3 ( ) and cancel the Sleep,

. Press this button again to repeat the operation above.

circulate between these, after electrified, Sleep Cancel is defaulted.

●

Sleep 1 is Sleep mode 1, in Cool, Dehumidify modes: sleep status after run for one hour, the main unit setting temperature will increase 1

℃,setting temperature increased 2℃, the unit will run at this

setting temperature; In Heat mode: sleep status after run for one hour, the setting temperature will decrease 1

℃, 2 hours, setting temperature will decrease 2

℃, then the unit will run at this setting

temperature.

●

Sleep 2 is sleep mode 2, that is air conditioner will run according to the presetting a group of sleep temperature curve.

●

Sleep 3- the sleep curve setting under Sleep mode by DIY: (1) Under Sleep 3 mode, press "Turbo" button for a long time, remote control enters into user individuation sleep setting status, at this time, the time of remote control will display "1 hour ", the setting temperature "88" will

display the corresponding temperature of last setti

ng sleep curve and blink (The first entering will display

according to the initial curve setting value of original factory);

(2) Adjust "+" and "-" button, could change the corresponding setting temperature, after adjusted, press "Trubo "button for confirmation;

(3) At this time, 1 hour will be automatically increased at the timer postion on the remote control, (that are "2 hours " or "3 hours " or "8 hours "), the place of setting temperature "88" will display the corresponding temperature of last setting sleep curve and blink; (4) Repeat the above step (2)

～ (3) operation, until 8 hours temperature setting finished, sleep

curve setting finished, at this time, the remote control will resume the original timer display; temperature display will resume to original setting temperature. Sleep3- the sleep curve setting under SLEEP mode by DIY could be inquired:

●

The user could accord to sleep curve setting method to inquire the presetting sleep curve, enter into user individuation sleep setting status, but do not change the temperature, press "Turbo" button directly for confirmation. Note: In the above presetting or enquiry procedure, if continuously within10s, there is no button pressed, the sleep curve setting within10s, there is no button pressed, the sleep curve setting status will be automatically quit and resume to display the original displaying. In the presetting or enquiry procedure, press "ON/OFF" button, "Mod

e" button, "Timer"button or "Sleep" button, the sleep curve setting or enquiry status will quit similarly.

TEMP:

Press this button, could select displaying the indoor setting temperature or indoor ambient temperature.When the indoor unit firstly power on it will display the setting temperature, if the temperature's displaying status is changed from other status to" ",displays the ambient temperature, 5s later or within 5s, it receives other remote control signal that will

return to display the setting temperature. if the users haven't set up the temperature displaying status,that will display the setting temperature.

How to use the remote control to operate the unit

QUIET:

Press this button, the Quiet status is under the Auto Quiet mode (display and "Auto"" " signal) and Quiet mode (display " " singal) and Quiet OFF (there is no signal of " " displayed), after powered on, the Quiet OFF is defaulted. Note: the Quiet function cannot be set up in Fan

and Dry mode;Under the Quiet mode (Display " " signal), the fan speed is not available.

CLOCK:

Press CLOCK button, blinking . Within 5 seconds,pressing +or - button adjusts the

present time.Holding down either button above 2 seconds increases or decreases the time by 1 minute every 0.5 second and then by 10 minutes every 0.5 second. During blinking after setting, press CLOCK button again to confirm the setting,and then

be constantly displayed.

will

T-ON T-OFF:

Press T-ON button to initiate the auto-ON timer. To cancel the auto-timer program, simply press this button again.

After press of this button, disappears and "ON "blinks .0 setting. Within 5 seconds, press + or - button to adjust the time value. Every press of either

button changes the time setting by 1 minute. Holding down either button rapidly changes the

time setting by 1 minute and then 10 minutes. Within 5Seconds aftersetting, pressTIMER

ON button to confirm.

Press T-OFF button to initiate the auto-off timer. To cancel the auto-timer program, simply

press the button again.TIMER OFF setting is the same as TIMER ON.

0:00 is displayed for ON time

OPERATION INSTRUCTIONS

TURBO:

Press this button to activate / deactivate the Turbo function which enables the unit to reach the preset temperature in the shortest time. In COOL mode, the unit will blow strong

cooling air at super high fan speed. In HEAT mode, the unit will blow strong heating air

at super high fan speed.

LIGHT:

Press LIGHT button to turn on the display's light and press this button again to turn off

the display's light. If the light is turned on , is displayed. If the light is turned off,

disappears.

X-FAN:

Pressing X-FAN button in COOL or DRY mode,the icon is displayed and the indoor fan will continue operation for 10 minutes in order to dry the indoor unit even though you have turned off the unit. After energization, X-FAN OFF is defaulted. X-FAN is not available in AUTO,FAN or HEAT mode.

Combination of "+" and "-" buttons: About lock

Press " " and " " buttons simultaneously controller is locked, is

displayed. In this case,

to lock or unlock the keypad. If the remote

pressing any button, blinks

three times.

How to use the remote control to operate the unit

OPERATION INSTRUCTIONS

Combination of "MODE " and "-" buttons :

At unit OFF, press "MODE"

Combination of " TEMP " and "CLOCK" buttons : About Energy-saving Function

Press “TEMP” and “CLOCK” simultaneously in COOL mode to start energy-saving function. Nixie tube on the remote controller displays “SE”. Repeat the operation to quit the function.

Combination of " TEMP " and "CLOCK" buttons : About 8℃ Heating Function

Press “TEMP” and “CLOCK” simultaneously in HEAT mode to start Nixie tube on the remote controller displays “ ” and a selected temperature of “ (46 if Fahrenheit is adopted). Repeat the operation to quit the function.

℉

About Back-lighting Function

The unit lights for 4s when energizing for the first time, and 3s for later press.

and " " buttons simultaneously to switch between and .

About switch between Fahrenheit and centigrade

℃

8℃ Heating Function

Replacement of Batteries

1.Remove the battery cover plate from the rear of the remote controller.

8℃”

℉

(As shown in the figure)

2.Take out the old batteries.

3.Insert two new AAA1.5V dry batteries, and pay attention to the polarity.

4. Reinstall the battery cover plate.

★

Notes:

When replacing the batteries, do not use old or different types of batteries,

●

otherwise, it may cause malfunction. If the remote controller will not be used for a long time, please

●

remove batteries to prevent batteries from leaking.

The operation should be performed in its receiving range.

●

It should be kept 1m away from the TV set or stereo sound sets.

●

If the remote controller does not operate normally, please take the

●

batteries out and reinsert them after 30 seconds.If it still can't operate properly,

replace the batteries.

Sketch map for replacing batteries

Maintenance

OPERATION NSTRUCTIONS

Before inspection and maintenance of the unit. PLEASE set power switch to “OFF” to cut off the power supply.

3.1 Units

● Indoor unit, Outdoor unit and Remote controller

1. Wipe them with dry soft cloth.

● Front panel

1. Open the front panel.

Slide the two stoppers on the left and right sides inward until they click.

2. Remove the front panel.

• Remove the string.

• Allowing the front panel to fall forward will enable you to remove it.

3. Clean the front panel.

• Wipe it with a soft cloth soaked in water.

• Only neutral detergent may be used.

• In case of washing the front panel with water,dry it with cloth, dry

it up in the shade after washing.

String

4. Attach the front panel.

• Insert the front panel into the grooves of the unit (3 places).

• Attach the string to the right, inner-side of the front grille.

• Close the panel slowly.

CAUTION

• Don’t touch the metal parts of the indoor unit. If you touch those parts, this may cause an injury.

• When removing or attaching the front panel, use a robust and stable stool and watch your steps carefully.

• When removing or attaching the front panel, support the panel securely with hand to prevent it from falling.

• For cleaning, do not use hot water above 40°C, benzine, gasoline, thinner, nor other volatile oils, polishing compound,

scrubbing brushes, nor other hand stuff.

• After cleaning, make sure that the front panel is securely fixed.

3.2 Filters

1. Open the front panel.

2. Remove the air filter.

• Press the claws on the right and left of the air filter down slightly, then pull upward.

3. Take off the Titanium Apatite Photocatalytic Air-Purifying Filter.

• Hold the tabs of the frame, and remove the claws in 4 places.

Place front panel in grooves.

String

Maintenance

4. Clean or replace each filter.

See figure.

5. Set the air filter and Titanium Apatite Photocatalytic Air-Purifying Filter as they were and close the front

panel.

• Operation without air filters may result in troubles as dust will accumulate

inside the indoor unit.

6. Wash the air filters with water or clean them with vacuum

cleaner.

• If the dust does not come off easily, wash them with neutral detergent thinned with lukewarm water, then dry them up in the shade.

• It is recommended to clean the air filters every week.

Titanium Apatite Photocatalytic Air-Purifying Filter

OPERATION NSTRUCTIONS

Air filter

3.3 Titanium Apatite Photocatalytic

Air-Purifying Filter

The Titanium Apatite Photocatalytic Air-Purifying Filter can be renewed by washing it with water once every 6 months. We recommend replacing it once every 3 years.

● Maintenance

1. Vacuum dusts, and soak in warm water or water for about 10 to 15 minutes if dirt is heavy.

2. Do not remove filter from frame when washing with water.

3. After washing, shake off remaining water and dry in the shade.

4. Since the material is made out of paper, do not wring out the filter when removing water from it.

● Replacement

Remove the tabs on the filter frame and replace with a new filter.

• Dispose of the old filter as flammable waste.

NOTE

• Operation with dirty filters: (1) cannot deodorize the air. (2) cannot clean the air. (3) results in poor heating or cooling. (4) may cause odour.

Maintenance

Working temperature range

Maximum cooling

Minimum cooling

Maximum heating Minimum heating

Check

Check that the base, stand and other fittings of the outdoor unit are not decayed or corroded. Check that nothing blocks the air inlets and the outlets of the indoor unit and the outdoor unit.

Check that the drain comes smoothly out of the drain hose during COOL or DRY operation.

• If no drain water is seen, water may be leaking from the indoor unit. Stop operation and consult

the service shop if this is the case.

3.4 Before a long idle period

1. Operate the “FAN only” for several hours on a fine day to dry out the inside.

• Press “MODE” button and select “FAN” operation.

• Press “ON/OFF” button and start operation.

2. After operation stops, turn off the breaker for the room air conditioner.

3. Clean the air filters and set them again.

4. Take out batteries from the remote controller.

NOTE

OPERATION NSTRUCTIONS

• When a multi outdoor unit is connected, make sure the heating operation is not used at the other room befure you use the fan

operation.

Indoor sideDB/WB(oC)

32/23 21/15

27/--20/---

The operating temperature range (outdoor temperature) for cooling unit is 10℃ for cooling and heating unit is -15℃

43℃.

Outdoor sideDB/WB(oC)

43/-

10/-

24/18

-15/-

43℃；

Operating guide

Working principle and special functions for cooling

Principle:

Air conditioner absorbs heat in the room and transmit to outdoor and discharged, so that indoor ambient temperature decreased, its cooling capacity will increase or decrease by outdoor ambient temperature.

Anti-freezing function:

If the unit is running in COOL mode and in low temperature, there will be frost formed on the heat exchanger, when indoor heat exchanger temperature decreased below 0 , the indoor unit microcomputer will stop compressor running and protect the unit.

Working principle and special functions for heating

Principle:

Air conditioner absorbs heat from outdoor and transmits to indoor, in this way to increase

room temperature. This is the heat pump heating principle, its heating capacity will be reduced due to outdoor temperature decrease. If outdoor temperature becomes very low, please operate with other heating equipments.

OPERATION INSTRUCTIONS

℃

Defrosting:

When outdoor temperature is low but high humidity, after a long while running, frost will

form on outdoor unit, that will effect the heating effect, at this time, the auto defrosting function will act, the heat running will stop for 8-10mins.

During the auto defrosting, the fan motors of indoor unit and outdoor unit will stop.

During the defrosting, the indoor indicator flashes(or display “H1”), the outdoor unit may emit vapor,

After defrosting finished,the heating will recover automatically.

Anti-cool wind function:

In Heat mode, the following three kinds of status, if indoor heat exchanger hasn't achieve certain temperature that indoor fan motor will not start, in this way to prevent blowing cool

wind (within 3mins):

1. Heat operation just startedup. 2. After Auto defrosting operation is finished.

3. Heating under low temperature.

The climate type of this unit is according to the nameplate.

This is due to the defrosting, it isn't malfunction.

Operating guide

OPERATION INSTRUCTIONS

Precautions

OPERATION INSTRUCTIONS

Checking before contact the service man

CAUSESPROBLEM

OPERATION INSTRUCTIONS

Installation of indoor unit

INSTALLATION NSTRUCTIONS

SELECTION OF INSTALLATION LOCATION.

●

Such a place where cool air can be distributed

throughout the room.

Such a place where condensation water is easily

●

CAUTIONSFOR INSTALLATION WHERE

AIRCONDITIONER TROUBLEIS LIABLE

TOOCCUR.

●

Where there is too much of oil area.

drained out.

Where it is acid base area.

●

Such a place that can handle the weight of indoor unit. Such a place which has easy access for maintenance.

●

The appliance shall not be installed in the laundry.

THERE ARE 2 STYLES OF INSTALLATION.

●

CEILING TYPE

FLOOR TYPE

●

Where there is irregular electrical supply.

●

Indoor Unit Installation Drawings

The indoor unitmay be mounted in any of the three styles shown here.

Exposed

Each type is similar to the other as follows;

Indoor unit

The indoor unit should be sited in a place where:

1) the restrictions on installation specified in the indoor unit installation drawings are met.

2) both air intake and exhaust have clear paths met.

3) the unit is not in the path of direct sunlight.

4) the unit is away from the source of heat or steam.

5) there is no source of machine oil vapour (this may shorten indoor unit life).

6) cool(warm) air is circulated throughout the room.

7) the unit is away from electronic ignition type fluorwscent lamps

(inverter or rapid stert type) as they may shorten the remote controller range.

8) the unit is at least 1 metre away from any television or radio

set(unit may cause interference with the picture or sound).

Floor lnstallation Wa l Installation

Location for securing the installation panel.

Schematic drawing of hooks:

Molding

Mounting plate

170

120

220

Half conceated

700

200

644

Concealed

Grid(field supply)

160

120

220

570

600

INSTALLATION PAPER PLANK

150cm or more

200mm

150cm or more

15cm or below from the floor

Installation of indoor unit

Refrigerant piping

1)Drill a hole ( 55mm in diameter ) in the spot indicated by the symbol in the illustration as below .

2)The location of the hole is different depending on which side of the pipe is taken out .

3)For piping ,see Connecting the refrigerant pipe ,under Indoor Unit Installation(1).

4)Allow space around the pipe for a easier indoor unit pipe connection.

(Unit : mm)

Wall

INSTALLATION NSTRUCTIONS

gnipip mottob thgiRgnipip mottob tfeL

Left back piping

Right back piping

Left/right piping

CAUTION

Min.allowable length

The suggested shortest pipe length is 2.5m,in order to avoid noise from the outdoor unit and vibration. (Mechanical noise and vibration may occur depending on how the unit is installed and the environment in which it is used.)

See the installation manual for the outdoor unit for the maximum pipe length.

For multi-connections ,see the installation manual for the multi-outdoor unit.

Refrigerant pipe

wall

350

Floor

Installation of indoor unit

Boring a wall hole and installing wall embedded pipe

INSTALLATION NSTRUCTIONS

For walls containing metal frame or metal board ,be sure to use a wall embedded

pipe and wall cover in the feed-through hole to prevent water leakage.

Be sure to caulk the gaps around the pipes with caulking material to prevent

Wall embedded pipe (field supply)

Inside Outside

Caulking

water leakage.

1)Bore a feed-through hole of 55mm in the wall so it has a down slope toward the outside.

Wall hole cover

Φ55

2)Insert a wall pipe into the hole.

3)Insert a wall cover into wall pipe .

4)After completing refrigerant piping, wiring, and drain piping, caulk pipe hole gap

Wall embedded pipe (field supply)

with putty.

Drain piping

1)Use commercial regid polyvinyl chloride pipe general VP 20 pipe, outer diameter 26mm, inner diameter 20mm for the drain pipe.

2)The drain hose (outer diameter 18mm at connecting end, 220mm long)is supplied with the indoor unit. Prepare the drain pipe picture below position.

3)The drain pipe should be inclined downward so that water will flow smoothly without any accumulation.(Should not be trap.)

4)Insert the drain hose to this depth so it won’t be pulled out of the drain pipe.

5)Insulate the indoor drain pipe with 10mm or more of insulation material to prevent condensation.

6)Remove the air filters and pour some water into the drain pan to check the water flows smoothly.

100

Drain hose

100

Reducer

150

Must be no trap

Do not touch water

50mm

or more Vinyl chloride drain pipe

Installation of indoor unit

INSTALLATION NSTRUCTIONS

Installing indoor unit

1.Preparation

Open the front panel, remove the 4 screws and dis-

mount the front grille while pulling it forward.

Follow the arrows to disengage the clasps on the

front case to remove it.

Follow the procedure below when removing the slit

portions.

For Moldings

Remove the pillars. (Remove the slit portions on the

bottom frame using nippers.)

For Side Piping

Remove the pillars.

1)Remove the 7screws.

2)Remove the upper casing (2 tabs).

3)Remove the left and right casings (2 tabs on each side ).

4)Remove the slit portions on the bottom frame and casings using nippers .

5)Return by following the steps in reverse order(3>2>

1).

Front panel

3)Side casings

Remove 4 screws

Remove 7 screws

3 tabs

Casing

Front grille

Remove front grille

Open the front panel

2)Upper casing

3)Side casings

Remove the pillar

Casing

Remove the pillar

Bottom frame

Casing

Remove the pillar

2.Installation

Secure using 6 screws for floor installations.(Do not forget to secure to the rear wall.)

For wall installations, secure the mounting plate using 5 screws and the indoor unit using 4 screws.

Installation of indoor unit

INSTALLATION NSTRUCTIONS

The mounting plate should be installed on a wall which can support the weight of the indoor unit.

1) Temporarily secure the mounting plate to the wall, make sure that the panel is completely level, and mark the boring points on the wall.

2) Secure the mounting plate to the wall with screws.

Floor Installation

Casing

6screws

Wall Installation

200mm

Molding

6screws

3) Once refrigerant piping and drain piping connections are complete, fill in the gap of the through hole with putty. A gap can lead to condensation on the refrigerant pipe, and drain pipe, and the entry of insects into the pipes.

4) Attach the front panel and front grille in their original positions once all connections are complete.

Flaring the pipe end

1)Cut the pipe end with a pipe cutter.

2)Remove burrs with the cut surface facing downward so that the chips do not enter the pipe.

3)Fit the flare nut on the pipe.

4)Flare the pipe.

5)Check that the flaring is properly made.

WARNING

1) DO not use mineral oil on flared part.

2) Prevent mineral oil from getting into the system as this would reduce the lifetime of the units.

3) Never use piping which had been used for previous installations. Only use parts which are delivered with the unit.

4) Do never install a drier to this R410A unit in order to guarantee its lifetime.

5) The drying material may dissolve and damage the system.

6) Incomplete flaring may cause refrigerant gas leakage.

The pipe end must be evenly flared in a perfect circle

Make sure that the flare nut is fitted

Cut exactly at right angles

Renove

burrs

Set exactly at the position shown below

A Die

Flaring

Flare tool for R410A

Clutch-type

0-0.5mm

Conventional flare tool

Clutch-type (Rigid-type)

1 0-1.5mm

Wing-nut type (lmperial-type)

1.5-2.0mm

Flare’s inner surface must be scratch-free

Installation of indoor unit

INSTALLATION NSTRUCTIONS

Connecting the refrigerant pipe

1)Use torque wrenches when tightening the flare nuts to prevent damage to the flare nuts and gas leaks.

Open-end wrench (fixed)

Coat here with refrigeration oil

Flare nut

Wrench

Indoor unit tubing

Connection pipe

2)Align the centres of both flares and tighten the flares and tighten the flare nuts 3 or 4 turns by hand.

Then tighten them fully with the torque wrenches.

3)To prevent gas leakage, apply refrigeration oil on both inner and outer surfaces in the flare. (Use refrigeration oil for

R410A.)

Flare nut tightening torque

Gas side

09K/12K 18K 09K/12K/18K

3/8 inch 1/2 inch 1/4 inch

31-35 N.m 50-55 N.m 15-20 N.m

Liquid side

Be sure to place a cap.

Caution on piping handling

1)Protect the open end of the pipe against dust and moisture.

2)All pipe bends should be as gentle as possible. Use a pipe bender for bending. (Bending radius should be 30 to 40mm or larger.)

If no flare cap is available,cover the flare mouth with tape to keep dirt or water out.

Selection of copper and heat insulation materials

When using commercial copper pipes and fittings, observe the

Gas pipe

Inter-unit wiring

following:

1)Insulation material: Polyethylene foam Heat transfer rate:0.041 to 0.052W/mK(0.035 to 0.045kca/(mh Refrigerant gas pipe’s surface temperature reaches 110 max.

Choose heat insulation materials that will withstand this temperature.

Gas pipe insulstion

Finising tape

2)Be sure to insulate both the gas and liquid piping and to provide insulation dimensions as below.

Liquid side

O.D. 9.55mm O.D. 12.7mm O.D. 6.4mm I.D. 12-15mm I.D. 14-16mm I.D. 8-10mm

noitalusnilamrehtepipsaGedissaG

18K09K/12K18K09K/12K

Liquid pipe

thermal insulation

.niMmm01ssenkcihTmm8.0ssenkcihT

3)Use separate thermal insulation pipes for gas and liquid refrigerant pipes.

Liquid pipe

Liquid pipe insulation

Installation of indoor unit

INSTALLATION NSTRUCTIONS

Checking for gas leakage

1)Check for leakage of gas after air purging

2)See the sections on air purges and gas leak checks in the installation manual for the outdoor unit.

Check for leakage here Apply soapy water and check carefully for leaking gas. wipe soapy water off after the check is complete.

Attaching the connection pipe

Attach the pipe after checking for gas leakage, described above.

1)Cut the insulated portion of the on-site piping, matching it up with the connecting portion.

2)Secure the slit on the refrigerant piping side with the butt joint on the auxiliary piping using the tape, making sure there are no gaps.

3)Wrap the slit and butt joint with the included insulation sheet, making sure there are no gaps.

Refrigerant pipe

Slit

Refrigerant pipe

Slit

Tape

CAUTION

1)Insulate the joint of the pipes securely. Incomplete insulation may lead to water leakage.

2)Push the pipe inside so it does not place undue force on the front grille.

Connecting the drain hose

Insert the supplied C drain hose into the socket of the drain pan. Fully insert the drain hose until it adheres to a seat of the socket.

Refrigerant pipe

Insulation sheet

Auxiliary pipe

Drain pan Seal

Drain hose

Drain pan

Seal

Installation of indoor unit

INSTALLATION NSTRUCTIONS

Wiring

With a Multi indoor unit, install as described in the installation manual supplied with the Multi outdoor unit.

Live the sensor securing plate, remove the front metal plate cover, and connect the branch wiring to the terminal block.

1)Strip wire ends (15mm)

2)Mach wire colours with terminal numbers on indoor and outdoor unit’s terminal blocks and firmly screw wires to

the corresponding terminals.

3)Connect the earth wires to the corresponding terminals.

4)Pull wires to make sure that they are securely latches up, then retain wires with wire retainer.

Sensor securing plate

Firmly fix the wires with the

Shape wires so that the front metal plate cover will fit securely.

N(1)

2 3

Terminal block

Electrical component box

terminal screws

When wire length exceeds 10m, use 2.0mmdiameter wires

Outdoor unit

Wire retainer

Indoor unit

Firmly fix the wires with the terminal screws

Front metal plate cover

Firmly secure wire retainer so that wires sustain no external stress.

Use the specified wire type.

CAUTION

1)Do not use tapped wires, stranded wires, extensioncords, or starburst connections, as they may cause overheating,

electrical shock, or fire.

2)Do not use locally purchased electrical parts inside the product. (Do not branch the power for the drain pump, etc, from

the terminal block.) Doing so may cause electric shock or fire.)

8.1

Outdoor unit installation

INSTALLATION NSTRUCTIONS

CAUTION

9 .1

9 .2

Pipe preparation

INSTALLATION INSTRUCTIONS

9.3

9.4

10.1 Select copper pipes for gas and liquid as informed in specific table(see the pipe table below)

10.2 For dust and moisture protection, before assembly of the pipe and its insulation,both end of the

10.3 Avoid pipe bending as much as possible.If it is necessary, the bending radius must be more than

Refrigerant piping work

pipe must be covered.

3cm. or 4cm.

Gas pipe and liquid pipe insulation depends upon

copper pipe size and the insulation thickness = 3/8"

INSTALLATION INSTRUCTIONS

GAS PIPE TABLE

CH-S09FVX CH-S12FVX CH-S18FVX

CH-S09FVX CH-S12FVX

CH-S18FVX

Gas Pipe

MODEL

PIPE SIZE

3/8" 0.7 3/8"

1/2"

THICKNESS

LIQUID PIPE TABLE

PIPE SIZE

1/4" 1/4" 0.5

1/4"

THICKNESS

(mm.)

0.7 1

(mm.)

0.5

Connecting Wire

Liquid Pipe

Dia. Drain Pipe 1/2"

Piping Tape

10.4 The connection between an indoor unit and an outdoor unit. Unscrew the flare nut for releasing pressure gas in the indoor unit.If there is no high pressure gas

blowing out, it is the signal of a leaking indoor unit. Fit the flare nut to the liquid pipe.Flare the pipe's end with flare tool. Tighten both flare nuts into gas pipe and liquid pipe at the indoor unit with two holding spanners.

11.1

11.2

Air purging and check or pipe leakage

INSTALLATION NSTRUCTIONS

11.3

Liquid pipe and drain pipe

NSTALLATION NSTRUCTIONS

Routine check after installation

Check after installation

NSTALLATION INSTRUCTIONS

Items to be checked

Has it been fixed firmly?

Have you done the refrigerant leakage test?

Is heat insulation sufficient?

Does the unit drain well?

Is the voltage in accordance with the rated voltage marked on the nameplate?

Is the electrical wiring and piping connection installed correctly and securely?

Has the unit been connected to a secure earth

connection?

Is the power cord specified?

Has the inlet and outlet been covered?

Has the length of connection pipes and the

refrigerant charge been record?

Possible malfunction

The unit may drop,shake or emit noise.

It may cause insufficient refrigerating capacity.

It may cause condensation and dripping.

It may cause electric malfunction or damage the part.

It may cause electrical leakage.

It may cause electric malfunction or damage the part.

It may cause insufficient refrigerating capacity.

The refrigerating capacity is not accurate

Situation

www.cooperandhunter.com

E-mail: info@cooperandhunter.com

66129909257

Cooper&Hunter CH-S18FVX user guide manual

Specifications and Main Features

Frequently Asked Questions

User Manual
