Thank you for selecting С&H air conditioners. Please read this manual
carefully before operation and keep it for further reference.
O W
N E R ' S M A N U A L
C&H A IR C O N D
ITI O
N E R S
CH-M18LH2A
CH-M21LH2A
Split Air Conditioner
DELUXE MULTI SERIES
MODELS:
CONTENTS
This symbol stands for the items
should be forbidden.
This symbol stands for the items
should be followed
Thank you for choosing C&H air conditioner, please read this owner's manual
carefully before operating the unit and keep it carefully for consolation.
The products in this manual may be different with the real one, according to different
models, some models have displayer and some models without displayer, the position
and shape of the displayer please refer to the real one.
This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities or lack of experience and knowledge,
unless they have been given supervision or instruction concerning use of the appliance
by a person responsible for they safety.
Children should be supervised to ensure that they do not play with the appliance.
Do not dispose this product as unsorted municipal waste.
Collection of such waste separately for special treatment
is necessary.
Operation and maintenance
■
Notices for operation
.......................................................................1
■
Notices for use
...............................................................................3
■
Names and functions of each part
..................................................5
■
Operation of wireless remote control
.............................................6
■
Clean and care
...............................................................................11
■
Troubleshooting
............................................................................13
Operation and maintenance-notices for operation
from the units more than 1m.
the air conditioner by yourself.
an electric shock or fire, so
1
★
Earth: The
ground
be
connected!
If not, please ask the qualified
personnel to install. Furthermore, don't
connect each wire to the gas pipe,
water pipe, drainage pipe or any other
improper places.
★Be sure to pull out the power plug when
not using the air conditioner for a long
time.
Otherwise, the accumulated dust
may cause fire or electric shock.
★
Select the most appropriate
temperature.
.
Keep room coo
er than outside
about 5 degree.
It can preclude the electricity wasted.
★
Don't leave windows and
doors open for a long time
while operating the air conditioner.
It can decrease the air conditioning
capacity.
★
Don't block the air intake or outlet
vents of both the outdoor and indoor
units.
It can decrease the air conditioning
capacity or cause a malfunction.
★
Keep combustible spray away
It can cause afire or explosion.
★
Please note whether the installed
stand is firm enough or not.
If it is damaged, it may lead to
the fall of the unit and cause
the injury.
★
Don't step on the top of the
outdoor unit or place something
on it.
As falling off the outdoor unit
can be dangerous.
★
Don't attempt to repair
The wrong repair will lead to
you should contact the service
center to repair.
Notices for operation
burning.
2
★
If the supply cord is damaged, it
must
be replaced
by the manufacturer or its service agent or a
similarly qualified person in order to avoid a
hazard.
★
Don't insert your hands or stick into the air
intake or outlet vents.
Otherwise it will cause accident.
★
Don't blow the wind to animals and plants
directly. It can cause a bad influence to them.
★
Don't apply the cold wind to the body for a
long time.
It can cause the health problems.
★
Don't use the air conditioner for other purposes,
such as drying clothes, preserving foods, etc.
★ Splashing water on the air conditioner can
cause an electric shock and malfunction.
★
Don't place a space heater near the air
conditioner.
Or CO toxicosis may occur for imcomplete
★
The airflow direction can be adjusted appropriately.
At operating, adjust the vertical airflow direction by
adjusting the louvers of upward/downward direction.
And then, hold two ends of left and right louver to
Notices for use
Working principle and special functions for cooling
Principle:
Air conditioner absorbs heat in the room and transmit to outdoor and discharged, so that
indoor ambient temperature decreased, its cooling capacity will increase or decrease by
outdoor ambient temperature.
Anti-freezing function:
If the unit is running in COOL mode and in low temperature, there will be frost formed on
the heat exchanger, when indoor heat exchanger temperature decreased below 0℃, the
indoor unit microcomputer will stop compressor running and protect the unit.
Working principle and special functions for heating
Principle:
*
Air conditioner absorbs heat from outdoor and transmits to indoor, in this way to increase
room temperature. This is the heat pump heating principle, its heating capacity will be
reduced due to outdoor temperature decrease.
*
If outdoor temperature becomes very low, please operate with other heating equipments.
Defrosting:
When outdoor temperature is low but high humidity, after a long while running, frost will
form on outdoor unit, that will effect the heating effect, at this time, the auto defrosting
function will act, the heat running will stop for 8-10mins.
*
*
During the auto defrosting, the fan motors of indoor unit and outdoor unit will stop.
During the defrosting, the indoor indicator flashes, the outdoor unit may emit vapor.
This is due to the defrosting, it isn't malfunction.
After defrosting finished,the heating will recover automatically.
*
*
Anti-cool wind function:
In "Heat" mode, under the following three kinds of state, if indoor heat exchanger doesn't
arrive at certain temp., indoor fan will not act, in order to prevent cool wind blowing(within
2 mins):
1. Heating starts.
2.After Auto Defrost finished.
3.Heating under the low temperature.
3
Notices for use
Anti-cool wind function:
In "Heat" mode, under the following three kinds of state, if indoor heat exchanger doesn't
arrive at certain temp., indoor fan will not act, in order to prevent cool wind blowing(within
2 mins):
1. Heating starts. 2.After Auto Defrost finished. 3.Heating under the low temperature.
Gentle Breeze
In the following situation, the indoor unit may blow gentle breeze, and
the guide louver rotate to a certain position:
1. In “Heat” mode, the unit turned on, the compressor doesn’t arrive the starting condition.
2. In “Heat” mode, the temperature arrive at the setting value and the compressor stop
running about 1min.
The operating temperature range (outdoor temperature) for cooling unit is 21℃~ 48℃；
for cooling and heating unit is -7℃~ 48℃.
4
Working temperature range
Indoor sideDB/WB(oC)
Outdoor sideDB/WB(oC)
Maximum cooling
35/24
48/30
Minimum cooling
21/15
21/-
Maximum heating
24/---
21/15.5
Minimum heating
20/---
-7/-8
Names and functions of each part
Air in
⑴ ⑶ ⑺
⑹
⑷ ⑸
Air out
The pattern in displayer：
⑵
Wireless
remote control
Air in
⑻
⑼
Air out
5
Outdoor unit
Indoor unit
(1)Power cable
(2)Reote control
(3)Font panel
(4)Filter
(5)
Guide louver
(6)Wall pipe
(7)Bind tape
(8)Connection
(9)Dranage pipe
4
Heat Cool Set temp Run Dry Reception of
signal

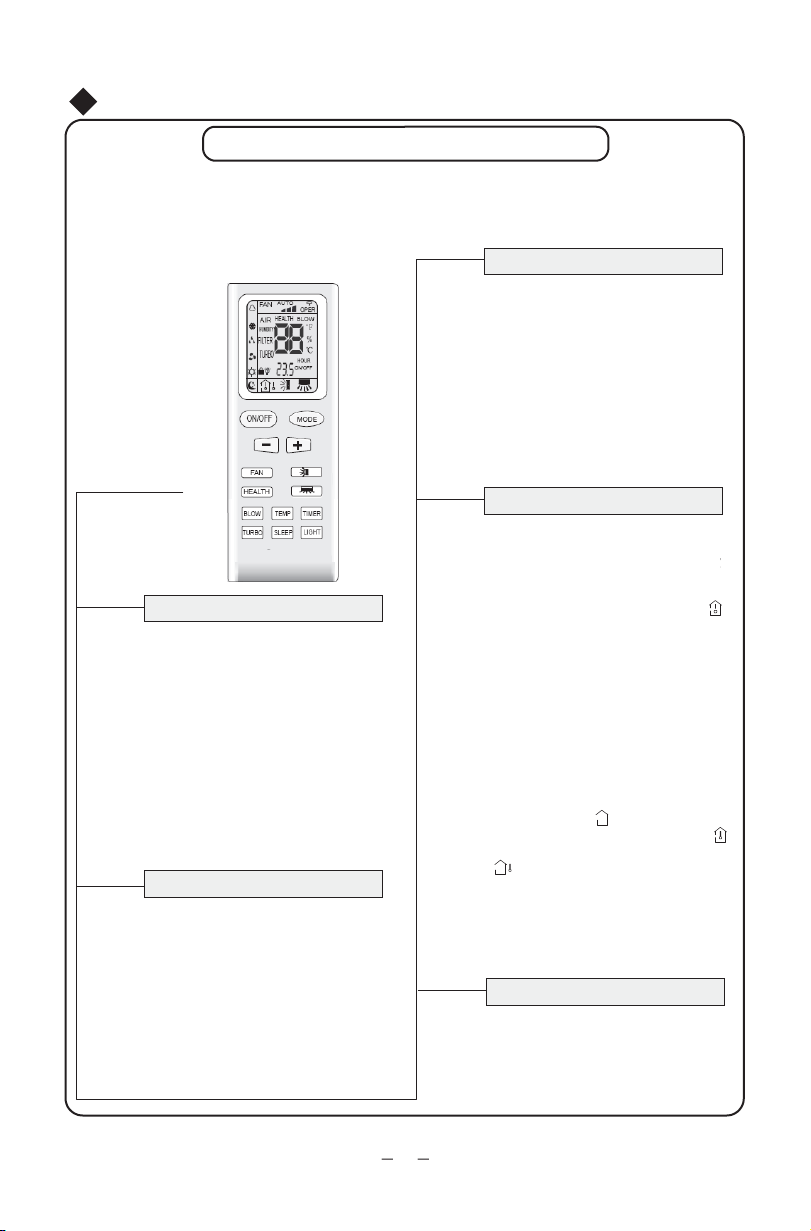

Operation of wireless remote control
Names and functions of wireless remote control
Note: Be sure that there are no obstructions between receiver and remote controller;
Don't drop or throw the remote control; Don't let any liquid in the remote control and
put the remote control directly under the sunlight or any place where is very hot.
SLEEP
Signal transmitter
FAN
Remote control
ON/OFF
MODE
6
SLEEP button
FAN button
●
Press this button, Auto, Low, Middle, High speed
can be circularly selected. After powered on,
Auto fan speed is default. Under Dehumidify
mode, Low fanspeed only can be set up.
Low fan
Middle fan
High fan
Note :Under the Dry mode, the fan speed isn't
adjustable, low fan speed is imperative, but
when operating this button, the wireless
adjustable, low fan speed is imperative,
ON/OFF button
MODE button
●
Press this button, Auto, Cool, Dry, Fan,
Heat mode can be selected circularly.
Auto mode is default while power on.
Under Auto mode, the temperature will not be
displayed; Under Heat mode, the
initial value is 28℃
(82 oF);Under other
modes,
the initial value is 25℃(77 oF).
AUTO
COOL
DRY
FAN
HEAT
LIGHT
● Press this button, the unit will be turned on,
press it once more, the unit will be turned off.
When turning on or turning off the unit, the Timer,
Sleep function will be canceled, but the presetting
time is still remained.
● Press this button, Sleep On and Sleep Off can be
selected. After powered on Sleep Off is defaulted. After
the unit is turned off, the Sleep function is canceled. After
Sleep function set up, the signal of Sleep will display. In
this mode, the time of timer can be adjusted. Under Fan
and Auto modes, this function is not available.
HEALTH
● On and Off mode of air purification - COLD PLAZMA
●
Press this button to select LIGHT on or off
in the displayer. When the LIGHT on is set,
the icon will be displayed and
indicator light in the displayer will be on.
When the LIGHT off is set, the icon will
be displayed and the indicator light in the
displayer will be off.
Operation of wireless remote control
Names and functions of wireless remote control
Notice:
This is a
general
use
remote controller,
it could be used for the air
conditioners
with multifunction; For some function, which the model dosen't have, if press the
corresponding button on the remote controller that the unit will keep the original
running status.
Remote control
TEMP
BLOW
",
the
drying.In Cool
and
Dehumidifying
mode,
this button,"BLOW" will be concealed, at
switching mode to Cool or Dehumidifying
status. If unit is turned off, Blow OFF only
can not be set up and there is no "BLOW"
)
TURBO
can turn on or turn off the Turbo function.
signal will be displayed. When switching
function will be canceled automatically.
7
+
+ button
● For presetting temperature increasing.
Press this button, can set up the
temperature, when unit is on . Continuously
press and hold this button for more than 2
seconds, the corresponding contents will be
changed rapidly, until un press the button
then send the information, ℃（℉）is
displaying all along. In Auto mode, the
temperature can not be set up, but operate
this button can send the signal. Centigrade
setting range :16-30; Fahrenheit scale
setting range 61-86.
TEMP button
● Press this button, could select displaying the
indoor setting temperature or indoor ambient
temperature. When the indoor unit firstly
power on it will display the setting
temperature, if the temperature's displaying
status is changed from other status to"
displays the ambient temperature, 5s later or
within
5s, it receives other remote control signal
that will return to display the setting
temperature. if the users haven't set up
temperature displaying status, that will
display the setting temperature.
(This function is applicable to partial of models)
● After powered on, the setting temperature
displaying is defaulted, (according to
customers requirements to display, if
there is no requirement that will default to
display the presetting temperature and
there is no icon displayed on remote
wireless control). Press this button,
(When displaying ) , will display
presetting temperature; (when displaying will
display indoor ambient temperature,
current displaying status will not be
changed. If current displays indoor ambient
temperature, if received the remote control
other signal, it will display presetting
temperature, 5s later, will back to display
the ambient temperature.
(This function is applicable to partial of models)
BLOW button
●
Press this button, can turn on or turn
off
press this button and will display "BLOW",
at this time the Blow is turned on. If repress
this time the Blow function is turned off.
After powered on, Blow OFF is defaulted.
When operating the ON/OFF button, or
mode,the Blow function
will
keep
the original
can be set up and send the signal. In Auto,
Fan as well as Heat mode, Blow function
displaying.
-
- button
● Presetting temperature can be decreased
.
Press this button, the temperature can be
set up, continuously press this button
and hold for two seconds, the relative
contents can quickly change, until unhold
this button and send the order that the ℃
( oF) signal will be displayed all the time.
The temperature adjustment is unavailable under the Auto mode, but the order
can be sent by if pressing this button.
TURBO button
● In Cool or Heat mode, press this button
After turned on the Turbo function, its
the mode or changing fan speed, this
Operation of wireless remote control
Names and functions of wireless remote control
Notice:
This is a
general
use
remote controller,
it
could
be used for the air
conditioners
with multifunction; For some function, which the model dosen't have, if press the
corresponding button on the remote controller that the unit will keep the original
running status.
Remote control
8
TIMER ON BUTTON
TIMER ON
●
Timer On setting: Signal “ON” will blink
and display, signal will conceal, the
numerical section will become the timer on
setting status. During 5 seconds blink by
pressing ＋ or － button to adjust the time
value of numerical section, every press of
that button, the value will be increased or
decreased 1 minute. Hold pressing ＋ or
－button, 2 seconds later it quickly
change, the way of change is During the
initial 2.5 seconds, ten numbers change in
the one place of minute, then the one
place is constant, ten numbers change in
the tens place of minute at 2.5 seconds
speed and carry. During 5s blink press the
Timer button, the timer setting succeeds.
The Timer On has been set up repress the
timer On button, the Timer On will be
canceled. Before setting the Timer, please
adjust the Clock to the current actual time.
TIMER OFF
SWING UP AND DOWN
BUTTON
● Press this button, to set up swing angle,
which circularly changes as below:
OFF
This is an universal use remote controller. If
remote controller sends the following three
kinds of status that the swing status of main
unit will be:
When
the
guide louver start
to
swing
up and
down, if
turn off the Swing, the air guide louver
will stop at current position.
which indicates
the
guide louver swings
up
and
down between
that all five positions.
TIMER OFF BUTTON
● Once press this key to enter into
TIMER OFF setup, in which case the
TIMER OFF icon will blink. The method of
setting is the same as for TIMER ON.
Operation of wireless remote control
Guide for operation- General operation
1. After powered on, press ON/OFF button, the unit will start to run.(Note: When
it is powered off, the guide louver of main unit will close automatically.)
2. Press MODE button, select desired running mode, or press COOL or H
EAT
mode to enter into the corresponding operation directly.
3. Pressing +or - button, to set the desired temperature. (It is unnecessary
to set the temp. at AUTO mode.)
4. Pressing FAN button, set fan speed, can select AUTO FAN, LOW, MID
and HIGH.
5. Pressing
button, to select the swing.
Guide for operation- Optional operation
1. Press SLEEP button, to set sleep.
2. Press TIMER ON and TIMER OFF button, can set the scheduled timer on
or timer off.
3. Press LIGHT button, to control the on and off of the displaying part of the
unit (This function may be not available for some units).
4. Press TURBO button, can realize the ON and OFF of TURBO function.
Introduction for special function
★
About blow function
This function indicates that moisture on evaporator of indoor unit will be blowed after the unit
is stopped to avoid mould.
1. Having set blow function on: After turning off the unit by pressing ON/OFF button indoor
fan will continue running for about 10 min. at low speed. In this period, press blow button
to stop indoor fan directly.
2. Having set blow function off: After turning off the unit by pressing ON/OFF button,
the
complete unit will be off directly.
★
About AUTO RUN
When AUTO RUN mode is selected, the setting temperature will not be displayed on the
LCD, the unit will be in accordance with the room temp. automatically to select the suitable
running method and to make ambient comfortable.
★
About turbo function
If start this function, the unit will run at super-high fan speed to cool or heat quickly so that
the ambient temp. approachs the preset temp. as soon as possible.
★
About Blow over heat (This function is applicable to partial of models)
When the unit is running in Heat mode or Auto Heat mode, compressor and indoor fan is running, to
turn the unit off, the compressor, outdoor fan will stop running. The upper and lower guide board
rotate to horizontal position, then the indoor fan will run at low fan speed, 10s later, the unit will turn off.
9
Operation of wireless remote control
★
About lock
Press +and - buttons simultaneously to lock or unlock the keyboard. If the remote controller
is locked, the icon
will be displayed on it, in which case, press any button, the mark will
flicker for three times. If the keyboard is unlocked, the mark will disappear.
★
About swing up and down
1. Press swing up and down button continuously more than 2s,the main unit will swing back
and
forth from
up to
down,
and then
loosen
the
button,
the unit will stop
swinging
and present
position of guide louver will be kept immediately.
2. Under swing up and down mode, when the status is switched from off to , if press this
button again 2s later,
status will switch to off status directly; if press this button again
within 2s,the change of swing status will also depend on the circulation sequence stated above.
★
About switch between Fahrenheit and Centigrade
Under status of unit off, press MODE and - buttons simultaneously to switch
℃ and ￠H.
★
About new function of defrosting
It indicates: after starting this function by remote controller and the unit has been under
defrost status, If turn off the unit by remote controller, the unit will not stop defrosting until
it is finished; if change setting mode by remote controller, the function ,which is set last
time, won't be carried out until defrosting finished.
Operation
of this function on or off: If remote
controller
is under off status, press mode button
and
blow button simultaneously
in order to enter or
cancel
this new
function.
If the unit is under
defrost mode, dual eight position on remote controller will display H1.If switch to heat mode,
the position will display H1, which flickers for 5s, in which case, press +/- button, H1 will
disappear and setting temp. be displayed.
After remote controller is powered on, the new defrost function will be defaulted to be closed.
Changing batteries and notices
1.Slightly to press the place with , along the arrowhead direction to push the back cover of wireless
remote control. (As show in figure)
2.
Take out the old batteries. (As show in figure)
3.
Insert two new AAA1.5V dry batteries, and pay attention to the polarity.
(As show in figure)
4. Attach the back cover of wireless remote control. (As show in figure)
★
NOTE:
●
When changing the batteries, do not use the old or different batteries,
otherwise, it can cause the malfunction of the wireless remote control.
●
If the wireless remote control will not be used for a long time, please
take them out, and don't let the leakage liquid damage the wireless
remote control.
●
The operation should be in its receiving range.
●
It should be placed at where is 1m away from the TV set or stereo sound sets.
Fig.1
Fig.2
●
If the wireless remote control can not operate normally, please take them out,
after 30s later and reinsert, if they cannot normally run, please change them.
Sketch map for
changing batteries
10
11
Clean and care
Caution
●
Turn power off and pull out the power plug before cleaning air conditioner, or it may cause electric
shock.
Never sprinkle water on the indoor unit and the outdoor unit for cleaning because it can cause an
electric shock.
●
Volatile liquid (e.g. thinner or gasoline) will damage the air conditioner. (So wipe the units with a
dry soft cloth, or a cloth slightly moistened with water or cleanser.)
●
Clean the front panel
When cleaning the front panel, please dip the cloth into the water temperature of 45℃ below, then to dry
the cloth and wipe the dirty part.
Note: Please do not to immerse the front panel in water, due to there are microcomputer components and
circuit diagrams on the front panel.
Clean the air filter (Recommended once every three months)
NOTE: If dust is much more around the air conditioner, the air filters should be cleaned many times.
After taking off the filter, don't touch the fin of indoor unit, in order to avoid hurt your fingers.
① Take down the air filter
At the slot of surface panel to open an angle, pull the air filter
downward and take it out, please see the Fig. 4(a, b).
(a) (b)
② Clean the air filter
To clean the dust adhering to the filters, you can either
use a vacuum cleaner, or wash them with warm water
the water with the neutral detergent should below 45
degree) ,and dry it in the shade.
NOTE: Never use water above 45
℃
to clean, or it can
cause deformation or discoloration. Never parch it by
fire, or can cause a fire or deformation.
Fig.4
③ Insert the air filter
Reinsert the filters along the direction of arrowhead, and
then to cover the cover and clasp it.
Clean and care
Check before use
① Be sure that nothing obstructs the ai r outlet and intake vents.
②
Check that whether ground wire is properly connected or not.
③ Check that whether the batteries of air conditioner are
changed or not.
④ Check that whether the installation stand of the outdoor
unit is damaged or not. If damaged, please contact the dealer.
Maintain after use
①
Turn main power off.
②
Clean the filter and indoor and outdoor units' bodies.
③
Clear dust and obstructions from the outdoor unit.
④
Repaint the rubiginous place on the outdoor unit to prevent it from spreading.
⑤
Adopt the special shield to cover the outdoor unit, avoid the rain water, dust enter into
12

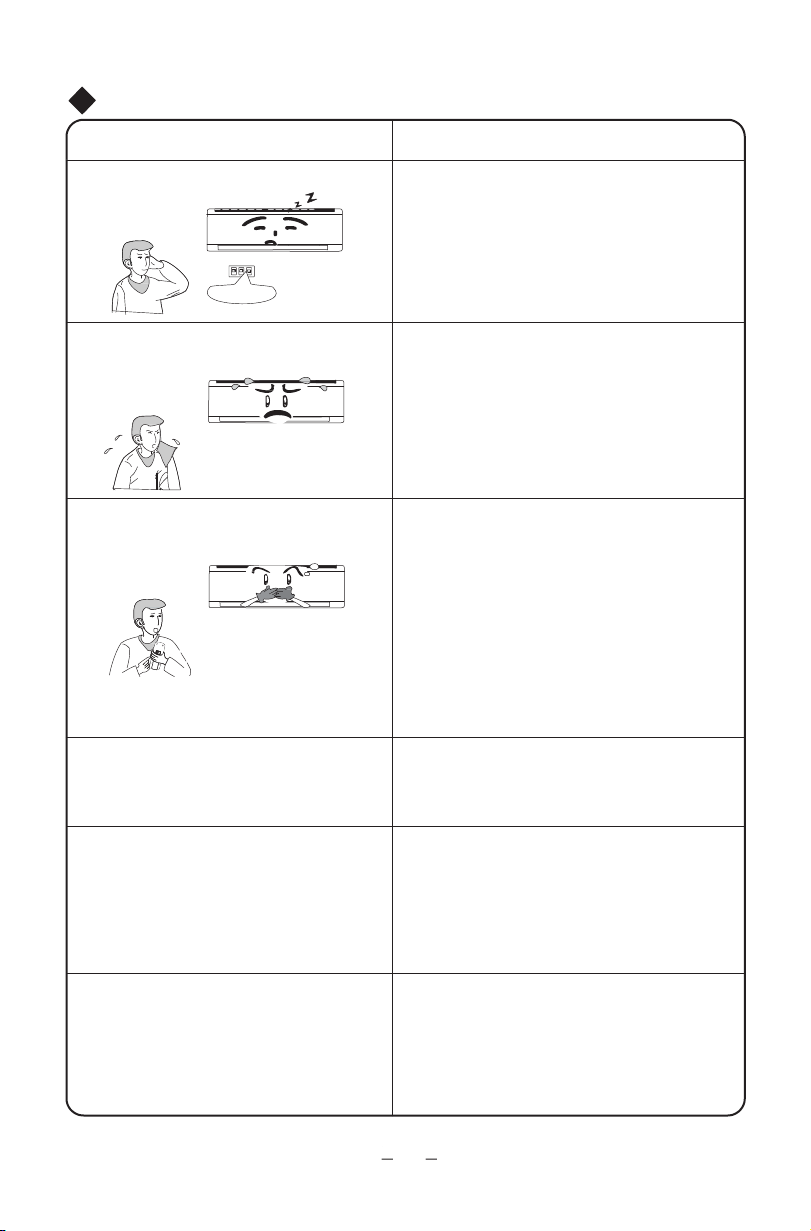

Troubleshooting
CAUTION
Don't attempt to repair the air conditioner by yourself, it can cause an electric shock or
fire. Please check the following items before asking for repair, it can save your time and
money.
not operate in approximately 3minutes to
Waiting
are very high, this phenomenon would
due to the changes of temperature.
13
Phenomenon
Troubleshooting
Not operate immediately when the air
conditioner is restarted.
●
Once the air conditioner is stopped, it will
protect itself.
There's unusual smell blowing from the outlet
after operation is started.
●
The unit has no peculiar smell by itself. If has,
that is due to the smell accumulated in the
ambient.
●
Solution method: Cleaning the filter.
If problem still has, so need to clean air
conditioner. (Please contact with the authorized
maintenance center.)
Sound of water flow can be heard during
the operation.
●
The air conditioner is started, when it is
running the compressor started or stopped
running, or the unit is stopped, sometimes
there is swoosh or gurgle, the sound is due
to refrigerant flowing they are not malfunctions.
In COOL mode, sometimes the mist emitted
from the air outlet vent.
● When the indoor temperature and humidity
happen. This is caused by the room air is
swiftly cooled down. After running for a while,
indoor temperature and humidity will fall
down, the mist will die away.
Creaking noise can be heard when start or
stop the unit.
●
This is caused by the deformation of plastic
Troubleshooting
14
Phenomenon
Troubleshooting
The unit can not run.
Breaking off
●
Has the power been shut down?
●
Is power plug loosed?
●
Is the circuit protection device tripped off or not?
● Is voltage higher or lower?
(Tested by professionals)
●
Is the TIMER correctly used?
Cooling(Heating) efficiency is not good.
● Is Temp. setting suitable?
●
Were inlet and outlet vents obstructed?
●
Is filter dirty?
●
Are the windows and doors clothed?
● Did Fan speed set at low speed?
● Is there any heat sources in the room?
Wireless remote control is not available.
● The unit is interfered by abnormal or frequent
functions switchover occasionally the controller
cannot operate. At this time, you need to pull out
of the plug, and reinsert it.
● Is it in its receiving range? Or obstructed?
To check the voltage in
wireless
remote control inside
is charged, otherwise to replace the batteries.
● Whether the wireless remote control is damaged.
If water leakage in the room.
●
The air humidity is on the high side.
● Condensing water over flowed.
●
The connection position of indoor unit drainage
pipe is loosed.
If water leakage in outdoor unit.
● When the unit is running in COOL mode, the pipe
and connection of pipe would be condensed due
to the water cooled down.
●
When the unit is running in Auto Defrosting mode
the ice thawed and flowed out.
●
When the unit is running in HEAT mode, the water
adhered on heat exchanger dripped off.
Noise from indoor unit emitted.
●
The sound of fan or compressor relay is switching
on or off.
●
When the defrosting is started or stop running,
it will sound. That is due to the refrigerant flowed
to the reverse direction.
Troubleshooting
There is harsh sound during operation.
The terrible odors emitted during operation.
Water is leaking in the room.
Air switch or protection switch often breaks.
Carelessy splash water or something into unit.
There is an abnormal heat in power supply cord
and power plug.
Stop running and pull out of the plug.
15
Immediately stop all operations and plug out, contact
the dealer in following situations.
Phenomenon
Troubleshooting
Indoor unit cannot deliver air.
●
In HEAT mode, when the temperature of indoor
heat exchanger is very low, that will stop deliver
air in order to prevent cool air. (Within 2min)
●
In HEAT mode, when the outdoor temperature is
low or high humidity, there are much frost be
formed on the outdoor heat exchanger, that the
unit will automatically defrost, indoor unit stop
blowing air for 3-12min.
During the defrosting, there is water flowing out
or vapor be produced.
● In dehumidifying mode, sometimes indoor fan will
stop, in order to avoid condensing water be
vaporized again, restrain temperature rising.
Moisture on air outlet vent.
●
If unit is running under the high humidity for
a long time, the moisture will be condensed
on the air outlet grill and drip off.
Loading...
