Cooper Controls EG2 Installation Manual

EG2

Ethernet Gateway

Installation guide

P2

Document 9850-000224-00 EG2

Contents

Location & Mounting 3

Product Overview 4

Connections 5

Setup Instructions 5 - 7

!

WARNING HAZARDOUS VOLT AGES

DISCONNECT FROM SUPPLY

BEFORE REMOVING COVERS

NO USER SERVICEABLE PA RTS INSIDE

SERVICE BY QUALIFIED PERSONNEL ONLY

WARNING

T o reduce the risk of fire or electric shock,

DO NOT expose this device to rain or moisture.

DO NOT energise unless the front cover is in place.

This device must be earthed.

Installation, programming and maintenance must be carried out by qualified personnel.

Cooper Controls cannot accept responsibility for repairs or modifications that are not

competently executed and in accordance with service or upgrade information.

CE compliant to all relevant standards

Introduction

Welcome

The Ethernet Gateway 2 provides connection between an iLight CAN network and an Ethernet
LAN. This allows a user to control and configure the iLight system using iCANsoft on a LAN
network PC rather than by connecting directly into the network.

The EG2 also facilitates connection to the internet when installed behind a firewall. This then
enables remote connection for controlling, programming and obtaining diagnostics of the
lighting control system. A web interface is provided for simple operation of the lighting system.

The EG2 also functions as a smartphone device host allowing control and programming of the
iLight network. Apps are available free of charge for Android and Apple devices.

Facilities are provided to allow a BMS or smart home system to interact with the iLight network.
This is achieved by simple character strings communicated via a UDP or TCP connection.

P3

Document 9850-000224-00 EG2

Installation

Location

The EG2 should be installed in a dry ventilated location, where ambient conditions are
maintained within the requirements of the unit. The unit has ventilation slots on its sides to allow
convection cooling and in no circumstances should these be blocked.

Ambient atmosphere requirements

Temperature: +2°C to +40°C (+36°F to +104°F)
Humidity: 5% to 95% non-condensing
IP Rating: IP20

Dimensions Weight

159mm (w) x 90mm (h) x 58mm (d) 0.25Kg (0.55 lbs)

Mounting

Always mount in well ventilated location Allow
50mm (2”) above and below the unit if trunking
with a depth greater than 50mm (2”) is used.

Basic Schematic

P4

Document 9850-000224-00 EG2

Ethernet LINK
LED on indicates the link
is connected at 100Mb

LED off indicates the link
is connected at 10Mb

Ethernet DATA
LED on indicates that
the Ethernet link is
established

LED flashes off briefly
when Ethernet traffic is
present

SD card DATA
LED flashing indicates
memory card is being
accessed

SD card INPUT
Indicates SD Memory
card location

iCAN DATA
Red flashing LED indicates
traffic being sent and/or
received

Red LED on indicates a
CANbus error

iCAN status
Green flashing LED indicates
normal operation

Product Overview

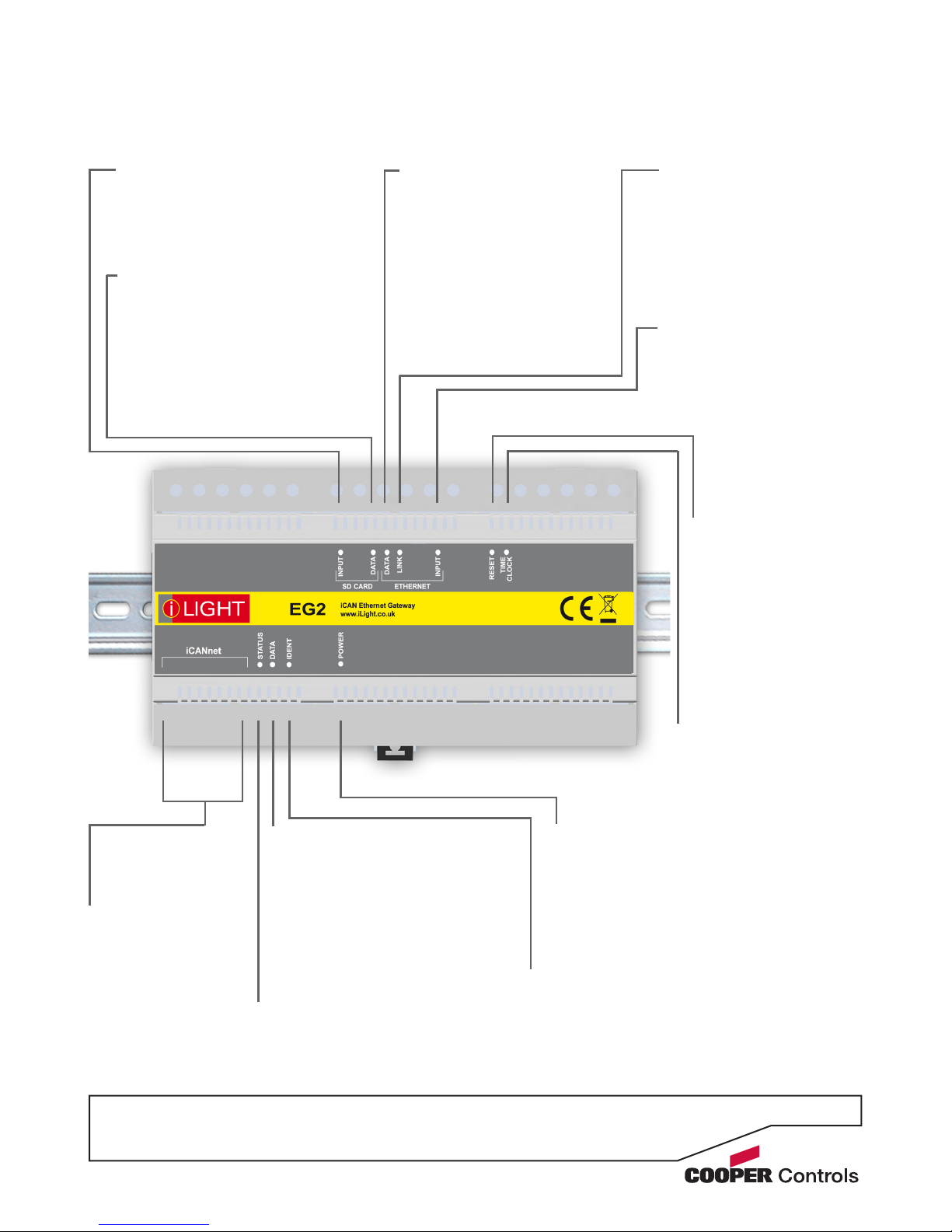

The label on the enclosure identifies the position of the status LEDS, switches & connectors.

iCANnet

iLight network
connection
(See P6 for
wiring details)

TIMECLOCK
N/A - Future use

RESET
Switch that resets
the device. Only
press this on direct
instruction from
Cooper Controls to
avoid data corruption

Ethernet INPUT
Indicates Ethernet
connector location

POWER
The Green Power LED will
double flash continuously
while EG2 is on.

iCAN IDENT
Switch that causes the EG2
to send a message on the
CAN BUS to identify itself

P5

Document 9850-000224-00 EG2

Connections

Connecting the Supply

Power is to be supplied to the EG2 via an external regulated power supply in
the range of 9-36VDC 0.3A

Cooper Controls are able to provide a recommended power supply if required.
Catalogue Number: PSU-15-DIN (15VDC 0.67A)

Wire gauge for supply terminals

Terminal sizes:

iCANnet 5 x 1.5mm²

iCAN Network Connections

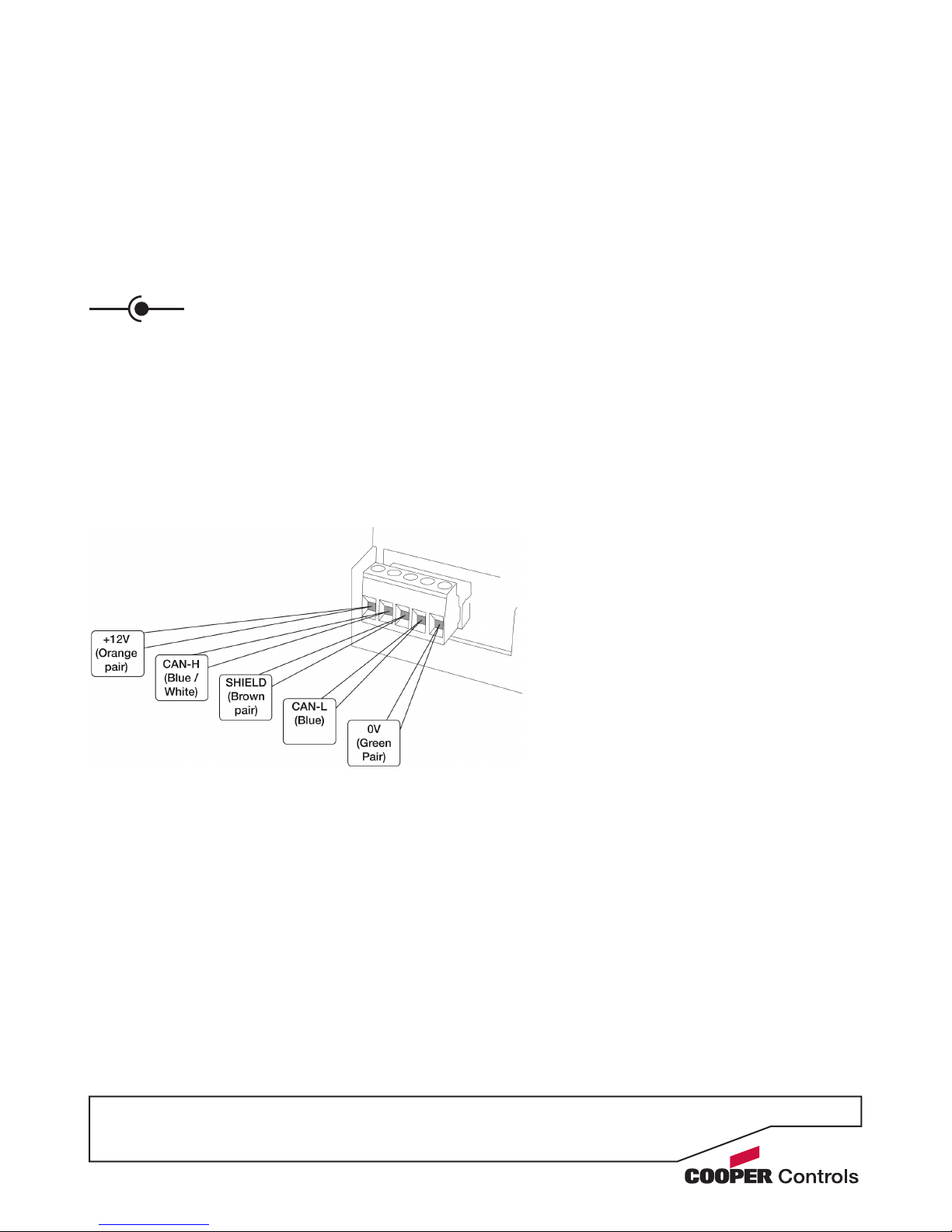

A removable 5 way connector screw
terminal plug is provided for the
connection of iCAN network cables.

The recommended cable to use for
iCANnet is: CAT5 FTP.

-V

+V

Set Up Instructions

iCANnet

Connect the EG2 to the CAN network using the iCANnet connector. If the EG2 is at the
end of a network set the Term link to ON otherwise set to the OFF position.

Ethernet

Ethernet connection by RJ45 (568B). This should be connected to either an Ethernet Switch
or to a Wireless Router.

P6

Document 9850-000224-00 EG2

Set Up Instructions

Configuration

iCAN Device Number

The EG2 is supplied with a iCANnet Device number with Segment number 255 and a
node number in the range 1-255. Both Segment and Node number can be changed using

iCANsoft.

Factory Default IP settings

IP Address 192.168.0.100•
Mask 255.255.255.0•
DHCP Off•

Note the EG2 default settings are to use
a fixed IP address of 192.168.0.100. Any
device used to communicate with the
EG2 will need to be located within the

192.168.0.x subnet.

Power up

The EG2 takes approximately 60 seconds to be ready for use once power is applied.
Wait for the Green CAN LED to flash slowly.
The Green Power LED will double flash continuously while EG2 is on.
If Ethernet is connected the Link and Data LEDs will indicate successful connection.

Setting the IP address

The factory set IP Address can be changed using the iCANnet connection or using a
computer connected directly to the Ethernet port.

Changing with iCANnet

Connect to the iCAN network a computer running iCANsoft using a Cooper Controls PC
Node. Search the network and load the EG2 into iCANsoft.

Go the Ethernet tab. Either the Default settings can be applied or other settings can be applied.
Select OK or Apply to download the changes to the EG2.

P7

Document 9850-000224-00 EG2

Change IP address via the Ethernet port

EG2 is supplied from the factory without DHCP enabled; therefore, it is necessary that the
Ethernet port of the PC is set to the correct IP Address and Subnet Mask. For details of
setting the IP address of your computer consult information on line. This will depend on your
Operating System.

For example:

IP Address 192.168.0.99•
Subnet mask 255.255.255.0•
Gateway 192.168.0.1•

To connect the EG2 directly to the PC, it may be necessary to use a Crossover Cable,
however, most modern computers are able to connect directly to another Ethernet device
without a crossover cable.

The Ethernet port of your computer will need to configured to a compatible IP address.
Open iCANsoft. It will be required to set iCANsoft to communicate using the Ethernet Port.
This is done by selecting from the Tool bar Tools>Options>Network.
Select Ethernet Gateway and change the IP address to 192.168.0.100. Also ensure the ‘Use
Password’ check box is ticked. The detault password is Cooper123 (Case sentitive).

Select OK to confirm and set the
address.

iCANsoft can now be used to configure
any items connected on the network.

Set the IP address of the EG2 as
described in section above for
iCANsoft. The new IP address will
become valid when the EG2 is reset
or power to the device is removed and
re-instated.

Reset to factory defaults

Factory defaults may be reset by the following procedure:

Remove power from the board.
Press the CAN ID button and reapply power. Keep the button pressed until the CAN LED
flashes then stays on. At this point the Ethernet settings will have been restored to defaults.

After setting to factory defaults, the IP address of the device will revert to 192.168.0.100

All products manufactured by Cooper Controls and identied with the iLumin/iLight brand are
warranted to be free from defects in material and workmanship and shall conform to and perform
in accordance with Seller’s written specications.

For detailed warranty information, visit our website at www.coopercontrol.com

This warranty will be limited to the repair or replacement, at Seller’s discretion, of any such goods
found to be defective, upon their authorized return to Seller. This limited warranty does not apply
if the goods have been damaged by accident, abuse, misuse, modication or misapplication, by
damage during shipment or by improper service.

There are no warranties, which extend beyond the hereinabove-limited warranty, INCLUDING,
BUT NOT LIMITED TO, THE IMPLIED WARRANTY OF MERCHANTABILITY AND THE IMPLIED
WARRANTY OF FITNESS.

No employee, agent, dealer, or other person is authorized to give any warranties on behalf of the
Seller or to assume for the Seller any other liability in connection with any of its goods except in
writing and signed by the Seller. The Seller makes no representation that the goods comply with
any present or future federal, state or local regulation or ordinance. Compliance is the Buyer’s
responsibility.

The use of the Seller’s goods should be in accordance with the provision of the National Electrical
Code, UL and/or other industry or military standards that are pertinent to the particular end use.
Installation or use not in accordance with these codes and standards could be hazardous.
