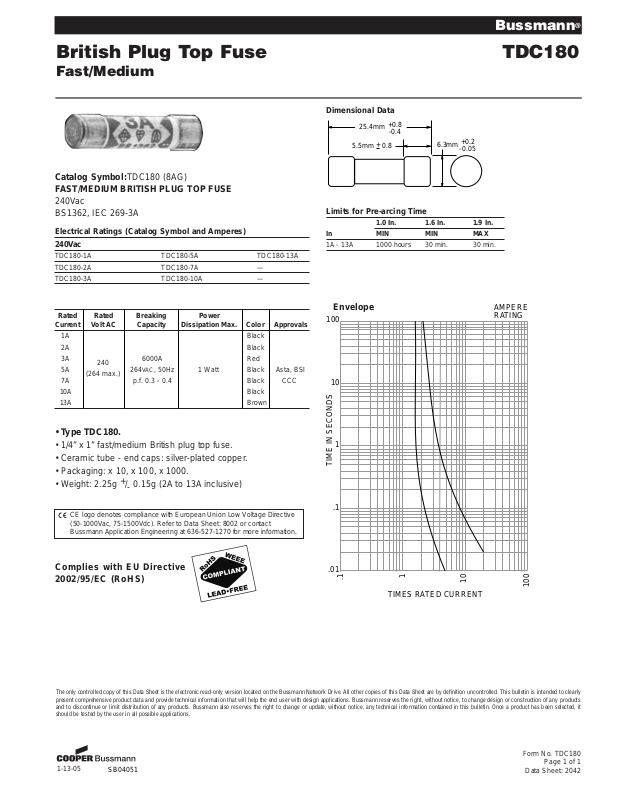

British Plug Top Fuse TDC180
Fast/Medium
Form No. TDC180
Page 1 of 1
Data Sheet: 2042
Bussmann
®
1-13-05
SB04051
Catalog Symbol:TDC180 (8AG)
FAST/MEDIUM BRITISH PLUG TOP FUSE
240Vac
BS1362, IEC 269-3A
The only controlled copy of this Data Sheet is the electronic read-only version located on the Bussmann Network Drive. All other copies of this Data Sheet are by definition uncontrolled. This bulletin is intended to clearly
present comprehensive product data and provide technical information that will help the end user with design applications. Bussmann reserves the right, without notice, to change design or construction of any products
and to discontinue or limit distribution of any products. Bussmann also reserves the right to change or update, without notice, any technical information contained in this bulletin. Once a product has been selected, it
should be tested by the user in all possible applications.
Electrical Ratings (Catalog Symbol and Amperes)
240Vac
TDC180-1A TDC180-5A TDC180-13A
TDC180-2A TDC180-7A —
TDC180-3A TDC180-10A —
Rated Rated Breaking Power
Current Volt AC Capacity Dissipation Max. Color Approvals
1A Black
2A Black
3A
240
6000A Red
5A
(264 max.)
264
VAC, 50Hz 1 Watt Black Asta, BSI
7A p.f. 0.3 - 0.4 Black CCC
10A Black
13A Brown
Dimensional Data
Limits for Pre-arcing Time
1.0 In. 1.6 In. 1.9 In.
In MIN MIN MAX
1A - 13A 1000 hours 30 min. 30 min.
• Type TDC180.
• 1/4” x 1” fast/medium British plug top fuse.
• Ceramic tube - end caps: silver-plated copper.
• Packaging: x 10, x 100, x 1000.
• Weight: 2.25g +/-0.15g (2A to 13A inclusive)
Envelope
CE logo denotes compliance with European Union Low Voltage Directive
(50-1000Vac, 75-1500Vdc). Refer to Data Sheet: 8002 or contact
Bussmann Application Engineering at 636-527-1270 for more information.
Complies with EU Directive
2002/95/EC (RoHS)
+0.8
25.4mm
-0.4
5.5mm + 0.8
6.3mm
+0.2
-0.05
100
10
1
TIME IN SECONDS
.1
.01
.1
1
10
TIMES RATED CURRENT
AMPERE
RATING
100
