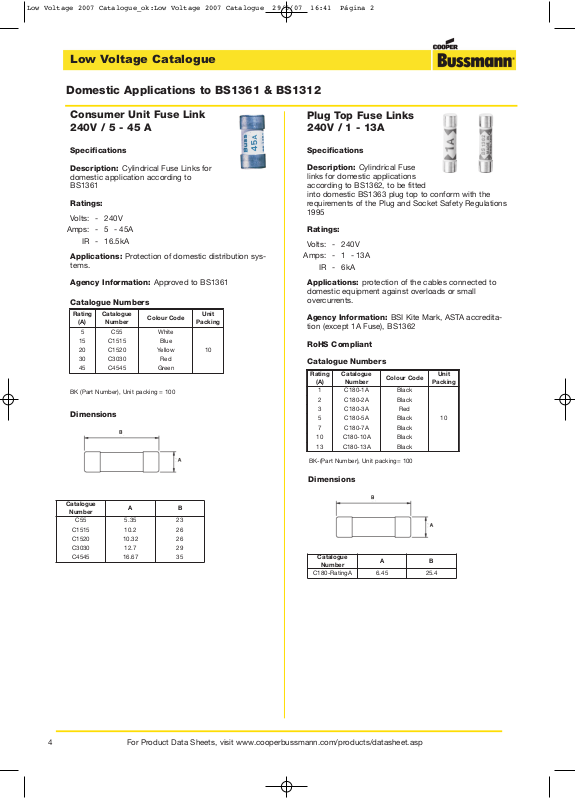

Low Voltage Catalogue
Domestic Applications to BS1361 & BS1312
Consumer Unit Fuse Link
240V / 5 - 45 A
Specifications
Description: Cylindrical Fuse Links for
domestic application according to
BS1361
Ratings:
Volts: - 240V
Amps: - 5 - 45A
IR - 16.5kA
Applications: Protection of domestic distribution systems.
Agency Information: Approved to BS1361
Catalogue Numbers
Rating
BK (Part Number), Unit packing = 100
Dimensions
Catalogue
(A)
15 C1515 Blue
20 C1520 Yellow
30 C3030 Red
45 C4545 Green
Number
5 C55 White
Colour Code
Unit
Packing
10
Plug Top Fuse Links
240V / 1 - 13A
Specifications
Description: Cylindrical Fuse
links for domestic applications
according to BS1362, to be fitted
into domestic BS1363 plug top to conform with the
requirements of the Plug and Socket Safety Regulations
1995
Ratings:
Volts: - 240V
Amps: - 1 - 13A
IR - 6kA
Applications: protection of the cables connected to
domestic equipment against overloads or small
overcurrents.
Agency Information: BSI Kite Mark, ASTA accreditation (except 1A Fuse), BS1362
RoHS Compliant
Catalogue Numbers
Rating
BK-(Part Number), Unit packing= 100
Catalogue
(A)
1 C180-1A Black
2 C180-2A Black
3 C180-3A Red
5 C180-5A Black
7 C180-7A Black
10 C180-10A Black
13 C180-13A Black
Number
Colour Code
Unit
Packing
10
Catalogue
Number
C55 5.35 23
C1515 10.2 26
C1520 10.32 26
C3030 12.7 29
C4545 16.67 35
A B
Dimensions
Catalogue
Number
C180-RatingA 6.45 25.4
A B
4
For Product Data Sheets, visit www.cooperbussmann.com/products/datasheet.asp
Page 2
Low Voltage Catalogue
Industrial & Motor Applications to BS88
Offset Bolted Tags
240 - 550V ac / 2 - 32A
Specifications
Description: Fuse Links for general industrial applications
with Q1 fusing factor - general purpose (gG) and motor
protection (gM) characteristics
Applications: General Industrial & Motors applications
NITD
550V ac (gG) / 2 - 32A
415V ac (gM)
Catalogue Numbers
Rating (A)
2 NITD2
4 NITD4
6 NITD6
10 NITD10
16 NITD16
20 NITD20
25 NITD25
32 NITD32
20M25 NITD20M25
20M32 NITD20M32
32M40 NITD32M40
32M50 NITD32M50
32M63 NITD32M63
Catalogue
Number
Class BS Ref
gG
A1 44 20
gM
Fixing
Centres mm
Unit
Packing
Ratings:
Volts: - 415 - 550V ac
Amps: - 2 - 32A
IR - 80kA @ 415/550V ac
Agency information: Meets BS88: Part 1 & 2 (1988), IEC
269: Parts 1 (1986)
RoHS Compliant
AAO
550V ac / 2 - 32A
Catalogue Numbers
Rating
(A)
2 AAO2
4 AAO4
6 AAO6
10 AAO10
16 AAO16
20 AAO20
25 AAO25
32 AAO32
32M40 AAO32M40
32M63 AAO32M63
Fuseholders: CAMASTER CM32F, see page 19
Catalogue
Number
Class BS Ref
gG
A2 73 20
gM32M50 AAO32M50
Fixing
Centres mm
Unit
Packing
Fuseholders: CAMASTER CM32FC, see page 19
Dimensions
Part
No
NITD
NITD32M 35.6 17.5 1.2 18.5
Data Sheet: 4106
A B C D E F G
55.0 44
Dimensions (mm)
34.6
11.2
13.8 0.8 14.0
Dimensions
Part
No
AAO
AAO32M 54.5 21 22.3
Data Sheet: 4109
A B C D E F G H J
85 73
Dimensions (mm)
35.5 13.7 14
1.2 8.7 8.0 5.5
For Product Data Sheets, visit www.cooperbussmann.com/products/datasheet.asp
5
Page 3
Low Voltage Catalogue
Industrial & Motor Applications to BS88
Offset Bolted Tags (Cont.../...)
240-550V / 32 - 100A
Specifications
Description: Fuse Links for general industrial applications
with Q1 fusing factor - general purpose (gG) and motor
protection (gM) characteristics
Applications: General Industrial & Motors applications
BAO
550V ac / 35-63A
Catalogue Numbers
Rating (A)
35 BAO35
40 BAO40
50 BAO50
63 BAO63
63M80 BAO63M80
63M100 BAO63M100
Catalogue
Number
Class BS Ref
gG
A3 73 20
gM
Fuseholder: CAMASTER CM63F, see page 19
Fixing
Centres mm
Unit
Packing
Ratings:
Volts: - 415 - 550V ac
Amps: - 32 - 100A
IR - 80kA @ 415 / 550V ac
Agency information: Meets BS88: Part 1 & 2 (1988), IEC
269: Parts 1 (1986) and CSA C22.2 No 106-M 1985
RoHS Compliant
CEO
550V ac / 32-100A
415V ac (gM)
Catalogue Numbers
Rating
(A)
32 CEO32
40 CEO40
50 CEO50
63 CEO63
80 CEO80
100 CEO100
100M125 CEO100M125
100M200 CEO100M200
Catalogue
Number
Class BS Ref
gG
A4 94 10
gM100M160 CEO100M160
Fixing
Centres mm
Unit
Packing
Dimensions
Part
No
BAO
BAO63M
Dimensions (mm)
A B C D E F G H J
87 73 54.5 21 22.5 1.2 12.7 8.0 5.5
Dimensions
Part
No
CEO
CEO100M125 &
160
CEO100M200 47.0 31 29.5 19.0 10.0 9.0
A B C D E F G H J
110 94
Dimensions (mm)
21.0 24.5
58.5
25.8 26.8
14.3 11.0 8.7
3.2
Data Sheet: 4112 Data Sheet: 4115
6
For Product Data Sheets, visit www.cooperbussmann.com/products/datasheet.asp
Page 4
Low Voltage Catalogue
Industrial & Motor Applications to BS88
Offset Bolted Tags (Cont.../...)
240 - 550V ac / 80 - 200A
Specifications
Description: Fuse Links for general industrial applications
with Q1 fusing factor - general purpose (gG) and motor
protection (gM) characteristics
Applications: General Industrial & Motors applications
OSD
550V ac (gG) / 80 - 100A
415V ac (gM)
Catalogue Numbers
Rating (A)
80 OSD80
100 OSD100
100M125 OSD100M125
100M160 OSD100M160
Catalogue
Number
Class BS Ref
gG
N/A 73 20
gM
Fuseholders: CAMASTER CM100F, see page 19
Fixing
Centres
mm
Unit
Packing
Ratings:
Volts: - 415 - 550V ac
Amps: - 80 - 200A
IR - 80kA @ 415 / 550V ac
Agency information: Meets BS88: Part 1 & 2 (1988), IEC
269: Parts 1 (1986)
RoHS Compliant
DEO
415V ac / 125 - 200A (gG) (gM)
Catalogue Numbers
Rating (A)
125 DEO125
160 DEO160
200 DEO200
200M250 DEO200M250
200M315 DEO200M315
Catalogue
Number
Class BS Ref
gG
N/A 94 5
gM
Fixing
Centres
mm
Unit
Packing
Dimensions
Part
No
OSD
OSD100M 26.0 25.7
A B C D E F G H J
95.0 73 54.5
Dimensions (mm)
21.0 22.5
1.2 12.7 8.0 5.5
Dimensions
Part
No
DEO
DEO200M
A B C D E F G H J
110 94 47.0 31.0 29.5 3.2 19.0 10.0 9.0
Dimensions (mm)
Data Sheet: 4107 Data Sheet: 4117
For Product Data Sheets, visit www.cooperbussmann.com/products/datasheet.asp
7
Page 5
Low Voltage Catalogue
Industrial & Motor Applications to BS88
Centre Bolted Tags
415 - 550V ac / 2 - 1250A
250 400Vdc
Specifications
Description: Fuse Links for general industrial applications
with Q1 fusing factor - general purpose (gG) and motor
protection (gM) characteristics
Applications: General Industrial & Motors applications
AC / BC
550V ac / 2 - 63A
250 V dc (except gM)
Catalogue Numbers
Type
AC
BC
Dimensions
Rating
(A)
2 AC2
4 AC4
6 AC6
10 AC10
16 AC16
20 AC20
25 AC25
32 AC32
40 BC40
50 BC50
63 BC63
63M80 BC63M80
63M100 BC63M100
Catalogue
Number
Fixing CentresmmUnit
Class
gG
gG
gM
Packing
97.5 20
97.5 20
Ratings:
Volts: - 415 - 550V ac / 250V dc
Amps: - 2 - 1250A
IR - 40kA @ 250V dc GF, GG except 1000 & 1250A
- 40kA @ 400V dc FG, FF
- 80kA @ 415/550V ac
Agency information: Meets BS88: Part 1 & 2 (1988), IEC
269: Parts 1 (1986)
RoHS Compliant
AD / BD / CD / DD / ED
550V ac / 2 - 400A
415V ac (Types gM, DD, ED)
250 V dc (Types AD, BD)
Catalogue Numbers
Type
AD
BD
CD
DD
ED
Rating
100 CD100
100M125 CD100M125
100M160 CD100M160
100M200 CD100M200
125 DD125
160 DD160
200 DD200
200M250 DD200M250
200M315 DD200M315
250 ED250
315 ED315
355 ED355
400 ED400
315M400 ED315M400
400M500 ED400M500*
Catalogue
(A)
2 AD2
4 AD4
6 AD6
10 AD10
16 AD16
20 AD20
25 AD25
32 AD32
40 BD40
63 BD63
80 CD80
Number
Class Ref BS
gG
gG
gG
gM
gG
gM
gG
gM
Fixing CentresmmUnit
N/A 111 20
N/A 111 2050 BD50
B1 111 10
B2 111 5
B3/B4 111 1
Packing
*-550V ac
Part
No
AC 113.5 97.5 55.5 21.0 1.6 12.7 13.5 7.0 11.2
AD 128.5 111 55.0 21.0 1.4 14.2 11.8 8.7 11.2
BC
BC63M
BD 128.5 111 55.0 21.0 1.4 14.2 11.8 8.7 11.2
CD100M125 & CD100M160 26.0 22.0
Data Sheets: AC: 4110 / BC: 4113 / AD: 4111 / BD: 4114 / CD: 4116 / DD: 4118 / ED: 4119
8
CD
CD100M200 136 47.0 31.0 19.0 12.5 2.5
DD
DD200M
ED250
ED315
ED400M500 75.0 59.0
For Product Data Sheets, visit www.cooperbussmann.com/products/datasheet.asp
A B C D E F G H K
113.5 97.5 55.0 21.0 1.6 7.0 13.5 12.7 11.2
126
136 111 47.0 31.0 3.2 19.0 12.5 9.0 22.5
136 111
111
58.5
47.0 31.0
50.0 38.0
21.0
Dimensions
3.2
4.7
14.3 11.1
19.0
25.4 31.0ED315M4009.0
12.5 9.0
8.7
19.5
22.5
Page 6
Low Voltage Catalogue
Industrial & Motor Applications to BS88
Centre Bolted Tags (Cont.../...)
415 - 550Vac / 2 - 1250A
250 - 400Vdc
Specifications
Description: Fuse Links for general industrial applications
with Q1 fusing factor - general purpose (gG) and motor
protection (gM) characteristics
Applications: General Industrial & Motors applications
EFS / EF / FF / GF
415V ac / 125 - 800A
550V ac
(Types EF - gM, FF, FG, GF)
250V dc (Type GF)
Catalogue Numbers
Rating
Type
EFS
EF
400M500 EF400M500 gM
FF
GF
Catalogue
(A)
125 EFS125
160 EFS160
200 EFS200
250 EFS250
315 EFS315 133/184
355 EF355
400 EF400
450 FF400
500 FF500
560 FF560
630 FF630
710 GF710
800 GF800
1000 GF1000
1250 GF1250
Number
RefBSFixing
Class
gG N/A
gG
gG C2 133/184 1
gG C3 133/184 1
Centres mm
133
C1 133/184 1
Unit
Packing
1
Interrupting
Rating
80kA @
415 Vac
80kA @
415 Vac
80kA @
415 Vac
40kA @
400Vdc
80kA @
550Vac
40kA @
250Vdc
Ratings:
Volts: - 415 - 550V ac / 250V dc
Amps: - 2 - 1250A
IR - 40kA @ 250V dc GF, GG except 1000 & 1250A
- 40kA @ 400V dc FG, FF
- 80kA @ 415/550V ac
Agency information: Meets BS88: Part 1 & 2 (1988), IEC
269: Parts 1 (1986)
RoHS Compliant
FG / GG / GH
550V ac / 450 - 1250A
250V dc
(Type GG 710-800A only)
400V dc (Type FG)
Catalogue Numbers
Rating
Type
FG
GG
GH
Dimensions
Catalogue
(A)
Number
450 FG450
500 FG500
560 FG560
630 FG630
710 GG710
800 GG800
1000 GG1000
1250 GG1250
710 GH710
800 GH800
1000 GH1000
1250 GH1250
Class
Fixing
Centres mm
gG 167/231 1
165/231
gG
165/228.5
gG 149 1
Unit
Packing
1
Interrupting
Rating
80kA @ 550Vac
40ka @ 400vdc
80kA @ 550Vdc
40kA @ 250Vdc
80kA @ 550Vdc
No DC Rating
80kA @ 550Vac
Dimensions
Part No
EFS315
EF400M500 210 184 75.0 15.5 59.0
FF 210 184 77.5 10.5 15.5 25.4 133 74.0 6.4
FG 262 231 77.5 10.5 15.5 38.0 167 74 6.4
GF 210 184 80.5 10.5 15.5 25.4 133 83.0 9.5
Data Sheets: EFS: 4121 / EF: 4120 / FF: 4102 / GF: 4103
A B C D E F G H J
209 184 50.0
Dimensions (mm)
12.5
10.5
25.4 133
38.0
For Product Data Sheets, visit www.cooperbussmann.com/products/datasheet.asp
Part No
FG
GF
GG710 & 800
GG1000 & 1250
4.7EF355 & 400
Part No
GH710 & 800
GH1000 & 1250
Data Sheets: FG: 4122 / GG: 4104 / GH: 4108
A B C D E F G H J
262 231 77.5 10.5 15.5 38.0 167 74 6.4
210 184 80.5 10.5 15.5 25.4 133 83.0 9.5
231 77.5
262
228.5 84.0 100 12.7
A B C D E F G H J
198 149 81.0 32.0 63.5 19.0 14.0 9.5
Dimensions (mm)
10.5 15.5 38.0 165
Dimensions (mm)
83.0 6.4
83.0
100
9
Page 7
Low Voltage Catalogue
Industrial & Motor Applications to BS88
Offset Blade Tags
240 - 550V / 2 - 63A
Specifications
Description: Fuse Links for general
industrial applications with Q1 fusing factor
- general purpose (gG) and motor
protection (gM) characteristics.
Ratings:
Volts: - 240V ac (SSD)
- 415V ac (NSD gM) / ESD gG (40 - 63A)
- 550V ac (NSD gG) / ESD gG (2 - 32A)
Amps: - 2 - 63A
IR - 33kA @ 240V ac
- 80kA @ 500V ac
Applications: General Industrial and Motors
applications
Agency Information: Meets BS88: Part 6, 1988 and
IEC 269: Parts 1, 1986
RoHS Compliant
Dimensions
Catalogue Numbers
Rating (A)
2 SSD2
4 SSD4
6 SSD6
10 SSD10
16 SSD16
20 SSD20
32 SSD32
Rating (A)
2 NSD2
4 NSD4
6 NSD6
10 NSD10
16 NSD16
20 NSD20
32 NSD32
20M25 NSD20M25
20M32 NSD20M32
20M36 NSD20M36
32M36 NSD32M36
32M40 NSD32M40
32M50 NSD32M50
32M63 NSD32M63
Catalogue
Number
Catalogue
Number
Class
gG E1 N/A 20
Class
gR
gM
BS
Reference
BS
Reference
F1
Fuseholder
Fuseholder
SAFELOC
32NNSF
Packing
Packing
Unit
Unit
20
Part No
SSD 23.0 12.0 47.0 13.0 0.8 3.2
NSD &
NSD20M
NSD20M36 &
NSD32M
ESD - 32A
ESD63M 21.0
A B D E F N
34.5
35.5
Dimensions (mm)
13.8
58.5 12.7 0.8 3.5
17.5
13.8
68.0 15.0 1.2 3.5ESD40 - 63A 17.5
Rating (A)
2 ESD2
4 ESD4
6 ESD6
10 ESD10
16 ESD16
20 ESD20
32 ESD32
40 ESD40
50 ESD50
63 ESD63
63M80 ESD63M80
63M100 ESD63M100
Catalogue
Number
Class
gG
gM
BS
Reference
F2
Fuse Holder
SAFELOC
63ENSF
Unit
Packing
20
Data Sheet SSD: 4105
Data Sheet NSD; 4100
10
For Product Data Sheets, visit www.cooperbussmann.com/products/datasheet.asp
Page 8
Low Voltage Catalogue
Point of Sale Stand
Merchandising Stand
Specifications
Description: Merchandising stand with
BS88 fuses packed in packs of 3’s or 10’s
Stand dimensions: 1.88 Metre tall x
0.91 Metre wide x 0.51 Metre deep*
(including hooks)
Please note this stand is for the UK market only
Catalogue Numbers
Part
Number
M-AAO10 10A 550V BS88 Fuse 3 30
M-AAO16 16A 550V BS88 Fuse 3 30
M-AAO20 20A 550V BS88 Fuse 3 30
M-AAO25 25A 550V BS88 Fuse 3 30
M-AAO32 32A 550V BS88 Fuse 3 30
M-BAO40 40A 550V BS88 Fuse 3 30
M-BAO50 50A 550V BS88 Fuse 3 30
M-BAO63 63A 550V BS88 Fuse 3 30
M-CD100 100A 550V BS88 Fuse 3 30
M-CEO80 80A 550V BS88 Fuse 3 30
M-CEO100 100A 550V BS88 Fuse 3 30
M-NITD2 2A 550V BS88 Fuse 3 30
M-NITD10 10A 550V BS88 Fuse 3 30
M-NITD16 16A 550V BS88 Fuse 3 30
M-NITD20 20A 550V BS88 Fuse 3 30
M-NITD32 32A 550V BS88 Fuse 3 30
M-C180-3A 3A BS1362 Fuse 10 100
M-C180-5A 5A BS1362 Fuse 10 100
M-C180-13A 13A BS1362 Fuse 10 100
M-NSD4 4A 550V BS88 Fuse 3 30
M-NSD6 6A 550V BS88 Fuse 3 30
M-NSD10 10A 550V BS88 Fuse 3 30
M-NSD16 16A 550V BS88 Fuse 3 30
M-NSD20 20A 550V BS88 Fuse 3 30
M-NSD32 32A 550V BS88 Fuse 3 30
M-NITD6 6A 550V BS88 Fuse 3 30
M-STD6 6A 240V BS88 Fuse 3 30
M-STD10 10A 240V BS88 Fuse 3 30
M-32NNSF 32A Safeloc Fuseholder 1 5
M-63ENSF 63A Safeloc Fuseholder 1 5
M-CM20F 20A Camaster Fuseholder 1 5
M-CM32FC
M-CM32F 32A Camaster Fuseholder 1 5
M-CM63F 63A Camaster Fuseholder 1 5
M-CM100F 100A Camaster Fuseholder 1 5
Part Description
32A Camaster Fuseholder
Compact
Pack Qty
(Nb of fuses per
pack)
1 5
Outer box Qty
(MOQ)
For Product Data Sheets, visit www.cooperbussmann.com/products/datasheet.asp
11
Page 9
Low Voltage Catalogue
Industrial Applications to BS88 - 500Vdc
Special DC Range
Offset/Centre Bolted Tag
500Vdc / 10 - 63A
Specifications
Description: Fuse links for industrial DC
applications available in offset and centre
bolted tags
Ratings:
Volts: - 500V dc
Amps: - 10 - 63A
IR - 40kA @ 500V dc
Applications: Protection of DC electrical circuits
Agency information: ASTA approved to BS88 part 2
RoHS Compliant
Dimensions
Catalogue Numbers
Offset
Rating
(A)
10 10HS07 - 10KS09
16 16HS07 - 16KS09
20 20HS07 - 20KS09
25 25HS07 - 25KS09
32 32HS07 - 32KS09
40 40KS07 40KS08 40KS09
50 50KS07 50KS08 50KS09
63 63KS07 63KS08 63KS09
Bolted
73mm 98mm 111mm
Center fixings
Centre Bolted
Unit
Packing
20
Part No
HS07 86.0
KS07 91.0 27.0 1.2 13.0 10.5
Part No
KS08 113.0 98
KS09 138.0 111 14.5 15.0 8.0
A B C D F G H J
73 54.0
A B C D E F G H
Dimensions (mm)
22.0 0.8 9.2 8.0
Dimensions (mm)
56.0 27.0 2.5
13.0 13.0 5.0
5.0
Data Sheet: E5785017
12
For Product Data Sheets, visit www.cooperbussmann.com/products/datasheet.asp
Page 10
Low Voltage Catalogue
Industrial Applications to BS88 - 660/690V
Offset Bolted Tags
660-690V / 2 - 200A
Specifications
Description: Fuse links for industrial
applications at 660/690V that meets
dimensional and performance
requirements of BS88 and IEC 269-1-2
standards
Ratings:
Volts: - 660 / 690V ac
- 250V dc (2 - 63A)
- 400V dc (80 - 200A)
Amps: - 2 - 200A
IR - 80kA @ 660V ac
- 40kA @ 400V dc
Applications: Protection of large industrial installations
at 600/690Vac
Agency information: Meets BS88: Part 1 & 2 and IEC
269: Parts 1 & 2
RoHS Compliant
Catalogue Numbers
Rating
(A)
2 2H07-660
4 4H07-660
6 6H07-660
10 10H07-660
16 16H07-660
20 20H07-660
25 25H07-660
32 32H07-660
40 40K07-660
50 50K07-660
63 63K07-660
80 80L14-660
100 100L14-660
125 125M14-660
200 200M14-660
Catalogue
Number
BS
Reference
A2 20 CM32F
A3 20
A4 10 N/A
N/A 5 N/A160 160M14-660
Unit
Packing
CAMaster
fuseholder
CM63F
CM100F
Part No
Dimensions (mm)
A B C D E F G H J
H07-660 82.3 73 52.0 22.0 22.4 11.5 8.7 7.7 5.4
K07-660 86.0 73 54.2 25.8 26.9 14.0 12.7 10.5 5.5
L14-660 111.0 94 67.0 35.5 37.0 19.2 19.0 10.3 8.7
M14-660 112.0 94 66.0 38.0 38.0 19.0 19.0 10.0 8.5
Data Sheet H07: 4150
Data Sheet K07: 4151
Data Sheet L14: 4152
Data Sheet M14: 4153
For Product Data Sheets, visit www.cooperbussmann.com/products/datasheet.asp
13
Page 11
Low Voltage Catalogue
Industrial Applications to BS88 - 660/690V
Centre Bolted Tags
660 - 690V ac / 2 - 630A
250 - 400V dc
Specifications
Description: Fuse Links for industrial
applications at 660/690V that meets
dimensional and performance
requirements of BS88 and IEC 269-1-2
standards.
Ratings:
Volts: - 660 / 690V ac
- 250V dc (2 - 63A) (K08, K09)
400V dc (80 - 630A) (L09, M09, N09,
P09, N11, P11, P12, R11, R12)
Amps: - 2 - 630A
IR - 80kA @ 660V ac
- 40kA @ 250V dc/400V dc
Applications: Protection of large industrial installations
at 660/690Vac
Agency Information: Meets BS88: Part 1 & 2 and IEC
269: Parts 1 & 2
RoHS Compliant
Dimensions
Part
No
K08-660 2-32A
K08-660
40-63A
K09-660 2-32A
K09-660
40-63A
A B C D E F G H
111.0 92.5 53.7 22.0
111.5 93.0 54.2 25.0
127.0 111 53.7 22.0
128.0 111 54.2 25.0
Dimensions (mm)
2.4 12.7 13.0 7.5
2.4 14.0 15.2 8.7
Catalogue Numbers
Rating
Catalogue
(A)
Number
2 2K08-660
4 4K08-660
6 6K08-660
10 10K08-660
16 16K08-660
20 20K08-660
32 32K08-660
40 40K08-660
50 50K08-660
63 63K08-660
2 2K09-660
4 4K09-660
6 6K09-660
10 10K09-660
16 16K09-660
20 20K09-660
32 32K09-660
40 40K09-660
50 50K09-660
63 63K09-660
80 80L09-660
100 100L09-660
125 125M09-660
200 200M09-660
250 250N09-600
315 315N09-660
355 355P09-660
400 400P09-660
125 125N11-660
160 160N11-660
200 200N11-660
250 250N11-660
315 315N11-660
355 355P11-660
400 400P11-660
450 450R11-660
500 500R11-660
560 560R11-660
630 630R11-660
355 355P12-660
400 400P12-660
450 450R12-660
500 500R12-660
560 560R12-660
630 630R12-660
Referenc
BS
e
N/A 93 20
N/A
B1
B2160 160M09-660
B3
B4
N/A 133 1
C1 133/184 1
C2 133/184 1
N/A 167/231 1
Fixing
Centres
(mm)
111 20
Unit
Packing
Part No
Part
No
L09-660
M09-660
N09-660
P09-660
N11-660 162.0 133 73.0 49.0 3.2 25.4 15.8 10.5
Data Sheets: K08: 415 / L09: 4156 / M09: 4157 / N09: 4158 / P09: 4159 / N11: 4160 / P11: 4161 / R11: 4162 / R12: 4162
A B C D E F G H
136.0 111 65.5 35.5 3.2 19.0 15.1 8.7
135.0 111 65.0 37.0 3.2 19.0 15.0 8.7
135.0 111 73.0 49.0 3.2 25.4 12.7 9.5
135.5 111 75.0 58.5 4.7 25.4 12.7 9.5
14
Dimensions (mm)
For Product Data Sheets, visit www.cooperbussmann.com/products/datasheet.asp
P11-660
P12-660
R11-660
R12-660
A B C D E F G H J
212.0 184 133
262.0 231 167
210.0 184 133
262.0 231 167
Dimensions (mm)
75.0 25.4 16.0 10.0 59.0 5.0
76.0 26.0 16.0 10.0 74.0 6.5
Page 12
Low Voltage Catalogue
Industrial Applications to BS88 - 660/690V
Special Tag Arrangements
660 - 690V / 125 - 800A
Specifications
Description: Fuse Links for industrial
applications at 660/690V that meets
dimensional and performance requirements of BS88 and IEC 269-1-2 standards.
Ratings:
Volts: - 660 / 690V ac (except S20 type - 550V ac)
- 400V dc (except S20 type)
Amps: - 125 - 800A
IR - 80kA @ 660V ac
- 40kA @ 400V (except S20 type)
Applications: Protection of large industrial installations
at 600 / 690Vac
Agency Information: BS88 part 1 section 2-1 & 2-2
RoHS Compliant
Dimensions
Offset Bolted Tag
Catalogue Numbers
Tag Types Rating (A)
125 125M13
160 160M13
200 200M13
Offset Bolted
Ta g
Centre Bolted
Ta g
Special Offset
Ta g
250 250M13
315 315M13
125 125M23
200 200M23
250 250N15
315 315N15
250 250N34
315 315N34
355 355P35
400 400P35
450 450R40
500 500R40
125 125N20
160 160N20
200 200N20
250 250N20
315 315N20
355 355P20
400 400P20
450 450R20
500 500R20
560 560R20
630 630R20
710 710S20
800 800S20
Catalogue
Number
Fixing Centres
(mm)
99 5
231 1160 160M23
100 1
113 1
133/184 1
133/184
92.5 1
92.5 1
94 1
94 1
Unit Packing
1
Centre Bolted Tag
Part
No
A B C D E F G H J
M13 120.0 99.0 70.0
M23 262.0 231.0 167.0 38.5 19.0 14.0
N15 120.0 100.0 79.0 49.0 41.0 16.5 15.0 9.8
Special Tag Arrangement
Part
No
A B C D E F G H J
N20 110.0
P20 111.0 76.0 47.0 59.0
R20 112.0
S20 112.0 77.0 66.0 83.0
Data Sheets: M13 & M23: 4153 / N15: 4164 / N34: 4165 / P35: 4161 / R40: 4162 / N20: 4166 / P20: 4167 / R20: 4168 / S20: E5785045
92.0
94.0
Dimensions (mm)
27.0 8.0
38.0
Dimensions (mm)
75.0
22.0 44.5 8.8
77.0 62.0 74.0
12.0
26.0
49.0 49.0
8.7
6.4
Part
No
A B C D E F G H
N34 135.0 111 74.5 66.5 5.0 25.4 12.5 9.5
Part
No
A B C D E F G H J
P35
210.0 184 133
R40 81.0 74.0 9.5
Dimensions (mm)
Dimensions (mm)
75.0
19.0 16.0 10.0
59.0 5.0
For Product Data Sheets, visit www.cooperbussmann.com/products/datasheet.asp
15
Page 13
Low Voltage Catalogue
Street Lighting Applications to BS88
Offset Bolted Tags
240 - 550V / 2 - 32A
Specifications
Description: Fuse Links for general street lighting
applications with Q1 fusing factor - general purpose (gG)
Applications: Street lighting applications
SMD
415V ac (gG) / 2 - 32A
Catalogue Numbers
Rating (A)
2 SMD2
4 SMD4
6 SMD6
10 SMD10
16 SMD16
20 SMD20
25 SMD25
32 SMD32
Part
Reference
Unit
Packing
20
Ratings:
Volts: - 240 - 415V ac
Amps: - 2 - 32A
IR - 33kA @ 240V ac (STD)
- 80kA @ 415 / 550V ac (SMD)
Agency information: Meets BS88: Part 1 & 2 (1988), IEC
269: Parts 1 (1986)
RoHS Compliant
STD
240V ac /2 - 32A
Catalogue Numbers
Rating
(A)
2 STD2
4 STD4
6 STD6
10 STD10
16 STD16
20 STD20
25 STD25
32 STD32
Part
Reference
Unit
Packing
20
Dimensions
Part
No
SMD 29.0 - - 12.7
Dimensions (mm)
A B C D
Dimensions
Part
No
STD 47.0 35 24.0 11.0 4.7 12.0 0.8 13.0
A B C D E F G H
Dimensions (mm)
16
Data Sheet: 4123
For Product Data Sheets, visit www.cooperbussmann.com/products/datasheet.asp
Page 14
Low Voltage Catalogue
Utility Applications to BS88
House Service Cut-Out Fuse Links
415V / 5 - 100A
Specifications
Description: Cylindrical Fuse Links for
electrical utilities to BS Standard
Ratings:
Volts: - 415V
Amps: - 5 - 100A
IR - 33kA @ 415V
Applications: Fuses to use in connection with House
Service cut-outs.
Agency Information: ASTA certified and tested in
accordance to BS 1361
RoHS Compliant
Catalogue Numbers
Rating
(A)
5 5KR85 -
10 10KR85 -
15 15KR85 -
20 20KR85 -
25 25KR85 -
30 30KR85 30LR85
40 40KR85 40LR85
45 45KR85 -
50 50KR85 50LR85
60 60KR85 60LR85
70 70KR85 -
80 80KR85 80LR85
90 90KR85 -
100 100KR85 100LR85
Dimensions
Catalogue Number
Unit PackingDiameter
22mm 30mm
20
J Type Fuse Links to BS88: Part 5
Cylindrical Type
415V / 20 - 250A
Specifications
Description: Cylindrical type
fuses designed for use with
wedge type fuse carriers on
BS applications
Ratings:
Volts: - 415V
Amps: - 20 - 250A
IR - 80kA @ 415V
Applications: For use by Electrical Authorities in distribution pillars, open type substation boards, heavy
duty cut-outs, and underground connection boxes.
Cylindrical type to be used in pole or wall mounted
outdoor service fuse units.
Agency information: ASTA certifed and tested to
BS88: Part 5
RoHS Compliant
Catalogue Numbers:
Rating
(A)
20 20MJ25-6
32 32MJ25-6
40 40MJ25-6
63 63MJ25-6
80 80MJ25-6
100 100MJ25-6
125 125MJ25-6
160 160MJ25-6
200 200MJ25-6
250 250MJ25-6
Catalogue Number
Unit
Packing
20
KR85 Type
LR85 Type
Data Sheet KR85: 4185
Data Sheet LR85: 4186
For Product Data Sheets, visit www.cooperbussmann.com/products/datasheet.asp
Dimensions
Data Sheet: 4177
17
Page 15
Low Voltage Catalogue
Utility Applications to BS88
J Type Fuse Links to BS88: Part 5
Slotted/Non Slotted Types
415V / 20 - 800A
Specifications
Description: Slotted type fuses
designed for use with wedge type fuse
carriers on BS applications
Ratings:
Volts: - 415V
Amps: - 20 - 630A (Slotted Type)
800A (Non Slotted Type)
IR - 80kA @ 415V
Applications: For use by Electrical Authorities in distribution pillars, open type substation boards, heavy duty
cut-outs, and underground connection boxes.
Agency information: ASTA certified and tested BS88:
Part 5
RoHS Compliant
Dimensions
Catalogue Numbers
Rating
(A)
20 - - 20MJ31-8 -
25 - - 25MJ31-8 -
32 - 32MJ30-8 32MJ31-8 -
40 - 40MJ30-8 40MJ31-8 -
50 - 50MJ30-8 50MJ31-8 -
63 63MJ29-6 63MJ30-8 63MJ31-8 -
80 80MJ29-6 80MJ30-7 80MJ31-7 -
100 100MJ29-6 100MJ30-7 100MJ31-7 -
125 - 125MJ30-7 125MJ31-7 -
160 160MJ29-6 160MJ30-7 160MJ31-7 -
200 200MJ29-6 200MJ30-7 200MJ31-7 -
250 250MJ29-6 250MJ30-7 250MJ31-7 -
315 - 315MJ30-7 315MJ31-7 -
355 - 355PJ30-7 355PJ31-7 -
400 - 400PJ30-7 400PJ31-7 -
450 - - 450RJ31-7 -
500 - - 500RJ31-7 -
560 - - 560SJ31-6 -
630 - - 630SJ31-6 -
800 - - 800SJ28
76mm 82mm 92mm
Slotted
Fixing Center
Non
Slotted
Unit
Packing
10
Type A B C D E F G H I J K
MJ30-8 110 82 45.2 40.5 30 14.8 17.5 9.8 30.9 2.4 6.45/6.53
MJ30-7 (Up to 200A) 110 82 45.2 40.5 30 14.8 17.5 9.8 30.9 2.4 6.45/6.53
MJ30-7 (315-400A) 110 82 44.8 40 30 14.4 17.5 9.8 38 2.4 6.45/6.53
MJ31-7 (Up to 200A) 131 92 46.8 40.5 41 17.4 20.7 10.9 30.8 3.2 8.05/8.73
MJ31-7 (315-400A) 131 92 46.4 40 41 17.4 20.7 10.2 38.1 3.2 8.05/8.73
PJ30-7 110 82 44.8 40 30 14.4 17.5 9.8 38 2.4 6.45/6.53
PJ31-7 131 92 46.4 40 41 17.4 20.7 10.2 38.1 3.2 8.05/8.73
RJ31-7 131 92 45 38 16.5 15.5 10.9 49.1 3.2 8.05/8.73
SJ31-6 128.5 92 44.5 38.1 16.5 20.6 11 73.3 3.2 8.05/8.73
SJ28 128.5 92 44.5 38.1 16.5 20.5 73.3 3.2 8.05/8.73
Slotted Type (MJ31-7 up to 200A)
Data Sheets: MJ30-8: 4178A / MJ30-7: 4178B / MJ31-7 or 8: 4180 / PJ31: 4181 / RJ: 4182 / SJ: 4183
18
For Product Data Sheets, visit www.cooperbussmann.com/products/datasheet.asp
Page 16
Low Voltage Catalogue
Joint NATO Reference System
Cylindrical/Offset Bolted Tag
440V / 0.25 - 150A
Specifications
Description: Cylindrical Fuse links
originally developped for the Admiralty but
are now used in a wide variety of applications
Ratings:
Volts: - 440V
Amps: - 0.25 - 100A (Cylindrical)
- 0.5 - 150A (Offset Bolted Tag)
IR - 33kA @ 440Vac
Applications: defence, aeronautical, allied industries,
electronics
Agency information: Defence standard 59-96
(superceding DEF 63). Tested to BS88 at 440V/33kA
RoHS Compliant
Dimensions
Cylindrical
Catalogue Numbers
Rating
Size
0
1
2
3
(A)
0.25 059-0107
0.5 059-0108
1 059-0109
2 059-0110
3 059-0111
5 059-0112
7 059-0113
10 059-9925
15 059-9926
0.5 059-0140 059-0114
1 059-0141 059-0115
2 059-0142 059-0116
3 059-0143 059-0117
5 059-0144 059-0118
7 059-0145 059-0119
10 059-0146 059-0120
15 059-0147 059-0121
20 011-9483 011-9679
30 012-0140
10 059-0148 059-0122
15 059-0149 059-0123
20 059-0150 059-0124
30 059-0151 059-0125
40 059-0067
50 011-9127
60 012-0141
40 059-0152 059-0126
50 059-0153 059-0127
80 059-0154 059-0128
100 059-0155 059-0129
125 011-9128
160 011-9129
Cylindrical Offset Bolted
Unit
Packing
N/A 100
25
25
25
Size A D B
0 32.05 6.37 5.55
1 33.6 11.86 7.14
2 37.6 16.7 8.71
3 47.9 33.3 11.9
Offset Bolted Tag
Size A B C D
1 56.03 44.65 33.9 11.96
2 70.7 55.84 37.4 16.7
3 88.6 69.77 47.4 33.3
Data Sheets: size 0: 4188/ size 1: 4189 / size 2: 4190 / size 3: 4191
For Product Data Sheets, visit www.cooperbussmann.com/products/datasheet.asp
19
Page 17
Low Voltage Catalogue
BS88 Fuseholders
CM
ASTER HRC Fuseholder
CAM
690V ac / 20 - 400A
Specifications
Description: Fully shrouded fuse bases
with unique cam action system for BS88
Fuse link applications.
Ratings:
Volts: - 660V ac
Amps: - 20, 32 (Compact) 32, 63 and 100A
Applications: Lighting and heating equipment,
circuit protection, Motor protection, Control equipment
circuit protection
Agency Information: CE Compliance to BS88, EN IEC
60269. For UL and CSA approved versions also available,consult Cooper Bussmann
RoHS Compliant
Dimensions
®
Catalogue Numbers
Rating
(A)
20 CM20F NITD 10
32 CM32FC NITD 10
32 CM32F AAO 10
63 CM63F BAO 10
100 CM100F OSD 5
200*
400* 400EF ED
* 200A & 400A do not have the CAM action
Catalogue
Number
200DF
200DFBS
Front/Back
200DBS
Back/Back
Recommended
Fuse Link
DD
Unit
Packing
Accesories Numbers
Accessory Rating (A) Catalogue No
Back Stud
Ganging Links GLP 1 set
Neon Indicator 90-415V ac NI 3
Lockable Safety
Carriers
Neutral Links
Security Clip CMSC 20
32
32
63/100
32
32
63/100
32BSC
32BS
63/100BS
32LSCC
32LSC
63/100LSC
32CMLC
32CML
63/100CML
Packing
Unit
10
10
5
3
3
3
1
Max
cable
Cat. No
CM20F 16 25.4 93.7 60 3.2 17.5 66.0 58.0 28.6 11.9 M6
CM32FC 16 25.4 93.7 60 3.2 17.5 66.0 58.0 28.6 11.9 M6
CM32F 16 31.8 117.5 60 3.2 17.5 66.0 74.0 28.6 11.9 M6
CM63F 70 35.6 125 60 4.75 16.4 86.5 81.0 28.6 11.9 M8
CM100F 70 35.6 125 60 4.75 16.4 86.5 81.0 28.6 11.9 M8
200DF 95 70 193 149 17.5 35.6 8 138 30 24 M12
400EF 240 98.4 254 192.1 31.8 36.5 - - - - -
2
mm
A B C D E F G H J K
Dimensions (mm)
Notes:
1 - Type CM32FC is also available rated at 20A,
catalogue number CM20F
2 - For colours other than Black (standard) add the
appropriate letter code: W = White; G = Green,
GY = Grey
3 - Care must be taken when fitting solid single or
stranded cables of small cross-sectional area
to ensure
correct clamping. Small Multi-stranded cables must be
terminated with bootlace ferrules to ensure correct
clamping. Bootlace ferrules should not be used on
standard power cables or high current applications. If
in doubt please consult Cooper Bussmann
®
20
For Product Data Sheets, visit www.cooperbussmann.com/products/datasheet.asp
Page 18
Low Voltage Catalogue
BS88 Fuseholders
NNS, ENS
Safeloc Fuseholder
660V ac / 32 - 63A
Specifications
Description: Fuseholder to use with
BS88 Fuse links for bolted panel
mounting or DIN rail.
Ratings:
Volts: - 550V ac, 415V ac (63A)
Amps: - 32, 63A
Applications: Lighting and heating equipment,
circuit protection, Motor protection, Control equipment
circuit protection
Agency Information: CE Compliance to BS88, EN IEC
60269
RoHS Compliant
Dimensions
Catalogue Numbers
Rating
(A)
32
63
Catalogue
Number
32NNSF
32NNSBS
32NNSFBS
32NNL Neutral links 10
63ENSF
63ENSBS
63ENSFBS
63ENL Neutral links 1
Available Variants
Front connected/
Front connected
Back stud/
Back stud
Front connected/
Back stud
Front connected/
Front connected
Back stud/
Back stud
Front connected/
Back stud
Required Fuse
Link
NSD
ESD
Unit
Packing
10
10
10
5
5
5
Notes:
1 - For colours other than Black (standard), add the
appropriate letter code: W = White, G = Green, GY =
Grey, at the end of the catalogue reference.
2 - Security seal (ref. 32551) available for 32A Safeloc
3 - Care must be taken when fitting solid single or
stranded cables of small cross-sectional area
to ensure
correct clamping. Small Multi-stranded cables must be
terminated with bootlace ferrules to ensure correct
clamping. Bootlace ferrules should not be used on
standard power cables or high current applications. If
in doubt please consult Cooper Bussmann
®
Part
No
Max
Cable
2
mm
A B C D E F G H J K
Rating
(A)
32 NNS 16 25.4 80.3 48.5 2.3 16.0 39.2 57.7 17.0 9.7 M6
63 ENS 35 29.1 90.0 55.0 3.3 17.7 75.0 67.9 39.2 11.0 M8
Dimensions (mm)
For Product Data Sheets, visit www.cooperbussmann.com/products/datasheet.asp
21
Loading...
