Page 1
Type 4 X Fiberglass Enclosures
JIC Enclosures
Type 4X Hinged Quick-Release Window Cover
Data Sheet
Application
• Houses electrical and electronic controls and
instruments
• Intended for indoor or outdoor use
• Ideally suited for harsh environments
• Protects against corrosion, windblown dust and rain,
splashing water, hose directed water, and prolonged
submersion
Standards
• UL/cUL 50 Listed, Type 1, Type 3, Type 4X, Type 6P,
Type 12
• Conforms to NEMA Standard for Type 1, Type 3,
Type 4X, Type 6P, Type 12
• CSA 22.2, Type 1, Type 3, Type 4X, Type 6P, Type 12
• Temperature Range: -40°F to 250°F (-40°C to 120°C)
• Flammability Rating: UL94-5V
• Self Extinguishing: Non-flame propagating
• Chemical Resistance: (see chart, pages 458 - 461)
Finish
• Gray color
Accessories
• Back Panels (see page 290)
• See accessories (pages 292 - 293)
Construction
• Enclosures are an impact resistant, non-conductive, light-weight
hot compression molded fiberglass reinforced polyester
• Poured polyurethane seamless gasket provides watertight,
dust-tight environmental seal
• Captive screws provide smooth surfaces
• 300 series stainless steel used on all external hardware
• Integral flange molded in place for ease of mounting
• Integral mounting bosses utilize threaded brass inserts accepting
#10-32 screws for mounting optional panel
• Rounded edges reduce build-up of dust and debris
• Full length stainless steel hinged cover
• Padlocking latches provide quick access and optional closure
locking (padlock not included)
• Window utilizes a scratch resistant UVA acrylic material to provide
internal component visibility
Discount Schedule: F2
Subclass: G00
Type 4X Fiberglass
Notes: Cooper B-Line can provide special modifications. Consult the factory for your special requirements.
262
Electrical Enclosures
Page 2
Type 4 X Fiberglass Enclosures
JIC Enclosures
Type 4X Hinged Quick-Release Window Cover

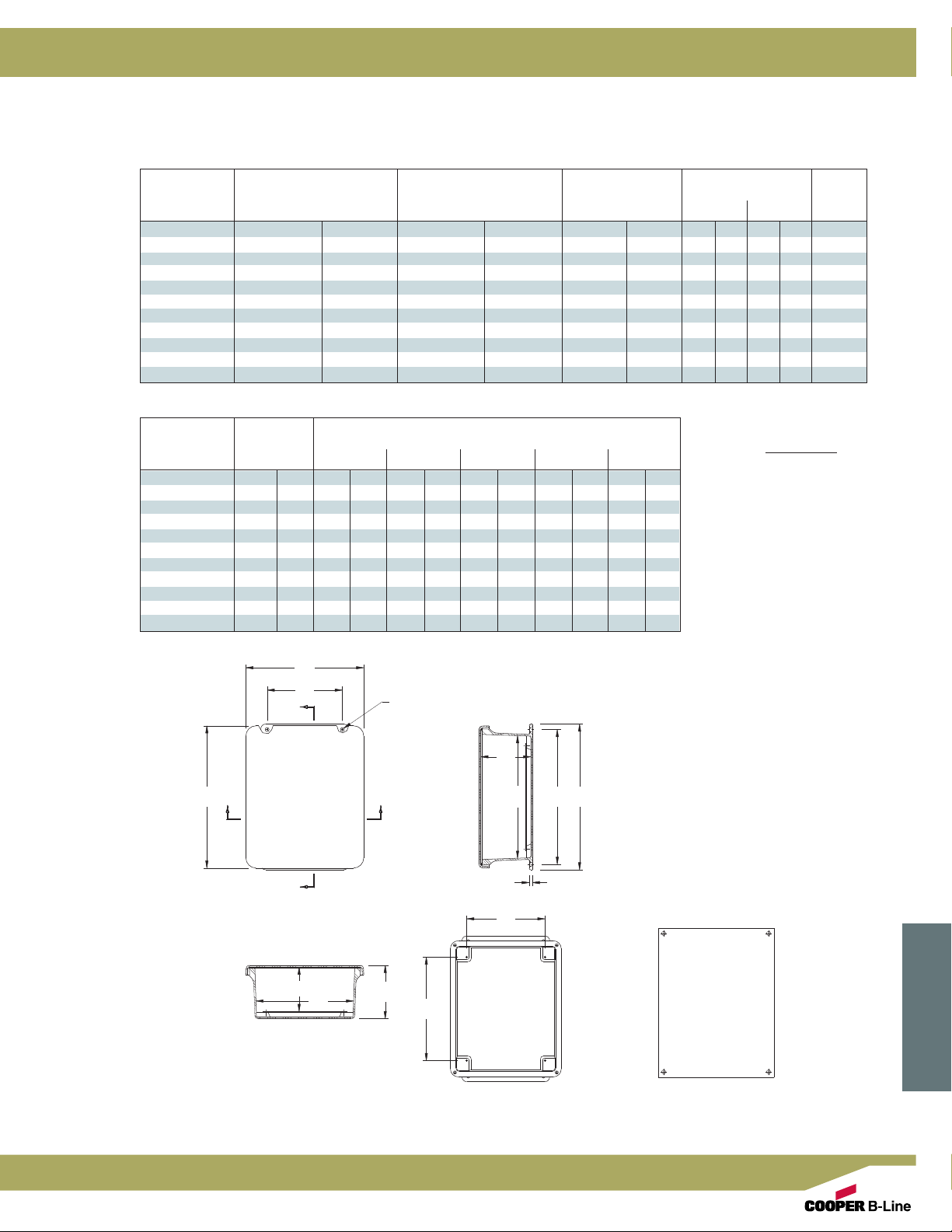

Illustration Sheet and Catalog Number
Enclosure Overall Dimensions Inside Dimensions Window Area Mtg. Dimension
Catalog #
644-4XFCHQRCW 7.50 x 5.43 x 4.75 191 x 138 x 121 5.84 x 3.85 x 4.45 148 x 98 x 113 4.25 x 2.25 108 x 57 6.75 171 2.00 51 AW64__
664-4XFCHQRCW 7.50 x 7.50 x 4.75 191 x 191 x 121 5.72 x 5.72 x 4.45 145 x 145 x 113 4.25 x 4.25 108 x 108 6.75 171 4.00 101 AW66__
864-4XFCHQRCW 9.62 x 7.50 x 4.74 244 x 191 x 121 7.73 x 5.74 x 4.45 196 x 146 x 113 6.25 x 4.25 159 x 108 8.88 225 4.00 101 AW86__
1084-4XFCHQRCW 11.62 x 9.41 x 4.25 295 x 239 x 108 9.73 x 7.73 x 3.98 247 x 196 x 101 8.25 x 6.25 210 x 159 10.75 273 6.00 152 AW108__
1085-4XFCHQRCWxx 11.62 x 9.37 x 5.06 295 x 238 x 129 9.73 x 7.73 x 4.83 247 x 196 x 123 8.25 x 6.25 210 x 159 10.75 273 6.00 152 AW108__
*
12105-4XFCHQRCW 13.56 x 11.43 x 5.21 344 x 291 x 132 11.79 x 9.80 x 4.94 299 x 249 x 125 10.25 x 8.25 260 x 210 12.75 324 8.00 203 AW1210__
1476-4XFCHQRCW 15.87 x 8.75 x 6.81 403 x 222 x 173 14.00 x 7.00 x 6.56 356 x 178 x 167 12.75 x 5.75 324 x 146 15.00 381 5.00 127 AW147__
14126-4XFCHQRCW 15.50 x 13.50 x 6.25 394 x 343 x 159 13.53 x 11.55 x 5.94 344 x 293 x 151 12.25 x 10.25 311 x 260 14.62 371 10.00 254 AW1412__
16146-4XFCHQRCW 17.53 x 15.46 x 6.23 445 x 393 x 158 15.63 x 13.60 x 5.94 397 x 345 x 151 14.25 x 12.25 362 x 311 16.75 425 12.00 305 AW1614__
18168-4XFCHQRCW 19.62 x 17.61 x 8.82 498 x 447 x 224 17.69 x 15.69 x 8.45 449 x 399 x 215 16.25 x 14.25 413 x 362 18.88 479 12.00 305 AW1816__
20168-4XFCHQRCW 22.00 x 17.68 x 8.83 559 x 449 x 224 19.72 x 15.72 x 8.45 501 x 399 x 215 18.25 x 14.25 464 x 362 21.25 540 10.00 254 AW2016__J
Enclosure Dimensions
Catalog #
644-4XFCHQRCW 0.31 8 4.00 101 4.25 108 2.25 57 0.25 6 7.39 188
664-4XFCHQRCW 0.31 8 4.00 101 4.25 108 4.25 108 0.25 6 7.52 191
864-4XFCHQRCW 0.31 8 4.00 101 6.25 159 4.25 108 0.25 6 9.50 242
1084-4XFCHQRCW 0.31 8 3.50 89 8.25 209 6.25 159 0.25 6 11.35 288
1085-4XFCHQRCWxx 0.31 8 4.37 111 8.25 209 6.25 159 0.25 6 11.37 289
*
12105-4XFCHQRCW 0.31 8 4.50 114 10.25 260 8.25 209 0.25 6 13.41 341
1476-4XFCHQRCW 0.31 8 6.12 156 12.25 311 5.25 133 0.25 6 15.75 400
14126-4XFCHQRCW 0.31 8 5.37 137 12.25 311 10.25 260 0.25 6 15.47 393
16146-4XFCHQRCW 0.31 8 5.36 136 14.25 362 12.25 311 0.25 6 17.45 443
18168-4XFCHQRCW 0.31 8 7.99 203 16.25 413 14.25 362 0.25 6 19.61 498
20168-4XFCHQRCW 0.31 8 8.00 203 18.25 464 14.25 362 0.25 6 21.68 551
H x W x D A x B x C (Maximum) EFPanel No.
in. mm in. mm in. mm in. mm in. mm
Hole Dia. J K L MN
in. mm in. mm in. mm in. mm in. mm in. mm
* Crowned Cover
Panel Finishes
Example: AW108__
Insert for __
P = Carbon Steel
SP = Stainless Steel
AP = Aluminum
W
F
X
Y
N
X
Front View
L
Hole Dia.
4 places
Y
C
A
Section X-X
L
H
E
M
Back Panel
(see page 290)
Type 4X Fiberglass
J
B
Section Y-Y
D
K
Front View
Without Cover
Electrical Enclosures
Notes: Dimensions are in inches. Millimeters shown are for reference only. Data subject to change without notice.
263
