Cooper B-Line N Shield User Manual

Snap ‘N Shield for strut channel

Features and benefits

• Fast, easy installation – snaps onto strut channel;

up to 60% quicker than traditional metal shields

• No tools required

• Horizontal installation attachment feature to minimize

the need to lift the pipe during installation

• Tight snap-on fit design helps eliminate shield

movement which helps prevent insulation damage

• Tapered lip end design helps protect insulation from

damage that can be caused by sharp edge of traditional
saddles

• High sidewalls are designed to contain refrigerant liquid

lines for efficient system installation

• Designed for side-by-side installation to help minimize

costs in high density applications

• Wide mounting flange to allow for optional

self-tapping screws

• MSS standards require 12" of surface contact for pipe

sizes up to 4". All sizes of Snap ‘N Shield™ have 12" of
surface contact

• Built-in cable tie grooves

• UL Classified for US and Canada

• Patent(s) pending

Pipe support technical specifications

Applications:

Strut or trapeze mounted horizontal pipe runs for refrigeration, air
conditioning and plumbing

Certication:

• UL classied for USA UL723 (ASTM E84) and

UL classied for Canada per CAN/ULC S102.2

• Material is FDA compliant, RoHS compliant,

CA Proposition 65 compliant

Available colors:

• Black (B)

• White (W)

Material:

Prime grade of high-impact copolymer polypropylene

• UV resistant

• Operating temperature -40° to 178°F

• Paintable

• Custom textured interior shield surface to allow for thermal

expansion of insulated piping

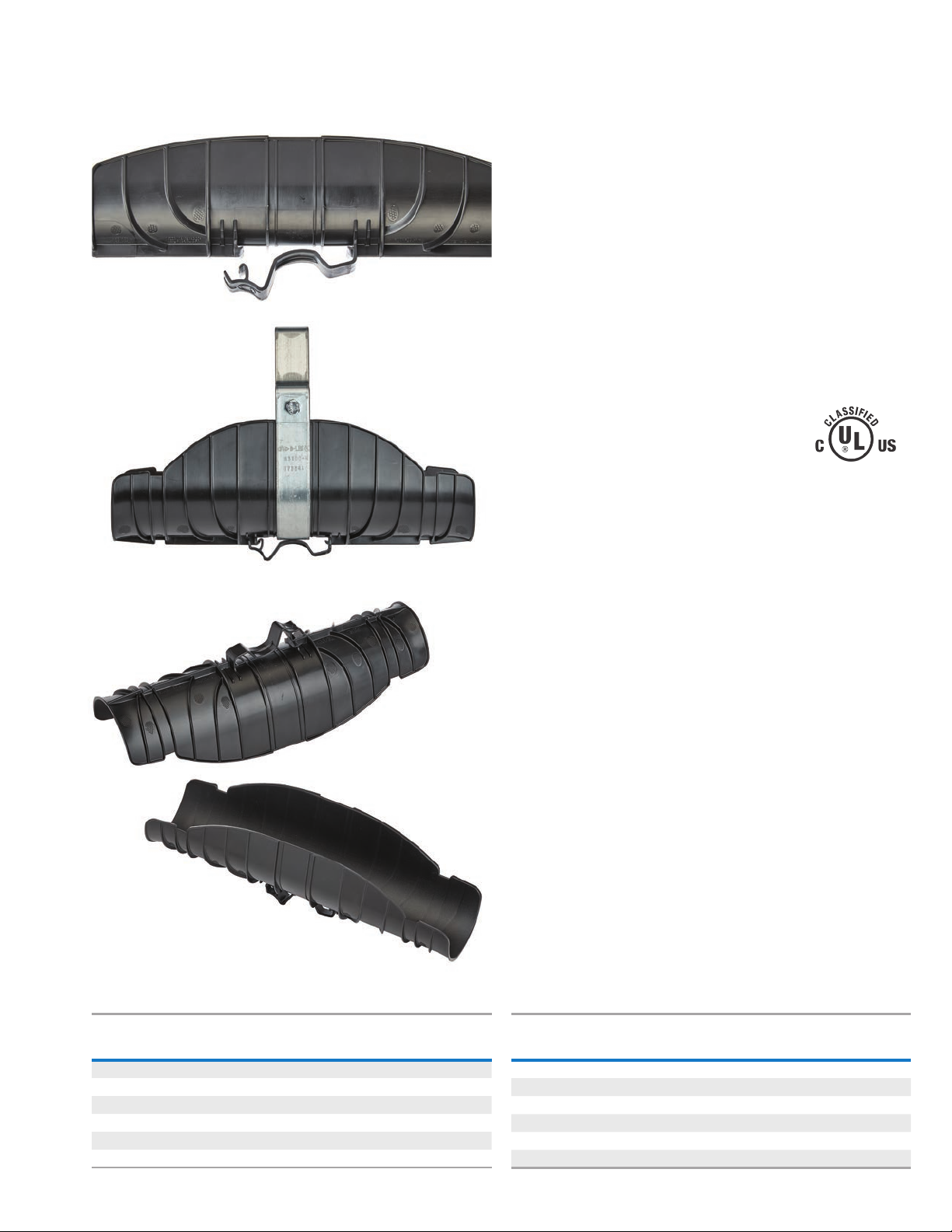

Black Support
Catalog #

BPS200B BPS200W 2.35" 60 21.5 9.8
BPS300B BPS300W 3.46" 88 29.8 13.5
BPS400B BPS400W 4.50" 114 38.1 1 7. 3
BPS500B BPS500W 5.52" 140 46.4 21.0
BPS600B BPS600W 6.50" 165 55.1 25.0
BPS800B BPS800W 8.64" 220 75.3 34.2

White Support
Catalog #

Inside Opening Weight/C

Inches (mm) Lbs. (kg)

Pipe support for refrigeration, air
conditioning and plumbing

Clevis hanger Band hanger

Snap ’N Shield pipe support strut trapeze application

Sizing tables*

Sch.
40/80
Pipe

¼" BP__200 BP__200 BP__300 BP__400 BP__500

3

⁄8" BP__200 BP__200 BP__300 BP__400 BP__500

½" BP__200 BP__200 BP__300 BP__400 BP__500

¾" BP__200 BP__300 BP__300 BP__400 BP__500

1" BP__200 BP__300 BP__300 BP__400 BP__500

1¼" BP__300 BP__300 BP__400 BP__500 BP__600

1½" BP__300 BP__300 BP__400 BP__500 BP__600

2" BP__300 BP__400 BP__400 BP__500 BP__600

2½" BP__400 BP__400 BP__500 BP__600 BP__800

3" BP__400 BP__500 BP__500 BP__600 BP__800

3½" BP__500 BP__500 BP__600 BP__800 BP__800

4" BP__500 BP__600 BP__600 BP__800 BP__800

5" BP__800 BP__800 BP__800 BP__800 —

6" BP__800 BP__800 BP__800 — —

Insulation Thickness

½" ¾" 1" 1½" 2"

Snap ’N Shield pipe support hanger application

Copper
Tubing
Size

¼" BP__200 BP__200 BP__300 BP__300 BP__400

3

⁄8" BP__200 BP__200 BP__300 BP__400 BP__400

½" BP__200 BP__200 BP__300 BP__400 BP__500

5

/8" BP__200 BP__200 BP__300 BP__400 BP__500

¾" BP__200 BP__300 BP__300 BP__400 BP__500

1" BP__200 BP__300 BP__300 BP__400 BP__500

1¼" BP__300 BP__300 BP__300 BP__400 BP__500

1½" BP__300 BP__300 BP__400 BP__500 BP__600

2" BP__300 BP__400 BP__400 BP__500 BP__600

2½" BP__400 BP__400 BP__500 BP__600 BP__800

3" BP__400 BP__500 BP__500 BP__600 BP__800

3½" BP__500 BP__500 BP__600 BP__800 BP__800

4" BP__500 BP__600 BP__600 BP__800 BP__800

5" BP__600 BP__800 BP__800 BP__800 —

6" BP__800 BP__800 BP__800 — —

Insulation Thickness

½" ¾" 1" 1½" 2"

* Part sizing is the same for both hanger and strut attachments. Replace underscore with “S” for strut or

“CH” for clevis hanger. For example: BPS600 for strut or BPCH600 for clevis hanger.
