Anchors
‡
Rapid Rod Hangers
• One-piece, all steel threaded fastener system for suspending
steel threaded rod.
•
Suitable for overhead installations such as suspending cable
tray, pipe hangers, strut and conduit.
•
Side Mount (SW) available for side mounting applications.
• Lower in-place cost, when compared to beam clamps, lag bolts
and drop-ins.
•
Wood rapid rods can be installed with a screw gun or
hammer drill.
• Concrete Rapid Rod hangers can be installed with an adjustable
torque, battery powered screw gun or hammer drill.
•
UL & FM approved.
• Made of Zinc Plated carbon steel.
Rapid Rod Hangers - Concrete
Concrete Rapid Rod - Data
ANSI Drill Bit (in.)
1
⁄4"
1
⁄4
Length (in.) 15⁄8 15⁄8 21⁄2
Min. Embedment Depth (in.) 15⁄8 15⁄8 21⁄2
Load Capacity Tension (lbs.) * 815 815 1050
Load Capacity Shear (lbs.) * 380 525 525
*
Based on concrete compression strength of 4000 psi using applied
safety factor of 4.0. For additional loading information contact factory.
3
⁄8"
1
⁄4
3
⁄8"
1
⁄4
Anchors
Rapid Rod Hangers - Wood
Wood Rapid Rod™ - Data
Forming Forming
Pre-Drill Diameter (in.)
Point Style Type 17 Type 17
Wood Rapid Rod - Embedment & Load Data (lbs.)
Rod/Anchor
Size Embedment Depth Fir Pine Spruce
1
⁄4" 1" 170 160 160
3
⁄8" 2" 375 375 375
1
⁄2" 21⁄2" 665 775 775
Minimum load ratings are based on a safety factor of 4. UL approved
load capacity for
pipe. UL approved load capacity for
lbs., maximum 4" pipe. FM approval only applies to
Approved for 365 lbs., up to 4" pipe.
‡ Not ICC-ES Certified
Read safety/installation instruction sheets in packages before use.
Eaton’s B-Line series fasteners
3
⁄8
" rod sizes and
1
⁄4" Thread 3⁄8" Thread
1
⁄8
1
⁄4
" screw size is 260 lbs., maximum 3"
3
⁄8
" rod sizes and
1
⁄8
3
⁄8
" screw size is 375
3
1
⁄8
" x 2
⁄2
" screw size.
193
Page 6
Rapid Rod Hangers
Anchors
ARC Series
ARW Series
UPC/Part Catalog Rod Shank Size Box
Number Number Size & Length Qty.
Concrete Rod Hanger
79903875917 ARC-25-125-2
79903875918 ARC-37-150-2
79903875919 ARC-37-275-2
For side mount concrete applications use ARW-25-100SW or
ARW-37-200SW with
3
⁄16" drill bit.
1
3
3
1
⁄4"
⁄8"
⁄8"
⁄4" x 15⁄8" 25
1
⁄4" x 15⁄8" 25
1
⁄4" x 21⁄2" 25
Wood Rod Hanger - Point Style Type 17
79903875930 ARW-25-200-2
79903875931 ARW-37-100-2
79903875933 ARW-37-200-2
79903875935 ARW-37-250-2
79903875936 ARW-50-250-2
1
3
3
3
1
1
⁄4"
⁄8"
⁄8"
⁄8"
⁄2"
⁄4" x 2" 25
1
⁄4" x 1" 25
1
⁄4" x 2" 25
5
⁄16" x 21⁄2" 25
5
⁄16" x 21⁄2" 25
Wood Rod Hanger - Side Mount - Point Style Type 17
79903875929 ARW-25-100SW-2 1⁄4"
79903875934 ARW-37-200SW-2 3⁄8"
79903875932 ARW-37-100SW-2 3⁄8”
1
⁄4" x 1" 25
1
⁄4" x 2" 25
1
⁄4" x 1" 25
UPC/Part Catalog Tool Box
Number Number Description Qty.
Tools
79903875900
79903875901
79903875902
78205153360
78205153361
7187-2
Wood Socket
1
7195-2 1⁄4" Concrete Socket
7197-2 3⁄8" Concrete Socket
5874
5866
Concrete Tapper Sleeve Assy.
1
⁄4" X 6" Hex Shank SDS Drill Bit
1
1
1
1
Anchors
Read safety/installation instruction sheets in packages before use.
Eaton’s B-Line series fasteners
194
Page 7
Page 8
Anchors
Mini Drop-in Anchors
• Carbon steel machine bolt anchor for use in shallow
embedment applications.
• Can be used in solid concrete and precast hollow core plank, in
addition to post-tensioned concrete slabs and concrete pours
over metal deck.
•
Can be used for overhead applications such as suspending
cable tray, strut, pipe supports and lighting.
•
Flanged (lipped) version installs flush for easy inspection and
standardizes rod heights.
•
Setting tool scores flange when set to verify proper expansion
• Available in zinc plated finish.
• FM approved.
‡
Anchor
Mini Drop-In Anchors - Data
ANSI Drill Bit Size
(in.)
Setting Tool
1
⁄4"
3
⁄8
3
⁄8"
1
⁄2
1
⁄2"
5
⁄8
Max. Tightening Torque (ft-lbs) 3 5 10
Thread Size (UNC)
Min. Embedment Depth
(in.)
1
⁄4"-20
5
⁄8
3
⁄8"-16 1⁄2"-13
3
⁄4 1
Load Capacity Tension (lbs) * 285 530 840
Load Capacity Shear (lbs) * 415 1055 1220
* Based on concrete compression strength of 4000 psi using applied
safety factor of 4.0. For additional loading information contact factory.
UPC/Part Catalog Rod Thread Box
Number Number Size Depth Qty.
Mini Drop-In Anchor - Steel
78205153300 ADM-25
78205153302 ADM-37
78205153302 ADM-50
1
⁄4"
3
⁄8"
1
⁄2"
3
⁄8" 100
13
⁄32" 50
5
⁄8" 50
Setting Tools
78205153301 6336
78205153303 6323
78205153305 6338
‡ Not ICC-ES certified
1
⁄4" -- 1
3
⁄8" -- 1
1
⁄2" -- 1
Anchors
Read safety/installation instruction sheets in packages before use.
Eaton’s B-Line series fasteners
196
Page 9
Page 10
Page 11
Page 12
Anchors

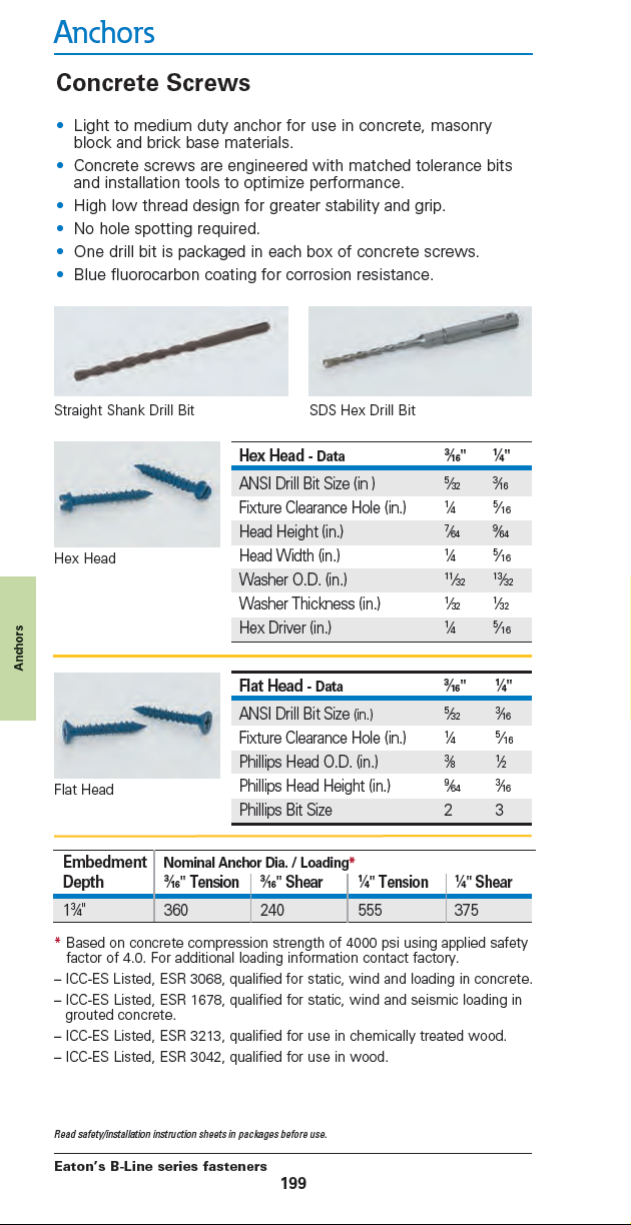

Concrete Screws
UPC/Part Catalog Size Box
Number Number Qty.
Hex Head Concrete Screws
78101103342 ACS-18-125H* 3⁄16" x 11⁄4"
78101103343 ACS-18-175H* 3⁄16" x 13⁄4"
78101103344 ACS-18-225H
78101103346 ACS-18-275H
78101103347 ACS-18-325H
78101103348 ACS-18-375H
78101103349 ACS-18-400H
78101103342 ACS-25-125H* 1⁄4" x 11⁄4"
78101103343 ACS-25-175H* 1⁄4" x 13⁄4"
78101103344 ACS-25-225H
78101103346 ACS-25-275H
78101103347 ACS-25-325H
78101103348 ACS-25-375H
78101103349 ACS-25-400H
Flat Head Concrete Screws
78205153259 ACS-18-125F* 3⁄16" x 11⁄4"
78205153260 ACS-18-175F* 3⁄16" x 13⁄4"
78205153261 ACS-18-225F
78205153262 ACS-18-275F
78205153263 ACS-25-125F* 1⁄4" x 11⁄4"
78205153264 ACS-25-175F* 1⁄4" x 13⁄4"
78205153265 ACS-25-225F
78205153266 ACS-25-275F
100
100
3
⁄16" x 21⁄4"
100
3
⁄16" x 23⁄4"
100
3
⁄16" x 31⁄4"
100
3
⁄16" x 33⁄4"
100
3
⁄16" x 4"
100
100
100
1
⁄4" x 21⁄4"
100
1
⁄4" x 23⁄4"
100
1
⁄4" x 31⁄4"
100
1
⁄4" x 33⁄4"
100
1
⁄4" x 4"
100
100
100
3
⁄16" x 21⁄4"
100
3
⁄16" x 23⁄4"
100
100
100
1
⁄4" x 21⁄4"
100
1
⁄4" x 23⁄4"
100
Anchors
* Not ICC-ES listed
UPC/Part Catalog Bit Size Usable Box
Number Number Length Qty.
Straight Shank Drill Bits
78205153267 2782SD 5⁄32" x 41⁄2" 3"
78205153269 2786SD 3⁄16" x 41⁄2" 3"
1
1
SDS Hex Drill Bits
78205153268 2793
78205153270 2796
5
⁄32" x 5" 3"
3
⁄16" x 5" 3"
1
1
UPC/Part Catalog Dsecription Box
Number Number Qty.
Setting Tool
78101103453 2791
Read safety/installation instruction sheets in packages before use.
Eaton’s B-Line series fasteners
Concrete Screw Tool Kit
100
200
Page 13
Page 14
Anchors

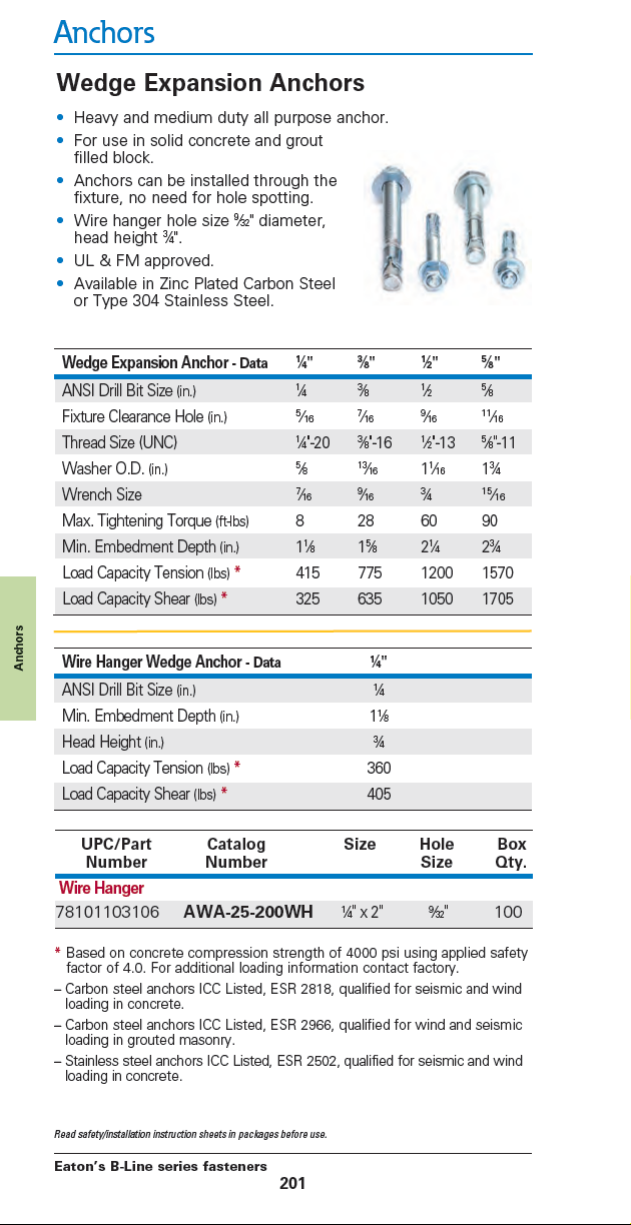

Wedge Expansion Anchors
UPC/Part Catalog Size Thread Box
Number Number Length Qty.
Wedge Anchor
78101103068 AWA-25-175
78101103069 AWA-25-225
78101103070 AWA-25-325
78101103071 AWA-37-225
78101103072 AWA-37-275
78101103073 AWA-37-300
78205153364 AWA-37-350
78101103074 AWA-37-375
78101103075 AWA-37-500
78205153366 AWA-50-275
78101103077 AWA-50-375
78205145636 AWA-50-450
78101103079 AWA-50-550
78101103080 AWA-50-700
78101103081 AWA-62-350
78101103082 AWA-62-450
78101103083 AWA-62-500
78101103084 AWA-62-600
78101103085 AWA-62-700
Wedge Anchor - Stainless Steel
78101103146 AWA-25-175SS4 1⁄4" x 13⁄4"
78101103147 AWA-25-225SS4 1⁄4" x 21⁄4" 11⁄4" 100
78101103148 AWA-25-325SS4 1⁄4" x 31⁄4" 21⁄4" 100
78101103149 AWA-37-225SS4 3⁄8" x 21⁄4" 11⁄4" 50
78101103150 AWA-37-275SS4 3⁄8" x 23⁄4" 15⁄8" 50
7810110151 AWA-37-300SS4 3⁄8" x 3" 17⁄8" 50
78205153365 AWA-37-350SS4 3⁄8" x 31⁄2" 23⁄8" 50
78101103152 AWA-37-375SS4 3⁄8" x 33⁄4" 25⁄8" 50
78101103153 AWA-37-500SS4 3⁄8" x 5" 37⁄8" 50
78101103154 AWA-50-275SS4 1⁄2" x 23⁄4" 13⁄8" 50
78101103155 AWA-50-375SS4 1⁄2" x 33⁄4" 23⁄8" 50
78205153367 AWA-50-450SS4 1⁄2" x 41⁄2" 31⁄8" 50
78101103157 AWA-50-550SS4 1⁄2" x 51⁄2" 41⁄8" 50
78205153368 AWA-50-700SS4 1⁄2" x 7" 55⁄8" 25
78205153369 AWA-62-350SS4 5⁄8" x 31⁄2" 2" 25
78205153370 AWA-62-450SS4 5⁄8" x 41⁄2" 3" 25
78205153779 AWA-62-500SS4 5⁄8" x 5" 31⁄2" 25
78205153371 AWA-62-600SS4 5⁄8" x 6" 41⁄2" 25
78205143044 AWA-62-700SS4 5⁄8" x 7" 51⁄2" 25
1
⁄4" x 13⁄4"
1
⁄4" x 21⁄4" 11⁄4" 100
1
⁄4" x 31⁄4" 21⁄4" 100
3
⁄8" x 21⁄4" 11⁄4" 50
3
⁄8" x 23⁄4" 15⁄8" 50
3
⁄8" x 3" 17⁄8" 50
3
⁄8" x 31⁄2" 23⁄8" 50
3
⁄8" x 33⁄4" 25⁄8" 50
3
⁄8" x 5" 37⁄8" 50
1
⁄2" x 23⁄4" 13⁄8" 50
1
⁄2" x 33⁄4" 23⁄8" 50
1
⁄2" x 41⁄2" 31⁄8" 50
1
⁄2" x 51⁄2" 41⁄8" 50
1
⁄2" x 7" 55⁄8" 25
5
⁄8" x 31⁄2" 2" 25
5
⁄8" x 41⁄2" 3" 25
5
⁄8" x 5" 31⁄2" 25
5
⁄8" x 6" 41⁄2" 25
5
⁄8" x 7" 51⁄2" 25
3
⁄4" 100
3
⁄4" 100
Anchors
Read safety/installation instruction sheets in packages before use.
Eaton’s B-Line series fasteners
202
Page 15
Page 16
Anchors

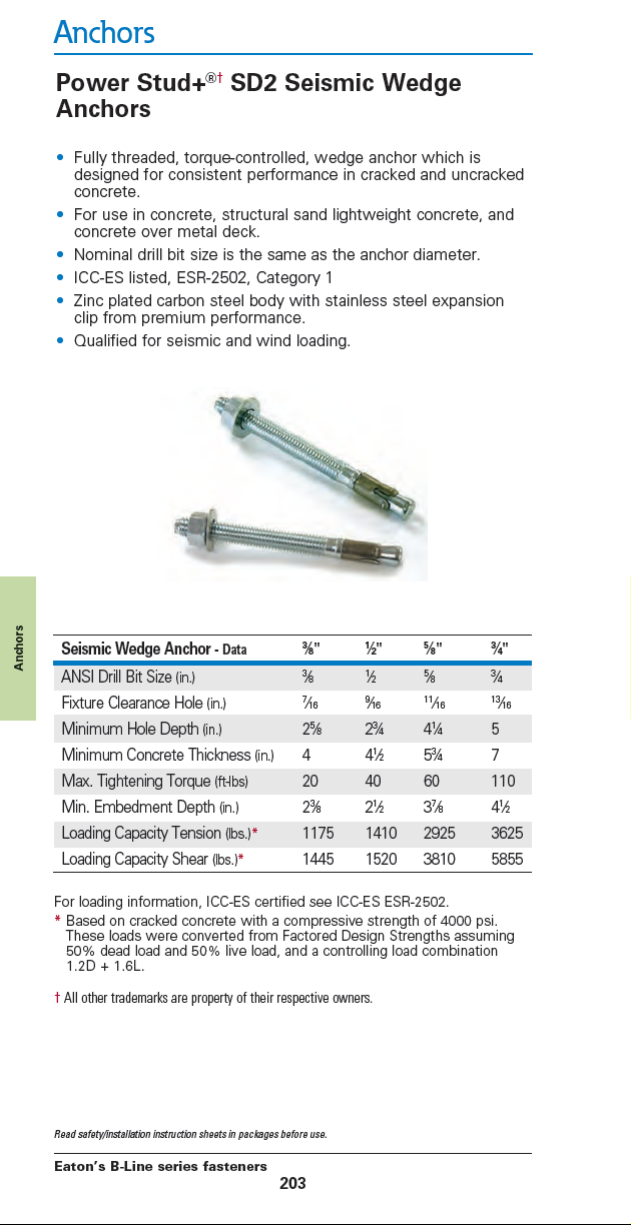

Seismic Wedge Anchors
UPC/Part Catalog Size Thread Box
Number Number Length Qty.
Seismic Wedge Anchor
78205153398 AWSD-37-300 3⁄8" X 3" 13⁄4" 50
78205153399 AWSD-37-350 3⁄8" X 31⁄2" 21⁄4" 50
78205153400 AWSD-37-375 3⁄8" X 33⁄4" 21⁄2" 50
78205153401 AWSD-37-500 3⁄8" X 5" 33⁄4" 50
78205153402 AWSD-50-375 1⁄2" X 33⁄4" 21⁄8" 50
78205153403 AWSD-50-450 1⁄2" X 41⁄2" 27⁄8" 50
78205153404 AWSD-50-550 1⁄2" X 51⁄2" 37⁄8" 50
78205153405 AWSD-50-700 1⁄2" X 7" 53⁄8" 50
78205153406 AWSD-62-475 5⁄8" X 43⁄4" 27⁄8" 25
78205153407 AWSD-62-500 5⁄8" X 5" 31⁄8" 25
78205153408 AWSD-62-600 5⁄8" X 6" 41⁄8" 25
78205153409 AWSD-62-700 5⁄8" X 7" 51⁄8" 25
78205153410 AWSD-75-550 3⁄4" X 51⁄2" 31⁄4" 20
78205153411 AWSD-75-625 3⁄4" X 61⁄4" 4" 20
78205153425 AWSD-75-700 3⁄4" X 7" 43⁄4" 20
Read safety/installation instruction sheets in packages before use.
Eaton’s B-Line series fasteners
204
Anchors
Page 17
Page 18
Anchors

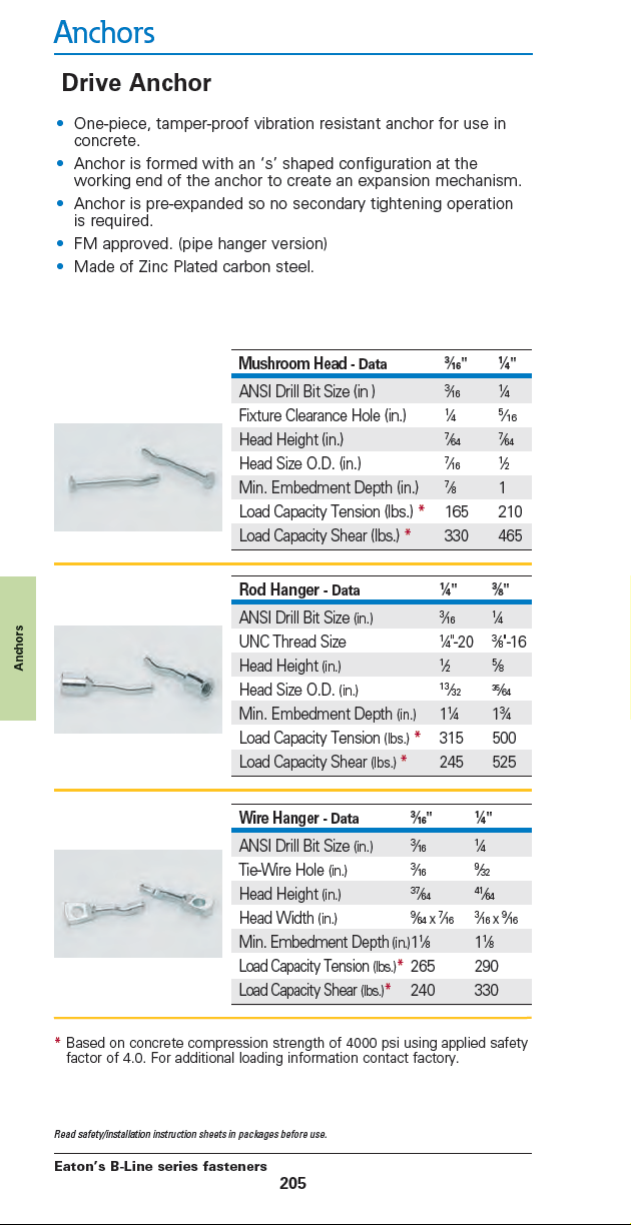

Drive Anchors
UPC/Part Catalog Size Box
Number Number Qty.
Mushroom Head
78205153271 ADA-18-100
78205153272 ADA-18-125
78205153273 ADA-18-150
78205153274 ADA-18-200
78205153275 ADA-18-250
78205153276 ADA-18-300
78205153278 ADA-25-100
78205153279 ADA-25-125
78205153280 ADA-25-150
78205153281 ADA-25-200
78205153282 ADA-25-250
78205153283 ADA-25-300
UPC/Part Catalog Head Box
Number Number Size Qty.
Rod Hanger
78205153284 ADA-25RH
78205153286 ADA-37RH
Wire Hanger
78205153277 ADA-18WH
78205153285 ADA-25WH
3
⁄16
" x 1" 100
3
⁄16
" x 11⁄4
" 100
3
⁄16
" x 11⁄2
" 100
3
⁄16
" x 2" 100
3
⁄16
" x 21⁄2
" 100
3
⁄16
" x 3" 100
1
⁄4
" x 1" 100
1
⁄4
" x 11⁄4
" 100
1
⁄4
" x 11⁄2
" 100
1
⁄4
" x 2" 100
1
⁄4
" x 21⁄2
" 100
1
⁄4
" x 3" 100
1
⁄4
" 100
3
⁄8
" 100
3
⁄16
" 100
1
⁄4
" 100
‡
Anchors
‡ Not ICC-ES certified
Read safety/installation instruction sheets in packages before use.
Eaton’s B-Line series fasteners
206
Page 19
Page 20
Anchors

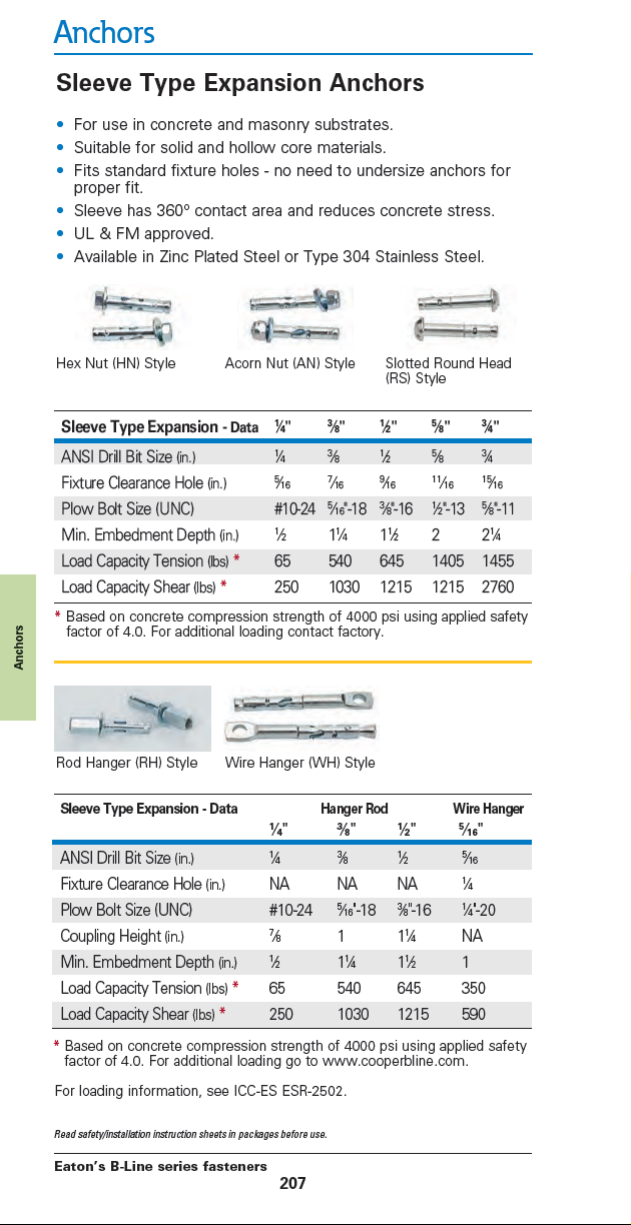

Sleeve Type Expansion Anchors
UPC/Part Catalog Size Thread Box
Number Number Length Qty.
Hex Nut Style
78101102995 ASA-37-187HN
78101102996 ASA-37-300HN
78205153400 ASA-37-400HN
78101102997 ASA-50-225HN
78101102998 ASA-50-300HN
78101102999 ASA-50-400HN
78205153351 ASA-50-525HN
78101103002 ASA-50-600HN
78101103003 ASA-62-225HN
78101103004 ASA-62-300HN
78101103005 ASA-62-425HN
78101103006 ASA-62-600HN
78101103007 ASA-75-250HN
78101103008 ASA-75-425HN
78101103009 ASA-75-625HN
Hex Nut Style - Stainless Steel
78205153343 ASA-37-187HNSS4 3⁄8" x 17⁄8" 15⁄8" 50
78205153345 ASA-37-300HNSS4 3⁄8" x 3" 15⁄8" 50
78205153347 ASA-50-225HNSS4 1⁄2" x 21⁄2" 21⁄8" 25
78205153349 ASA-50-300HNSS4 1⁄2" x 3" 21⁄4" 25
78205153350 ASA-50-400HNSS4 1⁄2" x 33⁄4" 21⁄4" 25
78205153352 ASA-62-425HNSS4 5⁄8" x 41⁄4" 23⁄4" 10
Acorn Nut Style
78205153341 ASA-25-62AN
78101102991 ASA-25-137AN
78101102992 ASA-25-225AN
Slotted Round Head Style
78205153338 ASA-25-112RS
78205153340 ASA-25-200RS
3
⁄8" x 17⁄8" 15⁄8" 50
3
⁄8" x 3" 15⁄8" 50
3
⁄8" x 4" 15⁄8" 50
1
⁄2" x 21⁄2" 21⁄8" 25
1
⁄2" x 3" 21⁄4" 25
1
⁄2" x 33⁄4" 21⁄4" 25
1
⁄2" x 51⁄4" 21⁄4" 25
1
⁄2" x 6" 21⁄4" 10
5
⁄8" x 21⁄2" 21⁄8" 25
5
⁄8" x 3" 23⁄4" 25
5
⁄8" x 41⁄4" 23⁄4" 10
5
⁄8" x 53⁄4" 23⁄4" 10
3
⁄4" x 23⁄4" 21⁄8" 10
3
⁄4" x 41⁄4" 33⁄8" 10
3
⁄4" x 61⁄4" 33⁄8" 10
1
⁄4" x 5⁄8"
1
⁄4" x 13⁄8" 11⁄8" 100
1
⁄4" x 21⁄4" 11⁄8" 100
1
⁄4" x 13⁄8" 1" 100
1
⁄4" x 21⁄4" 11⁄8" 100
1
⁄2" 100
Anchors
UPC/Part Catalog Size Drill Box
Number Number Diameter Qty.
Rod Hanger
78205153339 ASA-25-150RH 1⁄4
78205153344 ASA-37-187RH 3⁄8
78205153348 ASA-50-225RH 1⁄2
" x 11⁄2
" x 17⁄8
" x 21⁄4
"
"
"
5
⁄16
" 50
3
⁄8
" 50
1
⁄2
" 25
Wire Hanger
78205153342 ASA-31-150WH 5⁄16
Read safety/installation instruction sheets in packages before use.
Eaton’s B-Line series fasteners
" x
23⁄8
" 5⁄16
" 100
208
Page 21
Page 22
Anchors
Single Expansion Anchors
• For use in concrete, block, brick or stone.
• Recommended for floor and wall attachments.
• Not recommended for overhead applications.
• Internally threaded anchor for easy removability and
service work.
•
Made of Zamac Alloy material.
‡
Single Expansion - Data
ANSI Drill Bit Size
Max. Tightening Torque
(in.)
(ft-lbs) 5 10 20 30
Thread Size (UNC)
Thread Length In Cone
(in.)
1
⁄4"
1
⁄2
1
⁄4"-20 3⁄8"-16 1⁄2"-13 5⁄8"-11
5
⁄16
3
3
5
⁄8"
⁄4
⁄16
1
⁄2"
7
⁄8 1
7
⁄16
5
⁄8"
5
⁄8
Min. Embedment Depth (in.) 13⁄8 15⁄8 21⁄2 23⁄4
Load Capacity Tension (lbs) * 100 510 610 925
Load Capacity Shear (lbs) * 140 805 1000 1710
* Based on concrete compression strength of 4000 psi using applied safety
factor of 4.0. For additional loading information contact factory.
UPC/Part Catalog Rod Anchor Box
Number Number Size Length Qty.
Single Expansion Anchor
78101103245 ASE-25
78101103247 ASE-37
78101103248 ASE-50
78101103249 ASE-62
‡ Not ICC-ES listed
1
⁄4
" 15⁄16
3
⁄8
" 11⁄2
1
⁄2
" 21⁄16" 25
5
⁄8
" 25⁄8
" 50
" 50
" 25
Anchors
Read safety/installation instruction sheets in packages before use.
Eaton’s B-Line series fasteners
210
Page 23
Page 24
Anchors
Bang-It†+ Anchors
• Bang-It™+ concrete inserts are designed for installation in and
through metal composite deck used to support newly poured
concrete floors or roof slabs.
•
After installation, the protective sleeve
of the insert protrudes below the
surface of the deck, allowing overhead
attachment of threaded rod.
•
The unique, six sided impact plate offers
resistance to rotation within the concrete
as threaded rod is bing installed.
• Suitable for overhead installations such
as suspending cable tray, pipe hangers, strut and conduit.
•
Color coded by size for all trades.
• UL and FM approved. • Lowest in-place cost.
1
Bang-It™+ - Data
Metal Hole Saw Diameter (in ) 13⁄16
⁄4"
3
⁄8" 1⁄2"
13
⁄16
Drilling Speed (rpm) 700-900 700-900 700-900 500-700 500-700
3
Insert Thread Length (in.)
Length of Sleeve (in ) 33⁄8
Thread Size (UNC)
Embedment Depth
(in ) 2 2 2 2 2
⁄8
33⁄8
1
⁄4
"-20 3⁄8
5
⁄8
33⁄8
"-16 1⁄2
Upper Deck Tension Load (lbs) * 1115 1915 2370 2935 2935
Lower Deck Tension Load (lbs) * 830 830 830 990 990
Upper Deck Shear Load ( bs) * 835 1115 1115 1115 1115
Lower Deck Shear Load (lbs) * 625 840 840 840 840
* Based on sand lightweight and normal weight concrete with minimum
compression strength of 3000 psi over steel deck. Allowable load capacities are
calculated using applied safety factor of 3.0. For additional loading information
contact factory. Minimum insert spacing of 6", minimum end spacing 6".
13
⁄16
11
⁄16
3
"-13 5⁄8
5
⁄8" 3⁄4"
13
⁄16
1
15
⁄16
1
3
⁄8
3
"-11 3⁄4
3
1
3
⁄16
⁄8
⁄8
"-10
Anchors
UPC/Part Catalog Rod Color Box
Number Number Diameter Qty.
Bang-It™ + Inserts
78205131154 ACPD-25
78205131156 ACPD-37
79903875937 ACPD-3750-2 3⁄8
78205131157 ACPD-50
78205131158 ACPD-62
78205131166 ACPD-75
1
⁄4
" Brown 100
3
⁄8
" Green 100
"-1⁄2
" Gray 100
1
⁄2
" Yellow 100
5
⁄8
" Red 50
3
⁄4
" Purple 50
Bang-It™+ Hole Saws
79903875911
ACPD-HS813-2 13⁄16
for
79903875910
ACPD-HS1188-2 13⁄16
for
ICC-ES certified. See ICC-ES ESR-3657. Qualified for static, wind, and
seismic loading in concrete.
† All other trademarks are property of their respective owners.
Read safety/installation instruction sheets in packages before use.
Eaton’s B-Line series fasteners
" Carbide Hole Saw 1
1
⁄4
", 3⁄8
", 1⁄2
", 7⁄8
"
" Carbide Hole Saw 1
5
⁄8
", 3⁄4
", 113⁄16
"
212
Page 25
Anchors
‡
Machine Screw Anchors
• For use in concrete, block, brick or stone.
• Not recommended for use in overhead applications.
• Readily accepts machine bolts.
• Internally threaded anchor for easy removability and service
work.
•
Anchor installation requires shallow embedment.
• Made of Zamac Alloy material.
Machine Screw Anchor - Data
ANSI Drill Bit Size
(in.)
1
⁄4"
1
⁄2
3
⁄8"
3
⁄4
Max. Tightening Torque (ft-lbs) 5 10 15
Thread Size (UNC)
Min. Embedment Depth
(in.)
1
⁄4"-20
7
⁄8 11⁄4 11⁄2
3
⁄8"-16
Load Capacity Tension (lbs) * 375 620 875
Load Capacity Shear (lbs) * 355 825 1135
* Based on concrete compression strength of 4000 psi using applied safety
factor of 4.0. For additional loading information contact factory.
Anchors
UPC/Part Catalog Rod Box
Number Number Diameter Qty.
Machine Screw Anchor
78101103239 AMS-25
78101103242 AMS-37
78101103243 AMS-50
1
⁄4
" 100
3
⁄8
" 50
1
⁄2
" 50
Setting Tool
78205109765 9221
78205109767 9231
78205109768 9241
‡ Not ICC-ES certified
1
⁄4
" 1
3
⁄8
" 1
1
⁄2
" 1
1
⁄2"
7
⁄8
1
⁄2"-13
Read safety/installation instruction sheets in packages before use.
Eaton’s B-Line series fasteners
213
Page 26
Anchors
Self-Tapping
Screw Anchors
• For use in normal-weight concrete, structural sand lightweight
concrete and concrete over metal deck.
•
Anchor design allows for shallow embedment and mechanically
interlocks with base material.
•
Internally threaded anchor for easy adjustment and removability
of threaded rod or bolt.
•
Fast anchor installation with a powered impact wrench.
• Suitable for overhead applications such as suspending cable
tray, strut, pipe hangers and conduit.
•
FM Approved.
• ICC-ES certified. See ICC-ES ESR-2272.
• Made of Zinc Plated carbon steel.
• Setting tool included.
Self-Tapping Machine Screw - Data
ANSI Drill Bit Size
(in.)
3
⁄8"
1
⁄2
Min. Concrete Thickness (in.) 4
Max. Tightening Torque (ft-lbs) 8
Min. Embedment Depth (in.) 15⁄8
Load Capacity Tension (lbs) *
Load Capacity Shear (lbs) *
* Based on concrete compression strength of 3000 psi in uncracked con-
crete using applied safety factor of 4.0. For additional loading information
contact factory. The shear capacity is controlled by steel strength and is
ASTM A36 (or equivalent). For ultimate strength design data in cracked
and uncracked concrete, see ICC-ES ESR-2272.
590
260
UPC/Part Catalog Size Thread Box
Number Number Depth Qty.
Self-Tapping Screw Anchor
78205153362 ATM-37
3
⁄8
"
11
⁄16
" 50
Tool
78205153363 6407 SD
ICC-ES certified. See ICC-ES ESR-2272.
Read safety/installation instruction sheets in packages before use.
Eaton’s B-Line series fasteners
3
⁄8
" -- 1
214
Anchors
Page 27
Anchors
‡
Drive Nail Anchors
• For use in concrete, block or brick.
• Anchor is recommended for light duty, tamper-proof
applications.
•
Not recommended for overhead applications.
• Made of Zamac Alloy material.
Drive Nail - Data
ANSI Drill Bit Size
(in.)
Fixture Clearance Hole (in.)
Head Height (in.)
Head Size, O.D. (in.)
Min. Embedment Depth (in.)
3
3
1
7
13
3
⁄16"
⁄16
⁄4
⁄64
⁄32
⁄4
1
⁄4"
1
⁄4
5
⁄16
9
⁄64
35
⁄64
5
⁄8
Load Capacity Tension (lbs) * 100 145
Load Capacity Shear (lbs) * 140 205
* Based on concrete compression strength of 4000 psi using applied safety
factor of 4.0. For additional loading information contact factory.
Anchors
UPC/Part Catalog Size Box
Number Number Qty.
Drive Nail Anchor
78101102964 ADN-18-87
78101102965 ADN-25-75
78101102966 ADN-25-100
78101102967 ADN-25-125
78101102968 ADN-25-150
78101102969 ADN-25-200
78205153306 ADN-25-300
3
⁄16
" x 7⁄8
" 100
1
⁄4
" x 3⁄4
" 100
1
⁄4
" x 1" 100
1
⁄4
" x 11⁄4
" 100
1
⁄4
" x 11⁄2
" 100
1
⁄4
" x 2" 100
1
⁄4
" x 3" 100
‡ Not ICC-ES certified
Read safety/installation instruction sheets in packages before use.
Eaton’s B-Line series fasteners
215
Page 28
Anchors
Toggle Bolts
• The toggle bolt is a spring wing type hollow wall anchor
designed for use in block, wallboard and other hollow base
materials.
•
Anchor is a two-part assembly consisting of a machine screw
and a spring wing toggle.
•
Adjustable to accommodate various wall thicknesses up to 2
•
Combo round head bolt is provided.
• Made of zinc plated carbon steel.
‡
1
⁄2
".
Toggle Bolt - Data
Tension Shear Tension Shear Tension Shear
(lbs.) (lbs.) (lbs.) (lbs.) (lbs.) (lbs.)
3
⁄8" Wallboard 35 35 55 55 60 65
1
⁄2" Wallboard 45 50 60 60 65 75
5
⁄8" Wallboard 60 60 65 65 75 80
3
⁄4" Wallboard 75 70 80 75 85 90
Hollow Concrete Masonry *
Allowable load capacities are calculated using applied safety factor of 4.0.
For additional loading information contact factory.
*
Based on hollow wall concrete masonry with minimum compression
strength of 1500 psi.
3
⁄16"
70 70 70 120 195 140
1
⁄4"
3
⁄8"
UPC/Part Catalog Drill Size Box
Number Number Diameter Qty.
Toggle Bolt
78205153354 ATB-18-300 1⁄2
78205153355 ATB-18-400 1⁄2
78205153356 ATB-25-300 5⁄8
78205153357 ATB-25-400 5⁄8
78205153358 ATB-37-300 7⁄8
78205153359 ATB-37-400 7⁄8
‡ Not ICC-ES certified.
Not for use in seismic applications.
"
"
"
"
"
"
3
⁄16
" x 3" 50
3
⁄16
" x 4" 50
1
⁄4
" x 3" 50
1
⁄4
" x 4" 50
3
⁄8
" x 3" 25
3
⁄8
" x 4" 25
Anchors
Read safety/installation instruction sheets in packages before use.
Eaton’s B-Line series fasteners
216
Page 29
Page 30
Anchors
Plastic Screw Anchors
• One-piece anchor designed for light duty applications in
wallboard, concrete and masonry.
• Works in hollow or solid base materials.
• Suitable for screws with various thread sizes and styles -
screws may be installed with a screw gun.
‡
Plastic Screw Anchor - Data APS-4 APS-6 APS-8
Drill Diameter (in.)
3
⁄16
1
⁄4
5
⁄16
Screw Size Range #4-#10 #6-#12 #8-#14
Min, Thread Length (in.) 13⁄16 13⁄8 113⁄16
Min. Hole Diameter (in.) 13⁄8 19⁄16 2
Min. Wall Thickness (in.)
1
⁄4
3
⁄8
1
⁄2
Min. Embedded Thread Length (in.) 17⁄8 2 29⁄16
Load Capacity Tension (lbs) * 18 20 22
Load Capacity Shear (lbs) * 32 40 45
* Allowable load capacities are calculated using an applied safety factor of
4.0. For additional loading information contact factory.
UPC/Part Catalog Screw Box
Number Number Size Qty.
Plastic Screw Anchors
78205153315 APS-4 #4 - #10 100
78205153316 APS-6 #6 - #12 100
78205153319 APS-8 #8 - #14 100
‡ Not ICC-ES certified
Anchors
Read safety/installation instruction sheets in packages before use.
Eaton’s B-Line series fasteners
218
Page 31
Anchors
‡
Plastic Hollow Wall Anchors
• Heavy duty hollow wall anchor designed for use in plaster,
wallboard, concrete block, or hollow tile.
• Pre-assembled anchor consisting of a carbon steel wing and a
locking cap/ratchet leg assembly molded from engineered plastic.
•
When compared to traditional toggles, this anchor can be
installed in a smaller hole and does not require a fixture or
screw to set it.
•
Adjustable to accommodate various wall thickness up to 2
1
⁄2
".
Plastic Hollow Wall - Data 3⁄16"
Thread Size
(UNC)
Max. Tightening Torque
3
⁄16"-24 1⁄4"-20
(ft-lbs) 5 5 5 5
1
⁄4"
3
⁄8"
3
⁄8"-16 1⁄2"-13
Minimum Clearance (in.) 17⁄8" 17⁄8" 17⁄8" 17⁄8"
Plastic Hollow
Wall -
Data
3
⁄8" Wallboard 30 60 35 70 35 70 35 75
Anchors
1
⁄2" Wallboard 35 70 35 75 40 75 40 90
5
⁄8" Wallboard 50 95 55 105 55 105 55 110
3
⁄4" Wallboard 50 110 55 120 60 120 60 120
Hollow Concrete
Masonry *
Allowable load capacities are calculated using an applied safety factor of
4.0. For additional loading information contact factory.
* Based on hollow wall concrete masonry with minimum compression
strength of 1500 psi.
3
⁄16"
Tension Shear Tension Shear Tension Shear Tension Shear
(lbs ) (lbs.) (lbs ) (lbs ) (lbs ) (lbs ) (lbs ) (lbs.)
215 150 270 285 285 465 345 595
1
⁄4"
3
⁄8"
UPC/Part Catalog Anchor Drill Wall Box
Number Number Size Dia. Thickness Qty.
Plastic Hollow Wall Anchor
78205153311 APH-18 3⁄16" x 4" 1⁄2" 3⁄8" - 21⁄2" 50
78205153312 APH-25 1⁄4" x 4"
78205153313 APH-37 3⁄8" x 4"
78205153314 APH-50 1⁄2" x 4"
1
⁄2" 3⁄8" - 21⁄2" 50
3
⁄4" 3⁄8" - 21⁄2" 25
3
⁄4" 3⁄8" - 21⁄2" 25
1
⁄2"
1
⁄2"
‡ Not ICC-ES certified
Read safety/installation instruction sheets in packages before use.
Eaton’s B-Line series fasteners
219
Page 32
Anchors
Self-Drilling Wallboard Anchors
• One-piece self drilling anchor designed for use in hollow
wallboard for light to medium duty loads.
• Ideal for mounting electrical fixtures, phone systems, and
miscellaneous hardware.
• APD/AZD designed for use in
•
APDM/AZDM designed for use in
•
Kit includes 50 anchors, 50 screws and #2 Phillips Drive Bit.
• Available in engineered Nylon and Zamac Alloy.
APDM-6K
Self-Drilling Wallboard APD/AZD APDM/AZDM
Anchor - Data
Anchor Length (in.) 111⁄16 15⁄16
Min. Screw Engagement (in.)
Self-Drilling Wallboard APD/AZD APDM/AZDM
Anchor - Data
3
⁄8" Wallboard 15 15 10 15
1
⁄2" Wallboard 15 20 15 15
5
⁄8" Wallboard 20 25 20 20
3
⁄4" Wallboard 20 25 20 20
Allowable load capacities are calculated using an applied safety factor of
4.0. For additional loading information contact factory.
3
⁄8
" to 1" wallboard.
3
5
⁄8
" to
⁄8
" wallboard.
AZD
APD
3
⁄4
Tension Shear Tension Shear
(lbs ) (lbs ) (lbs.) (lbs )
3
⁄4
‡
Anchors
UPC/Part Catalog Screw Kit
Number Number Size Qty.
Self-Drilling Wallboard Anchor
78101103314 APD-8K #8 x 1" 100/kit
78101103318 AZD-8K #8 x 1" 100/kit
78205153310 APDM-6K #6 x 1" 100/kit
78205153375 AZDM-6K #6 x 1" 100/kit
‡ Not ICC-ES certified
Read safety/installation instruction sheets in packages before use.
Eaton’s B-Line series fasteners
220
Page 33
Anchors
‡
Plastic Conical Anchors
• Designed for use with lightweight fixtures.
• Recommended for use in concrete, block and brick.
• Recommended for light duty static applications where holding
power is not critical.
•
Not recommended for overhead use.
• Kit includes 100 anchors, 100 screws and one drill bit.
• Made of engineered plastic.
Plastic Conical Anchor - Data #8 #10 - #12
Nominal Weight Concrete * 85 70 140 90
Hollow Concrete Masonry ** 60 45 70 55
Clay Brick Masonry *** 30 50 55 65
Minimum Embedment Depth 7⁄8"
Anchors
* Based on concrete compression strength of 4000 psi.
** Based on hollow concrete masonry with minimum compression
strength of 1500 psi.
***
Based on clay brick masonry with minimum compression strength of
1500 psi.
Loads contain an applied safety factor of 4.0. For additional loading
information contact factory.
Tension Shear Tension Shear
(lbs ) (lbs ) (lbs ) (lbs.)
7
⁄8" 1" 1"
UPC/Part Catalog Screw Box
Number Number Size Qty.
Plastic Conical Anchor
78205153307 APC-8K #8 x 1" 100
78205153308 APC-10K #10 x 1" 100
78205153309 APC-12K #12 x 1" 100
‡ Not ICC-ES certified
Read safety/installation instruction sheets in packages before use.
Eaton’s B-Line series fasteners
221
Loading...
