Cooper and Hunter CH09VCT115V User Manual

VICTORIA

HIGH-WALL DUCTLESS AIR CONDITIONING & HEATING SYSTEM

OWNER'S MANUAL

Models:

CH09VCT115VI/CH09VCT115VO CH12VCT115VI/CH12VCT115VO CH09VCT230VI/CH09VCT230VO CH12VCT230VI/CH12VCT230VO CH18VCT230VI/CH18VCT230VO CH24VCT230VI/CH24VCT230VO

CH09VCT115VI/CH09VCT115VO (115V)

System Includes: CH09VCT115VI, CH09VCT115VO

CH12VCT115VI/CH12VCT115VO System Includes: CH12VCT115VI, CH12VCT115VO

CH09VCT230VI/CH09VCT230VO (230V) System Includes: CH09VCT230VI, CH09VCT230VO

CH12VCT230VI/CH12VCT230VO System Includes: CH12VCT230VI, CH12VCT230VO

CH18VCT230VI/CH18VCT230VO System Includes: CH18VCT230VI, CH18VCT230VO

CH24VCT230VI/CH24VCT230VO (230V) System Includes: CH24VCT230VI, CH24VCT230VO

(115V)

(230V)

Explanation of Symbols

Indicates a hazardous situation that, if not avoided, will result in death or serious injury.

Indicates a hazardous situation that, if not avoided, could result in death or serious injury.

Indicates a hazardous situation that, if not avoided, may result in minor or moderate injury.

Indicates important but not hazard-related information, used to indicate risk of property damage.

Indicates a hazard that would be assigned a signal word WARNING or CAUTION.

Content

Operation Notices

Precautions. ...........................................................................................................1

Parts name . ...........................................................................................................6

Screen Operation Guide

Buttons on remote controller .................................................................................8

Introduction for icons on display screen ................................................................8

Introduction for buttons on remote controller .........................................................9

Function introduction for combination buttons .....................................................13

Operation guide ...................................................................................................15

Replacement of batteries in remote controller .....................................................15

Emergency operation . . .......................................................................................16

Maintenance

Clean and maintenance . .....................................................................................16

Malfunction

Malfunction analysis . ...........................................................................................19

System operation . ..............................................................................................23

Energy saving tips . .............................................................................................24

Precautions

WARNING

Operation and Maintenance

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

Children shall not play with the appliance. Cleaning and user maintenance shall not be made by

children without supervision. Do not connect air conditioner to multi-purpose socket.

Otherwise, it may cause fire hazard. Do disconnect power supply when cleaning air

conditioner. Otherwise, it may cause electric shock. If the supply cord is damaged, it must be replaced by

the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

Do not wash the air conditioner with water to avoid electric shock. Do not spray water on indoor unit. It may cause electric shock or malfunction.

After removing the filter, do not touch fins to avoid injury. Do not use fire or hair dryer to dry the filter to avoid

deformation or fire hazard.

Precautions

WARNING

Maintenance must be performed by qualified professionals. Otherwise, it may cause personal injury

or damage. Do not repair air conditioner by yourself. It may cause

electric shock or damage. Please contact dealer when you need to repair air conditioner.

Do not extend fingers or objects into air inlet or air outlet. It may cause personal injury or damage.

Do not block air outlet or air inlet. It may cause malfunction.

Do not spill water on the remote controller, otherwise the remote controller may be broken. When below phenomenon occurs, please turn off air conditioner and disconnect power immediately, and then contact the dealer or qualified professionals for service.

● Power cord is overheating or damaged.

● There’s abnormal sound during operation.

● Circuit break trips off frequently.

● Air conditioner gives off burning smell.

● Indoor unit is leaking.

If the air conditioner operates under abnormal conditions, it may cause malfunction, electric shock or fire hazard.

When turning on or turning off the unit by emergency operation switch, please press this switch with an insulating object other than metal.

Do not step on top panel of outdoor unit, or put heavy objects. It may cause damage or personal injury.

Precautions

WARNING

Attachment

Installation must be performed by qualified professionals. Otherwise, it may cause personal injury or damage.

Must follow the electric safety regulations when installing the unit.

According to the local safety regulations, use qualified power supply circuit and circuit break.

Do install the circuit break. If not, it may cause malfunction. An all-pole disconnection switch having a contact separation

of at least 1/8in (3mm) in all poles should be connected in fixed wiring.

Including an circuit break with suitable capacity, please note magnet buckle

the circuit-short and

the following table.Air switch should be included

and heating buckle function, it can protect

overload.

Air Conditioner should be properly grounded. Incorrect grounding may cause electric shock.

Don't use unqualified power cord. Make sure the power supply matches with the

requirement of air conditioner.Unstable power supply or incorrect wiring or malfunction. Please install proper power supply cables before using the air conditioner.

Properly connect the live wire, neutral wire and grounding wire of power socket.

Be sure to cut off the power supply before proceeding any work related to electricity and safety.

Precautions

WARNING

Do not put through the power before finishing installation. If the supply cord is damaged, it must be replaced by

the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

The temperature of refrigerant circuit will be high, please keep the interconnection cable away from the copper tube.

The appliance shall be installed in accordance with national wiring regulations.

Installation must be performed in accordance with the requirement of National Electrical Codes (NEC) and local electrical codes by authorized personnel only.

The air conditioner is the first class electric appliance. It must be properly grounding with specialized grounding device by a professional. Please make sure it is always grounded effectively, otherwise it may cause electric shock.

The yellow-green wire in air conditioner is grounding wire, which can't be used for other purposes.

The grounding resistance should comply with national electric safety regulations.

The appliance must be positioned so that the plug is accessible.

All wires of indoor unit and outdoor unit should be connected by a professional. If the length of power connection wire is insufficient, please contact the supplier for a new one. Avoid extending the wire by yourself.

Precautions

WARNING

For the air conditioner with plug, the plug should be reachable after finishing installation.

For the air conditioner without plug, an circuit break must be installed in the line.

If you need to relocate the air conditioner to another place, only the qualified person can perform the work. Otherwise, it may cause personal injury or damage.

Select a location which is out of reach for children and far away from animals or plants.If it is unavoidable, please add the fence for safety purpose.

The indoor unit should be installed close to the wall.

Working temperature range

Indoor side DB/WB(°C/°F) Outdoor side DB/WB(°C/°F) Maximum cooling 26.7/19.4(80/66.9) 46.1/23.9(115/75) Maximum heating 26.7/-(80/-) 23.9/18.3(75/64.9)

NOTICE:

󱕰 The operating temperature range (outdoor temperature) for cooling only unit is

-0.4°F(-18°C)~115°F(46.1°C); for heat pump unit is -4°F(-20°C)~115°F(46.1°C).

Parts Name

Indoor Unit

remote control

(Display content or position may be different from above graphics, please refer to actual products)

Outdoor Unit

air inlet panel

aux.button

horizontal louver

air outlet

air inlet

handle

air outlet

NOTICE:

Actual product may be different from above graphics, please refer to actual products.

Parts Name

Display

For some model:

cooling indicator

heating indicator

temp. indicator

For some model:

temp. indicator

receiver window

For some model:

power indicator

W R G

drying indicator

display

For some model:

receiver window

display

Power LED color indicator: Green-status-ON. Red -status-OFF.

Mode LED color indicator: White-W-Cool Mode-

Red-R-Heat Mode-

Green-G-Dry Mode-

heating indicator

cooling indicator

power indicator

temp. indicator

drying indicator

(only for heating model)

display

receiver window

temp. indicator

receiver window

W R O

Display content or position may be different from above graphics, please refer to actual products.

Power LED color indicator: Green-status-ON. Red -status-OFF.

Mode LED color indicator: White-W-Cool Mode-

Red-R-Heat ModeOrange-O-Dry Mode-

(only for heating model)

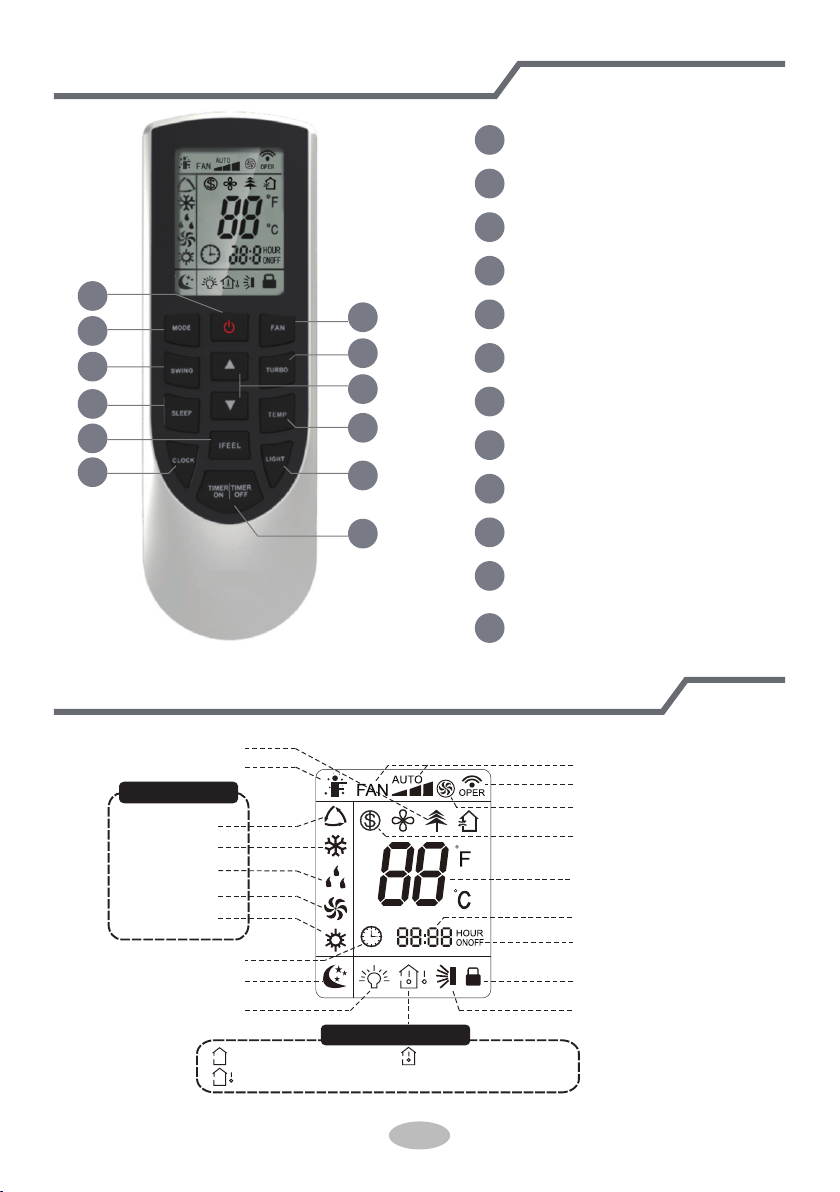

Buttons on remote controller

1 2 4

7 9

3 5 6

ON/OFF button

MODE button

FAN button

SWING button

TURBO button

▲

▲/ button

SLEEP button

TEMP button

I FEEL button

LIGHT button

CLOCK button TIMER ON/TIMER OFF

button

Introduction for icons on display screen

health function

I feel

Operation mode

Auto mode Cool mode

Dry mode

Fan mode

Heat mode

Clock

Sleep mode

Light

:Set temp.

Temp. display type

:Outdoor ambient temp.

:Indoor ambient temp.

Set fan speed Send signal

Turbo mode 46°F(8°C) heating

function Set temperature

Set time TIMER ON/

TIMER OFF Child lock

Up&down swing

Introduction for buttons on remote controller

Note:

● This is a general use remote controller, it could be used for the air conditioners with multifunction; For some function, which the model doesn't have, if press the corresponding button on the remote controller that the unit will keep the original running status.

● After putting through the power, the air conditioner will give out a sound.

Operation indictor " " is ON (red indicator). After that, you can operate the air conditioner by using remote controller.

●

Under ON status, pressing the button on the remote controller, the signal icon " "

on the display of remote controller will blink once and the air conditioner will give out a “de” sound, which means the signal has been sent to the air conditioner.

● Under OFF status, set temperature and clock icon will be displayed on the display

of remote controller (If timer on, timer off and light functions are set, the corre sponding icons will be displayed on the display of remote controller at the same

time); Under on status, the display will show the corresponding set function icons.

ON/OFF button

Press this button can turn on or turn off the air conditioner. After turning on the air conditioner, operation indicator " "on indoor unit’s display is ON (green indicator. The colour is different for different models), and indoor unit will give out a sound.

MODE button

Press this button to select your required operation mode.

AUTO COOL FANDRY HEAT

● When selecting auto mode, air conditioner will operate automatically according

to ex-factory setting. Set temperature can’t be adjusted and will not be displayed as well. Press "FAN" button can adjust fan speed. Press "SWING" button can adjust fan blowing angle.

● After selecting cool mode, air conditioner will operate under cool mode. Cool

indicator " "on indoor unit is ON. Press "▲" or " " button to adjust set tempe rature. Press "FAN" button to adjust fan speed. Press "SWING" button to adjust fan blowing angle.

● When selecting dry mode, the air conditioner operates at low speed under dry

mode. Dry indicator " " on indoor unit is ON. Under dry mode, fan speed can’t be adjusted. Press "SWING" button to adjust fan blowing angle.

● When selecting fan mode, the air conditioner will only blow fan, no cooling and

no heating. All indicators are OFF. Press "FAN" button to adjust fan speed. Press "SWING" button to adjust fan blowing angle.

● When selecting heating mode, the air conditioner operates under heat mode.

Heat indicator " " on indoor unit is ON. Press "▲" or " " button to adjust set

▲

Introduction for buttons on remote controller

temperature. Press "FAN" button to adjust fan speed. Press "SWING" button to adjust fan blowing angle. (Cooling only unit won’t receive heating mode signal. If setting heat mode with remote controller, press ON/OFF button can’t start up the unit).

Note:

● For preventing cold air, after starting up heating mode, indoor unit will delay 1~5

minutes to blow air (actual delay time is depend on indoor ambient temperature).

● Set temperature range from remote controller: 60.8~86°F (16~30°C); Fan

speed: auto, low speed, medium speed, high speed.

FAN button

Pressing this button can set fan speed circularly as: auto (AUTO), low( ), medium ( ), high( ).

Auto

Note:

● Under AUTO speed, air conditioner will select proper fan speed automatically

according to ex-factory setting.

● Fan speed under dry mode is low speed.

SWING button

Press this button can select up&down swing angle. Fan blow angle can be selected circularly as below:

no display (horizontal louvers stops at current position)

● When selecting " ", air conditioner is blowing fan automatically. Horizontal louver will automatically swing up&down at maximum angle.

● When selecting " 、、、

● When selecting " 、

● Hold " "button above 2s to set your required swing angle. When reaching your required angle, release the button.

、

Note:

" 、、 " may not be available. When air conditioner receives this signal, the air conditioner will blow fan automatically.

Introduction for buttons on remote controller

TURBO button

Under COOL or HEAT mode, press this button to turn to quick COOL or quick HEAT mode. " " icon is displayed on remote controller. Press this button again to exit turbo function and " " icon will disappear.

▲

▲/ button

● Press "▲" or " " button once increase or decrease set temperature 33.8°F(1°C). Holding "▲" or " " button, 2s later, set temperature on remote controller will change quickly. On releasing button after setting is nished, temperature indica-

tor on indoor unit will change accordingly. (Temperature can’t be adjusted under auto mode)

● When setting TIMER ON, TIMER OFF or CLOCK, press "▲" or " " button to

adjust time. (Refer to CLOCK, TIMER ON, TIMER OFF buttons) When setting

TIMER ON, TIMER OFF or CLOCK, press "▲" or " " button to adjust time. (Refer

to CLOCK, TIMER ON, TIMER OFF buttons)

SLEEP button

Under COOL, HEAT or DRY mode, press this button to start up sleep function. " " icon is displayed on remote controller. Press this button again to cancel sleep function and " " icon will disappear.

▲

TEMP button

By pressing this button, you can see indoor set temperature, indoor ambient temperature or outdoor ambient temperature on indoor unit’s display. The setting on remote controlleris selected circularly as below:

no display

● When selecting " " or no display with remote controller, temperature indicator

on indoor unit displays set temperature.

● When selecting " " with remote controller, temperature indicator on indoor unit

displays indoor ambient temperature.

● When selecting " " with remote controller, temperature indicator on indoor unit

displays outdoor ambient temperature.

Note:

●

Outdoor temperature display is not available for some models. At that time, indoor

unit receives " " signal, while it displays indoor set temperature.

Introduction for buttons on remote controller

● It’s defaulted to display set temperature when turning on the unit. There is no

display in the remote controller.

● Only for the models whose indoor unit has dual-8 display.

● When selecting displaying of indoor or outdoor ambient temperature, indoor

temperature indicator displays corresponding temperature and automatically turn

to display set temperature after three or ve seconds.

I FEEL button

Press this button to start I FEEL function and " " will be displayed on the remote controller. After this function is set, the remote controller will send the detected ambient temperature to the controller and the unit will automatically adjust the indoor temperature according to the detected temperature. Press this button again to close I FEEL function and " " will disappear.

● Please put the remote controller near user when this function is set. Do not put

the remote controller near the object of high temperature or low temperature in order to avoid detecting inaccurate ambient temperature.

LIGHT button

Press this button to turn off display light on indoor unit. " " icon on remote controller disappears. Press this button again to turn on display light. " " icon is displayed.

CLOCK button

Press this button to set clock time. " " icon on remote controller will blink. Press

"▲" or " " button within 5s to set clock time. Each pressing of "▲" or " " button, clock time will increase or decrease 1 minute. If hold "▲" or " " button, 2s later, time will change quickly. Release this button when reaching your required time.

▲▲

▲

Note:

● Clock time adopts 24-hour mode.

● The interval between two operation can’t exceeds 5s. Otherwise, remote contro ller will quit setting status. Operation for TIMER ON/TIMER OFF is the same.

TIMER ON / TIMER OFF button

● TIMER ON button "TIMER ON" button can set the time for timer on. After pressing this button, " " icon disappears and the word "ON" on remote controller blinks. Press "▲" or

▲

" "button to adjust TIMER ON setting. After each pressing "▲" or " " button,

▲

Introduction for buttons on remote controller

TIMER ON setting will increase or decrease 1min. Hold "▲" or " " button, 2s

later, the time will change quickly until reaching your required time.

Press "TIMER ON" to conrm it. The word "ON" will stop blinking. " " icon

resumes displaying. Cancel TIMER ON: Under the condition that TIMER ON is started up, press "TIMER ON" button to cancel it.

● TIMER OFF button

"TIMER OFF" button can set the time for timer off. After pressing this button, " "

icon disappears and the word "OFF" on remote controller blinks. Press "▲" or

▲

" " button to adjust TIMER OFF setting. After each pressing "▲" or " " button, TIMER OFF setting will increase or decrease 1min. Hold "▲" or " " button, 2s

later, the time will change quickly until reaching your required time. Press "TIMER OFF" word "OFF" will stop blinking. " " icon resumes displaying. Cancel TIMER OFF. Under the condition that TIMER OFF is started up, press

"TIMER OFF" button to cancel it.

Note:

● Under on and off status, you can set TIMER OFF or TIMER ON simultaneously.

● Before setting TIMER ON or TIMER OFF, please adjust the clock time.

● After starting up TIMER ON or TIMER OFF, set the constant circulating valid. After that, air conditioner will be turned on or turned off according to setting time. ON/OFF button has no effect on setting. If you don’t need this function, please use remote controller to cancel it.

▲

Function introduction for combination buttons

Energy-saving function

Under cooling mode, press "TEMP" and " CLOCK" buttons simultaneously to start up or turn off energy-saving function. When energy-saving function is started up, "SE" will be shown on remote controller, and air conditioner will adjust the set temperature automatically according to ex-factory setting to reach to the best energy-saving effect. Press "TEMP" and "CLOCK" buttons simultaneously again to exit energy-saving function.

Note:

● Under energy-saving function, fan speed is defaulted at auto speed and it can’t

be adjusted.

●

Under energy-saving function, set temperature can’t be adjusted. Press "TURBO"

button and the remote controller won’t send signal.

● Sleep function and energy-saving function can’t operate at the same time. If

energy-saving function has been set under cooling mode, press sleep button will cancel energy-saving function. If sleep function has been set under cooling mode, start up the energy-saving function will cancel sleep function.

Function introduction for combination buttons

8℃ heating function

Under heating mode, press “TEMP” and “CLOCK” buttons simultaneously to start up or turn off 46°F(8°C) heating function. When this function is started up, “ ” and “46°F(8°C)” will be shown on remote controller, and the air conditioner keep the heating status at 46°F(8°C). Press “TEMP” and “CLOCK” buttons simultaneously again to exit 46°F(8°C) heating function.

Note:

● Under 46°F(8°C) heating function, fan speed is defaulted at auto speed and it can’t be adjusted.

● Under 46°F(8°C) heating function, set temperature can’t be adjusted. Press "

TURBO" button and the remote controller won’t send signal.

● Sleep function and 46°F(8°C) heating function can’t operate at the same time. If 46°F(8°C) heating function has been set under cooling mode, press sleep button

will cancel 46°F(8°C) heating function. If sleep function has been set under cooling mode, start up the 46°F(8°C) heating function will cancel sleep function.

● Under °F temperature display, the remote controller will display 46°F(8°C) heating.

Child lock function

Press "▲" and " " simultaneously to turn on or turn off child lock function. When

child lock function is on, " " icon is displayed on remote controller. If you operate the remote controller, the " " icon will blink three times without sending signal to the unit.

▲

Temperature display switchover function

Under OFF status, press " " and "MODE" buttons simultaneously to switch temperature display between ℃ and ℉.

▲

Operation guide

After putting through the power, press "ON/OFF" button on remote controller to

turn on the air conditioner.

Press "MODE" button to select your required mode: AUTO, COOL, DRY, FAN,

HEAT.

Press "▲" or " " button to set your required temperature. (Temperature can’t

be adjusted under auto mode).

Press "FAN" button to set your required fan speed: auto, low, medium and high

speed.

Press "SWING" button to select fan blowing angle.

▲

Replacement of batteries in remote controller

1. Press the back side of remote controller marked

with " ", as shown in the g, and then push out

the cover of battery box along the arrow direction.

2. Replace two 7# (AAA 1.5V) dry batteries, and make sure the position of "+" polar and "-" polar are correct.

3. Reinstall the cover of battery box.

signal sender battery

reinstall

remove

Cover of battery box

NOTICE

● During operation, point the remote control signal sender at the receiving

window on indoor unit.

● The distance between signal sender and receiving window should be no

more than 8m, and there should be no obstacles between them.

● Signal may be interfered easily in the room where there is uorescent lamp

or wireless telephone; remote controller should be close to indoor unit during operation.

● Replace new batteries of the same model when replacement is required.

● When you don’t use remote controller for a long time, please take out the

batteries.

● If the display on remote controller is fuzzy or there’s no display, please

replace batteries.

Emergency operation

If remote controller is lost or damaged, please use auxiliary button to turn on or turn off the air conditioner. The operation in details are as below:

air conditioner. When the air conditioner is turned on, it will operate under auto mode.

panel

aux. button

WARNING:

Use insulated object to press the auto button

Clean and maintenance

WARNING

■ Turn off the air conditioner and disconnect the power before cleaning the air conditioner to avoid electric shock.

■ Do not wash the air conditioner with water to avoid electric shock.

■ Do not use volatile liquid to clean the air conditioner.

Clean surface of indoor unit

When the surface of indoor unit is dirty, it is recommended to use a soft dry cloth or wet cloth to wipe it.

NOTICE:

● Do not remove the panel when cleaning it.

Clean and maintenance

W ARNING

CAUTION W ARNING

CAUTION

• Turn off power and disconnect unit from power source before cleaning. Failure to do so could cause electric shock.

•Never spray water on either indoor or outdoor unit. This could cause damage or unit failure.

•Never use abrasive cleaners on indoor or outdoor unit. Use only slightly damp, clean, soft cloth or very mild cleansers.

Open panel

Pull out the panel to a certain

● Use dust catcher or water to

the water (below 113°F(45°C) ) to clean it, and then put it in a shady and cool place to dry.

panel cover tightly.

WARNING

■ The ﬁlter should be cleaned every three months. If there is much dust in the operation environment, clean frequency can be increased.

■ After removing the ﬁlter, do not touch ﬁns to avoid injury.

■ Do not use ﬁre or hair dryer to dry the ﬁlter to avoid deformation or ﬁre hazard.

Clean and maintenance

NOTICE: Checking before use-season

1. Check whether air inlets and air outlets are blocked.

2. Check whether circuit break, plug and socket are in good condition.

4. Check whether drainage pipe is damaged.

NOTICE: Checking after use-season

1. Disconnect power supply.

Notice for recovery

1. Many packing materials are recyclable materials. Please dispose them in appropriate recycling unit.

2. If you want to dispose the air conditioner, please contact local dealer or consultant service center for the correct disposal method.

Malfunction analysis

General phenomenon analysis

Please check below items before asking for maintenance. If the malfunction still

can’t be eliminated, please contact local dealer or qualied professionals.

Phenomenon Check items Solution

Indoor unit

can’t receive

remote

controller’s

signal or remote controller has no action.

No air emitted from indoor unit

● Whether it's interfered severely

(such as static electricity,stable voltage)?

● Whether remote controller is

within the signal receiving range?

● Whether there are obstacles?

● Whether remote controller is

pointing at the receiving window?

● Is sensitivity of remote contro ller low; fuzzy display and no

display?

● No display when operating

remote controller?

● Fluorescent lamp in room?

● Air inlet or air outlet of indoor

unit is blocked?

● Under heating mode, indoor

temperature is reached to set temperature?

● Heating mode is turned on just

now?

● Pull out the plug. Reinsert

the plug after about 3min, and then turn on the unit again.

● Signal receiving range is 8m.

● Remove obstacles.

●

Select proper angle and point the remote controller at the re ceiving window on indoor unit.

● Check the batteries. If the

power of batteries is too low, please replace them.

● Check whether remote cont-

roller appears to be damaged. If yes, replace it.

● Take the remote controller

close to indoor unit.

● Turn off the uoresent lamp

and then try it again.

● Eliminate obstacles.

● After reaching to set temper-

ature, indoor unit will stop bl owing out air.

● In order to prevent blowing

out cold air, indoor unit will be started after delaying for sev eral minutes, which is a nor mal phenomenon.

Malfunction analysis

Phenomenon Check items Solution

Air condit-

ioner can’t

operate

Mist is emitted from

indoor unit’s

air outlet

Set temper-

ature can’t

be adjusted

● Power failure?

● Is plug loose?

● Circuit break trips off or

fuse is burnt out?

● Wiring has malfunction?

● Unit has restarted immediately

after stopping operation?

● Whether the function setting

for remote controller is correct?

● Indoor temperature and hum-

idity is high?

● Unit is operating under auto

mode?

● Your required temperature

exceeds the set temperature range?

● Wait until power recovery.

● Reinsert the plug.

● Ask professional to replace

circuit break or fuse.

● Ask professional to replace it.

● Wait for 3min, and then turn

on the unit again.

● Reset the function.

● Because indoor air is cooled

rapidly. After a while, indoor temperature and humidity will be decrease and mist will disappear.

● Temperature can’t be adju-

sted under auto mode. Please switch the operation mode if you need to adjust temperature.

● Set temperature range:

60.8~86°F (16~30°C).

Cooling (heating) effect is not good.

● Voltage is too low?

● Filter is dirty? ● Clean the lter.

● Set temperature is in proper

range?

● Door and window are open? ● Close door and window.

● Wait until the voltage

resumes normal.

● Adjust temperature to proper

range.

Malfunction analysis

W ARNING

CA U TION W ARNING

Phenomenon Check items Solution

Odours are emitted

Air conditioner operates normally suddenly

“Water

owing”

noise

Cracking noise

WARNING

● Whether there’s odour source,

such as furniture and cigarette, etc.

● Whether there’s interference,

such as thunder, wireless devices, etc.

● Air conditioner is turned on or

turned off just now?

● Air conditioner is turned on or

turned off just now?

● Eliminate the odour source.

● Clean the lter.

● Disconnect power, put back

power, and then turn on the unit again.

● The noise is the sound of refrigerant owing inside

the unit, which is a normal phenomenon.

● This is the sound of friction

caused by expansion and/or contraction of panel or other parts due to the change of temperature.

Do not attempt any repairs on the unit yourself. Incorrect repair can cause shock or fire. Always call a qualified service professional. Using these troubleshooting suggestions can save time when you contact the qualified service professional.

Malfunction analysis

Error Code

● When air conditioner status is abnormal, temperature indictor on indoor unit will

ation of error code.

Error code

F1 F2

It can be eliminated after restarting the unit. If not,please

It can be eliminated after restarting the unit. If not, please

Troubleshooting

Note:

service.

WARNING

■ When below phenomenon occurs, please turn off air conditioner and discon-

for service.

● Power cord is overheating or damaged.

● There’s abnormal sound during operation.

● Air switch trips off frequently.

● Air conditioner gives off burning smell.

● Indoor unit is leaking.

■ If the air conditioner operates under abnormal conditions, it may cause

SYSTEM OPERATION

COOLING OPERATION

How it works:

In cooling mode, your victoria indoor unit will absorb heat from the room, then the victoria outdoor unit will discharge the heat to the outdoors. The victoria cooling capacity decreases as the outdoor temperature increases. This causes the victoria to work harder and longer to hold the selected room temperature.

Indoor Coil Freeze Protection:

Frost may form on the indoor coil during cooling operations when the outdoor temperature below 50°F (10°C). Prolong operation may cause ice to form on the indoor coil and block airow. If the victoria indoor unit microcomputer detects ice on the indoor coil it will stop the compressor to defrost the coil and protect the unit.

HEATING OPERATION

How it works:

In heating mode, your victoria outdoor unit will absorb heat from the outdoor ambient, then the victoria indoor unit will discharge the heat to the room. The victoria heating capacity decreases as the outdoor temperature decreases.

During extreme cold outdoor temperatures, you may need an additional heating source to supplement the victoria heating output.

Defrost Function:

In heating mode, frost may form on the outdoor coil during humid and low outdoor temperature conditions. Prolong operation may cause ice to form on the outdoor coil and block airow. This will reduce the victoria’s heating capacity.

If the victoria microcomputer detects ice on the outdoor coil, it will switch automatically to defrost mode to melt the ice and clear the coil. During defrost mode, heating will be discontinued and the victoria indoor unit will ash the Defrost indicator. The compressor will continue to run while indoor and outdoor fans will stop. It is normal to see steam or vapor coming from the outdoor unit during defrost mode. Defrost mode will terminate 12 minutes after initiation of defrost cycle or when the outdoor coil temperature is 50°F (10°C) or greater.

ENERGY SAVING TIPS

1. Relaxing room temperature at night is OK: During the nighttime

hours you don’t require the same level of conscious cooling or heating. Try using Sleep Mode to gradually relax room temperature and allow the unit to run less and save energy.

2. Curtains and shades: In the summer, you need to block the effects of

the sun. Close window curtains and shades on the south and west side of your home to help block solar heat. In winter, the sun is your friend. Open curtains and shades to allow solar heat into your room.

3. Close doors: If you don’t need to heat and cool your whole home,

confine the heating and cooling to one room by closing doors. Limit the space you’re heating and cooling to specified capability of the unit.

4. Service the unit: Some basic maintenance might be all you need. The

outdoor unit will greatly benefit from a good hosing out, especially in treed areas where seeds and other debris can stick to coil fins and make the unit work up to 15% harder!

5. Rearrange the room: Furniture that obstructs airflow means you could

be heating and cooling the back of a chair or the front of a sofa instead of the actual living space. Use the Swing Louvers to help direct the air in the right direction for the room; remove or rearrange obstacles blocking airflow.

6. Try 75 degrees: 75°F is a good point for an air conditioner to run at its

optimal performance level. Even a 5-degree change in temperature can make your unit use up to 40% more energy!

7. Lighting: Turning lights off can help reduce your heat. Each light bulb is

a tiny heater. Your air conditioner must waste energy overcoming the heat from your lights to reach and hold your desired room temperature.

8. Is anyone home? If possible, while you’re away turn your unit to Auto

mode and make sure windows and drapes are closed. Although the room temperature will be uncomfortable for a few minutes when you come home, the unit will have the room back to your desired temperature in no time.

9. Don’t forget the fan: The fan is much like a car. The faster it runs, the

more energy is uses. Sometimes we need the car to go fast, but slow is good enough most of the time. Try saving money by using the comfortable quiet low fan speed as much as possible.

www.cooperandhunter.us

LIMITED WARRANTY STATEMENT

Ductless Heat Pump Split System

This warranty should be registered on our web-site www.cooperandhunter.us The warranty is only valid when installed by a Licensed HVAC Technician

FOR WARRANTY SERVICE OR REPAIR:

Contact your installing contractor. You may find the installer’s name on the equipment or in your Owner’s packet.

Complete product registration below and send back by e-mail at

PRODUCT REGISTRATION:

Model No.: _____________ _________________________________________________________________________________

Serial No.: _________________________________________ ______________ Date of Installation: ______________________

Owner Name: ____________________________________________________________________________________________

Address of Installation:__________________________ ___________________________________________________________

Installing Contractor: ______________________________________________________________________________________

Address: ___________________ _____________________________________________________________________

Phone No. / E-mail: _______________________________________________________________________________

C&H distributor (hereinafter “Company”) warrants this product against failure due to defect in materials or workmanship

under normal use and maintenance as follows. All warranty periods begin on the date of original installation. If the date cannot be verified, the warranty period begins one hundred twenty (120) days from date of manufacture.

failure to use, install or maintain the product in a manner consistent with our/manufacturer’s recommendations shall render the warranty void. Cooper&Hunter, at its option, may request a report from a qualified technician prior to honoring a warranty

If a part fails due to defect during the applicable warranty period Company will provide a new or remanufactured part, at

claim.

Company’s option, to replace the failed defective part at no charge for the part. This limited warranty is subject to all provisions, conditions, limitations and exclusions listed below.

 A warranty period of Seven (7) years on compressor to the original registered end-user.

 A warranty period of Five (5) years on all parts to the original registered end user.

 A warranty period of One (1) year on the remote control provided with the original unit.

 Limited warranty applies only to systems that are properly installed by a state certified or licensed HVAC contractor,

under applicable local and state law in accordance with all applicable building codes and permits; C&H installation and operation instructions and good trade practices.

 Warranty applies only to products remaining in their original installation location.

 Defective parts must be returned to the distributor through a registered servicing dealer for credit.

Damage resulting from

LIMITATIONS OF WARRANTIES:

CONDITIONS OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR USE OR PURPOSE) ARE LIMITED TO THE DURATION OF THIS LIMITED WARRANTY, SOME STATES OR PROVINCES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY OR CONDITION LASTS, SO THE ABOVE MAY NOT APPLY TO YOU. THE EXPRESS WARRANTIES MADE IN THIS WARRANTY ARE EXCLUSIVE AND MAY NOT BE ALTERED, ENLARGED, OR CHANGED BY ANY DISTRIBUTOR, DEALER, OR OTHER PERSON, WHATSOEVER.

ALL IMPLIED WARRANTIES AND/OR CONDITIONS (INCLUDING IMPLIED WARRANTIES OR

THIS WARRANTY DOES NOT COVER

1. Labor or other costs incurred for diagnosing, repairing, removing, installing, shipping, servicing or handling of either defective parts, or replacement parts, or new units.

2. Product cleaning required prior to warranty service and repair.

3. Normal maintenance as outlined in the installation and servicing instructions or Owner’s Manual, including filter cleaning and/or replacement and lubrication.

4. Failure, damage or repairs due to faulty installation, misapplication, abuse, improper servicing, unauthorized alteration or improper operation.

5. Failure to start due to voltage conditions, blown fuses, open circuit breakers, or damages due to the inadequacy or interruption of electrical service.

6. Failure or damage due to floods, winds, fires, lightning, accidents, corrosive environments (rust, etc.) or other conditions beyond the control of the Company.

7. Failure or damage of coils or piping due to corrosion on installations within one (1) miles of sea coast or corrosive body.

8. Parts not supplied or designated by Company, or damages resulting from their use.

9. Products installed outside continental USA and Canada.

10. Electricity or fuel costs, or increases in electricity or fuel costs from any reason whatsoever, including additional or unusual use of supplemental electric heat.

11. Any cost to replace, refill or dispose of refrigerant, including the cost of refrigerant.

12. Shipping damage or damage as a result of transporting the unit.

13. Accessories such as condensate pumps, line sets and so forth are not covered.

14. Any special, indirect or consequential property or commercial damage of any nature whatsoever. Some states or provinces do not allow the exclusion of incidental or consequential damages, so the above limitation may not apply to you.

This warranty gives you specific legal rights, and you may also have other rights which vary from state to state or province to province.

66160000086

Cooper and Hunter CH09VCT115V User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
