Cooper and Hunter CH09ACE115V User Manual

ALICE

HIGH-WALL DUCTLESS
AIR CONDITIONING &
HEATING SYSTEM

I

NSTALLATION

Models:
CH09ACE115VI/CH09ACE115VO (115V)
CH12ACE115VI/CH12ACE115VO (115V)
CH09ACE230VI/CH09ACE230VO (230V)
CH12ACE230VI/CH12ACE230VO (230V)
CH18ACE230VI/CH18ACE230VO (230V)
CH24ACE230VI/CH24ACE230VO (230V)

MANUAL

CH09ACE115VI/CH09ACE115VO
System Includes: CH09ACE115VI, CH09ACE115VO

CH12ACE115VI/CH12ACE115VO
System Includes: CH12ACE115VI, CH12ACE115VO

CH09ACE230VI/CH09ACE230VO
System Includes: CH09ACE230VI, CH09ACE230VO

CH12ACE230VI/CH12ACE230VO
System Includes: CH12ACE230VI, CH12ACE230VO

CH18ACE230VI/CH18ACE230VO
System Includes: CH18ACE230VI, CH18ACE230VO

CH24ACE230VI/CH24ACE230VO
System Includes: CH24ACE230VI, CH24ACE230VO

Content

Installation Notice

Precautions ...........................................................................................................1

System Requirements Piping Requirements . ...........................................................6

Installation dimension diagram . .............................................................................7

Tools for installation ...............................................................................................8

Selection of installation location ............................................................................8

Requirements for electric connection ....................................................................9

Installation

Installation of indoor unit. .....................................................................................10

Installation of outdoor unit ..................................................................................15

Vacuum pumping ...............................................................................................19

Leakage detection ..............................................................................................19

Check after installation .......................................................................................20

Test and operation

Test operation ....................................................................................................20

Attachment

Configuration of connection pipe ......................................................................21

Pipe expanding method .....................................................................................23

Start-Up and troubleshooting .............................................................................24

Explanation of Symbols

Indicates a hazardous situation that, if not avoided, will
result in death or serious injury.

Indicates a hazardous situation that, if not avoided, could
result in death or serious injury.

Indicates a hazardous situation that, if not avoided, may
result in minor or moderate injury.

Indicates important but not hazard-related information,
used to indicate risk of property damage.

Indicates a hazard that would be assigned a signal word
WARNING or CAUTION.

Precautions

WARNING

Operation and Maintenance

This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe
way and understand the hazards involved.
Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by

children without supervision.
Do not connect air conditioner to multi-purpose socket.

Otherwise, it may cause fire hazard.
Do disconnect power supply when cleaning air

conditioner. Otherwise, it may cause electric shock.
If the supply cord is damaged, it must be replaced by

the manufacturer, its service agent or similarly qualified
persons in order to avoid a hazard.

Do not wash the air conditioner with water to avoid
electric shock.
Do not spray water on indoor unit. It may cause electric
shock or malfunction.

After removing the filter, do not touch fins to avoid injury.
Do not use fire or hair dryer to dry the filter to avoid

deformation or fire hazard.

1

.

Precautions

WARNING

Maintenance must be performed by qualified
professionals. Otherwise, it may cause personal injury

or damage.
Do not repair air conditioner by yourself. It may cause

electric shock or damage. Please contact dealer when
you need to repair air conditioner.

Do not extend fingers or objects into air inlet or air
outlet. It may cause personal injury or damage.

Do not block air outlet or air inlet. It may cause
malfunction.

Do not spill water on the remote controller, otherwise the
remote controller may be broken.
When below phenomenon occurs, please turn off air
conditioner and disconnect power immediately, and then
contact the dealer or qualified professionals for service.

● Power cord is overheating or damaged.

● There’s abnormal sound during operation.

● Circuit break trips off frequently.

● Air conditioner gives off burning smell.

● Indoor unit is leaking.

If the air conditioner operates under abnormal conditions,
it may cause malfunction, electric shock or fire hazard.

When turning on or turning off the unit by emergency
operation switch, please press this switch with an insulating
object other than metal.

Do not step on top panel of outdoor unit, or put heavy
objects. It may cause damage or personal injury.

2

Precautions

WARNING

Attachment

Installation must be performed by qualified professionals.
Otherwise, it may cause personal injury or damage.

Must follow the electric safety regulations when installing
the unit.

According to the local safety regulations, use qualified
power supply circuit and circuit break.

Do install the circuit break. If not, it may cause malfunction.
An all-pole disconnection switch having a contact separation

of at least 1/8in (3mm) in all poles should be connected
in fixed wiring.

Including an circuit break with suitable capacity, please
note
magnet buckle

the circuit-short and

the following table.Air switch should be included

and heating buckle function, it can protect

overload.

Air Conditioner should be properly grounded. Incorrect
grounding may cause electric shock.

Don't use unqualified power cord.
Make sure the power supply matches with the

requirement of air conditioner.Unstable power supply or
incorrect wiring or malfunction. Please install proper power
supply cables before using the air conditioner.

Properly connect the live wire, neutral wire and
grounding wire of power socket.

Be sure to cut off the power supply before proceeding
any work related to electricity and safety.

3

Precautions

WARNING

Do not put through the power before finishing installation.
If the supply cord is damaged, it must be replaced by

the manufacturer, its service agent or similarly qualified
persons in order to avoid a hazard.

The temperature of refrigerant circuit will be high, please
keep the interconnection cable away from the copper
tube.

The appliance shall be installed in accordance with
national wiring regulations.

Installation must be performed in accordance with the
requirement of National Electrical Codes (NEC) and

local electrical codes by authorized personnel only.

The air conditioner is the first class electric appliance. It
must be properly grounding with specialized grounding
device by a professional. Please make sure it is always
grounded effectively, otherwise it may cause electric shock.

The yellow-green wire in air conditioner is grounding
wire, which can't be used for other purposes.

The grounding resistance should comply with national
electric safety regulations.

The appliance must be positioned so that the plug is
accessible.

All wires of indoor unit and outdoor unit should be
connected by a professional.

If the length of power connection wire is insufficient, please
contact the supplier for a new one. Avoid extending the
wire by yourself.

4

Precautions

WARNING

For the air conditioner with plug, the plug should be reachable after
finishing installation.

For the air conditioner without plug, an circuit break must be
installed in the line.

If you need to relocate the air conditioner to another place, only the
qualified person can perform the work. Otherwise, it may cause
personal injury or damage.
Select a location which is out of reach for children and far away from
animals or plants.If it is unavoidable, please add the fence for safety
purpose.

The indoor unit should be installed close to the wall.
Instructions for installation and use of this product are
provided by the manufacturer.

Working temperature range

For model: GWH09KF-A3DNB4A(115V), GWH12KF-A3DNB4A(115V)

Indoor side DB/WB(
Maximum cooling 89.6/73.4(32/23) 109.4/78.8(43/26)
Maximum heating 80.6/-(27/-) 75.2/64.4(24/18)

NOTICE:

●

The operating temperature range (outdoor temperature) for cooling only unit is

64.4°F(18

~ 109.4°F(43

°C)

; for heat pump unit is 19.4

°C)

) Outdoor side DB/WB(

°F/°C

°F

(-7°C)

~ 109.4°F(43

°F/°C

°C)

)

.

For model: GWH09KF-D3DNB4F(230V), GWH12KF-D3DNB4F(230V)

Indoor side DB/WB(

) Outdoor side DB/WB(

°F/°C

Maximum cooling 89.6/73.4(32/23) 109.4/78.8(43/26)

Maximum heating 80.6/-(27/-) 75.2/64.4(24/18)

NOTICE:

●

The operating temperature range (outdoor temperature) for cooling only unit is
~ 109.4°F(43

For model: GWH18KG-D3DNB4F(230V), GWH24KG-D3DNB4A(230V)

; for heat pump unit is 5

°C)

Indoor side DB/WB(

°F(

-15

°C)

°F/°C

~ 109.4

°F

(43°C)

.

) Outdoor side DB/WB(
Maximum cooling 89.6/73.4(32/23) 115/78.8(46/26)
Maximum heating 80.6/-(27/-) 75.2/64.4(24/18)

NOTICE:

●

The operating temperature range (outdoor temperature) for cooling only unit is
~ 115

°F

46

; for heat pump unit is 5

(

°C)

°F(

-15

°C)

~ 115

°F(

6

.

4

°C)

5

5°F(

5°F(

°F/°C

-15

°F/°C

-15

)

°C)

)

°C)

System Requirements

Piping Requirements

PIPE SIZE in (mm)

Unit Size

(BtuH)

9,000 115v - 1ph 60hz 1/4 (6) 3/8 (9.5)
12,000 115v - 1ph 60hz 1/4 (6) 3/8 (9.5)
9,000 208/230v - 1ph 60hz 1/4 (6) 3/8 (9.5)
12,000 208/230v - 1ph 60hz 1/4 (6) 3/8 (9.5)

18,000 208/230v - 1ph 60hz 1/4 (6) 1/2 (12)

24,000 208/230v - 1ph 60hz 1/4 (6) 1/2 (12)

REFRIGERANT LINE LENGTHS ft (m)

Unit Size

(BtuH) Length Length (ID over OD)

9,000 115v - 1ph 60hz 10 (3) 66 (20) 33 (10)
12,000 115v - 1ph 60hz 10 (3) 66 (20) 33 (10)
9,000 208/230v - 1ph 60hz 10 (3) 50 (15) 33 (10)
12,000 208/230v - 1ph 60hz 10 (3) 50 (15) 33 (10)
18,000 208/230v - 1ph 60hz 10 (3) 82 (25) 33 (10)
24,000 208/230v - 1ph 60hz 10 (3) 82 (25) 33 (10)

Notes: Insulate both refrigerant lines, separately.

Voltage

REFRIGERANT CHARGE

Unit Size

(BtuH) Typ e Charge oz (kg)* Charge oz/ft (g/m)

9,000 115v - 1ph 60hz R410A 35.3 (1.0) 0.2 (20)
12,000 115v - 1ph 60hz R410A 35.3 (1.0) 0.2 (20)
9,000 208/230v - 1ph 60hz R410A 26.1 (0.74) 0.2 (20)
12,000 208/230v - 1ph 60hz R410A 35.3 (1.0) 0.2 (20)
18,000 208/230v - 1ph 60hz R410A 45.9 (1.3) 0.2 (20)
24,000 208/230v - 1ph 60hz R410A 54.7 (1.6) 0.2 (20)

*Precharge amount for up to 25-ft of refrigerant pipe.

Voltage

ELECTRICAL REQUIREMENTS

Unit Size

(BtuH) Amps (MCA) Protection (MOP) Wire Size (AWG)**

9,000 115v - 1ph 60hz
12,000 115v - 1ph 60hz 15 25
9,000 208/230v - 1ph 60hz 10
12,000 208/230v - 1ph 60hz 10
18,000 208/230v - 1ph 60hz 15 25
24,000 208/230v - 1ph 60hz

**Main power wire from electrical panel to outdoor unit.

Notes: 1) System must be on a single dedicated circuit.

2) Main power is supplied to the outdoor unit.

3) Use table above to size over current protection.

4) Follow all local building codes and NEC (National Electrical Code) regulations.

Recommended cable - 16/4 AWG stranded bare copper conductorsTHHN 600V unshielded wire

Note: Use shield cable if installation is in close proximity of RF and EMI transmitting devices.
Condensate Drain Size: 5/8-in OD 7/16-in ID

prevent sweating and possible water damage.

Voltage

Voltage

Min Line Max Line Max Elevation

Refrigerant Factory System Additional

Min Circuit Max Overcurrent Main Power

1

2

1

7

Note: Insulate condensate drain hose to

Liquid Line Suction/ Gas Line

2

5

1

6

1

6

2

5

Interconnecting Cable:

6

12
1

2

1

6

1

6

1

4

1

2

Installation dimension diagram

6in (0,15m)

Space to the ceiling

6in (0,15m)

Space to the wall

115in (3m)

Space to the wall

6in (0,15m)

12in (0,3m)

Space to the wall

Space to the obstruct

80in (2,03m)

12in (0,3m)

Space to the wall

ction

u

tr

Space to the obs

80in (2,03m)

Space to the obstruction

Space to the

obstruction

20in (0,5m)

20in (0,5m)

12in

(0,3m)

Space to the

obstruction

12in

(0,3m)

Space to the obstruction

ion

Space to the obstruction

8ft (2,4m)

12in (0,3m)

Space to the wall

Space to the obstruction

80in (2,03m)

ction

Space to the

obstru

20in (0,5m)

12in

(0,3m)

Space to the obstruction

Drainage pipe

20in (0,5m)

Space to the

obstruction

7

Tools for installation

1 Level meter 2 Screw driver 3 Impact drill
4 Drill head 5 Pipe expander 6 Torque wrench

7 Open-end wrench 8 Pipe cutter 9 Leakage detector
10 Vacuum pump 11 Pressure meter 12 Universal meter

13 Inner hexagon spanner 14 Measuring tape

Note:

● Please contact the local agent for installation.

● Don't use unqualied power cord.

Selection of installation location

Basic requirement

Installing the unit in the following pla­ces maycause malfunction. If it is un­avoidable, please consult the local
dealer:

1.The place with strong heat sources,

vapors, ammable or explosive gas

or volatile objects spread in the air.

2.The place with high-frequency
devices (such as welding machine,
medical equipment).

3.The place near coast area.

4.

The place with oil or fumes in the air.

5.The place with sulfureted gas.

6.Other places with special circums­ tances.

7.Do not use the unit in the immediate
surroundings of a laundry a bath a
shower or a swimming pool.

Outdoor unit

1. Select a location where the noise and outow air emitted by the outdoor unit

will not affect neighborhood.

2. The location should be well ventilated and dry, in which the outdoor unit

won't be exposed directly to sunlight or strong wind.

3. The location should be able to withstand the weight of outdoor unit.

4. Make sure that the installation follows the requirement of installation
dimension diagram.

5. Select a location which is out of reach for children and far away from animals
or plants.If it is unavoidable, please add the fence for safety purpose.

,

Indoor unit

1. There should be no obstruction near air
inlet and air outlet.

2. Select a location where the condensat­ ion water can be dispersed easily and

won't affect other people.

3. Select a location which is convenient to
connect the outdoor unit and near the
power socket.

4. Select a location which is out of reach
for children.

5.

The location should be able to withstand

the weight of indoor unit and won't incr-

ease noise and vibration.

6.

The appliance must be installed 8,2ft

(2.5m) above oor.

7. Don't install the indoor unit right above

the electric appliance.

8. Please try your best to keep way from

uorescent lamp.

8

Requirements for electric connection

Safety precaution

1. Must follow the electric safety regulations when installing the unit.

circuit break.

3. Make sure the power supply matches with the requirement of air conditioner.
Unstable power supply or incorrect wiring or malfunction. Please install proper
power supply cables before using the air conditioner.

4. Properly connect the live wire, neutral wire and grounding wire of power socket.

5. Be sure to cut off the power supply before proceeding any work related to
electricity and safety.

7. If the supply cord is damaged, it must be replaced by the manufacturer, its

8. The temperature of refrigerant circuit will be high, please keep the interconnec­ tion cable away from the copper tube.

9. The appliance shall be installed in accordance with national wiring regulations.

10. Installation must be performed in accordance with the requirement of NEC by
authorized personnel only

Grounding requirement

grounding with specialized grounding device by a professional. Please make
sure it is always grounded effectively, otherwise it may cause electric shock.

2. The yellow-green wire in air conditioner is grounding wire, which can't be used
for other purposes.

3. The grounding resistance should comply with national electric safety regulations.

4. The appliance must be positioned so that the plug is accessible.

5. An all-pole disconnection switch having a contact separation of at least 1/8in
(3mm) in all poles should be connected in fixed wiring.

6. Including an circuit break with suitable capacity, please note the following table.
Air switch should be included magnet buckle and heating buckle function, it can
protect the circuit-short and overload. (Caution: please do not use the fuse only
for protect the circuit)

Air-conditioner Circuit break capacity

09、12K 16A
09K(115V) 25A
12K(115V) 25A

18K
24K

25A
25A

9

Installation of indoor unit

Step one: choosing installation location

rm it with the client.

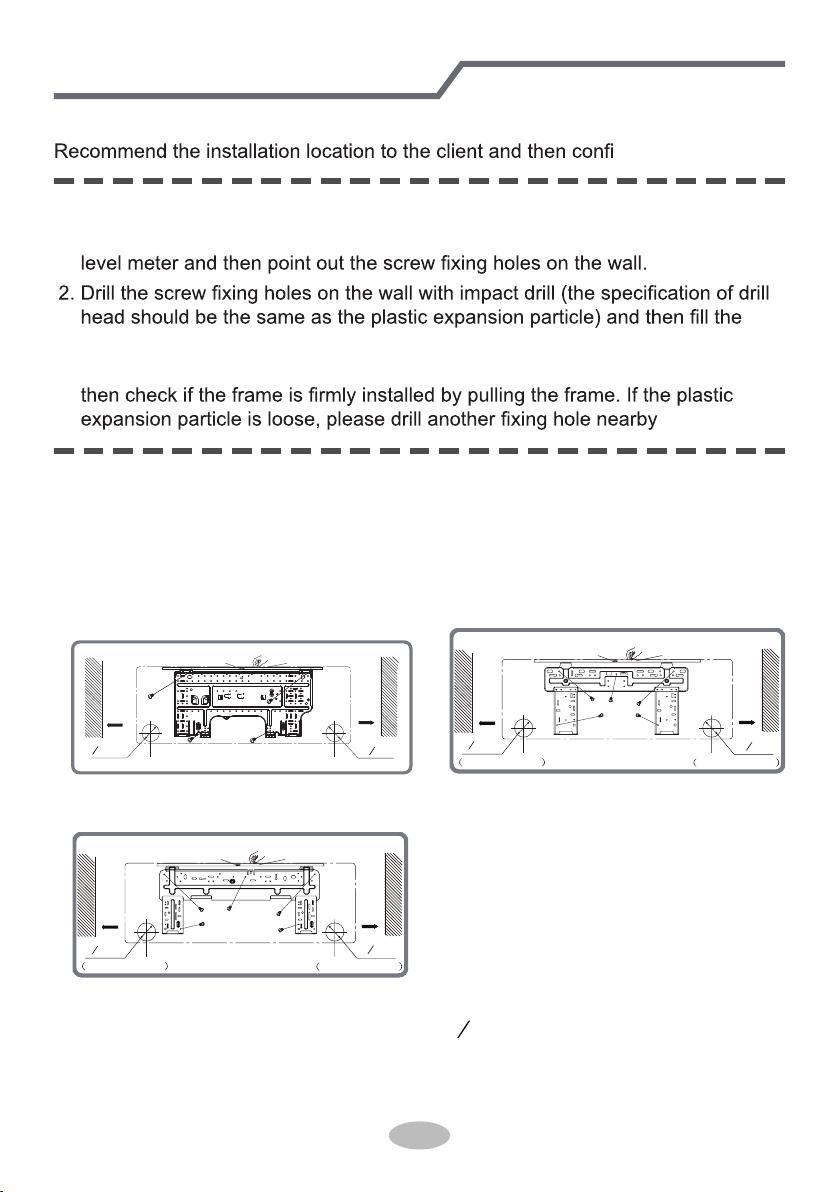

Step two: install wall-mounting frame

1. Hang the wall-mounting frame on the wall; adjust it in horizontal position with the

plastic expansion particles in the holes.

3. Fix the wall-mounting frame on the wall with tapping screws (ST4.2X25TA) and

.

Step three: open piping hole

1. Choose the position of piping hole according to the direction of outlet pipe. The
position of piping hole should be a little lower than the wall-mounted frame,
shown as below.

09、12K：

Wall

Mark on the middle of it

Space
to the
wall

5,9in
(0,15m)

above

Left

1

4

Φ2 (55mm)

(Rear piping hole)

Gradienter

(Rear piping hole)

Wall

Space
to the
wall

5,9in
(0,15m)

above

Right

1

4

Φ2 (55mm)

18K

Wall

Space
to the
wall

5,9in
(0,15m)

above

Left

1

4

Φ2 (55mm)

Rear piping hole

Mark in the middle of it

Level meter

Space
to the
wall

5,9in
(0,15m)

above

Right

1

4

Φ2 (55mm)

Rear piping hole

24K

Wall

Space
to the
wall

5,9in
(0,15m)

above

Left

1

4

Φ2 (55mm)

Rear piping hole

Mark in the middle of it

Level meter

2. Open a piping hole with the diameter of on the selected outlet pipe

Wall

Space
to the
wall

5,9in
(0,15m)

above

Right

1

4

Φ2 (55mm)

Rear piping hole

1

4

Φ2 (55mm)

position. In order to drain smoothly, slant the piping hole on the wall slightly
downward to the outdoor side with the gradient of 5-10°.

10

Wall

left right

Installation of indoor unit

Note:

● Pay attention to dust prevention and
take relevant safety measures when

opening the hole.

● The plastic expansion particles are
not provided and should be bought

locally.

Step four: outlet pipe

1. The pipe can be led out in the
direction of right, rear right, left or
rear left.

left

rear right

right

rear left

Indoor

5-10

2. When select leading out the pipe
from left or right, please cut off the
corresponding hole on the bottom
case.

outdoor

1

4

Φ2 (55)

cut off
the hole

1. Aim the pipe joint at the corresponding
bellmouth.

union nutpipe joint

2. Pretightening the union nut with hand.

3. Adjust the torque force by referring to the following sheet. Place the open-end
wrench on the pipe joint and place the torque wrench on the union nut. Tighten
the union nut with torque wrench.

pipe

11

Installation of indoor unit

drain hose

drain hose

insulating pipe

screw

torque wrench

indoor pipe

open-end
wrench

union nut

pipe

Hex nut diameter Tightening torque (N.m)

4. Wrap the indoor pipe and joint of con­ nection pipe with insulating pipe, and
then wrap it with tape.

Step six: install drain hose

1. Connect the drain hose to the outlet pipe of
indoor unit.

2. Bind the joint with tape.

Note:

● Add insulating pipe in the indoor

drain hose in order to prevent
condensation.

● The plastic expansion particles are

not provided.

outlet pipe

tape

1

Φ

4

3

Φ

1

Φ

5

Φ

3

Φ

15~20

8

2

8

4

30~40
45~55
60~65
70~75

insulating pipe

outlet

pipe

drain hose

Step seven: connect wire of indoor unit

1. Open the panel, remove the screw
on the wiring cover and then take
down the cover.

12

panel

wiring cover

Installation of indoor unit

cable-cross

2. Make the power connection wire go
through the cable-cross hole at the back

of indoor unit and then pull it out from

the front side.

3. Remove the wire clip; connect the power connection wire to the wiring terminal

hole

power connection
wire

with wire clip.

09、12K: (115V)

Wiring Cover

2 3N(1)

blue brownblack

2 3N(1) L N

Outdoor unit connection

GND

yellow-green

GND GND

18K 24K: (230V)

N(1) 2

N(1) 2

Outdoor unit connection

GND

3

L1 L2 G

3

GND

4. Put wiring cover back and then tighten the screw.

5. Close the panel.

Notice before installation

1. How to install the over line pipe
(According to the direction as show.)

Screw

09K,12K: (230V)

N(1) 2

N(1)

L1

Outdoor unit connection

18K (230V):

L

N(1) 2

GND

3

G

3

2

G

L

2

For some models with power

18K BTU wall-mounted type

1 S

L

2

3

Outdoor unit connection

GND

G

L1 L2 G

GND

2. Finish (According to the
direction as show in right figure.)

wire pipe

Fixed nut

Note:

● All wires of indoor unit and outdoor unit should be connected by a professional.

for a new one. Avoid extending the wire by yourself.

installation.

● For the air conditioner without plug, an circuit break must be installed in the line.

The circuit break should be all-pole parting and the contact parting distance

should be more than 1/8in(3mm).

13

Installation of indoor unit

drain hose

band

connection pipe

indoor power cord

upper hook

lower hook of
wall-mounting frame

Step eight: bind up pipe

1. Bind up the connection pipe, power
cord and drain hose with the band.

indoor and

indoor unit

outdoor power cord
gas
pipe

band

2. Reserve a certain length of drain
hose and power cord for installation
when binding them. When binding to
a certain degree, separate the indoor
power and then separate the drain
hose.

liquid pipe

drain hose

3. Bind them evenly.

4. The liquid pipe and gas pipe should
be bound separately at the end.

Note:

● The power cord and control wire
can't be crossed or winding.

● The drain hose should be bound

at the bottom.

Step nine: hang the indoor unit

1. Put the bound pipes in the wall pipe and then make them pass through the wall
hole.

2. Hang the indoor unit on the wall-mounting frame.

3. Stuff the gap between pipes and wall hole with sealing gum.

4. Fix the wall pipe.

5. Check if the indoor unit is installed rmly and closed to the wall.

indoor

wall pipe

outdoor

sealing gum

Note:

● Do not bend the drain hose too excessively in order to prevent blocking.

14

Installation of outdoor unit

(select it according to the actual installation situation)

1. Select installation location according to the house structure.

2. Fix the support of outdoor unit on the selected location with expansion screws.

Note:

installing the outdoor unit.

●

Make sure the support can withstand at least

four times of the unit weight.

● The outdoor unit should be installed at least

1

6

in (3cm) above the floor in order to

1 /

install drain joint.

● For the unit with cooling capacity of 2300W
~5000W, 6 expansion screws are needed;
for the unit with cooling capacity of 6000W
~8000W, 8 expansion screws are needed;
for the unit with cooling capacity of 10000W

~16000W, 10 expansion screws are needed.

at least in (3cm) above the floor

1 /

1

6

Step two: install drain joint (Only for cooling and heating unit)

1. Connect the outdoor drain joint into the hole on the chassis, as shown in the
picture below.

2. Connect the drain hose into the drain vent.

drain vent

Drain hose

chassis

outdoor drain joint

15

Installation of outdoor unit

foot holes

1. Place the outdoor unit on the support.

2. Fix the foot holes of outdoor unit with bolts.

Step four: connect indoor and outdoor pipes

foot holes

1. Remove the screw on the right handle of outdoor unit
and then remove the handle.

2. Remove the screw cap of valve and aim the pipe
joint at the bellmouth of pipe.

liquid pipe

liquid
valve

gas pipe

pipe joint

handle

union nut

gas valve

3. Pretightening the union nut with hand.

4. Tighten the union nut with torque wrench by referring to the sheet below.

Tightening torque

(N.m)

15~20

30~40

45~55
60~65
70~75

Hex nut diameter

1

Φ

4

3

Φ

8

1

Φ

2

5

Φ

8

3

Φ

4

screw

16

Installation of outdoor unit

1. Remove the wire clip; connect the power connection wire and signal control wire
(only for cooling and heating unit) to the wiring terminal according to the color;

Handle

Cable Cross
Plate Sub-assy

09󱾢12K (230V)

blue black brown

32

L2

GND

GND

yellow-green

N(1)

L1

Indoor unit connection

GND

L2

L1

POWER SUPPLY

09󱾢12K (115V)

18󱾢24K (230V)

2 3 L1

2 3N(1)

Indoor unit connection

GND

N(1)

3 LLN

2

Indoor unit connection

L2 GN(1)

GND

GND

GND

L2
L1

POWER
SUPPLY

GND

N

POWER SUPPLY

For some models with power

18K BTU wall-mounted type

2 3 L1

S L2L1

Indoor unit connection

L2N(1)

G

2. Fix the power connection wire and signal control wire with wire clip (only for
cooling and heating unit).

G

L2

POWER

L1

SUPPLY

Note:

● Never cut the power connection wire to prolong or shorten the distance.

● The connecting wire and connection pipe cannnot touch each other.

Install the over line pipe

wire pipe

Fixed nut

Finish

17

Installation of outdoor unit

Step six: neaten the pipes

1. The pipes should be placed along the wall,
bent reasonably and hidden possibly. Min.
semidiameter of bending the pipe is 4in(10cm).

2. If the outdoor unit is higher than the wall

hole, you must set a U-shaped curve in the

pipe before pipe goes into the room, in

order to prevent rain from getting into the

room.

Note:

● The through-wal height of drain hose
shouldn't be higher than the outlet
pipe hole of indoor unit.

the drain hose

can't raise
upwards.

● The water outlet can't be placed
in water in order to drain smoothly.

● Slant the drain hose slightly dow-

nwards. The drain hose can't be

The drain hose can't be fluctuant

wall

U-shaped curve

drain hose

The water outlet
can't be placed
in water

18

The drain hose
can't be fluctuant

The water
outlet can't be
fluctuant

Vacuum pumping

Use vacuum pump

1. Remove the valve caps on
the liquid valve and gas
valve and the nut of refri­ gerant charging vent.

2. Connect the charging hose

of piezometer to the refri-

gerant charging vent of gas
valve and then connect the
other charging hose to the
vacuum pump.

3. Open the piezometer com-

pletely and operate for
10-15min to check if the

pressure of piezometer re-

mains in -0.1MPa.

4. Close the vacuum pump
and maintain this status for
1-2min to check if the pres-

sure of piezometer remains
in -0.1MPa. If the pressure decreases, there may be leakage.

5. Remove the piezometer, open the valve core of liquid valve and gas valve
completely with inner hexagon spanner.

6. Tighten the screw caps of valves and refrigerant charging vent.

7. Reinstall the handle.

liquid valve

gas valve

refrigerant charging
vent

nut of refrigerant
charging vent

piezometer

valve cap

vacuum pump

inner hexagon
spanner

close

open

Lo Hi

Leakage detection

1. With leakage detector:
Check if there is leakage with leakage detector.

2. With soap water:
If leakage detector is not available, please use soap water for leakage detection.
Apply soap water at the suspected position and keep the soap water for more
than 3min. If there are air bubbles coming out of this position, there's a leakage.

19

Check after installation

● Check according to the following requirement after nishing installation.

Items to be checked Possible malfunction

Has the unit been installed rmly? The unit may drop, shake or emit noise.
Have you done the refrigerant leakage

test?

Is heat insulation of pipeline sufcient?

Is water drained well?

It may cause insufcient cooling

(heating) capacity.
It may cause condensation and water

dripping.
It may cause condensation and water

dripping.

Is the voltage of power supply accord­ing to the voltage marked on the
nameplate?

Is electric wiring and pipeline installed
correctly?

Is the unit grounded securely? It may cause electric leakage.
Does the power cord follow the speci-

cation?

Is there any obstruction in the air inlet
and outlet?

The dust and sundries caused during
installation are removed?

The gas valve and liquid valve of
connection pipe are open completely?

It may cause malfunction or damaging
the parts.

It may cause malfunction or damaging
the parts.

It may cause malfunction or damaging
the parts.

It may cause insufcient cooling

(heating) capacity.
It may cause malfunction or damaging

the parts.

It may cause insufcient cooling

(heating) capacity.

Test operation

1. Preparation of test operation

● The client approves the air conditioner.

● Specify the important notes for air conditioner to the client.

2. Method of test operation

● Put through the power, press ON/OFF button on the remote controller to start

operation.

● Press MODE button to select AUTO, COOL, DRY, FAN and HEAT to check

whether the operation is normal or not.

● If the ambient temperature is lower than 61°F(16°C), the air conditioner can’t
start cooling.

20

Conguration of connection pipe

1. Standard length of connection pipe

● 16,5ft (5m), 25ft (7.5m), 26,5ft (8m).

2. Min. length of connection pipe is 9,8ft (3m).

3. Max. length of connection pipe and max. high difference.

Cooling

capacity

5000Btu/h

(1465W)

7000Btu/h

(2051W)

9000Btu/h

(2637W)

12000Btu/h

(3516W)

18000Btu/h

(5274W)

4. The additional refrigerant oil and refrigerant charging required after prolonging
connection pipe

● After the length of connection pipe is prolonged for 33,3ft (10m) at the basis of

standard length, you should add 5ml of refrigerant oil for each additional

16,5ft (5m) of connection pipe.

● The calculation method of additional refrigerant charging amount (on the basis

of liquid pipe):
Additional refrigerant charging amount = prolonged length of liquid pipe ×
additional refrigerant charging amount per meter

● When the length of connection pipe is above 16,5ft (5m), add refrigerant

according to the prolonged length of liquid pipe. The additional refrigerant

charging amount per meter is different according to the diameter of liquid
pipe. See the following sheet.

Max length
of connec­tion pipe

50ft (15) 83,3ft (25) 16,5ft (5) 33,3ft (10)

50ft (15) 100ft (30)16,5ft (5) 33,3ft (10)

50ft (15) 100ft (30)16,5ft (5) 66,5ft (20)

66,5ft (20) 100ft (30)33,3ft (10) 66,5ft (20)

83,3ft (25) 100ft (30)33,3ft (10) 66,5ft (20)

Max height
difference

Cooling

capacity

24000Btu/h

(7032W)

28000Btu/h

(8204W)

36000Btu/h

(10548W)

42000Btu/h

(12306W)

48000Btu/h

(14064W)

Max length
of connec­tion pipe

Max height
difference

21

Conguration of connection pipe

Additional refrigerant charging amount for R410A

Diameter of connection pipe

Liquid pipe(in) Gas pipe(in)

Φ1/4

Φ1/4 or Φ3/8

Φ1/2

Φ5/8

Φ3/4

Φ7/8

Φ3/8 or Φ1/2

Φ5/8 or Φ3/4

Φ3/4 or Φ7/8

Φ1 or Φ1

1

4

/

_

_

Outdoor unit throttle

Cooling only(g/m) Cooling and heating(g/m)

15

15

30

60

250 250

20

50

120

120

350350

22

Pipe expanding method

pipe

pipe

smooth surface

Note:

Improper pipe expanding is the main cause of refrigerant leakage. Please expand
the pipe according to the following steps:

A: Cut the pipe

● Conrm the pipe length according to

the distance of indoor unit and
outdoor unit.

● Cut the required pipe with pipe cutter.

pipe cutter

E: Expand the port

● Expand the port with expander.

hard

expander

mold

pipe

leaning uneven burr

B: Remove the burrs

● Remove the burrs with shaper and

prevent the burrs from getting into
the pipe.

shaper

downwards

C: Put on suitable insulating pipe
D: Put on the union nut

● Remove the union nut on the indoor

connection pipe and outdoor valve;
install the union nut on the pipe.

union pipe

Note:

● "A" is different according to the

diameter, please refer to the sheet
below:

Outer diameter

(mm)

Φ1/4"

Φ3/8"

Φ1/2"

Φ5/8"

A(mm)

Max Min

1.3 0.7

1.6 1.0

1.8 1.0

2.4 2.2

F: Inspection

● Check the quality of expanding port.

If there is any blemish, expand the
port again according to the steps
above.

improper expanding

pipe

the length is equal

23

leaning

damaged

surface

crack uneven

thickness

START-UP AND
TROUBLESHOOTING

Explain Following Items To Customer With The Aid Of The Owner’s Manual:

1. How to turn system on and off; selecting COOLING, HEATING and other
operating modes;setting a desired temperature; setting the timer to
automatically start and stop system operation; and all other features of the
Remote Control and display panel.

2. How to remove and clean the air filter.

3. How to set air with the swing louv

4. Explain care and maintenance.

5. Present the Owner’s Manual and installation instructions to customer.

Troubleshooting

This unit has onboard diagnostics. Error codes will appear on the LED display on
the front panel of the indoor unit in place of the temperature display. The table
below explains the error codes for both units.

DIAGNOSTIC CODES

ers.

Equipment Fault

Indoor Configuration Jumper

Indoor/Outdoor Mismatch

High Current Protection

Communication Error

Indoor Air Temp. Thermistor

Indoor Coil Temp. Thermistor

Outdoor Air Temp. Thermistor

Outdoor Coil Temp. Thermistor

Compressor Discharge Temp. Thermistor

Compressor Overload Protection

IPM Module Protection

Indoor Fan Malfunction

Compressor Synchronism

4-Way Valve Malfunction

High Pressure Protection

Error Codes

C5

LP

E5

E6

F1

F2

F3

F4

F5

H3

H5

H6

H7

U7

E1

Possible Causes

Missing Configuration Jumper on Indoor Control Board

Indoor and Outdoor Units Do Not Match (Model or Capacity)

Power Supply is not Stable and Voltage Range is too Large

Mis-wired or Communication Failure

Bad Connection, or Indoor Air Sensor Failure

Bad Connection, or Indoor Coil Sensor Failure

Bad Connection, or Outdoor Ambient Sensor Failure

Bad Connection, or Outdoor Coil Sensor Failure

Bad Connection, or Discharge Sensor Failure

Low Refrigerant Charge, Blocked Capillary, or Compressor Motor Failure

IPM Module Temperature Too High, High Ambient, Low Voltage, or Bad Connections

Indoor Fan Stopped or Running too Slow

High Pressure, Low Voltage, or Bad Connections

Bad Connection, Solenoid Failure, or Valve Malfunction. (Heat Pumps Only)

Too much refrigerant or High Ambient conditions or low airflow.

24

www.cooperandhunter.us

PRODUCT & INSTALLATION RECORD

For your convenience, please record the model and serial numbers of your new equipment in
the spaces provided. This information, along with the installation data and dealer contact
information, will be helpful should your system require maintenance or service.

UNIT INFORMATION

Model No.

Serial No.

INSTALLATION INFORMATION

Date Installed:

DEALERSHIP/INSTALLER INFORMATION

Company Name:

Address:

Phone Number:

Technician Name:

Cooper and Hunter © 2016

www.cooperandhunter.us

66162927
