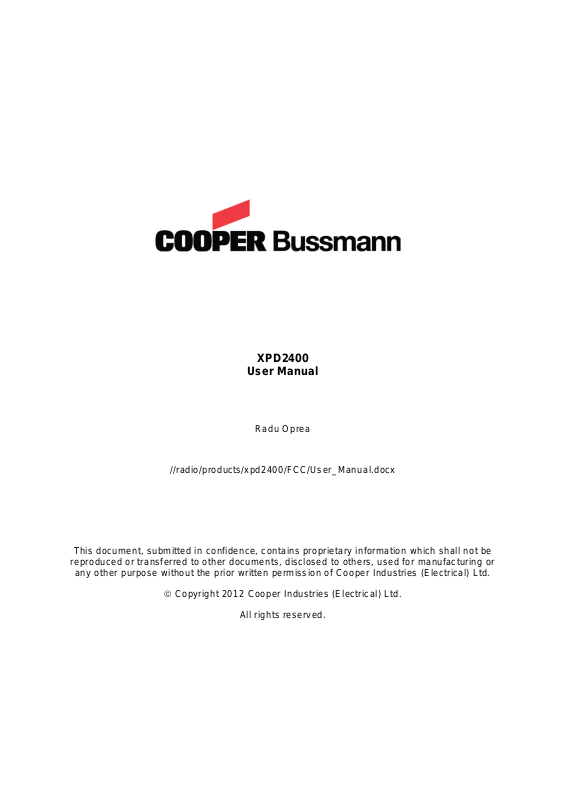

XPD2400
User Manual
Radu Oprea
//radio/products/xpd2400/FCC/User_Manual.docx
This docum ent, subm itted i n confi denc e, cont ains pr oprie tar y infor mat ion wh ich s hall not be
reproduce d or transf erred to other doc umen ts, discl osed to ot hers, us ed for manuf actur ing or
any other pur pose with out the pr ior wr itten perm issi on of Coop er Industr ies (E lectric al) Ltd.
Copyright 201 2 Co oper I ndus tries (E lectr ical) L td.
All rights r es erved .
Title - 2 - Revision 0.1
Subject
Company Conf ident ial: Coo per Ind ustries ( Electr ical) Ltd
Title - 3 - Revision 0.1
Subject
Revision H isto ry
Revision Author Date Description
0.1 Radu Oprea Dec-28-2012 Initial Draft
Company Conf ident ial: Coo per Ind ustries ( Electr ical) Ltd
Title - 4 - Revision 0.1
Subject
CONTENTS
Introduction ...................................................................................................................... 5
1
2 FCC Notice, U.S.A. ........................................................................................................... 5
3 IC N otic e, Ca nada ............................................................................................................ 5
4 RF Ex posure I nform ation .................................................................................................. 5
Company Conf ident ial: Coo per Ind ustries ( Electr ical) Ltd
Title - 5 - Revision 0.1
Subject
1 Introduction
The XPD2400 transce iver m odule is no t sold sep arate ly as a stand alone d evice. It is intend ed
to be used as part of a complete Cooper Industries remote control device and in the user
manual for any device containing the module will be included the text from the following
paragraph.
This manual is for the use of professionals to guide them in the installation, operation and
basic s ystem m ainte nanc e of t he equi pment co vered.
2 FCC Not ice U .S.A.
XPD2400 complies with part 15 of t he FCC Rules. Operation is subject to the following
two condit ions: (1) This d evice may not ca use harmful inte rference, and (2) this device
must accept any interference received, includi ng interference that may cause undesired
operation
Caution - Changes or modifications not expressly approved by the OMNEX Control
Systems UL C wi ll v oid t he u ser’ s aut horit y to o pe rate t he eq uipm ent.
3 IC Notice Canad a Operation is subject to the following two conditions: (1) this device may not cause interference,
and (2) this device must accept any interference, including interference that may cau se
undesired operation of the device.
To reduce potential radio interference to other users, the antenna type and its gain should be
so chosen that the equivalent iso tropically radiated power (e.i.r.p.) is not more than that
permitted for successful communic ation.
4 RF Exposur e Inform ation
READ THI S INFOR MATI ON BEFO RE INST ALLI NG THE XPD2400
This produc t is intend ed for mobile and portable installation applications.
In order to com ply with FCC/ISC ado pted RF exposure requir ements for mobile applications,
installation of this transmitter system's antennas must be performed in a manner that will
provide at least 2.1 inches (5.3 cm) clearance from the antenna t o any user or mem ber of the
public.
XPD2400 was cer tified w ith a Larsen Antennas N MO5E24 00B anten na with a 186 c m cable ( 6
foot cabl e).
The maximum radiated output power of these antennas satisfies the maximum permissible
exposure (MPE) limits as specified in §1.1310 of FCC regulations for general
population/uncontrolled exposure as long as the minimum separation distance of 2.1 inches
(5.3 cm) betwe en the radiatin g element and the person is main tained, assum ing a 100% dut y
cycle.
For portable ap plications the SAR meas urements will be perform ed on a product level if they
are requir ed.
