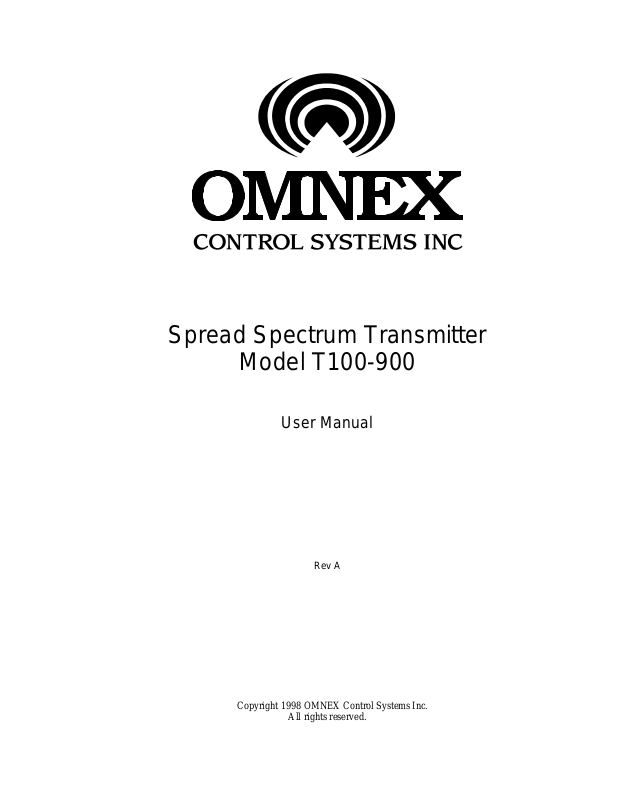

Spread Spectrum Transmitter
Model T100-900
User Manual
Rev A
Copyright 1998 OMNEX Control Systems Inc.
All rights reserved.
Page 2
1 SAFETY
1.1 General
• Read all instructions before operating equipment
• Save these instructions for later use.
• Follow all warnings and instructions
1.2 Battery
Use only standard AA alkaline batteries in the unit. Use of any other types will invalidate any
approval or warranty applying to the product, and may be dangerous.
1.3 Labels
Your transmitter has a label on it, which is important for service and related purposes. Be careful
not to lose the label or the information there.
WARNING!
This device complies with Part 15 of the FCC rules. Operation is subject to
conditions: (1) This device may not cause harmful interference, and (2) this device
must accept interference received, including interference that may cause undesired
operation.
Changes or modifications not expressly approved by OMNEX Control Systems Inc.
invalidate any approval or warranty applying to the product and can void the user’s
authority to operate this equipment.
2
Page 3
2 USER GUIDE
2.1 Configuration
2.1.1 Power Configuration
The unit can operate in several different power-on modes:
MODE
#
A.
B. "
C.
ON/OFF
SWITCH
Unit turns ON when
ON switch pressed
and Off when OFF
switch pressed.
Unit turns ON when
any function
depressed
2.1.2 Output Configuration
INPUT
PAIRS
RG
1
ON
1 2
DESCRIPTION
• When unit is first turned ON or any time the ON button is pressed, data is transmitted
• When a change of state takes p lace, data is transmitted.
• If a function is still active (button is held) data is transm itted every 1 out of 10 packets.
• If no functions are active, data is transmitted 1 packet out of 30.
• If STOP is pressed, data is transmitted and then transmitter turns OFF. Receiver outputs will
default to initial state.
• same as Mode 1 except that outputs retain last state on sending STOP.
• When a button is pressed, data is transmitted
• Transmitted will t imeout in 30 secon d s
• If STOP is pressed, all outputs in the rec eiver shall revert to their default state.
SETTING THE CONFIGURATION OPTIONS
CONFIGURATION
OPTION
OUTPUT
PAIRS
A
MOMENTARY
CH1
CH2
1
2
3
4
A. MOMENTARY
3 4
5 6
7 8
Outputs directly reflect inputs. Outputs are ANDed with 'MAIN" function. This means
that if a button is pressed and the RF carrier is lost, the output will automatically clear.
AB
CD
STOP
B
TOGGLE
C
INTERLOCKED
3
CH3
CH4
CH5
CH6
CH7
CH8
2
3
4
Page 4
B. TOGGLE
Each output pair is independently toggled and latched. Every time a button is pressed, its
corresponding output toggles. In the event of loss of carrier, the status of the output will
either retain its state or turn OFF depending on the POWER ON mode selected.
C. INTERLOCKED
Each of the 8 outputs are paired. Within each pair, only one output can be on at one time
(ie. interlocked). The default outputs shall be odd numbers OFF and even numbers ON.
Whether the pairs retain last state or default upon loss of carrier shall depend on the
POWER ON mode selected.
2.1.3 Link Mode
Sends out all configuration data including the factory programmed ID to the desired receiver
2.1.4 Security Configuration
In certain cases it may be desirable to prevent accidental use of the unit by preventing anyone
except authorized personnel to activate the unit. Entering the SECURITY MODE shall enable a
user to program in a unique 4 digit startup ID. This ID must be entered while simultaneously
depressing the ON switch.
2.2 Normal Operation
During normal operation, the unit will function like an 8 channel transmitter. The specific
functions of each button is defined during device configuration.
3 SPECIFICATIONS
TX Power 10mW
Supply Voltage 3.3 – 10 VDC
Current < 20mA on transmit; 2mA on standby
Data Rate 4800 bps
