Cooper Current Bridge Amplifier DCM 433, DCM 433 User Manual

DCM 433
CURRENT BRIDGE AMPLIFIER
USER’S GUIDE
www.cooperinstruments.com
PH: 540-349-4746 FAX: 540-347-4755
Description
The Model DCM 433 is a self-contained, AC powered signal conditioner for bridge type instrumentation. It contains a precision instrumentation amplifier with isolated, filtered output and a highly regulated, low noise, adjustable output bridge excitation source. The unit is completely encapsulated for use in rugged environments.
Features
Complete Strain Gage Bridge Signal Conditioner
Isolated 4-20 mA or 0-20 mA Output
Output Capable of Driving 1000-ohm Loop
Bridge Balance with 80% Tare Offset Capability
High Gain Amplifier; Can Accept Full Scale Live Load Signals as Low as 5 mV and Provide 16mA Output Span
Excitation Supply Capable of Driving Four Load Cells
AC Powered
Rugged Epoxy Encapsulated Design
Applications
Weighing with Load Cells
Process Control Add-on Loops
Can be Used With All Types of Low Output Sensors
DCM 433 Block Diagram
CF 26 2 4/2001
Specifications
NOTE: Unless otherwise noted, specifications apply after one hour warm up at 25°C ambient. Temperature coefficients apply between 0°C and 55°C ambient.
Isolation
Input to Output
Amplifier Gain
Adjustment Range Input 4-20mA Output Linearity ±0.01% of Full Scale Temperature Stability 50 PPM (0.005%/°C)
Input Noise
.1 Hz to 10 Hz 2µV P-P
Tare Adjustment Range
Bridge Offset
Input Resistance
Differential and Common Mode 1000 megaohm
Common Mode Rejection, DC Common Mode Input Output Zero Adjust
Temperature Coefficient
Current Output Span
Compliance Voltage -1 to +20 Volts Current -1 mA to +20 mA Loop Resistance 0 to 1000 ohms Frequency Response, -3dB 10 Hertz, 2 Pole Roll Off
Response Time
Rise Time 10% to 90% To 0.1% of Final Value

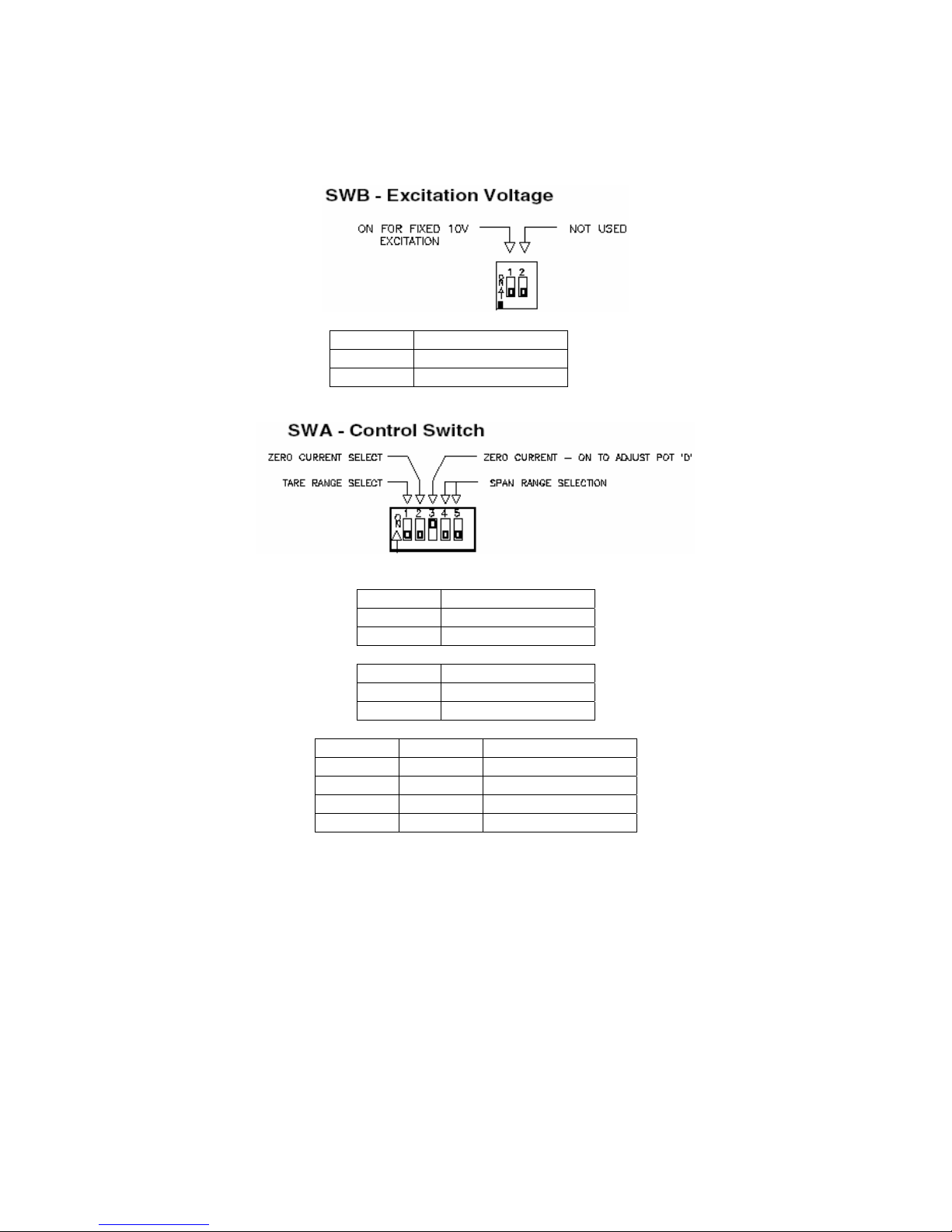

Bridge Supply Voltage Adjustment Range
Temperature Coefficient 100 PPM Typical Fixed 10.2V ±2.5% Temperature Coefficient 60 PPM Typical
Load Current Regulation - Load and Line Output Noise
120 Hz Bandwidth 1 mV RMS, Maximum
Power Input
Optional 220 or 230 VAC, ±10%
Line Isolation
Capacitance 60 pF Dielectric Withstand 1100 Volts RMS
Environment
Ambient Operating -25°C to +55°C Storage -25°C to +85°C
Weight
Size
700 VDC 60pF
5 mV to 50 mV
-3 mV to +25 mV (Equals 80% F.S. of 3 mV/V cell)
100 dB minimum +5 Volts
0 or 4 mA 1 µA/°C 4 to 20 mA or 0 to 20 mA
35 ms 100 ms
5 to 10 Volts
0 to 120 mA
0.02% maximum
115 VAC, ±10V 50/60 Hz @7 VA
18 oz. (510 grams)
3.75” L x 2.0” W x 2.87” H (9.53 cm x 5.1 cm x 7.62 cm)
