Revised: 15/02/16 31/03/2016
1

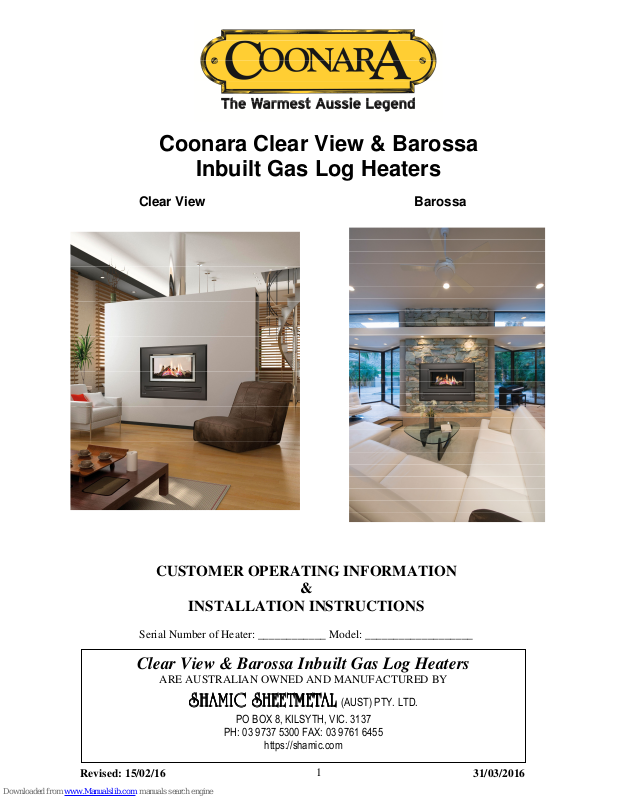

Coonara Clear View & Barossa
Inbuilt Gas Log Heaters
Clear View Barossa
CUSTOMER OPERATING INFORMATION
&
INSTALLATION INSTRUCTIONS
Serial Number of Heater: ____________ Model: ___________________
Serial Number of Heater
: ____________
Model:
________________
Clear View & Barossa Inbuilt Gas Log Heaters
ARE AUSTRALIAN OWNED AND MANUFACTURED BY
SHAMIC SHEETMETAL
SHAMIC SHEETMETALSHAMIC SHEETMETAL
SHAMIC SHEETMETAL
(AUST) PTY. LTD.
PO BOX 8, KILSYTH, VIC. 3137
PH: 03 9737 5300 FAX: 03 9761 6455
https://shamic.com
Revised: 15/02/16 31/03/2016
2
WARNING
THE FOLLOWING INSTRUCTIONS MUST BE CARRIED OUT OR
WARRANTY BECOMES VOID.
Heater must be installed by a Coonara authorised technician. List is available
on www.shamicheating.com. You must obtain a license number from the
installer.
Inbuilt and Freestanding Heaters must be placed on a flat level surface.
Inbuilt models must be placed on 6mm AC sheeting, to prevent unit from
rattling.
Heater must be checked for scratches or dents prior to installation.
All glass must be fitted with a screw driver not a drill. If glass is broken upon
installation due to the screws being tightened too much, it will not be classed
under warranty.
Further safety precautions and installation instructions are contained
throughout this manual. Please read the manual before installation.
Revised: 15/02/16 31/03/2016
3
CONTENTS
PRODUCT FEATURES…………………………………………………….4
SAFETY PRECAUTIONS………………………………………………..…5
CONTROLLER OPERATING INSTRUCTIONS………………………..6
CUSTOMER OPERATING INSTRUCTIONS……………………………6-7
SAFETY FEATURES……………………………………………………......7
INSTALLATION INSTRUCTIONS………………………………….….....8-15

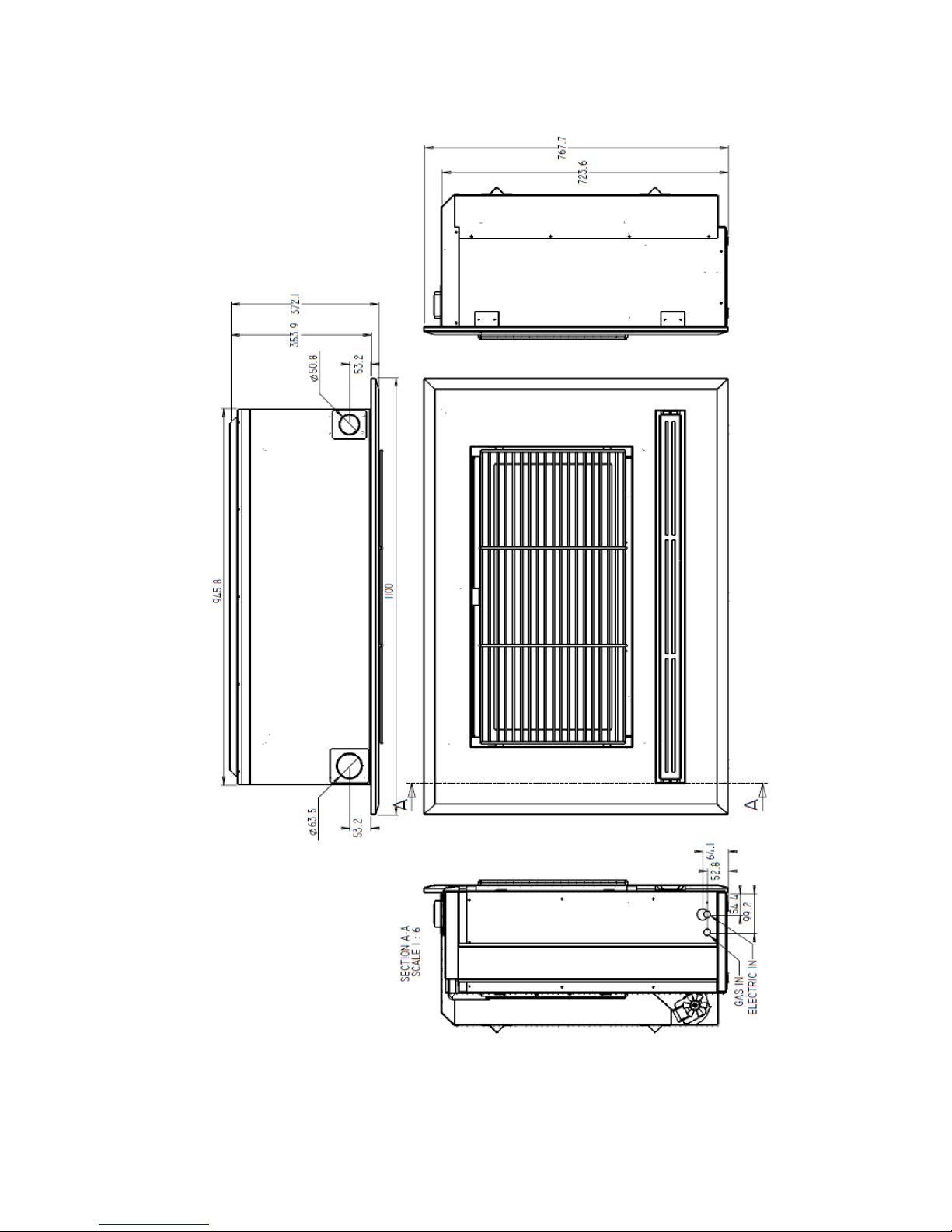

DIMENSIONS INBUILT MODELS .…………..……………………..........16-18

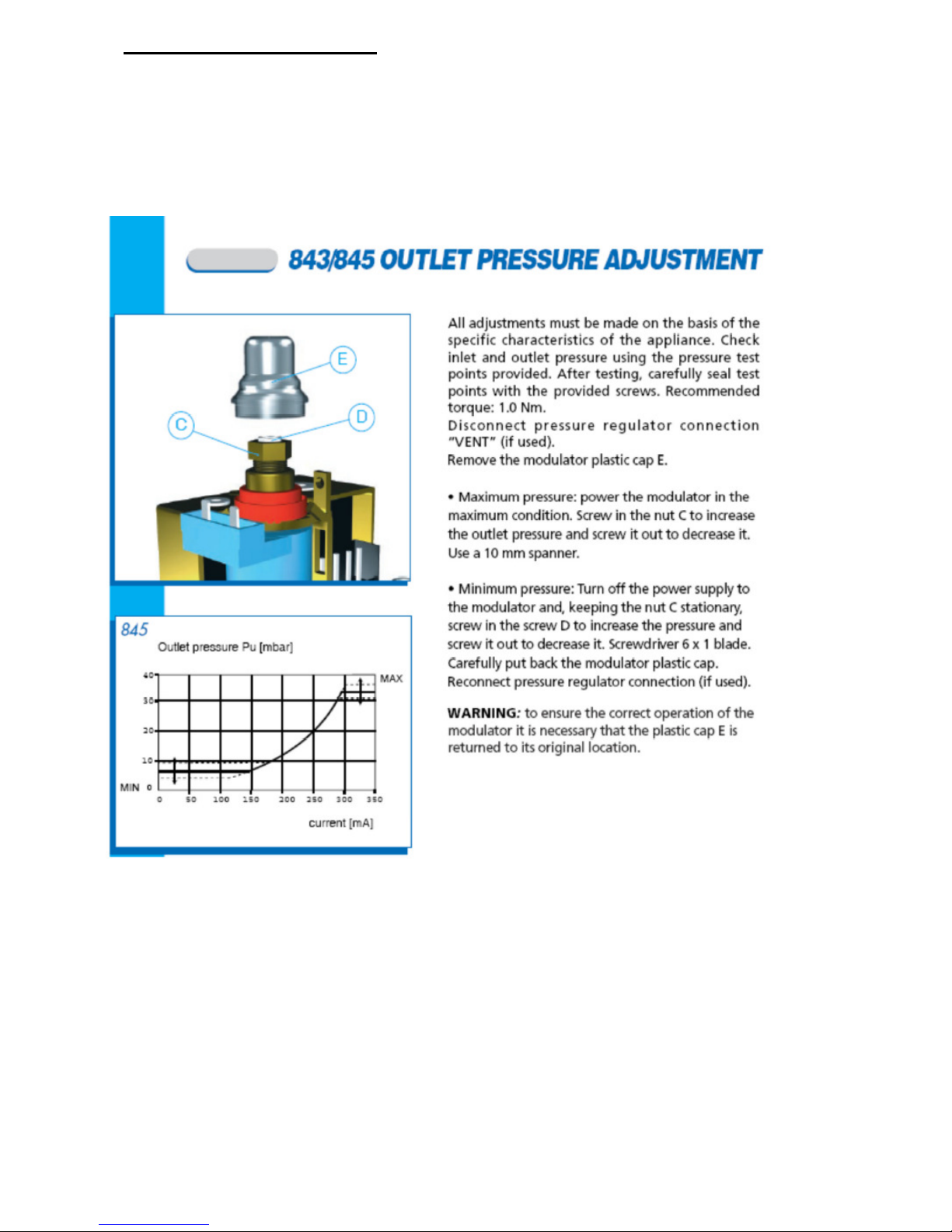

PRESSURE ADJUSTMENTS……………..……….……………………...19

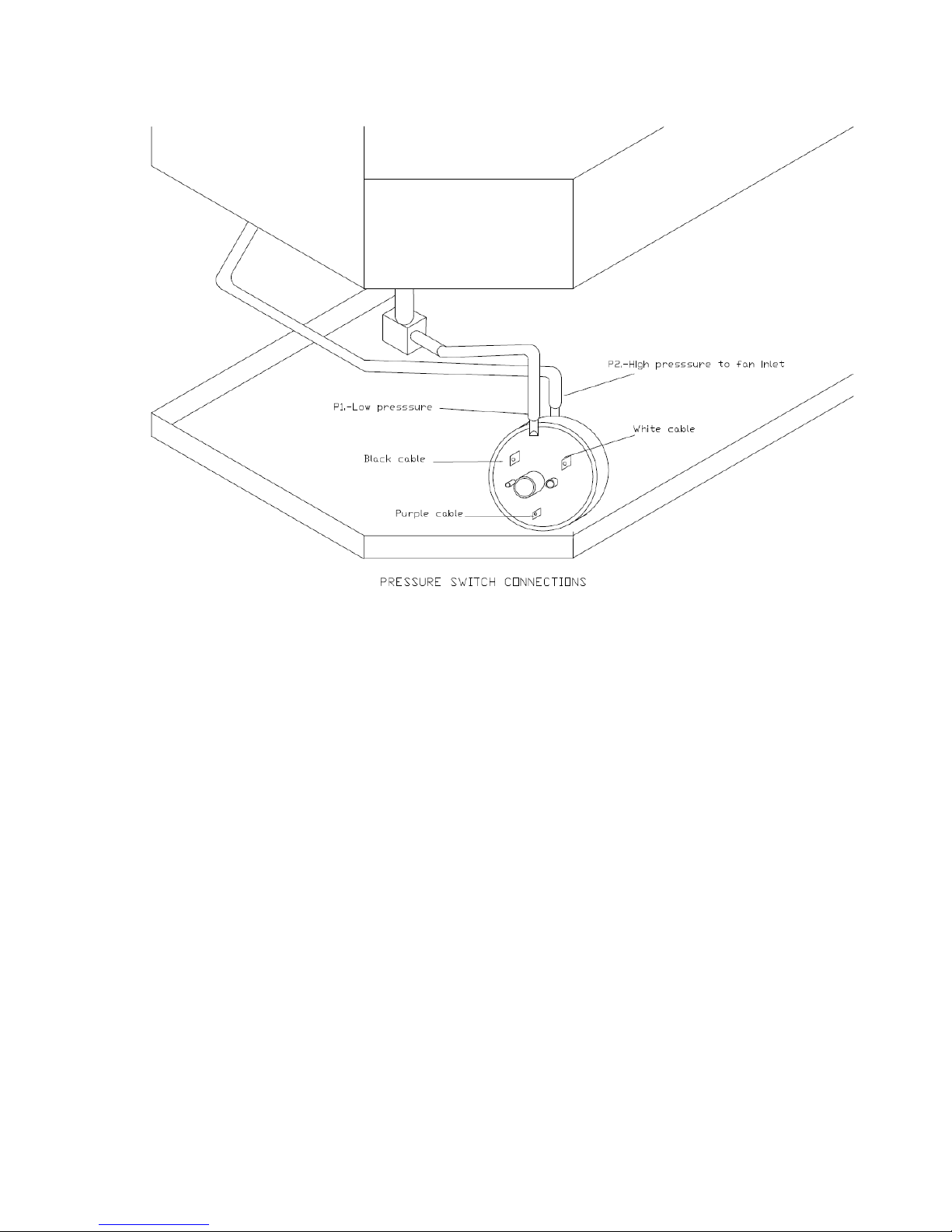

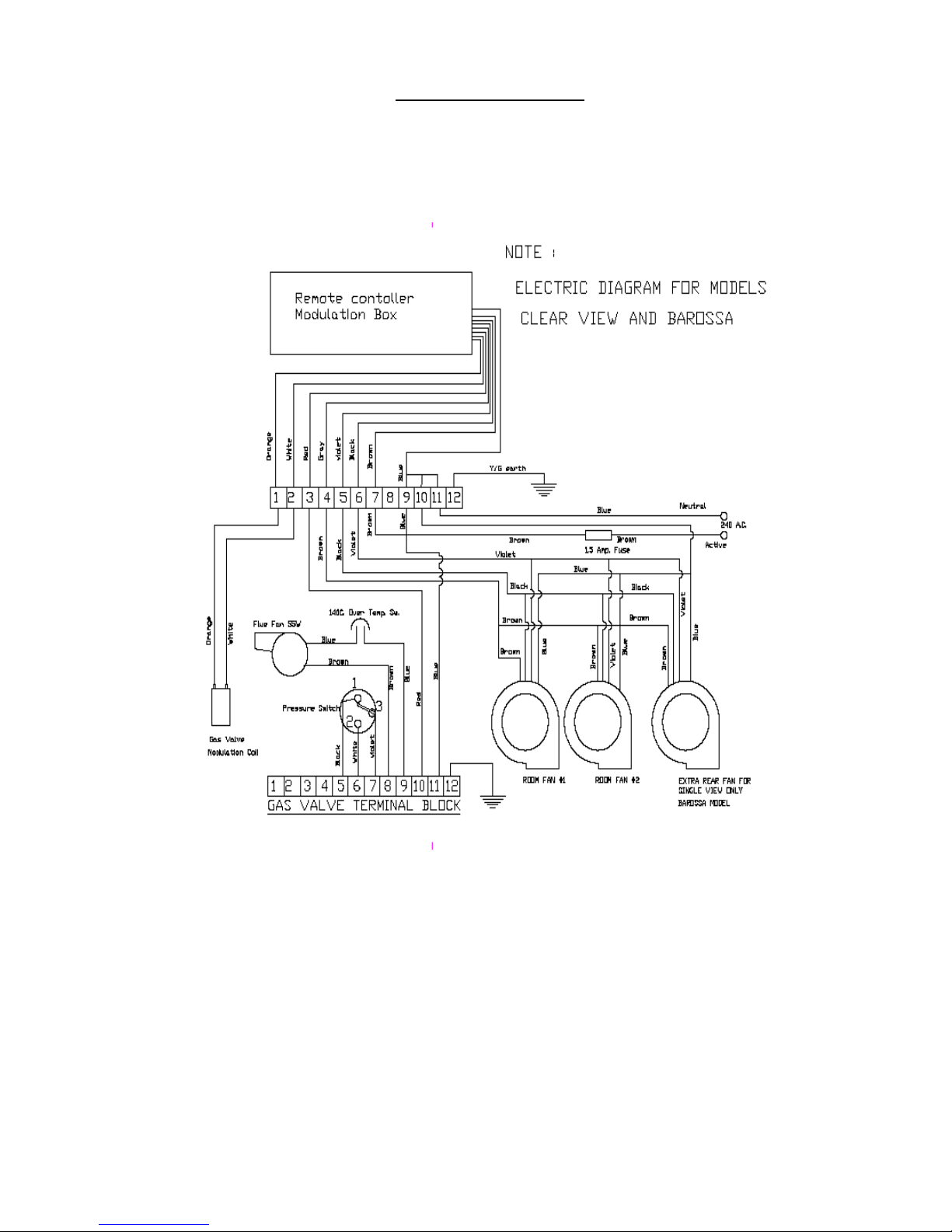

WIRING DIAGRAM & PRESSURE SWITCH ……………………….....20
PRESSURE SWITCH & BURNER REMOVAL …..…………………….21
LOG SET……………….………………………………………………........22-24
WARRANTY & CARE OF APPLIANCE …………………………..........25-27
TROUBLE SHOOTING GUIDE. ……………………………………….…28
WARRANTY FORM & CONTACT DETAILS……………………….….29
PLEASE STORE THIS MANUAL IN A SAFE PLACE FOR
FUTURE REFERENCE
Revised: 15/02/16 31/03/2016
4
Product Features
COONARA “CLEAR VIEW” & “BAROSSA” GAS LOG HEATERS
NAME PLATE
Zero Clearance to Combustible Materials
5.0 Star Energy Rating
Thermostat Control
Electronic ignition.
Modulated heat settings
External combustion air intake - prevents de-oxygenation of room air.
Delayed start room fan - prevents cold air being circulated at start-up.
Power flue.
COONARA
CLEAR VIEW &
BAROSSA
GAS TYPE
NATURAL GAS
Manufacturer
MODEL TYPE
GAS INPUT
HIGH
LOW
HEAT OUTPUT
HIGH
LOW
Efficiency
Injector Size
Manifold Pressure
High
Low
A.G.A Aproval
Number to Code
AS/NZ 4553-2008
Inbuilt
36 MJ/h
27 MJ/h
8.7 kW
4.3 kW
84.7 %
3.3 mm
0.6 kPa
0.35 kPa
AGA 8178 G
Shamic Sheetmetal (Aust.)
Pty.Ltd
.
PO BOX 8,
KILSYTH,
VIC. 3136
To be installed by a Coonara
authorised technician in
accordance with installation
instructions provided with the
appliance.
Electrical Conform to AS3100 240v 50Hz 120Watts Max.
Air Pressure Switch CLEVELAND NS2-1088-02
Cut in Pressure 45 PA
Cut out Pressure 40 PA
Electrical Connection Standard Flex. 2 Mtr. 3 Pin
Plug
SERIAL No: DATE:
Revised: 15/02/16 31/03/2016
5
SAFETY PRECAUTIONS
SAFETY GUARD
INSTALLATION
Instructions for operation with THERMOSTAT
!
DO NOT OPERATE THIS APPLIANCE BEFORE READING THIS
INSTRUCTION MANUAL.
DO NOT PLACE ARTICLES ON OR AGAINST THIS APPLIANCE.
DO NOT USE OR STORE CHEMICALS/FLAMMABLE MATERIALS OR
SPRAY AEROSOLS NEAR THIS APPLIANCE
DO NOT OPERATE WITH PANELS, COVERS OR GUARDS REMOVED
FROM THIS APPLIANCE.
DO NOT ENCLOSE THIS APPLIANCE
DO NOT MODIFY THIS APPLIANCE.
ALWAYS SUPERVISE YOUNG CHILDREN NEAR THE APPLIANCE
NOTE: In the event the electricity supply cord is damaged, it must be replaced with an
original Coonara part obtainable from your authorized dealer.
THE SAFETY GUARD AROUND THE GLASS DOOR IS FITTED TO THIS
APPLIANCE TO REDUCE THE RISK OF FIRE OR INJURY FROM BURNS. NO
PART OF IT SHOULD BE PERMANENTLY REMOVED.
IF HEATER IS
DAMAGED
, DURING REMOVAL OF SAFETY GUARD, DAMAGE WILL NOT
BE COVERED BY WARRANTY.
IT IS RECOMMENDED THAT A SECONDARY GUARD BE USED TO PREVENT
ACCESS TO THE APPLIANCE BY YOUNG CHILDREN AS OUTER PANELS
MAY REACH HIGH TEMPERATURES.
THIS APPLIANCE SHALL ONLY BE INSTALLED BY A COONARA
AUTHORISED TECHNICIAN IN ACCORDANCE WITH:
- AS/NZ S 5601.1 (GAS INSTALLATION CODE)
- MANUFACTURERS INSTALLATION INSTRUCTION
- LOCAL GAS FITTING REGULATIONS, AND
- MUNICIPAL BUILDING CODES.
Revised: 15/02/16 31/03/2016
6
The Coonara Clear View Gas log Heater has been designed for a simple and efficient operation to
provide you with a higher heat output than most other heaters in the market. The heater will provide
you with a fully controlled modulated supply of heat, from a pleasant and steady warmth to the
strongest heat output, to reach almost any corner of your area.
PRE OPERATIONS CHECKS
Prior to operating the heater, ensure that the flue terminal is not obstructed. Furthermore, make sure
there are no combustible objects leaning against, resting on, or within the immediate vicinity of the unit.
Check that the heater main power and gas supply are connected and switched on.
OPERATING THE HEATER
The heaters are operated by the room thermostat
1 - To ignite your heater press Power Button on the thermostat and the heater will automatically start
the ignition sequence. Please refer to the Thermostat Operating Manual supplied for further
instructions. After approximately 30 seconds of self-checking the heater will ignite.
2 - The heater will always start in the low heat setting and (unless already warm) the heater will warm
up for at least 2 minutes before automatically going to the higher flame setting.
3 – The Room fans will not start till at least 2 minutes of warming up period.
4 - During first time firing of this appliance, an odour may be noticed for a short period of time while
the paint cures. It is advisable to leave the windows open during the first few hours of the very first
operation only.
TURNING THE APPLIANCE OFF
Press power button on thermostat once. The room fan will continue to operate for a period of about 8
minutes while the heater cools down.
Please note:
1 - This appliance cannot be operated without the fan running.
2 - Due to the performance and efficiency of the heater, steam may be noticed coming from the flue
terminal on cool days.
3 - As this appliance has a luminous effect some slight carbon deposition may occur.
OPERATING THE CLEAR VIEW AND BAROSSA HEATER
During first time firing of this appliance, an odour may be noticed for a short period of time while the
paint cures. It is advisable to leave the windows open during the first few hours of the very first
operation only.
When the heater is turned on there is an initial delay time (purge time) of 30 seconds. Once this time
has elapsed, your heater will light via the electronic ignition system. Regardless of the heat setting, the
heater will start on high for approximately 10 seconds before switching back to the last heat setting
used. There will be a further 2 minutes delay before the room air fan turns on.
When the room temperature is approaching the set temperature, the flame will begin to diminish. Once
the room temperature reaches the set temperature the heater will go to minimum flame. If the room
temperature begins to fall the flame will then increase.
Revised: 15/02/16 31/03/2016
7
When the heater is turned off the room fan will continue to run for a further 8 minutes.
SAFETY FEATURES:
Automatic Pre-purge: Before heater ignition this operation is done to evacuate any remains of gas or
flue products from inside the firebox that could be the cause of a mishap.
Automatic Shut-off: Should the flame extinguish for any reason there is an automatic shut off of the
gas supply.
Over temperature protection: In the event of the room fan failing, blockage of airways or incorrect
gas installation, the gas supply will automatically shut off after 5 minutes aproximate. This is due to
temperature increase and to prevent the appliance from over-heating.
Warning
: This appliance must be installed to comply with AS/NZS 5601.1 codes and
regulations and only by a Coonara authorised technician who is responsible for its correct
operation at the time of installation and final commissioning.
For your own convenience please record the following information in the space provided:
Purchased from:
Name…………………………………………………………………………
Address………………………………………………………………………
Phone No…………………………………..Date of purchase:…….………
Serial No of appliance:………………………………………………………
To be completed by the installer:
Name……………………………………………..Licence No……………….
Address………………………………………………………………………..
Phone No……………………………………. Installation Date…………….
Revised: 15/02/16 31/03/2016
8
WARNING
Heater must be checked for scratches or dents prior to installation.
Once the Heater is installed scratches or dents are NOT covered by warranty.
Heater must be placed on a flat level surface.
Inbuilt models must be placed on AC sheeting, to prevent unit from rattling.
INSTALLATION OPTIONS:
* ONLY TO BE CARRIED OUT BY A COONARA AUTHORISED TECHNICIAN!

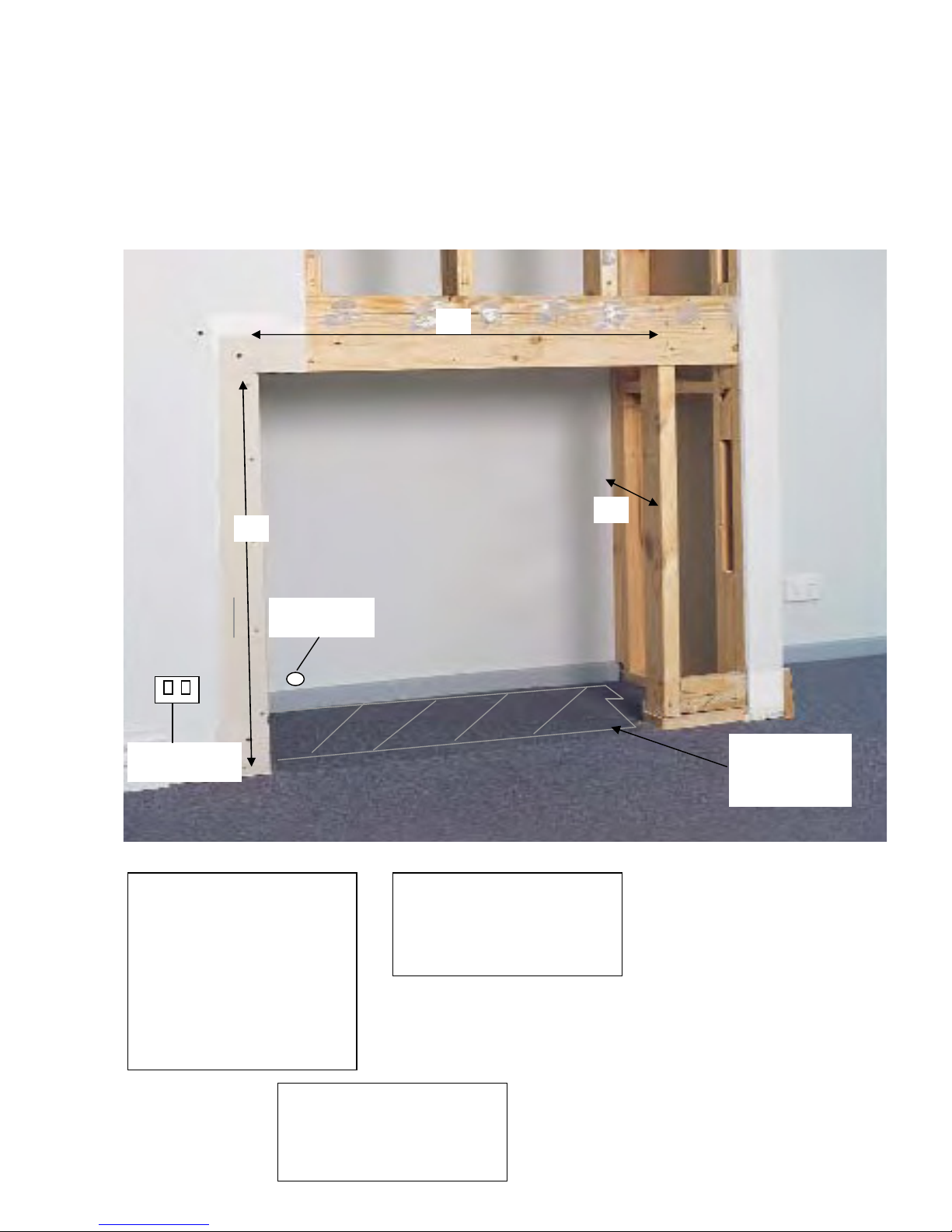

The Clear View and Barossa Inbuilt Heaters are a zero clearance appliance and can
be optionally installed in a false fireplace or wall cavity made of combustible
materials such as wood or chipboard. Coonara provide the heater with their own
flue kit, of flexible pipes of 60mm and 50mm diameter for the inlet and exhaust. For
the gas supply a flexible hose is provided and must be used.

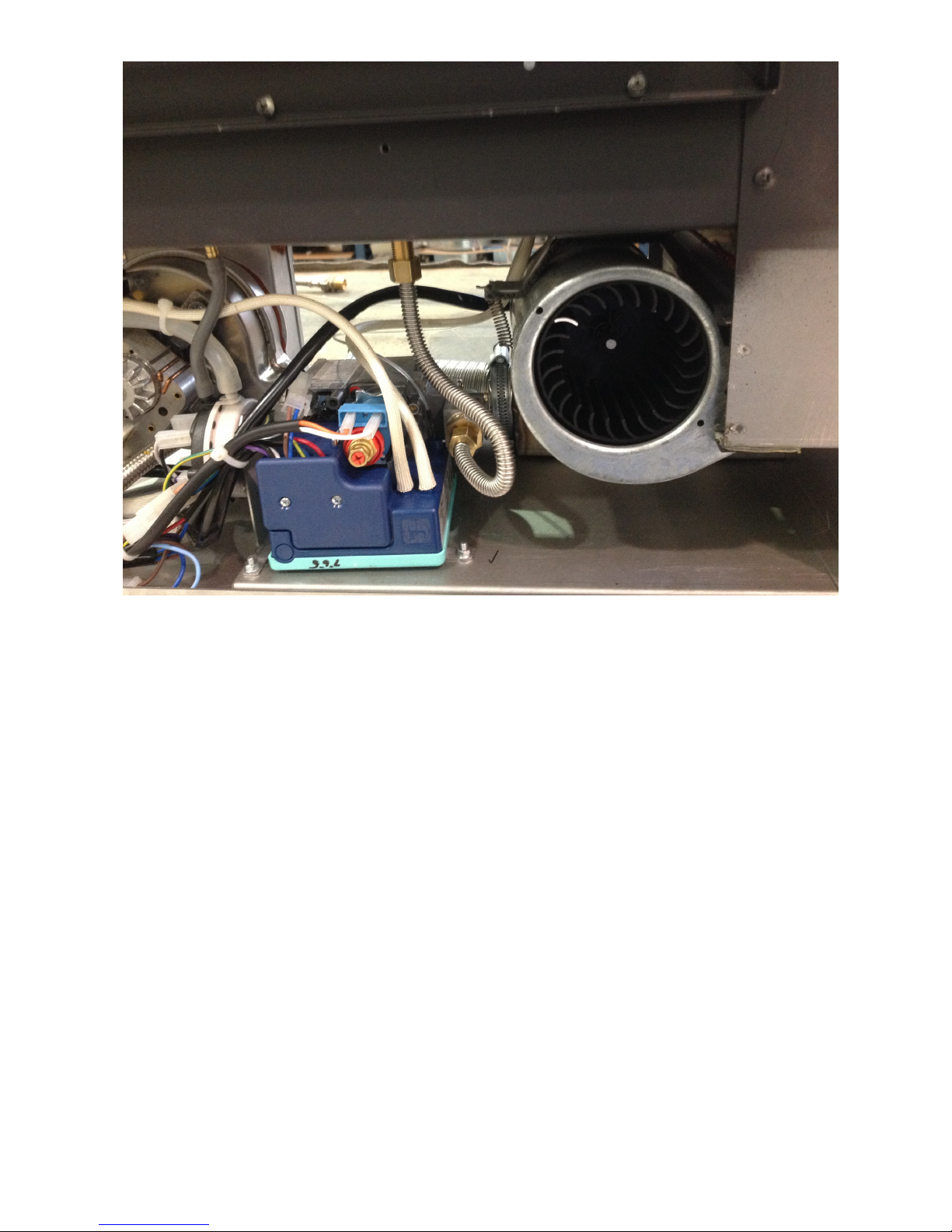

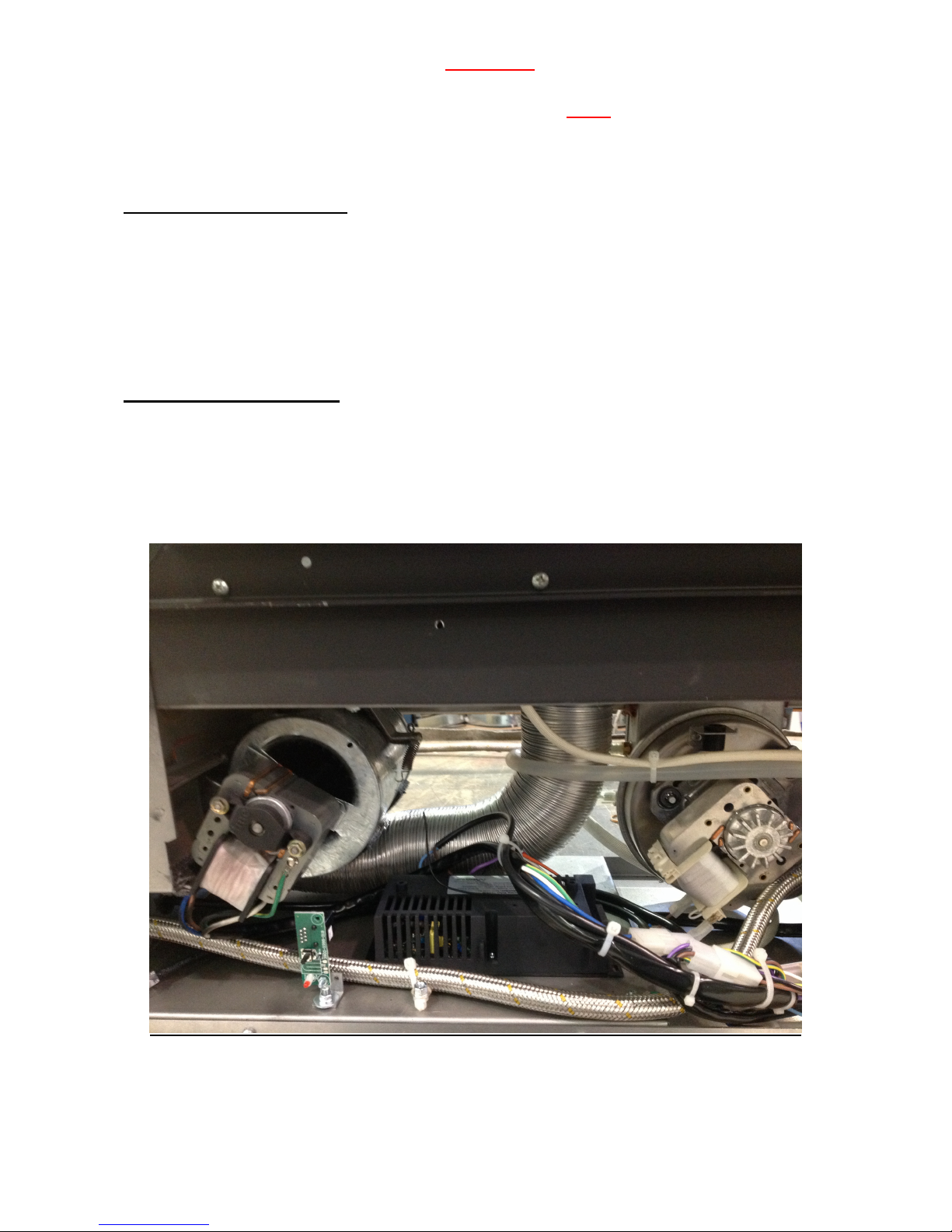

SERVICE INSTRUCTIONS
1. To access flue fan on the Barossa the heater needs to be removed
2. To access the flue fan on the Clearview only the rear fascia needs to be removed
3. To access all other componentry on the Barossa & Clearview the front fascia needs to be
removed
4. To access the fire box read Installation Instructions page 10
Revised: 15/02/16 31/03/2016
9
ALL MODELS ARE TO BE PLACED ON A FLAT LEVEL SURFACE TO
PREVENT RATTLES
Revised: 15/02/16 31/03/2016
10

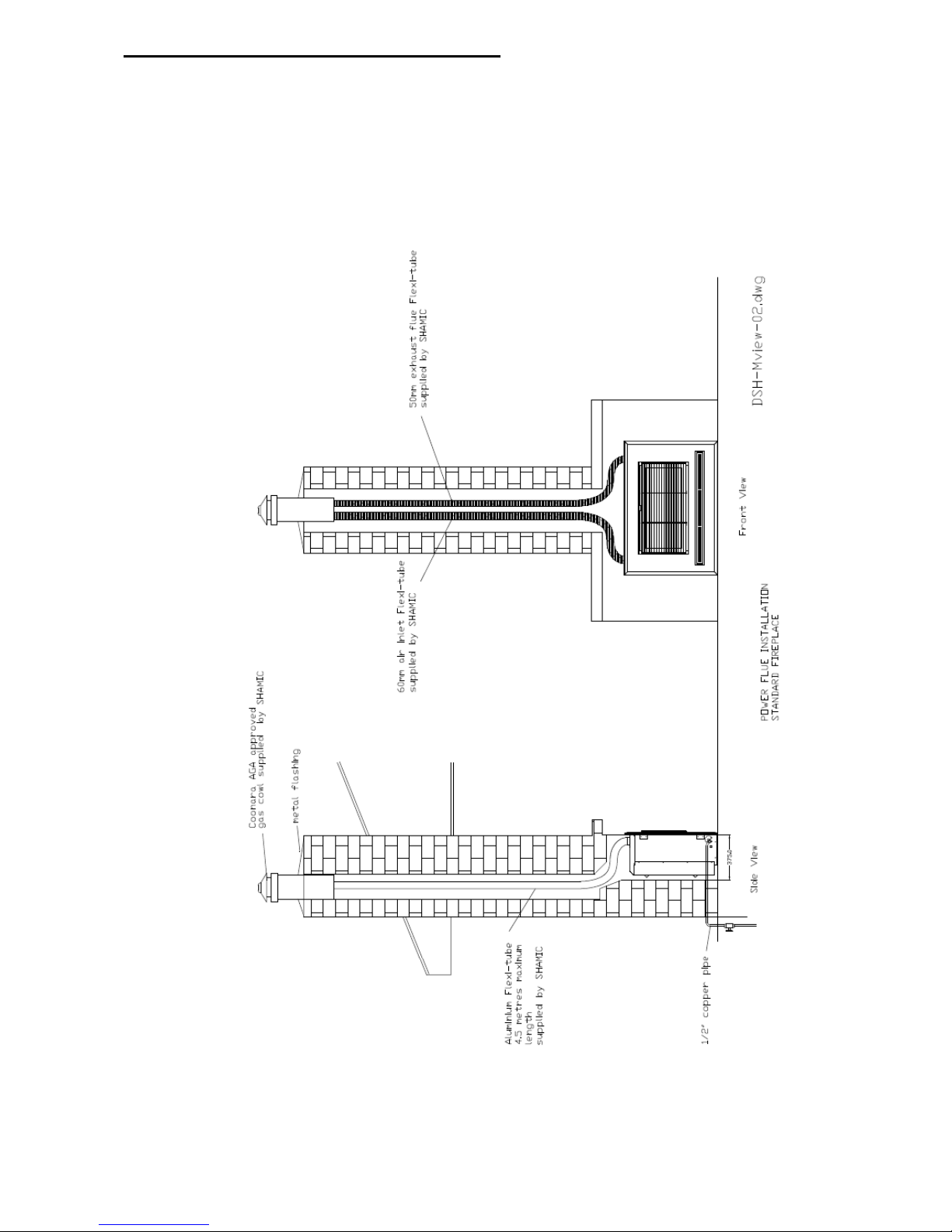

VERTICAL FLUE INSTALLATION
1. Connect flue terminal to both flexible flue pipes.
2. Feed both flexible pipes down the flue cavity.
3. Fix flue terminal securely to top of the flue cavity and seal to prevent water entry. Seal with Hi
temperature waterproof silicon sealant prior to cementing to chimney top, pop rivet circular
flange to the collector box. (Chimney installation only).
Revised: 15/02/16 31/03/2016
11
INBUILT HORIZONTAL Flue Installation
1. Determine the exact location for the heater.
2. Mark the exact location for the wall penetration
a. Determine that you will not be cutting through any vertical wall studs.
b. Check that the location of the wall-mounted terminal conforms to the requirements of
AS/NZS5601.1 – Location of a Flue Terminal.
3. Cut 2 holes 60 & 70mm in diameter at 160mm centres holes to be side by side in the horizontal.
4. Use the back of the cowl as a template for fixing holes.
5. Fit flex flue to spigots on the rear of the cowl using provided hose clamps and seal with silicone
(high temp).
NOTE- it may be necessary to trim the flue depending on wall thickness.
6. Attach the back of the cowl to the wall. Silicone around outside.
I
NSTALLATION - GAS PRESSURE TO GAS VALVE
NATURAL GAS 1.13 kPa.
Only to be carried out by a Coonara authorised technician!
1. Unpack flue kit and log set. (Packed inside with heater).
2. Carefully remove the cardboard carton surrounding the heater.
3. Remove fascia on Barossa & both fascias on the Clear View. To remove fascia undo 2 screws
either end of air intake panel and slide fascia up vertically off the hooks.
4. To eliminate damage to the fascias, DO NOT unscrew heater from the pallet until after fascias have
been removed.
5. Carefully tip heater on its end and remove 3 dimpled plates (for transport only)
6. Lift heater into position in the cavity.
7. Remove glass & frame, from front of heater only, by undoing 4 screws on the side of the door

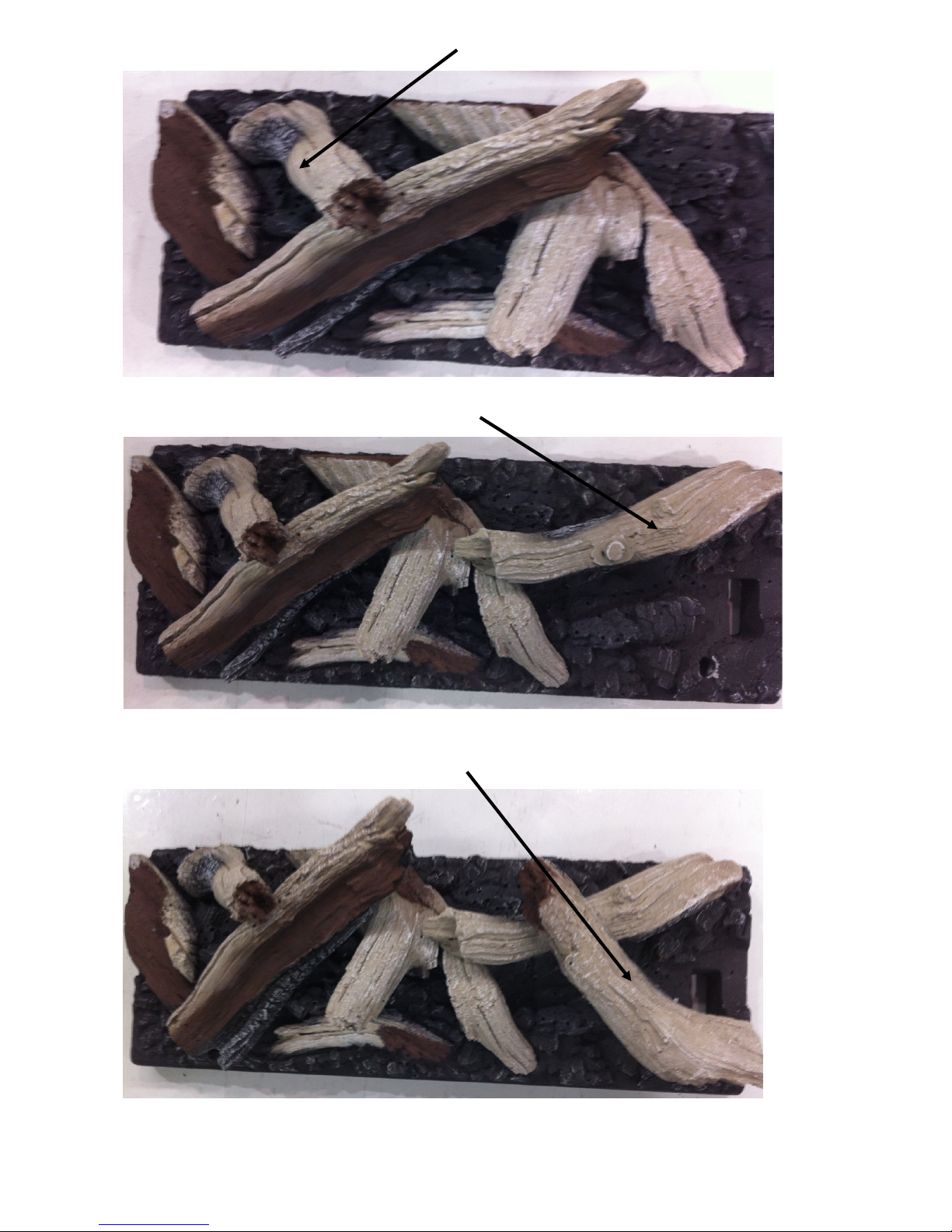

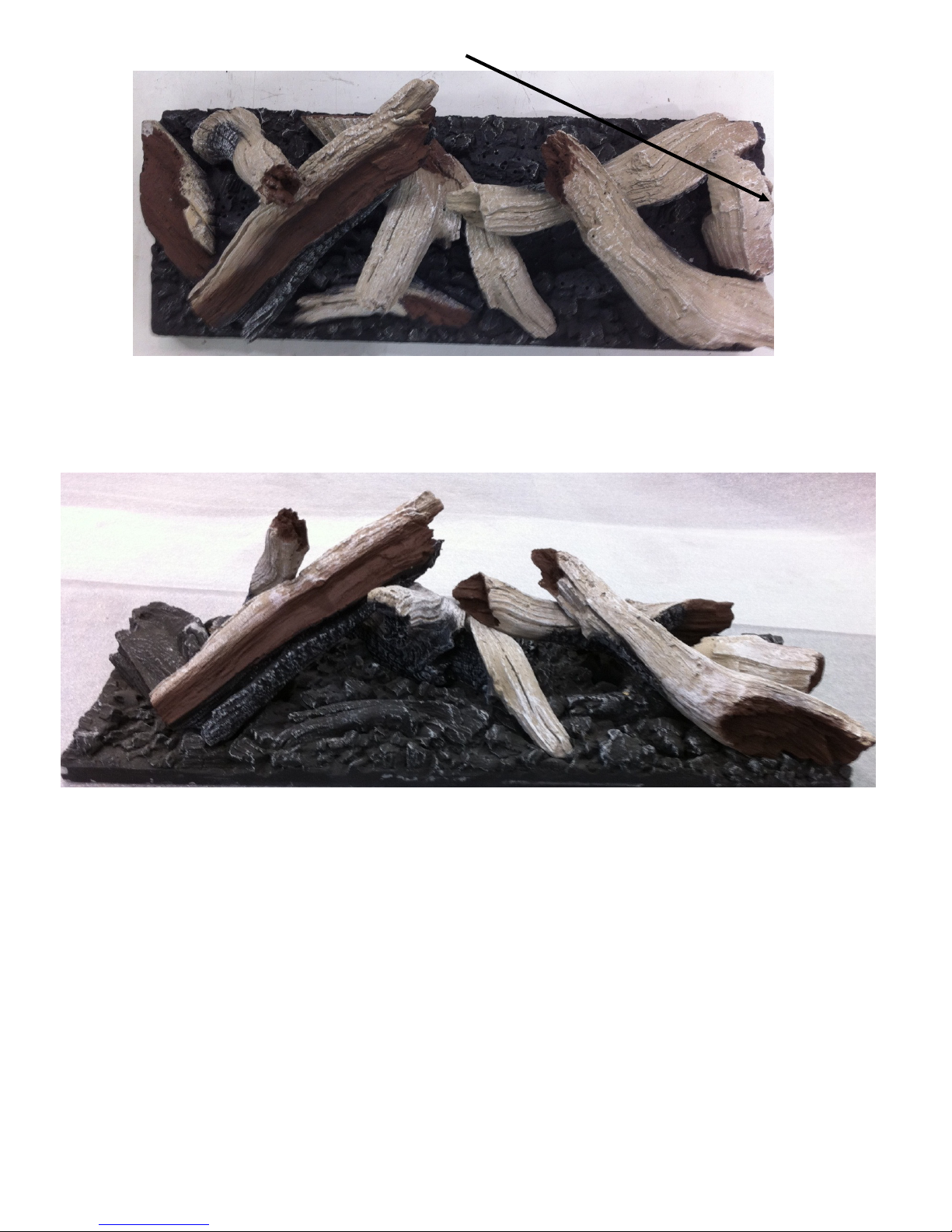

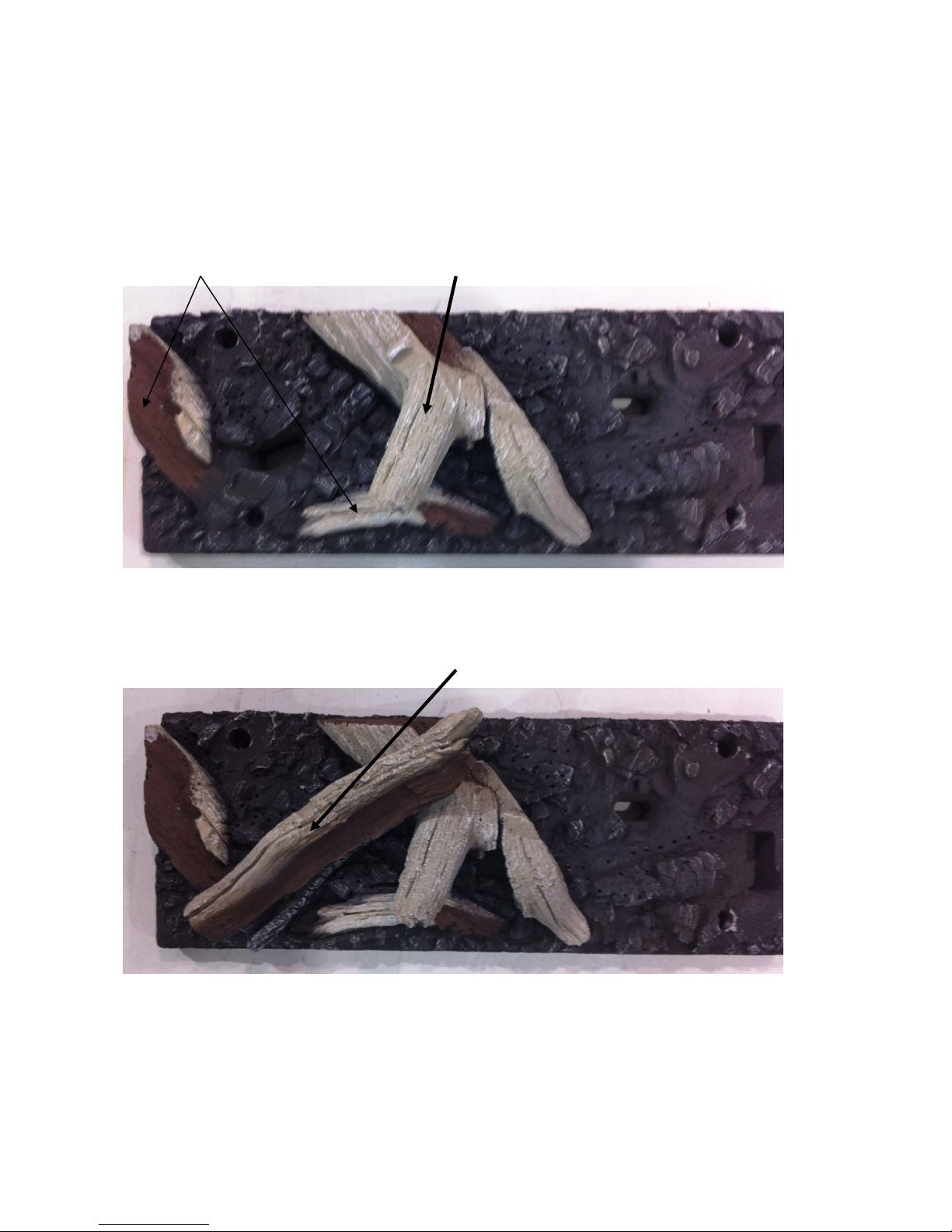

8. Carefully place logs into place as per diagrams.
9. When installing logs do not bend sensors.
10. Start by pressing power button on the thermostat and then follow the instructions in the thermostat
manual supplied. Heater will not light for approx 1 minute. Once the firebox gets warm it will then
go to higher temp. Switch off using power button on the thermostat. This may have to be done 2 –
3 times, until gas lines and the unit is purged.
11. Re assemble heater in reverse order.
INSTRUCT CUSTOMER OF CORRECT OPERATING PROCEDURE
.
Revised: 15/02/16 31/03/2016
12
INBUILT INSTALL INTO A STUD WALL CAVITY
Framing Specifications
Clearview & Barossa
Gas Supply
Power Point
Cement Sheet
for floor
installation
Clearview
Front Opening
A) 1000mm
B) 245mm (inc. plaster)
C) 900mm ** See below
Rear Opening
A) 1125mm
B) 245mm
C) 900mm ** See below
Barossa
A) 1000mm
B) 400mm (inc. plaster)
C) 900mm ** See below
* Gas Inlet to be ½” Fem BSP
* Power Outlet left hand side
* 6mm Cement Sheet required
for Floor Installation.
* 25mm timber support for Wall
Installation
** C)
Do not
plaster lower
than 750mm & no higher
than 755mm. This is to
allow for removal of heater
Revised: 15/02/16 31/03/2016
13

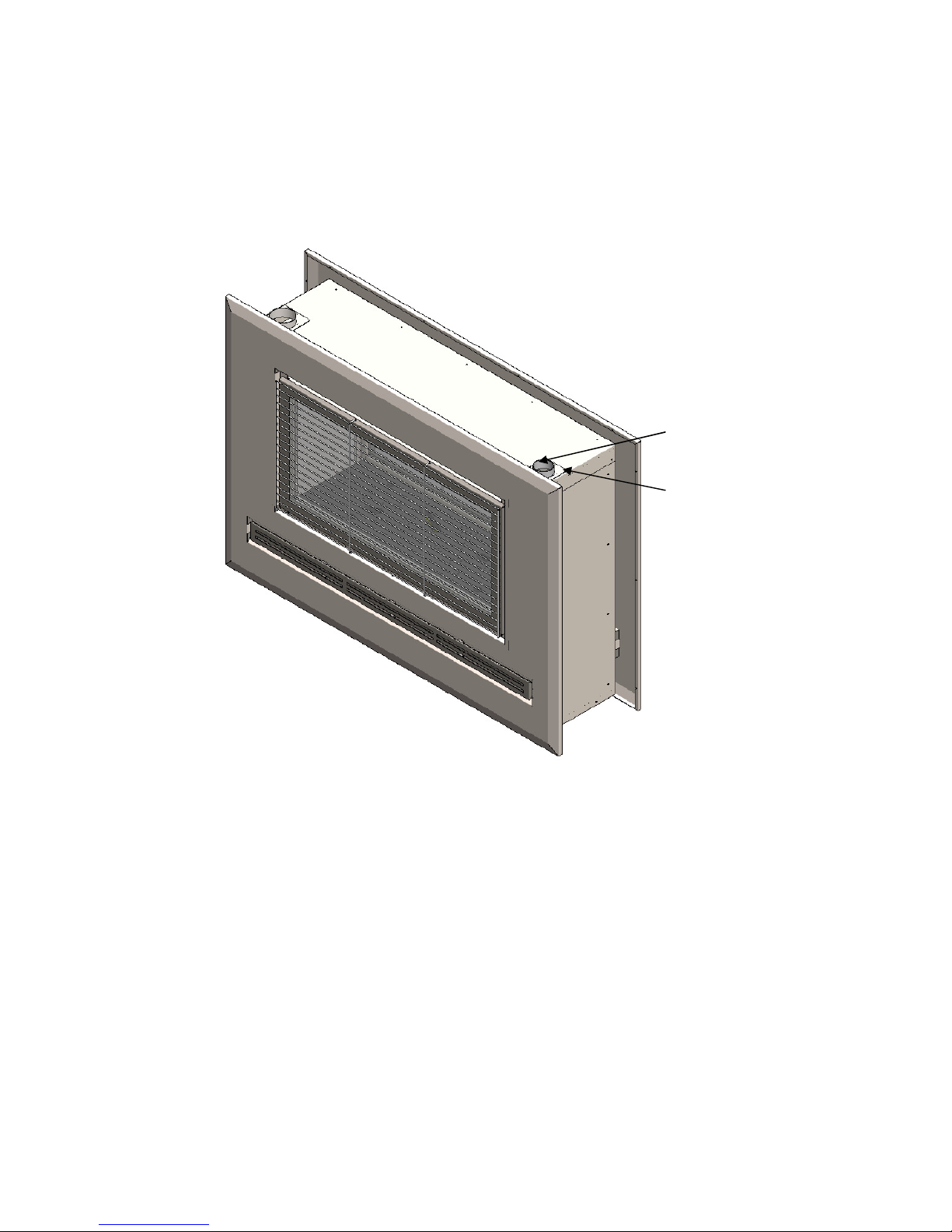

“CLEAR VIEW” DOUBLE SIDED EXTERNAL DIMENSIONS
FOR WALL THICKNESS - 100MM TO 248MM
Revised: 15/02/16 31/03/2016
14
CLEAR VIEW DOUBLE SIDED – FOR WALL THICKNESS - 100MM TO 248MM
The flue outlets are factory set to accommodate plaster board, this can be adjusted to
accept 30mm. i.e allowance for tiles.
To adjust take off the plate, undo 4 screws, slide the spigot forward, then tighten screws.
Make sure screws are tight and the unit is sealed. Put cover plate back on and silicone.
This operation needs to be done prior to installation.
SPIGOT
PLATE
Revised: 15/02/16 31/03/2016
15

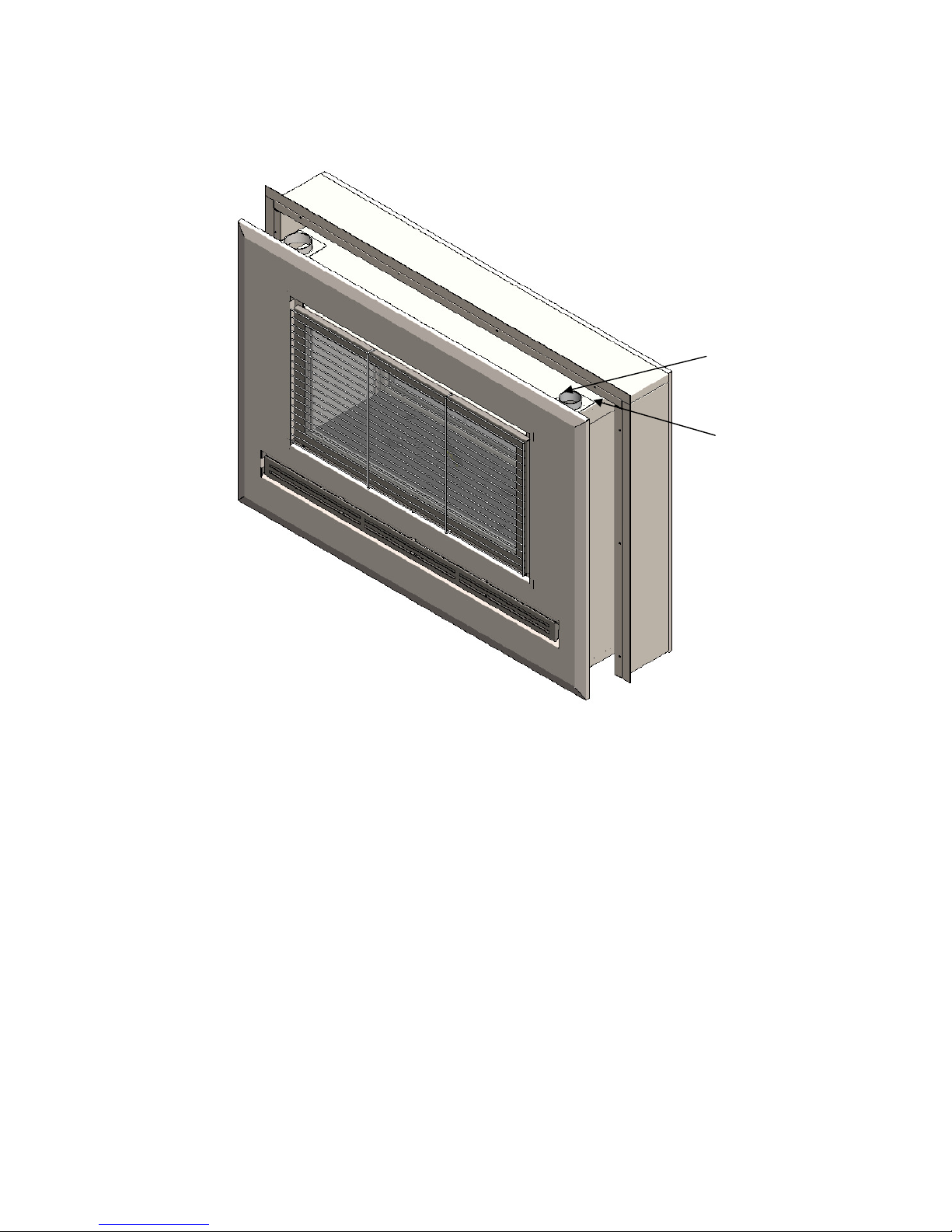

“CLEAR VIEW” DOUBLE SIDED EXTERNAL DIMENSIONS
FOR WALL MAXIMUM THICKNESS - 248MM
Revised: 15/02/16 31/03/2016
16
CLEAR VIEW DOUBLE SIDED – FOR MAXIMUM WALL THICKNESS - 248MM
The flue outlets are factory set to accommodate plaster board, this can be adjusted to
accept 30mm. i.e allowance for tiles.
To adjust take off the plate, undo 4 screws, slide the spigot forward, then tighten screws.
Make sure screws are tight and the unit is sealed. Put cover plate back on and silicone.
This operation needs to be done prior to installation.
SPIGOT
PLATE
Revised: 15/02/16 31/03/2016
17

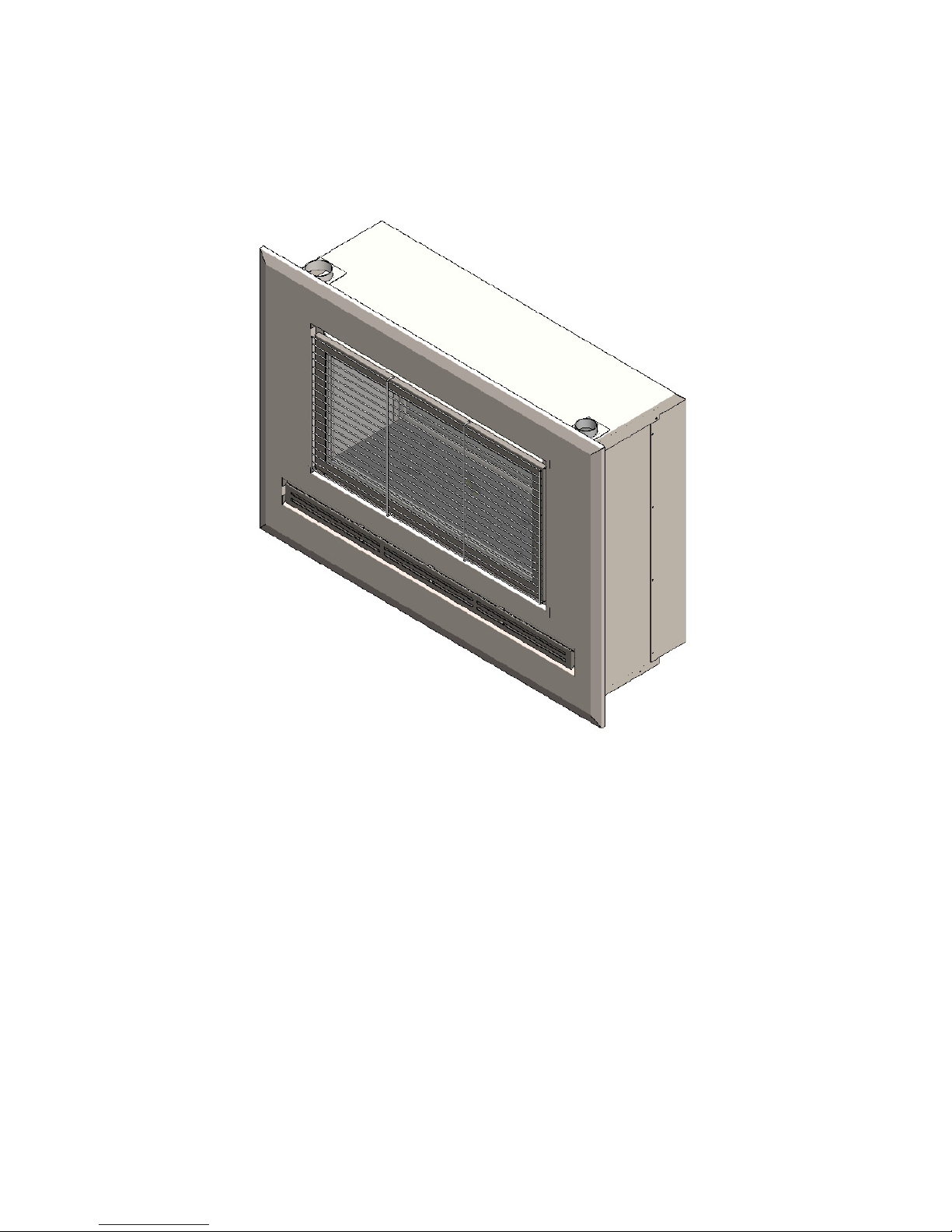

“BAROSSA” SINGLE SIDED EXTERNAL DIMENSIONS
Revised: 15/02/16 31/03/2016
18
“BAROSSA” SINGLE SIDED
Revised: 15/02/16 31/03/2016
19
PRESSURE ADJUSTMENT
Your Coonara Clear View & Barossa Heater has been fully factory preset and adjusted and should not
need to be re-adjusted during installation. Gas pressures still need to be checked to the pressures shown
on Page 4 of this manual. But there will be some situations where some service has to be carried out and
gas pressure may need to be re-adjusted as per the following instructions:
Revised: 15/02/16 31/03/2016
20
WIRING DIAGRAM
Revised: 15/02/16 31/03/2016
21
PRESSURE SWITCH
BURNER REMOVAL
ONLY TO BE CARRIED OUT BY AN COONARA AUTHORISED
TECHNITIAN
The Coonara Clear View & Barossa burner is of composite type. The bottom part is
made of Steel and the top is made of high temperature ceramic with the gas port holes
and features embedded in the casting. The burner does not require any maintenance
during the heater’s operational life. The accidental cracking of the ceramic logs or
burner could happen. If this occurs the part needs to be replaced by following these
instructions:
1. Remove 2 screws, one at each end of air intake. Then lift and pull the fascia towards
you. This will unclip the two hanging hooks.
2. Undo the 4screws holding glass frame, 2 each side of the door.
3. Carefully remove ceramic logs. Take note of positioning of all logs for when you
reassemble logs. (see photos of log set positioning on page 20-22)
4. Remove M5 nut from under left hand side of the firebox. Then undo the gas pipe
for the burner injector. Then remove brass nut from injector fitting. This will allow
you to carefully lift and remove the whole burner assembly.
5. To assemble follow the same steps in reverse order.
Revised: 15/02/16 31/03/2016
22
COONARA CLEAR VIEW & BAROSSSA LOG SET LOCATION
DETAILS
All logs have self-locating points moulded into them. This allows for accurate
positioning of logs
STEP 1
STEP 2
Fixed logs – part of ember bed
Revised: 15/02/16 31/03/2016
23
STEP 3
STEP 4
STEP 5
Revised: 15/02/16 31/03/2016
24
STEP 6
LOG SET FRONT VIEW
Revised: 15/02/16 31/03/2016
25
How to Make a Warranty Claim
Coonara, Heatcharm, Arrow
The full Warranty Statement for your heater is contained in the Installation and Operating Instructions
booklet that was provided with the product.
1. Check the details of the warranty statement
2. Determine if you think the problem is covered by warranty
3. Ensure that you have proof of purchase
4. Contact the retailer that sold you the heater
5. Advise them of the specific problem
6. Provide the details that your retailer requests to complete a Warranty Claim Form. This must
include the heater model, serial number and installation compliance certificate, if applicable in
your State.
7. Your retailer will forward your claim to Shamic Sheetmetal (Aust) Pty Ltd, the manufacturer of
the above heater brands
8. Shamic will contact you to acknowledge that they have received the claim, if the claim has been
accepted and the next steps involved in fixing the problem
9. Parts and/or service is provided
10. Contact your retailer if the problem has not been fixed.
Revised: 15/02/16 31/03/2016
26
WARRANTY
DESIGNATION OF WARRANTOR. This warranty is extended by Shamic Sheetmetal (Aust) Pty. Ltd
with respect to Coonara gas heaters.
PRODUCT. This Coonara Gas heater is comprised of the heater proper (including components and
firebox), fan assembly, speed control switch, electrical components, gas valves, seals and moving parts.
Except where specifically excluded from coverage hereunder, this warranty covers all components
designed.
See exclusions and qualifications below for further information on product coverage.
WARRANTY:
1) Shamic Sheetmetal (Aust) Pty. Ltd, warrants the firebox and the heat exchanger to be free of
defects in materials and workmanship of a period of five (5) years from the date of purchase.
2) Shamic Sheetmetal (Aust.) Pty.Ltd., warrants that all other components of the unit to be free of
defects in material and workmanship for a period of two (2) years from date of purchase,
excluding door glass and decorative logs.
3) If this Coonara heater is found to be defective in material or workmanship Shamic will repair or
replace such defects in the Coonara heater at Shamic’s option in accordance with Coonara’s
warranty policy during the period on this warranty. If the defect is found not to meet the
Consumer Guarantee requirements and constitutes a major failure, the purchaser may be able to
choose to repair or replace the defective heater or part or obtain a refund.
4) Exclusions and qualifications. This warranty is subject to the following exclusions and
qualifications.
a) This warranty extends only to the original consumer purchaser, who has purchased the
heater from an authorised Coonara dealer.
b) This warranty does not apply to, and Coonara assumes no responsibility for any damages
that result due to, installation or operation of the heater not in accordance with both the
installation and operation instructions furnished with the unit.
c) This warranty does not apply to any heater which has been modified or damaged in
shipping or by improper handling, improper operation, abuse, misuse, accident or
unworkmanlike repairs.
d) Shamic Sheetmetal (Aust.) Pty.Ltd. does not warrant the structural performance of the
heater when fuel products other than the specified gas fuels are used. Flammable liquid
fuels are explosive and should never be used in this product.
e) Shamic Sheetmetal (Aust.) Pty.Ltd. expressly excludes any liability hereunder for
defects or damage caused by the installation or of any components not expressly
authorised and approved by Shamic. Shamic further assumes no liability for defects or
damage caused by any modification not expressly authorised and approved by Shamic.
Unauthorised components or modifications could create a fire hazard by altering the
safety design of the heater.
f) Building Codes. Since building code requirements vary, users should determine in
advance whether there are any building code restrictions on the installation or use of the
heater. Shamic makes no representation of warranty regarding building code compliance
and shall not be responsible for compliance therewith.
g) Shamic will only accept claims under this warranty in strict accordance with the
conditions set out below.
5) Shamic Sheetmetal (Aust.) Pty.Ltd. shall not be liable for any breakages of glass and log
components, transit damage or, where it can be shown that the consumer guarantee obligations
as the manufacturer have been met, for any claim by any person for incidental or consequential
damages caused by defects in the Coonara heater. Whether such damage occurs or is discovered
before or after replacement or repair, and whether or not such damage is caused by Coonara
negligence. Normal wear and tear items such as routine surface maintenance, seals and door
glass are also excluded from this warranty.
Revised: 15/02/16 31/03/2016
27
6) Shamic goods come with guarantees that cannot be excluded under Australian Consumer Law.
The purchaser is entitled to a replacement or a refund for a major failure and compensation for
any reasonably foreseeable loss or damage. The purchaser is also entitled to have the goods
repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount
to a major failure.
7) This warranty applies only to units purchased from an authorised dealer and the duration of this
implied warranty, including merchantability, applicable to this Coonara heater is limited to the
duration of the foregoing warranty.
8) Before Shamic Sheetmetal (Aust.) Pty.Ltd. will recognise or accept a claim under this warranty,
you must provide proof of purchase. On purchase of the heater, despatch your warranty card to
Shamic Sheetmetal (Aust.) Pty.Ltd.
9) Your authorised dealer must be notified of any defect in the heater, for investigation of the
claim. Your authorised dealer will be able to explain the process of making a warranty claim and
any costs associated with returning goods. In the event where a remedy is necessary and the
claims under warranty are accepted, the purchaser may be required to return the goods to the
authorised dealer for repair, replacement or refund.
CARE OF YOUR CLEAR VIEW & BAROSSA GAS HEATER
This appliance requires minimal maintenance, however, it is recommended that a
qualified person make a full service and check annually.
The Bottom fascia air grill should be removed by unscrewing the two screws and the fan
vacuumed annually.
To clean the appliance, simply wipe over with a damp cloth. Do not use solvents or
abrasive cleaning agents.
Before making a service call check that:
1 - Electrical power is on
2 - Gas is turned on
3 - There are no obstruction /blockages of the flue terminal
Revised: 15/02/16 31/03/2016
28
T
ROUBLE SHOOTING GUIDE
PROBLEM POSSIBLE CAUSE REMEDY
Appliance fails to
ignite.
Appliance ignites
then goes out
No gas supply or pressure insufficient.
No electrical supply.
Heater trying to start on low
Incorrect gas valve adjustment.
Insufficient time allowed between
attempts.
Internal wiring disconnected.
Check Polarity/Heat sensor bar
Ensure gas supply connected, purged, and pressure
appropriate.
Ensure unit plugged in and switch is on, check
supply fuse.
Check supply. Active, neutral, & earth must be
correctly orientated and connected.
Turn off at power point to clear signal and
restart
Adjust valve pressures.
Wait at least 15 seconds for unit to purge
combustion chamber after switching off.
Check all plugs inside appliance are connected
properly and correctly located, Ensure operation of
combustion fan & air pressure switch.
Check supply. Adjust as required. Active, neutral,
& earth must be correctly orientated and connected.
Unit will not
operate on Low.
Incorrect gas valve adjustment.
Incorrect or loose wiring.
Adjust valve.
Check wiring.
Room fan not
operating.
Insufficient time allowed.
Loose wiring.
Fan not located correctly.
Fan blocked.
Fan has a delayed start and will not start until unit
warms-up.
Check wiring.
Install fan in correct location.
Remove and clean fan.
Unit cuts out after a
period of time then
cycles on and off.
See “Room fan not operating”
Heat exchanger blockage.
Excessive pressure or incorrect gas
type.
See “Room fan not operating”
Clean heat exchanger.
Ensure correct gas type, injector size, and pressure
setting.
Excessive carbon
(soot) deposits on
inside of firebox,
logs, and/or glass.
Incorrect gas type or pressure setting.
Primary air shutter incorrectly adjusted
for gas type.
Ensure correct gas type, injector size, and pressure
setting.
Adjust primary air shutter.
Excessive flame
height.
Incorrect gas type or pressure setting.
Ensure correct gas type, injector size, and pressure
setting.
Excessive flame
“lift off”
Flue or inlet blockage.
Recirculation of flue gases.
Clear blockage.
Flue incorrectly installed.
Unit fails to heat.
See “Room fan not operating”
Incorrect gas type or pressure setting.
Gas supply blockage.
See “Room fan not operating”
Ensure correct gas type, injector size, and pressure
setting.
Check injector, burner supply pipe, & valve for
foreign matter.
Revised: 15/02/16 31/03/2016
29
All service work to be carried out by a qualified & Coonara authorised technician
For your nearest authorised service company, please contact:
SHAMIC SHEETMETAL
SHAMIC SHEETMETALSHAMIC SHEETMETAL
SHAMIC SHEETMETAL
(AUST.) PTY. LTD.
14 – 18 Research Drive, CROYDON SOUTH, VIC. 3136
POSTAL ADDRESS:
P.O. Box 8, KILSYTH, VIC. 3137
Phone: (03) 9737 5300
Fax: (03) 9761 6455
Email: info@shamic.com.au
DETACH AND RETURN BY MAIL
NAME _______________________________________________________________
ADDRESS____________________________________________________________
CITY/STATE/POSTCODE_______________________________________________
PURCHASED AT (Dealer name & address)
______________________________________________________________________
DATE PURCHASED____________________ MODEL ______________________
SERIAL NO ______________
WHERE DID YOU HEAR ABOUT
Clear View or Barossa Inbuilt Gas Heaters
RADIO, TELEVISION, NEWSPAPER, DEALER, WEBSITE, OTHER – PLEASE PROVIDE DETAILS:
Loading...
