UUSSEERR IINNSSTTRRUUCCTTIIOONNSS
Please read these instructions carefully before using this product and keep them safe for
future reference.
CZ51201
Undercounter Freezer
Page 2
3 x standard freezer drawers
1 x deep freezer drawer
Page 2
Before Use
Page contents
After unpacking, wipe the casing with a dry cloth and clean the inside with a damp cloth ready for food
storage.
Packaging
The packaging is recyclable so dispose of it according to local regulations.Keep the packaging materials
out of reach of young children. Before installation take care to remove all
cardboard or other packaging, including material from the condenser tubes and
any material surrounding the motor/compressor unit.
Warning
The fridge is heavy and care is needed when unpacking and moving it.Get extra
help and only hold it by the casing – not the door or trim.
O Do read these instructions thoroughly before
using this appliance.
O Do install the appliance only in the vertical
position.
O Do let your freezer stand for 12 hours prior to
connection, to allow the cooling gases to
stabilise, if transported in a horizontal position.
O Do install to allow for adequate ventilation
around the appliance.
O Do not install near heaters or other heat
sources.
O Do unplug before cleaning and maintenance.
O Don’t install the appliance in humid or extreme
conditions.
O Don’t attempt to repair the appliance yourself
(see Helpline information – page 8).
O This appliance is intended for domestic use only.
Only use it in accordance with the
manufacturer’s instructions.
O Don’t use any other electrical device inside the
appliance to defrost.
O Don’t store goods containing inflammable or
other explosive gases.
O Don’t leave door closed if appliance is left
switched off for long periods.
Do and Don’t
Check the contents
Check the following contents are included with the product and inspect the casing for any damage.If
necessary contact your retailer from whom you purchased the product.
Before use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Do and Don’t . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Parts identification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Door reversal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3,4
Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Maintenance and cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Fuse and mains plug replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Specification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
After sales service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Safety measures and disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Page 3
1. Temperature control.
2. Standard freezer drawers.
3. Deep freezer drawer.
Page 3

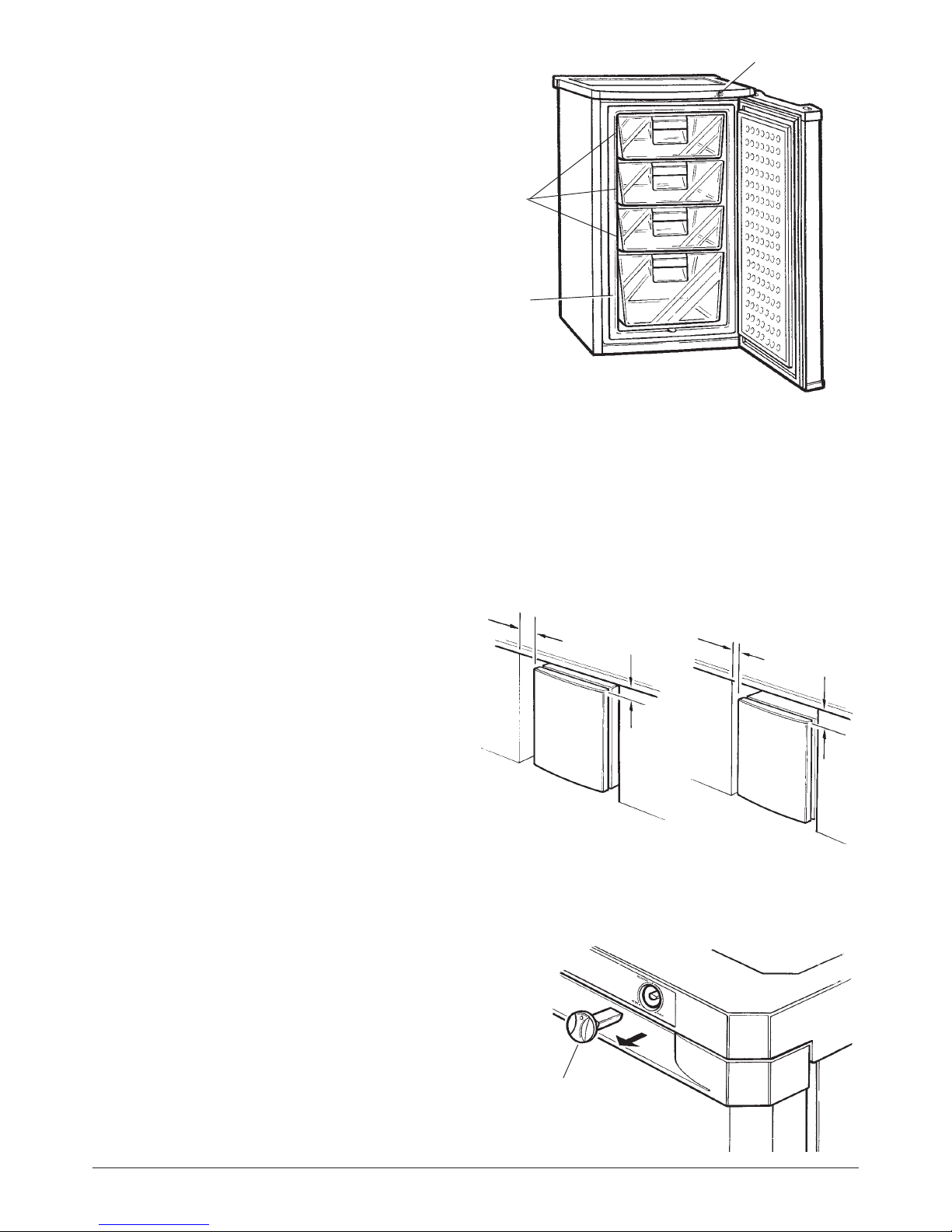

Parts identification
The parts are listed and numbered below to help
identification.
FIGURE 1
1
2
3
Important
Make sure that the voltage marked on the rating label on the product corresponds with the voltage in your
home.
This quality product has been tested and certified to meet all applicable UK electrical and safety standards.
Installation
The appliance is designed to work in room
temperatures between +16°C and +32°C.Do not
allow the room temperature to exceed +32°C
otherwise the temperature inside the freezer will
rise.
The freezer requires space around the casing for
efficient cooling and operation.The minimum
clearances are shown in Figure 2.
There must be at least 100mm clearance between
the appliance and the rear wall
The freezer must be installed on a firm flat and
level surface for it to work quietly and efficiently.
Reversing the door may make installation more
convenient.The appliance must be tilted and
supported in order to carry this out; it is
therefore advisable to get an assistant to help
during this procedure.Take care when fitting
and tightening screws.
Door reversal
Diagrams show alternative methods of providing correct air
flow around the appliance.
FIGURE 2
100mm
100mm
25mm
25mm
Remove the temperature control dial, by pulling it
firmly away from the casing.
FIGURE 3
TEMPERATURE
CONTROL DIAL
Page 4
Page 4

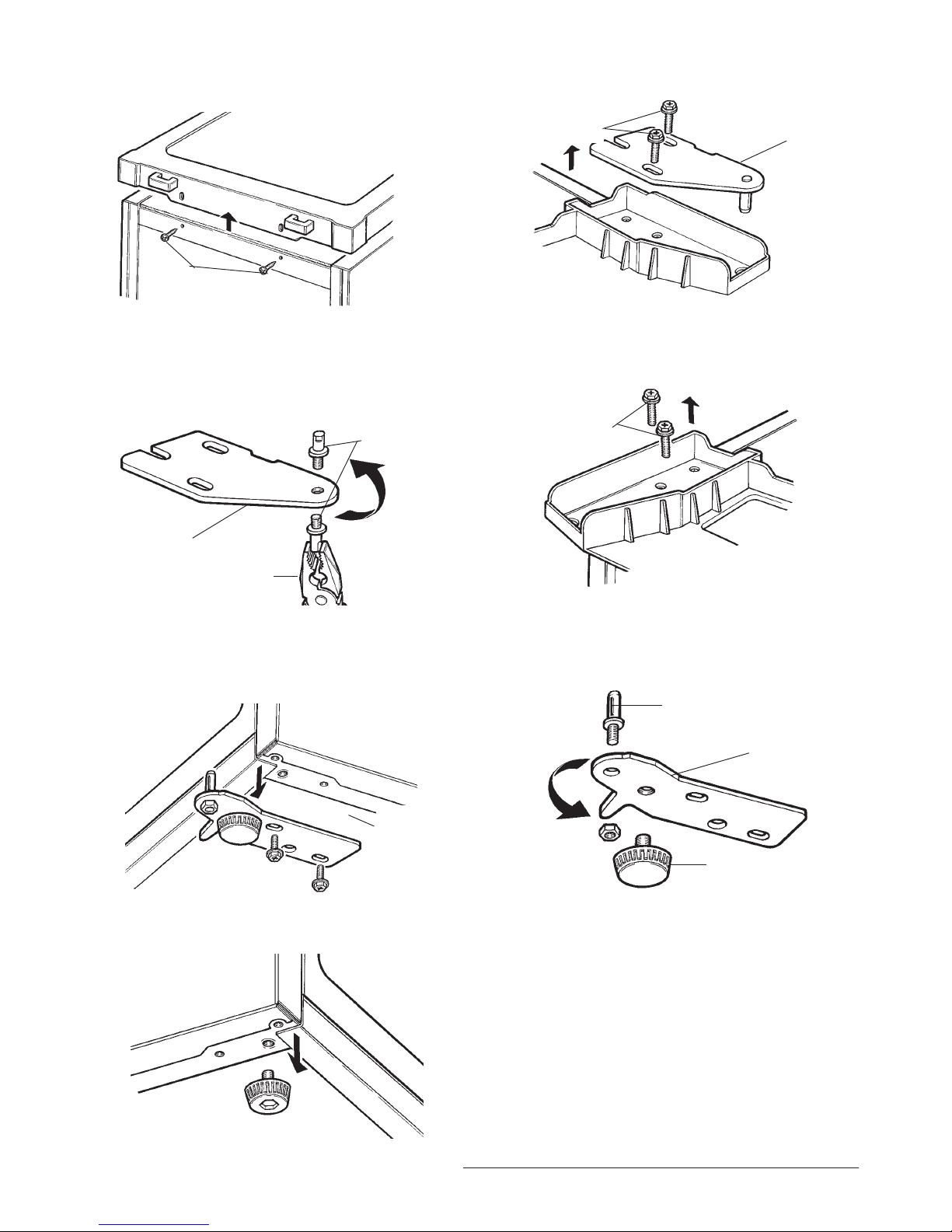

Door reversal (cont)
Support the door and remove the two screws and
top hinge plate.
FIGURE 5
TOP HINGE
PLATE
SCREWS
FIGURE 6
FIGURE 8
FIGURE 9
Grip the hinge pivot pins to unscrew them from the
top hinge plate. Refit the pin to the opposite side of
the hinge plate.
Remove the bottom hinge plate.
Refit the hinge pivot pin on to the opposite side of
the bottom hinge plate. Replace the foot.
Remove any blanking plugs from the door and
replace them on the opposite side.
Locate the top hinge pivot pin in the top of the door
and replace the bottom hinge plate to secure the
door.
HINGE
PIVOT PINS
TOP HINGE
PLATE
BOTT OM
HINGE
PLATE
HINGE PIVOT PIN
BOTT OM
HINGE PLATE
FOOT
PLIERS
Remove the two screws and fit the top hinge plate
to the other side.
FIGURE 7
SCREWS
FIGURE 10
ADJUSTABLE FOOT
Replace feet and level the appliance.
SCREWS
WORKTOP
FIGURE 4
Remove the two screws securing the rear of the
worktop. Lift away the worktop from the appliance
and place it safely to one side.
Page 5
Controls
Temperature control
The temperature of the freezer is best maintained
between -18°C to -24°C.Use of a freezer
thermometer (not supplied) is recommended to
monitor conditions in the freezer.
There are 3 settings on the temperature control,
MIN (minimum temperature), NORMAL, and MAX
(maximum temperature).Turn the dial so that the
pointer aligns with the required setting.
Notes on operation
During normal operation the following noises may be heard:
O Stifled murmur from compressor when it is working.
O Soft gurgling from the refrigerant flowing through the cooling system.
O Click from the thermostat switching on and off.
FIGURE 11
POINTER
TEMPERATURE
SETTING
Switching on
Plug the appliance into a nearby power socket and
switch on.The temperature control dial (Figure 11)
is positioned on the outside of the freezer, above
the door.Turn the control to the required position
on the dial and leave the appliance running with the
door closed for approximately 4 hours.This will
allow the inside temperature to stabilise.
General cleaning
It is recommended to clean and wipe out the fridge
regularly or after any spillage inside or outside the
appliance.
Use a teaspoonful of bicarbonate of soda diluted in
a pint of warm water.Wipe the internal surfaces
and shelving to remove food residues. Leave to dry
before reloading food.
Beware of the back wall as this may be cold to the
touch. Avoid wiping this until it has thoroughly
defrosted.
Wipe the outside casing from time to time in order
to remove dirt and dust from ventilation vents etc.
Keep water away from the thermostat housing.
Clean the door seals.
Important
The fridge must be turned off at the mains before maintenance or cleaning.
Remove accumulated dirt from around the
compressor motor taking care not to damage the
pipes and the wiring.
Defrosting
It is recommended to regularly defrost the freezer
to ensure efficient operation.
The frost on the internal surfaces must not exceed
6mm before defrosting.
Switch off or unplug the appliance at the wall.
Remove food from the freezer and keep the door
open and wait until the frost has melted.
Do not use metal utensils to remove frost.
When defrosted turn the temperature control to the
desired setting and replace the food.
Maintenance and cleaning
Page 5
Page 6
Page 6
Using the freezer
Precautions
Frozen food storage
The freezer is capable of producing very cold temperatures which may cause injury if safety precautions
are not observed:
Caution: Do not touch ice with bare skin to avoid ‘ice burns’.
OO
Do not attempt to freeze carbonated drinks such as fizzy pop, mineral water, champagne etc. as the
bottles may break when frozen.Drinks in PEP plastic bottles must not be frozen.
OO
The freezer must only be used for the storing of edible foodstuffs.
OO
Frozen food that has thawed should not be re-frozen.
Food which has been purchased frozen should be kept in its original packaging. Maximum storage times
and expiry dates are usually given on the food packaging.
IMPORTANT
Do not re-freeze food that has thawed or partially thawed. When cooking food you must ensure it has
thoroughly thawed, especially important regarding poultry and seafood.
Do not overload the food baskets and always allow space between the packages of food.This ensures that
cold air is free to circulate, preventing the food packages from sticking together.
When freezing fresh food do not freeze too much food at one time. Do not exceed 4kg in 24 hours.
When removing ice cubes, it may help to hold the tray under running water for a few seconds in order to
loosen the ice.
When freezing hot food allow it to cool before placing it in the freezer. Always store it away from food which
is already frozen.
If there is a power failure do not open the freezer door.Frozen food should not be affected if the failure
lasts less than 20 hours. If the failure continues for longer than 20 hours, check the contents of the freezer.
Do not re-freeze food that has thawed or partially thawed.
In case of power failure
Page 7
Page 7
Fuse and mains plug replacement
Problem Possible cause Remedy
The lamp does not light The lamp has blown Replace the lamp
with same type: 15W,
SES, E14
There is water at the bottom Drainage hole and/or pipe blocked Clean/unblock hole and
of the fridge pipe
The motor is on for long Door opened too often Do not open door
periods without switching off needlessly
The airflow around the unit Allow more free space
is inadequate around the unit
Motor not working No power to unit Check fuses, plug, and
power supply
Fridge is not cold enough Thermostat set too low Turn to higher setting
Troubleshooting
This product is supplied with a fitted plug which
contains a 13A fuse. If you are simply replacing the
fuse, you must use a 13A fuse which has been
approved by ASTA to BS1362.
If the plug does not fit the socket or becomes
damaged, a new plug must be fitted. Replace the
original plug with the correct plug for your socket. If
this is a 3-pin (square pin) 13A (BS1363) plug, you
must make sure that it is fitted with an ASTA
approved 13A fuse.
If another type of plug is used, it must be protected
by a 15A fuse, either in the plug or at the
distribution board.

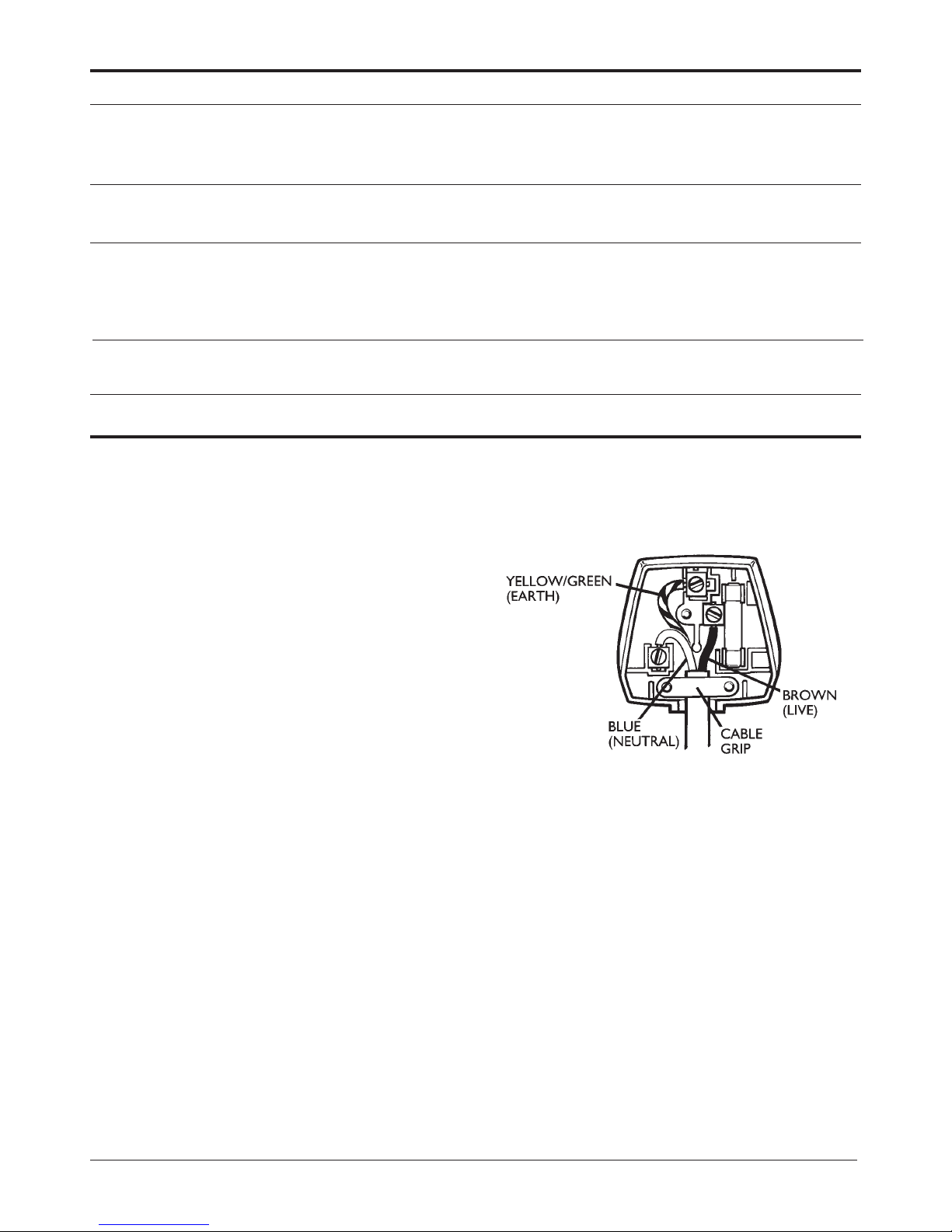

1. Cut off the existing fitted plug.
2. The wires in the mains lead supplied with this
appliance are coloured in accordance with the
following code (Figure 13):
GREEN/YELLOW = EARTH (E)
BLUE = NEUTRAL (N) BROWN = LIVE (L)
This product must be earthed
As the colours of the wires in the mains lead may
not correspond with the colour markings identifying
the terminals in your new plug, proceed as follows.
The wire which is coloured GREEN or
YELLOW/GREEN must be connected to the
terminal which is marked with the letter E or E
symbol or coloured GREEN or YELLOW/GREEN.
The wire which is coloured BLUE must be
connected to the terminal in the plug which is
marked with the letter N or coloured BLACK or
BLUE.
The wire which is coloured BROWN must be
connected to the terminal which is marked with the
letter L or coloured RED or BROWN.
3. Ensure that the connections are tight and that
no loose strands are left out of the terminals.
IF IN ANY DOUBT CONSULT A QUALIFIED
ELECTRICIAN.
If the mains lead becomes damaged consult a
qualified electrician.
FIGURE 13
Page 8
CZ27012/110408
We continuously try to improve our products for the benefit of our customers.
For this reason we reserve the right to make changes to any product at any time, without notice.
Specification
Safety measures and disposal
After sales service
Never try to repair the appliance or the electrical
parts yourself. Any repair carried out by an
unskilled person is dangerous and may affect the
guarantee. Contact the Helpline for assistance and
advice.
This appliance is guaranteed for a period of two
years from date of purchase against defects in
materials and workmanship only, and provided that
all these user instructions have been strictly
complied with.The guarantee does not cover
incidental or consequential loss, such as loss of
consumables.
Disposal of old fridge
Disposal of the appliance must conform with EU
environmental regulations.
Make the appliance not usable by cutting off the
mains lead and removing any door locks.
The appliance must be delivered to an authorised
collection centre.
Where this guarantee applies, the appliance will be
repaired or replaced at the manufacturer's option
without charge. If the guarantee does not apply or
has expired, you will be given a quotation for cost
of repairs and any parts required.
Keep your purchase receipt with these instructions,
and in the event of breakdown contact the
HELPLINE on 0844 871 0011.
Total net volume (litres) 96
Dimensions: HxWxD mm 845x545x582
Power supply 220/240V, 50Hz
Energy efficiency class A+
Refrigerant R600a
Product specification may vary without prior notice.
This appliance/fitting is marked according to the European directive 2002/96/EC on Waste
Electrical and Electronic Equipment (WEEE). By ensuring this product is disposed of
correctly, you will help prevent potential negative consequences for the environment and
human health, which could otherwise be caused by inappropriate waste handling of this
product.
The symbol on the product, or on the documents accompanying the product, the Crossed Out
Wheelie Bin symbol, indicates that this appliance/fitting may not be treated as household waste.
Instead it shall be handed over to the applicable collection point for the recycling of electrical and
electronic equipment. Disposal must be carried out in accordance with local environmental
regulations for waste disposal. For more detailed information about treatment, recovery and
recycling of this product, please contact your local authority, your household waste disposal
service or the retailer where you purchased the product.
Loading...
