Page 1
UUSSEERR IINNSSTTRRUUCCTTIIOONNSS
Please read these instructions carefully before using this product and keep them safe for
future reference.
CZ51147
CZ51152
CZ51174
FRIDGE FREEZER
Page 2
1 x glass shelf
1 x glass shelf over salad crisper
1 x salad crisper
Page 2
Before use
Page contents
After unpacking, wipe the casing with a dry cloth and clean the inside with a damp cloth ready for food
storage.
Packaging
The packaging is recyclable so dispose of it according to local regulations.Keep the packaging materials
out of reach of young children. Before installation take care to remove all
cardboard or other packaging, including material from the condenser tubes and
any material surrounding the motor/compressor unit.
Warning
The fridge/freezer is heavy and care is needed when unpacking and moving it.
Get extra help and only hold it by the casing – not the doors or trim.
O Do read these instructions thoroughly before
using this appliance.
O Do install the appliance only in the vertical
position.
O Do let your fridge/freezer stand for 12 hours
prior to connection, to allow the cooling gases to
stabilise, if transported in a horizontal position.
O Do install to allow for adequate ventilation
around the appliance.
O Do not install near heaters or other heat
sources.
O Do unplug before cleaning and maintenance.
O Don’t install the appliance in humid or extreme
conditions.
O Don’t attempt to repair the appliance yourself
(see Helpline information – back page).
O This appliance is intended for domestic use only.
Only use it in accordance with the
manufacturer’s instructions.
O Don’t use any other electrical device inside the
appliance to defrost.
O Don’t store goods containing inflammable or
other explosive gases.
O Don’t leave doors closed if appliance is left
switched off for long periods.
Do and don’t
Check the contents
Check the following contents are included with the product and inspect the casing for any damage.If
necessary contact your retailer from whom you purchased the product.
Before use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Do and Don’t . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Parts identification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Installation and controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Using the freezer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Door reversal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Maintenance and cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Fuse and mains plug replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Specification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .back page
After sales service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .back page
Safety measures and disposal . . . . . . . . . . . . . . . . . . . . . . . . .back page
1 x Bottle shelf
1 x balcony shelf
3 x freezer drawers
Page 3
1. Freezer drawers
2. Salad crisper
3. Adjustable glass shelves
4. Thermostat and light housing
5. Balcony shelf
6. Bottle rack
Page 3

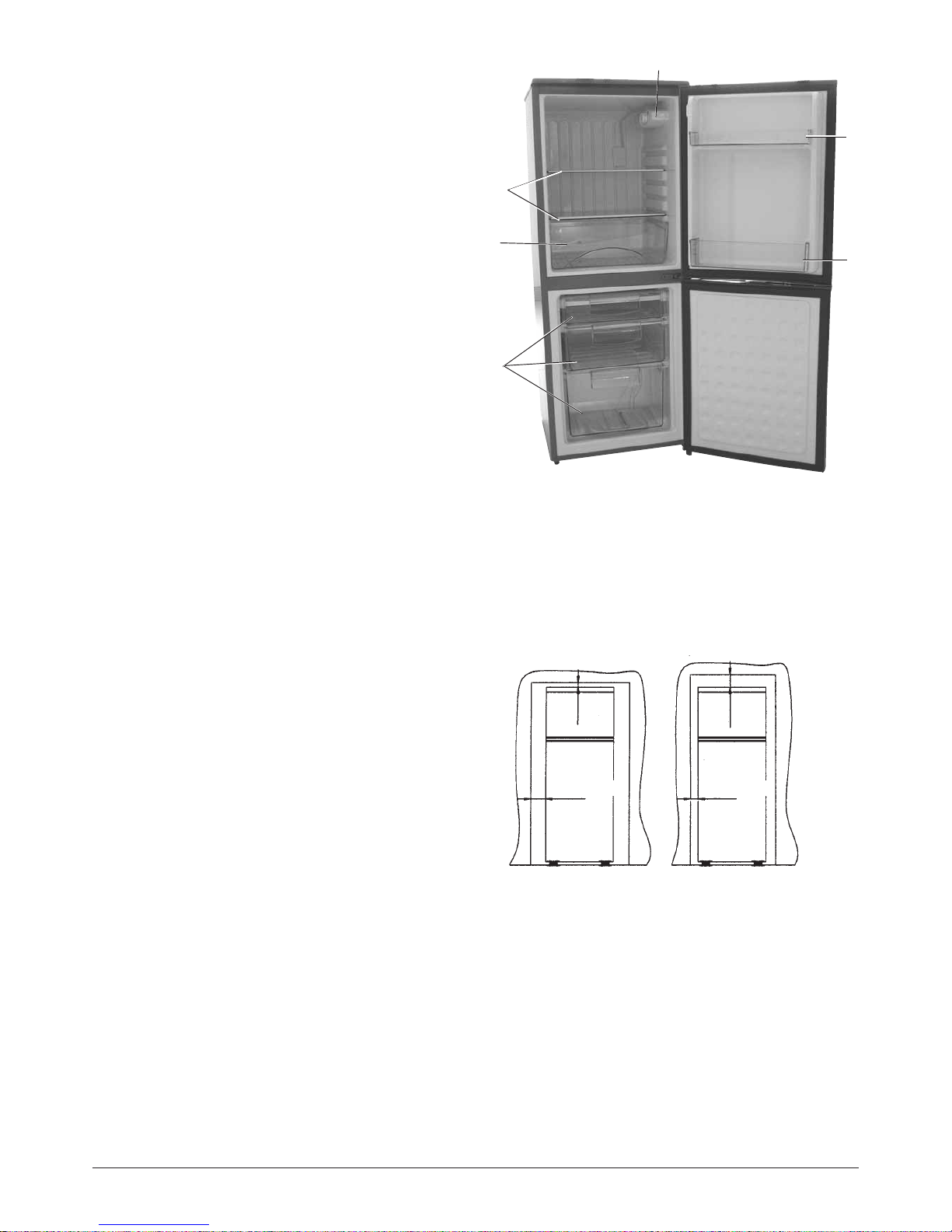

Parts identification
The parts are listed and numbered below to help
identification.
Important
Make sure that the voltage marked on the rating label on the product corresponds with the voltage in your
home.This quality product has been tested and certified to meet all applicable UK electrical and safety
standards.
Installation and controls
Operating conditions
The appliance is designed to work in room
temperatures between +16°C and +32°C.Do not
allow the room temperature to exceed +32°C
otherwise the temperature inside the fridge will rise.
The refrigerator must be installed on a firm flat and
level surface for it to work quietly and efficiently. If
necessary, level the unit using the adjustable feet
(Figure 9).
The fridge requires space around the casing for
efficient cooling and operation.The minimum
clearances are shown in Figure 2.
Switching on
Plug the appliance into a nearby power socket and
switch on. Open the door to reveal the temperature
control (Figure 3).Turn the temperature control to a
half-way position on the dial.Leave the appliance
running with the door closed for approximately two
hours.This will allow the inside temperature to
stabilise.
FIGURE 2
Diagrams show alternative methods of providing correct air
flow around the appliance.
100 mm
25 mm
25 mm
100 mm
Notes on operation
During normal operation the following noises may
be heard:
O Stifled murmur from compressor when it is
working.
O Soft gurgling from the refrigerant flowing
through the cooling system.
O Click from the thermostat switching on and off.
FIGURE 1
1
2
3
4
5
6
Page 4
Page 4

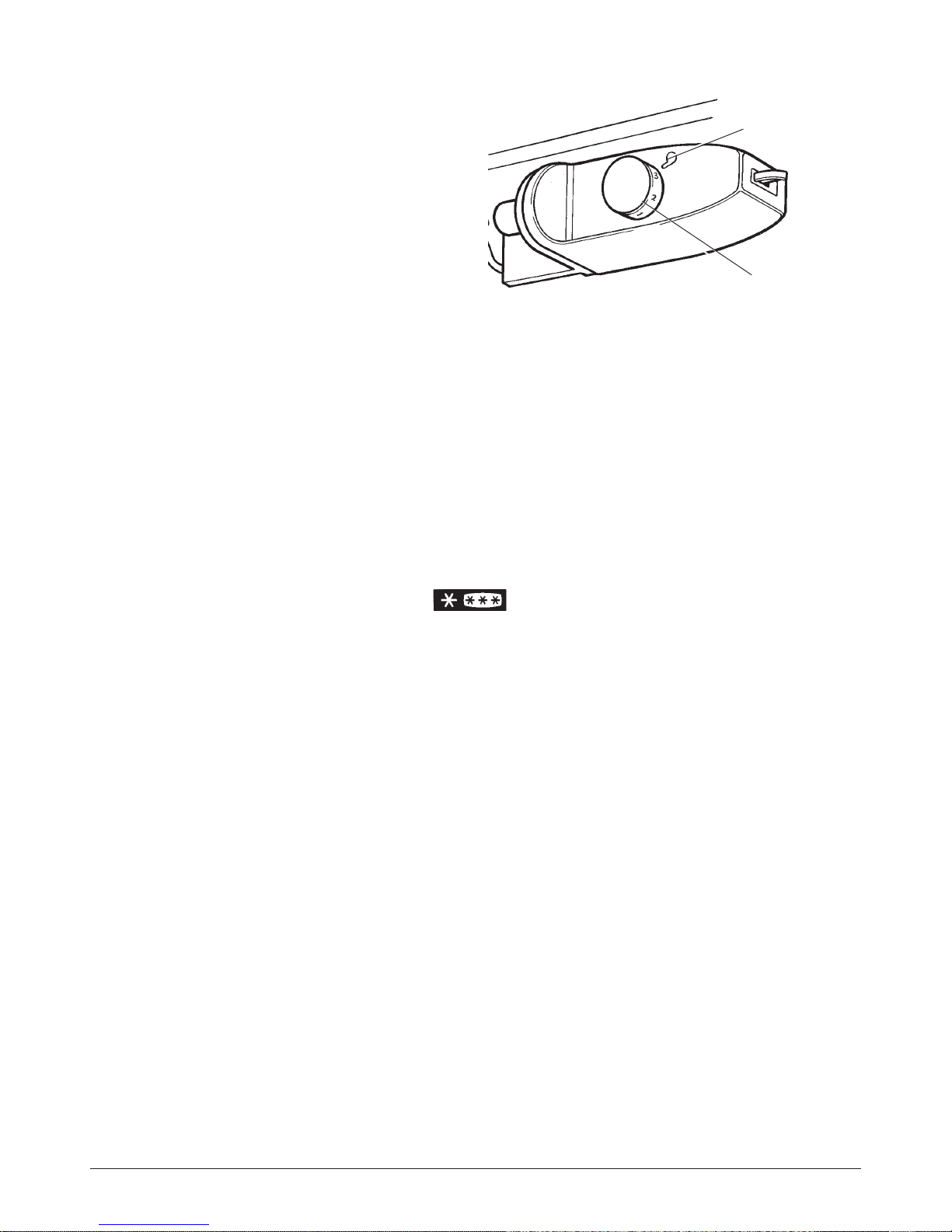

FIGURE 3
POINTER
TEMPERATURE
CONTROL
Temperature control
The temperature of the fridge is best maintained
around 0°C to +5°C. Avoid setting the thermostat
too high otherwise the temperature may fall to a
point at which certain fresh foods may begin to
freeze.The temperature scale runs from 1, the
warmest setting, to 6, the coldest. Align the
required setting with the adjacent pointer on the
control housing. Figure 3 shows the control set
to 3.There is also an OFF setting.
Leave the fridge/freezer to run for 12 hours before
freezing fresh food.The fridge has an automatic
defrost cycle. Droplets of condensation or ice
particles on the back wall of the fridge are normal.
When storing food in the fridge keep food away
from the rear wall.To allow free circulation of cold
air don’t pack food too tightly on the shelves and
never put hot food in the fr idge.
The thermostat position setting in the fridge
regulates the freezer temperature.The freezer
should be between –18°C and –28°C.
Using the freezer
Precautions
Frozen food storage
The freezer is capable of producing very cold
temperatures which may cause injury if safety
precautions are not observed:
Caution: Do not touch ice with bare skin to
avoid ‘ice burns’.
O Do not attempt to freeze carbonated drinks such
as ‘fizzy pop’, mineral water, champagne etc.
Food which has been purchased frozen should be
kept in its original packaging. Maximum storage
times and expiry dates are usually given on the
food packaging.
IMPORTANT
Do not re-freeze food that has thawed or partially
thawed.
When cooking food you must ensure it has
thoroughly thawed, especially important regarding
poultry and seafood.
Do not overload the food baskets and always allow
space between the packages of food.This ensures
that cold air is free to circulate preventing the food
packages from sticking together.
otherwise the bottles may break when frozen.
Drinks in plastic bottles must not be frozen.
O The freezer must only be used for the storing of
edible foodstuffs.
O Frozen food that has thawed should not be re-
frozen.
When freezing fresh food do not freeze too much
food at one time.Do not exceed 4kg in 24 hours.
When removing ice cubes from the tray, it may help
to hold the tray under running water for a few
seconds in order to loosen the ice.
When freezing hot food allow it to cool before
placing it in the freezer. Always store it away from
food which is already frozen.
Page 5
Page 5

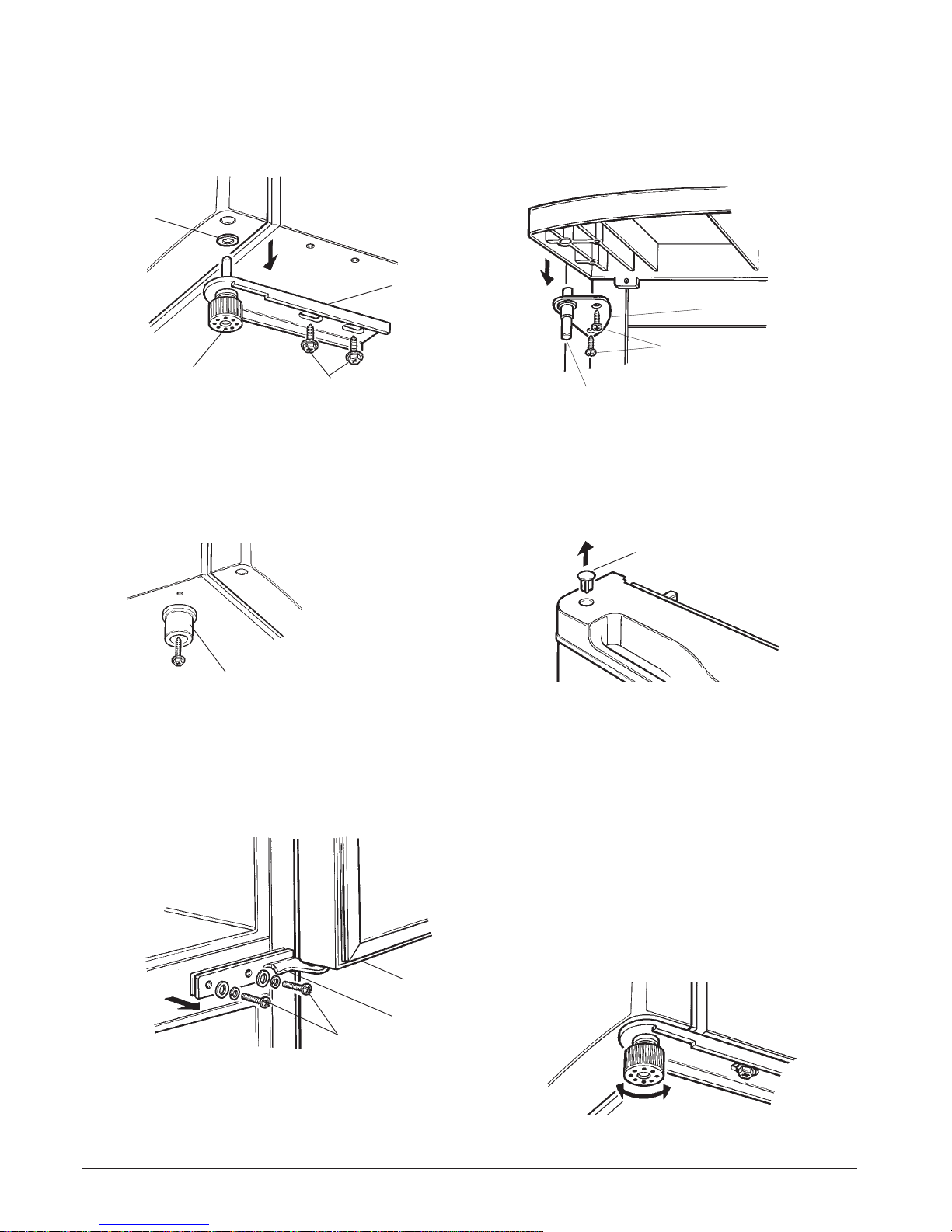

Door reversal
FIGURE 5
FIXED FOOT
FIGURE 7
PIVOT PLATE
SCREWS
PIVOT PIN
FIGURE 8
BLANKING PLUG
SPACER
ADJUSTABLE FOOT
FIGURE 4
BOTT OM
HINGE
PLATE
SCREWS
Reversing the door may make installation more convenient. The appliance must be tilted and
supported in order to carry this out; it is therefore advisable to get an assistant to help during this
procedure.Take care when fitting and tightening screws.
Unscrew the screws to release the bottom hinge
plate with adjustable foot (Figure 4).
Lift away the bottom door.
Unscrew the fixed foot and refit it to the hole in the
opposite corner of the base of the housing
(Figure 5).
Open the top door and unscrew the screws to
remove the centre hinge, spacers and washers. Lift
away the top door (Figure 6).
FIGURE 6
CENTRE
HINGE
TOP
DOOR
SCREWS
Unscrew the pivot plate from the underside of the
cabinet top (Figure 7).Transfer the pivot plate to
the mounting holes in the opposite corner of the
underside of the cabinet top and fasten it in place.
Prise the blanking plug out of its hole in the top
edge of the door (Figure 8). Push the plug into the
hole in the opposite corner of the top edge of the
door.
Tilt and support the appliance.
Locate and support the top door on the top pivot
pin.
Replacethe centre hinge with the screws, spacers
and washers removed in Figure 6).Swap over any
blanking caps to cover the original screw holes.
Locate the bottom door in the centre hinge and
replace the bottom hinge plate.
FIGURE 9
Adjust the adjustable foot to level the appliance
(Figure 9).
Page 6
Page 6

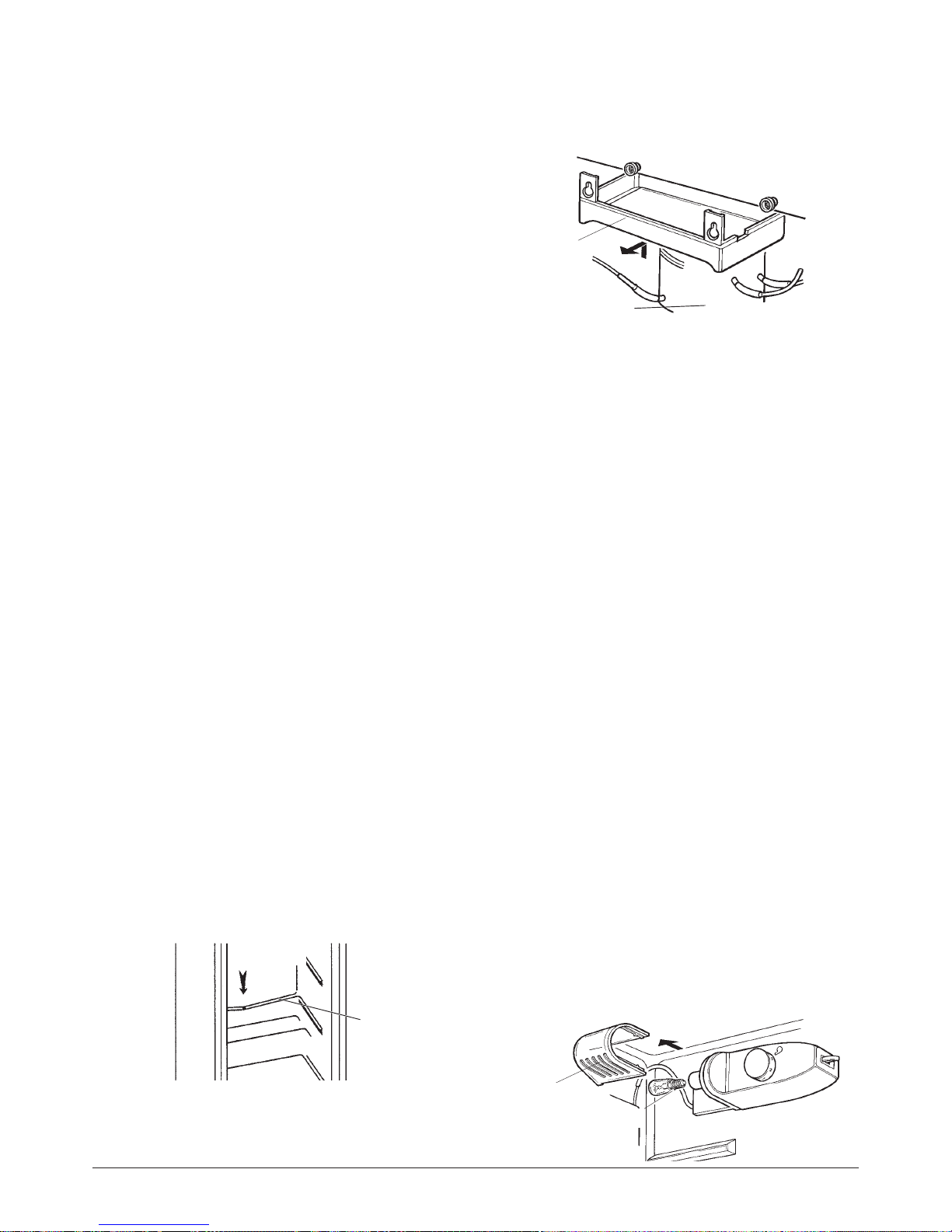

Lamp replacement
To remove the lamp cover, grip the diffuser and pull
it away from the side wall of the fr idge. No tools are
required. Unscrew the lamp and replace it with one
of the same type, (15 watts SES E14). Clip the
diffuser back into place (Figure 12).
FIGURE 12
DIFFUSER
15W LAMP
Maintenance and cleaning
Important
The fridge/freezer must be turned off at the mains before maintenance or cleaning.
Defrosting freezer
Defrost the freezer compartment regularly to
maintain efficiency of fridge.
Turn the fridge/freezer off at the mains supply and
remove the plug.As the ice melts. protect the
surrounding floor in case of leakage or overflow.
Allow the ice to melt naturally. Do not use scrapers
or other tools to remove ice as this may cause
damage to the freezer.
When all the ice has melted wipe the internal
surfaces of the ice box with a teaspoonful of
bicarbonate of soda diluted with a pint of warm
water to remove any odours.
When dry, replace the plug, switch the fridge on
and check the thermostat setting.
When not in use
If the appliance is to be emptied and turned off for
a long period it is advisable to:
O Disconnect the unit from the mains supply.
O Empty the appliance of food.
O Clean and dry the interior.
O Leave the doors open – do not close.
General cleaning
It is recommended to clean and wipe out the fridge
compartment regularly or after any spillage inside
or outside the appliance.
Use a teaspoonful of bicarbonate of soda diluted in
a pint of warm water.Wipe the internal surfaces
and shelving to remove food residues. Leave to dry
before reloading food.
The fridge automatically defrosts by freezing and
defrosting. Beware of the back wall as this may be
cold to the touch. Avoid wiping this until it has
thoroughly defrosted.
Wipe the outside casing from time to time in order
to remove dirt and dust from ventilation vents etc.
Keep water away from the thermostat control and
interior light switch.
Clean the door seals.
Remove accumulated dust, etc.from around the
compressor motor taking care not to damage the
pipes and the wiring.
Do not use abrasive or solvent-based cleaners on
any part of the appliance, either internally or
externally.
Drainage channel
Water collects in the drainage channel on the back
wall (Figure 10). It then passes to a drip tray on top
the compressor at the back of the appliance, from
which it evaporates (Figure 11).The drain should
be cleaned regularly to avoid the build up of
impurities.Wipe the channel with a damp cloth and
use a small bottle brush, pipe cleaner or similar
flexible object to clean out the drainage hole. Also
unhook the drip tray and wipe it clean occasionally.
DRIP
TRAY
COMPRESSOR
FIGURE 10
DRAINAGE
HOLE
DRAINAGE
CHANNEL
FIGURE 11
Page 7
Page 7
Fuse and mains plug replacement
This product is supplied with a fitted plug which
contains a 13A fuse. If you are simply replacing the
fuse, you must use a 13A fuse which has been
approved by ASTA to BS1362.
If the plug does not fit the socket or becomes
damaged, a new plug must be fitted. Replace the
original plug with the correct plug for your socket. If
this is a 3-pin (square pin) 13A (BS1363) plug, you
must make sure that it is fitted with an ASTA
approved 13A fuse.
If another type of plug is used, it must be protected
by a 15A fuse, either in the plug or at the
distribution board.

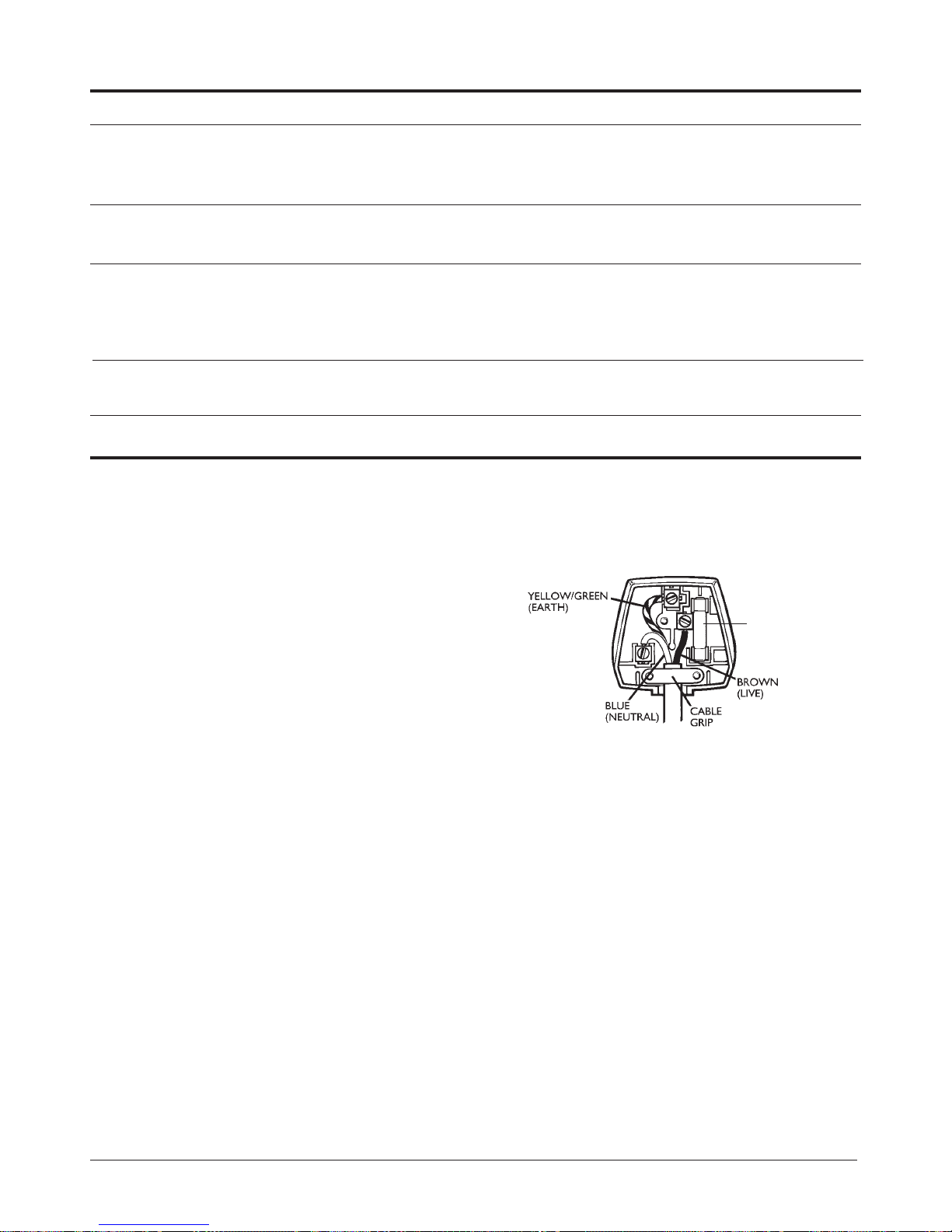

1. Cut off the existing fitted plug.
2. The wires in the mains lead supplied with this
appliance are coloured in accordance with the
following code (Figure 11):
GREEN/YELLOW = EARTH (E)
BLUE = NEUTRAL (N) BROWN = LIVE (L)
This product must be earthed
As the colours of the wires in the mains lead may
not correspond with the colour markings identifying
the terminals in your new plug, proceed as follows.
The wire which is coloured GREEN or
YELLOW/GREEN must be connected to the
terminal which is marked with the letter E or E
symbol or coloured GREEN or YELLOW/GREEN.
The wire which is coloured BLUE must be
connected to the terminal in the plug which is
marked with the letter N or coloured BLACK or
BLUE.
The wire which is coloured BROWN must be
connected to the terminal which is marked with the
letter L or coloured RED or BROWN.
3. Ensure that the connections are tight and that no
loose strands are left out of the terminals.
IF IN ANY DOUBT CONSULT A QUALIFIED
ELECTRICIAN.
If the mains lead becomes damaged consult a
qualified electrician.
FIGURE 13
FUSE
Problem Possible cause Remedy
The lamp does not light The lamp has blown Replace the lamp
with same type: 15W,
SES, E14
There is water at the bottom Drainage hole blocked Clean/unblock hole
of the fridge
The motor is on for long Doors are opened too often Do not open door
periods without switching off needlessly
The airflow around the unit Allow more free space
is inadequate around the unit
Motor not working No power to unit Check fuses, plug, and
power supply
Fridge or freezer is not cold enough Thermostat set too low Turn to higher setting
Troubleshooting
Page 8
CZ26532/050308
We continuously try to improve our products for the benefit of our customers.
For this reason we reserve the right to make changes to any product at any time, without notice.
Specification
Safety measures and disposal
After sales service
Never try to repair the appliance or the electrical
parts yourself. Any repair carried out by an
unskilled person is dangerous and may affect the
guarantee. Contact the Helpline for assistance and
advice.
This appliance is guaranteed for a period of two
years from date of purchase against defects in
materials and workmanship only, and provided that
all these user instructions have been strictly
complied with.The guarantee does not cover
incidental or consequential loss, such as loss of
consumables.
Disposal of old fridge or freezer
Disposal of the appliance must conform with EU
environmental regulations.
Make the appliance not usable by cutting off the
mains lead and removing any door locks.
The appliance must be delivered to an authorised
collection centre.
Where this guarantee applies, the appliance will be
repaired or replaced at the manufacturer's option
without charge. If the guarantee does not apply or
has expired, you will be given a quotation for cost
of repairs and any parts required.
Keep your purchase receipt with these instructions,
and in the event of breakdown contact the
HELPLINE on 0844 871 0011.
Capacity – Fridge (litres) 92
Capacity – Freezer (litres) 58
Dimensions: HxWxD mm 1230x475x530
Power supply 220/240V, 50Hz
Power consumption 75W
Energy consumption kWh/year 254
Energy efficiency class A
Refrigerant R600a
Product specification may vary without prior notice.
This appliance/fitting is marked according to the European directive 2002/96/EC on Waste Electrical and Electronic
Equipment (WEEE). By ensuring this product is disposed of correctly, you will help prevent potential negative
consequences for the environment and human health, which could otherwise be caused by inappropriate waste
handling of this product.
The symbol on the product, or on the documents accompanying the product, the Crossed Out Wheelie Bin symbol,
indicates that this appliance/fitting may not be treated as household waste. Instead it shall be handed over to the
applicable collection point for the recycling of electrical and electronic equipment.Disposal must be carried out in
accordance with local environmental regulations for waste disposal. For more detailed information about treatment,
recovery and recycling of this product, please contact your local authority, your household waste disposal service or the
retailer where you purchased the product.
Loading...
