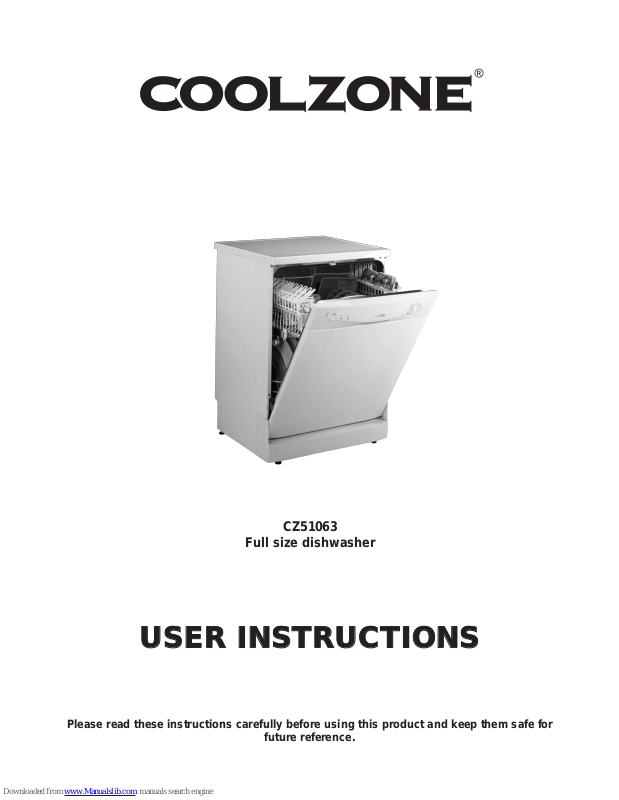

UUSSEERR IINNSSTTRRUUCCTTIIOONNSS
Please read these instructions carefully before using this product and keep them safe for
future reference.
CZ51063
Full size dishwasher
Page contents
Before use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Do and don’t . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Parts identification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Salt . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Detergent and rinse aid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Loading the dishwasher . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Control panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Starting the dishwasher . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Wash cycle table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Energy saving tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
How to keep your dishwasher in shape . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Cleaning and maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Fuse and mains plug replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Specification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Safety measures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
After sales service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
O Do install the appliance only in the vertical
position.
O Do unplug before cleaning and maintenance.
O Do turn off the water supply and disconnect the
electricity supply if the appliance malfunctions.
O Do only use this appliance in accordance with
the manufacturer’s instructions.
O Do make the appliance safe when disposing of
it by cutting the mains lead and removing the
door lock.
O Do keep detergents away from children
O Do keep children away from the appliance when
it is open.
O Don't place anything heavy (or water containers)
on the top of the dishwasher.
O Don’t attempt to repair the appliance yourself
(see Helpline information – page 13).
O Don't use this appliance when barefoot or with
wet hands.
O Don't use extension leads or multiple sockets.
O Don't open the door when the machine is
working.
Page 3
Before use
Check the contents
Check the following contents are included with the product and inspect the casing for any damage.If
necessary, contact your retailer from whom you purchased the product.
Packaging
The packaging is recyclable so dispose of it according to local regulations.
Keep the packaging materials out of reach of young children.
Warning
The dishwasher is heavy and care is needed when unpacking and moving it.
Get extra help and only hold it by the casing – not the door or trim.
Do and don’t
Important
Make sure that the voltage marked on the rating label on the product corresponds with the voltage in your
home.
This quality product has been tested and certified to meet all applicable UK electrical and safety standards.
1. Bottom basket
2. Top basket
3. Door seal
4. Cutlery basket
5. Filter
6. Rinse aid
7. Detergent dispenser
Parts identification
The parts are numbered below to help identification. Ensure all the par ts are present and that none are
broken.
4
5
6
7
3
1
2
FIGURE 1
To release the door, pull the catch towards you which is located in the door handle recess.
• Mains lead and mains plug • Water drain hose • 2 x wire baskets
• Water inlet connection hose • Cutlery basket • Funnel
Page 4
Installation
Positioning the appliance
When deciding on a location for the appliance, please
bear the following points in mind:
• The depth of the unit from front to back is roughly
the same as the majority of work surfaces.This
means there is not enough room for any pipes etc.
to be positioned at the rear of the unit.To facilitate
this, the dishwasher is designed with the water
supply and drain hoses positioned to the right and
left for correct installation.The back rests against
the wall.
• The lower plinth for the kitchen base units will need
to be removed for installation.
• The minimum dimensions of the space required for the appliance are shown in
Figure 2.
• Level the appliance by the adjustable foot (Figure 3).
Provision for the connections
The connections for the appliance are shown in Figure 4 and Figure 5.
Drain hose connection
When routing the drain hose, avoid bending or crimping it. Use the plastic hose guide
that comes with the appliance ensuring that it is securely fastened to the wall.
You can either let the drain hose empty straight into the sink, connect it to a stub from
the sink waste 'U' bend as shown in Figure 4, or to a new drainpipe of at least 40mm
diameter with a 'U' bend as shown in Figure 5. If connecting to a new drainpipe,
please note that the free end of the drain hose must be at a height of between
40–100cm and in a position where it is never immersed in standing water (Figure 4).
Water supply hose connection
The dishwasher must connected to a water supply where the water temperature does
not exceed 60°C otherwise the crockery may be damaged.The water supply pipe
must be terminated to enable you to connect the dishwasher water inlet hose to it.If the pipe work is new,
run water through the pipes to flush out any impurities and residues.Water inlet pressure must be above
0.4 bar (0.04MPa) but not exceeding 10 bar (1.0MPa).
Electrical connection
Connect the dishwasher to the electricity supply via a suitable 3-pin outlet socket.The socket must be
earthed and have an ON/OFF switch (Figure 4).
Note: The socket and switch must be accessible when the appliance is installed.
120mm
280mm
HOSE GUIDE
ADJUSTABLE FOOT
HOSE GUIDE
3-PIN SOCKET WITH SWITCH
WATER INLET HOSE CONNECTED
TO W ATER PIPE VIA TAP
'U' BEND IN
40mm DIA.
(MIN)
DRAINPIPE
STUB IN 'U'
BEND
FIGURE 4
Connecting the drain hose to new drainpipe
FIGURE 5
FIGURE 2
FIGURE 6
FIGURE 3
Page 5
Salt
Salt
The hardness of the water varies depending upon
where you live.If hard water is used in the
dishwasher, deposits will form on the dishes and
utensils.
This appliance is equipped with a special softener
that uses a salt specifically designed to eliminate
limescale and minerals from the water.
Loading the salt into the dishwasher
Always use salt intended for use with dishwashers.
The salt container is located beneath the lower
rack and should be filled as follows:
• Remove the lower rack and then unscrew and
remove the cap from the salt container
(Figure 7).
(If you are filling the container for the first time,
fill it with water before adding the salt.)
• Place the end of the funnel (supplied) into the
hole and introduce about 1.2kg of salt. It is
normal for a small amount of water to come out
of the salt container (Figure 8).
• Carefully screw the cap back on.
NOTE:The salt indicator light on the control
panel may stay illuminated until the salt has fully
dissolved.
FIGURE 7
SALT
CONTAINER
CAP
FIGURE 8
FUNNEL
To prevent the formation of rust, load the salt
just before beginning a wash cycle.
Adjusting salt consumption
The dishwasher is designed to allow you to adjust
the amount of salt consumed, based on the
hardness of the water in your area.This is intended
to optimise and customise the level of salt
consumption so that it remains at a minimum.
To adjust salt consumption, proceed as follows:
FIGURE 9
SALT ADJUSTER
• Unscrew the cap from the salt container.The salt
adjuster has an arrow on it (Figure 9).
• If necessary, rotate the salt adjuster in an anticlockwise direction from the '–' setting towards
the '+' sign, based on the hardness of the water
being used.
Initially set the salt adjuster to the lowest setting '–'.
If cutlery and glasses are smeary after a wash tur n
the adjuster towards '+' .
Periodically check and fill the container with fresh
salt.
Page 6
Detergent and rinse aid
Detergent
Detergent specifically intended for use with
dishwashers must be used.The dispenser must be
filled before the start of each wash cycle following
the instructions provided in the "Wash Cycle Table"
(page 9).The detergent dispenser is located on the
inside panel of the door.
Loading the detergent
Release the door by the catch, located in the door
handle recess, and open the cover on the
dispenser by pressing the latch.The detergent for
the wash cycle should be placed in the
compartment.
After the detergent has been placed in the
dispenser, close the cover and press down until it
"clicks" in place.
Please Note: Avoid getting any excess
detergent on the edges of the dispenser
compartment as this may foul the cover when
closing.
Rinse aid
This product makes dishes sparkle and helps them
to dry without spotting. The dispenser is located on
the inside panel of the door and should be filled
after every eighty wash cycles or when the low
rinse aid indicator light
6
comes on.
Loading the rinse aid
To open the dispenser, release the cap in an anticlockwise direction and then pour in the rinse aid,
making sure not to overfill.
The amount of rinse aid used for each cycle can
be regulated by turning the dose adjuster, located
beneath the cap, using a screwdriver. There are 6
different settings; the normal dosage setting is 3.
Important:
Proper dosage of the rinse aid improves
drying. If drops of water remain on the dishes
or spotting occurs, turn the dosage adjuster to
a higher setting.
FIGURE 10
COVER
LATCH
CAP
DOSE
ADJUSTER
COMPARTMENT
Page 7
Loading the dishwasher
FIGURE 13
FIGURE 12
Before placing the dishes in the dishwasher
remove the larger food debris.This prevents the
filter from becoming clogged which can result in
reduced performance.
If the pots and pans have baked-on food that is
extremely hard to remove we recommend that they
be allowed to soak before they are washed.This
will eliminate the need for extra wash cycles.
Pull out the rack to facilitate loading the dishwasher
(Figure 11).
How to use the lower rack
We recommend that you place the most difficult to
clean items on the lower rack;saucepans, for
example, lids, serving dishes and bowls.
It is preferable to place serving dishes and lids on
the sides of the racks in order to avoid blocking the
rotation of the top spray arm.
• Pots, serving bowls, etc. must always be placed
face down.
• Deep pots should be slanted to allow the water
to flow out.
• Cutlery should be placed in the cutlery basket
with the handles at the bottom. If the rack has
side baskets, the spoons should be placed
individually into the appropriate slots. Especially
long utensils and sharp knives should be placed
in the horizontal position at the front of the upper
rack.
Never allow forks or sharp utensils to protrude
through the bottom of the cutlery basket
obstructing the bottom spray arm.
How to use the upper rack
The upper rack is designed to hold delicate and
lighter dishware such as glasses, coffee and tea
cups and saucers, as well as plates, small bowls
and shallow pans (as long as they are not too
dirty).
Position the dishes and cookware so that they are
not in the way of the spray ar ms.
The upper rack can be adjusted for height by using
the knobs located on the sides of the rack itself
(Figures 12 and 13).
FIGURE 11
UPPER
RACK
CUTLERY
BASKET
LOWER
RACK
Page 8
Starting the dishwasher
Control panel
Setting and starting a wash cycle
Turn on the electricity and water supply to the
dishwasher .
Ensure the dishwasher has been replenished with
salt and rinse aid.
Choose the wash cycle you feel is most
appropriate for the type of dishes that need
washing (consult the Wash Cycle Table – page 9)
by turning the control knob (Figure 15).
Close the door and press the Power button so the
power indicator lights.
The machine fills with water and begins the wash
programme.
Cancelling or modifying a cycle while
underway
If the wash programme is modified after it has
started the detergent may have already been
released. Press the Power button, the Power
Indicator light will turn Off.
Rotate the knob in a clockwise direction to the
desired cycle setting. Reselect the desired cycle
setting and press the switch back to On.
At the end of the wash cycle
At the end of the cycle the control knob stops
turning and aligns with the Stop position on the
control panel.
Wait a few minutes before removing the dishes so
as to avoid handling them while still hot (when they
are more susceptible to breakage) and to get better
drying results.
POWER BUTTON
POWER ON
INDICATOR
RINSE
AID
SALT
RELEASE
CATCH
CONTROL KNOB
STOP POSITIONS
NORMAL
WASH
RINSE
SOAK
GLASSWARE
ECONOMY
WASH
FIGURE 14
FIGURE 15
Page 9
Wash cycle table
Cycle
Cycle
Selection
Information
Description
of Cycle
Detergent
Rinse Aid
Normally dir ty dishes,
pots and pans.
Standard daily cycle.
Lightly soiled dishes,
plates, glasses and
pans
For dishes that need to
be rinsed and dried
only.
For lightly soiled loads
such as glasses,
crystal and fine china
Rinse dishes that you
plan to wash later that
day
Pre-wash
Wash 52°C
Rinse 70°
Drying.
Wash 52°C
Rinse 70°
Drying.
Rinse 70°
Drying.
Wash 52°C.
Rinse 62°C
Drying.
Pre-wash
25g
22g
#
#
15g
#
Normal wash
(IEC-EN50242)
Economy
Rinse
Glassware
Soak
Energy saving tips
• Run the dishwasher when it is fully loaded in order to save energy.
• Choose the right wash cycle.The choice of cycle depends on the type of dishware, cookware and
utensils being washed and how dirty they are.
• Use the right amount of detergent. Using more detergent than necessar y will not improve cleaning
performance.
Page 10
How to keep your dishwasher in shape
After every wash
After every wash it is advisable to turn off the
water supply to the appliance and leave the door
slightly ajar so that moisture and odours are not
trapped inside.
Remove the mains plug
Before cleaning or performing any maintenance
work on the appliance always remove the electr ic
plug from the mains outlet socket.Do not run
risks.
No solvents or abrasive cleaning
products
To clean the exterior and rubber parts of the
dishwasher, do not use solvents or abrasive
cleaning products. Only use a clean cloth and
soapy water.
To remove spots or stains from the surface of the
interior use a cloth dampened with water and a
little white vinegar, or a cleaning product made
specifically for dishwashers.
When you go on holiday
When you go on holiday it is recommended that
you run a wash cycle with the dishwasher empty
and then remove the plug from the socket. Turn off
the water supply and leave the door of the
appliance slightly ajar.This will help the seals last
longer and prevent odours from for ming within the
appliance.
Moving the appliance
If the appliance must be moved, try to keep it in a
vertical position.
Door seal
One of the factors that can cause odours to form in
the dishwasher is food that remains trapped in the
door seal. Periodic cleaning with a damp sponge
will help prevent this from occurring.
Cleaning and maintenance
Filter assembly
For best performance and results, the filters must
be frequently cleaned.
The filters efficiently remove food residue from the
wash water allowing it to be re-circulated during
the wash cycle. For this reason it is a good idea to
remove the larger food particles trapped in the
filters after each wash cycle.
Release the coarse filter assembly from the main
filter by turning it anti-clockwise (OPEN) to lift out.
Separate the two parts of the coarse filter by
pulling them apart (Figure 16).
The main filter can then be lifted out and rinsed
under running water.
The fine filter can then be removed for cleaning.
After the filters have been cleaned under warm
running water replace them in the machine in
reverse order.
Finally, tur n the coarse filter clockwise (CLOSE)
until it locks.
Never use the appliance without the filters.
Improper placement of the filters may damage the
dishes and utensils etc.
FIGURE 16
MAIN FILTER
FINE
FILTER
COURSE
FILTER
ASSEMBLY
(SEPARATE
BY PULLING
OUT OF
COARSE
FILTER)
SPRAY
ARM
Page 11
When not in use
If the appliance is to be turned off for a long period of time it is advisable to:
O Disconnect the unit from the mains supply.
O Empty the dishwasher.
O Clean and dry the interior.
O Leave the door open.
Cleaning the spray arms
It may happen that food particles become
encrusted on the spray arms and block the holes.
Check the spray arms periodically and clean them
when needed.To release the bottom spray arm
unscrew the nut clockwise.Lift off the arm. Clean
the spray arm in soapy water and remove any
debris from the holes with a soft brush. Replace
the spray arm and secure by turning the nut anticlockwise (Figure 17).
Cleaning the water inlet filter
Periodically clean the small water inlet filter located
in the supply hose connector.
After turning off the water tap, unscrew the end of
the water supply hose, remove the filter from the
connector and clean it carefully under running
water. Replace the filter and tighten the water
supply hose back into position.
FIGURE 17
SPRAY
ARM
NUT
Page 12
Troubleshooting
If the dishwasher is not functioning properly, before
calling the Helpline, please check the following:
The dishwasher does not start
Have you checked whether :
• The plug is pushed firmly into the outlet socket.
• The mains electrical supply is switched on.
• The door is properly closed.
• The Power button is in the OFF position.
• The water supply is turned on.
The dishwasher does not take in
water
Have you checked whether :
• The water to the appliance is turned on and the
hose is properly connected.
• The mains water supply is turned on and is of
sufficient pressure.
• The water supply hose is not crimped or bent.
• The water supply filter is not clogged (if fitted).
The dishes are not cleaned properly
Have you checked whether :
• The wrong programme has been selected.
• Dishwasher has not been loaded correctly.
• Spray arm is obstructed by utensils or dishes.
• Wrong quantity of detergent has been used.
• Rinse aid is empty.
The dishwasher does not drain
properly
Ensure that the drain hose is not crimped or bent.
Note: The dishwasher is designed to detect an
overflow. When this happens the circulation pump
turns off and the drain pumps takes over. If this
happens turn off the mains supply to the machine,
isolate it from the water supply and contact the
Helpline 0870 241 3029.
Limescale deposits or a white film
forms on the dishes
Have you checked whether :
• The lid to the salt container is closed properly.
• The rinse aid dosage is correct.
If, despite all these checks the dishwasher still
does not function and/or the problem persists,
contact the Helpline 0844 871 0011 with the
following information:
• The nature of the problem.
• The model Type Number (Mod...) and the Serial
Number (S/N...).These are indicated on a plate
located on the side of the inner part of the door.
Fuse and mains plug replacement
This product is supplied with a fitted plug which
contains a 13A fuse. If you are simply replacing the
fuse, you must use a 13A fuse which has been
approved by ASTA to BS1362.
If the plug does not fit the socket or becomes
damaged, a new plug must be fitted. Replace the
original plug with the correct plug for your socket. If
this is a 3-pin (square pin) 13A (BS1363) plug, you
must make sure that it is fitted with an ASTA
approved 13A fuse.
If another type of plug is used, it must be protected
by a 15A fuse, either in the plug or at the
distribution board.
1. Cut off the existing fitted plug.
2. The wires in the mains lead supplied with this
appliance are coloured in accordance with the
following code (Figure 18):
GREEN/YELLOW = EARTH (E)
BLUE = NEUTRAL (N) BROWN = LIVE (L)
This product must be earthed.
As the colours of the wires in the mains lead may
not correspond with the colour markings identifying
the terminals in your new plug proceed as follows.
The wire which is coloured GREEN or
YELLOW/GREEN must be connected to the
terminal which is marked with the letter E or E
symbol or coloured GREEN or YELLOW/GREEN.
The wire which is coloured BLUE must be
connected to the terminal in the plug which is
marked with the letter N or coloured BLACK or
BLUE.
The wire which is coloured BROWN must be
connected to the terminal which is marked with the
letter L or coloured RED or BROWN.
3. Ensure that the connections are tight and that no
loose strands are left out of the terminals.
IF IN ANY DOUBT CONSULT A QUALIFIED
ELECTRICIAN.
If the mains lead becomes damaged consult a
qualified electrician.
FIGURE 18
Page 13
Specification
Safety measures
After sales service
Never try to repair the appliance or the electrical
parts yourself. Any repair carried out by an
unskilled person is dangerous and may affect the
guarantee. Contact the Helpline below for
assistance and advice.
Disposal of old dishwasher
Disposal of the appliance must conform with EU
environmental regulations.
Make the appliance not usable by cutting off the
mains lead and removing any door locks.
The appliance must be delivered to an authorised
collection centre.
Dimensions: HxWxD cm: 85 x 60 x 58
Capacity: 12 standard place settings
Mains water pressure: 0.04-1.0MPa
Power supply 220/240V ~ 50Hz
Total power 1930W
Energy efficiency A
Washing efficiency B
Drying efficiency B
Product specification may vary without prior notice.
This appliance is guaranteed for a period of 2 years
from the date of purchase. Keep your purchase
receipt with these instructions.
If the appliance fails to work properly during the
2 year period contact the:
Helpline on 0844 871 0011.
The appliance will be repaired (at the
manufacturer’s discretion) at no cost to you. If the
guarantee has elapsed, you will be given a
quotation for any repairs or parts required.
Page 14
Page 15
We continuously try to improve our products for the benefit of our customers.
For this reason we reserve the right to make changes to any product at any time, without notice.
CZ26141/200208
This appliance/fitting is marked according to the European directive 2002/96/EC on Waste Electrical and
Electronic Equipment (WEEE). By ensuring this product is disposed of correctly, you will help prevent
potential negative consequences for the environment and human health, which could otherwise be caused by
inappropriate waste handling of this product.
The symbol on the product, or on the documents accompanying the product, the Crossed Out
Wheelie Bin symbol, indicates that this appliance/fitting may not be treated as household waste.
Instead it shall be handed over to the applicable collection point for the recycling of electrical and
electronic equipment. Disposal must be carried out in accordance with local environmental
regulations for waste disposal. For more detailed information about treatment, recovery and
recycling of this product, please contact your local authority, your household waste disposal service or the
retailer where you purchased the product.
Loading...
