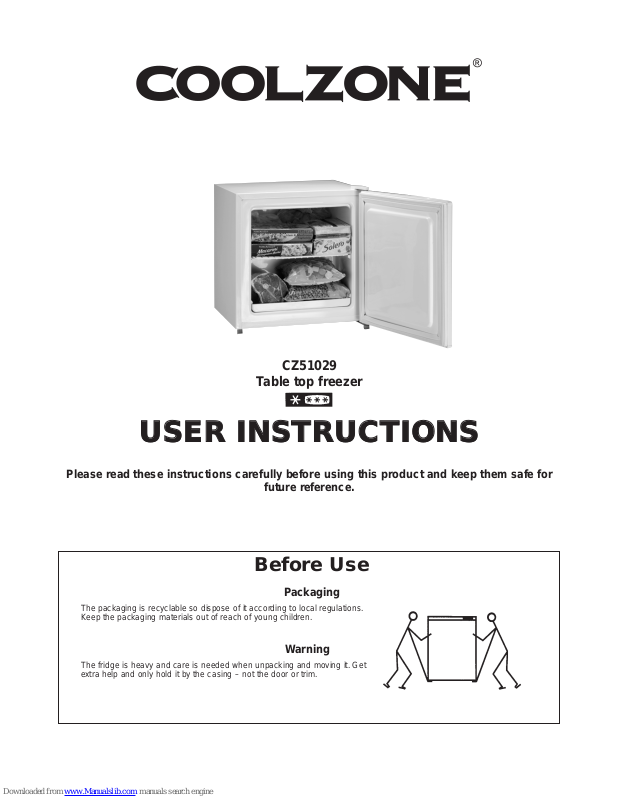

CZ51029
Table top freezer
UUSSEERR IINNSSTTRRUUCCTTIIOONNSS
Please read these instructions carefully before using this product and keep them safe for
future reference.
Before Use
Packaging
The packaging is recyclable so dispose of it according to local regulations.
Keep the packaging materials out of reach of young children.
Warning
The fridge is heavy and care is needed when unpacking and moving it.Get
extra help and only hold it by the casing – not the door or trim.
Page 2

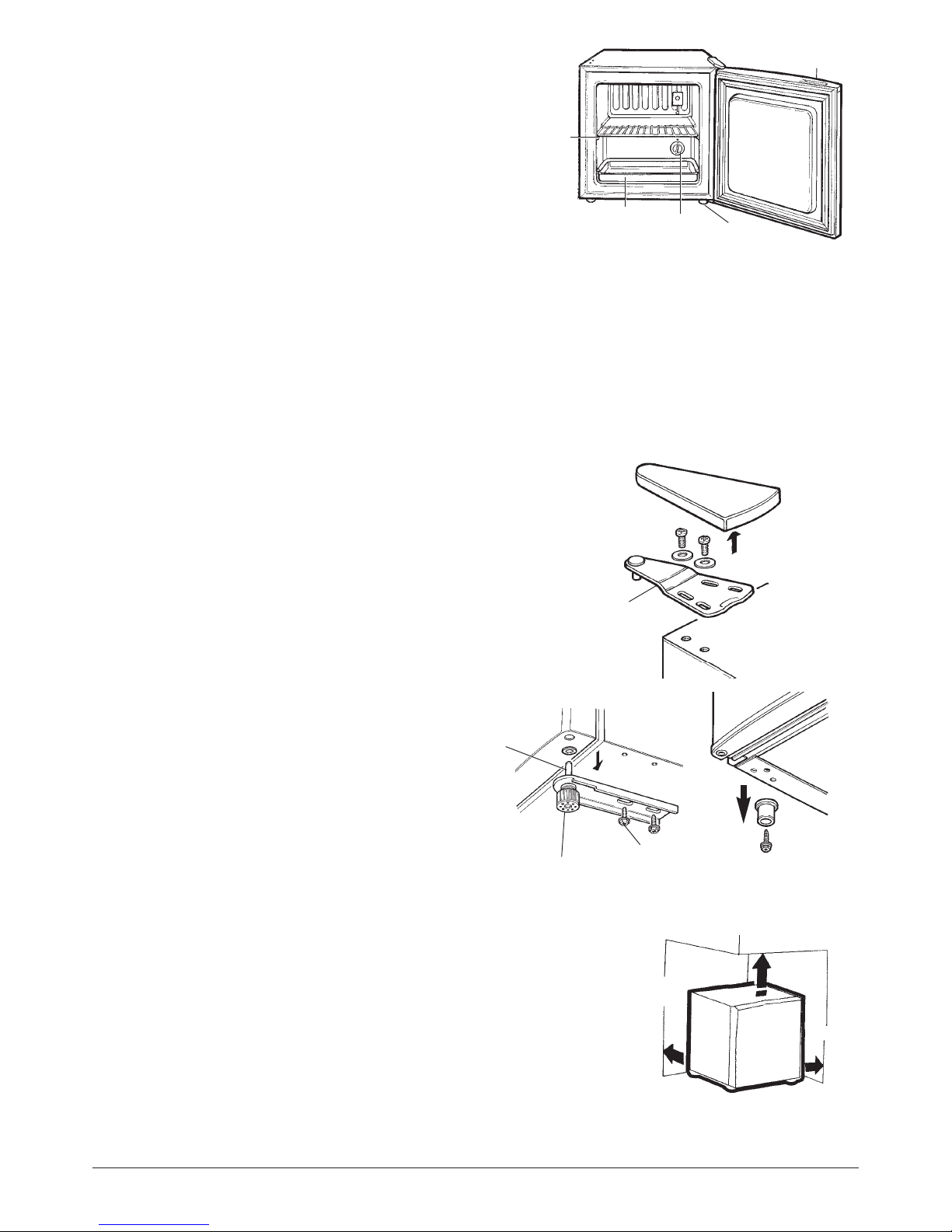

1. Thermostat control
2. Drip tray
3. Shelf x 1
4. Door
5. Adjustable foot
O Do read these instructions thoroughly before using this
appliance.
O Do install the appliance only in the vertical position.
O Do stand for 12 hours to allow the cooling gases to
stabilise if transported in a horizontal position.
O Do install to allow for adequate ventilation around the
appliance (see Figure 5).
O Do not install near heaters or other heat sources.
O Do unplug before cleaning and maintenance.
O Do defrost regularly for maximum efficiency.
O Don’t install the appliance in humid or extreme conditions.
O Don’t attempt to repair the appliance yourself (see Helpline
information – back page).
O Only use it in accordance with the manufacturer’s
instructions.
O Don’t use any other electrical device inside the appliance to
defrost.
O Don’t store goods containing inflammable or other
explosive gases.
O Don’t leave door closed if appliance is left switched off for
long periods.
Page 2
Parts identification
Do and Don’t
After unpacking, wipe the casing with a dry cloth and clean
the inside with a damp cloth ready for use.
1
2
3
5
4
FIGURE 1
Important
Make sure that the voltage marked on the rating label on the product corresponds with the
voltage in your home.
This quality product has been tested and certified to meet all applicable UK electrical and
safety standards.
The appliance is designed to operate at normal room temperatures. Position it away from
heat sources such as boilers, ovens or heaters that will reduce the cooling efficiency of the
freezer.It is also not advisable to install the appliance in unheated locations such as garages
or outbuildings, as these will impair the operation of the freezer in winter.
The freezer requires space around the casing for efficient cooling and operation.The
minimum clearances are shown in Figure 5.
The freezer must be installed on a firm, flat and level surface for it to work quietly and efficiently.
If necessary, turn the adjustable foot to level the appliance.
Installation
The diagram shows the correct air
flow allowance that should be left
around the appliance.
10cm
2cm
10cm
Door reversal
Reversing the door may make installation more
convenient.The appliance must be tilted and supported in
order to carry this out; it is therefore advisable to get an
assistant to help during this procedure.Take care when
fitting and tightening screws.
1. Remove the top hinge cover, hinge screws, washers and
hinge (Figure 2).
2. Lift the door off the lower hinge pin.
3. Tilt and suppor t the appliance. Unscrew the lower hinge
bracket screws and remove the lower hinge bracket (Figure 3).
4. Remove the left-hand fixed foot (Figure 4).
5. Remove the adjustable foot from the lower hinge and turn
the hinge upside down. Re-fit the pin and adjustable foot. Fit
the lower hinge to left-hand side of the cabinet.
6. Remove the blanking caps which cover the left-hand fixing
holes and fit them to the holes on the other side of the cabinet.
7. Support the door on the lower hinge pin.Take the hinge and
locate the pin in the bush at the top of the door.Fit the hinge to
the top of the cabinet with the hinge screws and washers.Fit
the hinge cover.
8. Screw the fixed foot into the corresponding hole on the other
side of the cabinet.
PIN
FIGURE 5
FIGURE 3
FIGURE 2
HINGE PLATE
ADJUSTABLE FOOT
FIGURE 4
LOWER
HINGE
SCREW
Page 3
Page 3
Maintenance and cleaning
Important: The freezer must be turned off at the mains before
maintaining or cleaning. It is recommended to clean and wipe
out the freezer after any spillage inside or outside the
appliance.
It is wise to defrost if the ice build up exceeds 6mm, otherwise
the efficiency of the freezer will reduce and the electricity
consumption will increase.
Caution:To avoid ‘ice burns’ do not touch ice with bare
skin
Unplug and remove the freezer contents.
Leave the door open until ice has melted.Alternatively, a bowl
of hot (not boiling) water placed on the shelf will hasten
defrosting. A plastic scraper may be used as an aid to
defrosting.
O Do not use electrical appliances such as heaters or hair
dryers to melt the ice.
O Do not use metal objects such as knives or skewers to chip
away the ice as these can damage the surface.
Finally, wipe the interior surfaces and door seal using a
teaspoonful of bicarbonate of soda diluted in a pint of warm
water to remove any residues or odours.
Keep water away from the thermostat housing.
Keep the compressor motor (located at rear of casing) free
from dust to maintain optimum efficiency. Use a soft brush or
vacuum cleaner to remove the dust, taking care not to damage
the pipes and wiring.
The external casing can be cleaned with warm soapy water
and protected by polish. Do not use scouring powders which
can scratch the surface.
Note: If leaving the freezer unused for a prolonged period,
unplug from mains, defrost, wipe dry and leave the door open.
Problem Possible cause Remedy
Appliance does not run No power Check power is switched ON
Faulty fuse Check fuse in plug
Thermostat setting too low Turn thermostat setting higher
Freezer is not cold enough Door is open for too long Do not open door needlessly
Located too near a heat source Relocate appliance
Inadequate airflow around appliance See Figure 5
Abnormal noise and vibration Appliance not level Choose a level surface
Cooling tubes touching cabinet or other parts Carefully ease away tubes from other parts
Troubleshooting
Controls
Using the freezer
Switching on
Plug the freezer into a nearby power socket and switch on. A
humming from the compressor will indicate that the freezer is
running.
Temperature control
Turn the thermostat control to Nor mal position on the dial and
leave the freezer running with the door closed for
approximately 2 hours.This will allow the inside temperature to
stabilise.
If you wish to decrease the temperature inside the freezer, turn
the thermostat control towards Max position on the dial.
Note: The setting on the thermostat control is dependent upon
room temperature and the external temperature.
Notes on operation
During normal operation the following noises may be heard:
O Stifled murmur from compressor when it is working.
O Soft gurgling from the coolant flowing through the cooling
system.
O Click from the thermostat switching on and off.
The freezer is capable of producing very cold temperatures
which may cause injury if safety precautions are not observed:
O Do not attempt to freeze carbonated drinks such as fizzy
pop, mineral water, champagne etc. as the bottles may
break when frozen. Drinks in PEP plastic bottles must not
be frozen.
O The freezer must only be used for the storing of edible
foodstuffs.
O Frozen food that has thawed should not be re-frozen.
Food which has been purchased frozen should be kept in its
original packaging. Maximum storage times and expiry dates
are usually given on the food packaging.
IMPORTANT
Do not re-freeze food that has thawed or partially thawed.
When cooking food you must ensure it has thoroughly thawed,
this is especially important for poultry and sea food.
Note: It is advisable to place a freezer thermometer (not
supplied) inside the freezer to check that the temperature is
maintained at –18°C to –20°C.
Page 4
Fuse and mains plug replacement
This product is supplied with a fitted plug which contains a 13A fuse. If you are
simply replacing the fuse, you must use a 13A fuse which has been approved by
ASTA to BS1362.
If the plug does not fit the socket or becomes damaged, a new plug must be fitted.
Replace the original plug with the correct plug for your socket.If this is a 3-pin
(square pin) 13A (BS1363) plug, you must make sure that it is fitted with an ASTA
approved 13A fuse.
If another type of plug is used, it must be protected by a 15A fuse, either in the plug
or at the distribution board.

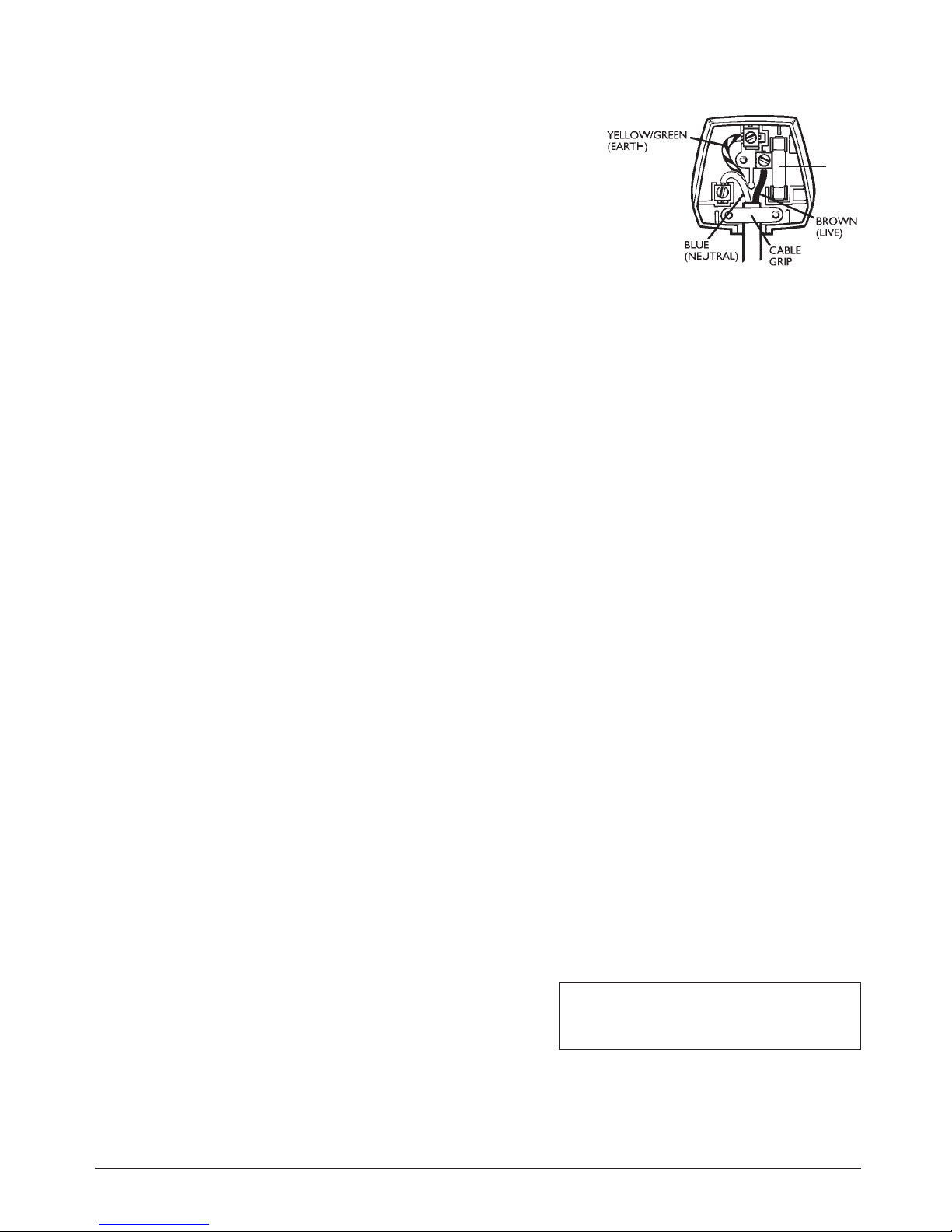

1. Cut off the existing fitted plug.
2. The wires in the mains lead supplied with this appliance are coloured in
accordance with the following code (Figure 6):
GREEN/YELLOW = EARTH (E) BLUE = NEUTRAL (N) BROWN = LIVE (L)
This product must be earthed.
As the colours of the wires in the mains lead may not correspond with the colour markings identifying the terminals in your new
plug, proceed as follows.
The wire which is coloured GREEN or YELLOW/GREEN must be connected to the terminal which is marked with the letter E or E
symbol or coloured GREEN or YELLOW/GREEN.
The wire which is coloured BLUE must be connected to the terminal in the plug which is marked with the letter N or coloured
BLACK or BLUE.
The wire which is coloured BROWN must be connected to the terminal which is marked with the letter L or coloured RED or
BROWN.
3. Ensure that the connections are tight and that no loose strands are left out of the terminals.
IF IN ANY DOUBT CONSULT A QUALIFIED ELECTRICIAN.
If the mains lead becomes damaged consult a qualified electrician.
Specification
Capacity (litres) 40
Dimensions: HxWxD mm 507x470x450
Power supply 220/240V, 50Hz
Climate class N
Refrigerant R600a
Energy class A
Product specification may vary without prior notice.
CZ26300/270208
We continuously try to improve our products for the benefit of our customers.
For this reason we reserve the right to make changes to any product at any time, without notice.
Safety measures
Never try to repair the appliance or the electrical parts yourself. Any repair carried out by an unskilled person is dangerous and
may affect the guarantee. Contact the Helpline below for assistance and advice.
Disposal of old chiller or freezer
Disposal of the appliance must conform with EU environmental regulations.
Cut off the mains lead and remove any door locks to ensure the appliance is beyond further use.
The appliance must be delivered to an authorised collection centre.
After sales service
This appliance is guaranteed for a period of two years from date of
purchase against defects in materials and workmanship only, and provided
that all these user instructions have been strictly complied with.The
guarantee does not cover incidental or consequential loss, such as loss of
food.
Where this guarantee applies, the appliance will be repaired or replaced at
the manufacturer's option without charge.If the guarantee does not apply
or has expired, you will be given a quotation for cost of repairs and any
parts required.
Keep your purchase receipt with these instructions, and in the event of
breakdown contact the HELPLINE on 0844 871 0011.
For Faults and Assistance
Helpline
Phone: 0844 871 0011
FIGURE 6
FUSE
