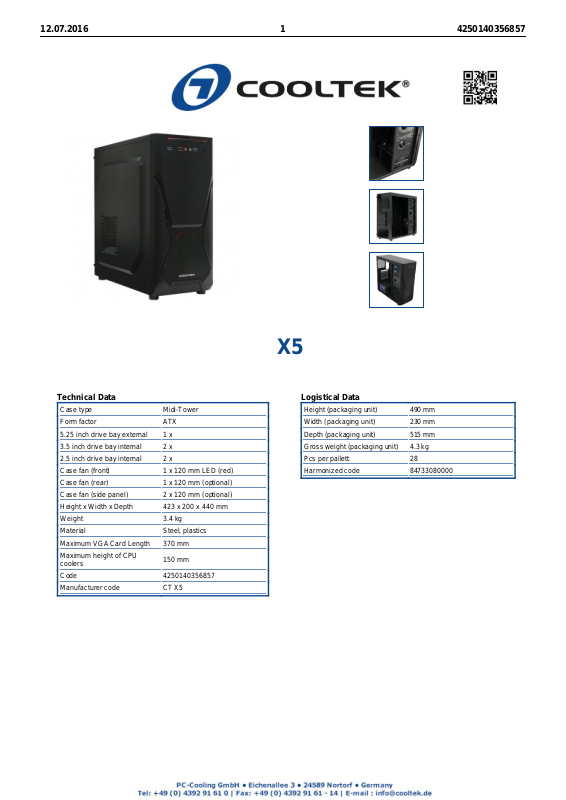

Page 1
12.07.2016 1 4250140356857
Technical Data
Case type Midi-Tower
Form factor ATX
5.25 inch drive bay external 1 x
3.5 inch drive bay internal 2 x
2.5 inch drive bay internal 2 x
Case fan (front) 1 x 120 mm LED (red)
Case fan (rear) 1 x 120 mm (optional)
Case fan (side panel) 2 x 120 mm (optional)
Height x Width x Depth 423 x 200 x 440 mm
Weight 3.4 kg
Material Steel, plastics
Maximum VGA Card Length 370 mm
Maximum height of CPU
coolers
Code 4250140356857
Manufacturer code CT X5
150 mm
X5
Logistical Data
Height (packaging unit) 490 mm
Width (packaging unit) 230 mm
Depth (packaging unit) 515 mm
Gross weight (packaging unit) 4.3 kg
Pcs per pallett 28
Harmonized code 84733080000
Page 2
12.07.2016 2 4250140356857
Cooltek X2 Midi Tower, ATX, 1 x USB 3.0, 1 x USB 2.0, schwarz
This stylish mid tower is well equipped and offers an attractive price-performance-ratio.
The X5 is a functional, elegant, as well as inexpensive standard mid tower. The front panel is dominated by an x-shaped MESH-grille in the lower
part of the front panel. A red-lit 120 mm Cooltek fan rotates behind it, offering a noteworthy optical highlight. In the upper part of the front, the
I/O-panel is located, which offers 2 x USB 3.0, 1 x USB 2.0, as well as HD-audio-connectors. Appropriate peripheral devices can be connected
quickly and easily from the front. The Power- and HDD-LED are located in the red strip at the top of the front. The Power-Button is located centrally at
the front of the top cover.
One external 5.25 bay for the installation of an optical drive is available. The chassis of the X2 is made from 0.5 mm thick steel and is carefully
painted matte black. The case is characterized by a valent processed steel chassis - carefully folded and deburred edges protect against cuts when
installing the hardware.
Internally, the X5 offers a HDD cage for two 3.5 inch drives. For the installation of 2.5 inch SSDs the case offers two dedicated mounting spots on the
HDD-wall. The drives are secured with screws.
The X5 features a sophisticated ventilation system. A red-lit 120 mm fan is already included. The fan is mounted behind the front panel and
transports fresh air into the case. Installed hard drives are cooled effectively at the same time.
One 120 mm fan can be mounted on the rear panel. The side panel features mounting options for another 120 mm fan. The cooling performance of
the installed VGA cards can be measurably improved and optimized by installing a fan in the honeycomb-mesh air hole in the side panel.
Due to the supply of fresh air via the front-mounted 120 mm fan and the removal of the heated air through an 120 mm fan at the back, a very
effective ventilation system can be implemented, to which the very generously sized air hole in the left side panel of the tower contributes
considerably.
The X5 is designed for all conventional ATX power supplies. The PSU is installed at the bottom of the rear panel of the X5. Seven PCI expansion
slots are available at the back of the case. ATX and Micro ATX motherboards can be installed in the case.
