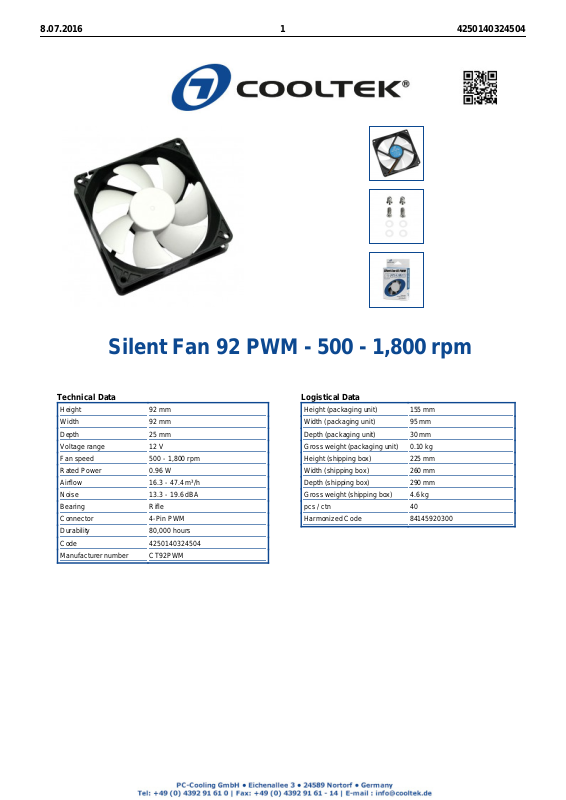

Silent Fan 92 PWM - 500 - 1,800 rpm
Technical Data
Height 92 mm
Width 92 mm
Depth 25 mm
Voltage range 12 V
Fan speed 500 - 1,800 rpm
Rated Power 0.96 W
Airflow 16.3 - 47.4 m³/h
Noise 13.3 - 19.6 dBA
Bearing Rifle
Connector 4-Pin PWM
Durability 80,000 hours
Code 4250140324504
Manufacturer number CT92PWM
Logistical Data
Height (packaging unit) 155 mm
Width (packaging unit) 95 mm
Depth (packaging unit) 30 mm
Gross weight (packaging unit) 0.10 kg
Height (shipping box) 225 mm
Width (shipping box) 260 mm
Depth (shipping box) 290 mm
Gross weight (shipping box) 4.6 kg
pcs / ctn 40
Harmonized Code 84145920300
Page 2
8.07.2016 2 4250140324504
With the Silent Fan Series, we present the next step in the evolution of low-noise Cooltek fans.
A revised fan blade design and the use of extremely durable Rifle-bearings are the outstanding features of this newly developed silent fan series.The
Cooltek Silent fans are ideal silent case fan for budget conscious users who are not willing to make compromises in quality.
This 92 mm model has a 4-pin PWM connector for automatic speed control. Over a 4-pin connector of the fan motor receives a special PWM signal
from the motherboard. The fan electronics evaluates the signal and regulates the power permanently according to the requirements.
The speed of the 92 mm PWM fan ranges from 500 - 1,800 rpm. The quiet-running fan generates an airflow rate from 16.3 to 47.4 m³/h at a noise
level from 13.3 to 19.6 dB(A). Included in the package are a set of fan screws and practical silicone washers for the decoupled mounting of the fan.
The frame of the 92 mm Silent Fan is particularly stable and gives the fan a high stiffness. In combination with the high-quality bearings, the fan
produces therefore with very little vibration.
Apart from the particularly high life expectancy the fan offers a very attractive price-performance-ratio.
The monitoring & control the fan speed is carried out via the motherboard (4-pin PWM connector).
