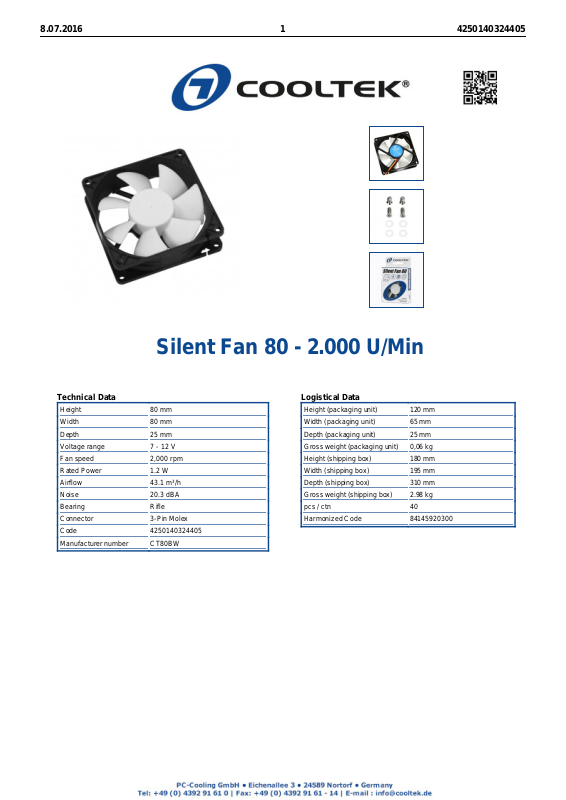

Page 1
8.07.2016 1 4250140324405
Silent Fan 80 - 2.000 U/Min
Technical Data
Height 80 mm
Width 80 mm
Depth 25 mm
Voltage range 7 - 12 V
Fan speed 2,000 rpm
Rated Power 1.2 W
Airflow 43.1 m³/h
Noise 20.3 dBA
Bearing Rifle
Connector 3-Pin Molex
Code 4250140324405
Manufacturer number CT80BW
Logistical Data
Height (packaging unit) 120 mm
Width (packaging unit) 65 mm
Depth (packaging unit) 25 mm
Gross weight (packaging unit) 0,06 kg
Height (shipping box) 180 mm
Width (shipping box) 195 mm
Depth (shipping box) 310 mm
Gross weight (shipping box) 2.98 kg
pcs / ctn 40
Harmonized Code 84145920300
Page 2
8.07.2016 2 4250140324405
With the Silent Fan Series, we present the next step in the evolution of low-noise Cooltek fans.
A revised fan blade design and the use of extremely durable Rifle-bearings are the outstanding features of this newly developed silent fan series.The
Cooltek Silent fans are ideal silent case fan for budget conscious users who are not willing to make compromises in quality.
This 80 mm model of the Silent Fan series rotates at 2,000 rpm max., producing an airflow rate of approximately 43.1 m³/h. The fan is particularly
silent running with a noise level of just 20.3 dB(A). Included in the package are a set of fan screws, and practical silicone washers for the decoupled
installation of the fan.
The starting voltage of the fan is about 7 volts; the speed can be adjusted at any time by means of a corresponding fan controller or an optional
adapter cable.
The frame of the 80 mm Silent Fan is particularly stable and gives the fan a high stiffness. In combination with the high-quality bearings, the fan
produces therefore with very little vibration.
Apart from the particularly high life expectancy the fan offers a very attractive price-performance-ratio.
The fan can be connected directly to the motherboard (3-pin molex connector). The monitoring of the speed through the motherboard or appropriate
monitoring software is possible.
