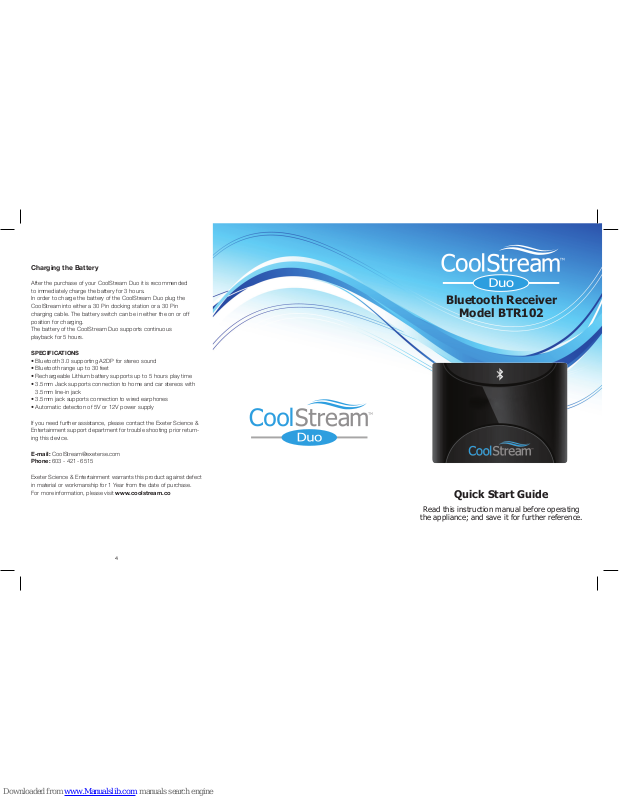

CoolStream Duo BTR102 Quick Start Manual
Bluetooth Receiver
Model BTR102
Quick Start Guide
Read this instruction manual before operating
the appliance; and save it for further reference.
4
Charging the Battery
After the purchase of your CoolStream Duo it is recommended
to immediately charge the battery for 3 hours.
In order to charge the battery of the CoolStream Duo plug the
CoolStream into either a 30 Pin docking station or a 30 Pin
charging cable. The battery switch can be in either the on or off
position for charging.
The battery of the CoolStream Duo supports continuous
playback for 5 hours.
SPECIFICATIONS
• Bluetooth 3.0 supporting A2DP for stereo sound
• Bluetooth range up to 30 feet
• Rechargeable Lithium battery supports up to 5 hours play time
• 3.5mm Jack supports connection to home and car stereos with
3.5mm line-in jack
• 3.5mm jack supports connection to wired earphones
• Automatic detection of 5V or 12V power supply
If you need further assistance, please contact the Exeter Science &
Entertainment support department for trouble shooting prior returning this device.
E-mail: CoolStream@exeterse.com
Phone: 603 - 421- 6515
Exeter Science & Entertainment warrants this product against defect
in material or workmanship for 1 Year from the date of purchase.
For more information, please visit www.coolstream.co
Wirelessly stream music from your iPhone, iPad, or other
Bluetooth-enabled device to either your 30-Pin docking station
or to any home or car stereo that has a 3.5mm line-out jack. The
CoolStream Duo offers 2 ways to bring Bluetooth to your audio
equipment.
The CoolStream Duo also has 2 power options. It can be
powered by the 30 Pin connector of a docking station or run on
its built-in rechargeable battery. The battery is charged when the
CoolStream Duo is plugged into the 30 Pin connector of a docking station or a 30 Pin charging cable.
Product Overview
1) Diagram Top View – On/Off Switch, 3.5mm jack
LED colour Status
RED/BLUE Battery Charging
BLUE (steady) Charging completed
Bluetooth Pairing mode
Bluetooth Paired
2) Battery On/Off Switch
• slide switch to left for “ON” position to activate battery.
• slide switch to right for “OFF” position to prevent battery from
draining.
3) 3.5mm Line out jack
• connect included line-in audio cable to home or car stereo with
auxiliary line-in jack
• connect wired headphones/earphones
Diagram Front View–Rechargeable Battery, Bluetooth 3.0
Diagram bottom view – 30 Pin connector for music
playback and battery charging
Playing Music from a Docking Station via 30 Pin Connector
1. Plug the CoolStream into the 30 Pin connector of the docking
station.
2. Go to “Settings” on your mobile device and activate Bluetooth.
3. Power on docking station. The CoolStream Duo will automatically power on.
4. Once “CoolStream Duo” appears on your mobile device, tap
to pair.
5. Play music from your mobile device.
6. Please note that playback via the 30 Pin Connector is not sup
-
ported by all docking stations. If playback via the 30 Pin Con
-
nector is not working and the docking station has a 3.5mm
line in jack, please follow the instructions below.
Playing Music from a Docking Station via 3.5mm Line-in Jack
1. Plug the CoolStream Duo into the 30 Pin connector of the docking station.
This will give power to the CoolStream Duo. (The power switch on the top of
the unit can be in either the on or off position.)
2. Plug one end of the Line-out auxiliary audio cable (provided by CoolStream)
into the 3.5mm jack at the top of the CoolStream Duo.
3. Plug the other end of the Line-out auxiliary audio cable (provided by CoolStream) into the 3.5mm line-in jack of the docking station. (Please check out
website www.coolstream.co for pictures)
4. Go to “Settings” on your mobile device and activate Bluetooth.
5. Power on docking station. The CoolStream Duo will automatically power on.
6. Once “CoolStream Duo” appears on your mobile device, tap to pair.
7. Play music from your mobile device. The CoolStream Duo can only be paired
with one device at a time.
Playing Music from Home or Car Stereo with a 3.5mm Line-In Jack
1. For this function the CoolStream Duo battery must be charged. See instruc-
tions below.
2. Plug one end of the Line-out auxiliary audio cable (provided by CoolStream)
into the 3.5mm jack at the top of the CoolStream Duo.
3. Plug the other end of the Line-out auxiliary audio cable (provided by CoolStream) into the 3.5mm line-in jack of the home or car stereo.
4. Turn on the battery of the CoolStream Duo by sliding the power switch at the
top of the CoolStream Duo to the left (on) position
5. Go to “Settings” on your mobile device and activate Bluetooth.
6. Once “CoolStream Duo” appears on your mobile device, tap to pair. Play music.
Playing Music with Wired Earphones (turn wired earphones into
Bluetooth earphones)
1.
Plug the earphones (not included) into the 3.5mm jack at the top of the
CoolStream Duo.
2.
Turn on the battery of the CoolStream Duo by sliding the power switch at the
top of the CoolStream Duo to the left (on) position.
3. Go to “Settings” on your mobile device and activate Bluetooth.
4. Once “CoolStream Duo” appears on your mobile device, tap to pair. Play music.
Playing Music from 2 Mobile Devices (Multipoint Function)
1 2
3
1
2
3
30 Pin connector for music playback
and battery charging
1. Power on CoolStream Duo by either plugging it into a docking station or by
turning on the built-in battery (see instructions above).
2. Pair first mobile device to CoolStream Duo (see instructions above).
3. Turn off the Bluetooth function of the first mobile device under Settings.
4. Pair second mobile device to CoolStream Duo. (see instructions above).
5. Turn on Bluetooth function of first mobile device. CoolStream Duo should
appear and automatically connect.
