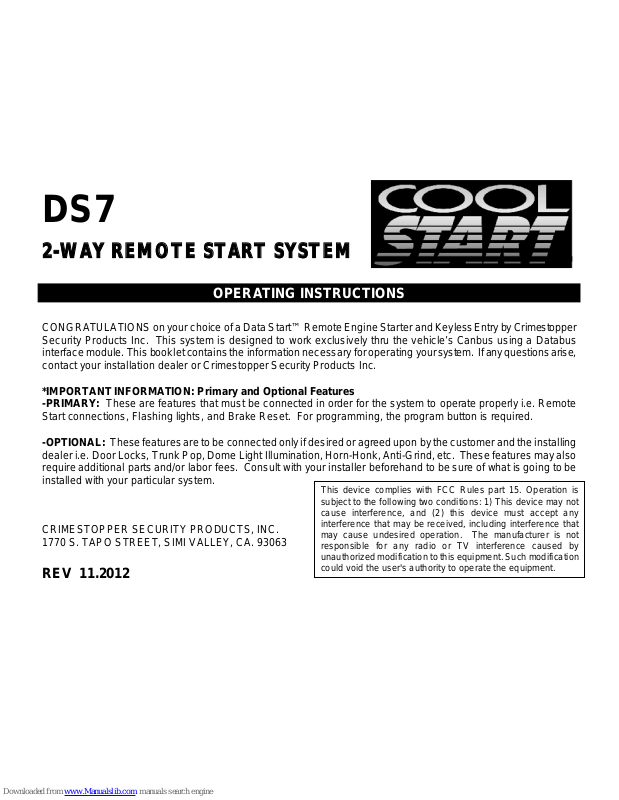

Cool Start DS7 Operating Instructions Manual
DS7
2-WAY REMOTE START SYSTEM
OPERATING INSTRUCTIONS
CONGRATULATIONS on your choice of a Data Start™ Remote Engine Starter and Keyless Entry by Crimestopper
Security Products Inc. This system is designed to work exclusively thru the vehicle’s Canbus using a Databus
interface module. This booklet contains the information necessary for operating your system. If any questions arise,
contact your installation dealer or Crimestopper Security Products Inc.
*IMPORTANT INFORMATION: Primary and Optional Features
-PRIMARY: These are features that must be connected in order for the system to operate properly i.e. Remote
Start connections, Flashing lights, and Brake Reset. For programming, the program button is required.
-OPTIONAL: These features are to be connected only if desired or agreed upon by the customer and the installing
dealer i.e. Door Locks, Trunk Pop, Dome Light Illumination, Horn-Honk, Anti-Grind, etc. These features may also
require additional parts and/or labor fees. Consult with your installer beforehand to be sure of what is going to be
installed with your particular system.
CRIMESTOPPER SECURITY PRODUCTS, INC.
1770 S. TAPO STREET, SIMI VALLEY, CA. 93063
REV 11.2012
This device complies with FCC Rules part 15. Operation is
subject to the following two conditions: 1) This device may not
cause interference, and (2) this device must accept any
interference that may be received, including interference that
may cause undesired operation. The manufacturer is not
responsible for any radio or TV interference caused by
unauthorized modification to this equipment. Such modification
could void the user's authority to operate the equipment.
2
TABLE OF CONTENTS
Operation Cautions & Warnings…….……………..….………………………………….…………….….…………2
Using the 2-Way Pager……………………………………………….……………………….………....…………...3-4
Setting the Clock and Beep or Vibrate Selection…………………………………………………….……….….4-5
1-Way Sidekick and Battery Replacement………….………………...……………………..…………….………..6
Status LED………………………………………………………………………………………………..……….….……7
Remote Engine Control…………….…..……………………………………………………………….…….…..…7-10
Turbo Timer Mode……………………………….……………………………………...……………….…………..….11
Manual Transmission Mode……………………………….……………………………………...…………………..12
Convenience and Safety Features……………………………….………………………………….…...……....12-14
Transmitter Programming….…………….…………………………………………….……………….…………..…15
2 Vehicle Operation.…………………………………….………………...…………………………………….………16
No Factory Keyless Entry after Remote Start…………..………………………………………………………….17
Remote Start Diagnostics……………………………………………………………………………………………..17
2-Way Data Port…………………………………………………………………………………………………………18
OPERATION CAUTIONS & WARNINGS
CRIMESTOPPER SECURITY PRODUCTS, INC. and its VENDORS shall not be liable for any accident resulting
from the use of this equipment. This system is designed to be professionally installed into a car or vehicle in which
all items, such as parking brake and all associated components, door switches, transmission shift linkage, throttle
linkage, and all engine safety features, are in perfect working condition.
IT IS ABSOLUTELY THE OWNER’S SOLE RESPONSIBILITY TO: A) Understand the operation of this system
and its safety features. B) Check for proper operation of the system prior to accepting delivery of the vehicle from
the installation facility. C) Check and maintain the condition of the vehicle and all items relative to the proper
operation of this system and its safety features. D) Always leave the doors and windows closed and locked to
protect against accidents and theft.
DO NOT remote start the vehicle in a closed garage. Make sure that the garage door is open or there is
adequate ventilation. Failure to observe this rule could result in injury or death from poisonous Carbon Monoxide
fumes.
3

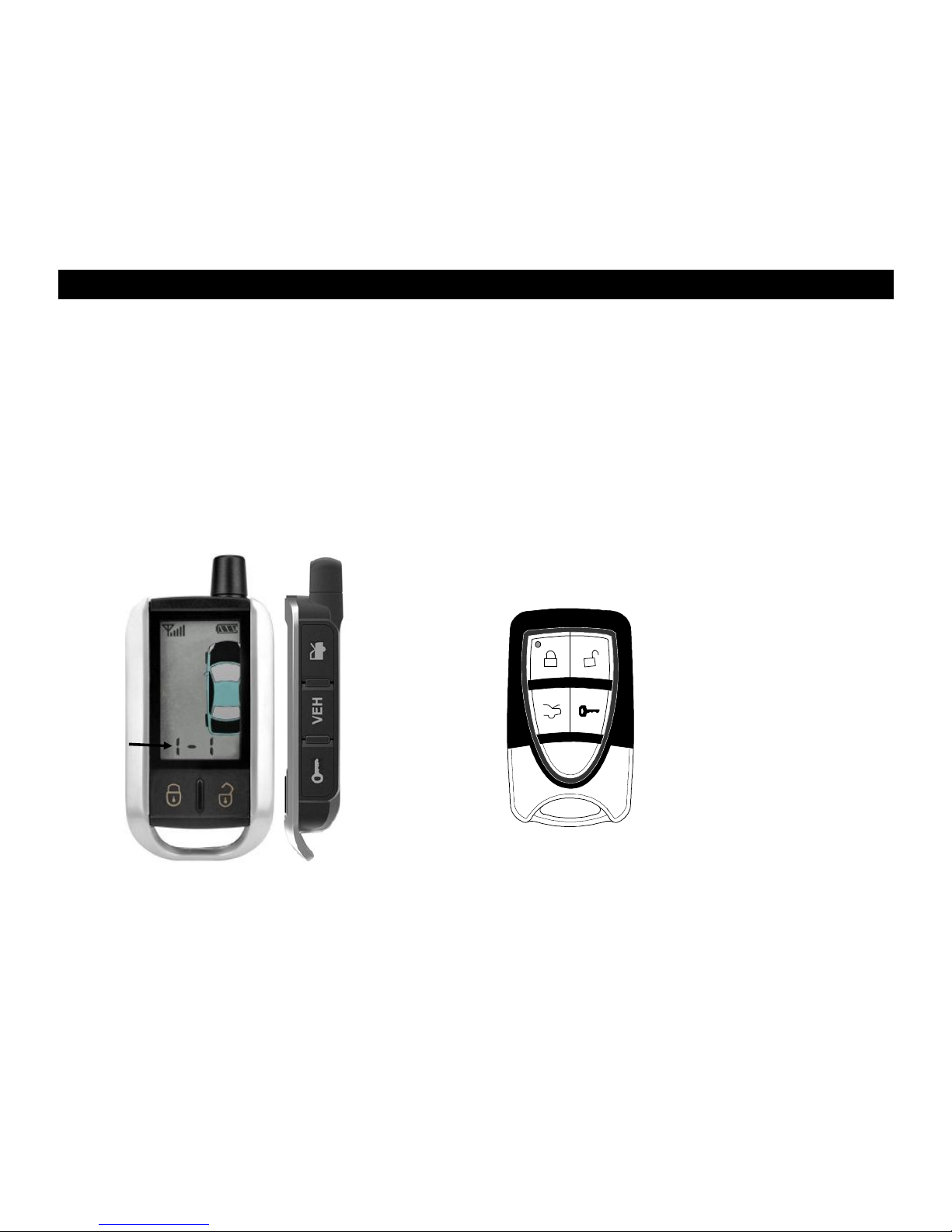

USING THE 2-WAY PAGER TRANSMITTER
POWER OFF FUNCTION
To turn Power ON, press and hold unlock button 2 seconds.
To turn Power OFF, press and hold unlock button 5 seconds.
Valet Mode
Battery Life
Sensor Warning
Sensor Trigger
Transmit Signal
Trunk Open
Remote Started
Hood Open
Door Open
Lock/Unlock
(Arm/Disarm)
Ignition ON
Silent no beeps
CLOCK /
LCD SCREEN ICONS
(Small Hammer)
(Big Hammer)
Note:
Some Icons on the LCD display only function
on the Combo Alarm with Remote Start
LOCK / ARM
UNLOCK / DISARM
(Tools)
Run Count Down
USB Charger
SIDE BUTTONS
TRUNK
VEHICLE
REMOTE
(Under Side Cover)
START
SELECT
RELEASE
AUX Outputs thru Data
AUX 1 = Trunk + Lock
AUX 2 = Trunk + Unlock
AUX 3 = Trunk + Start
AUX 4 = Lock + Start
This remote can control up to 4 AUX
functions thru data depending on the
vehicle and data module. This is typically
used for operating left and right sliding
doors. (Requires Canbus Data Module)
4
USING THE 2-WAY PAGER TRANSMITTER
The 2-Way LCD Pager remote transceiver is used to send and receive information from the vehicle. The
Control Module transmits High Frequency FM signals from the vehicle to your pager over long distances. Your
range will vary depending on location, terrain, and local RF noise/interference. This system is not guaranteed to
page you if you are behind concrete walls, underground, in a large structure, or in an area with high levels of
electronic interference. Handle the pager/remote with care. The LCD display and/or the electronics may be
damaged if subjected to abuse.
BATTERY CHARGING
The 2-Way LCD remote has a battery charge indicator on top right corner of display. The battery voltage affects the
distance of the remote control. The system comes with a standard Mini USB charging cable that plugs into the side
of remote control. To access to USB plug, slide the cover to the left shown below.
SETTING THE CLOCK (2-WAY- LCD REMOTE)
1. Press VEH Button on the side of the remote control 5 times.
2. The remote will beep and the AM or PM display will begin flashing.
3. Press the Trunk Button to go to the next item – AM - PM - Hour- Minutes.
4. Press the Lock Button to Increase time.
5. Press the Unlock Button to decrease time.
6. Press the Start Button to Disable or Enable Beep and Vibration. See next page.
7. Press the VEH Button to Save and Exit Setup or wait 8 seconds, the LCD light will turn off.
USB Charging Port
5
REMOTE BEEP & VIBRATE SELECTION
The LCD pager remote BEEPS and VIBRATES when it receives a signal from the vehicle. The Beeps and
Vibration are selectable (on/off). To enter program mode,
1. Press VEH Button on the side of the remote control 5 times.
2. The remote will beep and the AM or PM display will begin flashing.
3. Press the Start button to choose the mode of “Beep ON/OFF & Vibrate ON/OFF”.
4. Press the VEH Button to Save and Exit Setup or wait 8 seconds, the LCD light will turn off.
Mode 1: The remote beeps once and vibrates: this indicates “Beep ON & Vibrate ON”.
Mode 2: The remote beeps once without vibration; this indicates “Beep ON & Vibrate OFF”.
Mode 3: The remote only vibrates, without beep; this indicates “Beep OFF & Vibrate ON”.
Mode 4: The remote does not vibrate or beep; this indicates “Beep OFF & Vibrate OFF”.
6
1-WAY SIDEKICK
The 1-Way sidekick remote adds flexibility to your system. You can have the convenience of operating your system without needing
to carry the larger pager remote. The Sidekick remote has less range and offers all of the same operation features except for pageback confirmation. The 1-Way Sidekick Remote uses three CR-2016 Lithium 3 Volt Batteries.
To replace the battery on Sidekick:
Simply remove the two Phillips screws holding the back cover in place. Side old batteries out and remove plastic cover. Insert the
new batteries into plastic cover and slide into place with the (+) end facing up. The plastic cover keeps the batteries from shorting out
against the side of metal housing.
VEH
UNLOCK
START
DISARM /
ARM /
LOCK
TRUNK
VEH1 / VEH 2
2 Screws
CRIMESTOPPER
Back Cover
CR2016
